Feature-rich solution without breaking the bank

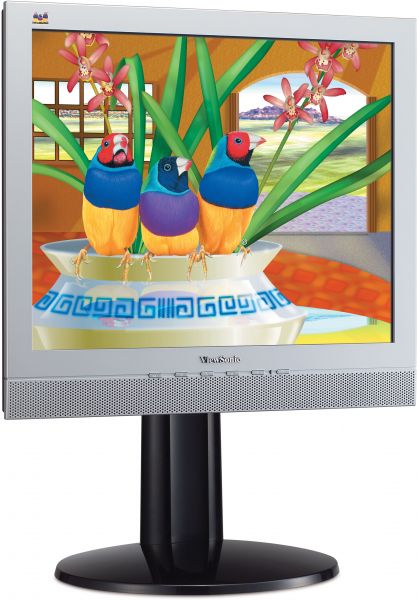

The 43 cm / 17" ViewSonic VE720m LCD monitor features ViewSonic's innovative CLEARMOTIV™ BROADCAST-QUALITY VIDEO WITH DYNAMIC STRUCTURE™ TECHNOLOGY to combine an 8ms video response with vibrant, clear images. The newly designed base allows HEIGHT AND TILT adjustments to provide ergonomic working conditions. This value-positioned display brings tech-savvy users all the bells and whistles they crave without the heavy price tag. Enjoy a true multimedia experience with less clutter and components on the desktop with the all-in-one VE720m LCD – great for mixed data, audio, graphics, video content and games.SPECIFICATIONS
- LCDType: 43cm / 17" TN colour TFT active matrix SXGA LCD
Contrast Ratio: 350:1 (typ.)
Viewing Angles: 160° horizontal, 120° vertical (at 10:1)
160° horizontal, 150° vertical (at 5:1)
Brightness: 350cd/m² (typ.)
Display Area: 33.8cm horizontal x 27.0cm vertical; 43.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (off-on-off) (typ.)
Light Source: Long life, 50000 hrs. (typ.)
Panel Surface: Anti-glare 3H
Pixel Pitch: 0.264mm
Colour Support: 16.2M colours (6-bit+2-bit FRC)
Pixel Clock: 135MHz - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced (max. 75Hz)
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced (max. 75Hz) - DIMENSIONSPhysical With Stand: 386mm x 404mm – 504mm x 221mm (with stand)
Physical Without Stand: 386mm x 354mm x 61mm (without stand)
- REGULATIONSTCO’99, TÜV/GS, TÜV/ERGO, ISO13406-2 (pixel failure class II), CE, CB, UL,
cUL, FCC-B, Energy Star®, GOST-R, Hygienic, NOM, TÜV-S, SASO, PCBC,
VCCI, BSMI, CCC, PSB, C-TICK - PACKAGE CONTENTSLCD monitor, power cable, VGA cable, audio cable, Quick Start Guide,
ViewSonic Wizard CD (User Guide/drivers) - AUDIOSpeaker: 2 x 1-watt
Amplifier: 1-watt @ THD < 8% - CONNECTORAnalogue: 15-pin mini D-Sub (detachable cable)
Power: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in - POWERVoltage: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consumption: <42 watt (typ.) <2 watt in power save mode - CONTROLSBasic: Power, menu [1], down, up, select [2], mute
OSD: Auto image adjust, contrast, brightness, ViewMatch® colour adjust (sRGB,
9300K, 6800K, 6500K, User-RGB), information (resolution, H/V frequency,
pixel clock, model number, serial number), audio (volume, mute), manual
image adjust (H/V position, fine tune, sharpness), setup menu (language,
resolution notice, OSD position, OSD timeout, OSD background),
OSD/power lock, memory recall - OPERATING CONDITIONSTemperature: 0°C – 40°C
Humidity: 10% – 90% (non-condensation) - WEIGHTWeight: 4.3kg (with stand)
- VIDEO INPUTFrequency: Fh: 30 ~ 82kHz, Fv: 50 ~ 85Hz
Analogue: RGB analogue (0.7 Vp-p, 75 ohm)
Sync: H/V separate (TTL) - POWER MANAGEMENTMeets TCO’99 and Energy Star® standards
- SECURITYKensington® security port
- VESA MOUNT COMPLIANTVESA® FPMPMI 75mm x 75mm
- ERGONOMICSTilt: Down 5°, up 20°
Height Adjustment: 0 ~ 100mm
