Feature-rich solution without breaking the bank.

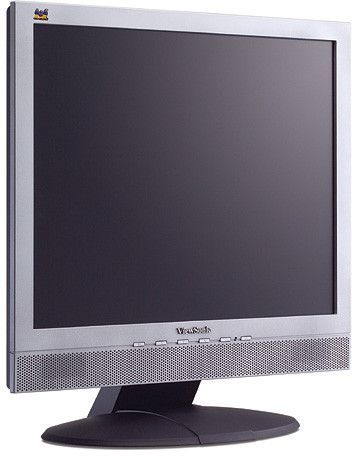

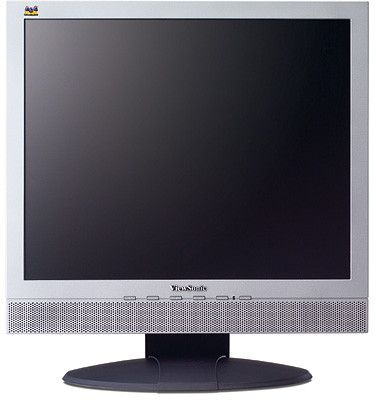

The 43cm / 17" ViewSonic VA712 LCD display features ViewSonic's innovative CLEARMOTIV™ BROADCAST-QUALITY VIDEO WITH DYNAMIC STRUCTURE™ TECHNOLOGY to combine an 8ms video response with vibrant, clear images. This value-positioned display brings tech-savvy users all the bells and whistles they crave without the heavy price tag. Enjoy a true multimedia experience with less clutter and components on the desktop with the all-in-one VA712 LCD – great for mixed data, audio, graphics, video content and games.
The 43cm / 17" ViewSonic VA712 LCD display features ViewSonic's innovative CLEARMOTIV™ BROADCAST-QUALITY VIDEO WITH DYNAMIC STRUCTURE™ TECHNOLOGY to combine an 8ms video response with vibrant, clear images. This value-positioned display brings tech-savvy users all the bells and whistles they crave without the heavy price tag. Enjoy a true multimedia experience with less clutter and components on the desktop with the all-in-one VA712 LCD – great for mixed data, audio, graphics, video content and games.
SPECIFICATIONS
- LCDType: 43cm / 17" colour TFT active matrix SXGA LCD
Contrast Ratio: 350:1 (typ.)
Viewing Angles: 160° horizontal, 120° vertical (at 10:1)
160° horizontal, 140° vertical (at 5:1)
Brightness: 350cd/m² (typ.)
Display Area: 338mm horizontal x 270mm vertical, 43.2cm diagonal
Optimum Resolution: 1280 x 1024
Response Time: 8ms (typ)
Light Source: Long life, 50,000 hrs. (typ.)
Panel Surface: Anti-glare
Pixel Pitch: 0.264mm
Colour Support: 16.2M colours (6-bit +2-bit FRC) - COMPATIBILITYPC: VGA up to 1280 x 1024 (up to 75 Hz)
Mac®: Power Mac™ G3/G4/G5 1280 x 1024 (up to 75 Hz) - DIMENSIONSW x H x D mm: 386 x 411 x 177 (with stand)
- REGULATIONSCE, CB, GS, ERGO, ISO13406-2 (pixel failure class II), TCO'99, UL, cUL, FCC-B, ENERGY STAR®, NOM, TUV-S, MPR II, GOST-R + 20 original copies hygienic, SASO, PCBC, VCCI, BSMI, CCC, PSB, C-TICK
- AUDIOSpeaker: 2 x 1 watt
- INPUT SIGNALFrequency: Fh: 30~82kHz
Fv: 50~85Hz
Video: RGB analogue (75 ohms, 0.7 Vp-p)
Sync: H/V separate (TTL) - CONNECTORAnalogue: 15-pin mini D-Sub (captive cable)
Audio: Stereo mini audio line in - POWERVoltage: AC 100–240V (universal), 50–60Hz (auto switch), external power supply
Consumption: 51 Watt (typ.) - CONTROLSOSD: Auto image adjust, brightness, contrast, input selection, ViewMatch® colour adjust (sRGB, 9300K, 6800K, 6500K), information (mode, model number, serial number), audio (volume, mute), manual image adjust (H. position, V.position, fine tune, sharpness), setup menu (language, resolution notice) OSD position, OSD timeout, OSD background, memory recall
Physical: Power on/off, menu, up, down, select - OPERATING CONDITIONSTemperature: 0°C to 40°C
Humidity: 10% to 90% (no condensing) - WEIGHTNet: 4.3kg
- POWER MANAGEMENTMeets TCO'99 and ENERGY STAR® standards
- ERGONOMICSDown 5°, Up 20°
