VA2413wm
61 cm / 24" (23.6" VIEWABLE) WIDESCREEN LCD WITH 16,000:1 DYNAMIC CONTRAST RATIO
Environmentally friendly, 1920 × 1080 LCD

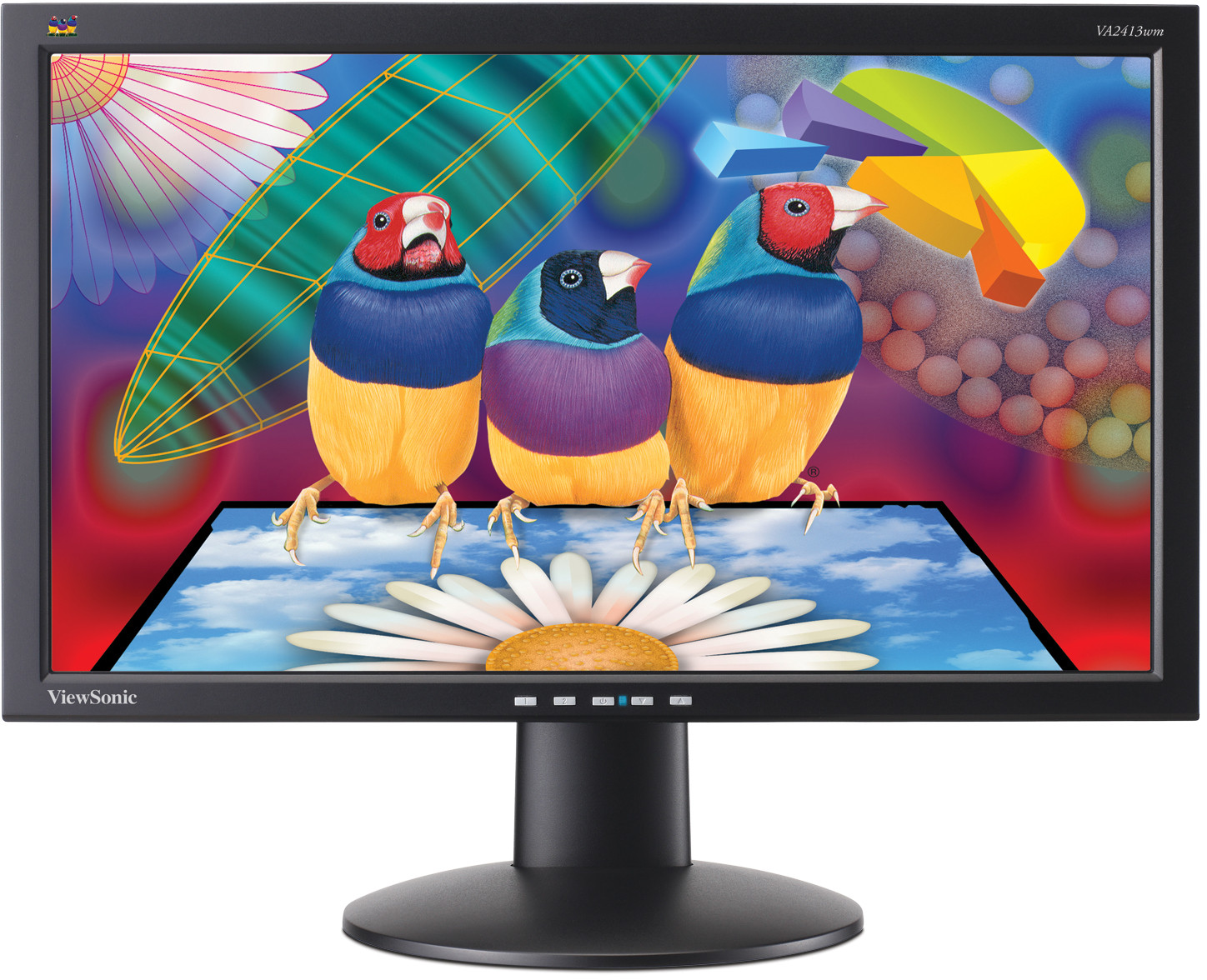

ViewSonic’s 61 cm / 24" (23.6” viewable) VA2413wm 16:9 widescreen LCD delivers 1920 × 1080 performance and ultra-high 16,000:1 dynamic contrast ratio for unsurpassed HD content on your desktop. It’s ideal for business applications where blur-free motion, crisp detail and precise images are critical. The aspect ratio adjustment ensures that even your 4:3 images are displayed without any stretching or distorion. This display is multimedia ready with hidden speakers. The VA2413wm is environmentally friendly with TCO`03 certification and Eco-mode that automatically reduces power consumption and can extend backlight life. The VA2413wm is ideal for corporate use where an eco-friendly, high-performance LCD can enhance your productivity.
SPECIFICATIONS
- COLORSBlack
- LCDContrast Ratio: 1000:1 (typ.) ; 16000:1 dynamic
Viewing Angles:
170° (H), 160° (V) at CR≧10 / 170° (H), 170° (V) at CR≧5
Brightness: 300 cd/m² (typ.)
Display Area:
521 (mm) × 293 (mm) / 20.5 (in) × 11.5 (in)
Optimum Resolution: 1920 x 1080 WUXGA (HD resolution)
Response Time: 5ms (on/off)
Light Source: 50,000 hrs (typ.)
Panel Surface: Anti-Glare, Hard coating (3H)
Pixel Pitch: 0.2715mm (H) × 0.2715mm (V)
Colour Support: 16.7 M (6-bits + 2-bits Hi FRC)
Size: 60 cm (23.6") wide Color TFT Active Matrix LCD 16:9 aspect ratio - COMPATIBILITYPC: VGA up to 1920×1080 Non Interlaced
Mac®: Power Mac, up to 1920×1080
- DIMENSIONSPhysical With Stand: 564mm × 417mm × 261mm
Physical Without Stand: 564mm × 335mm × 67mm - REGULATIONSCB, TCO'03, WEEE, RoHS, UL/cUL, FCC-B, IRAM, NOM, Energy Star,
NEMKO/ERGO, CE, Ukraine,GOST-R+Hygienic, SASO, BSMI, PSB, C-TICK,MIC, VCCI, CCC - AUDIOSpeaker: 2 × 2 watt
- RECYCLE/DISPOSALThe lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- INPUTSync: Separate Sync
Analogue:
RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh: 22-82kHz, Fv: 50-75Hz - CONNECTORAnalogue/Digital: 15 pin mini D-sub×1
Audio: 3.5 mm Audio line-in
Power: 3-pin AC plug (CEE22) - POWERVoltage: AC 100-240V (Universal); 50/60Hz (Switch)
Consumption: 47 (Max)
Eco Mode: Standard 45W / Optimize 31W / Conserve 26W
Save mode: ≦1W - CONTROLSBasic: [1], [2], Power, Down, Up
On View (PC mode): Auto Image Adjust, Contrast/Brightness, Audio Adjust (Volume, mute),Color Adjust (sRGB, 9300K, 7500K, 6500K, 5000K, User Color [R, G, B]),
Information, Manual Image Adjust (H/V Position, Horizontal Size, FineTune, Sharpness, Dynamic Contrast, Aspect Ratio, ECO Mode), Setup
Menu (Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background, Sleep), Memory Recall - OPERATING CONDITIONSTemperature: 5°C - 35°C (41°F - 95°F)
Humidity: 20 - 80% (Non condensed) - WEIGHTNet: 5.3 kg
Gross: 6.8 kg - POWER MANAGEMENTTCO'03, ENERGY STAR
- ERGONOMICSTilt: 20° ~ -5°
- VESA MOUNT COMPLIANTVESA 100mm x 100mm
