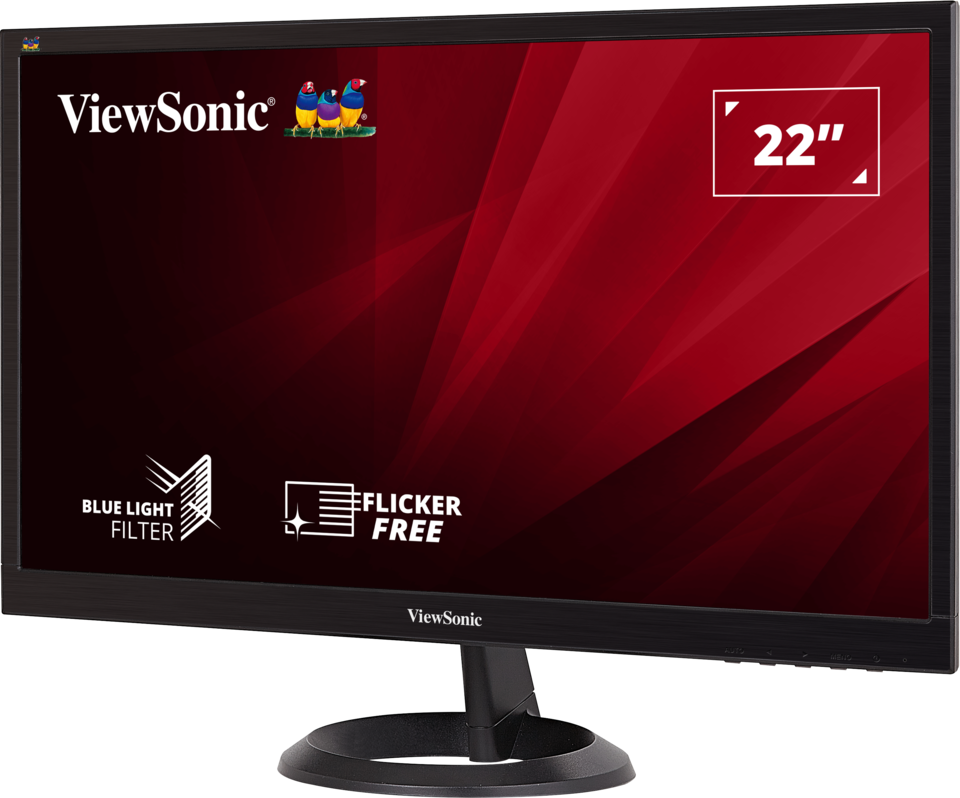

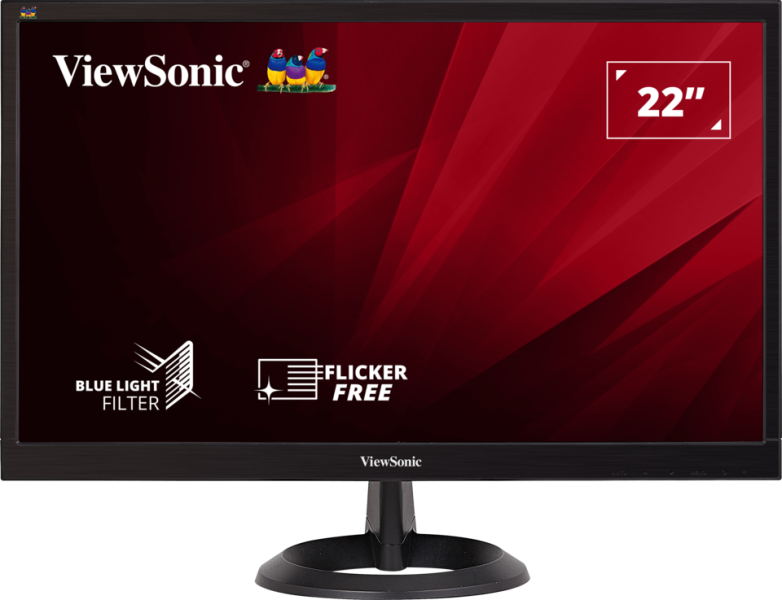

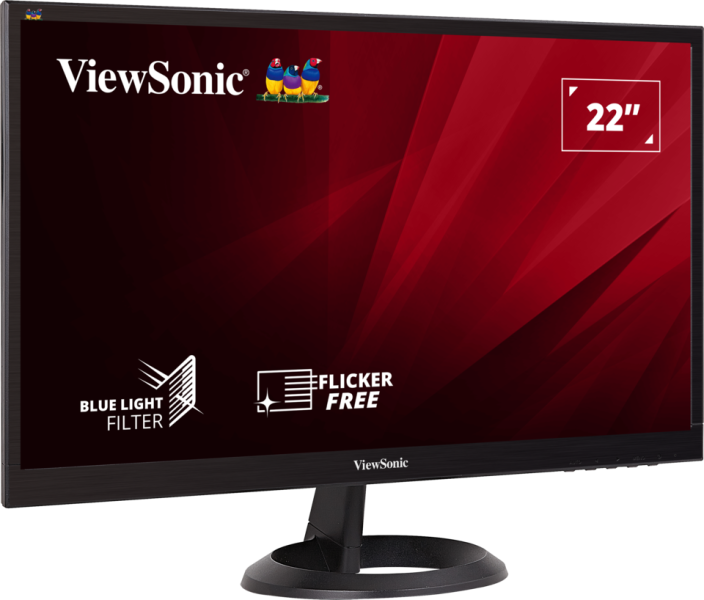

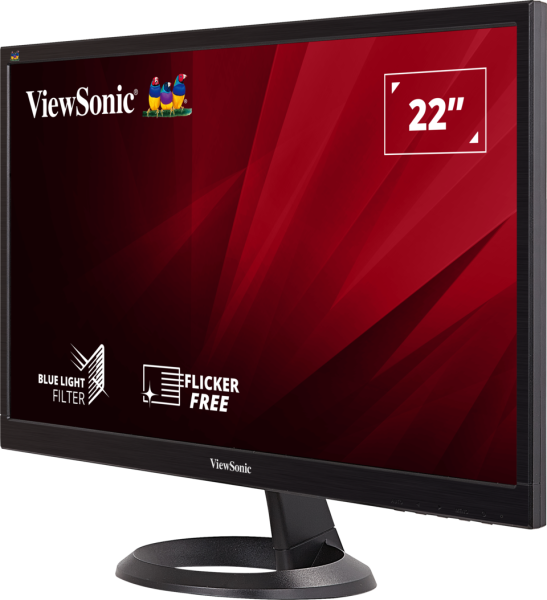

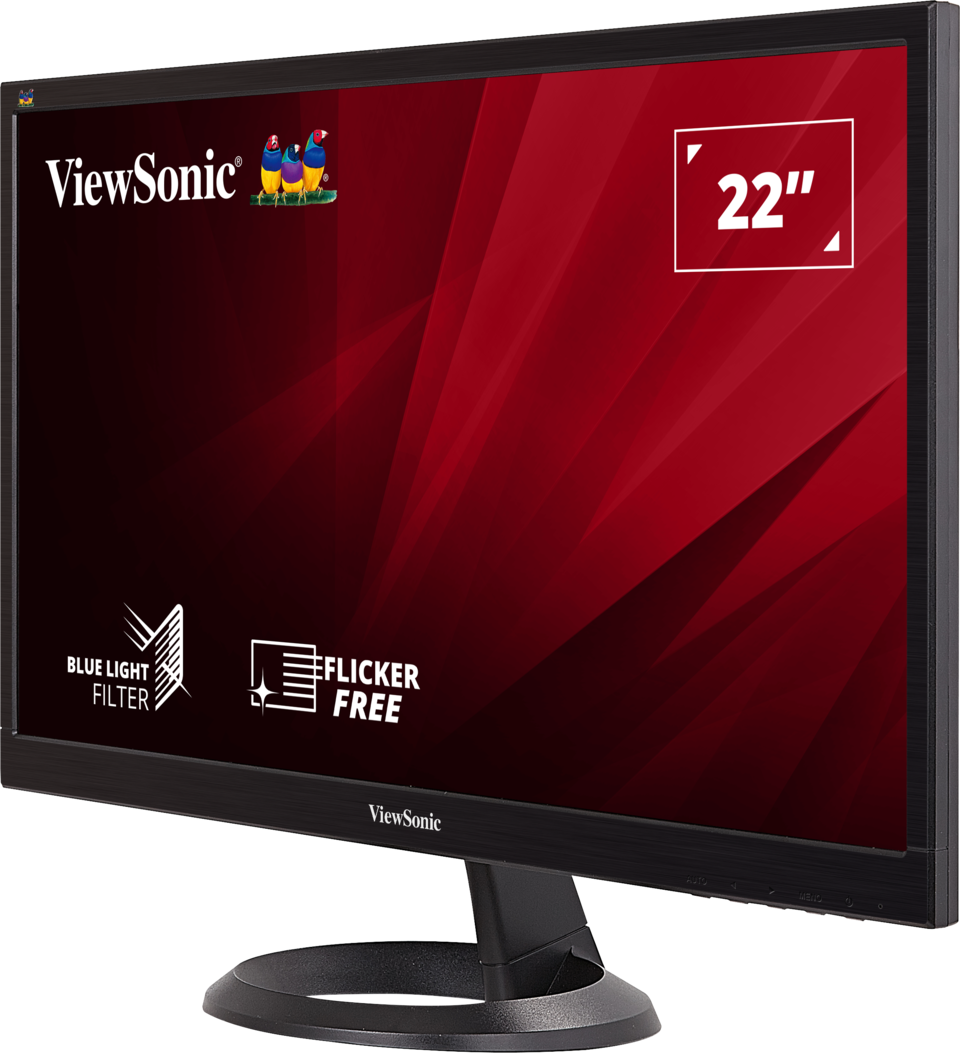

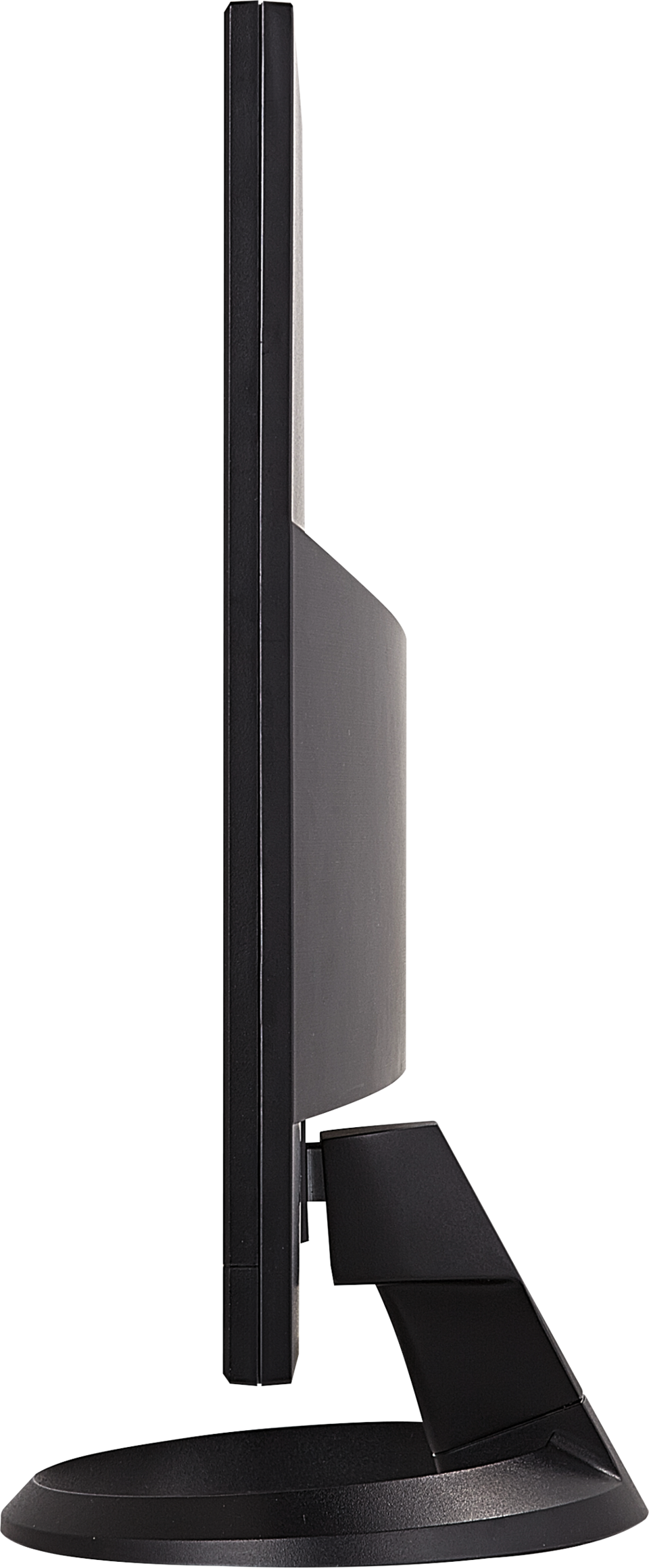

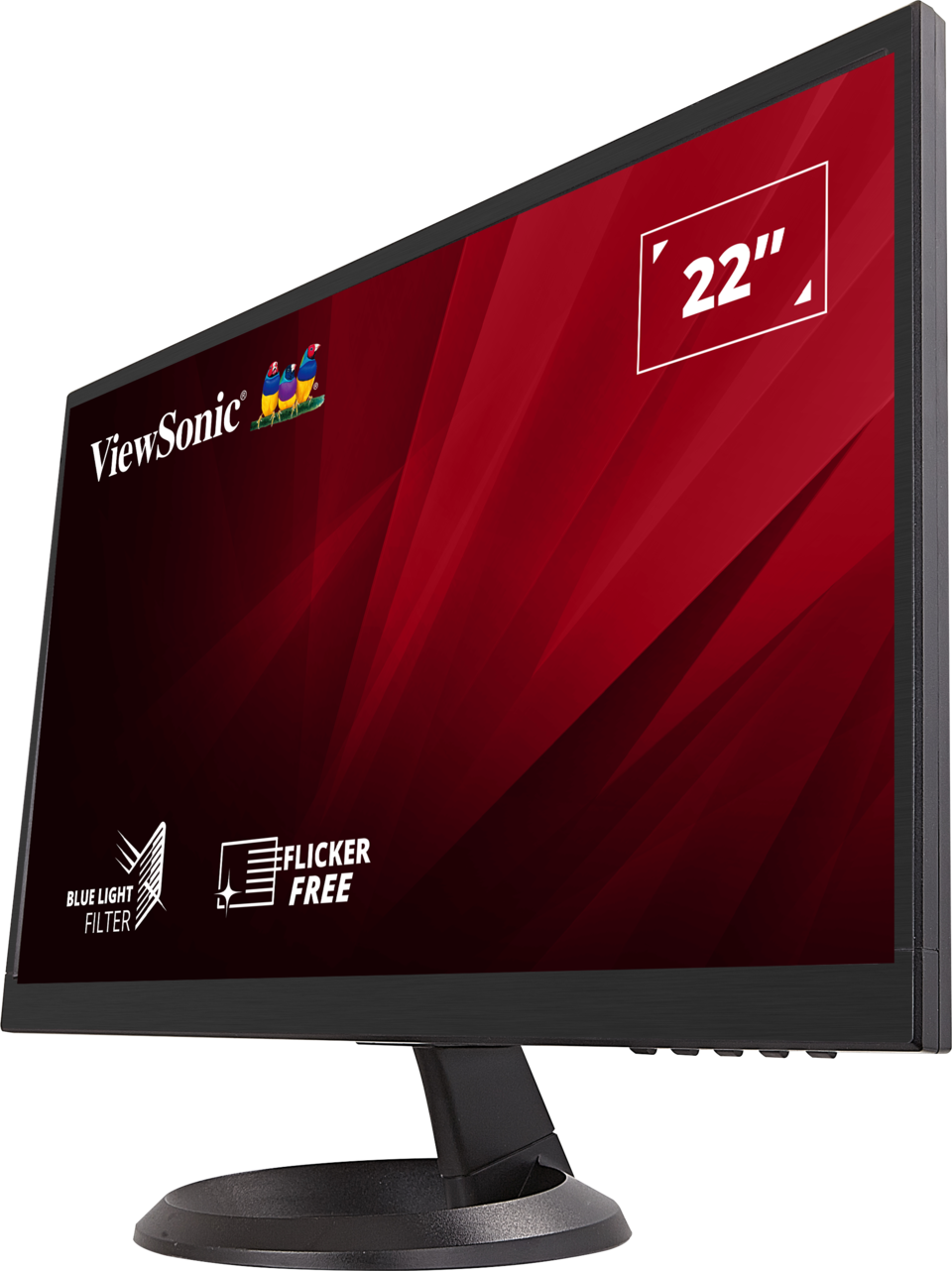

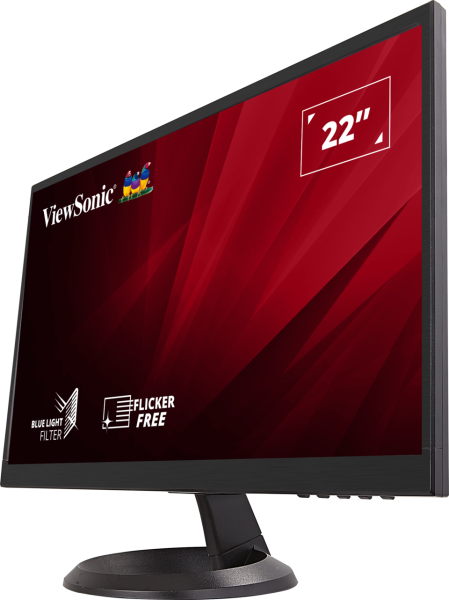

VA2261H-8
22" 1080p Home and Office Monitor
- ViewMode technology
- HDMI and VGA inputs
- Flicker-Free and Blue Light Filter
- Eco-mode
- VESA mountable
OVERVIEW

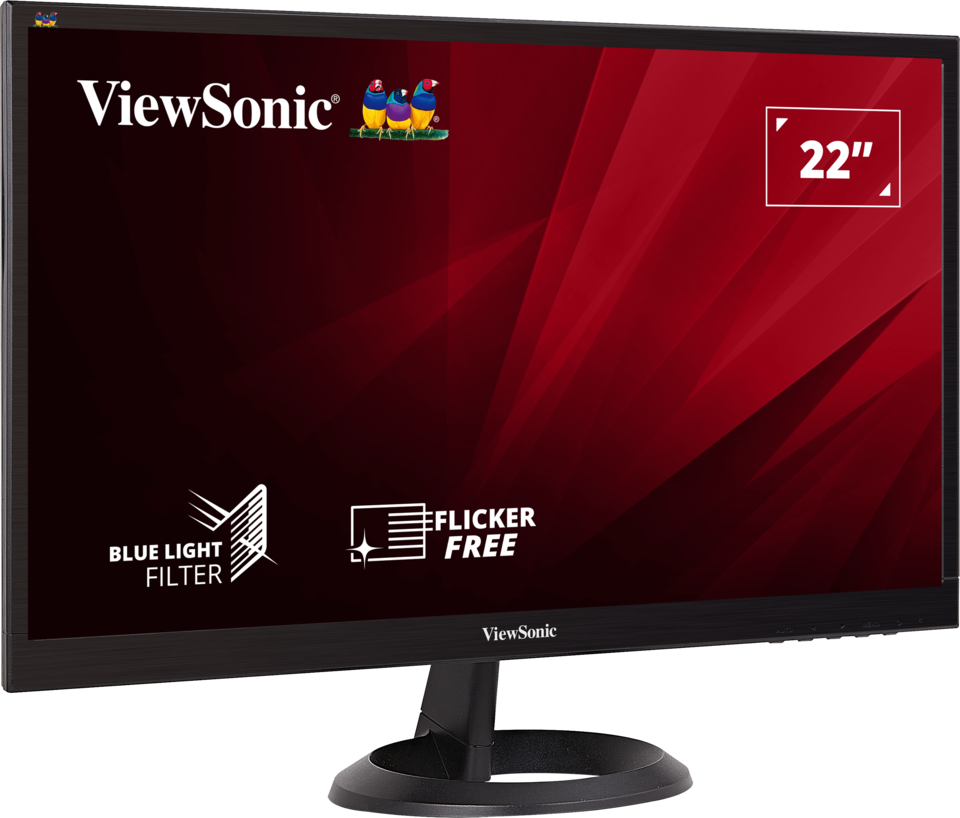

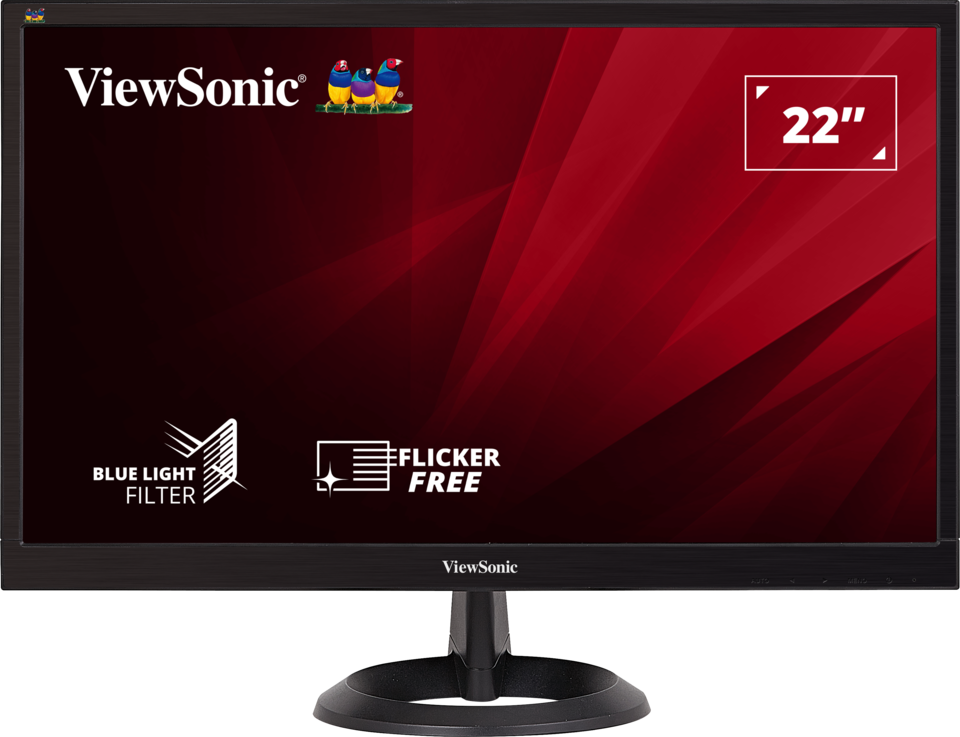

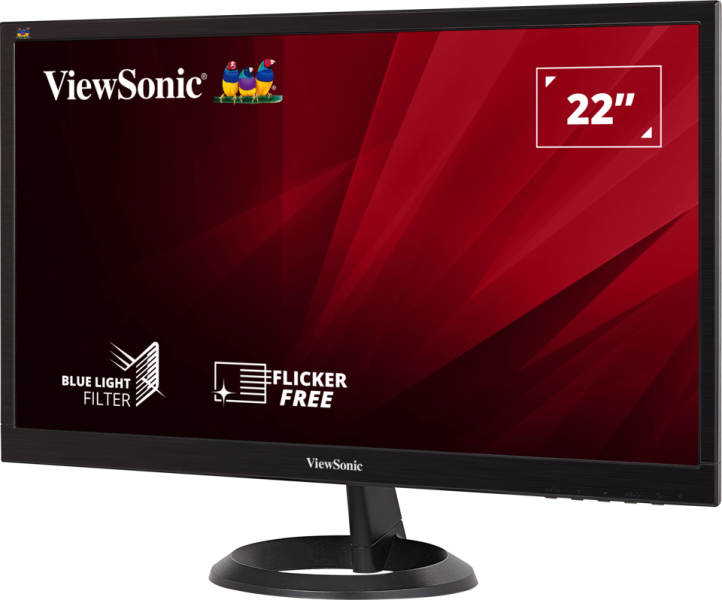

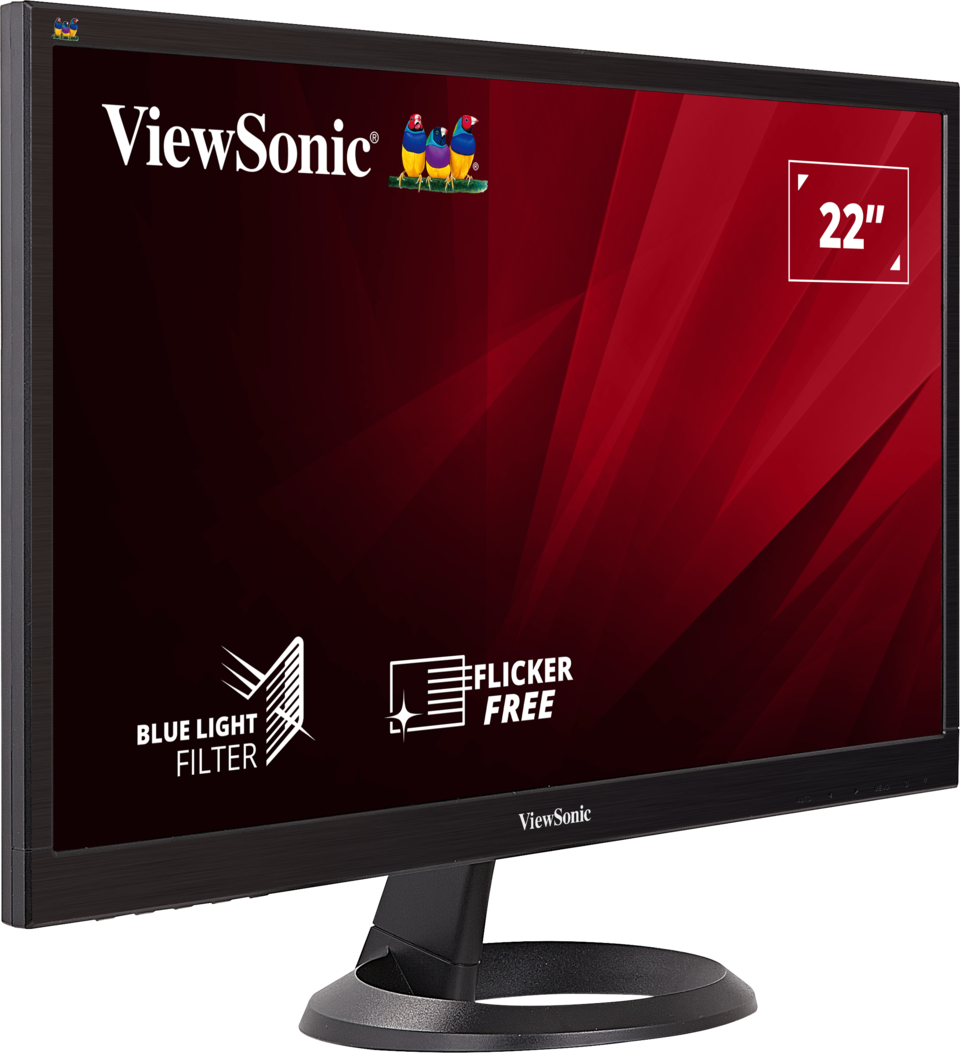

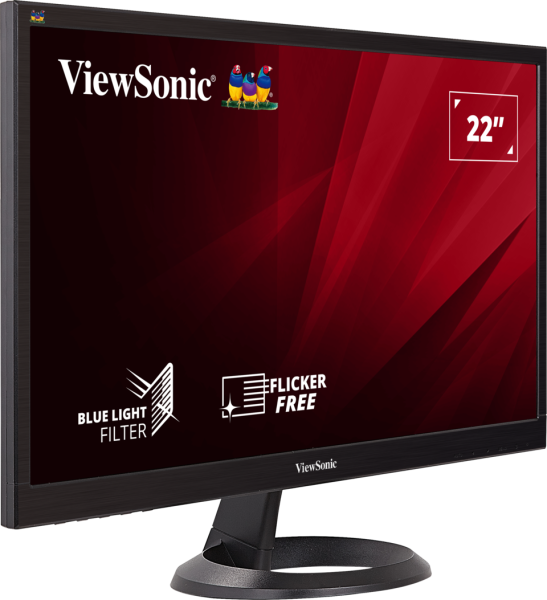

The ViewSonic VA2261h-8 is a 22" (21.5" viewable) Full HD LED Monitor which is ideal for business or home usage. It features 1080p resolution which delivers stunning image quality and more refined pixel detail. ViewSonic’s exclusive ViewMode feature provides intuitive presets that deliver optimized screen performance for different applications. Besides, Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods for improved productivity. HDMI and VGA provides flexible connectivity. In addition, the VESA mountable design allows you to mount the display on a monitor stand for multiple monitor setup or on a wall.Full HD 1080p Resolution
This monitor features Full HD 1920x1080 resolution for unbelievable pixel-by-pixel image performance. You’ll experience amazing clarity and detail whether while working, gaming, or enjoying the multimedia entertainment.

ViewMode: Superior Colour Rendering & Intuitive Settings
ViewSonic’s unique ViewMode feature offers “Game,” “Movie,” “Web,” “Text,” and “Mono” presets. These presets enhance gamma curve, colour temperature, contrast, and brightness to deliver an optimized viewing experience for different screen applications.

Flexible connectivity
HDMI and VGA inputs give you the freedom to connect your monitor to PC, laptop, blu-ray DVD and game consoles.

Enhanced Viewing Comfort
Flicker-Free technology and a Blue Light Filter help to eliminate eye strain from extended viewing periods

Eco-mode Conserves More Energy
ViewSonic’s proprietary Eco-mode adjusts brightness and improves visibility, while reducing eye fatigue and saves up to 50% power consumption. With Eco-mode, the lifespan of the LED backlighting is also greatly increased.

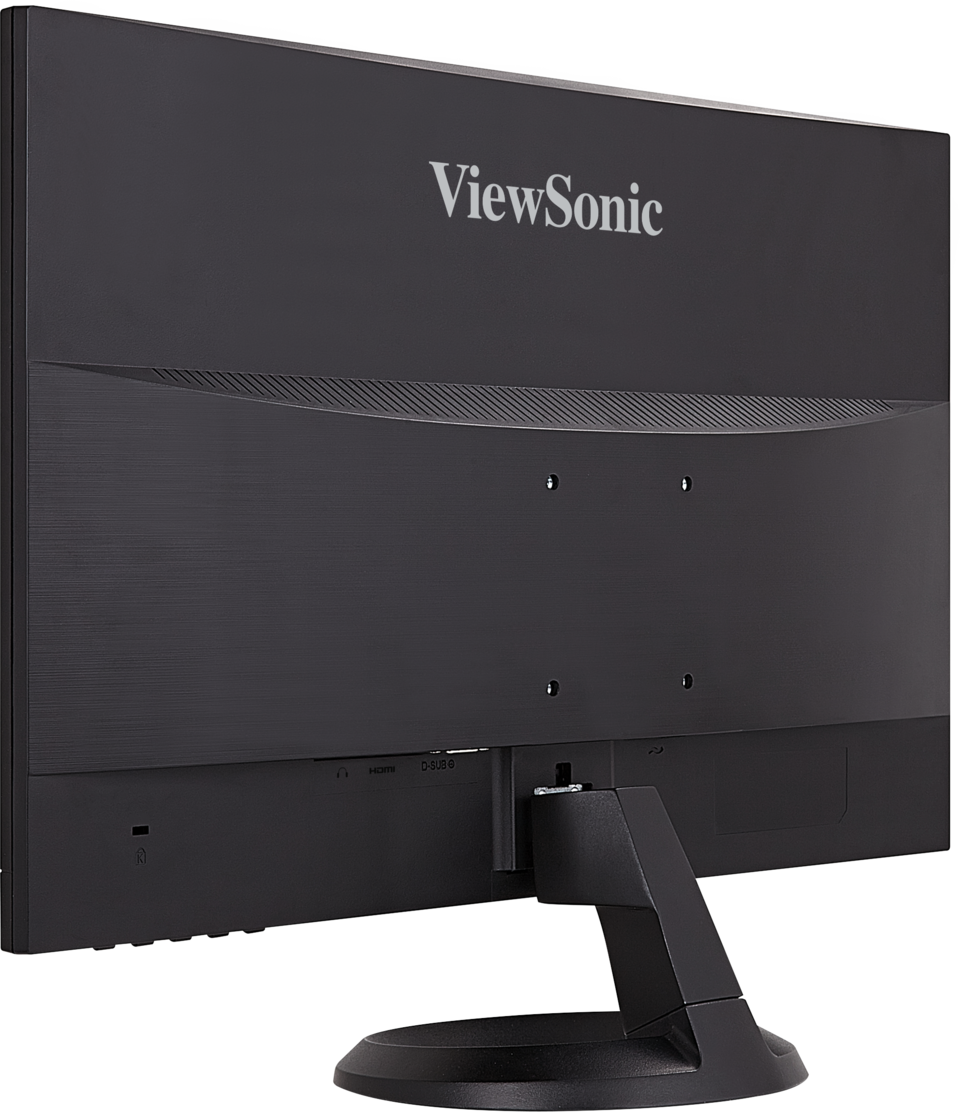

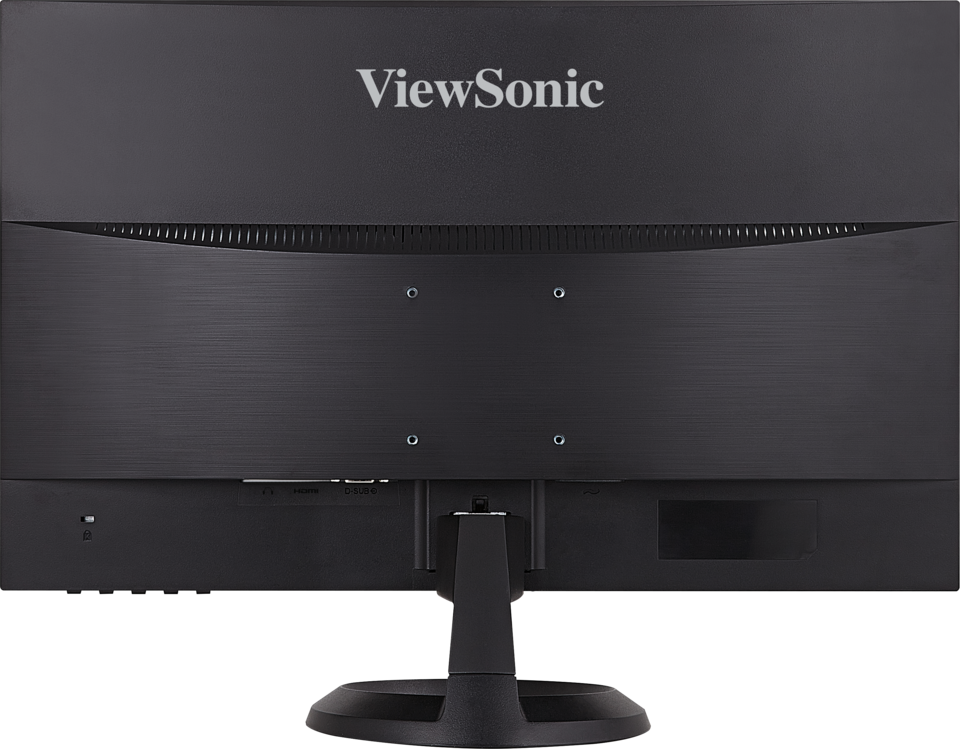

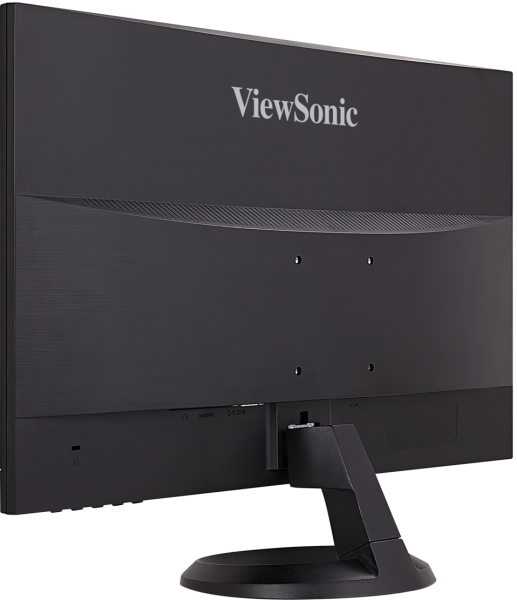

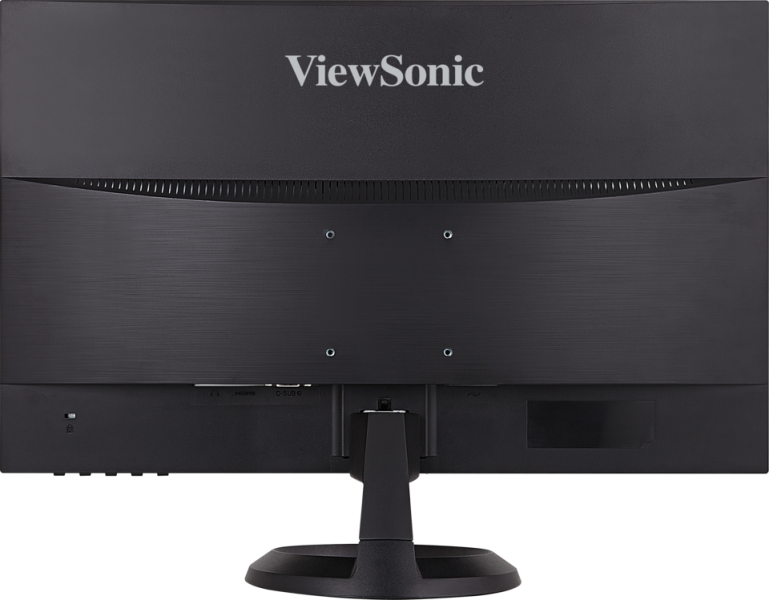

VESA-Compatible Mount Design
Mount the monitor as you see fit using its convenient 75 x 75 mm VESA-mountable design.

SPECIFICATIONS
- DISPLAYMonitor Size: 22”W (21.5” Viewable)
Panel Technology: TN TFT LCD
Resolution: Full HD 1920 x 1080
Display Area: 476.64mm (H) x 268.11mm (V)
Aspect Ratio: 16:9
Brightness: 250 cd/m² (Typ)
Contrast Ratio: 1000:1 (Typ)
Dynamic Contrast Ratio: 50,000,000:1
Viewing Angle: 170 degrees / 160 degrees
Response Time: 5ms (Typ)
Pixel Size: 0.248 mm (H) x 0.248 mm (V) - INPUT SIGNALFrequency: Fh = 24 ~ 82KHz ;Fv = 50 ~ 75Hz
Sync: Separate Sync,TMDS - COMPATIBILITYPC: Windows 7, Windows 8, Windows 8.1, Windows 10 certified
Mac®: Power Mac tested
- CONNECTORDigital: HDMI 1.4 x 1
Analog: VGA x 1 - POWERPower: 3-pin plug (CEE22) x 1
Voltage: AC 100-240V (Universal); 50/60Hz
Consumption: 21.5W
Optimize: 14.5W

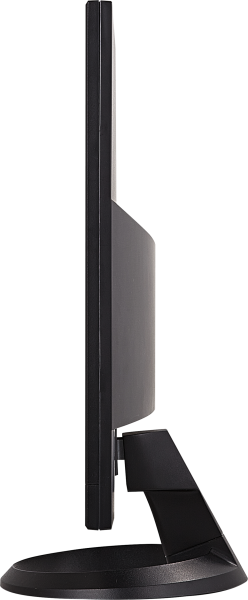

Conserve: 12.5W - ERGONOMICSTilt: 20 ~ -6 degrees
- WALL MOUNTVESA®: 75 mm x 75mm
- OPERATING CONDITIONSTemperature (º F / º C): 32°F to 104°F (0°C to 40°C)
Humidity: 20% to 90% (no condensation) - DIMENSIONS (W x H x D) (mm)Physical with stand (mm): 504 mm(W) x 381 mm(H) x 180 mm(D)
Physical without stand (mm): 504 mm (W)x 311 mm (H) x 48 mm (D)
Packaging (mm): 565mm (W) x 390mm (H) x 115mm (D) - WEIGHTNet with stand (kg): 2.64kg
Net without stand (kg): 2.18kg
Gross (kg): 3.58kg - REGULATIONSREACH, WEEE, BSMI, KC, e-Standby, BIS
- PACKAGE CONTENTSLCD Display
Power Cable (1.5m)
VGA Cable (1.5m)
Quick Start Guide
*Actual content may differ from market to market
