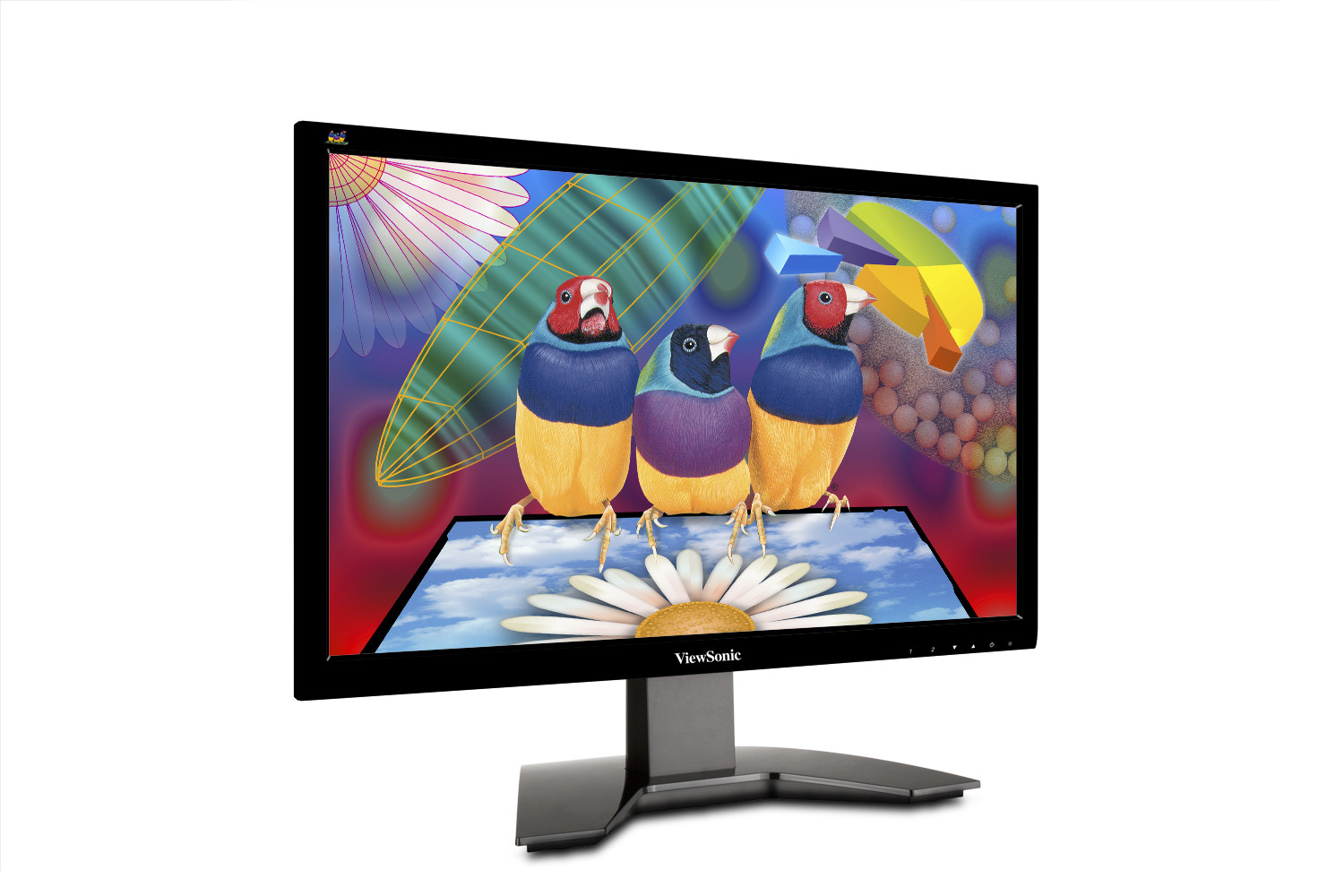

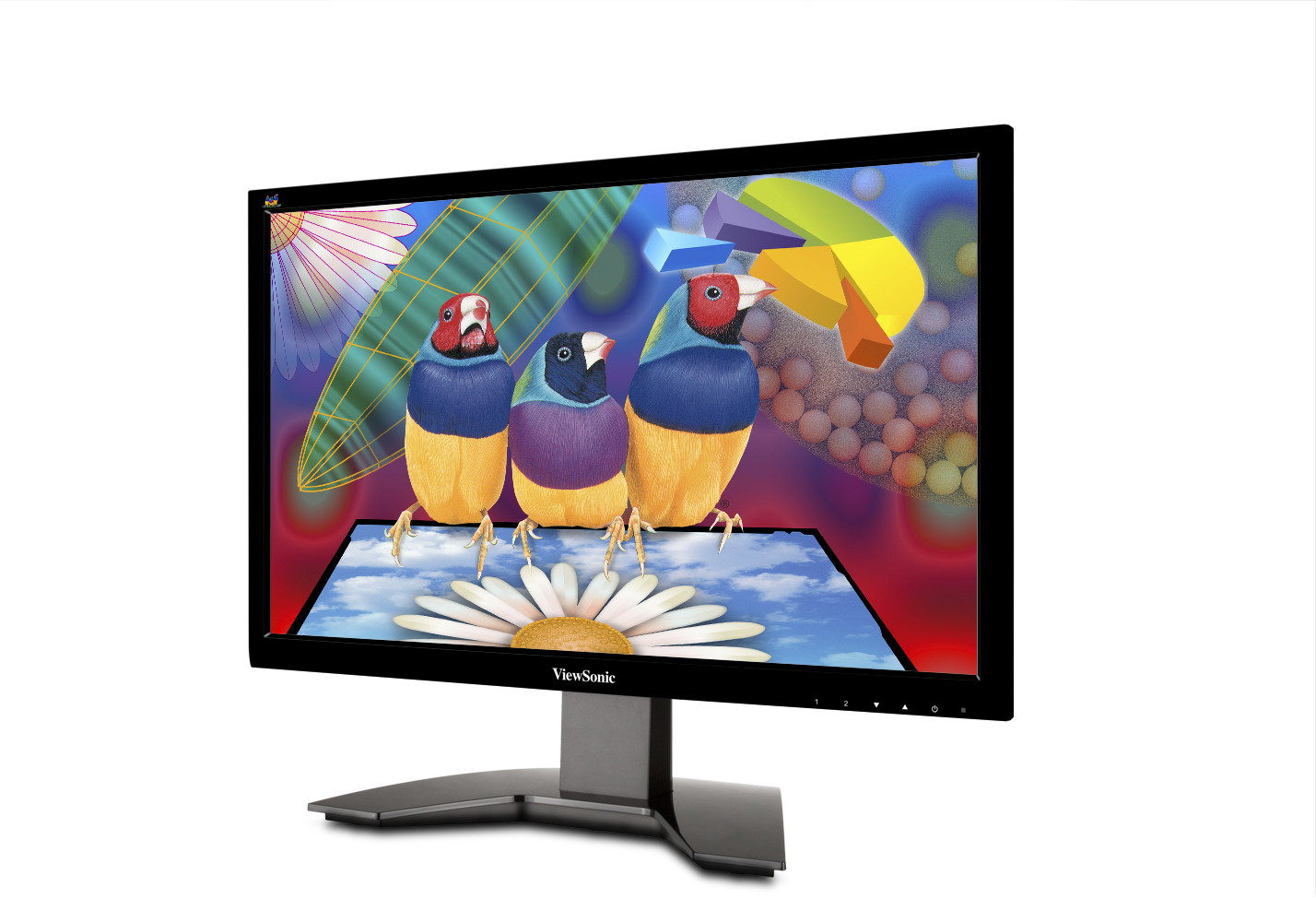

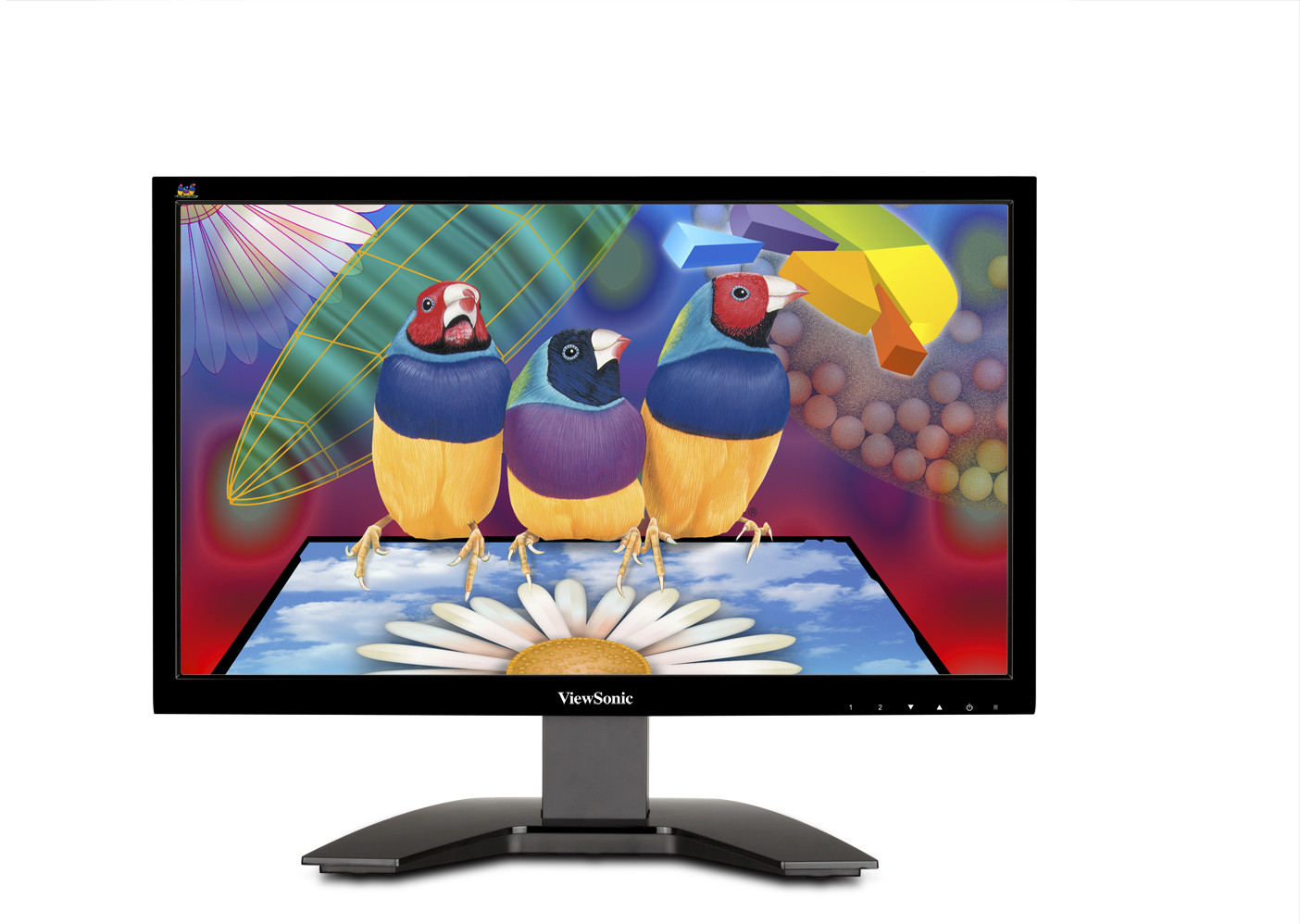

VA2212m-LED

54.6cm / 22” Full HD 1080p LED Display

Sales Enquiry

GALLERY

Professional Viewing Quality for Business Users

Experience a lifelike viewing experience with one of ViewSonic’s 22” Full HD 1080p LED displays –the VA2212m-LED. Incorporating an ergonomically accommodating 16:9 widescreen ratio supported by a LED backlit panel, the VA2212m-LED provides professional viewing quality for both business users and home entertainment. ViewSonic also participates in the energy-saving revolution with its new-generation LED backlighting. Exclusive ECO Mode reduces cost and maintenance efforts for corporate users while constructing vivid images with sophisticated details and high colour saturation. Along with a 10,000,000:1 high dynamic contrast ratio, the VA2212m-LED automatically detects the brightness and darkness of input signals to adjust LED backlighting appropriately. The VA2212m-LED also has embedded sRGB colour correction technology whichdisplays an impressive landscape to enhance the viewing experience. This stylish monitor is ideal for any office or corporate environment.

SPECIFICATIONS

LCD
Contrast Ratio: 1,000:1 (typ.)
Viewing Angles: 170° / 160° (typ.)
Brightness: 250 cd / m²
Display Area: 54.6cm (21.5”) wide
Optimum Resolution: 1920 x 1080
Response Time: Typ. 5 ms
Panel Surface: Anti-glare type, 3H hardness
Pixel Pitch: 0.24 mm x 0.24 mm
Dynamic Contrast Ratio: 10,000,000:1
Backlight: White-light LED
Backlight Life: 30,000 hours (min.)
COMPATIBILITY
PC: VGA up to 1920 x 1080
Mac®: MAC up to 1920 x 1080
DIMENSIONS
Physical With Stand: 511.1 x 391.8 x 189.9mm(W x H x D) (20.1” x 15.4” x 7.4”)
Physical Without Stand: 511.1 x 309.4 x 52.7mm(W x H x D) (20.1” x 12.2” x 2.1”)

REGULATIONS
CE, CB, WEEE, RoHS, REACH SVHC List,

TCO, Energy Star®, Vista Basic, Windows 7,

UL, cUL, FCC-B / ICES-003B, Nemko ERGO,

GOSTR+, Hygienic, UkrSEPRO, ErP, CCC,

CEL Level 1, BSMI, PSB, C-TICK
INPUT
Sync: Separate Sync
Digital: DVI (TMDS, 100Ω)
Analogue: RGB analog (75 Ω, 0.7 / 1.0 Vp-p)
Frequency: Fh = 24 ~ 82 kHz ; Fv = 50 ~ 75 Hz

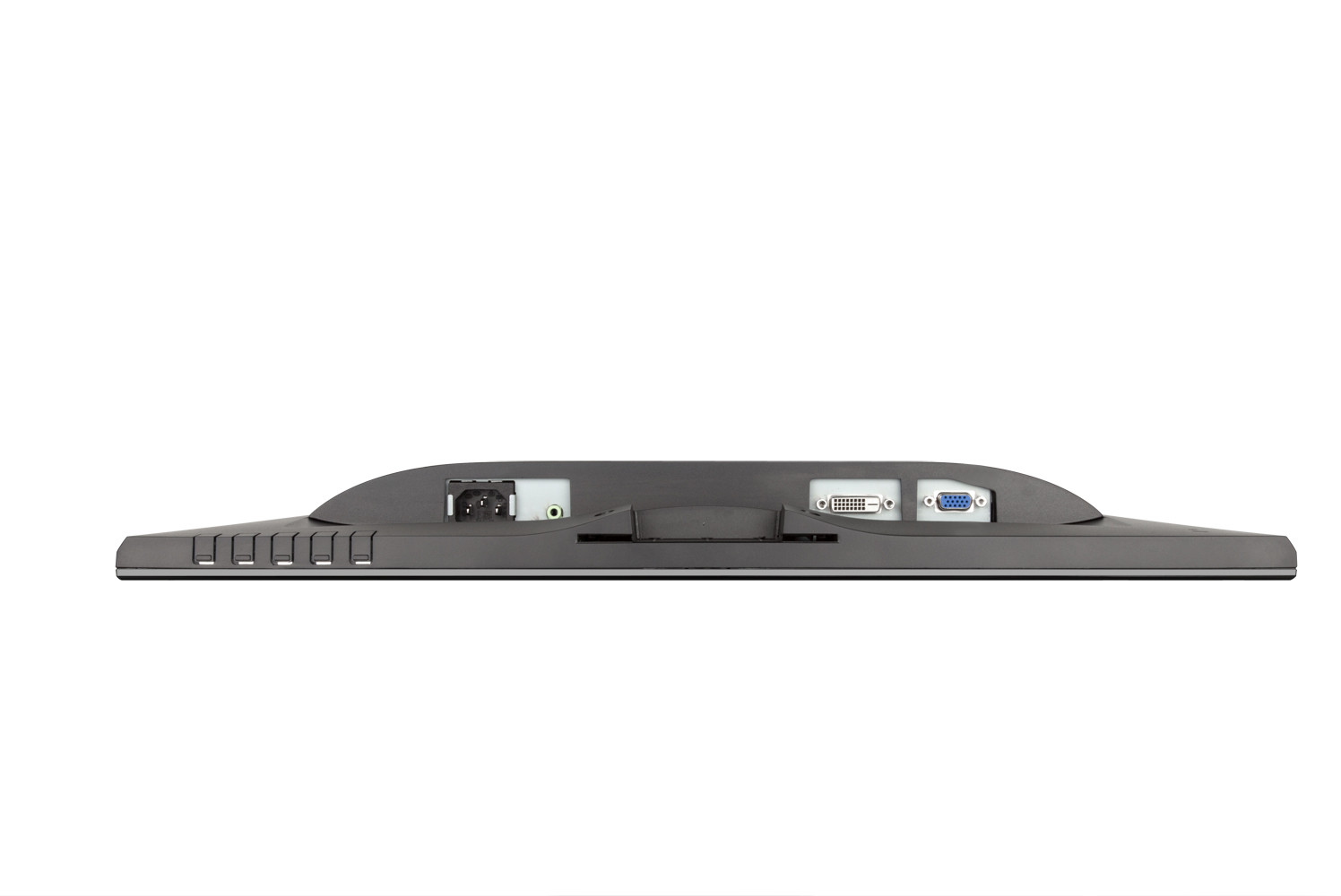

CONNECTOR
Analogue: D-sub x 1
Digital: DVI- D x 1
Power: Internal Power Board , 3-pin Plug (CEE22) x 1
Audio: 3.5mm Mini Phone Jack Audio In x 1
POWER
Voltage: AC 100 - 240V (universal); 50 / 60 Hz
Consumption: 26W

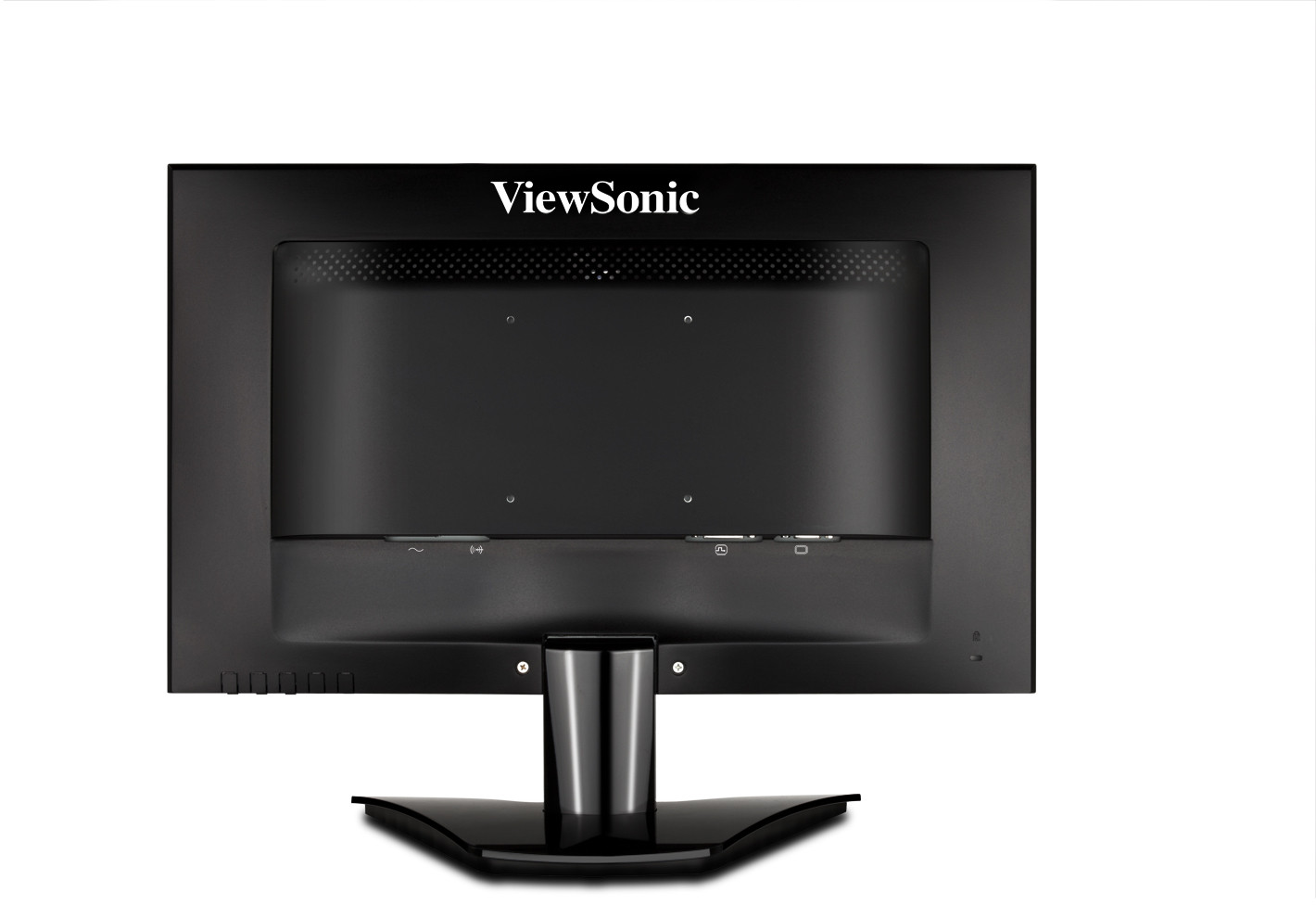

VESA® MOUNT
100mm x 100mm

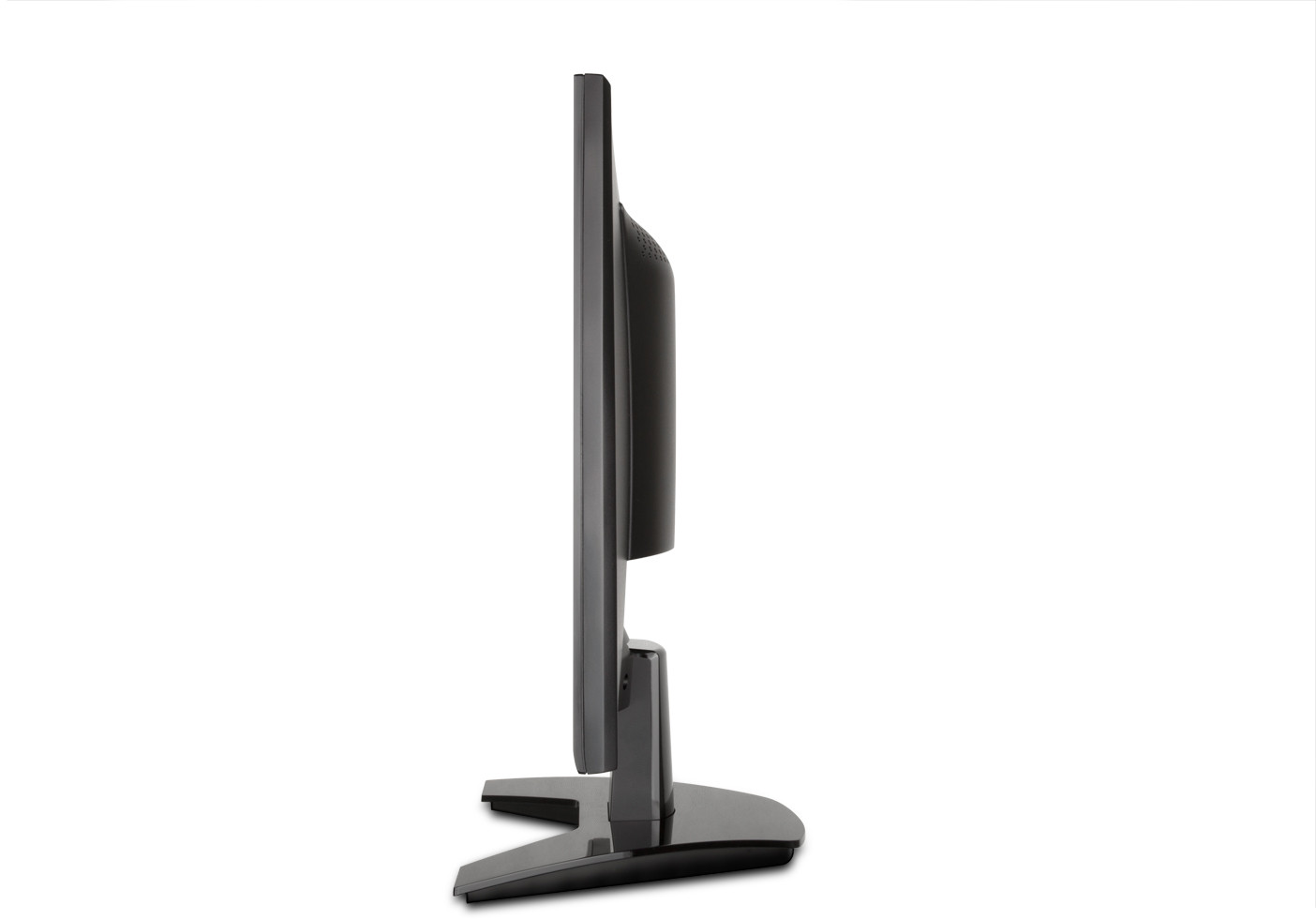

ERGONOMICS
Tilt: 22° ~ -5°
AUDIO
Speakers: 2W x 2
WEIGHT
Net With Stand: 2.91 Kg (6.41 lbs)
Net Without Stand: 2.6 Kg (5.72 lbs)
OPERATING CONDITIONS
Humidity: 10% to 90% (no condensation)
Temperature: 32° F to 104° F (0° C to 40° C)
