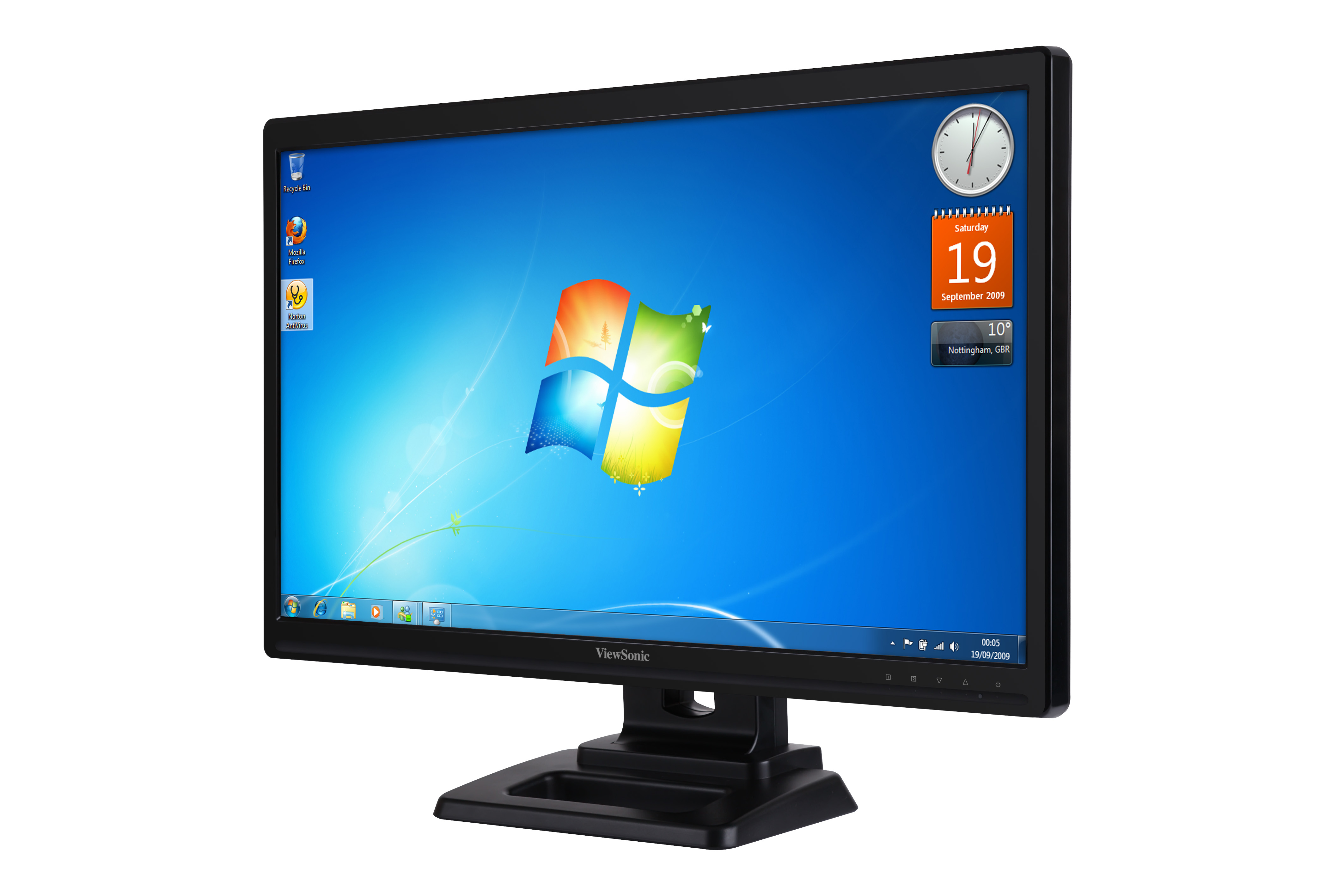

TD2420

24" FHD 2 Points Touch LED Monitor with VGA, DVI, HDMI, Speakers and Touch Pen

Sales Enquiry

OVERVIEW

The ViewSonic® TD2420 is the perfect solution for both commercial and consumer touch screen applications. With an intuitive multi-touch LED display, interactive stylus, and full HD resolution, the TD2420 delivers a versatile touch solution for use as a POS display, information kiosk, or in hospital and classroom environments. With Windows® 8 compatible Dual Point Optical technology, the TD2420 provides a fun and interactive experience to engage users. Equipped with 1920x1080 Full HD resolution, and 20,000,000:1 MEGA Dynamic Contrast Ratio, the ViewSonic TD2420 delivers extremely sharp and crisp images. As a complete multimedia package, the display also includes a pair of integrated 2-watt speakers with SRS Premium Sound®. HDMI, VGA, and DVI inputs provide flexible and convenient connectivity, while a VESA-mountable design offers additional convenience for use as a wall-mounted display. The versatile TD2420 is the one-stop solution for your multi-touch display needs.

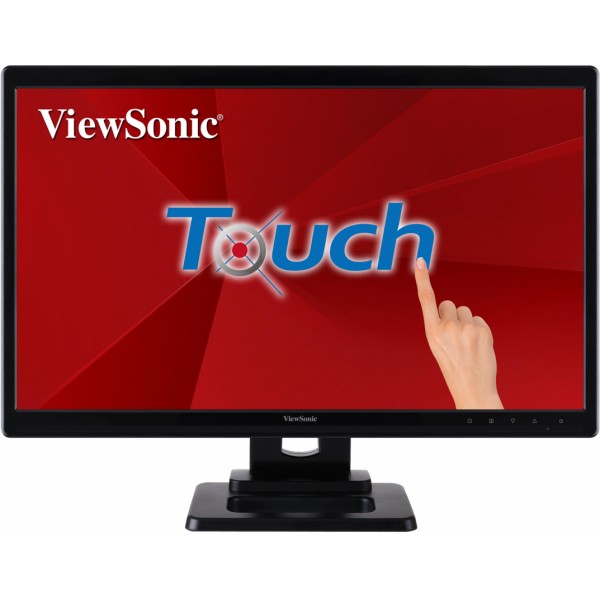

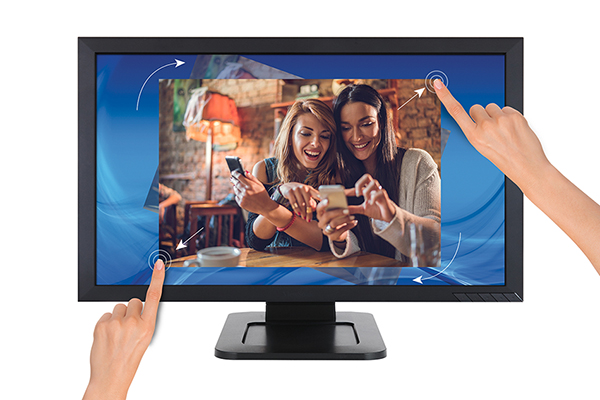

Dual-Point Optical Touch

Touch screens with dual-point optical touch can recognize two points of simultaneous contact, allowing two-finger gestures such as zoom in/out, rotations, and two-finger taps. Optical touch does not require a conductive object for touch recognition, so it is extremely useful in gloved environments such as hospitals and dental offices, or for use with interactive styluses.

Durable and Accurate Multi-touch Screen

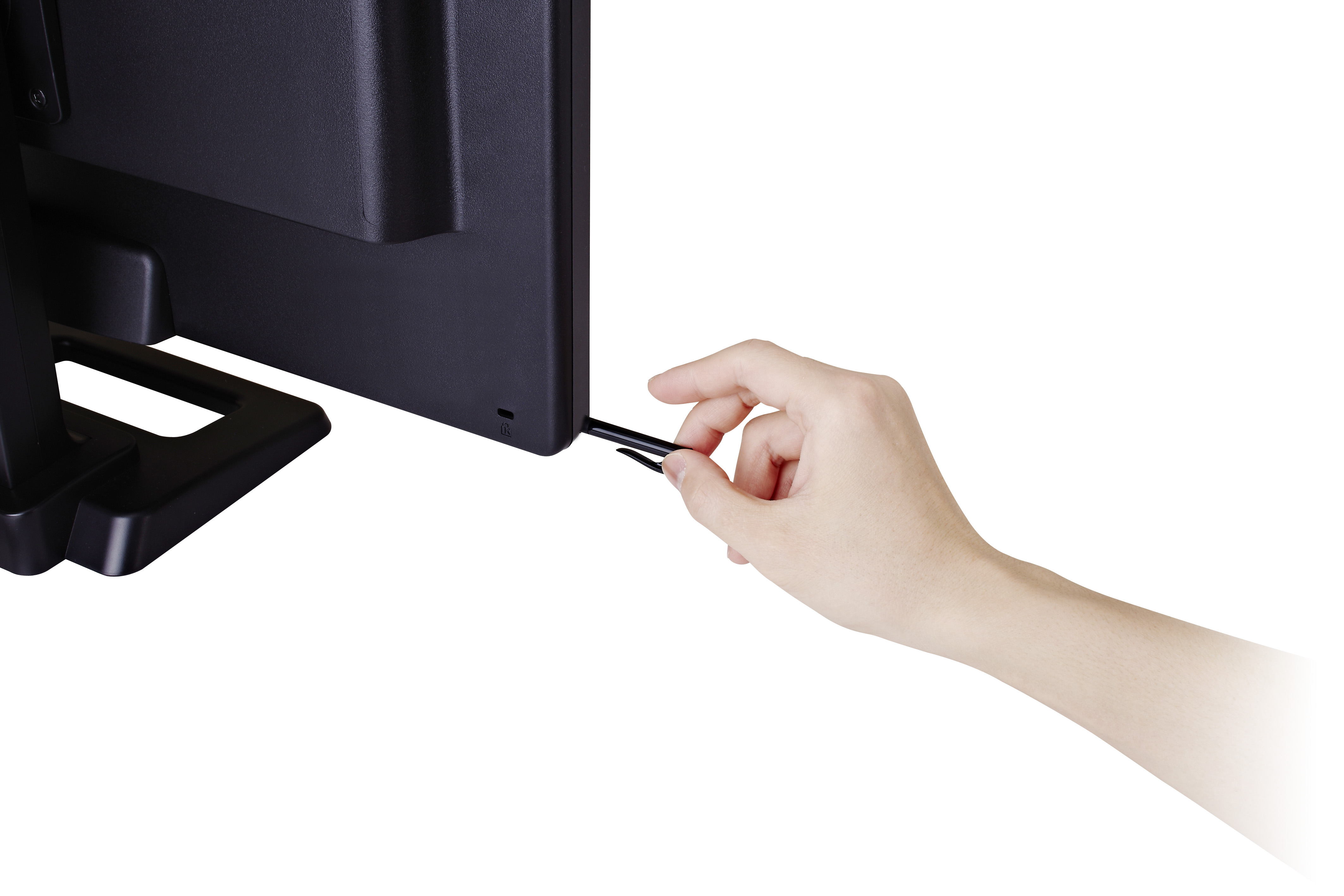

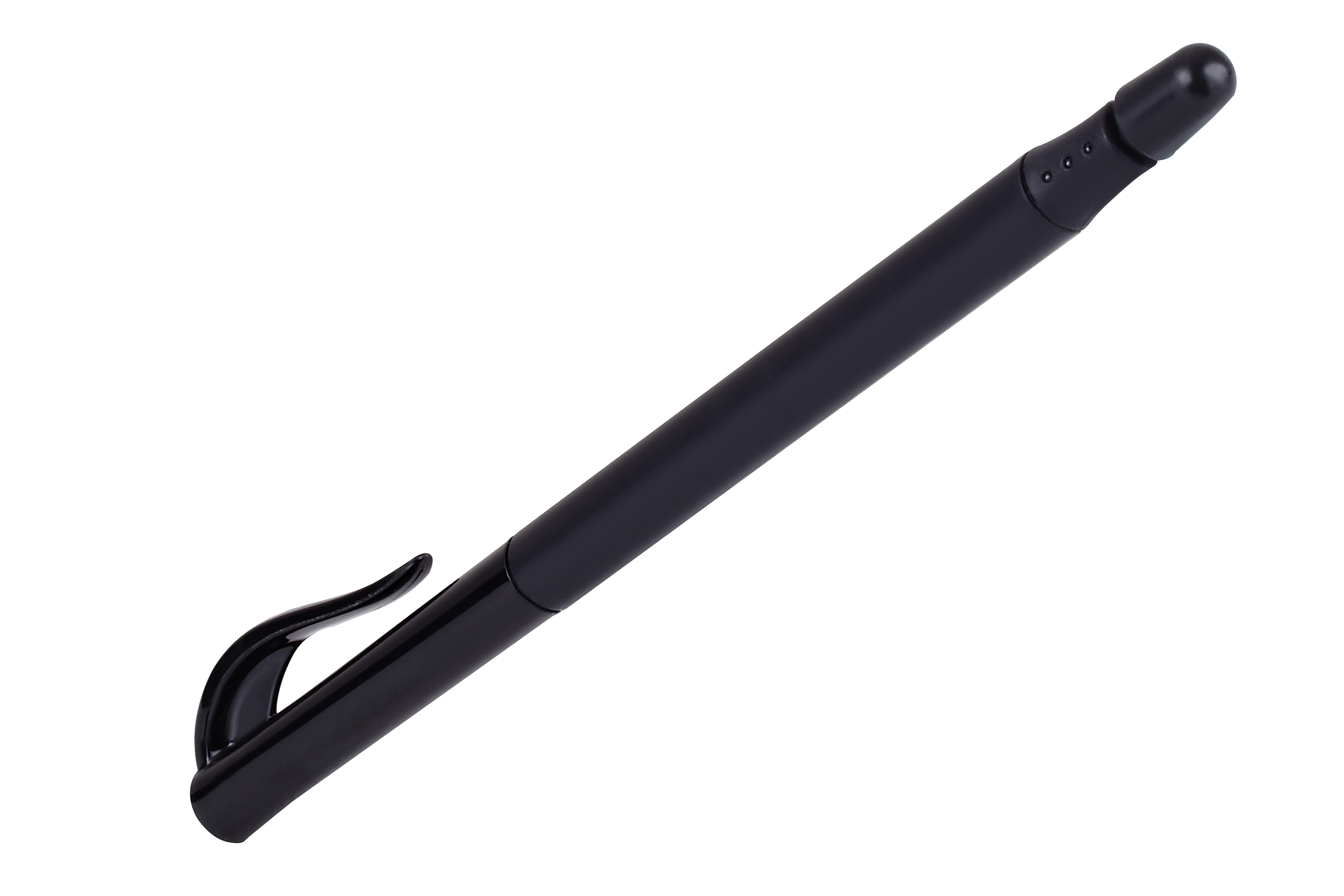

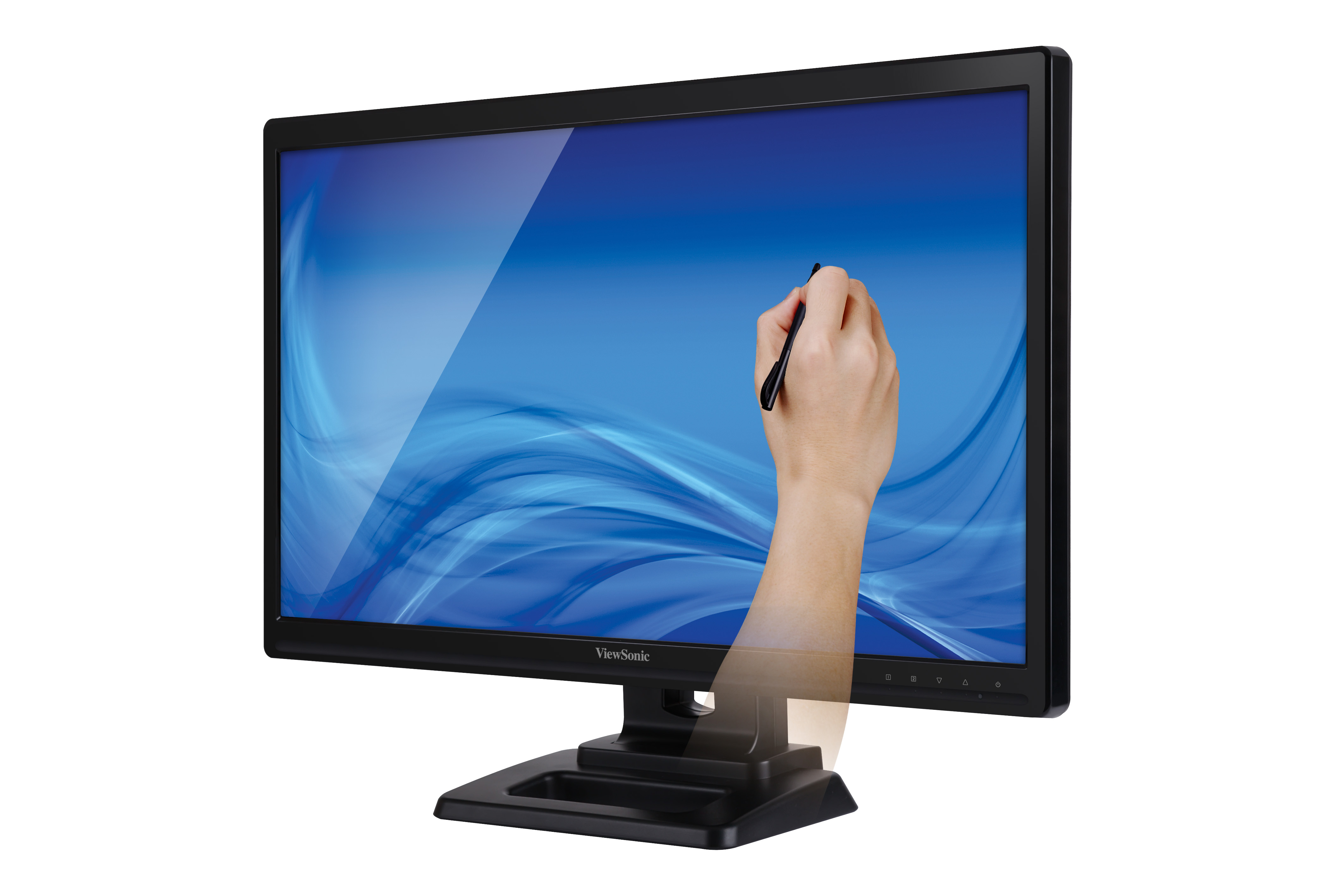

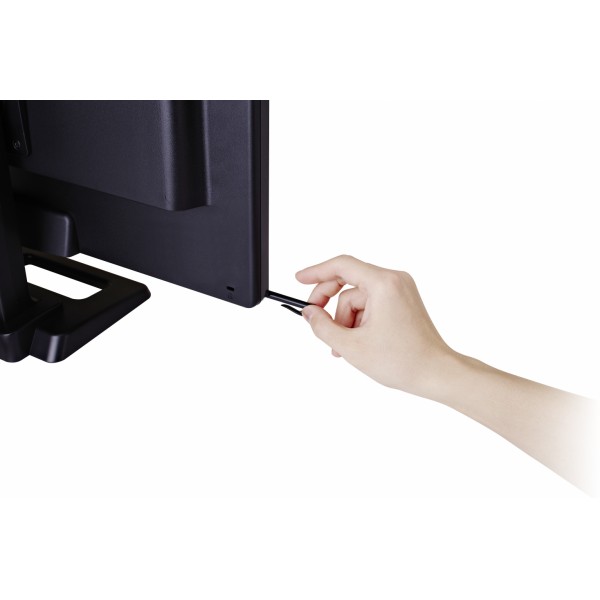

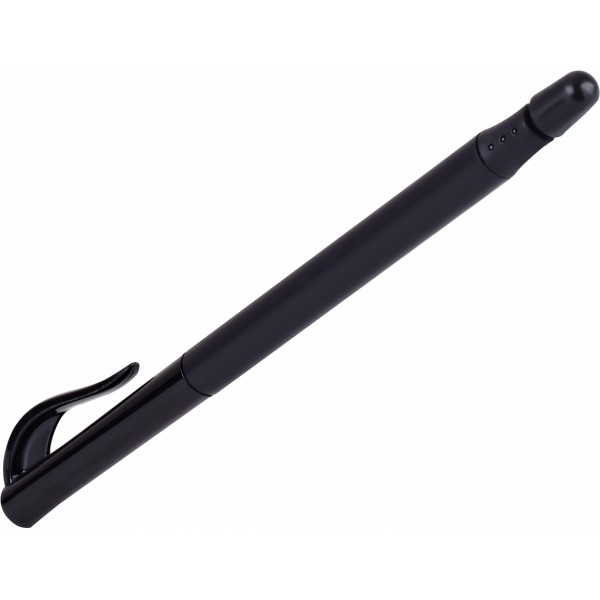

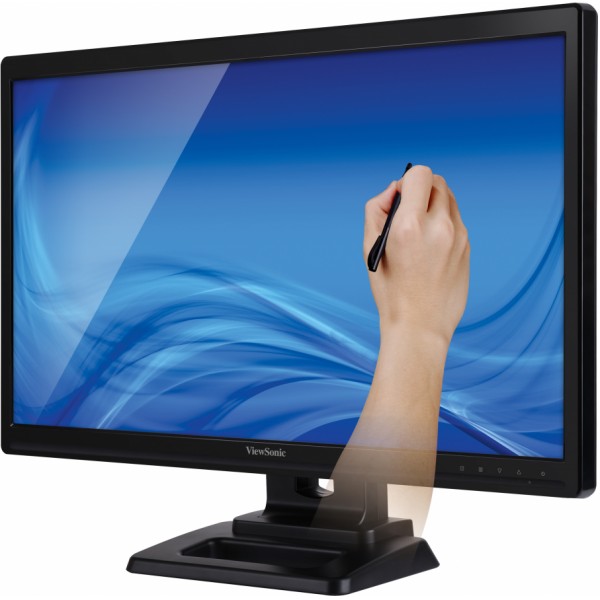

Simply touch, drag, resize, and manipulate photos, documents or web pages—just like on your favorite mobile devices! The included stylus provides additional interactivity to write, draw, and further explore your creativity. 7H scratch-resistant surface hardness ensures durability, as well as a consistent, high-quality touch experience.

Full HD 1080p Display with 1920x1080 Resolution

The 24" (23.6" viewable) Full HD monitor supports image-intensive commercial applications, as well as image, gaming, and video applications for home entertainment. 20,000,000:1 MEGA Dynamic Contrast Ratio provides a crisp image with high-level details.

Flexible Configuration Options with OptiSync® Digital/Analog Inputs

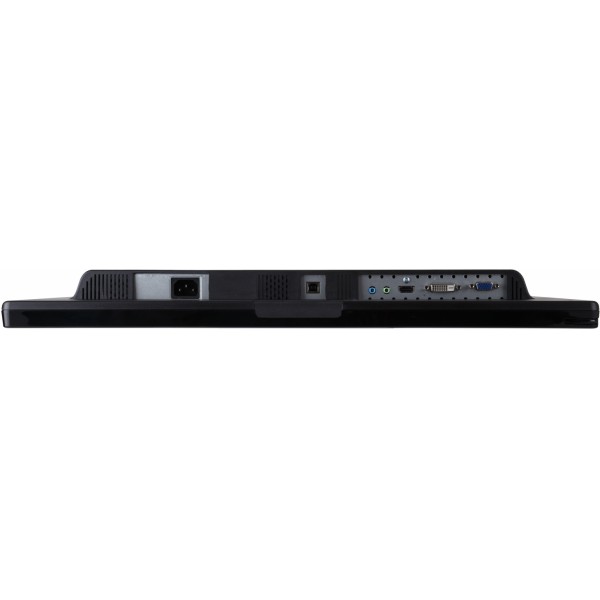

The TD2420 supports Windows® 7 and Windows® 8 touch functions and boasts USB HID (Human Interface Device) for plug-and-play. The TD2420 can be connected through USB for instant two-point touch operation and easy navigation. Multi-mode input technology supports HDMI, DVI and VGA signals for compatibility and configuration flexibility.

Integrated Speakers with SRS Premium Sound®

The TD2420 monitor has two integrated speakers for enhanced multimedia performance with crystal clear stereo sound.

ENERGY STAR® and EPEAT-Silver Certified

The TD2420 is environmentally sound with an energy-saving LED backlight and Eco-mode options. Save up to 40% in energy costs when compared to a regular 24" monitor.

Eco-Mode Conserves More Energy

ViewSonic’s proprietary Eco-mode function is built into all LED displays, offering options to "Optimize (85%)" or "Conserve (80%)". Both modes reduce display brightness and conserve up to 20% energy. Especially in a low ambient light,Eco-mode adjusts brightness and improves visibility while reducing eye fatigue and prolonging the display's lamp life. With Ecomode, lamp replacement expenditures are reduced while practicing eco-friendliness.

REVIEWS

“ViewSonic kurumsal müşteriler için tasarladığı optik dokunmatik teknolojisine sahip, Windows 8 uyumlu monitörü TD2420.”

Read Review

SPECIFICATIONS

LCD
Type: 24" (23.6" viewable) Wide Color TFT Active Matrix LED
Optimum Resolution: 1920x1080
Contrast Ratio: 1000:1 (typ.)
Viewing Angles: 170º horizontal, 160º vertical
Response Time: 5ms (typ.)
Panel Surface: hard-coating (7H)
Display Area: 20.5" horizontal x 11.5" vertical; 23.6" diagonal 521.28(W) x 293.22(H) mm
Brightness: 210 cd/m² (typ)
Dynamic Contrast Ratio: 20,000,000:1
Backlight: White-light LED
Backlight Life: 30,000 hours (min.)
Video Input
Analog: RGB analog (0.7 / 1.0 Vp-p, 75 ohms)
Digital: HDMI, DVI (TMDS, 100 ohms)
Frequency: Fh: 24~82kHz, Fv: 50~75Hz
Sync: Separate Sync
Compatibility
PC: PC compatibles (Windows® 7 / 8 Operating System)

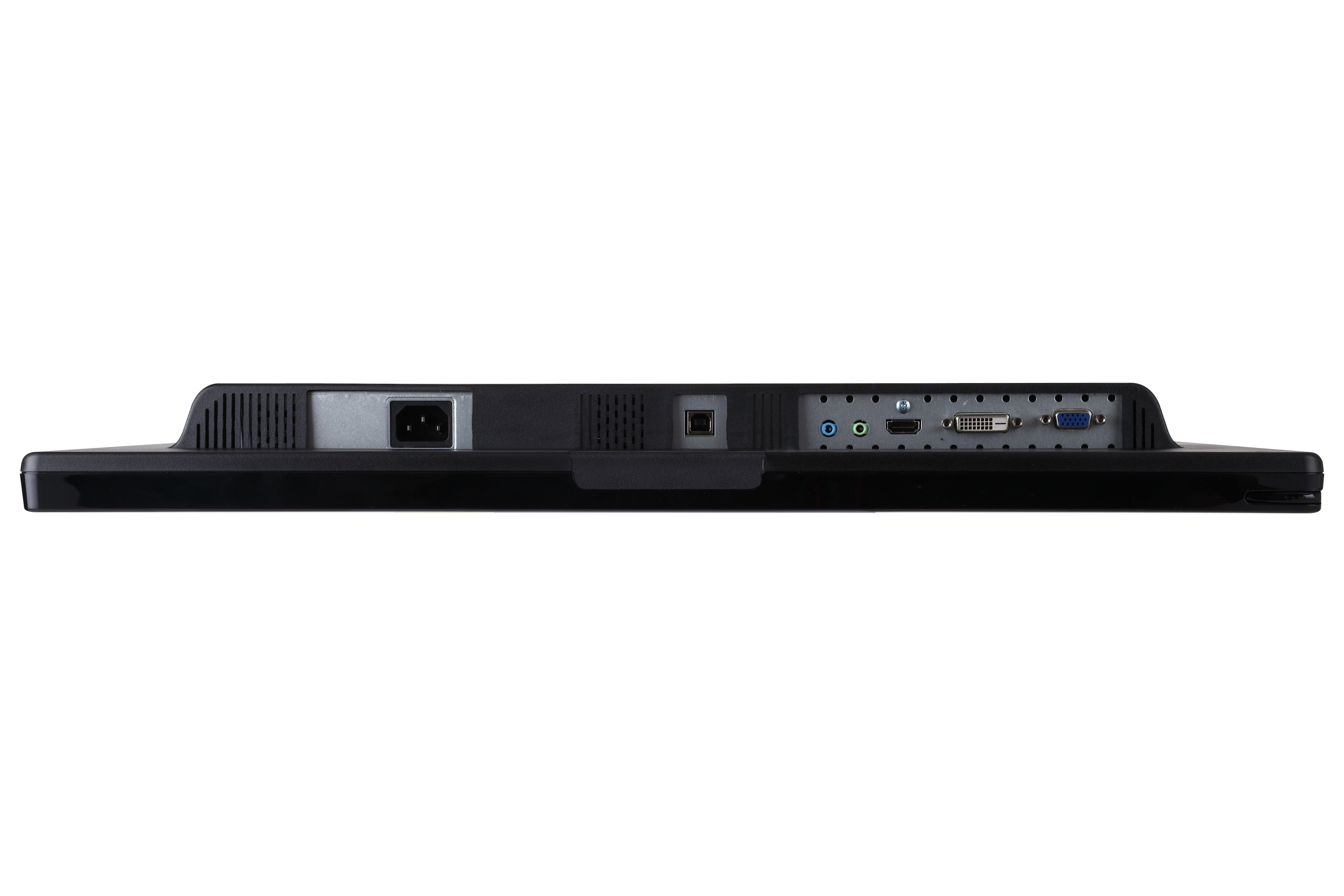

Connector
Audio: Audio In (3.5mm mini-jack)
Headphone (3.5mm mini-jack)

Power: Internal power board, 3-pin plug (CEE22)
Controls
Front Panel: 1, 2, Down, Up, Power
DIMENSIONS
Physical (mm): 622.29 x 459.30 x 192.50
Physical (in): 24.49" x 18.08" x 7.57"
Packaging: 678 x 525 x 179

26.69" x 20.66" x 7.04"
POWER
Conserve: 20W (typ.)
Voltage: AC 100–240V (universal), 50 / 60Hz
Consumption: 25W (typ.)
Optimize: 22W (typ.)
WEIGHT
Net With Stand: 6.6 kg (3 lbs)
Net Without Stand: 5.23 kg (2.38lbs)
Gross: 8.1kg (3.68lbs)

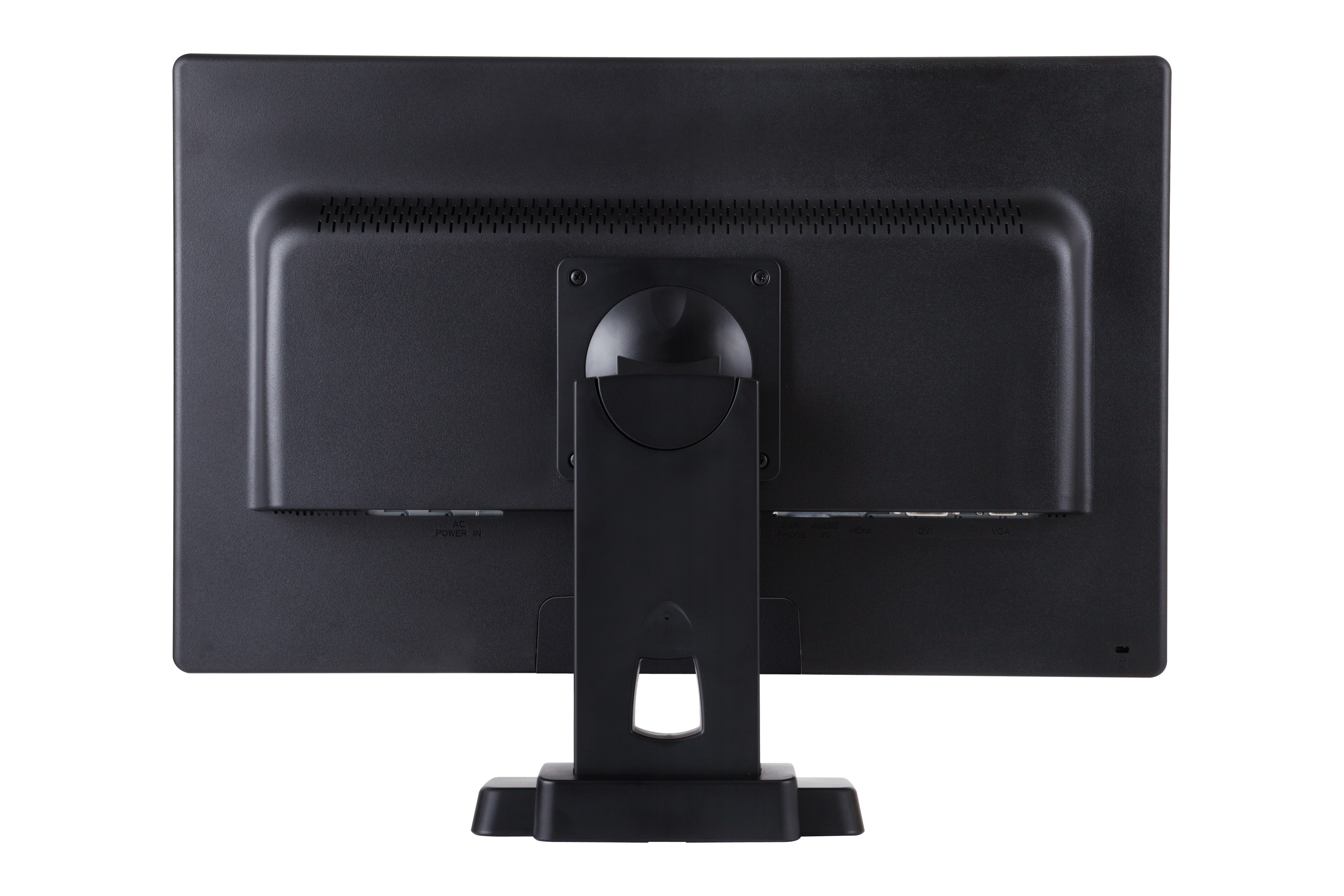

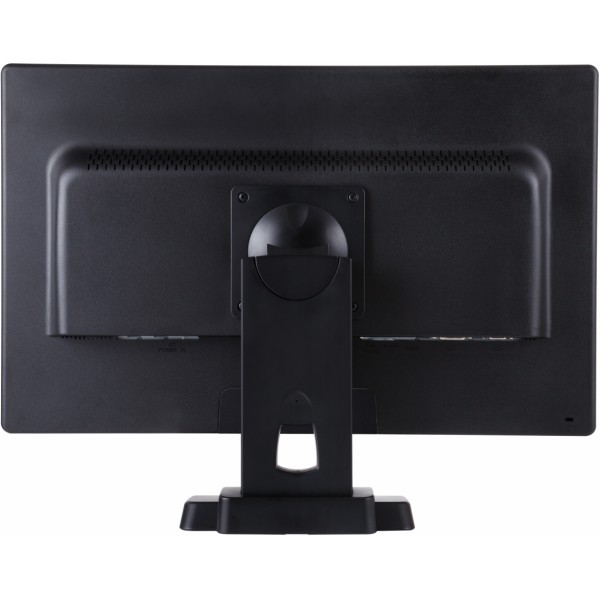

VESA® MOUNT
100mm * 100mm
POWER MANAGEMENT
Eco Mode
ERGONOMICS

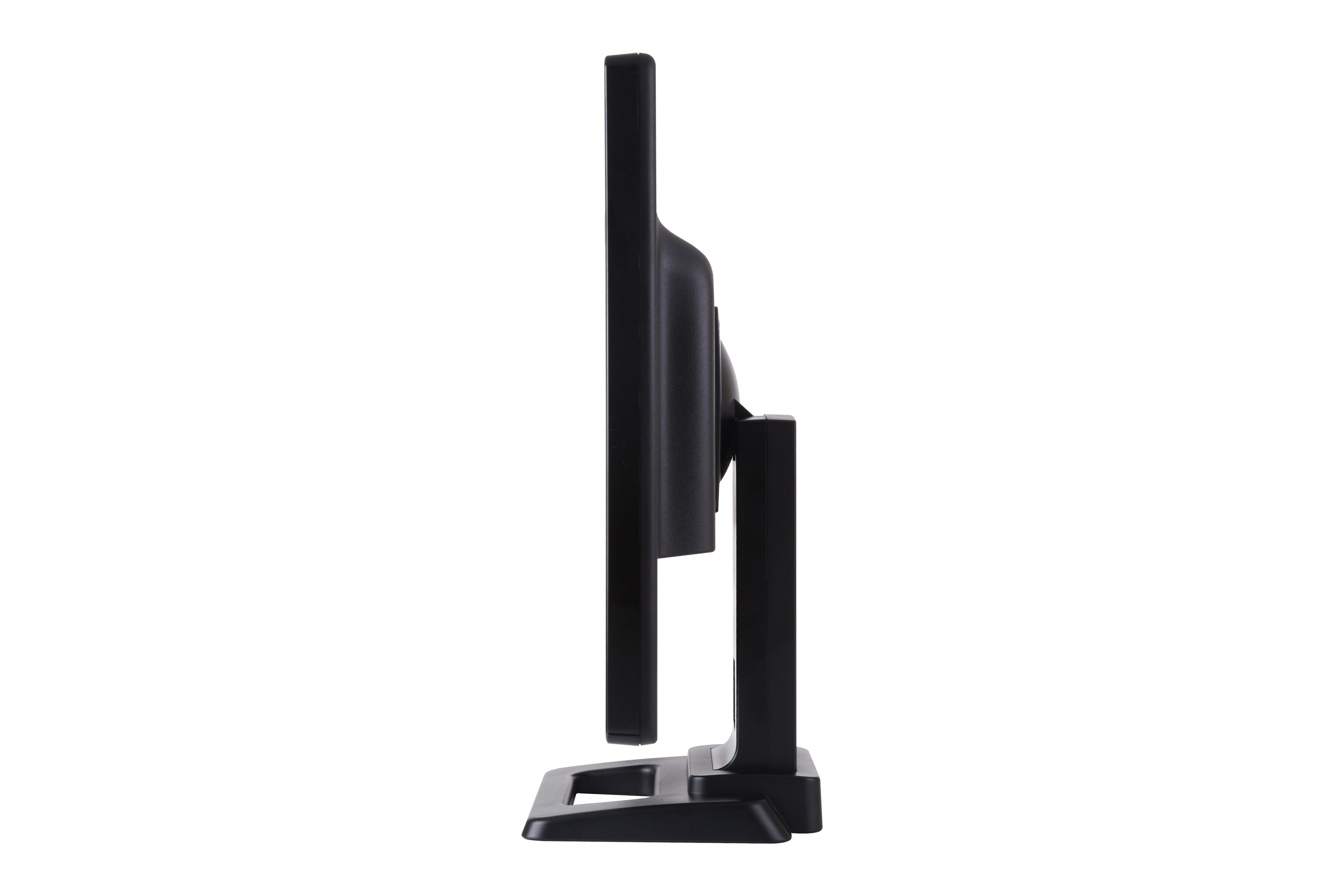

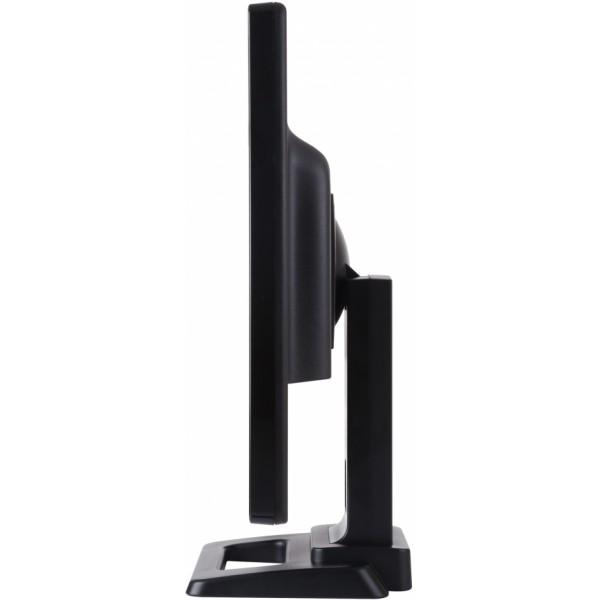

Tilt: -2° ~ 18° degrees
OPERATING CONDITIONS
Temperature: 32° F to 104° F (0° C to 40° C)
Humidity: 10% to 90% (no condensation)
AUDIO OUT
Speakers: 2W x2
PACKAGE CONTENTS
AC/DC Adaptor *1, Power Cable *1，Audio Cable *1, VGA Cable*1，Quick Start Guide *1, ViewSonic CD Wizard *1 USB cable *1, DVI cable *1, stylus*1
