OVERVIEW

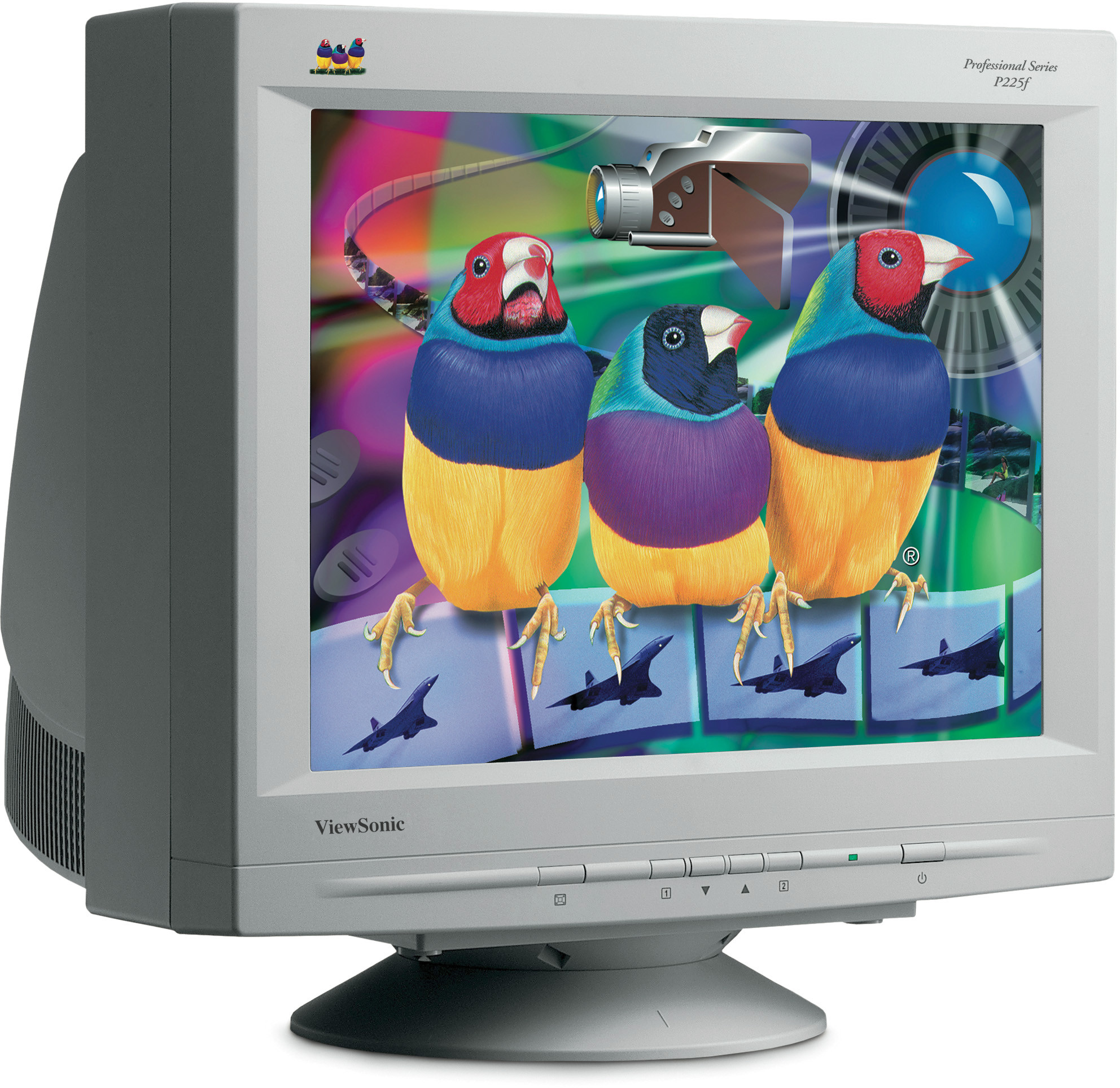

The P225f PerfectFlat monitor from ViewSonic delivers extraordinary performancein a big 22" (20.0" viewable) screen. The monitor boasts anultra high flicker-free resolution of 2048 x 1536 and a video input bandwidthof 340MHz to provide great image details and clarity. In addition,features like an ultra fine 0.24mm aperture grille uni-pitch, PerfectFlattechnology, and advanced screen coating provide precise edge-to-edgeimages in astonishing, rich colours. The P225f is the top-of-the-linechoice for the most demanding professionals in pre-press, imaging, desktoppublishing, 3D, CAD/CAM and graphic design applications. Makethis your ultimate display choice.SPECIFICATIONS
- COMPATIBILITYPC: PC compatible (from VGA up to 2048 x 1536)
Mac®: Power Mac™ /G3 from 640 x 480 up to 2048 x 1536
Other: Most workstations - DIMENSIONSPhysical (WxHxD): 500mm (W) x 504.3mm (H) x 526.3mm (D)
- REGULATIONSTCO´03, TÜV/GS, TÜV/ERGO, CE, ISO9241-3, ISO9241-7,
ISO9241-8, Energy 2000, ENERGY STAR®,MPR-II, CB, UL,
FCC-B, DHHS, PSB, VCCI, C-Tick, NEMKO, SEMKO, DEMKO,
FIMKO, CSA, BSMI, NOM, PCBC, GOST-R, SASO, ICES003,
IRAM, CCIB, CCEE, EMI-B, PC ’99, PFC
- WARRANTYThree-year limited warranty
- INPUT SIGNALFrequency: Fh:30-127kHz, Fv:50-160Hz
Video: RGB analogue (0.7Vp-p, 75 ohms)
Sync: H/V separate (TTL), composite, sync-on-green - CONNECTORSignal: 15-pin mini D-sub, BNC x 5 [RGBHV]
Power: 3-pin plug (IEC320) - POWERVoltage: AC 90-260 V, 50-60(+/-2)Hz
Consumption: 130W (typ) - CONTROLSBasic: Power on/off, Menu, up, down, select, Zoom Hotkey
OnView®: Contrast, brightness, H/V-position, H/V-size, zoom, pincushion,
pin-balance, trapezoid, parallelogram, rotation, top/bottom
hooking, linearity centre, linearity edge, H-moiré, H/V-convergence,
H/V-focus, corner purity, degauss,ViewMatch® colour,
language,ViewMeter®, H/V OSD position, OSD offtime, input
select, recall - WEIGHTNet: 31.1kg
- OTHERDDC1, DDC2B, VESA® GTF
- VIDEO INPUTBandwidth: 340MHz (typical)
- POWER MANAGEMENTMeets ENERGY STAR®, VESA® DPMS™, TCO´03, and
Energy 2000 standards - CRTType: 56cm / 22" (20" diagonal viewable area), 90° deflection
Dot Pitch: 0.24mm aperture grille uni pitch
Phosphor: RGB medium-short persistence B22
Glass Surface: Tint (TM=39.8%), antistatic/antireflection - MISCONVERGENCE0.25mm (max at centre)
0.35mm (max at corner) - DISPLAY AREAFactory Setting: 396mm (H) x 297mm (V)
Maximum Scan: 400mm (H) x 300mm (V) (Dependent upon signal timing used) - OPERATING CONDITIONSHumidity: 5% to 90% (no condensation)
Temperature: 5°C to 35°C (41°F to 95°F)
