Entertainment in every room

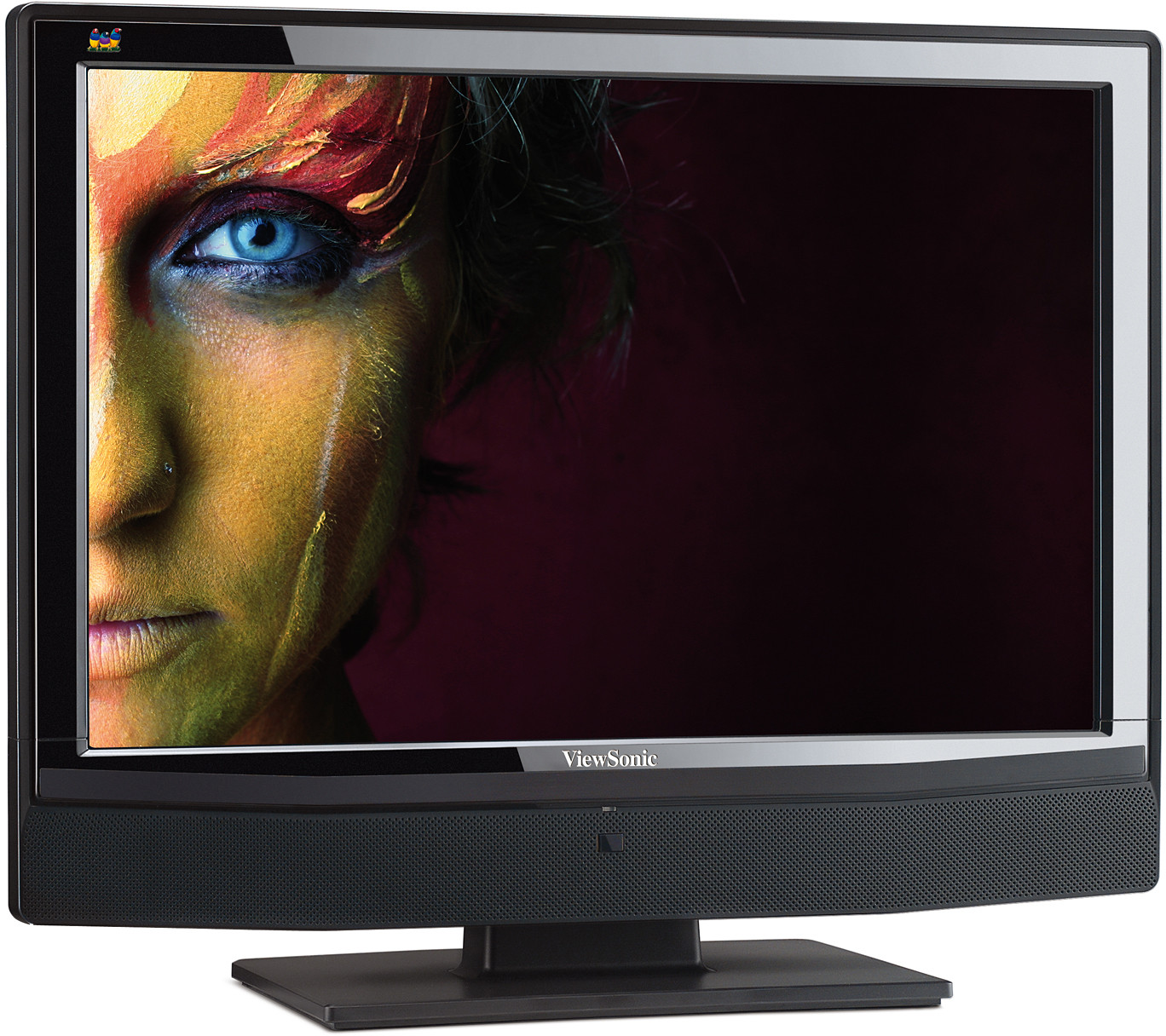

ViewSonic’s 22“ NX2240w widescreen LCD TV impresses with large cinema format entertainment and brings high-definition images into every room. With its small footprint and thanks to the integrated tuner, it brings your favourite movie, show or newscast into your kitchen, bedroom, home office or even to your shop countertop. Numerous inputs incl. HDMI, SCART, and PC-VGA make the NX2240w very versatile and ideal for use both at home and at work. With its 16:10 widescreen ratio it is perfectly suited to watch movies in native cinema aspect ratio plus it brings more space onto your desktop. High brightness and contrast levels guarantee crisp, vibrant colours in almost every application. The built-in stereo sound system delivers perfect audio performance.
SPECIFICATIONS
- COLORSBlack
- LCDType: 22“ TN colour TFT active matrix WSXGA + LCD
Contrast Ratio: 1000:1 (typ.)
Viewing Angles: 170° horizontal, 160° vertical (at 10:1)
Brightness: 300 cd/m² (typ.)
Display Area: 47.4cm horizontal x 29.6cm vertical, 55.9cm diagonal
Response Time: 5ms (grey-to-grey)
Aspect Ratio: 16:10
Panel Surface: Anti-glare 3H - COMPATIBILITYPC: Compatible from VGA up to 1680 x 1050 @ 60Hz preferred
Mac®: Power Mac™ up to 1680 x 1050 @ 60Hz preferred
- DIMENSIONSW x H x D mm: 539 x 447 x 209 (with base)
620 x 523 x 160 (packaging) - REGULATIONSCE, CB, GOST, SASO, WEEE, RoHS
- PACKAGE CONTENTSLCD TV, power cables (Europe [Schuko]/UK), 15-pin VGA to component adapter, adapter cable, AV cable, 3.5mm PC audio to RCA R/L audio adapter cable, remote control, batteries, quick start guide, user guide (multi-language)
- WARRANTYPlease see:
www.viewsoniceurope.com/UK/Support/warranty.htm - AUDIOSpeaker: 2 x 2 Watt
- CONNECTORDigital: 1 x HDMI
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 1 x SCART2 (CVBS, RGB, Audio)
Tuner: 1 x Coax RF (PAL/SECAM)
PC: 1 x 15-pin mini D-sub
Power: 3-pin plug (CEE22)
Composite Video: 1 x RCA (CVBS)
Component Video: Via 15-pin mini D-sub to 3 x RCA component video adapter
Audio In: 1 x RCA Audio set L/R for S-video/composite
1 x 3.5mm mini stereo jack for component/PC - POWERVoltage: AC 100–240V, 50/60Hz (auto switch), internal, fanless power supply
Consumption: <75 watt (max.) - CONTROLSBasic: Power, source, menu, channel up/down, volume up/down
OSD: Picture Menu (contrast, brightness, colour, sharpness, dynamic skin tone, colour temperature, user RGB, preset, phase, clock, auto adjust, info, reset), Audio Menu (volume, balance, bass, treble, AVL, loudness, preset, equalizer, reset), Function Menu (source OSD, language [Danish, English, Finnish, French, German, Italian, Norwegian, Russian, Spanish, Swedish], country, sleep timer, tele text language, reset), TV Setup Menu (autosearch, colour system, frequency, AFC, channel skip, channel name, channel select, reset) - OPERATING CONDITIONSTemperature: 32-104ºF (0-40ºC)
Humidity: 10% - 85% (non-condensation) - WEIGHTNet: 6.2kg (with base) 5.5kg (without base)
Gross: 8.7kg - VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm (M4.0 x 10mm screws)
- TELETEXTYes (10 pages)
- VIDEO INPUTPAL, SECAM, NTSC3, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i)
