OVERVIEW

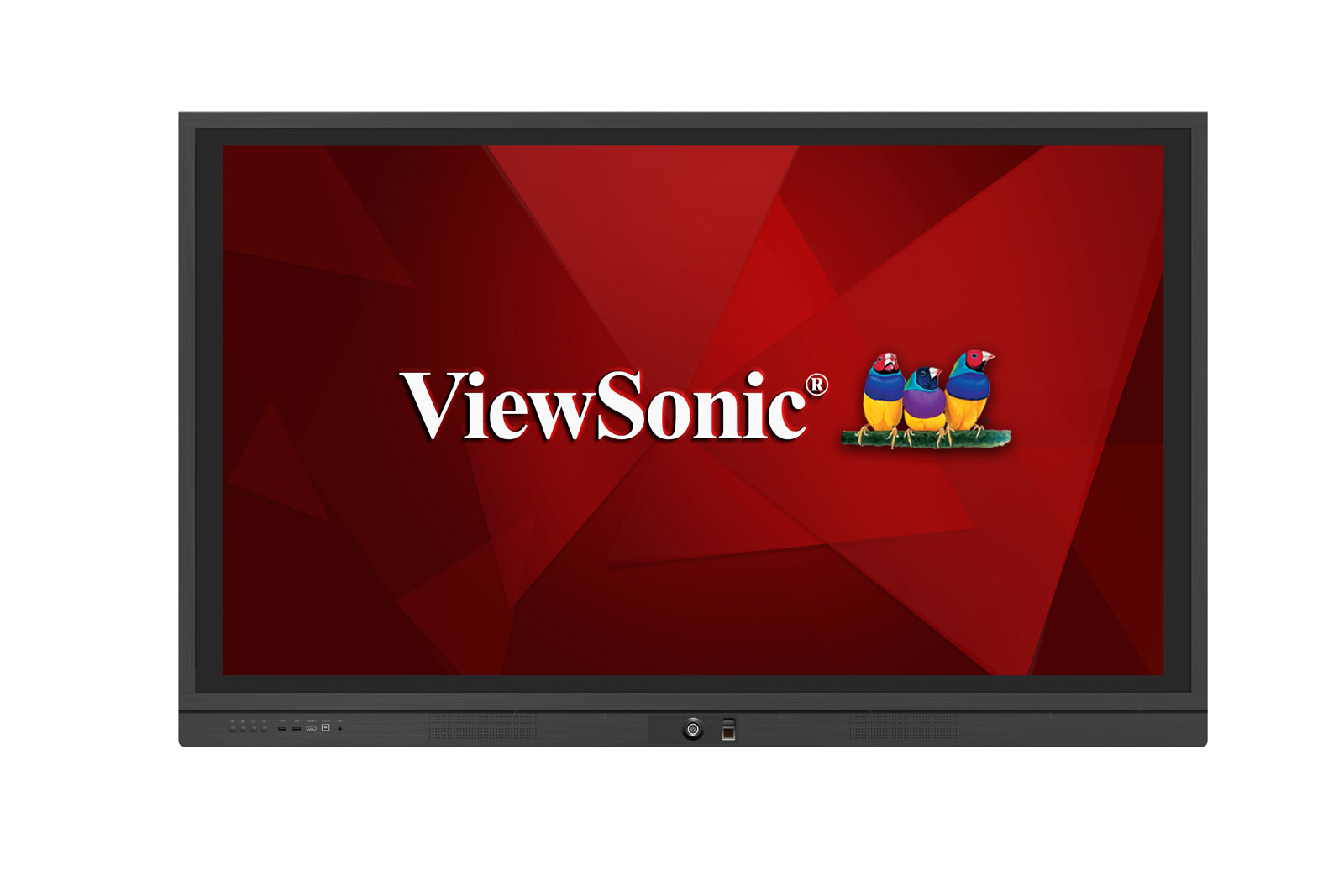

The ViewBoard® IFP7560 is a 75” 4K (3840 x 2160) interactive flat panel display with an open platform design and diverse collaborative capabilities. ViewBoard® IFP7560 is fit for integration into Google-based & Chrome environments, offers seamless Windows accessories & office365 compatibility, and comes equipped with Mac multi-touch gesture mirroring (driver needed). InGlass™ technology delivers a more accurate and sleek touchscreen experience with lag-free writing and drawing in two colors with different thicknesses. Pairing ViewBoard® IFP7560’s 20-point touch display with pre-installed tools, such as vBoard for annotation, ViewBoard® Cast for content sharing, and Zoom conference software, allows multiple users to remotely write, share, and interact simultaneously. Connecting to more powerful computing platforms is possible via the board’s dual PC slots for the optional Intel United® certified OPS* (Open Pluggable Specification) and SDM (Smart Display Module) which allow users to switch their system to Windows OS. Connecting to the board is made easy through SmartPort™ shared front USB ports for internal and external PCs. Finger print recognition bolsters security and enables easy login to Windows or myViewBoard™ for your digital whiteboard in the cloud. Versatile connectivity to a multitude of devices combined with VESA-compatibility and a trolley design allows for flexible installation anywhere, no matter the occasion.
*ViewSonic OPS VPC12-WPO

75” screen size with 4K (3840 x 2160) resolution

Increased accuracy and a sleek touchscreen experience with InGlass™ Technology

20-point touch

Pre-installed vBoard annotation, ViewBoard® Cast content sharing, and Zoom conference software

FIPS201 certified high security fingerprint reader

Dual expansion PC slots for Intel Unite® certified OPS and SDM

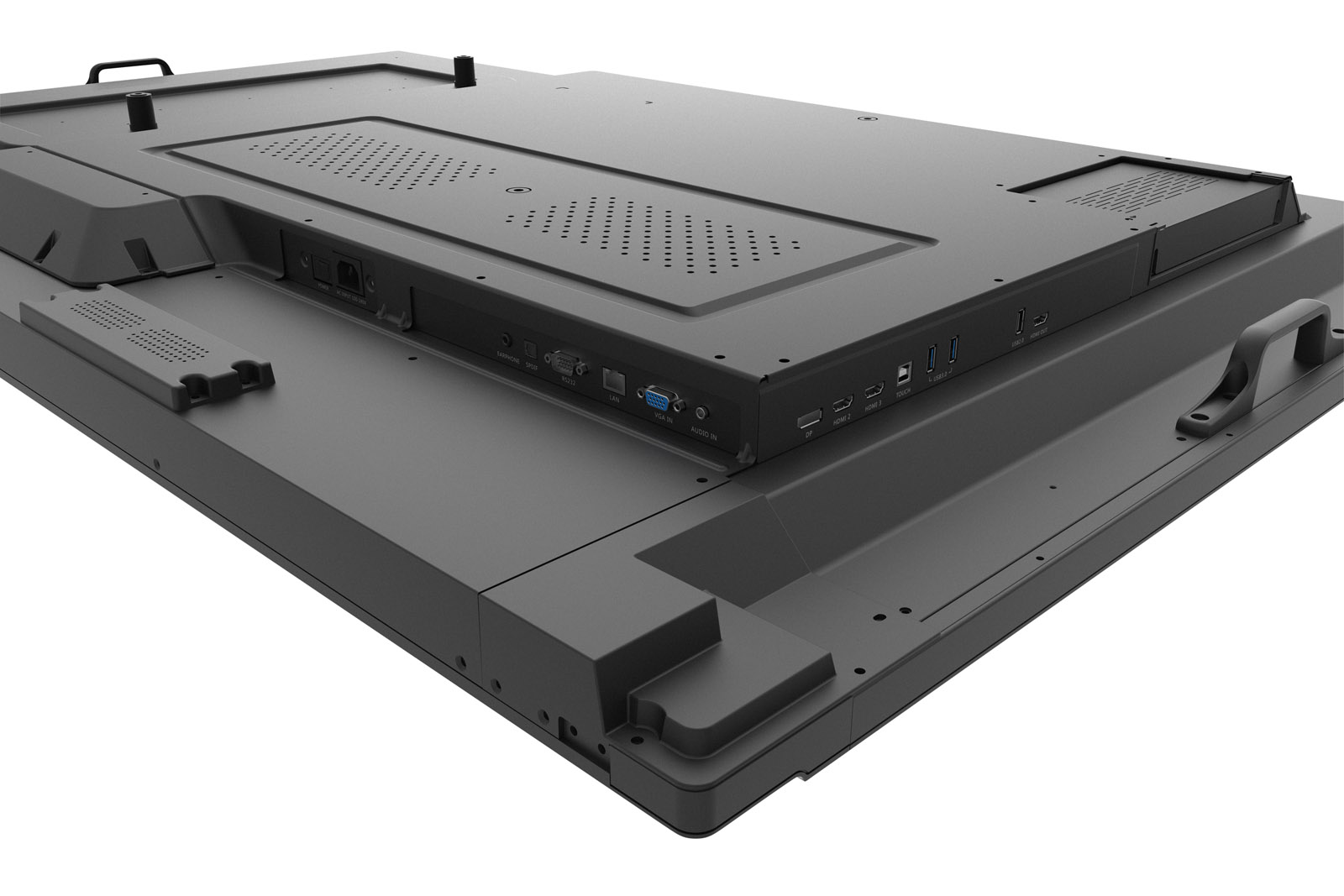

  1. Internal Speakers
  2. Menu Controls
  3. USB 2.0 x2
  4. HDMI 1.4 In
  5. MIC
  6. USB B Touch Port

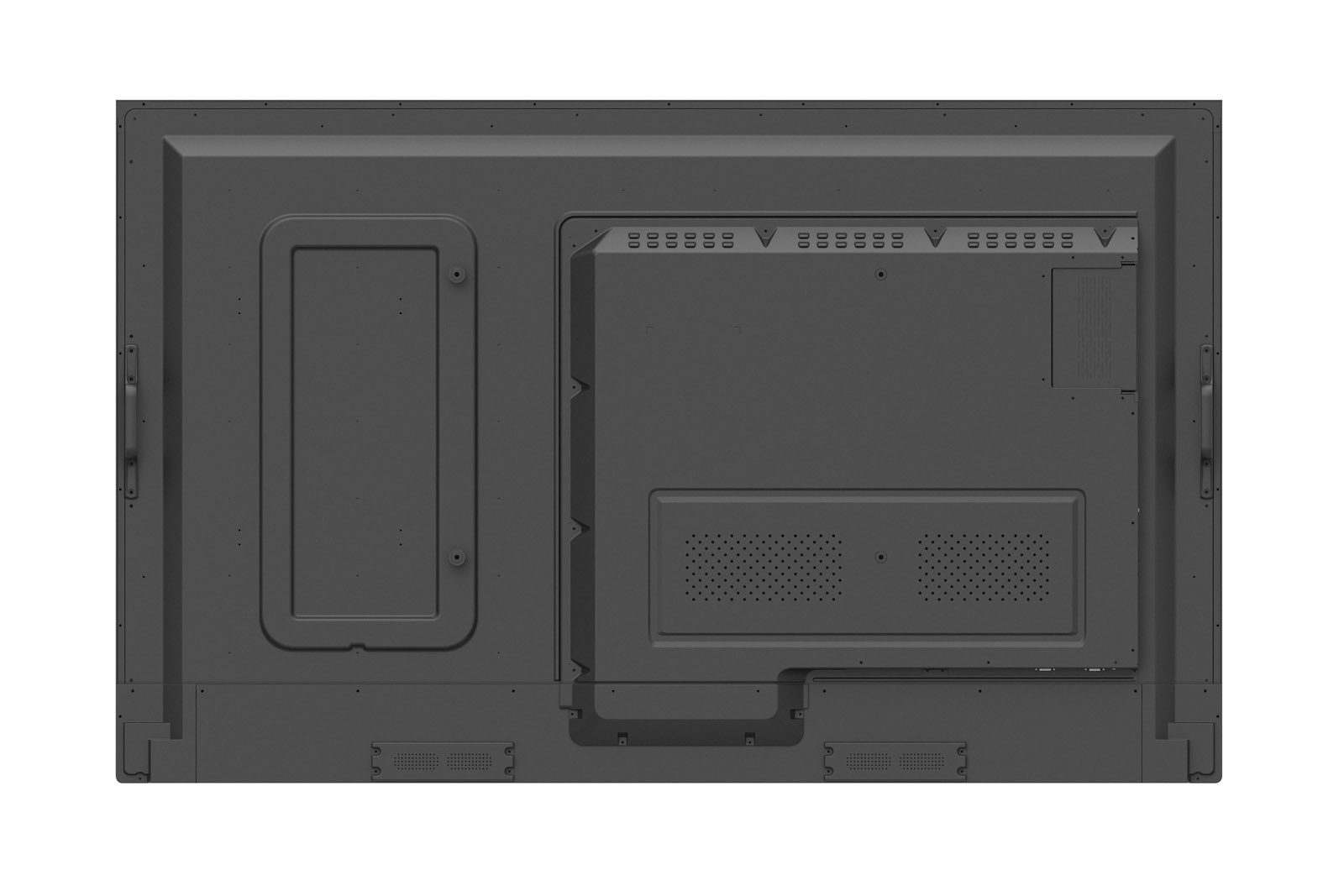

  7. VESA® Compatible Wall Mount 800 x 400 mm
  8. Audio Out 3.5 mm
  9. SPDIF
  10. RS232 In
  11. HDMI Out
  12. USB 2.0
  13. USB 3.0 x2
  14. USB B Touch Port
  15. HDMI 2.0 In x2
  16. Displayport
  17. Audio In
  18. VGA In
  19. Ethernet Lan (RJ45)

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 75"
    Type/ Tech: TFT LCD Module with DLED Backlight
    Display Area (mm): 1650.24(H)X928.26(V) mm (74.5” diagonal)
    Aspect Ratio: 16:09
    Resolution: 3840 x 2160
    Colors: 1.07B (8Bit+FRC)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 4000:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: DLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 7H
  • TOUCH
    Type/ Tech: Flatfrog InGlass IR
    Touch Resolution: 26394 x 14847
    Touch Point: 20 points touch, 10 points writing
    Response Time: 6.7ms
    System: Win 7pro/Ultimate/8/8.1/10, Chrome OS Linux kernel 3.15 or later, Android 4.4 with linux kernel 3.15 or later, Linux OS kernel 3.15 or later, Mac OS 10.10 or later
  • INPUT
    HDMI: 1 x HDMI 1.4a, 4K@30Hz, support CEC on/off, HDCP 1.4
    2 x HDMI 2.0, 4K@60Hz, support CEC on/off, HDCP 2.2
    RGB / VGA: x 1
    DisplayPort: x 1 (4K@30Hz)
    Audio: x 1 PC audio (3.5mm)
    CVBS (AV): x 1
    RS232: x 1
    PC Slot: x 2 (Intel OPS, Intel SDM)
