EP5502T

Interactive High – Definition Digital Poster

Sales Enquiry

GALLERY

OVERVIEW

Interactive “way-finding” is easy with ViewSonic’s new ePoster display solution. With its drift-free 4K x 4K touch interface and vivid screen resolution, retail messaging and image navigation is easy with the all-in-one ePoster. Simply connect the output of your PC to the versatile input ports and common USB port for your touch interface and your application comes alive. ViewSonic’s ePoster display can easily be connected to a corporate network by adding a network media player. Security is achieved through the locking back cover.

55"" full HD ePoster featuring 1920x1080 resolution and tempered glass faceplate for screen protection

Interactive built-in “one-point” IR touch panel features 4096x4096 touch resolution for accurate selection of data

All-in-One design provides easy customer deployment with no required construction

Internal RISC media player with 2GB CF storage for playing JPEG images and digital video files

Built-in power outlet and mounting cradle for adding your own media player

Applications:

• RETAIL ADVERTISING
• WAY-FINDING
• HOSPITALITY
• EDUCATION

SPECIFICATIONS

COLORS
Black
COMPATIBILITY
Photo Formats: JPEG
Video Formats: MPEG 1/2/3, H.264, Xvid 1.00–AVI, MP4
Audio Formats: WMA, MP3, M4A (AA CC )
Other: Clock and timer
DIMENSIONS
Physical With Stand: 32.68" x 78.7" x 17.72" (830mm x 2000mm x 450mm)

REGULATIONS
FCC, ICES 003, CE
PACKAGE CONTENTS

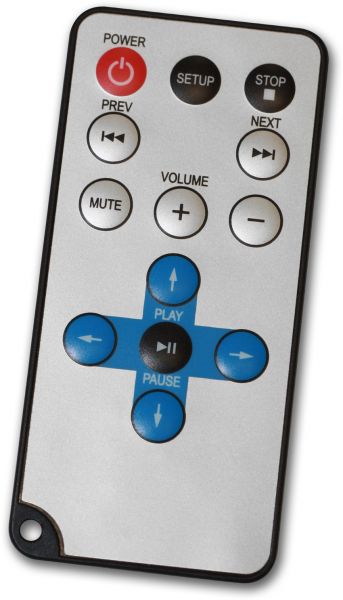

ePoster, power cord, remote control with batteries, key, Quick Start
Guide, User Manual and Software on CD
AUDIO
Speaker: 5W (x2)
CONNECTOR
Card Reader : 2GB Compact Flash
POWER
Consumption: 300W (max)
Save Mode (W): Off < 1W
Supply: 3.2–1.38 A @ 100–240VAC, 50/60Hz
DISPLAY
Contrast Ratio : 5000:1 (typ)
Brightness: 450 cd/m2 (typ)
Type: Diagonal: 55" (139.7 cm)
Resolution: 1920x1080 pixel resolution
Color Depth: Over 16.7M color (depending on video card used)
Response Time: 6.0ms (typ gray-to-gray)
Viewing Angles: Up and down 178º, left and right 178º (typ) @ CR>10
Touch: Touch Mode One point click, long press right click, double click, draw

Resoltuion 4096x4096 dots

Response Time 8ms

Supports OS Windows® 7/2000/XP/Vista

Interface USB 2.0 (full speed), USB 1.1 port HID compliant
WEIGHT
Gross: 297.6 lbs. (135 kg)
Net: 264.5 lbs. (120 kg)
OPERATING CONDITIONS
Humidity: 20–90% (non-condensing)
Temperature: 32–104º F (0–50º C)
CONNECTORS
HDMI, VGA, YPbPr, USB (x3), A/V, RJ45 Pigtail
STORAGE ENVIRONMENT
Humidity: 10–90% (non-condensing)
Temperature: -4–140º F (-20–40º C)
CONTENT MANAGEMENT
Operating System: MS Windows
Software: Signage Manager Express
MTBF
50,000 hrs.
