OVERVIEW

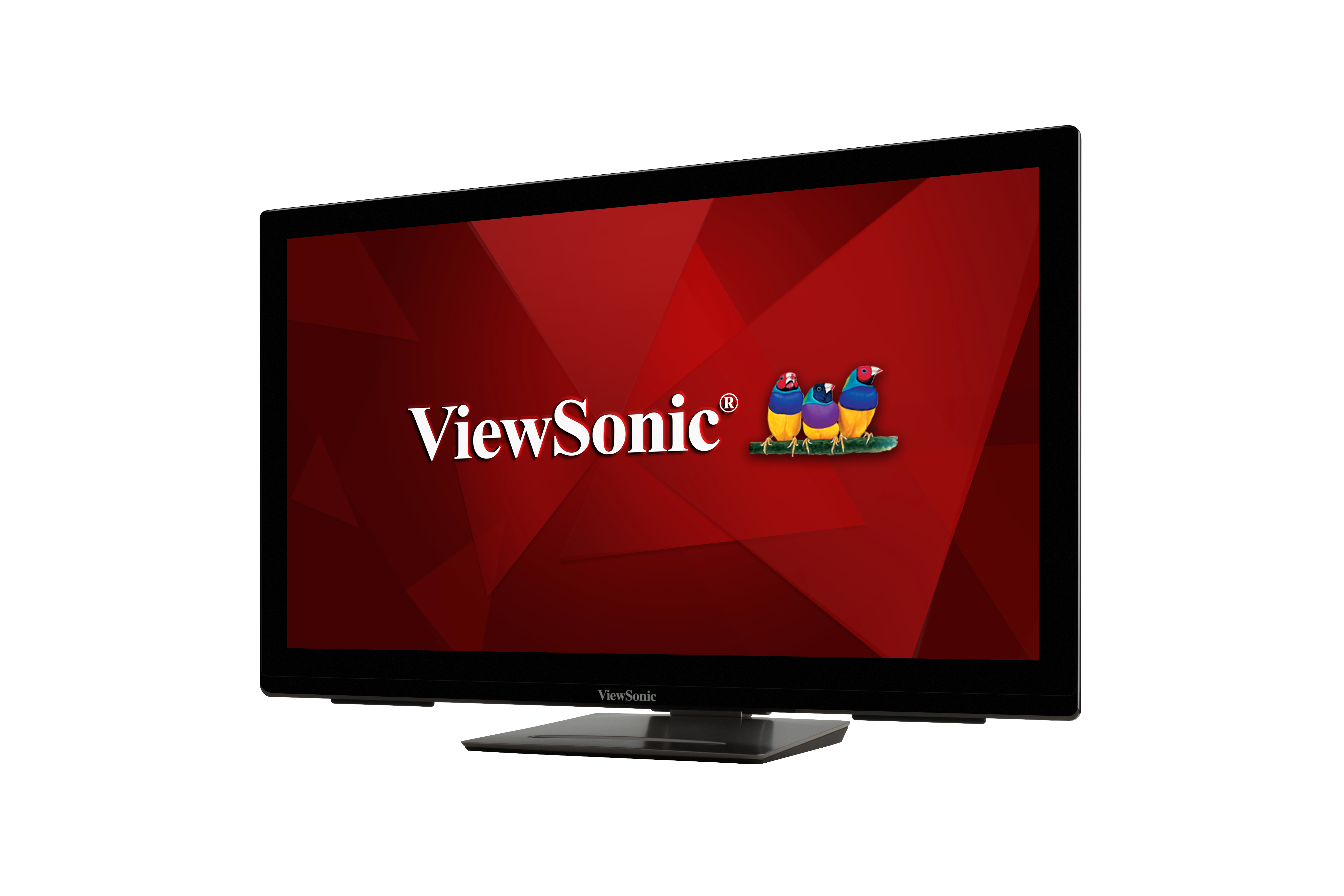

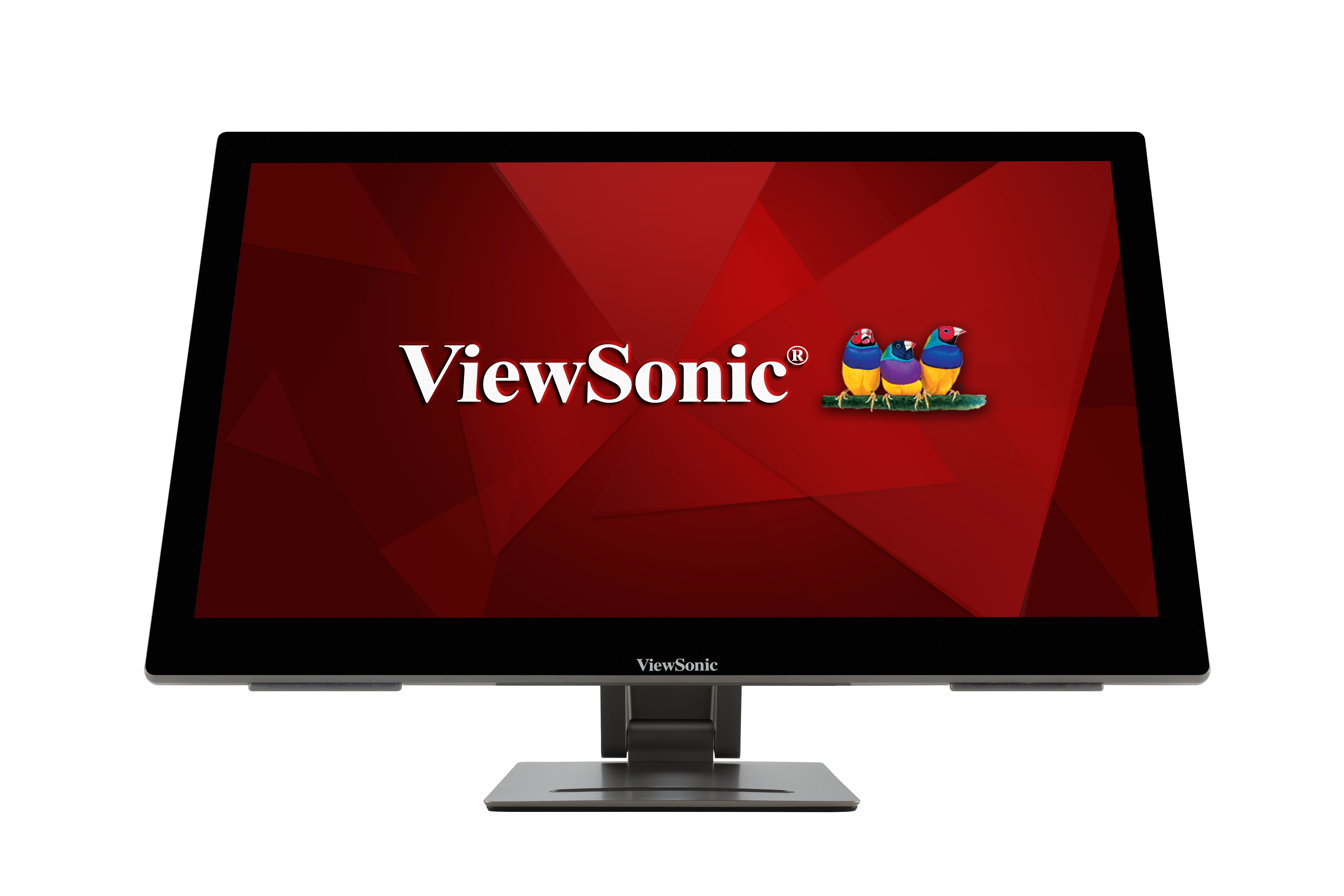

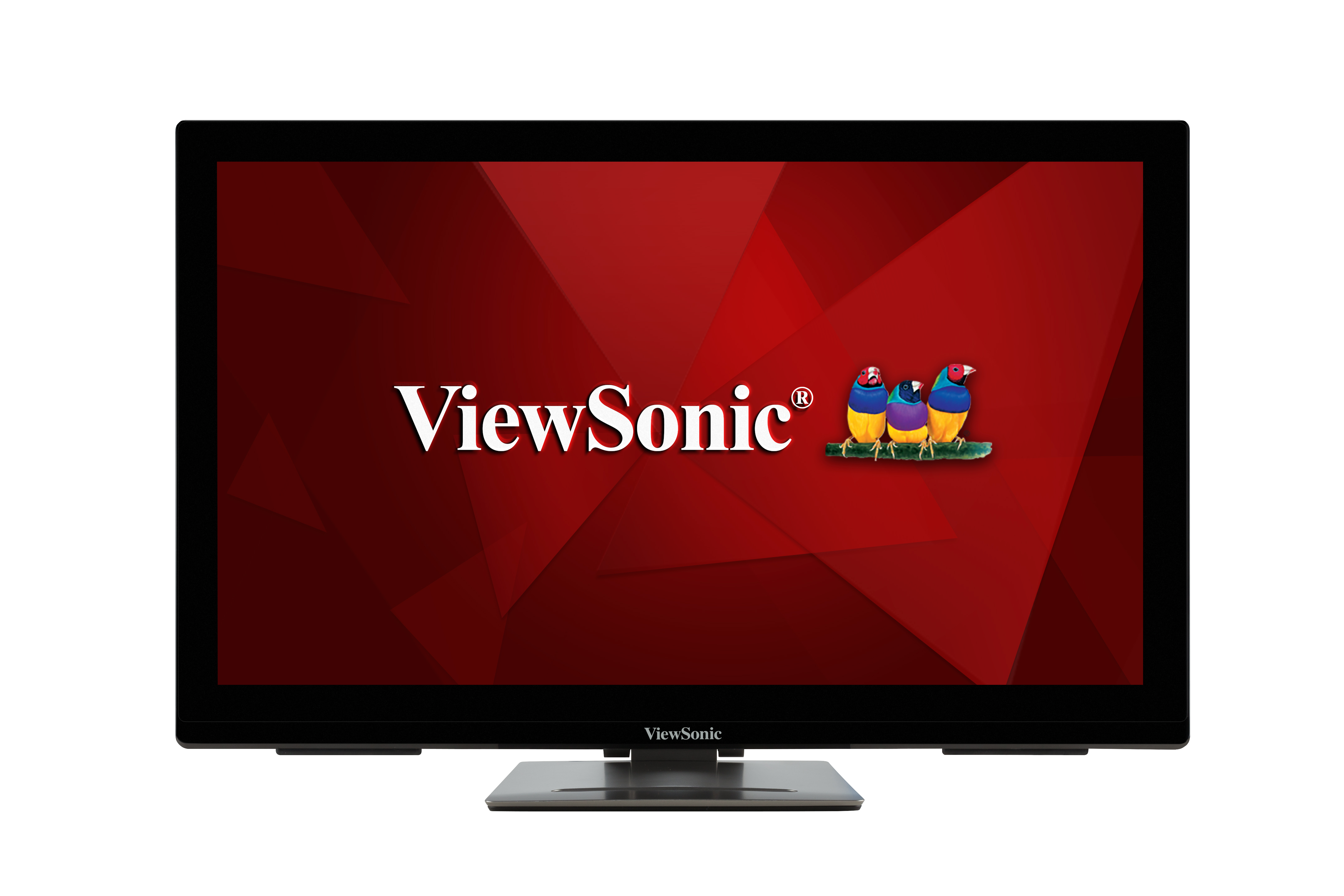

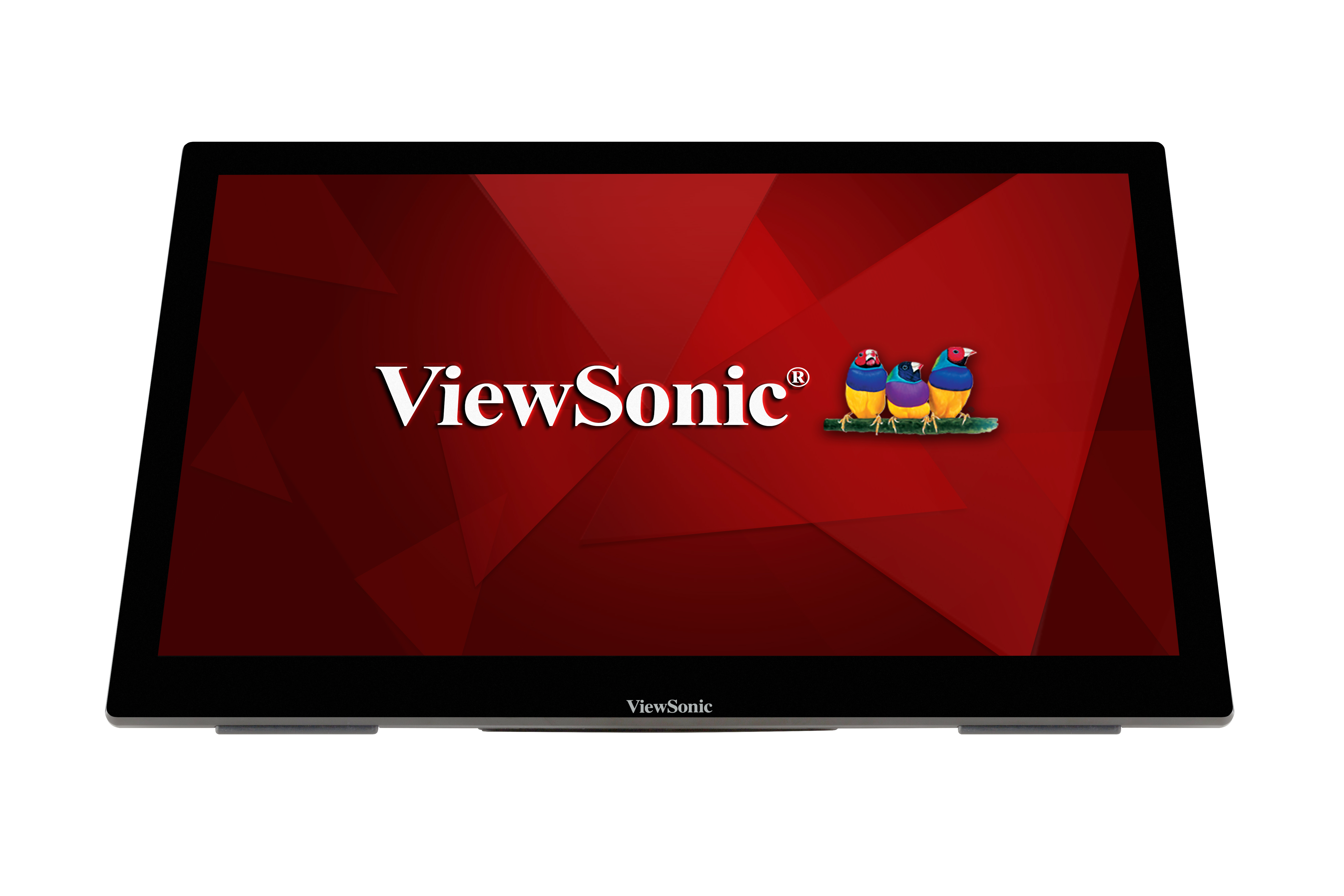

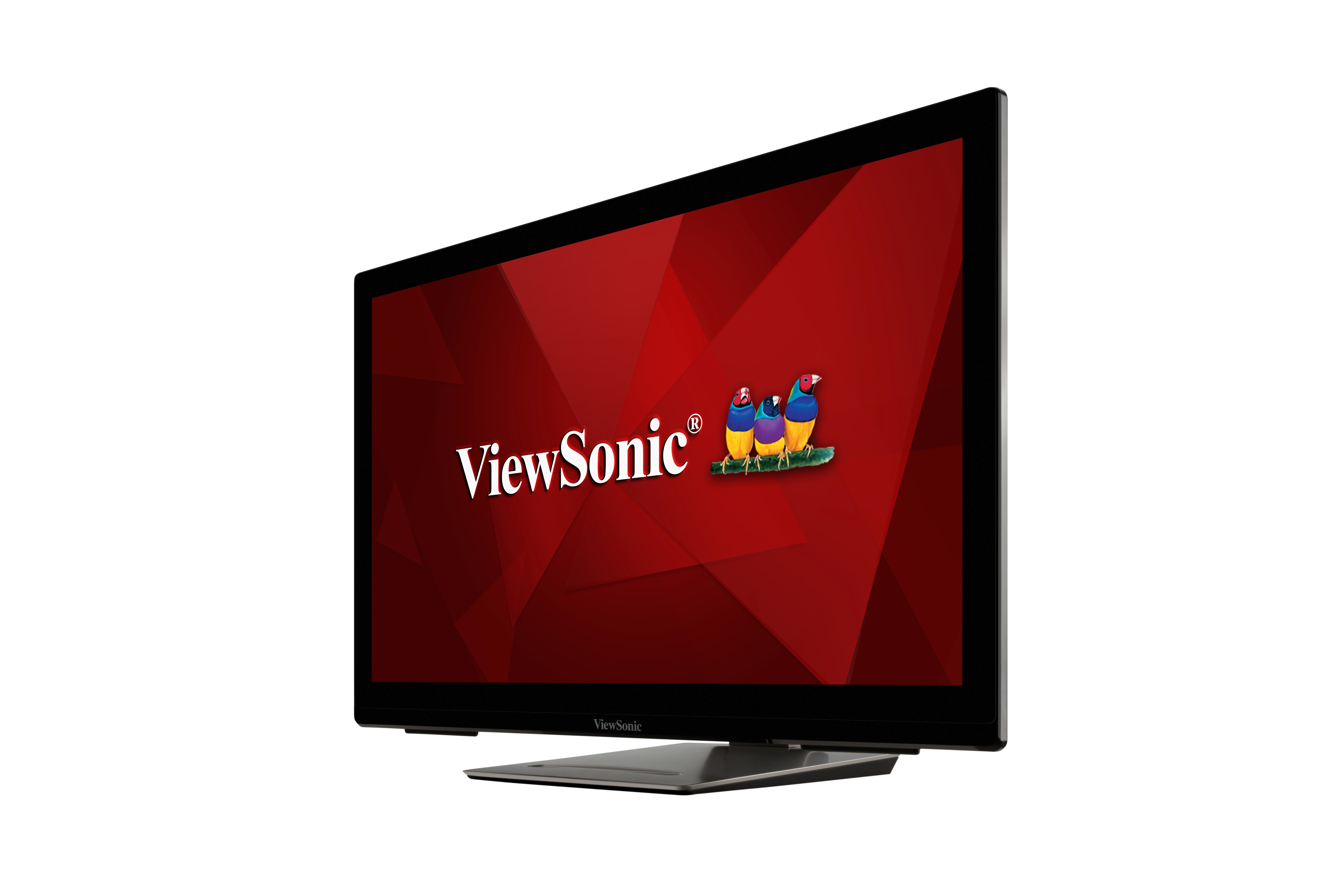

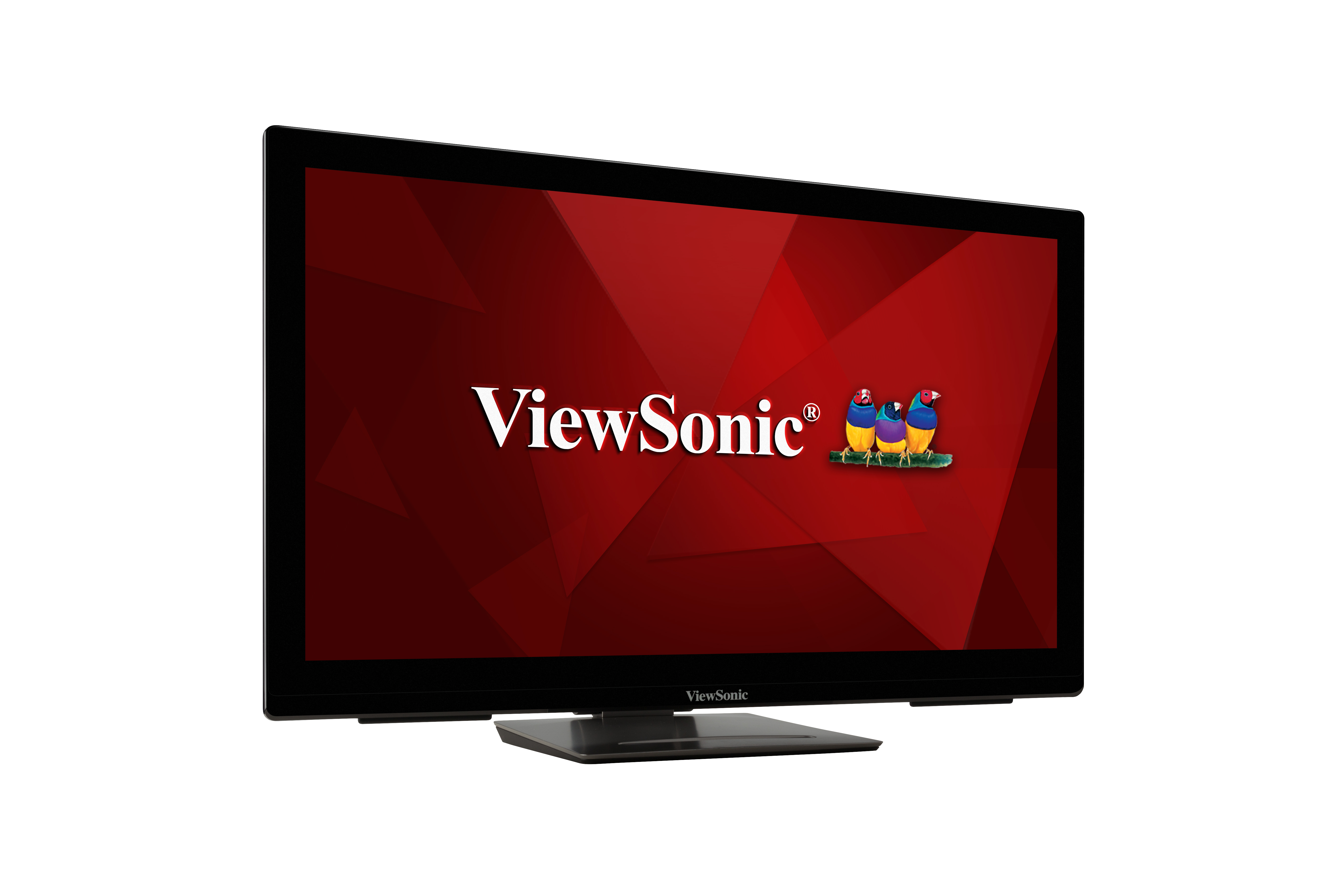

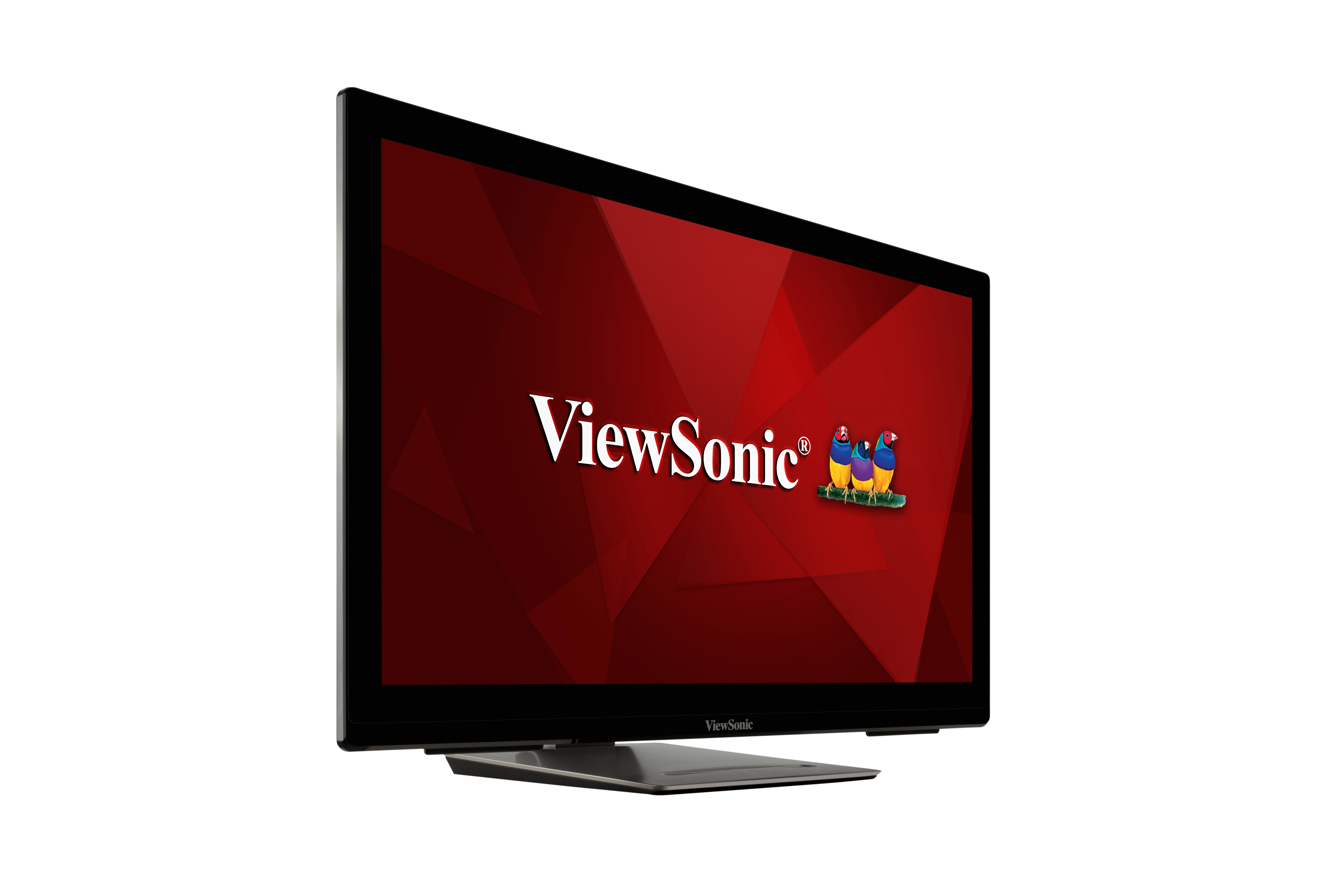

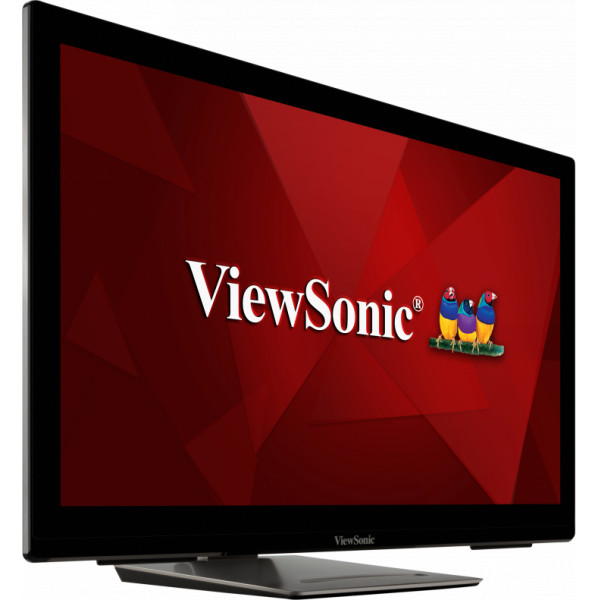

The ViewSonic ViewBoard Mini IFP2710 is a multi-touch display with finger and pen touch command capabilities that allows presenters to intuitively draw, write, and annotate directly on the display. An advanced ergonomic design allows you to swivel the display or lay it flat on a tabletop for group discussions. All annotated content on the touch display can be transferred to a larger external display or projector simultaneously via HDMI output or LAN cable from HDBaseT, creating a more engaging classroom or lecture hall environments.

10-Point Finger and Pen Touch

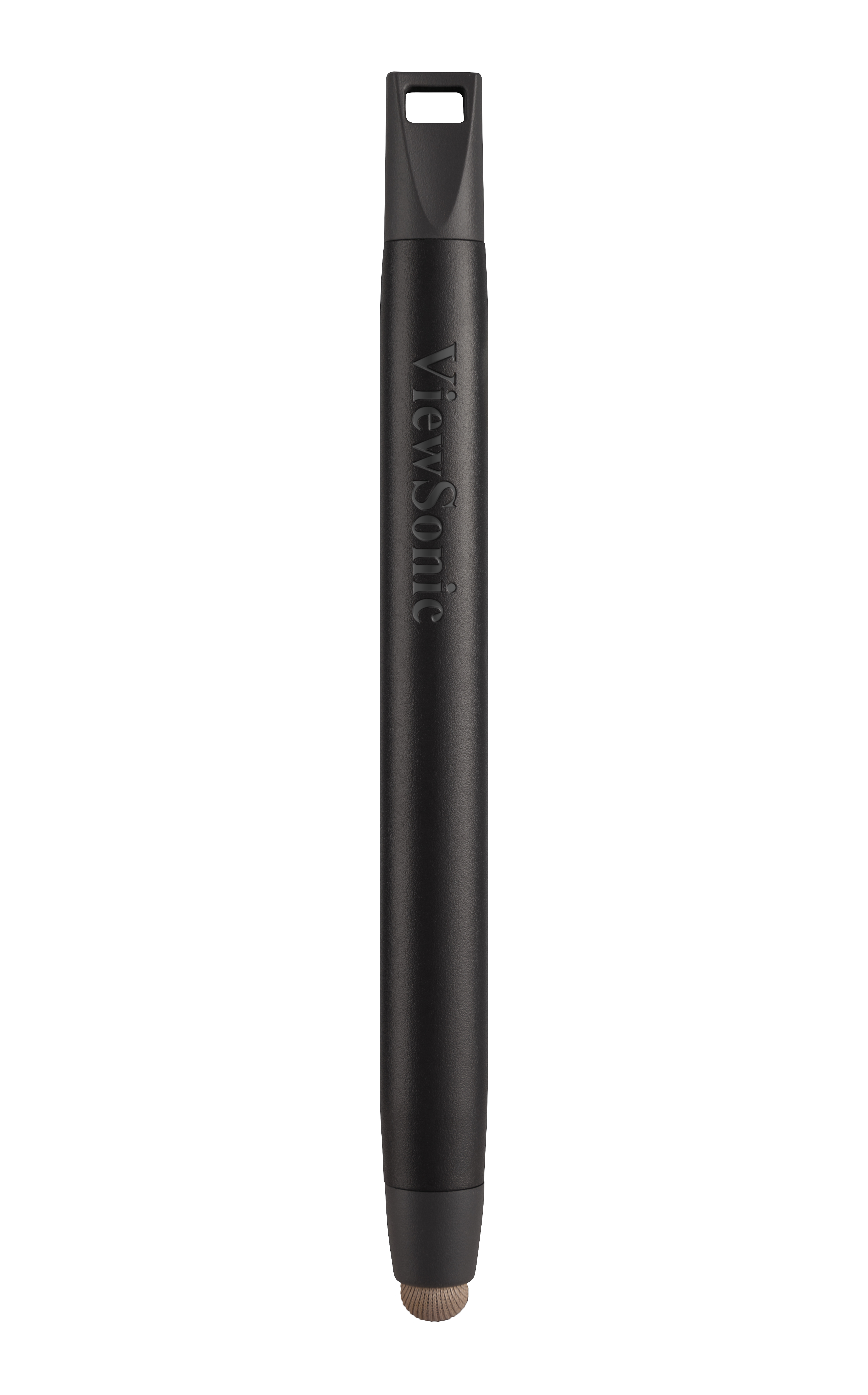

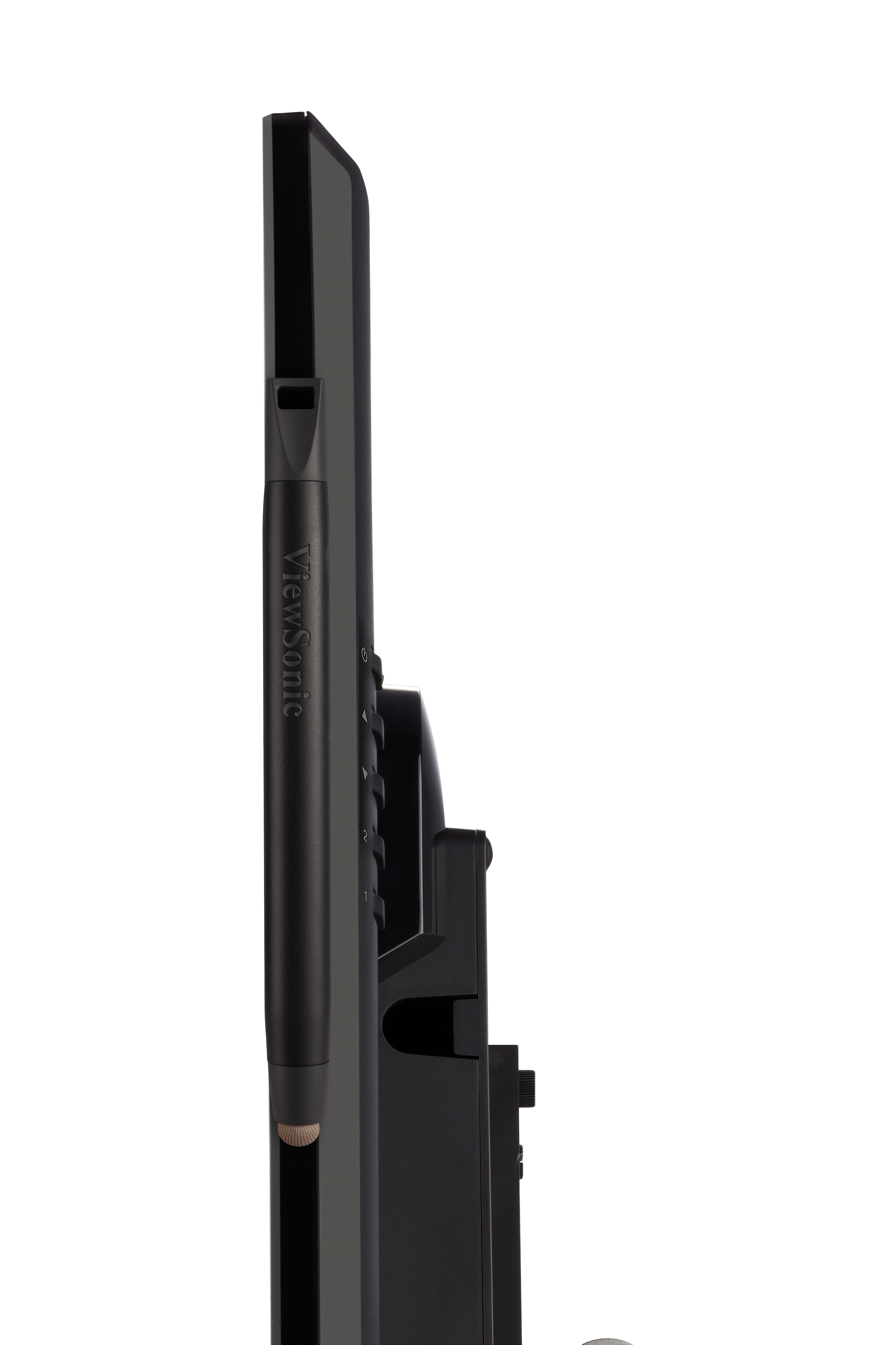

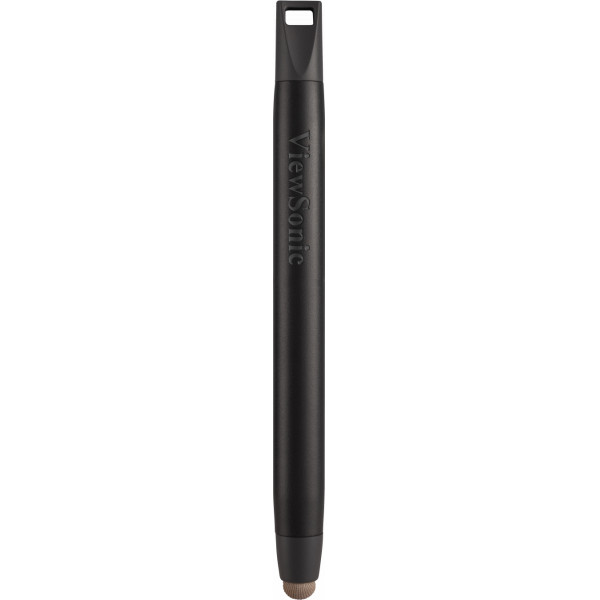

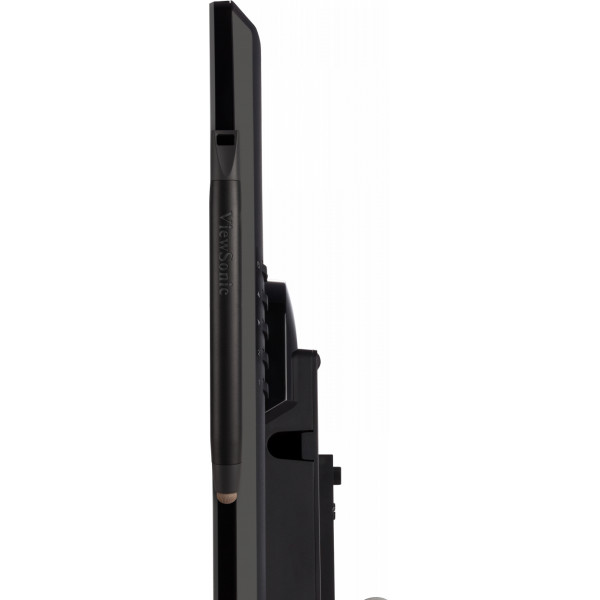

Up to 10 points of touch commands are recognised by the display at once and are transferred accurately to projected images for a highly responsive touch experience. If you’re self-conscious about your handwriting, no problem – the display comes with a pen that helps with legibility and provides a more familiar writing experience.

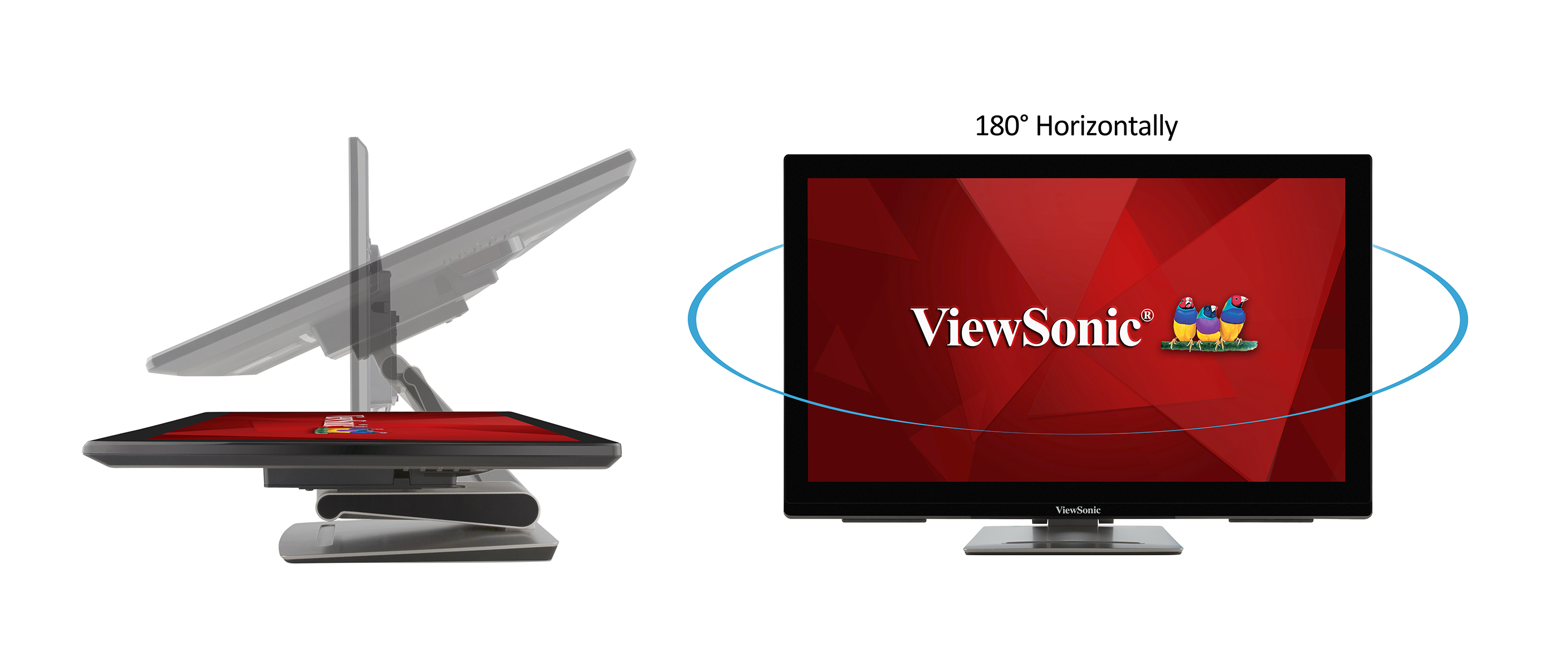

Ergonomically Designed for Group Discussions

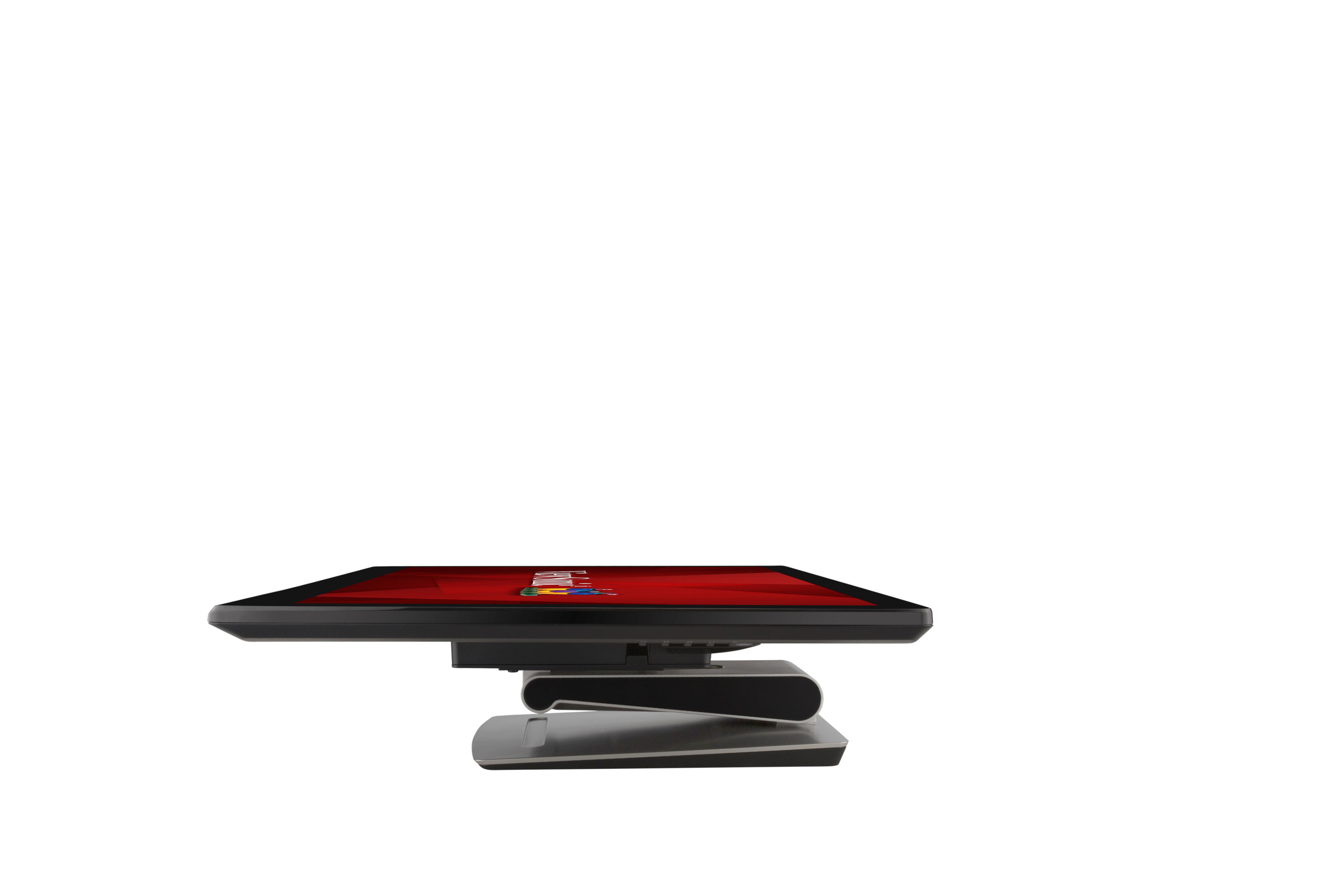

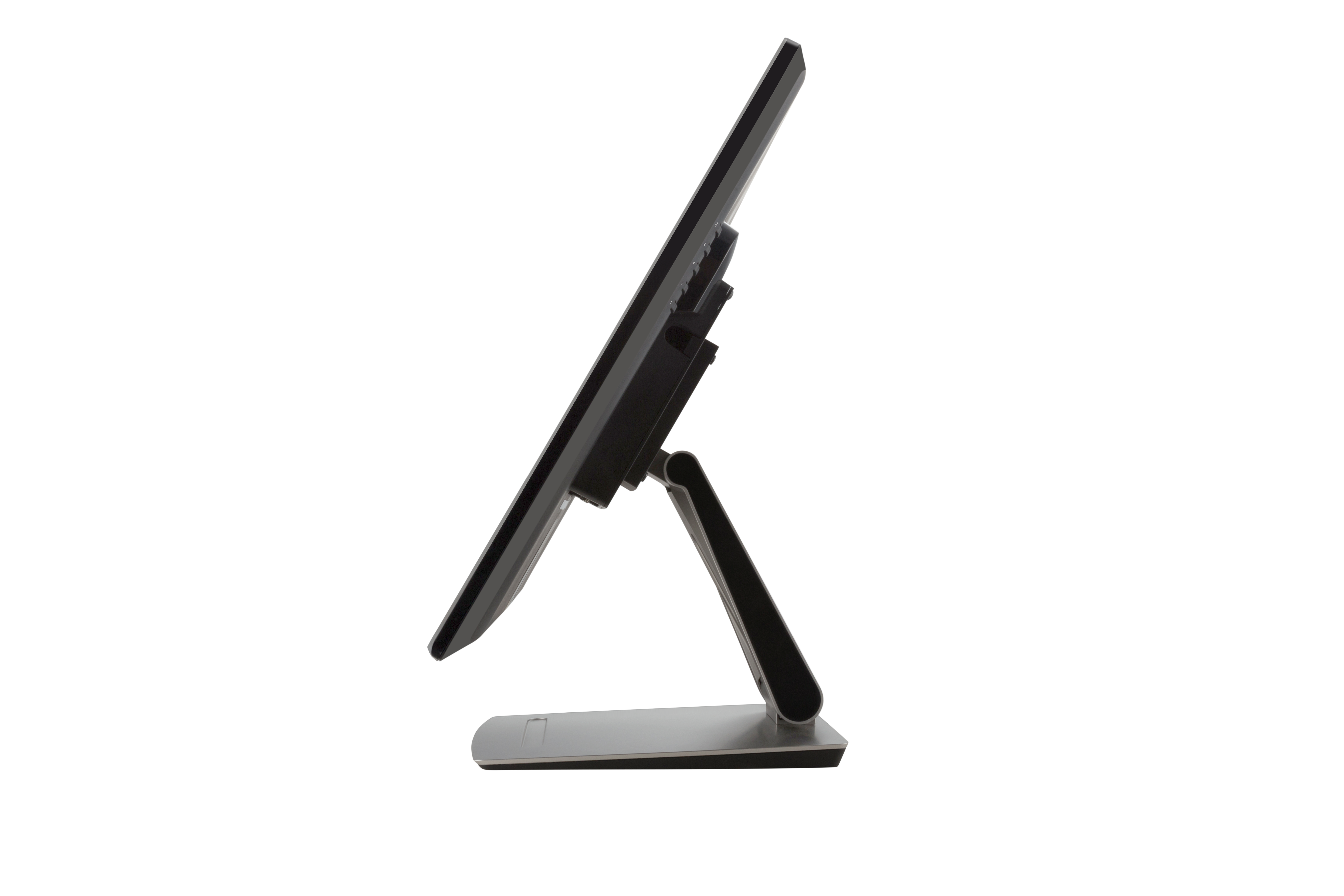

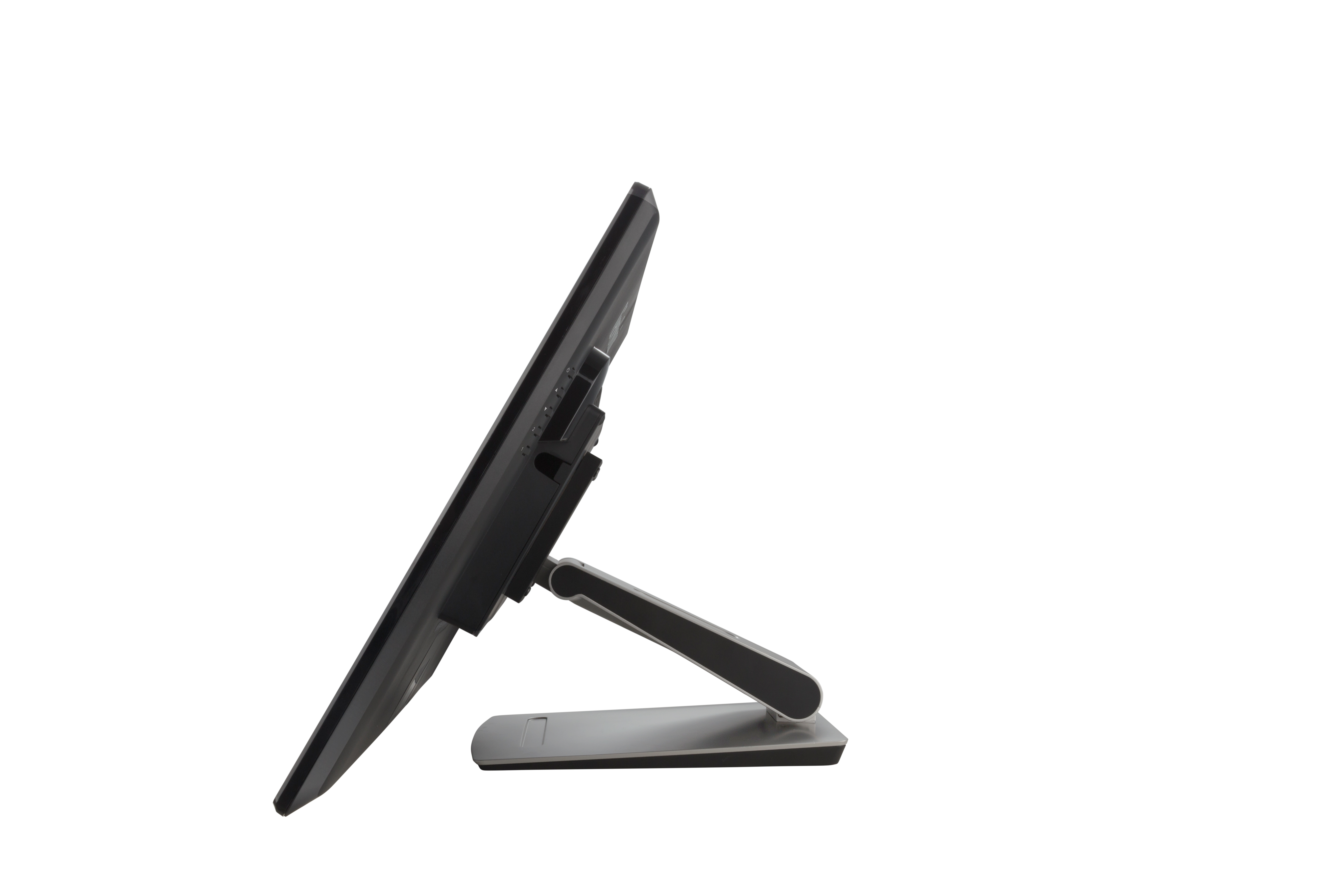

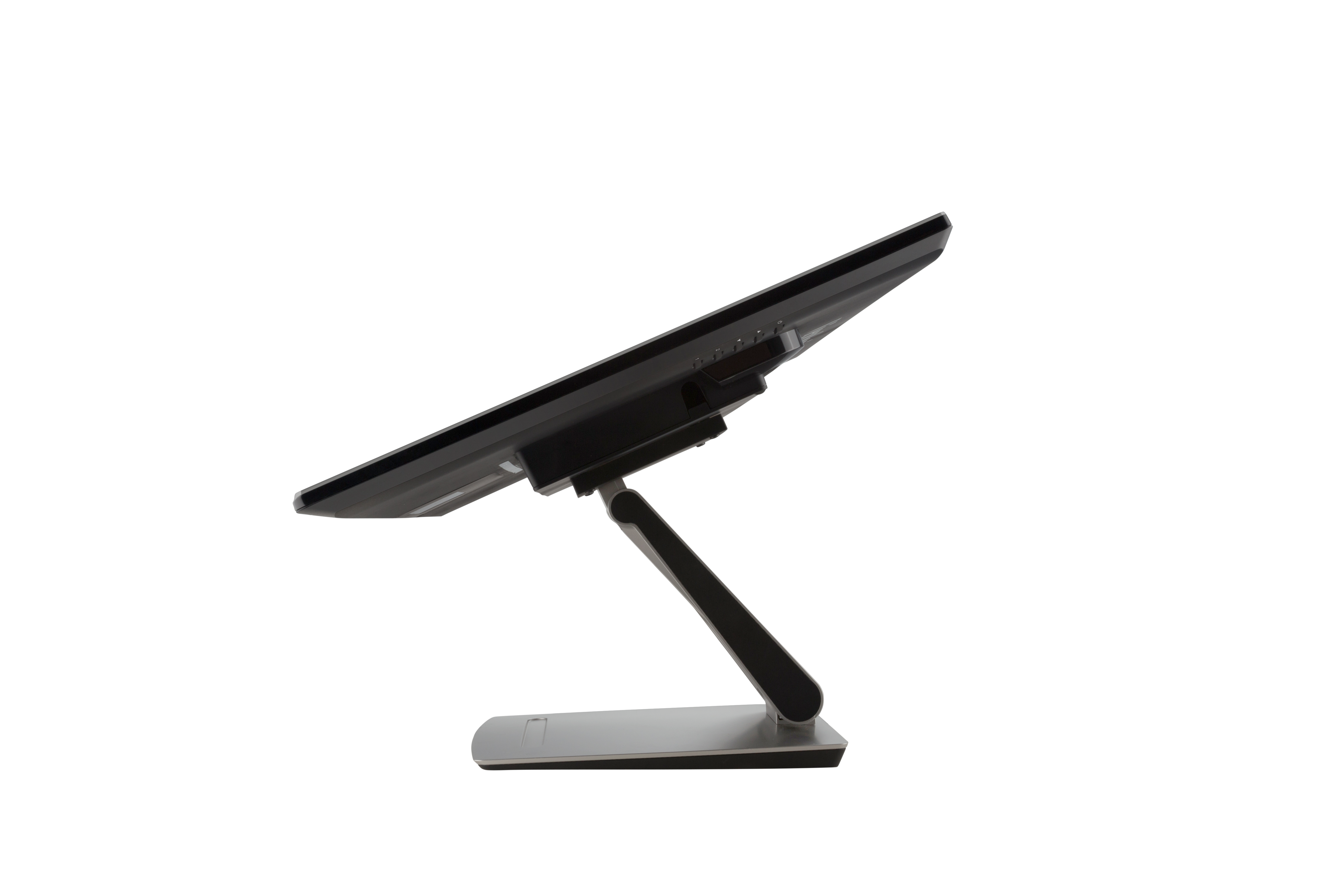

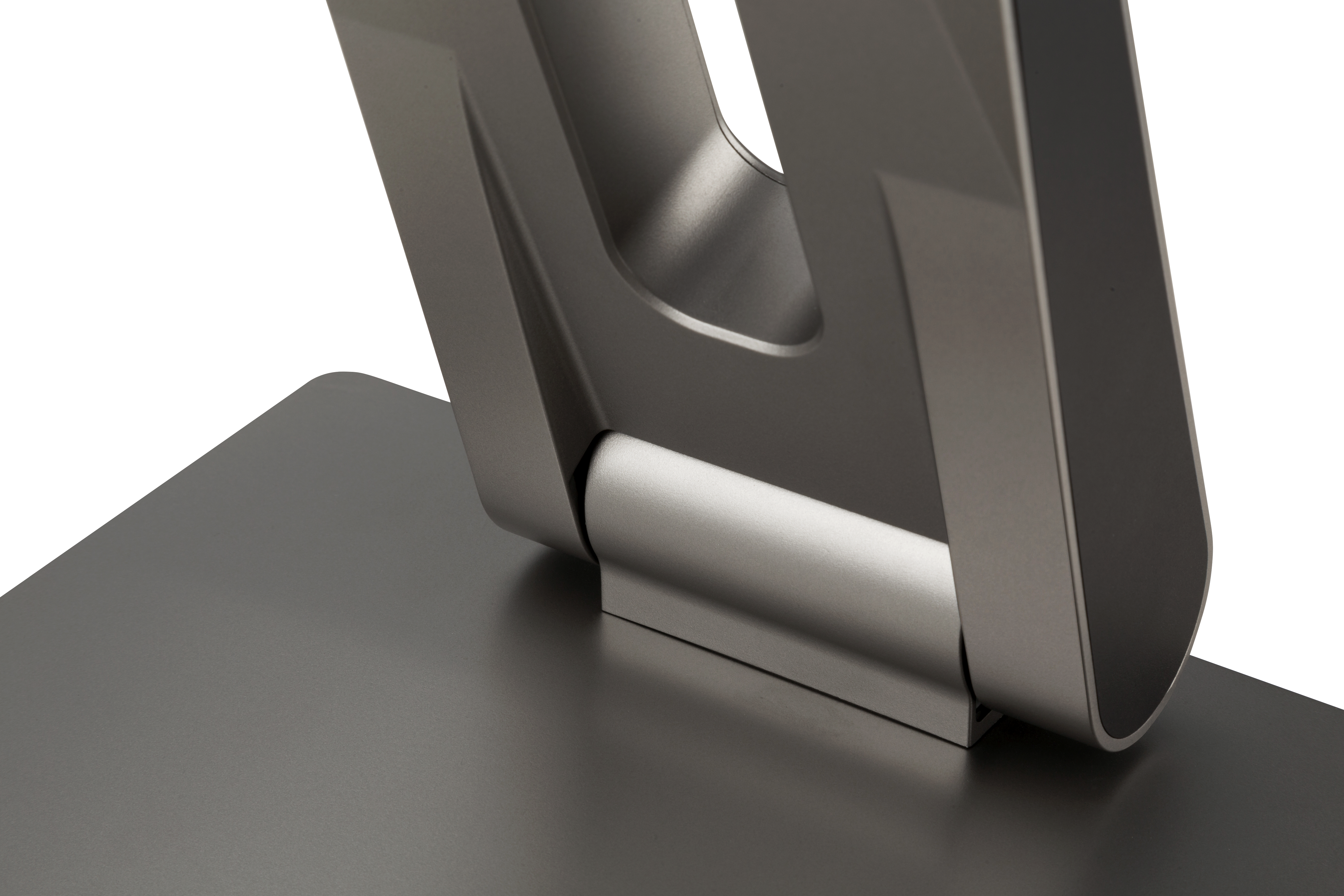

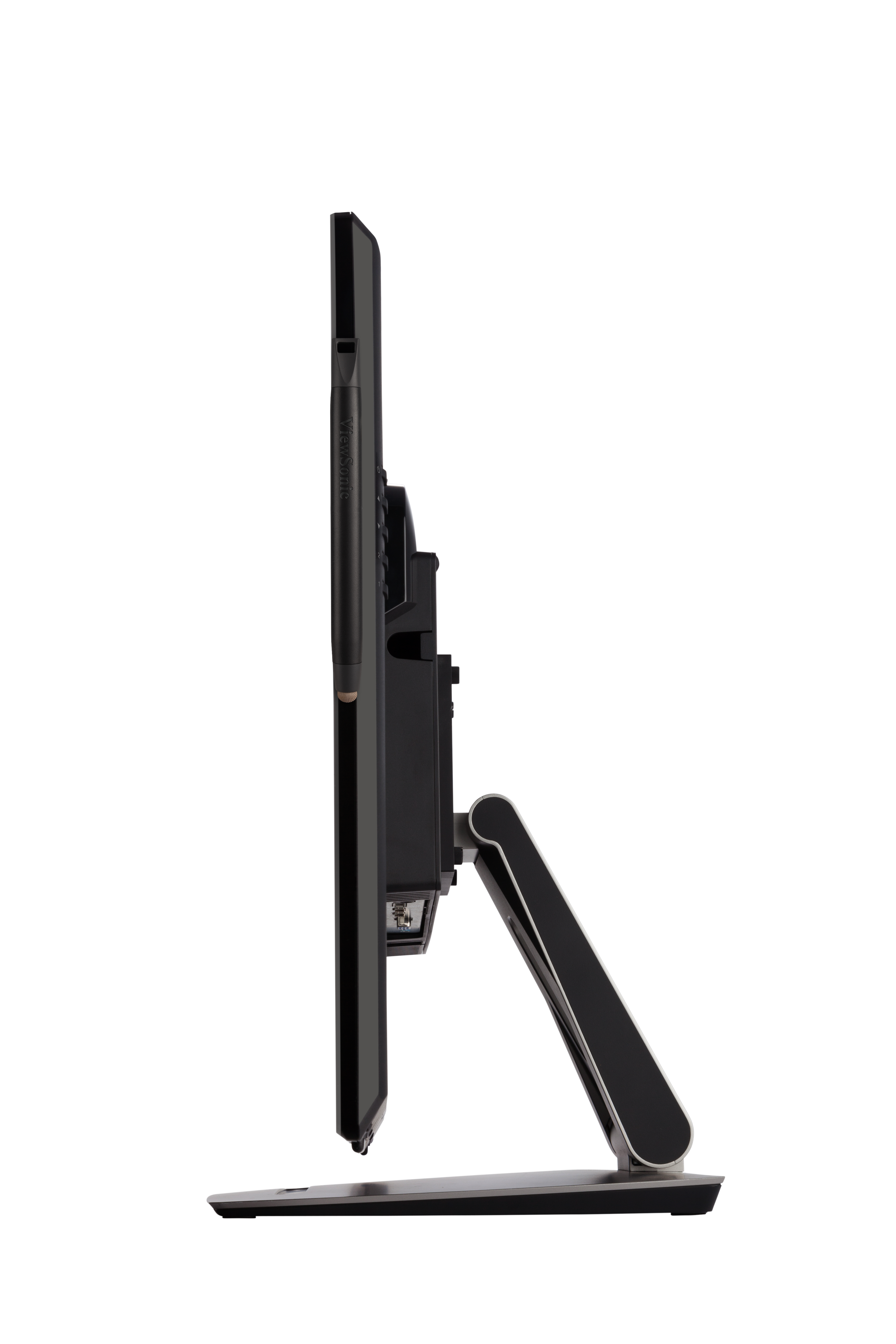

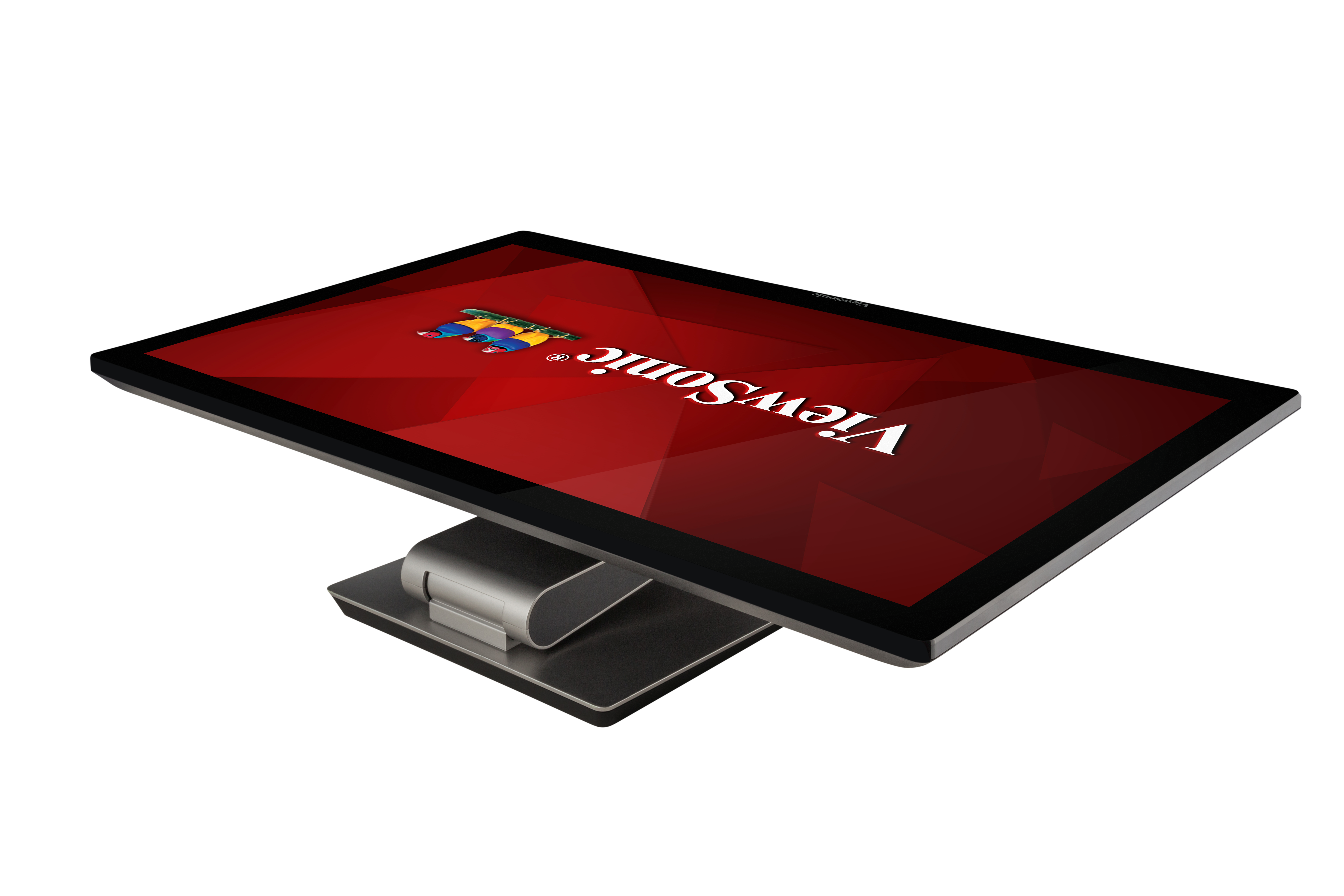

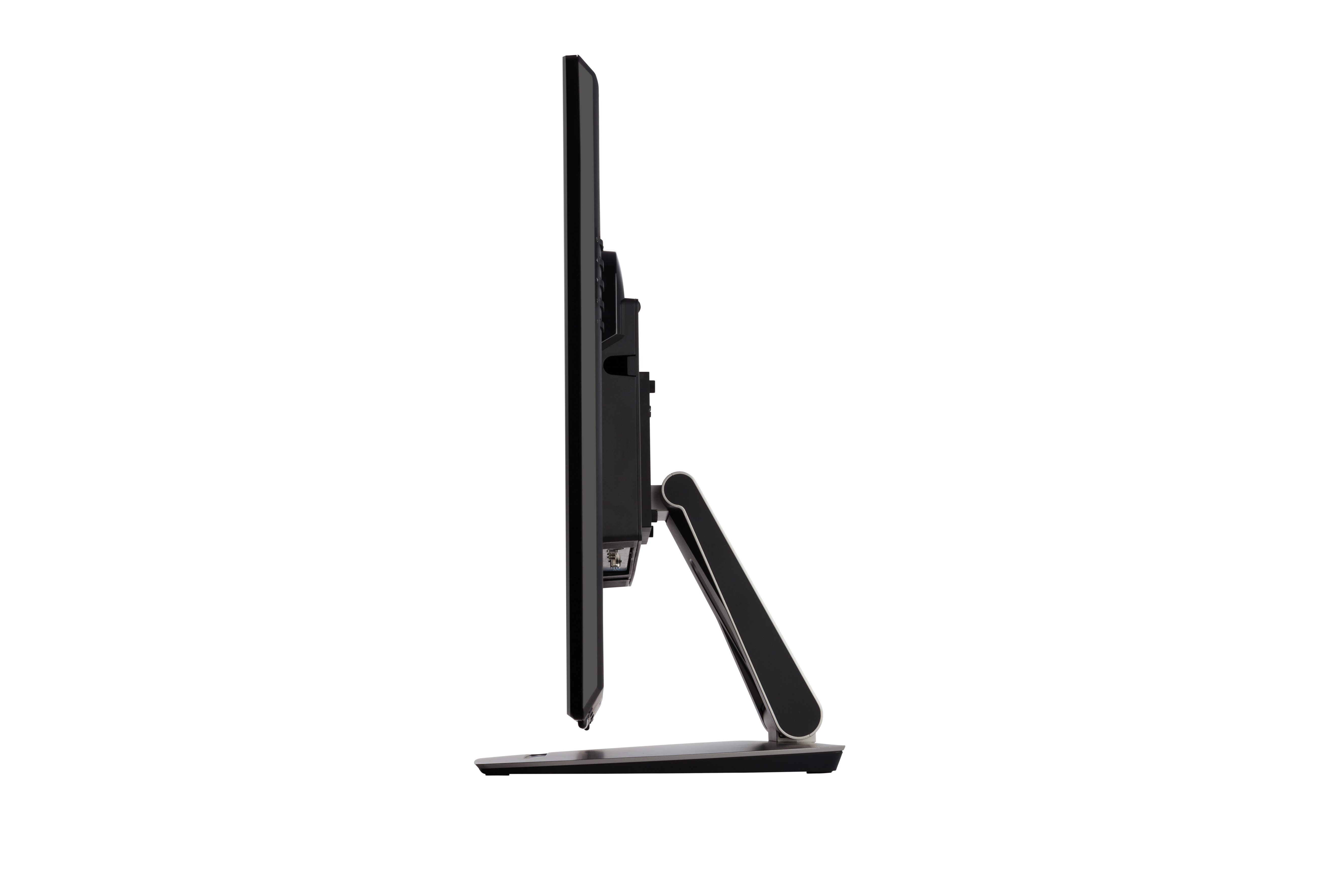

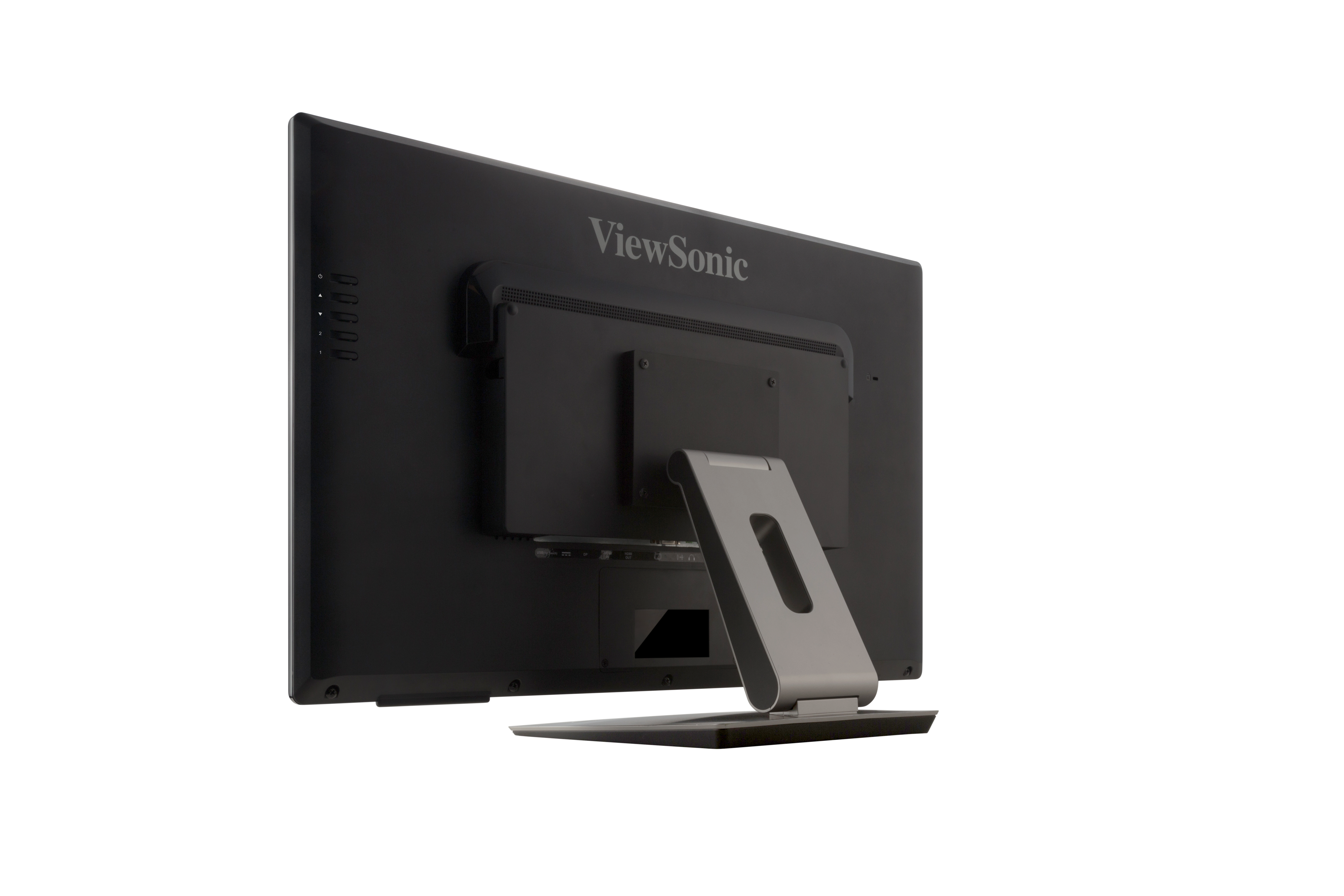

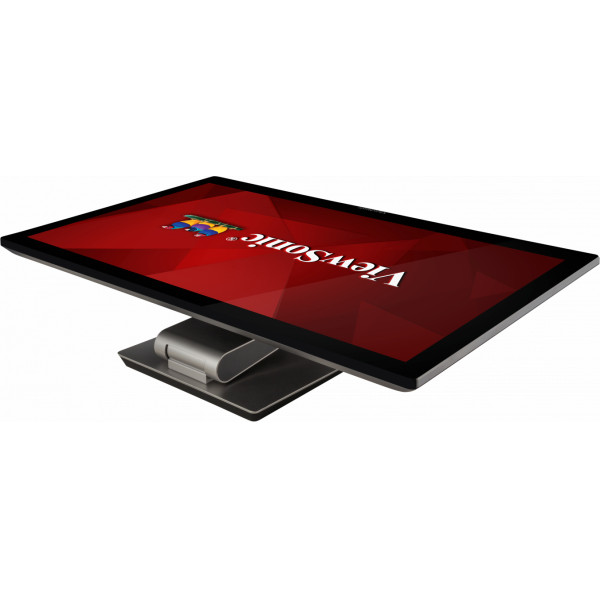

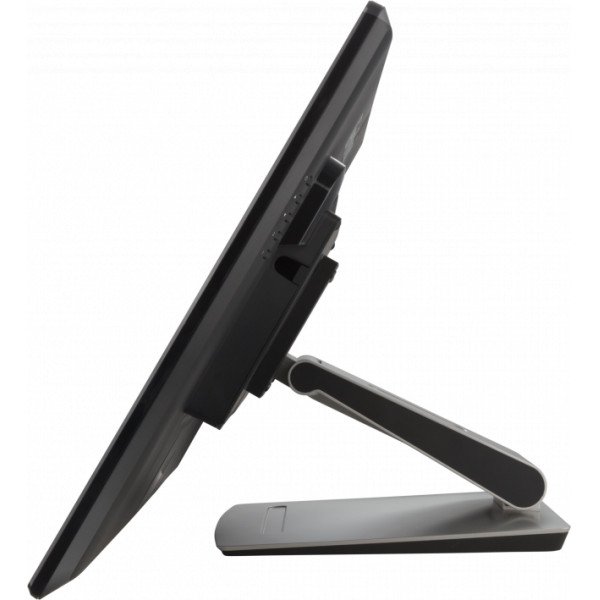

A flexible ergonomic design makes it easy to adjust the display’s angle for a better experience during group discussions. Simply swivel the display for a better viewing angle or lay it completely flat on a table for collaboration friendly usage.

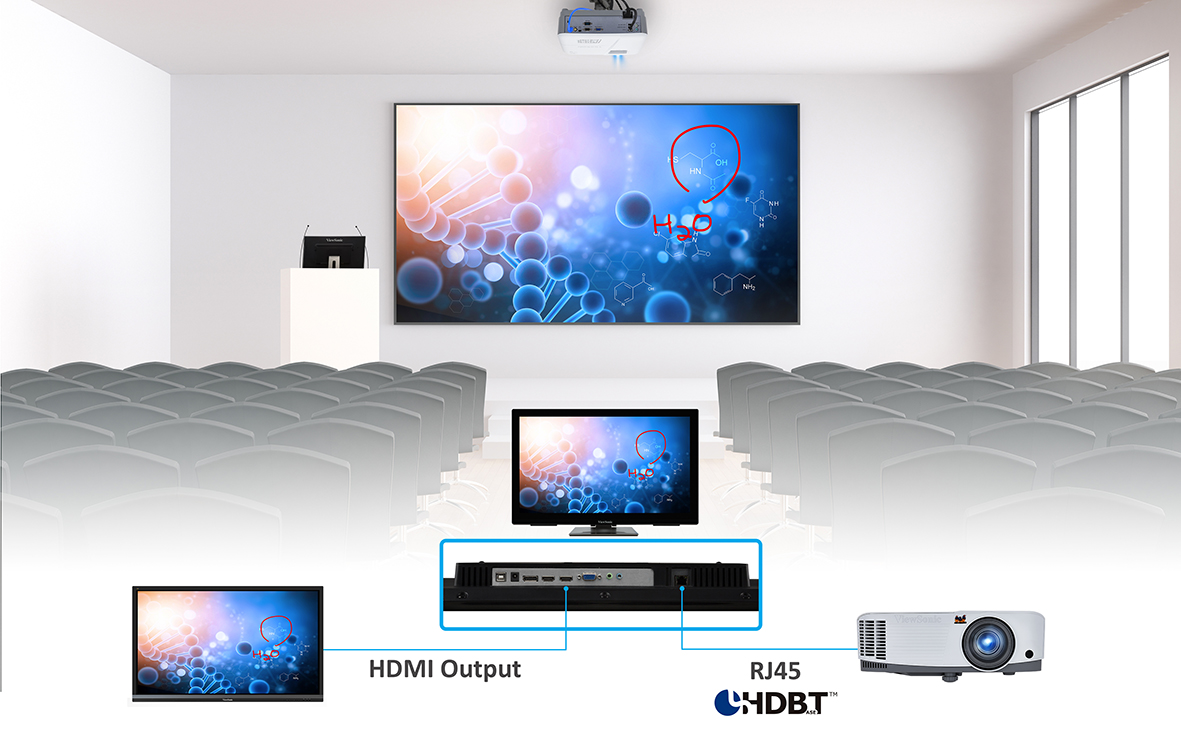

Share Annotations on a Bigger Screen

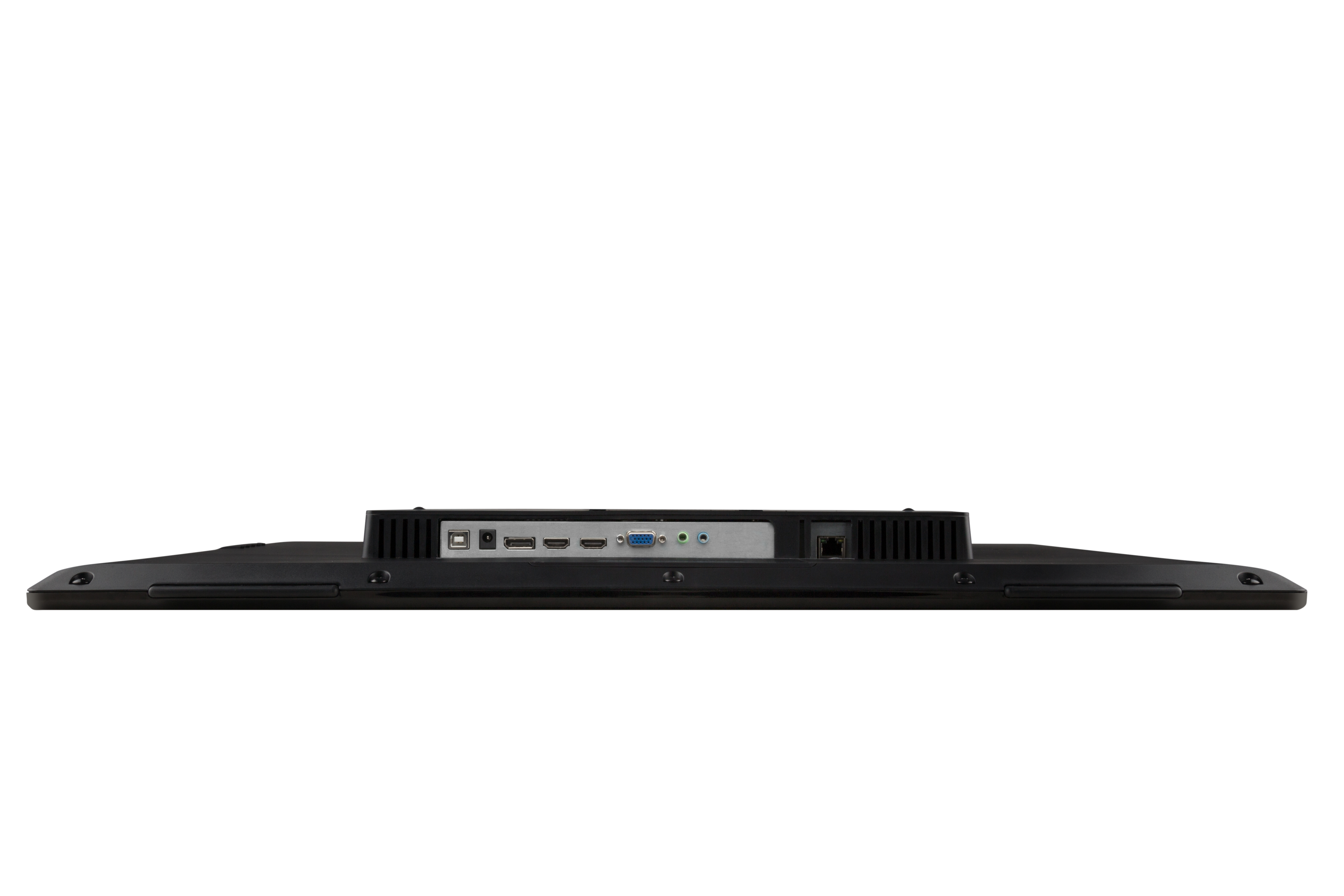

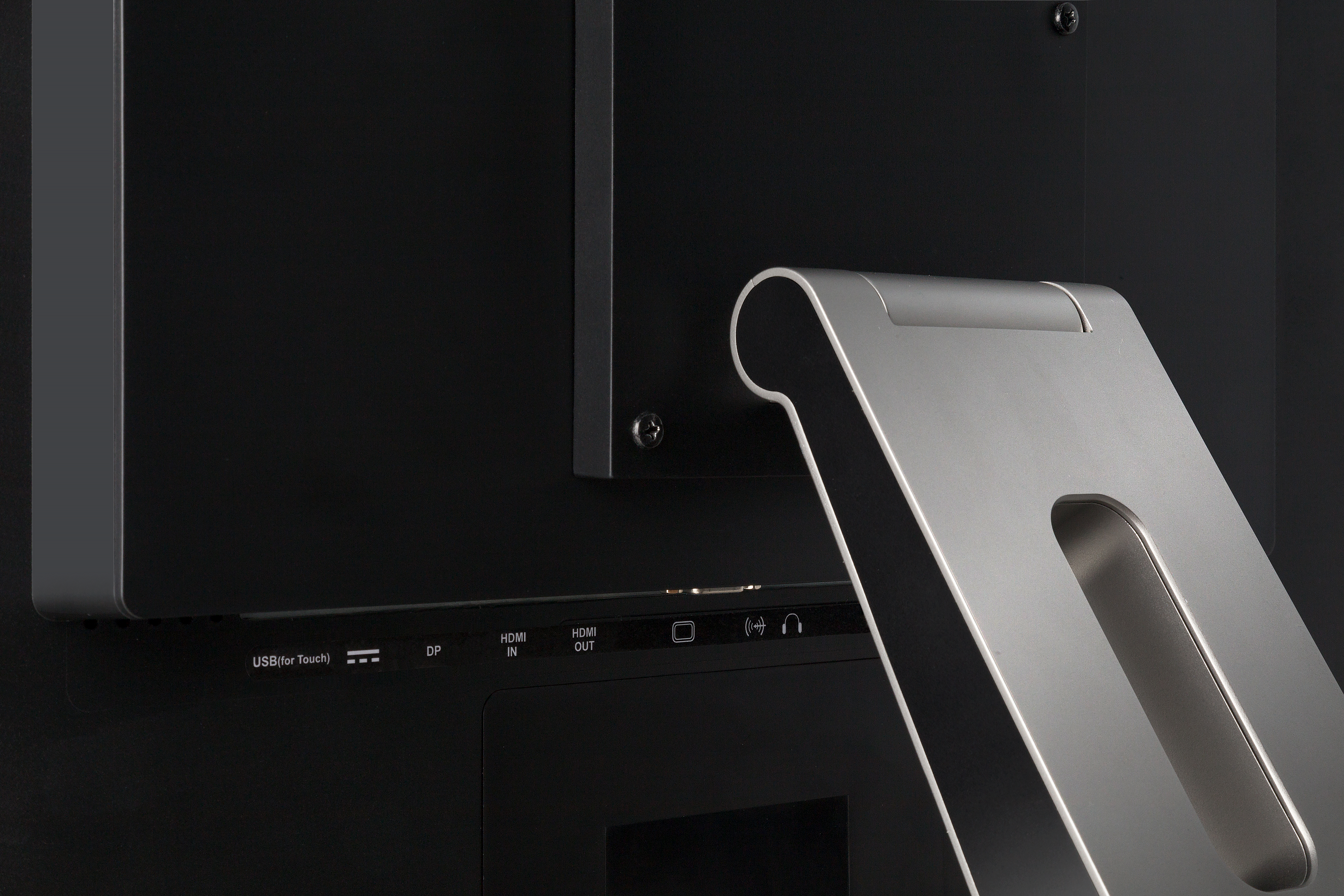

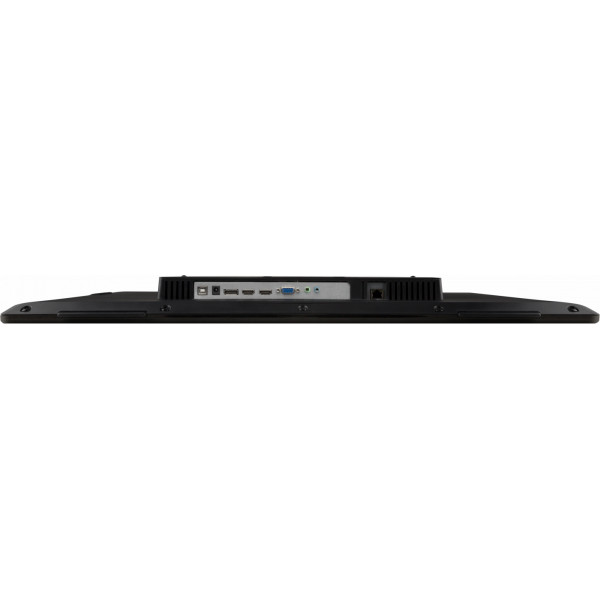

This display is your control centre, meaning that all content on the display – annotations included – can be transferred directly onto a larger display via HDMI or to a projection screen via a LAN cable and HDBaseT technology* for better visibility and long distance installation.
* Need to connect to optional HDbaseT receiver (HBR100)

Reliable Long Term Usage

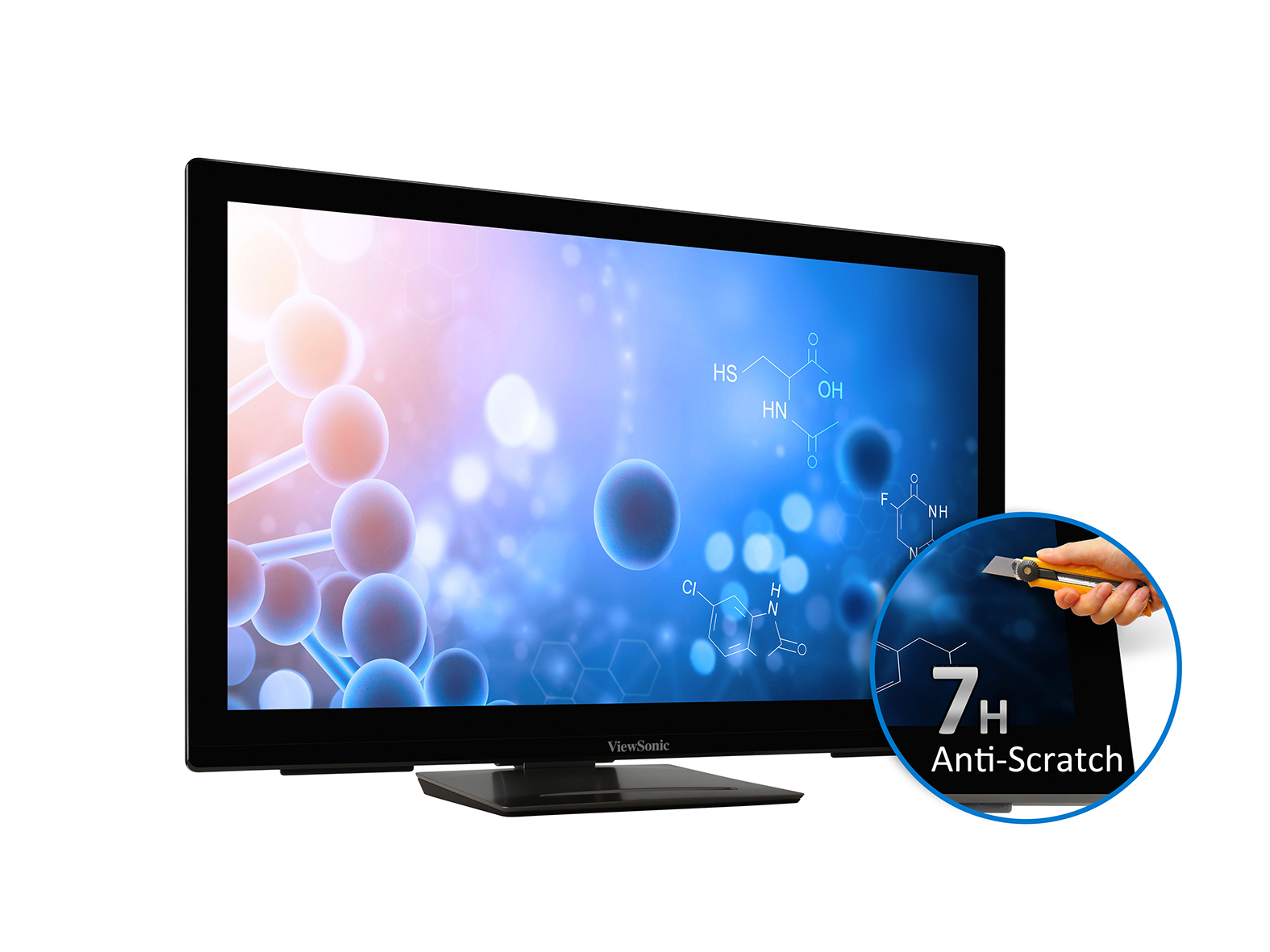

The touch display is designed with an ultra-durable protective glass with scratch resistance coating. This protects the screen from damages caused by heavy usage or unintended contact in tight crowed spaces, such as classrooms.

Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter protect your eyes from harmful light rays and prevent eye strain caused by periods of extended viewing.

SPECIFICATIONS


  • LCD PANEL
    Monitor Size: 27.0” / 68.58cm
    Panel Technology: ADS Type, a-si TFT Active Matrix LCD
    Resolution: 1920 x 1080
    Display Area: 597.888(H) x 336.312(V)
    Aspect Ratio: 16:9
    Brightness: 260 cd/m2 (Typ.) / 220cd/m2 (Min)
    Contrast Ratio: 1000:1 (Typ) / 700:1 (Min)
    Dynamic Contrast Ratio: 20,000,000:1
    Viewing Angles: 178 degrees / 178 degrees (Typ)
    Refresh Rate: 75Hz
    Response Time: 14 ms (Typ.)
    Backlight: WLED light bar
    Backlight Life: 30,000 Hrs (Min)
    Colours: 16.7M colors, (6-bits + Hi FRC)
    Colour Gamut: 72% NTSC Size (Typ)
    Panel Surface: Glossy type, Hard-coating (7H)
    Pixel Size: 0.3114(H) x 0.3114(V)
  • INPUT SIGNAL
    Frequency: Fh = 31 ~82 kHz ; Fv = 56 ~75 Hz
    Sync: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p): Separate Sync / Composite Sync / Sync on Green, HDMI (v1.4): TMDS
  • COMPATIBILITY
    PC: PC Compatibles (up to 1920 x 1080 Non Interlaced)
    Mac®: Power Mac (up to 1920 x 1080 )

SUPPORT & DOWNLOADS


Datasheets

ViewBoard Mini IFP2710 Datasheet
