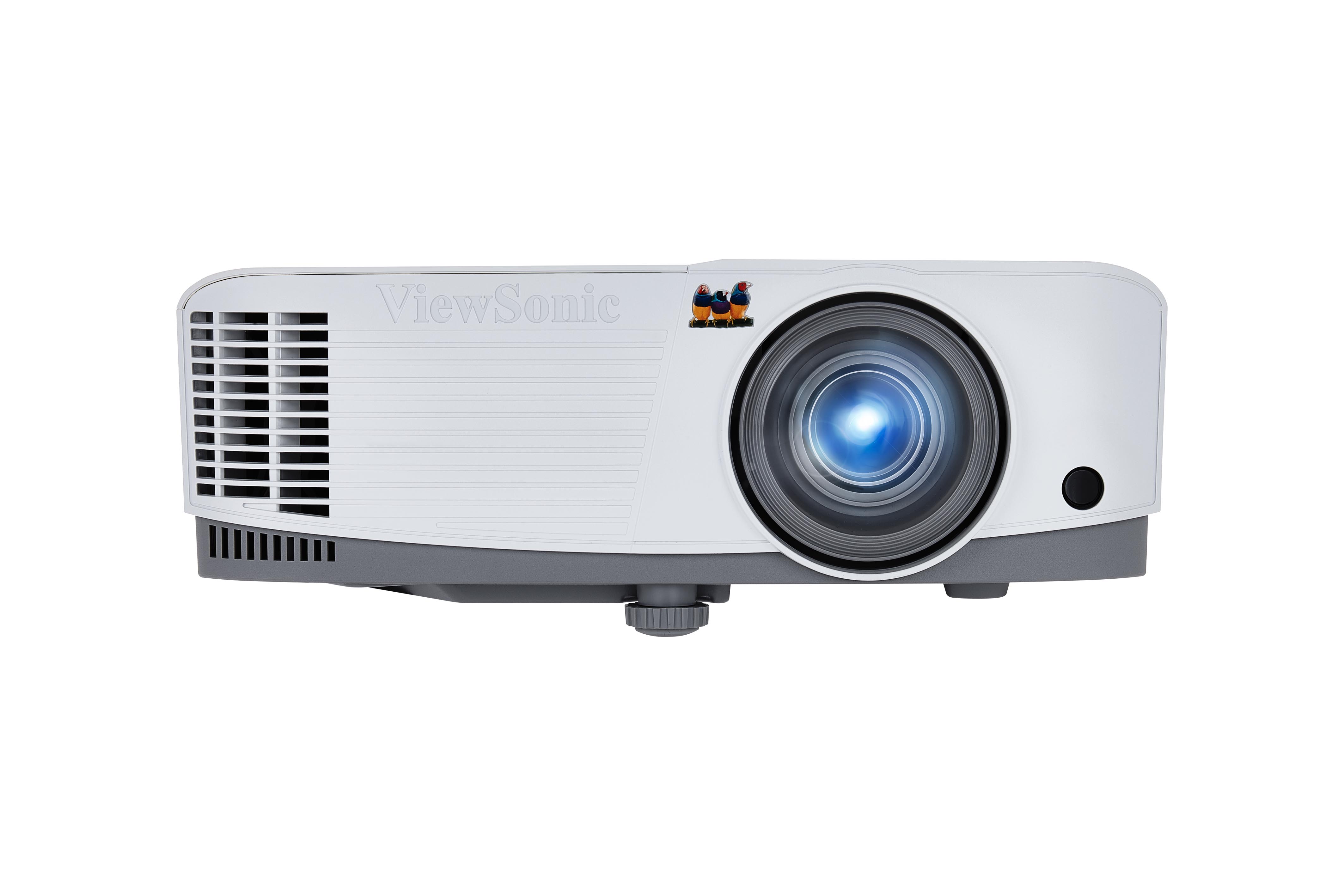

PG703W

4,000 Lumens WXGA Business Projector

  • 22000:1 contrast ratio
  • 6 colour modes
  • SuperColor™ technology
  • Dual HDMI(MHL) inputs
  • LAN control support - Crestron, AMX and PJ Link
Sales Enquiry

OVERVIEW

The ViewSonic PG703W are high brightness WXGA projectors respectively, featuring 4000 ANSI lumens and high 22,000:1 contrast ratio to produce the finest of details regardless of the amount of ambient lighting for projection in any medium sized spaces, such as meeting rooms or classrooms. PG703W come with an energy-saving SuperEco mode that reduces power consumption and extends lamp life to up to 15,000 hours, reducing the frequency of lamp replacement and lowering the maintenance costs. In addition to dual HDMI input (MHL), S-Video, and VGA out, these projectors are integrated with RS232 and LAN, certified by Crestron, AMX and PJ Link networkable solutions, making it easy to controlled and monitor these projectors remotely.

Impressive AudioVisual Performance

Bright Images in Any Environment

Packed with 4,000 lumens of brightness and a 22,000:1 high contrast ratio, PG703W is guaranteed to produce bright images in any setting, even in spaces with high ambient lighting.

4,000 Lumens

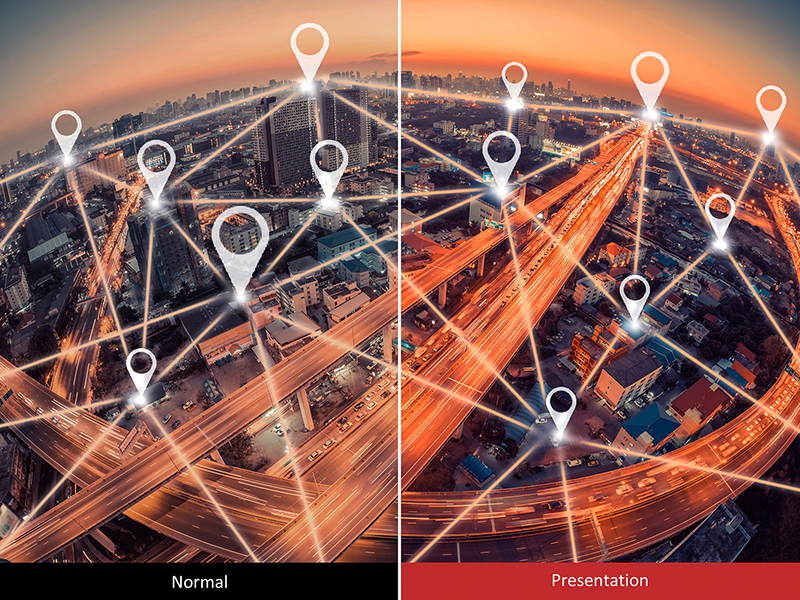

Fine-Tuned Viewing

Choose from 6 unique preset viewing modes to select the best settings for your usage:

  • Brightest Mode: For environments where the maximum brightness is required.
  • Presentation Mode: High-brightness and a high contrast ratio for presentations in brightly lit environments.
  • Standard Mode: Enhanced color, similar to that of a PC or Notebook, for general viewing.
  • Photo Mode: Natural color similar to what would be seen in real life for realistic images.
  • Movie Mode: Saturated color for a better movie watching experience in dark environments.
  • DISCOM SIM Mode: Display multiple high-resolution DICOM-format medical images
6 Color Modes

Amazing Color Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide range of visible color, ensuring that users enjoy stunningly beautiful images.

SuperColor™ Technology

Immersive 3D Viewing

PG703W is capable projecting 3D content directly from 3D Blu-Ray players and HDMI-enabled devices such as laptops, tablets, and media players via HDMI port connection.

HDMI 3D Blu-ray

Ease of Use

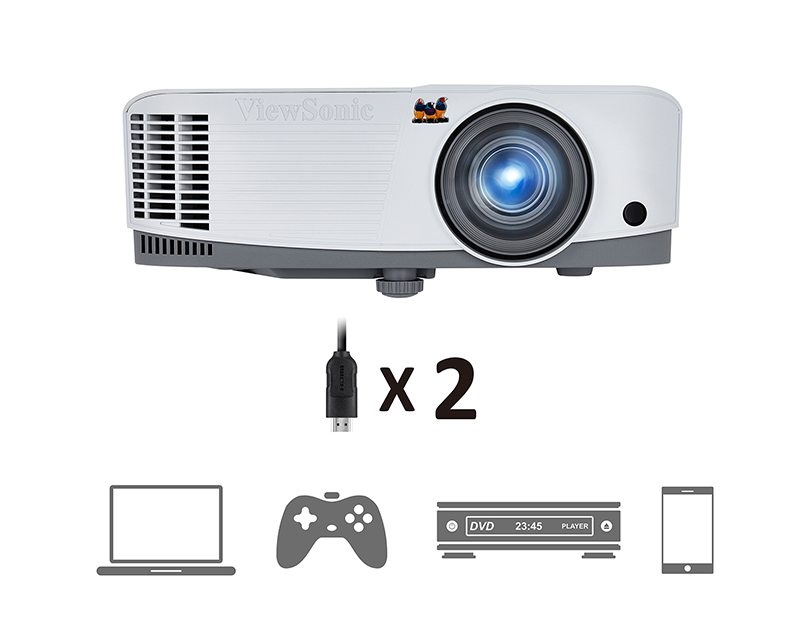

Dual HDMI input and MHL Support

Equipped with 2 HDMI inputs (one of which is MHL compatible), PG703W projector allows you to quickly connect laptops, entertainment systems, and mobile devices for a high-definition experience.

Dual HDMI Input MHL support

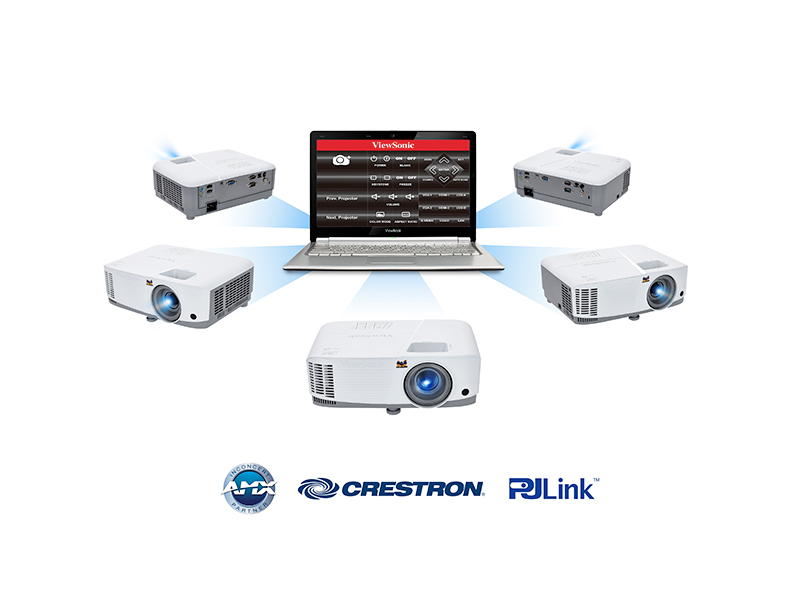

Centralized Management

PG703W is Creston, AMX and PJ Link certified, which means it can be easily controlled and monitored remotely from a PC. IT personnel can manage up to 256 projectors at one time and control operations and scheduling through a LAN IP. An advanced real-time alert system sends status updates about power, lamp life, and unit location for simplified maintenance.

LAN Control

Instant Activation

Get your projector up and running instantly with two simple settings:

  • Direct Power On: Simply connect the power cord and begin; the projector will power itself on automatically.
  • Signal Power On: The projector will power on automatically upon detection of a VGA or HDMI cable connection.
Auto Power On

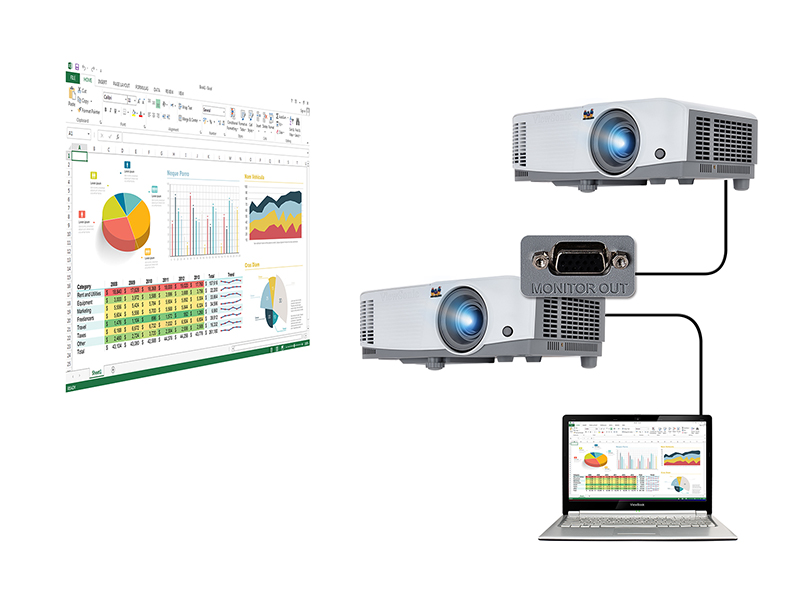

Useful Monitor Out Port

Connect to additional displays easily via the monitor out port. PG703W takes connectivity a step further and eliminate the need to purchase additional VGA adaptors.

Monitor Out

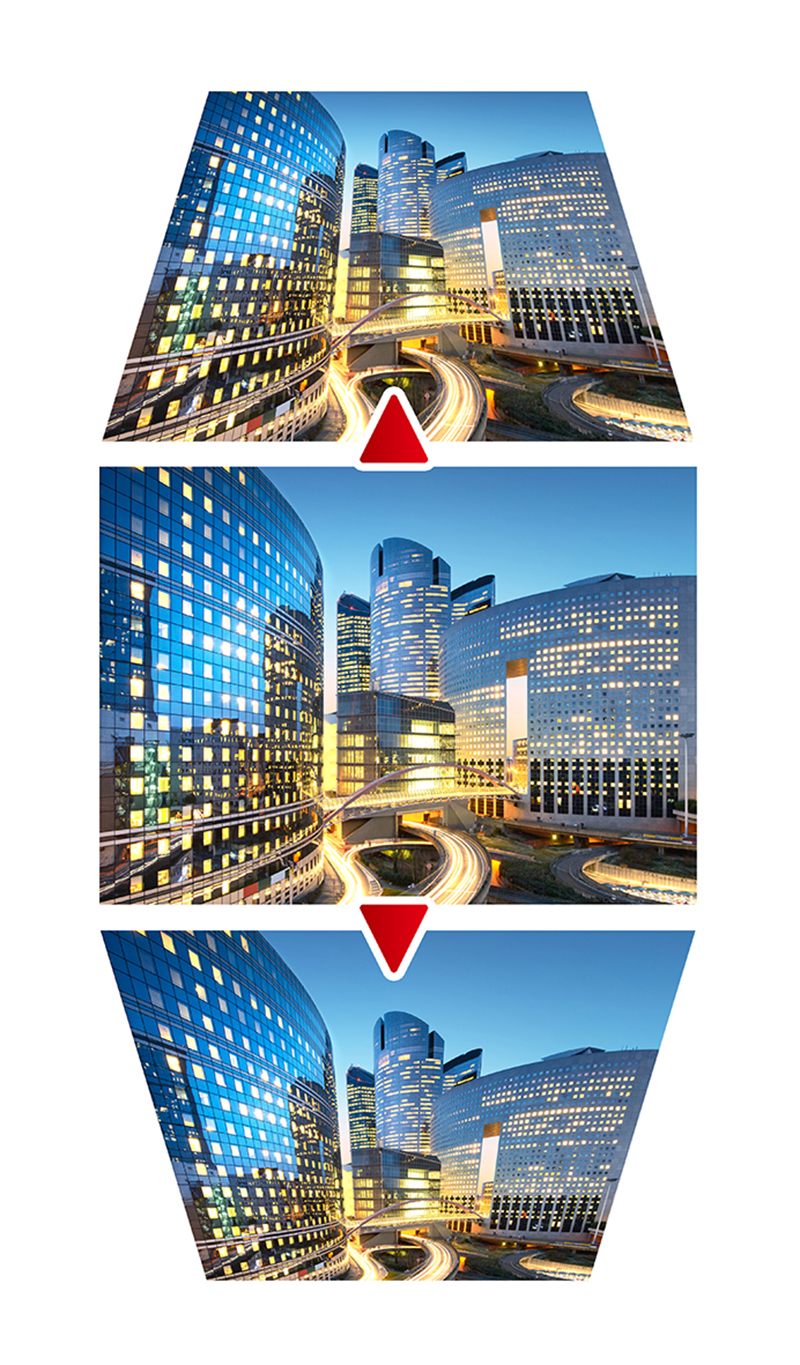

Easy Image Correction

Vertical keystone allows you to correct and adjust distorted images with ease for flexible installation of PG703W projector.

Vertical Keystone

Time Management Assistance

Presentation Timer is an embedded on-screen timer that helps users with time management during presentations. Once a specified time limit has been reached, the projector will notify the presenter with a beep, keeping presentations running on time.

Presentation Timer

Attention Refocusing Capabilities

With the Blank Timer function, presenter can refocus the audience’s attention back onto them by hiding the screen image at different points during a presentation. In addition, Blank Timer can also be used to signal that it is time to take a break.

Blank Timer

Low TCO

Extended Lifespan

When the Power Saving setting is turned on and no signal input is detected, the projector will automatically switch into Eco Mode and SuperEco Mode.

  • Eco Mode: The projector will automatically switch from Normal to Eco Mode whenever it has been left idle for 5 minutes.
  • SuperEco Mode: When the projector has not received an input signal for 20 minutes, projected images are dimmed to 30%, extending the lamp’s lifespan to 15,000 hours on average.
15,000 hours Lifespan

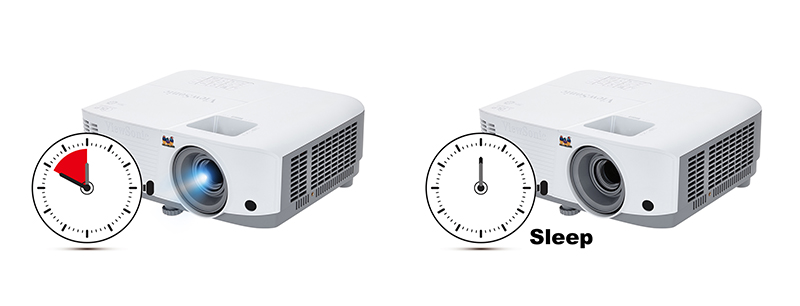

Automatic Sleep Timer

PG703W’s sleep Timer function allows you to select a period of inactivity that will determine when the projector should put itself into sleep mode automatically.

Sleep Timer

Auto Power Off

When no signal has been detected, the projector will automatically power off to conserve energy and lamp life.

Auto Power Off

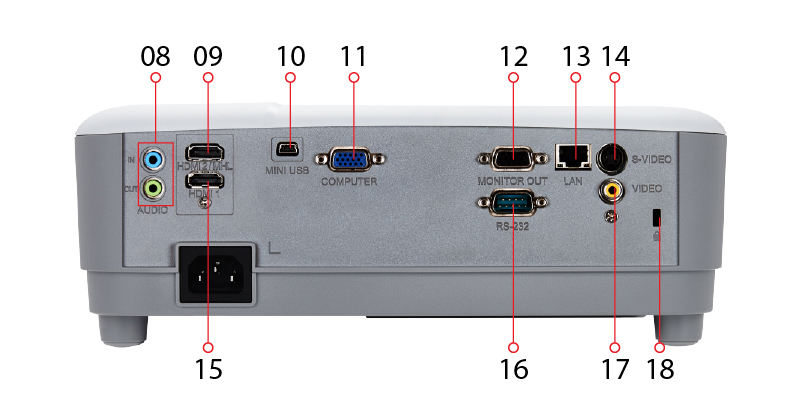

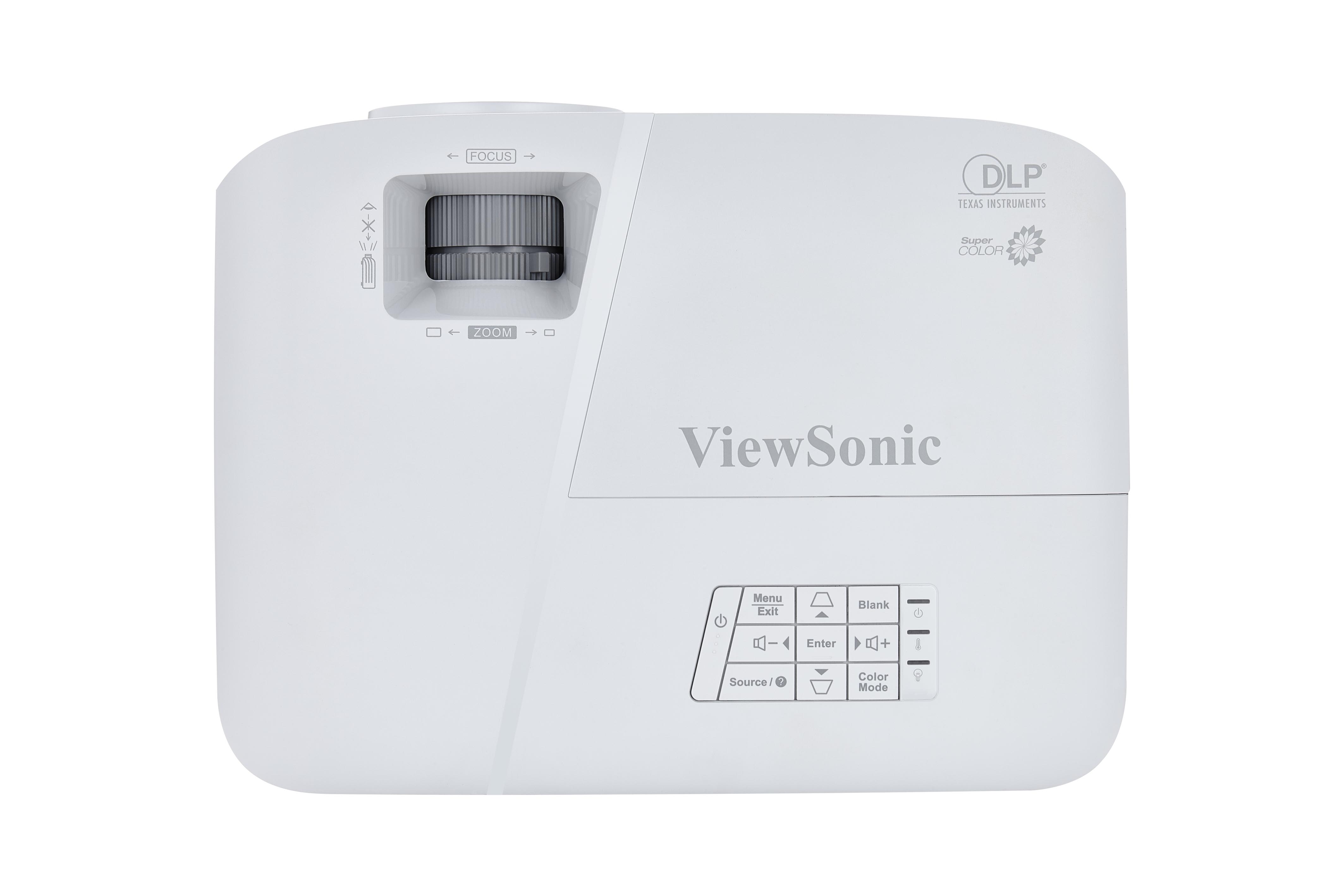

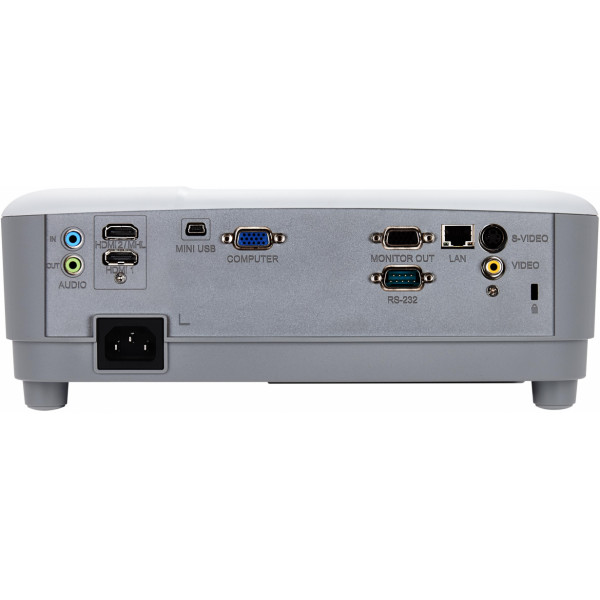

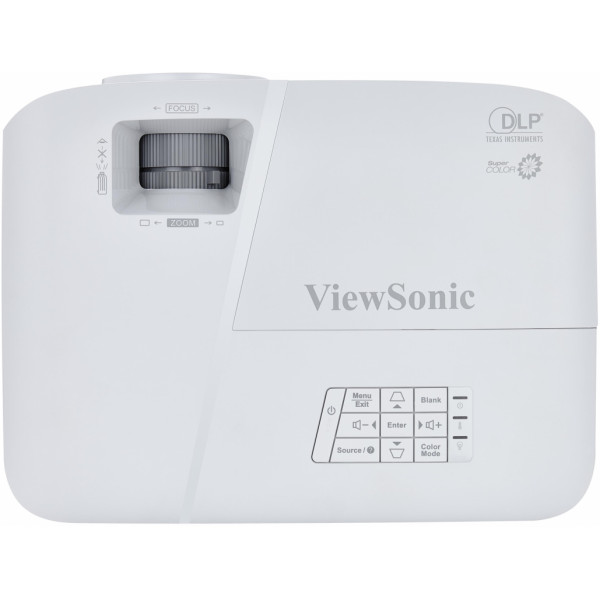

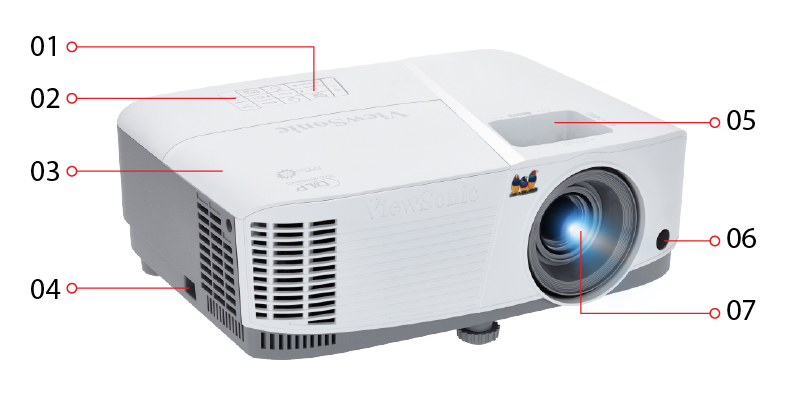

  1. Keypad
  2. LED indicator

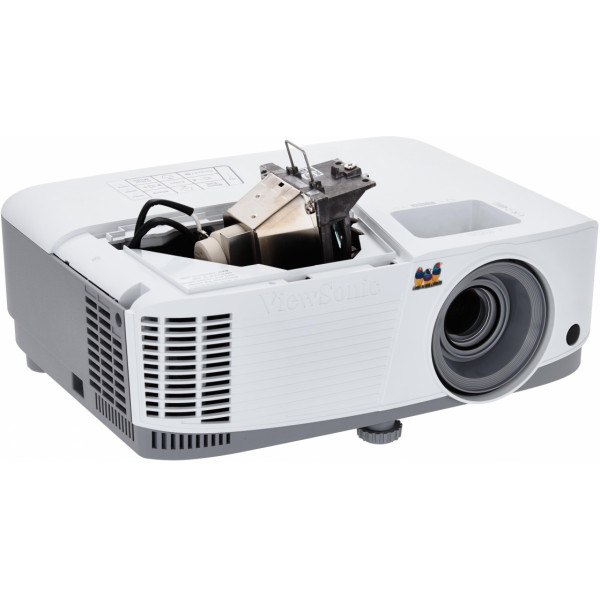

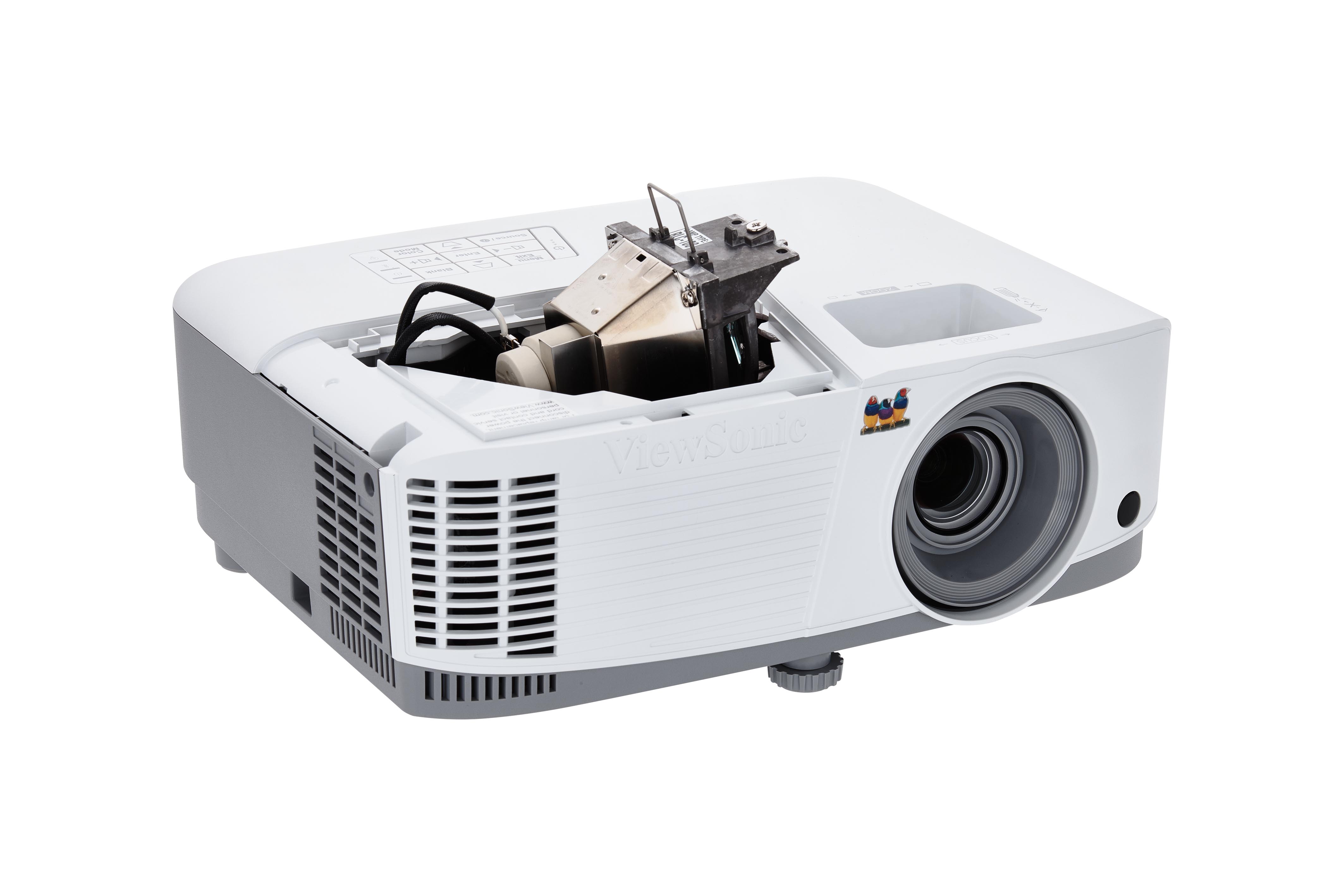

  3. Lamp cover
  4. Security lock
  5. Zoom/Focus
  6. Front IR
  7. Projection Lens
  8. Audio in/out
  9. HDMI/MHL
  10. Mini USB for Service
  11. VGA
  12. VGA out
  13. LAN
  14. S-Video
  15. HDMI
  16. RS232
  17. Video
  18. Kensington® Lock Slot

SPECIFICATIONS


  • SPECIFICATION
    Projection system: 0.65" WXGA
    Native Resolution: 1280x800
    DC type: DC3
    Brightness: 4000 ANSI Lumens
    Contrast Ratio with SuperEco mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source: Lamp
    Light source life (Nor/SuperEco): 4000/15000
    Lamp Watt: 240W
    Lens: F=2.56-2.68, f=22-24.1 mm
    Projection Offset: 100%+/-5%
    Throw Ratio: 1.55-1.70
    Image size: 30" - 300"
    Throw Distance: 1m-10.98m(100" @3.34m)
    Keystone: ±40° (Vertical)
    Optical Zoom: 1.1x
    Audible Noise (Eco): 29dB
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K~102KHz
    Vertical Scan Rate: 23~120Hz
  • Input
    Computer in (D-SUB 15 pin): 1
    Composite: 1
    S-video: 1
    Audio-in (3.5mm): 1
    HDMI: 1 (Back)
    HDMI/MHL: 1 (Back)
  • Output
    Monitor out (D-SUB 15 pin): 1
    Audio out (3.5mm): 1
    Speaker: 10W
