VX2485-MHU

24’’ iF Award Winning Monitor with USB Type-C inputs

iF award winning design
Connection flexibility with USB Type-C, HDMI, and VGA
SuperClear® IPS technology
AMD FreeSync technology
TUV certificated Flicker-Free and Blue Light Filter

Sales Enquiry

GALLERY

OVERVIEW

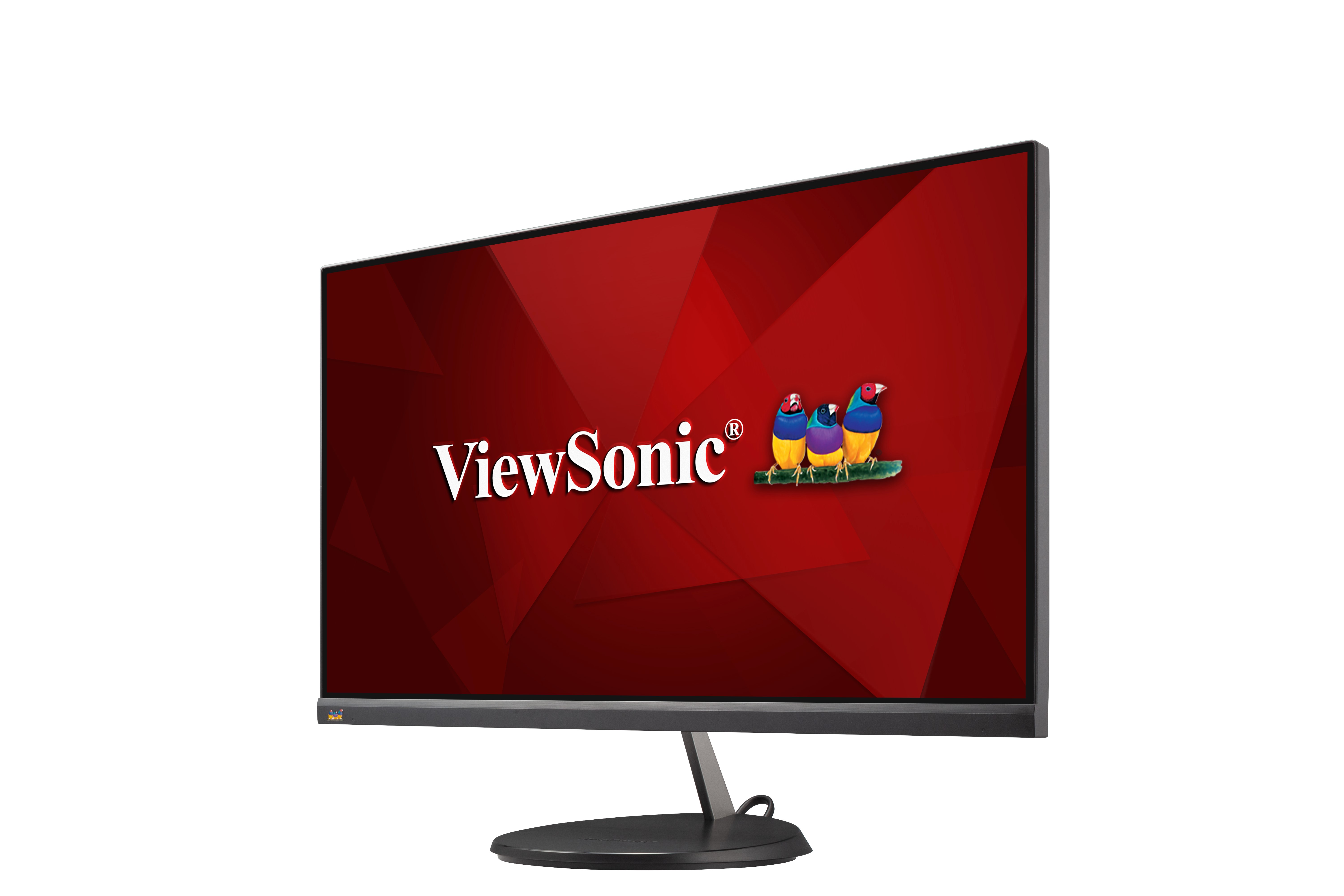

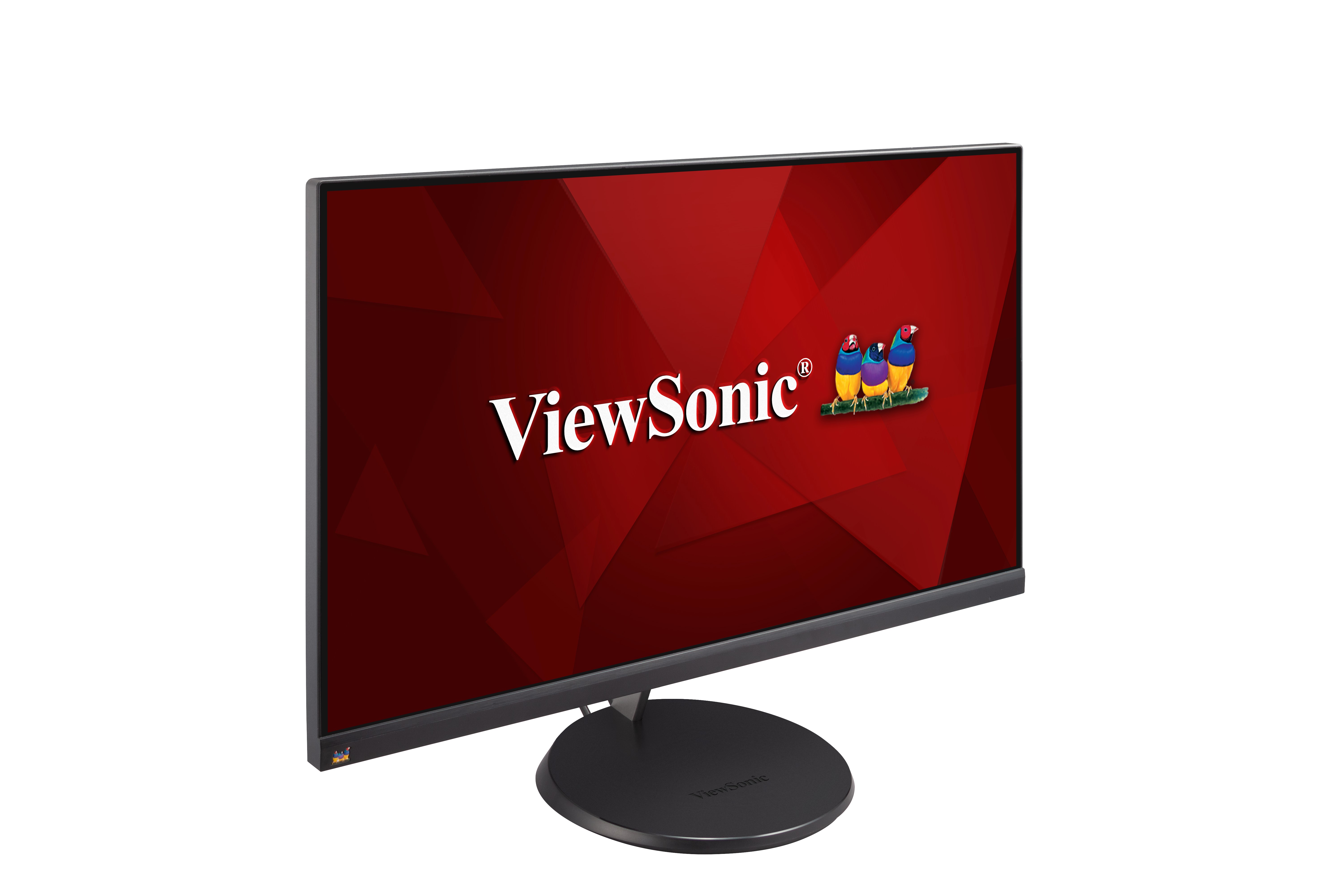

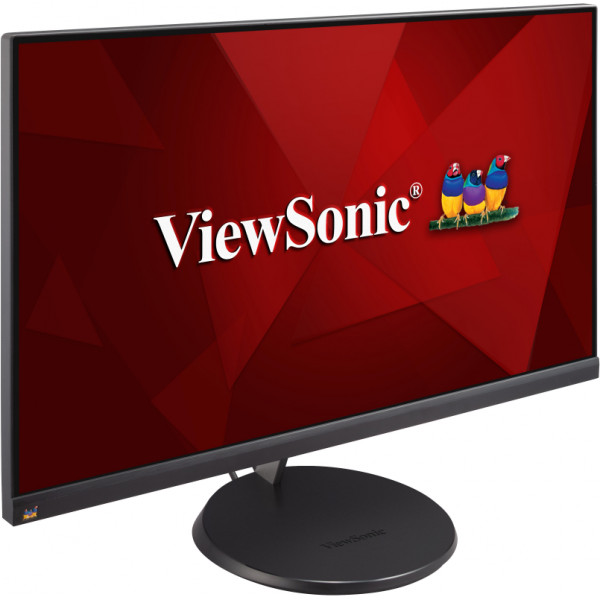

Elevate your home entertainment to the next level with the ViewSonic VX2485-MHU. Featuring an award-winning design with a ringed, rotational swivel for clean movement and cable management. With a SuperClear® IPS panel and a sleek frameless design, the monitor provides a near-seamless viewing experience which is ideal for multi-monitor setups. The VX2485-MHU comes with a USB Type-C port for audio/video transmission and device charging up to 60W; it is also equipped with HDMI and VGA for flexible connectivity options. In addition, the monitor features AMD FreeSync™ which can virtually eliminate screen tearing and stuttering for fluid and smooth visuals. Included in the stand design are both swivel and tilt for a more comfortable viewing experience, while the TUV certificated low blue light and flicker free filter can minimise eye fatigue. Utilising user friendly packaging offers a quick and easy out-of-the-box set-up.

Seductive Craftsmanship with iF Award-Winning Design

The VX85 perfectly blends circular design and minimalism.

Circular Rings

Frameless Bezel

Rounded stand

Decorative VESA Cover

Circular Design

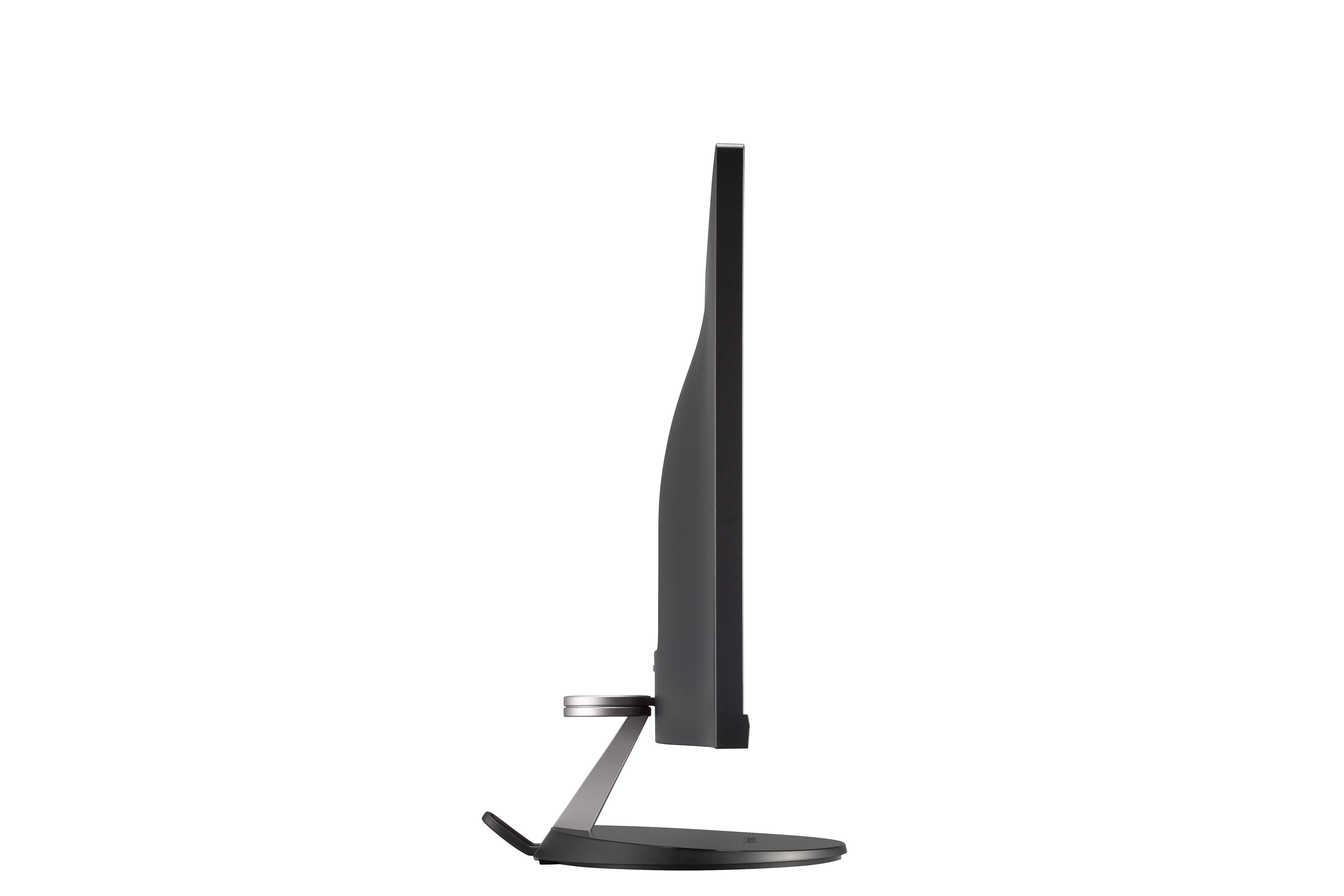

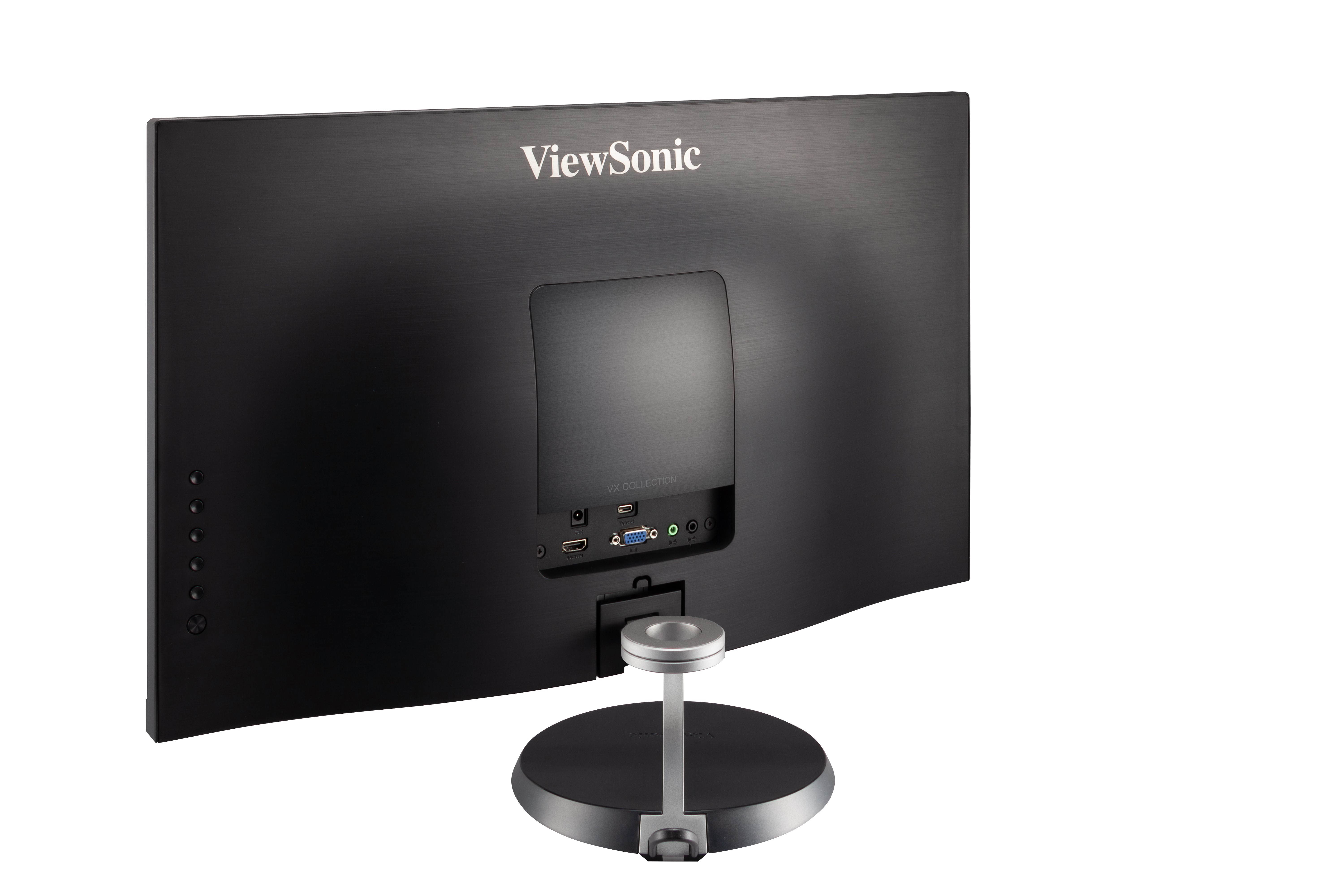

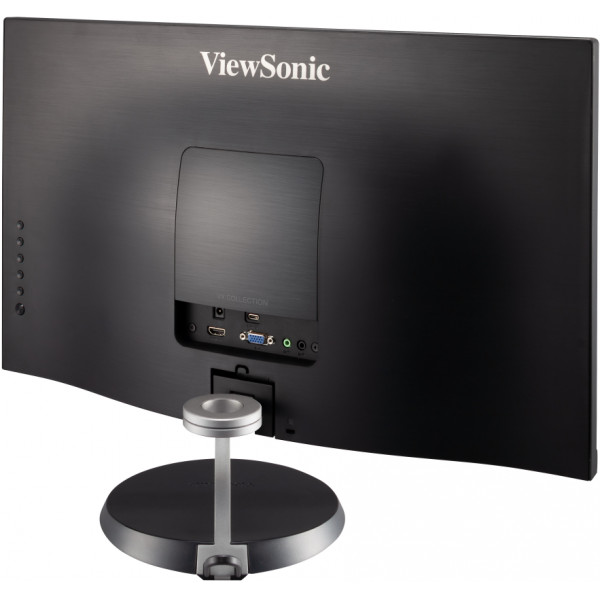

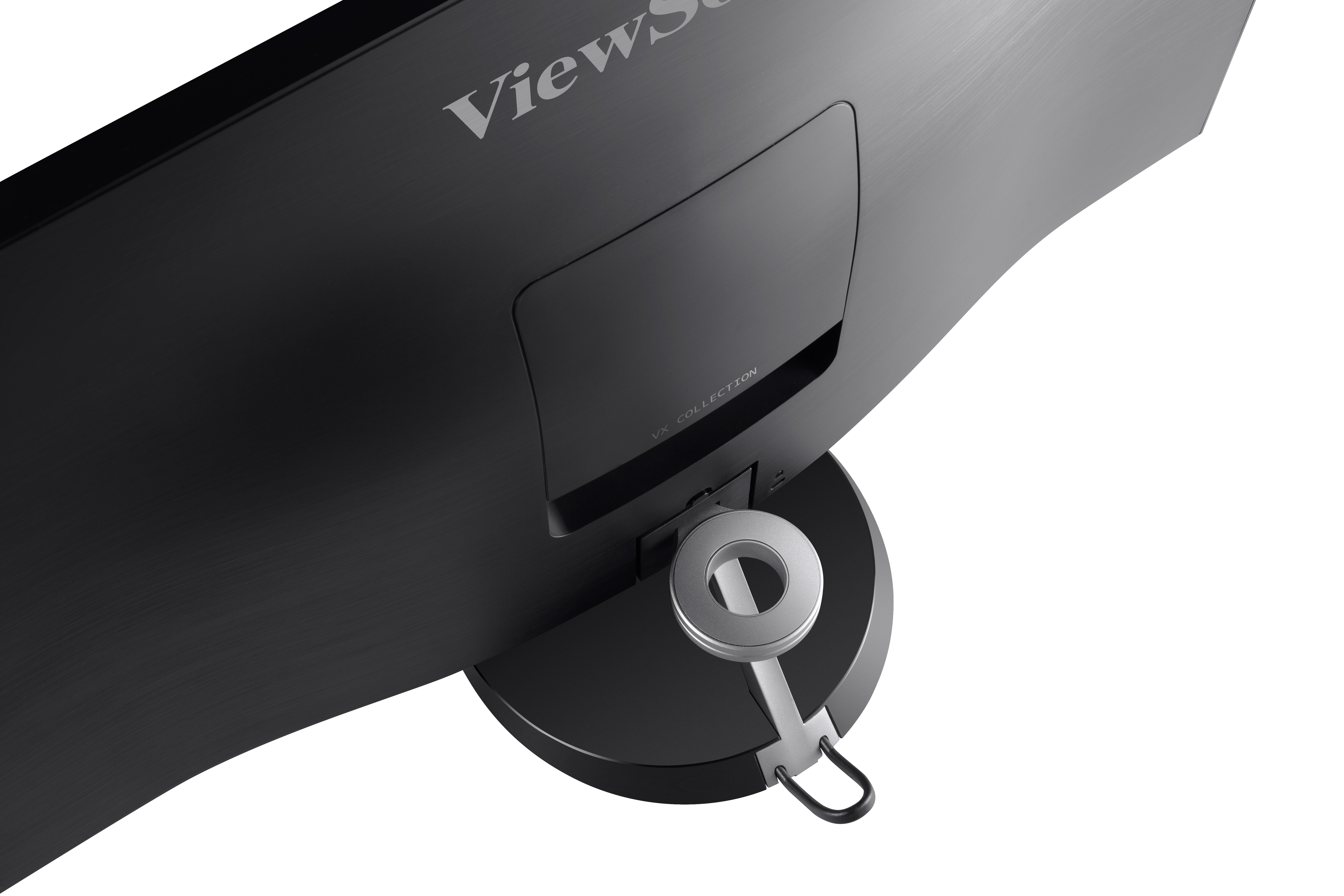

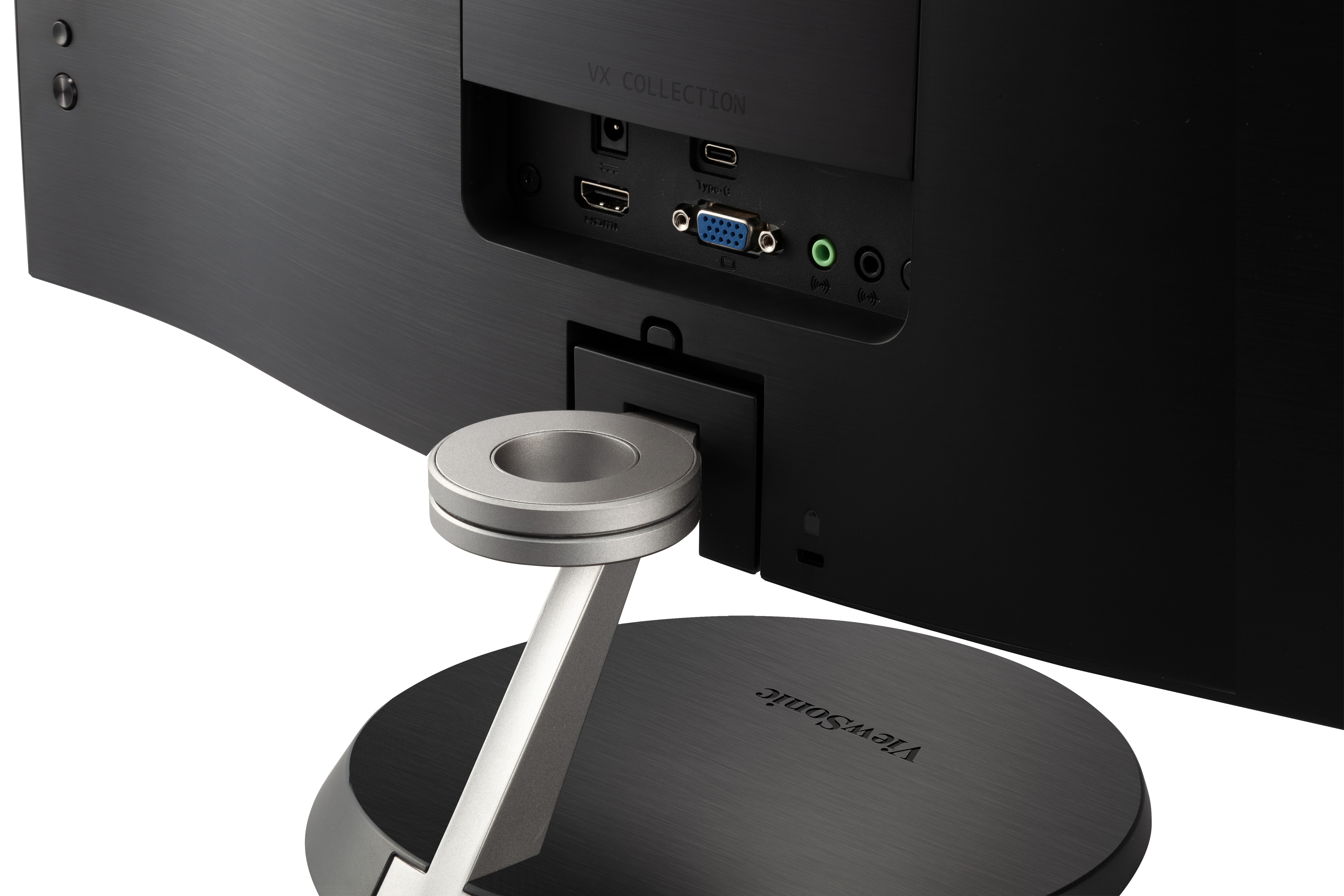

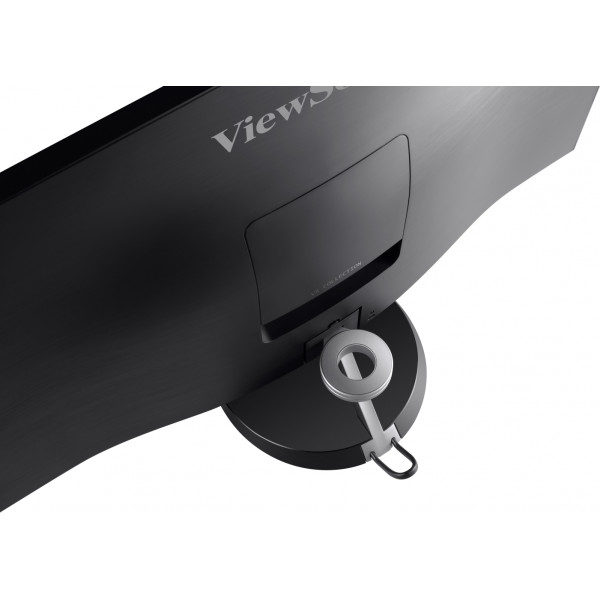

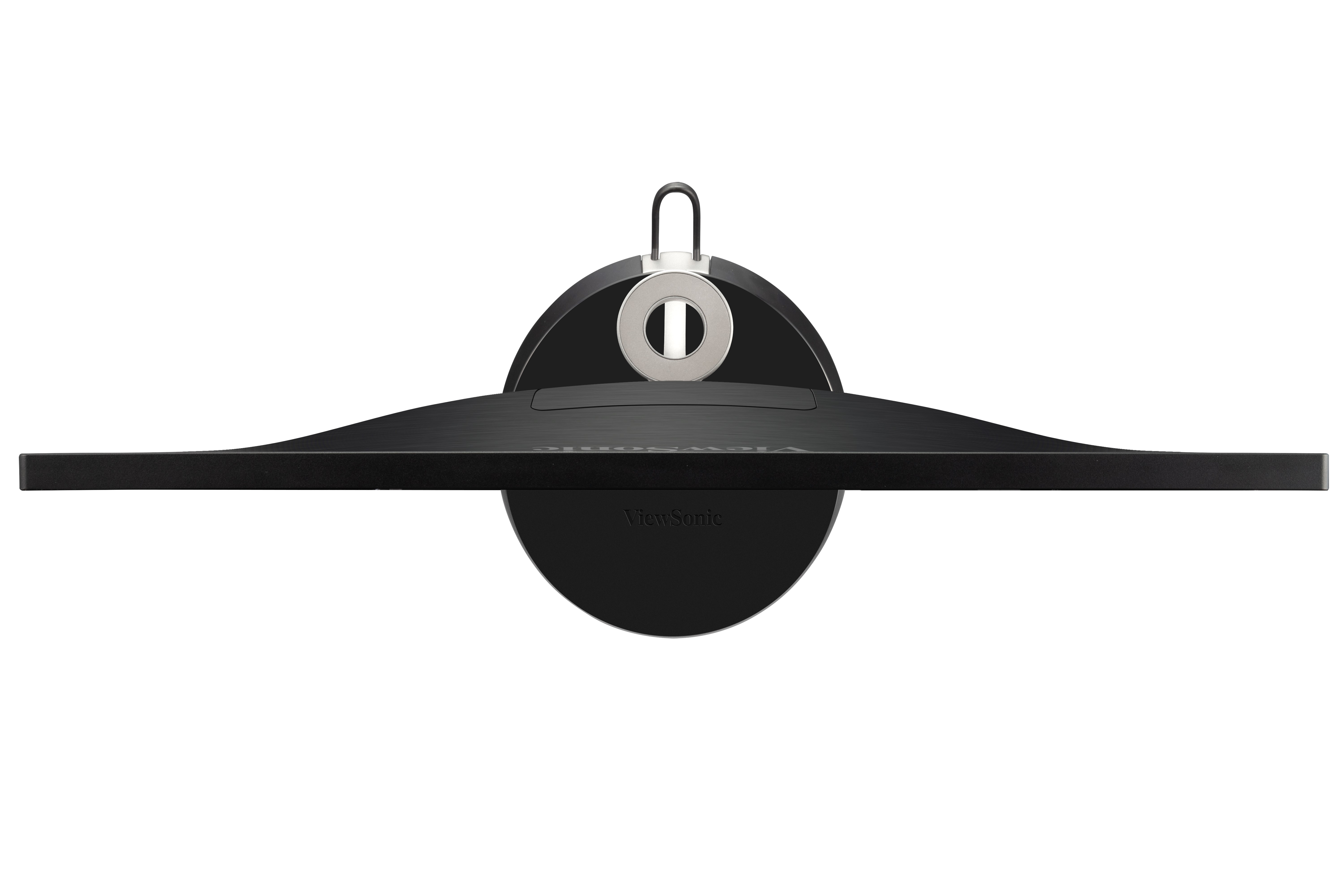

Featuring circular rings, this iF award-winning design not only provides cable management to escape cable clutter, but also allows for swivel to share content or adjust the ergonomics. In addition, you can tilt your monitor to your exact preference.

Circular Rings

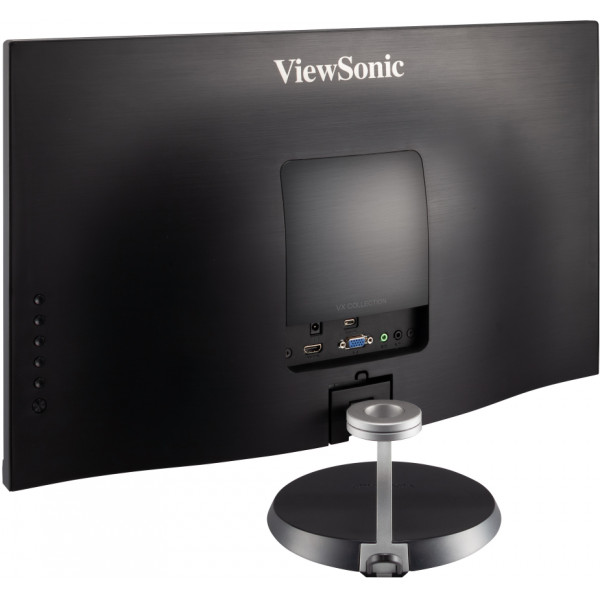

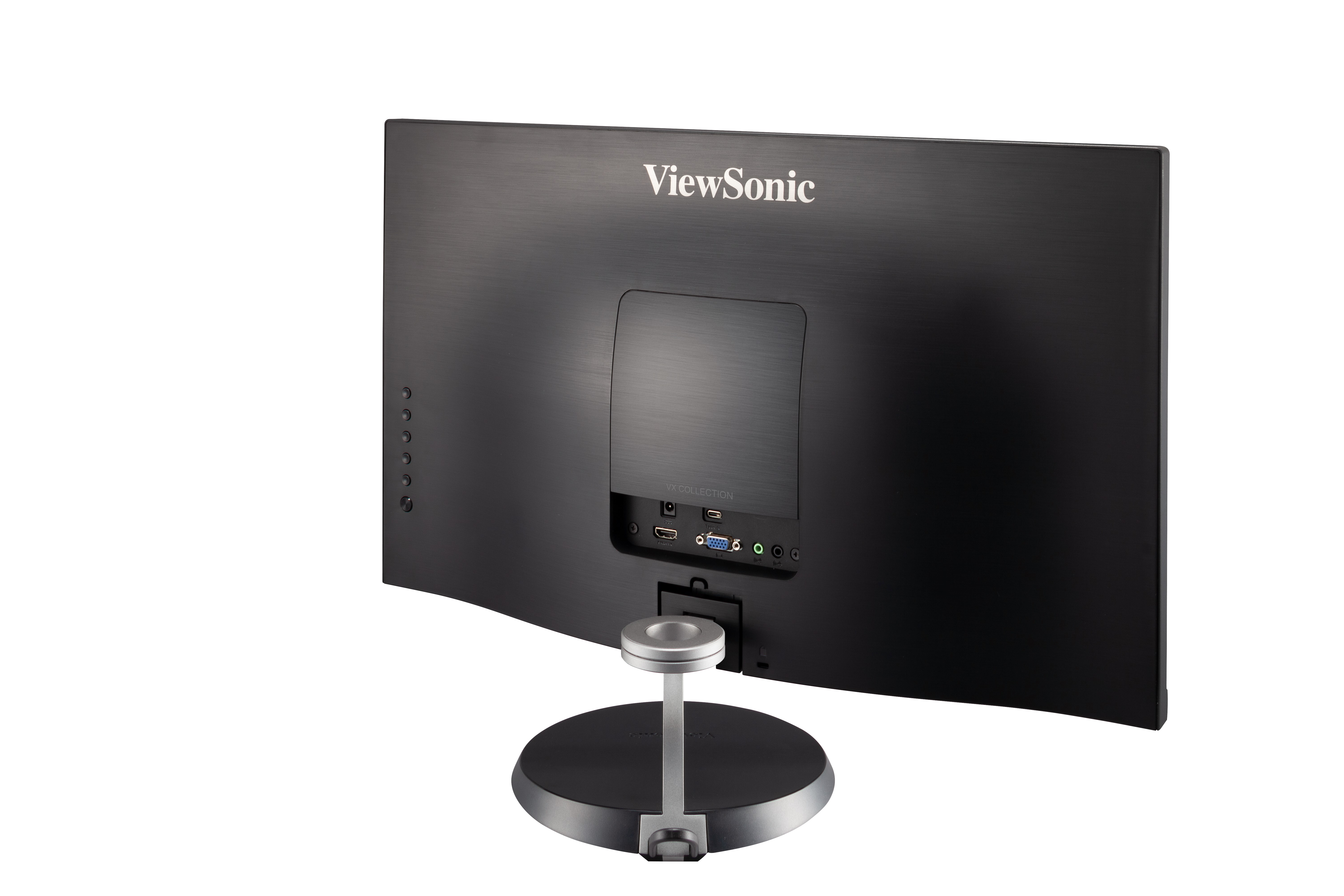

Swivel

Cable Management

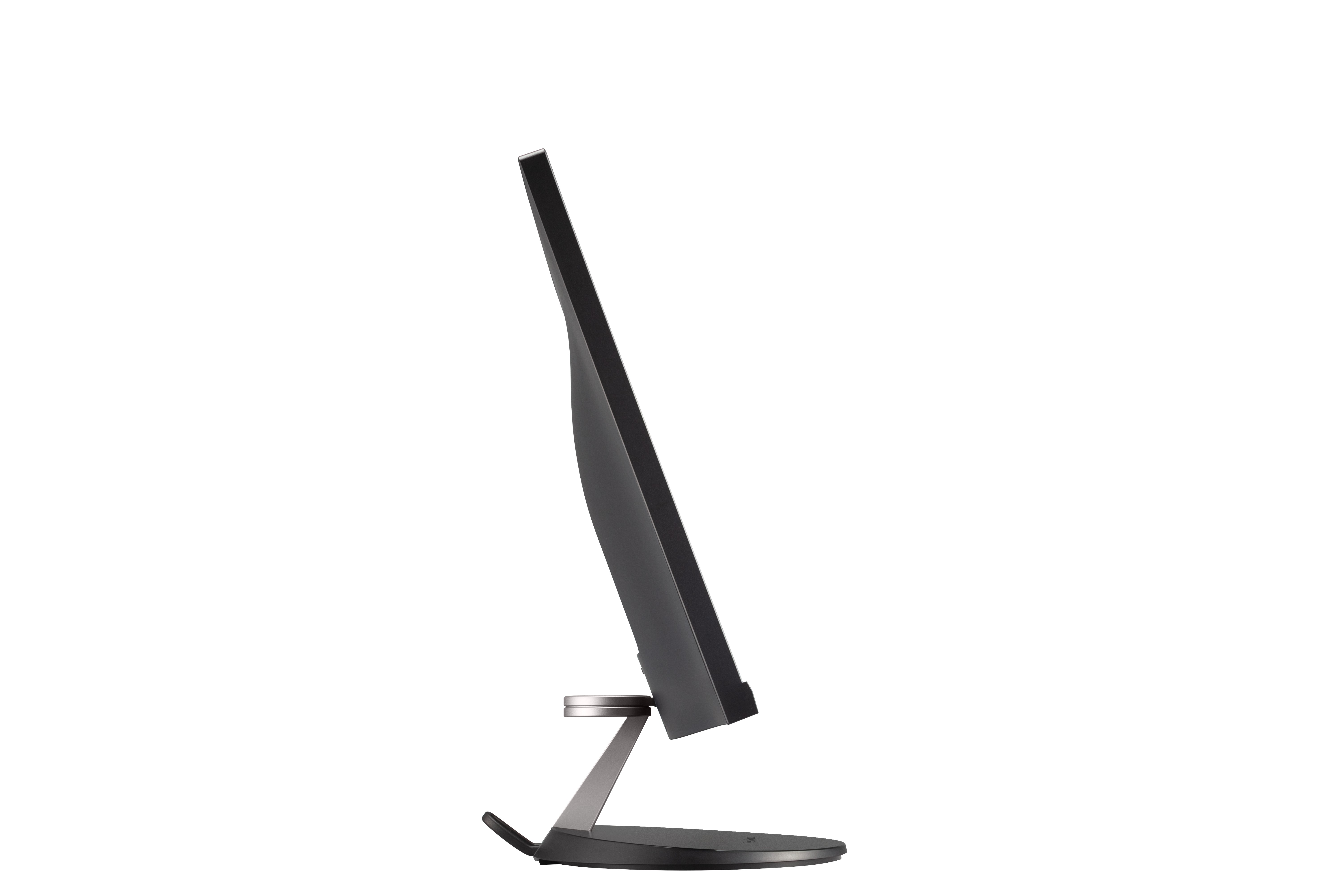

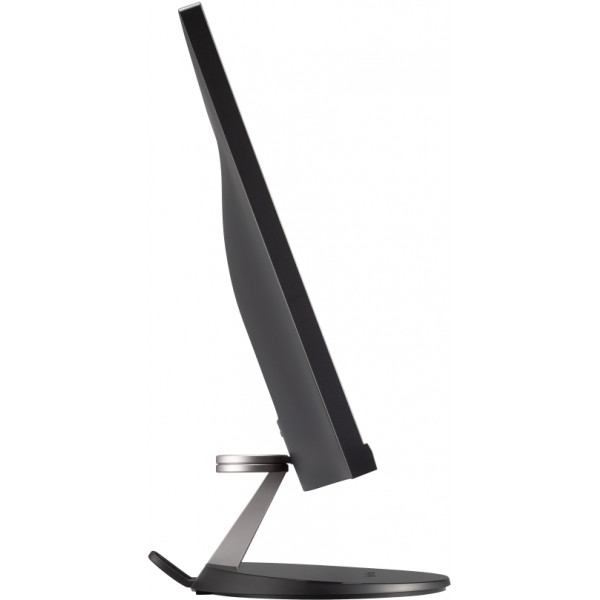

Tilt

Connection Flexibility

In addition to HDMI and VGA inputs, a built-in USB Type-C port provides compatibility with most peripherals for easy power charging up to 60W and audio/video transmission.

USB Type-C

HDMI

VGA

Clarity From Any Angle

Enjoy accurate and vivid colours with consistent levels of brightness no matter your vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.

SuperClear® IPS

178°/178°

AMD FreeSync™ Delivers Smooth, Continuous Visuals

With AMD FreeSync technology, screen tearing and choppy frame rates are eliminated to provide seamless, flawlessly smooth visuals in every scene.

AMD FreeSync

TUV Certificated Eye Care

The VX85 is certificated by TUV and includes a flicker free and low blue light filter to optimise eye comfort for extended viewing periods.

Blue Light Filter

Flicker Free

Low Energy Consumption

The VX85 has been designed with energy efficiency in mind, featuring an Eco Mode that consumes less power, resulting in a smaller carbon footprint and reduced office overhead costs.

Eco Mode

Easy to Setup Packaging

The VX85 utilises an easy to setup package and stand design which lets you attach/detach the panel with the push of a button. It can be assembled entirely by hand without any tools.

Easy Setup Design for Fast Assembly

Step 1

Step 2

Step 3

Step 4

Immersive Audio

Designed with dual integrated speakers, the VX85 accents its incredible screen performance with immersive stereo sound for a complete multimedia experience.

3W Dual Speakers

VESA Compatible Mount

Mount the VX85 exactly to your liking by utilising the monitor’s 100 x 100 mm VESA compatible design. Simply push a button and detach the stand, and mount the monitor where you like.

100 x 100 mm

Dimension

VESA Compatible
(Wall Mount 100x100mm)

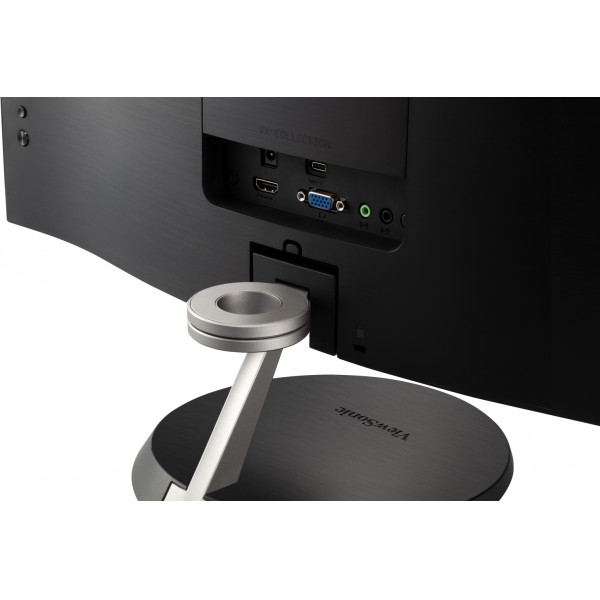

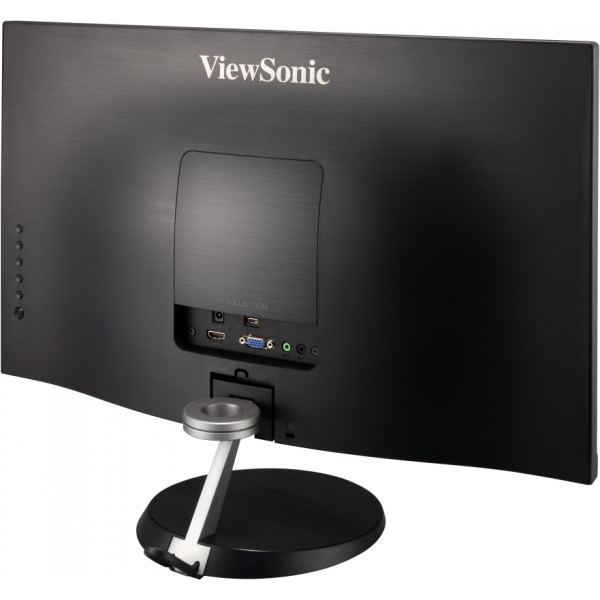

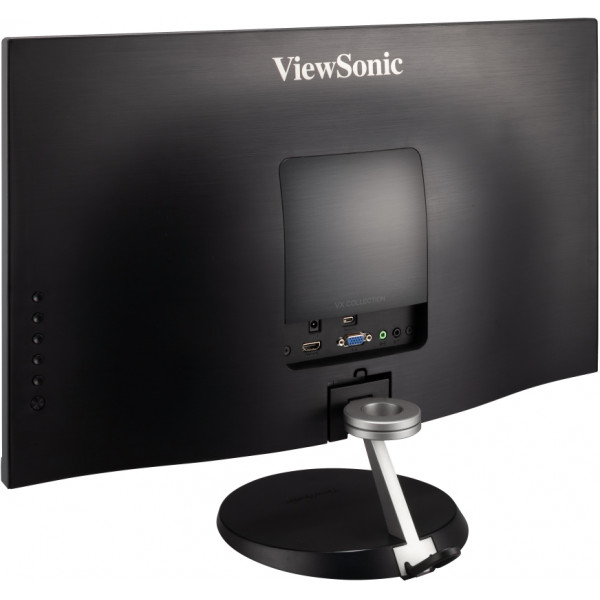

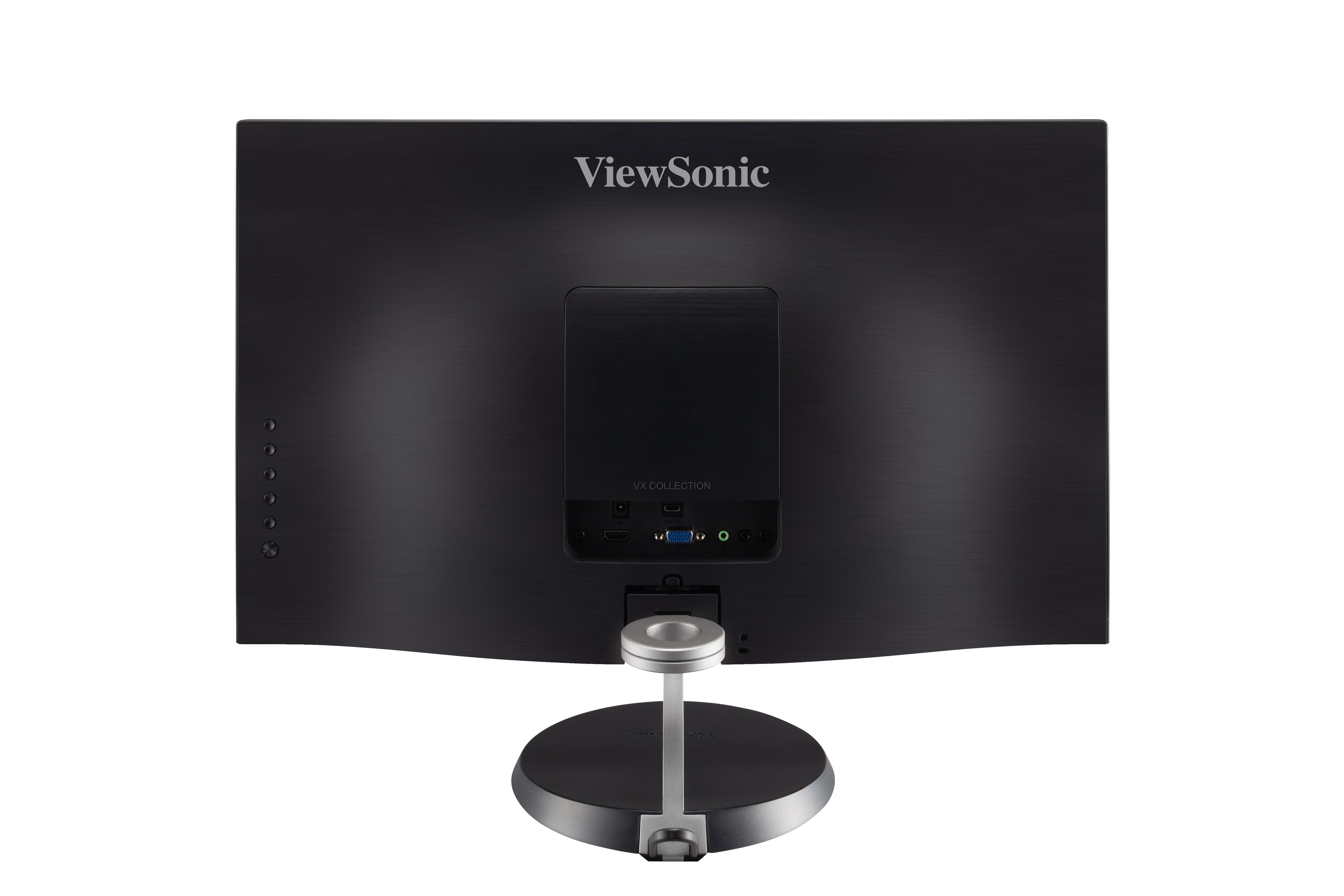

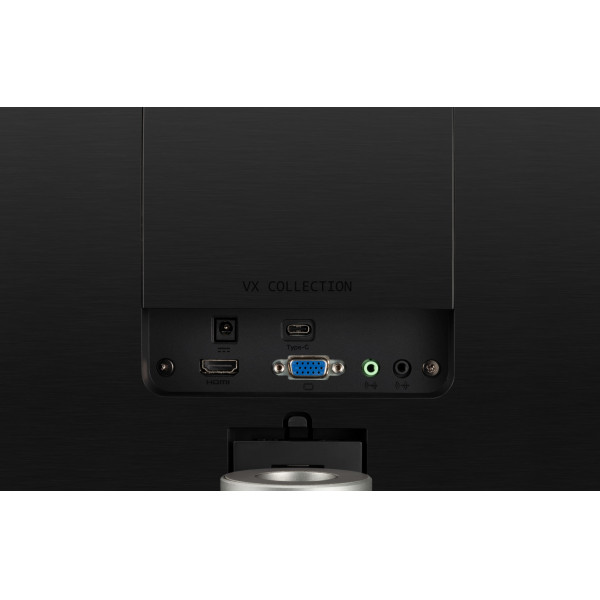

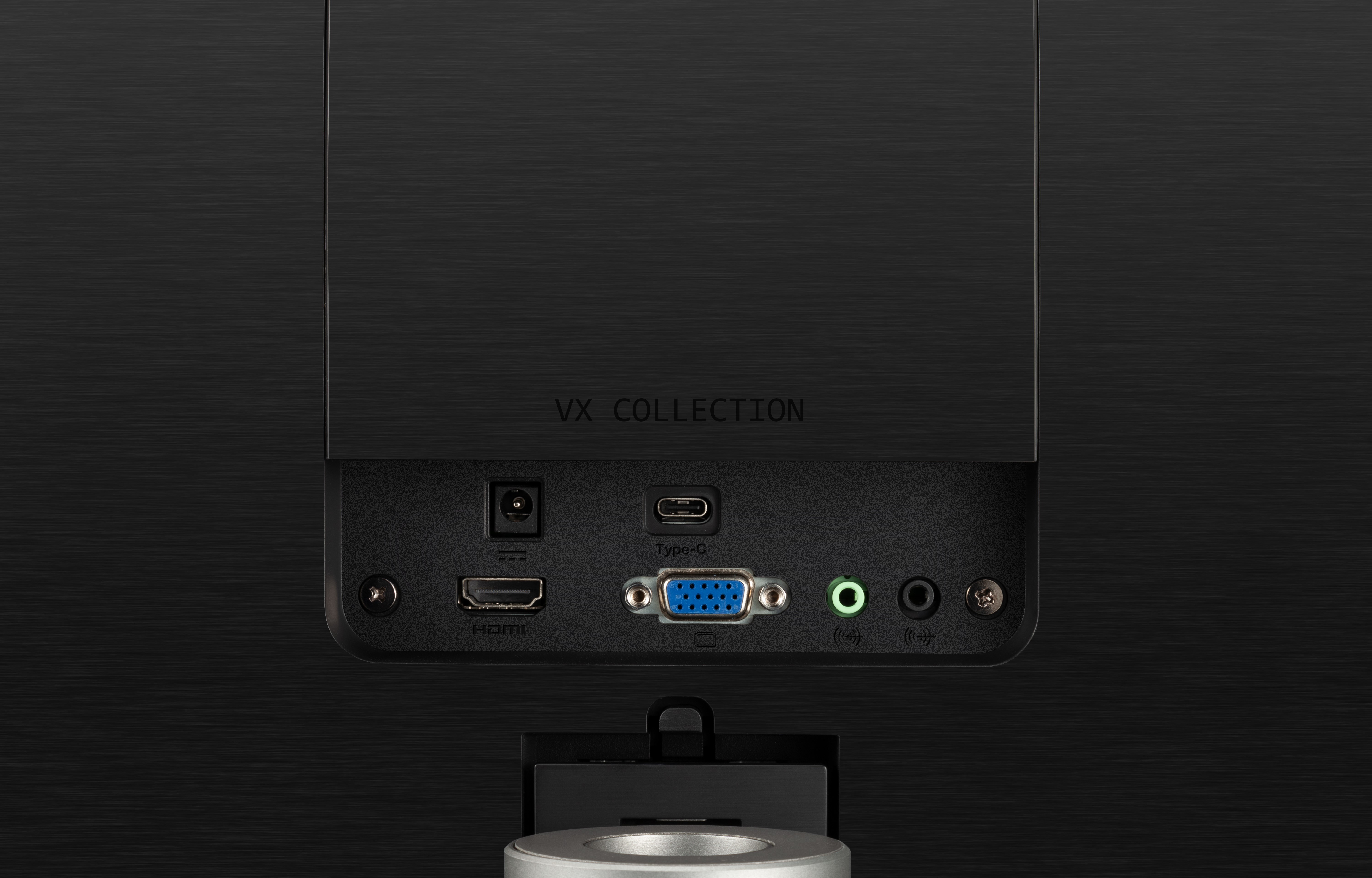

Menu Controls
DC In
Internal Speakers
HDMI
USB Type-C
Audio Out
Audio In
VGA

SPECIFICATIONS

Display
Display Size (in.): 24
Viewable Area (in.): 23.8
Panel Type: IPS Technology
Resolution: 1920 x 1080
Resolution Type: FHD (Full HD)
Static Contrast Ratio: 1,000:1 (typ)
Dynamic Contrast Ratio: 80M:1
Light Source: LED
Brightness: 250 cd/m² (typ)
Colors: 16.7M
Color Space Support: 8 bit (6 bit + A-FRC)
Aspect Ratio: 16:9
Response Time (Typical GTG): 5ms
Viewing Angles: 178º horizontal, 178º vertical
Backlight Life (Hours): 30000 Hrs (Min)
Curvature: Flat
Refresh Rate (Hz): 75
Variable Refresh Rate Technology: FreeSync
Blue Light Filter: Yes
Flicker-Free: Yes
Color Gamut: NTSC: 72% size (Typ)
sRGB: 102% size (Typ)
Pixel Size: 0.275 mm (H) x 0.275 mm (V)
Surface Treatment: Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max): 1920x1080
Mac® Resolution (max): 1920x1080
PC Operating System: Windows 8.1/10/11 certified; macOS tested
Mac® Resolution (min): 1920x1080
Connector
VGA: 1
USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1
3.5mm Audio In: 1
3.5mm Audio Out: 1
HDMI 1.4: 1
Power in: DC Socket (Center Positive)

Audio
Internal Speakers: 3Watts x2
Power
Eco Mode (Conserve): 11W
Eco Mode (optimized): 13W
Consumption (typical): 15.5W
Consumption (max): 16W
Voltage: AC 100-240V
Stand-by: 0.5W
Power Supply: External Power Adaptor
Additional Hardware
Kensington Lock Slot: 1
Cable Organization: Yes
Controls
Physical Controls: Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display: Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature: 32°F to 104°F (0°C to 40°C)
Humidity (non-condensing): 20% to 90%
Wall Mount
VESA Compatible: 100 x 100 mm
Input Signal
Frequency Horizontal: RGB Analog: 16 ~ 83KHz, HDMI (v1.4): 16 ~ 84KHz, Type C: 84 ~ 84KHz
Frequency Vertical: RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 48 ~ 76Hz, Type C: 48 ~ 76Hz
Video Input
Digital Sync: TMDS - HDMI (v1.4), Micro-Packet - Type C
Analog Sync: Separate/Composite/SOG - RGB Analog
Ergonomics
Swivel: 60º
Tilt (Forward/Back): -5º / 20º
Weight (imperial)
Net (lbs): 9.3
Net Without Stand (lbs): 5.9
Gross (lbs): 12.8
Weight (metric)
Net (kg): 4.2
Net Without Stand (kg): 2.7
Gross (kg): 5.8
Dimensions (imperial) (wxhxd)
Packaging (in.): 24.6 x 16.1 x 4.9
Physical (in.): 21.2 x 15.9 x 9.8
Physical Without Stand (in.): 21.2 x 12.7 x 2
Dimensions (metric) (wxhxd)
Packaging (mm): 624 x 410 x 125
Physical (mm): 540 x 404 x 250
Physical Without Stand (mm): 540 x 322 x 50
General
Regulations: cTUVus, FCC-B, ICES003, Energy Star, CEC, NRCan, MX-CoC, Mexico Energy, REACH, WEEE, VCCI, PSE
PACKAGE CONTENTS: VX2485-MHU x1, 3-pin Mickey Mouse Plug (IEC C5) x1, HDMI Cable (v1.4; Male-Male) x1, USB Type-C Cable (Male-Male) x1, AC/DC Adapter x1, Quick Start Guide x1
Recycle/Disposal: Please dispose of in accordance with local, state or federal laws.
Warranty: *Warranty offered may differ from market to market
Power Management: Energy Star standards
