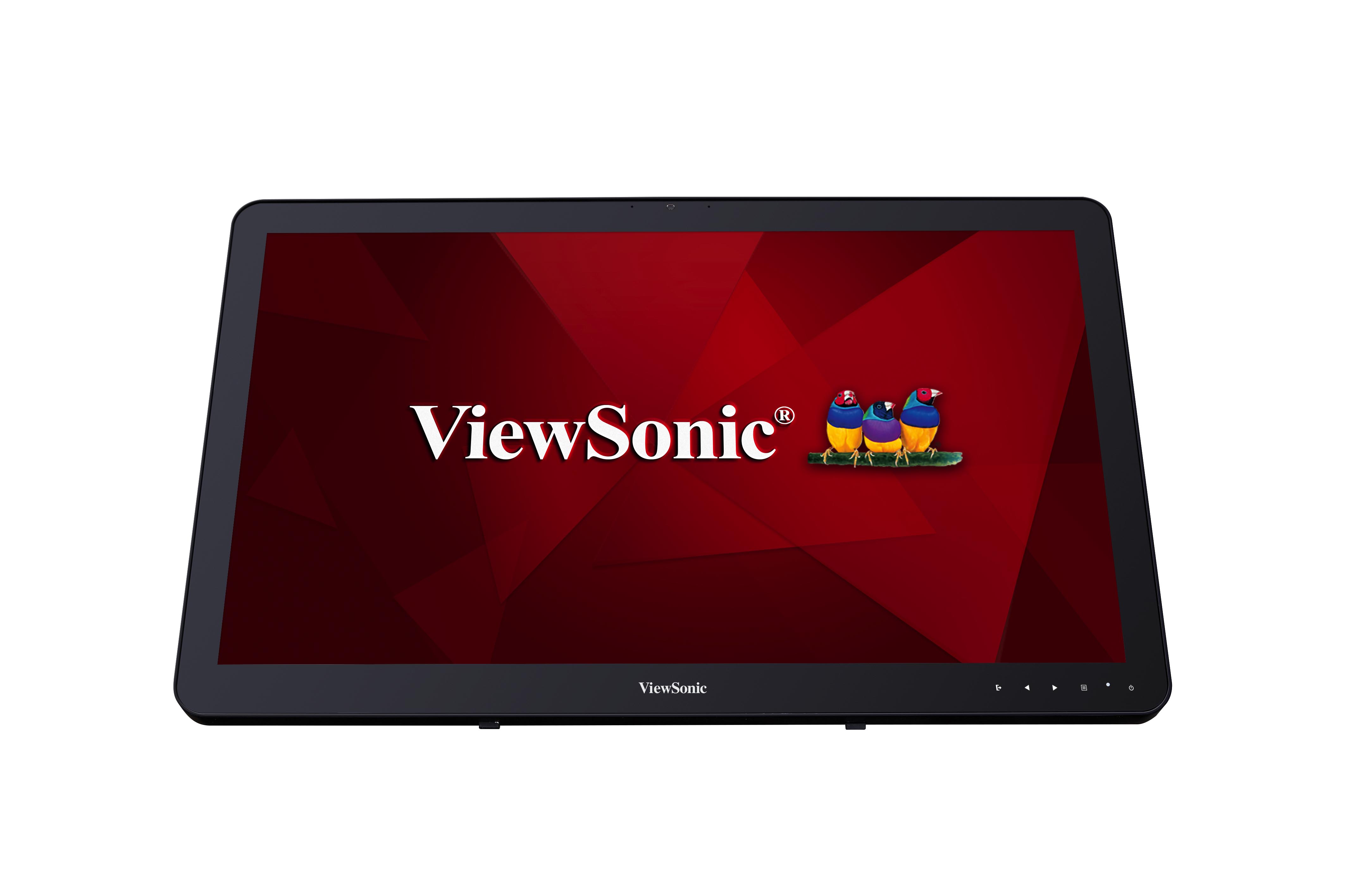

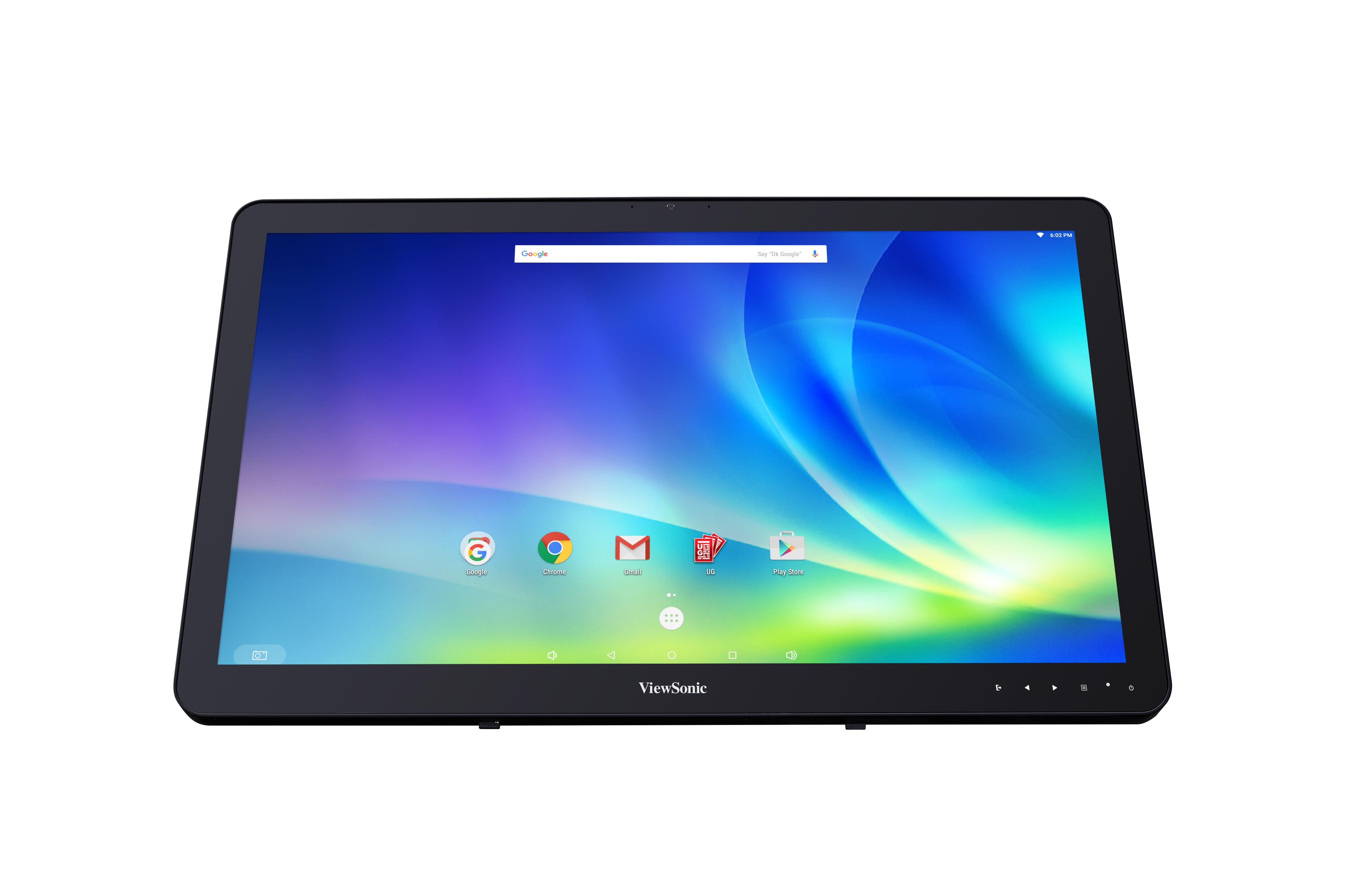

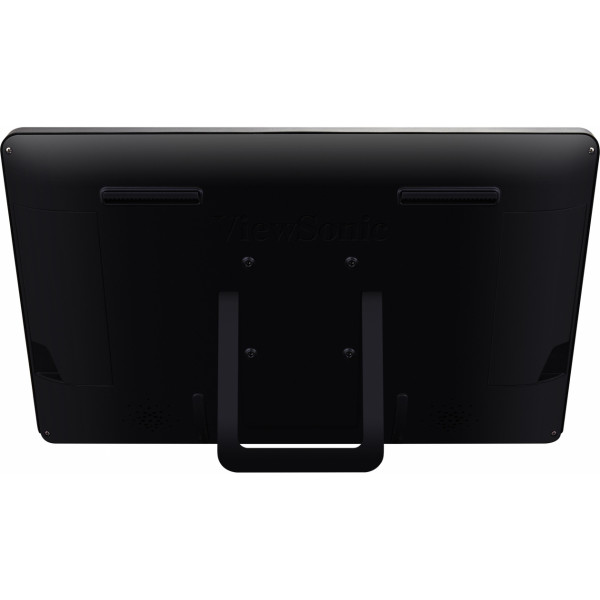

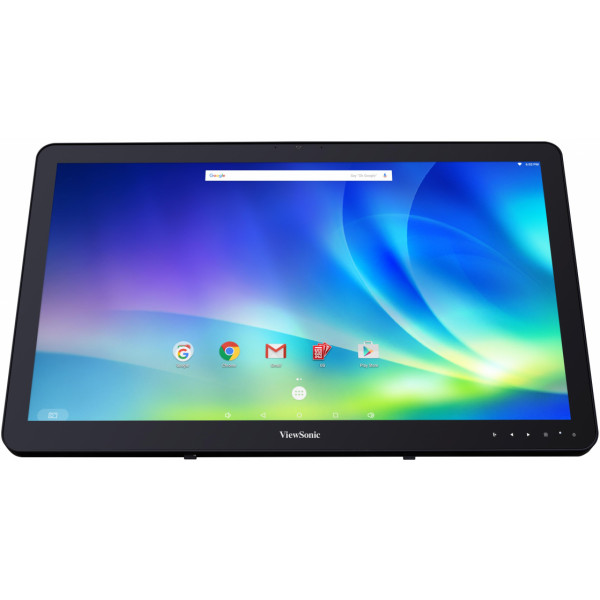

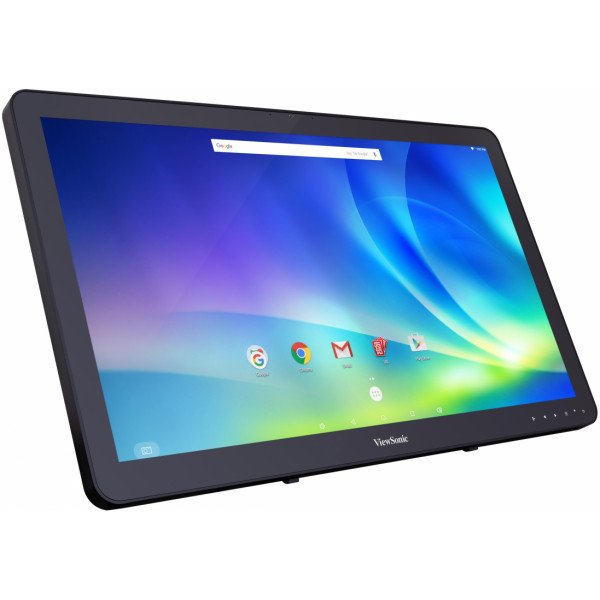

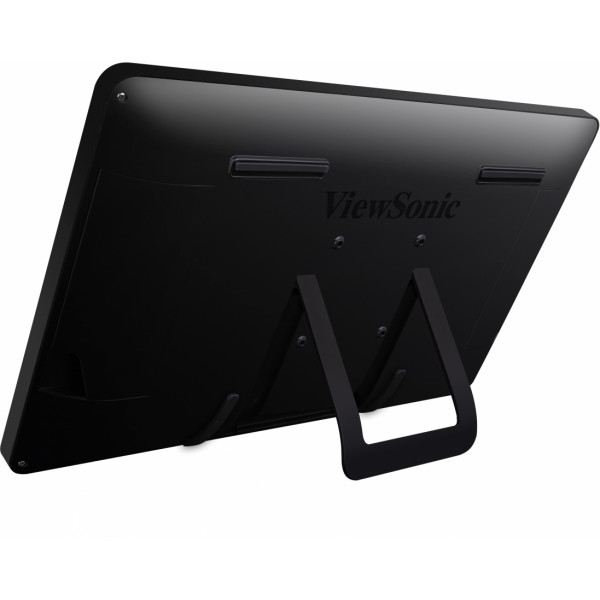

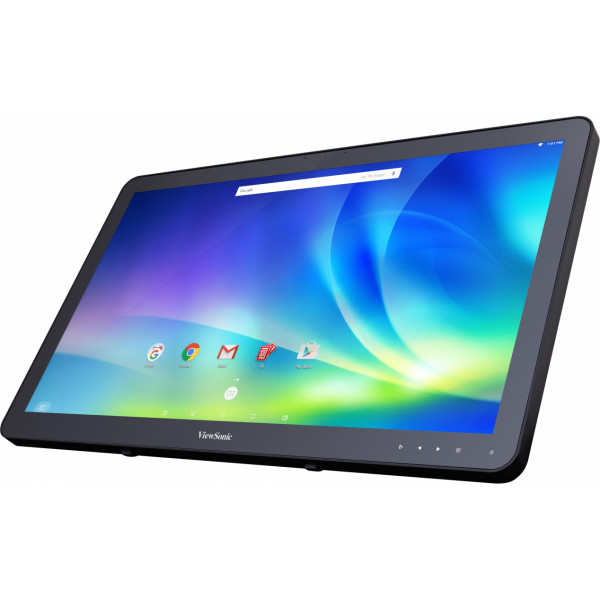

VSD242

24” (23.6” viewable) Smart Display for Android™

  • Full HD 1080p resolution
  • 10-point Multi-touch
  • Equipped with Wi-Fi, Bluetooth, and RJ45
  • Built-in webcam, integrated microphone and speakers
  • Powerful Quad Core Processor
Sales Enquiry

OVERVIEW

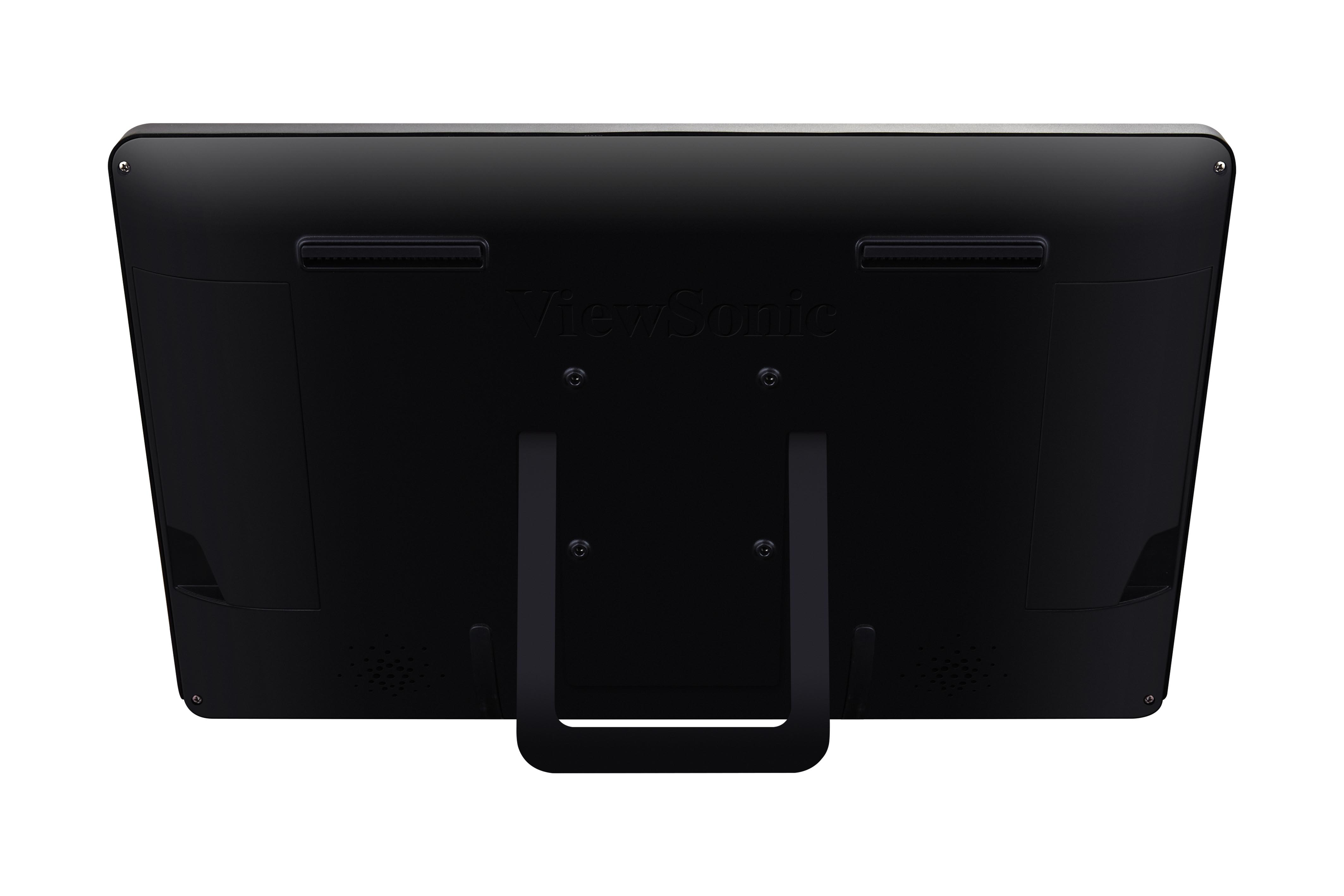

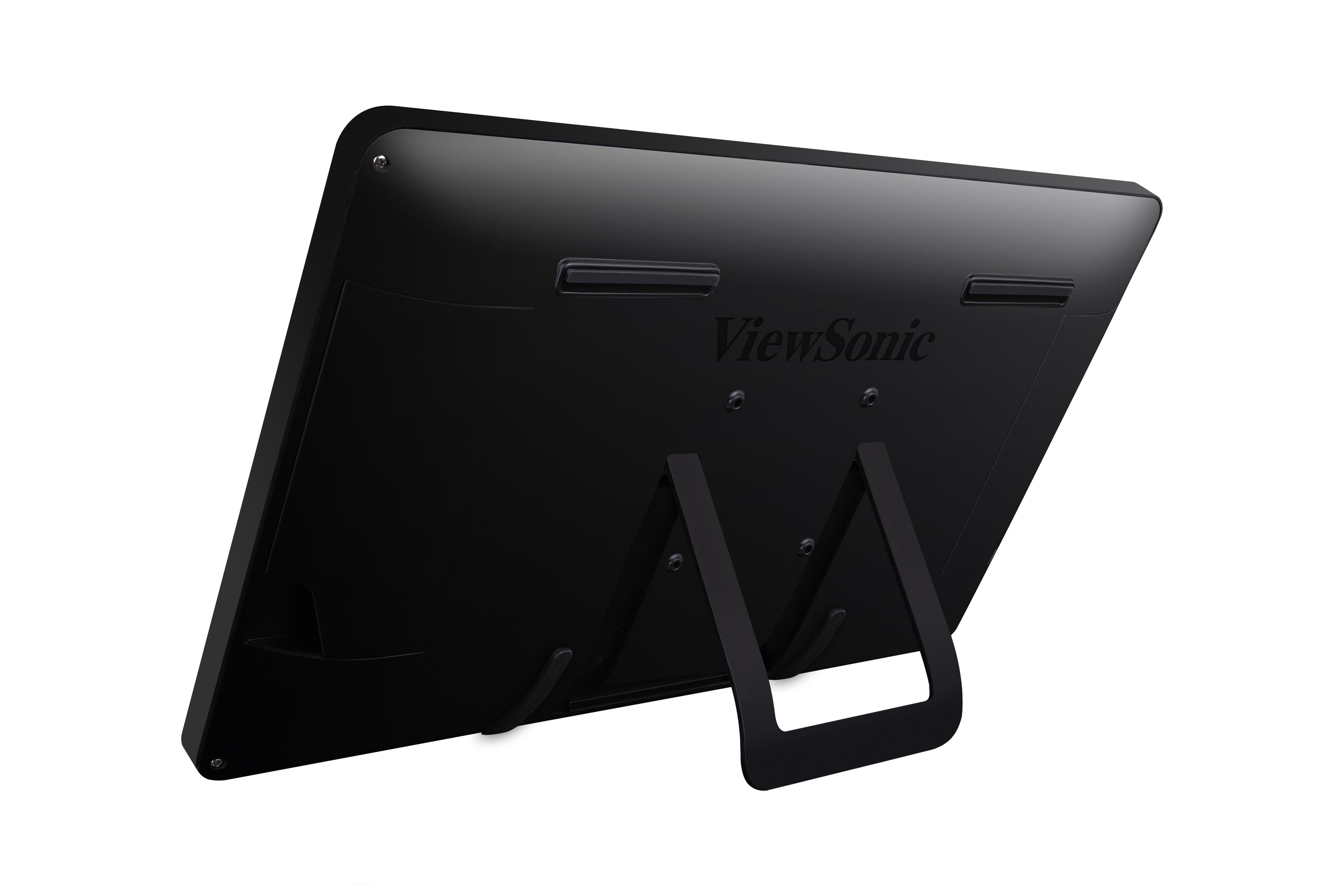

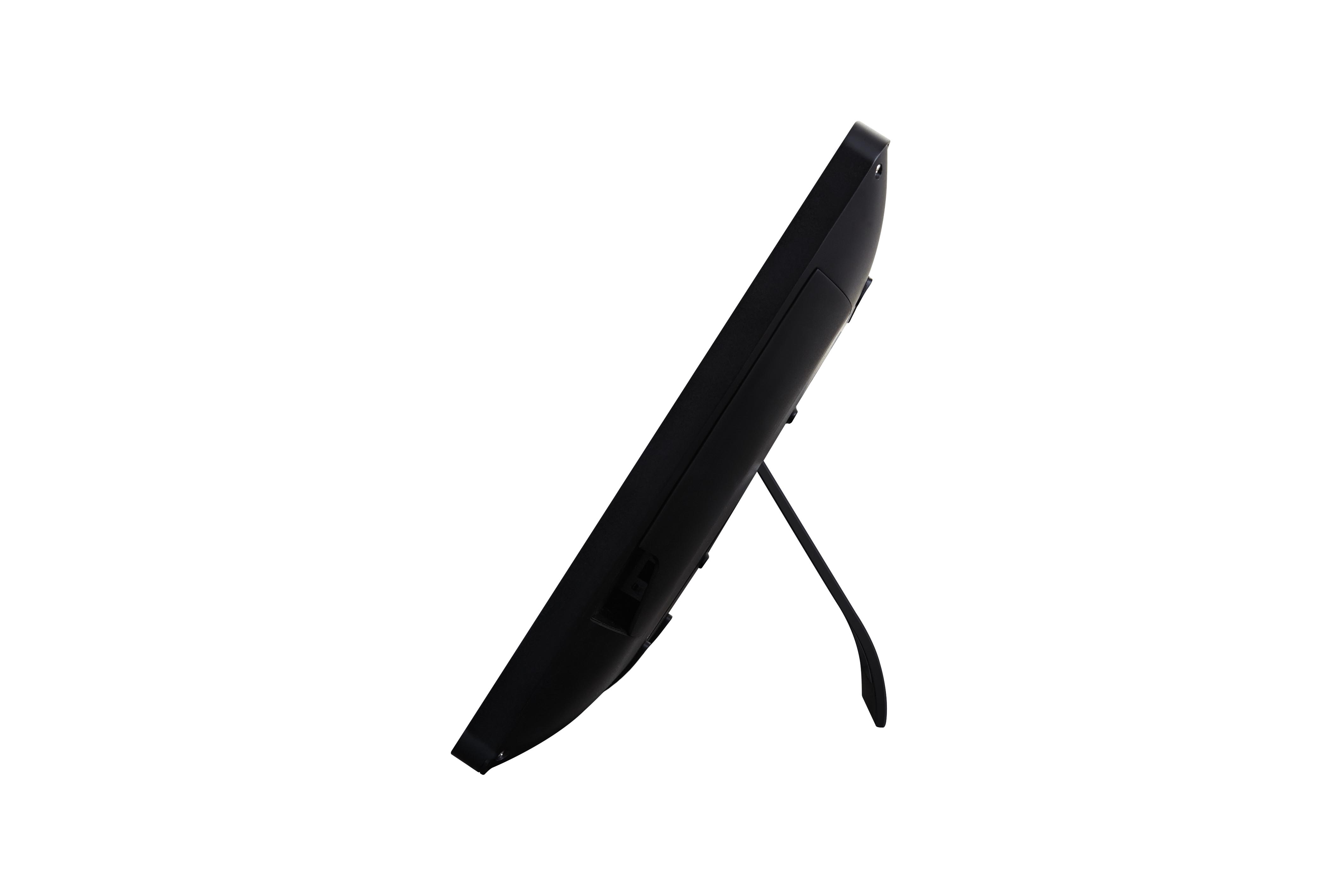

The ViewSonic VSD242 is a 24” smart display that delivers flexibility and power needed for heavy usage in public spaces. With its sleek ID, thin bezel, fan-less design, 7H hardness screen coating, and VESA mounting capabilities, the VSD242 is a flexible solution for information kiosks, public displays, or POS stations in business centers, libraries, or retail environments. Combining the power of a Rockchip quad-core processor, a professional-grade IPS panel, and a 10-point interactive touchscreen, this smart display delivers a responsive, tablet-like browsing experience, while an Android OS, Google Chrome browser and full Google GMS certification provide instant access to Google Play store and thousands of current Android apps. What’s more, a built-in webcam, integrated microphone, and speakers make the VSD242 the perfect interactive, self-contained, kiosk-in-a-box.

Powerful Quad Core Processor

Equipped with the powerful Rockchip RK3288 1.8GHz Quad-Core Cortex A17 processor, this smart display provides smooth, lightning-fast computing no matter what applications are running.

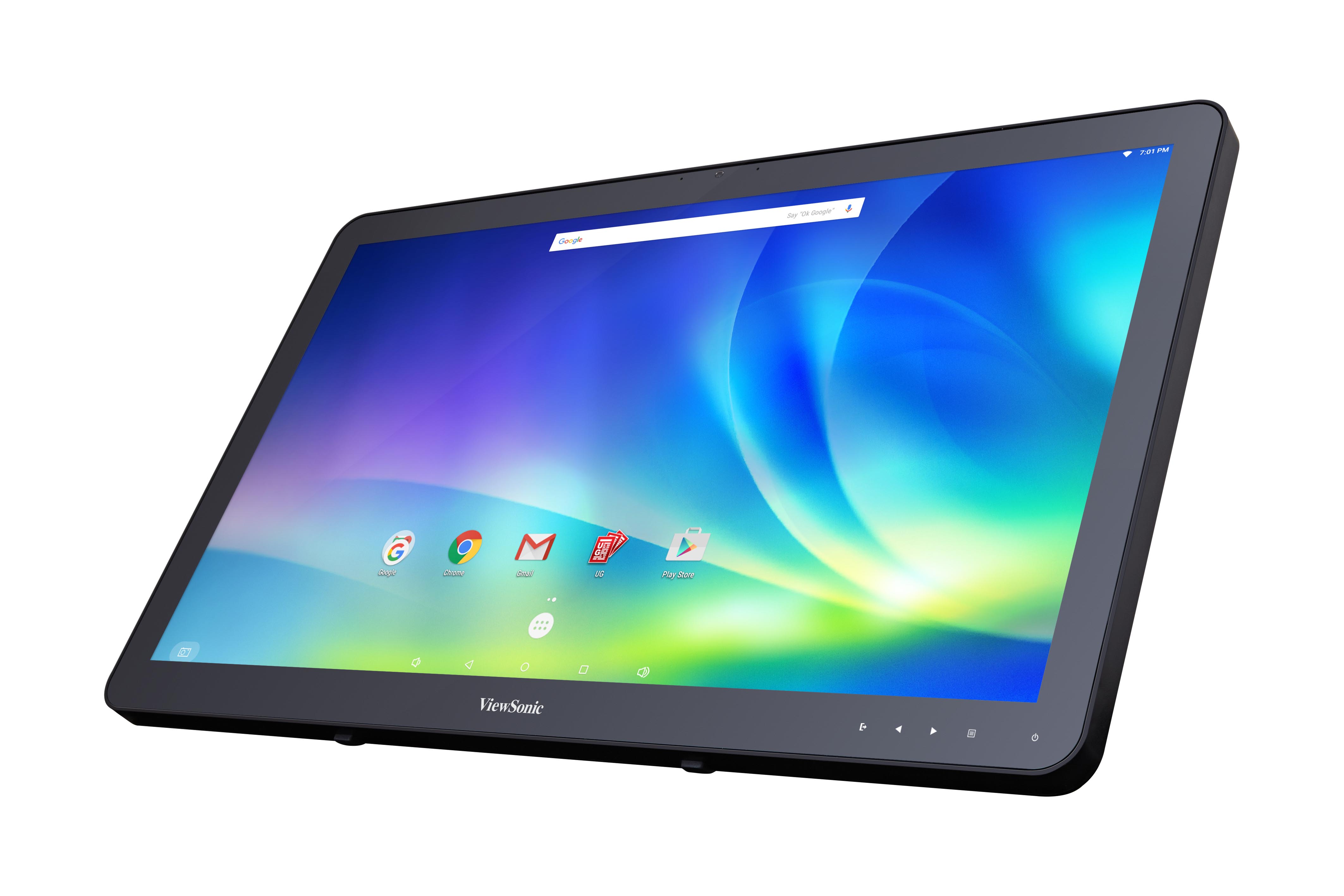

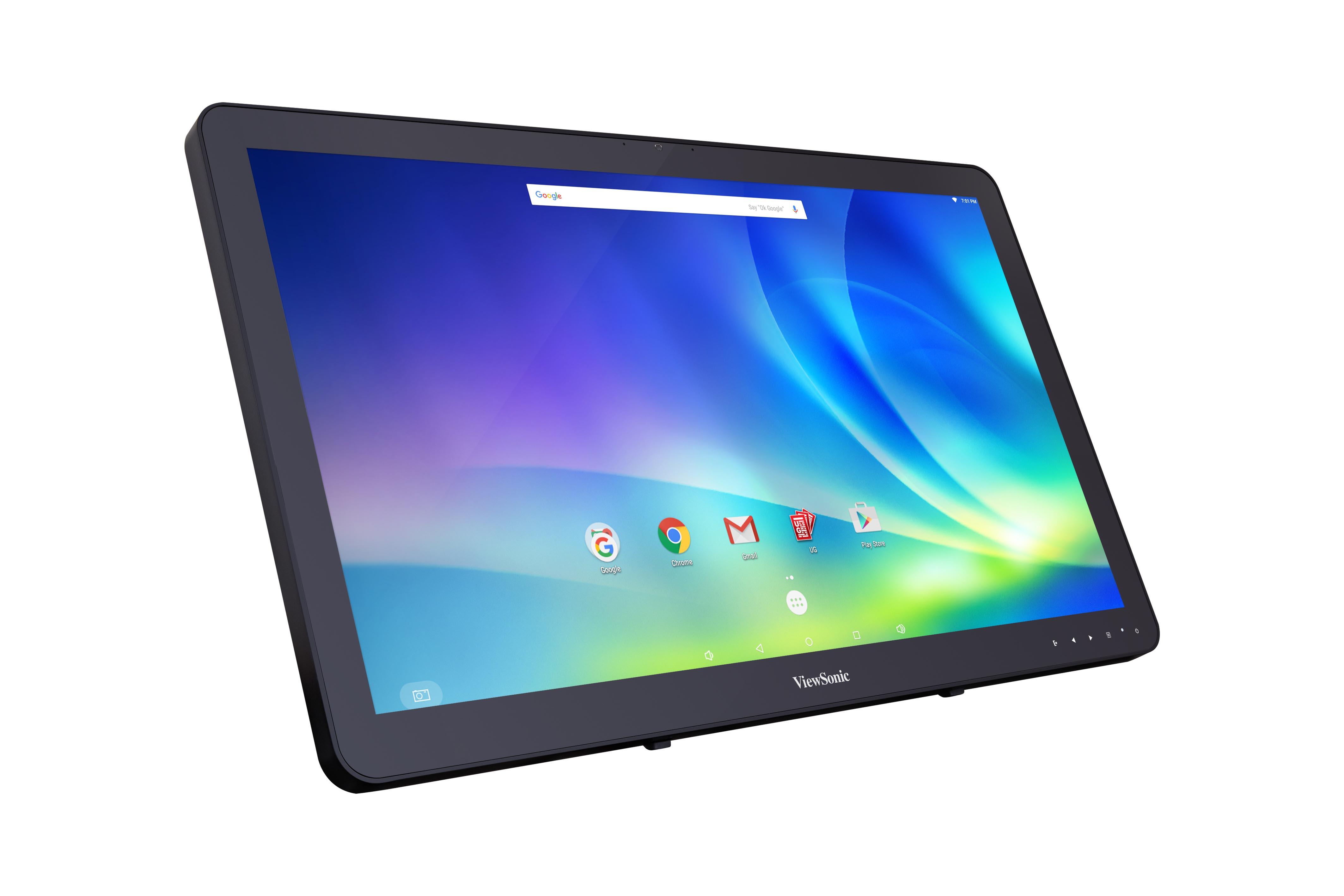

Android & Google

Experience better cloud services and multimedia entertainment with this smart display. It features an Android® Lollipop operating system and full Google GMS certification to provide instant access to Google Play store and thousands of current Android apps.

10-point Multi-touch

With 10-point multi-touch technology and a durable, scratch-resistant surface, this smart display provides outstanding interactive capabilities in public environments. Users can also utilize the smart display as a Full HD touch display to connect to existing PCs, notebooks, or tablets.

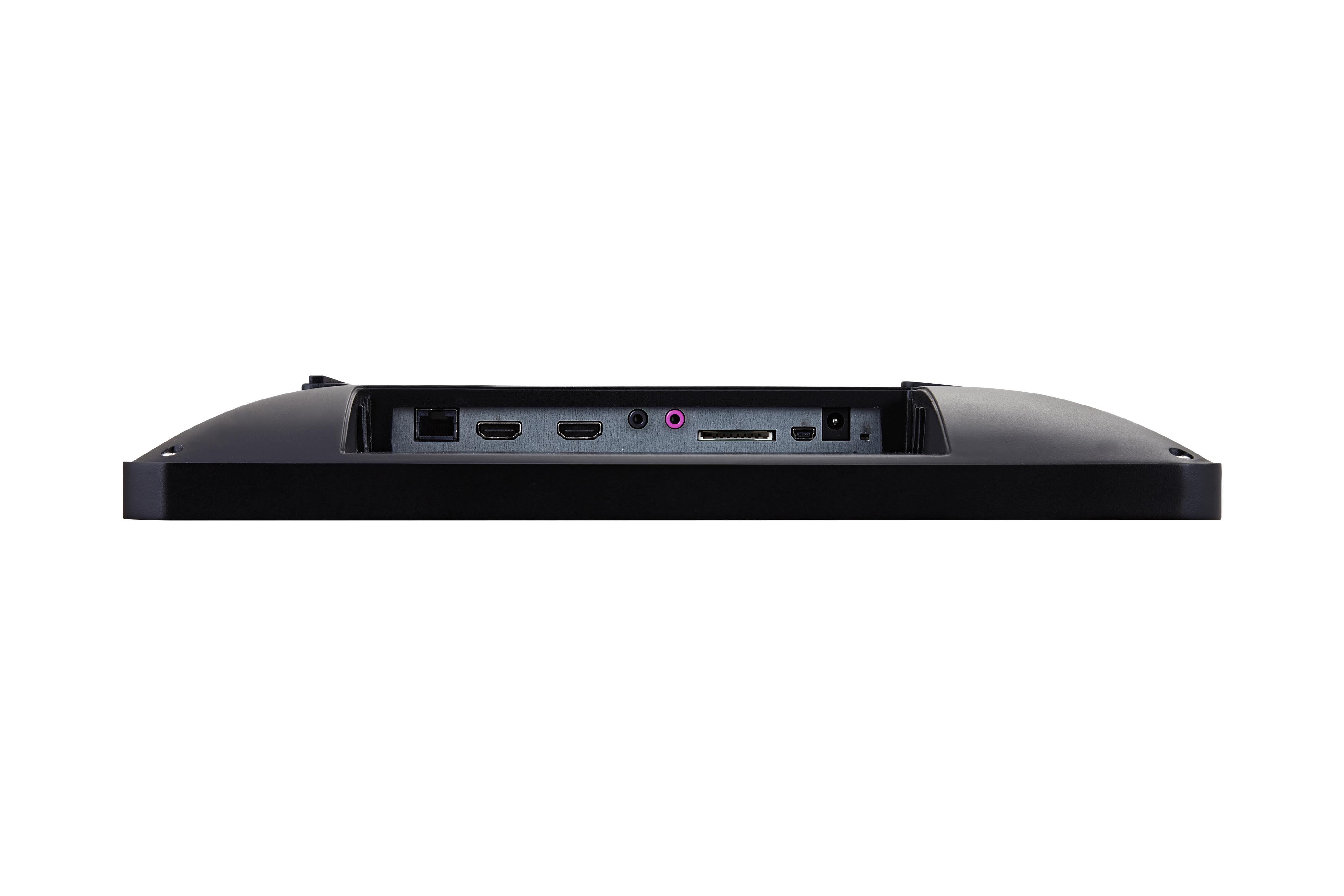

Equipped with Wi-Fi, Bluetooth, and RJ45

This smart display includes Wi-Fi 802.11 a/b/g/n, Bluetooth 4.0, and RJ45 Ethernet, providing flexible access options for website browsing, cloud access, and data exchange.

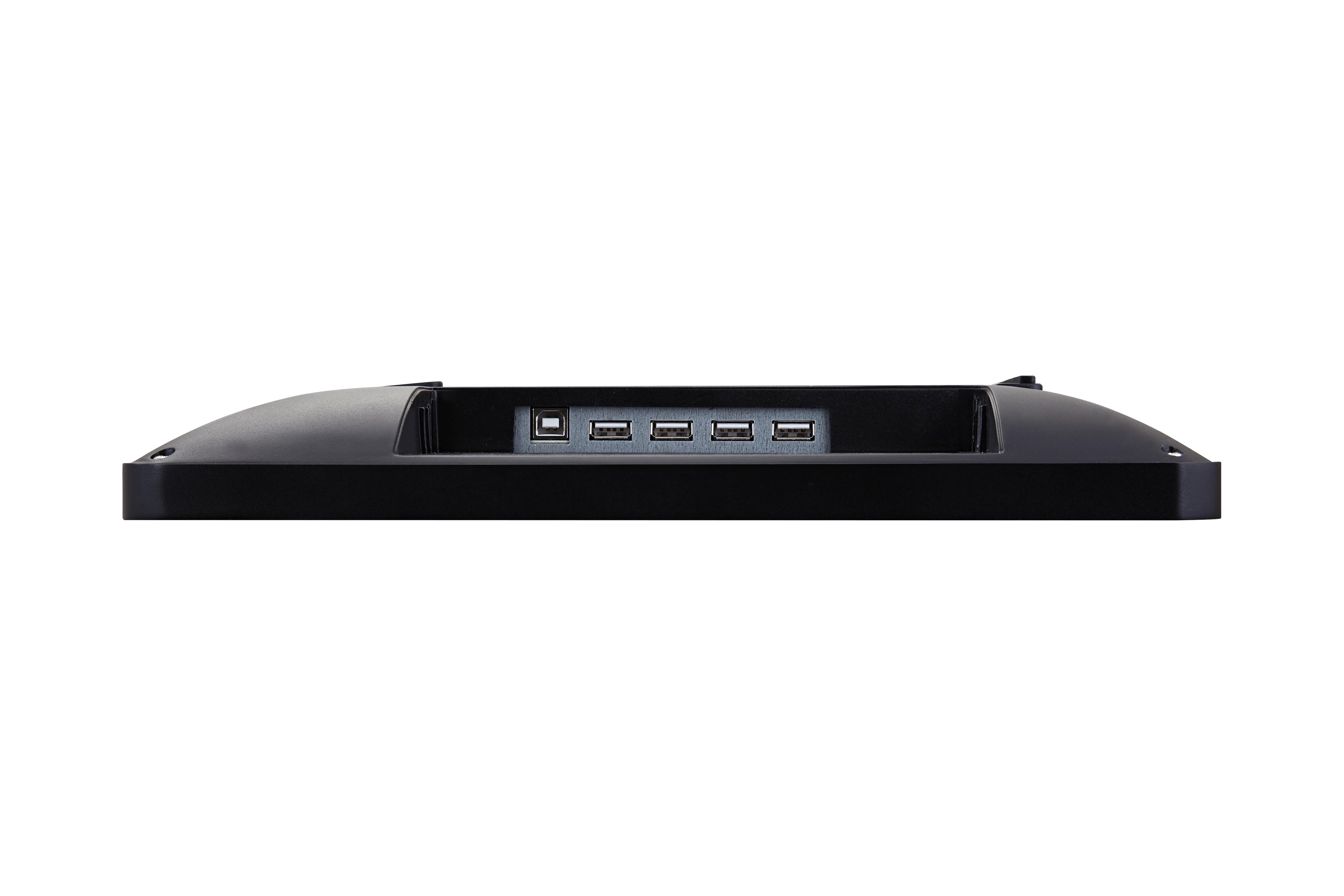

4 USB Ports

4 USB ports deliver versatile connectivity to diversified storage devices, peripherals, and high-definition electronics for enhanced convenience and flexibility.

Complete Multimedia Package

With a built-in webcam, integrated microphone and speakers, and Full HD resolution, this smart display offers a complete multimedia package for professional-grade video conferencing. Users can also utilize the webcam when the smart display is connected as an external display to a PC, notebook, or tablet.

Enhanced Viewing Comfort

Flicker-Free technology and a Blue Light Filter help to minimize eyestrain from extended viewing periods.

SPECIFICATIONS


  • OPERATING SYSTEM
    Platform: Supports Android 5.1 ( Lollipop)
    Type: 23.6” TFT liquid crystal display, VA panel
  • PANEL
    Type: 23.6” TFT liquid crystal display, VA panel
    Resolution: 1920 x1080
    Color Depth: 8-bit + Hi FRC
    Brightness: 250 cd/m2 (typ.) & 200 cd/m2 ( Min.)
    Contrast: 3000:1 (typ.) / 2000:1 ( Min.)
    Touch Panel: PCT10 points touch supported
    Surface Treatment: Touch CS Soda-Lime glasses (≧7H)
    Viewing Angle: View Angle Free (R/L 178 – Typ.)
    Response Time: 16 ms GTG ( typ.)
  • PROCESSOR
    CPU Processor Type: Rockchip® RK3288 Cortex-A17 ( Quad- Core 1.8 GHz)
    Scalar: Realtek RTD2483AD-CG
