- DIMENSIONS
Physical With Stand: 23.4" x 18.4" x 15.3" (595mm x 468mm x 388mm)
Physical Without Stand: 23.4" x 15.3" x 3.9" (595mm x 389mm x 100mm)
- REGULATIONS
UL, cUL, FCC-B (ICES), CB, CE, TCO03, ICES-003B, ISO 13406-2, GS, ERGO (covers ISO 13406-2 & MPR II), TUV-S, NOM, GOST-R, HYGIENIC, CCC, BSMI, PSB, C-TICK, KTL/MIC, SASO, WEEE, RoHS, EPEAT-Silver
- PACKAGE CONTENTS
LCD display, power cable, VGA cable, DVI cable, USB cable, Quick Start Guide, ViewSonic Wizard CD, PerfectSuite" Plus CD
- RECYCLE/DISPOSAL
The lamp in this product contains mercury. Please dispose of in accordance with local, state and federal laws.
- CONNECTOR
Power: Internal power; 3-pin AC plug (CEE22)
USB: V2.0, 1-up/4-down
Analogue/Digital: 15-pin mini D-sub / DVI-D
- POWER
Voltage: AC 100-240V, 50-60Hz (auto switch)
Consumption: 110W (typ)
- CONTROLS
Basic: Power, 2, up, down, 1
OnView®: Auto image adjust, brightness, contrast, input select (analog, digital), ViewMatch® color adjust (sRGB, 9300K, 7500K, 6500K-default, 5000K, user color-RGB), information (resolution, H. frequency, V. frequency, pixel clock, model number, serial number), manual image adjust (H. size, H. position, V. position, fine tune, sharpness, dynamic contrast, display mode), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), memory recall
- OPERATING CONDITIONS
Temperature: 32–104ºF (0–40ºC)
Humidity: 10–90% (non-condensing)
- WEIGHT
Net With Stand: 25.4 lb. (11.5kg)
Net Without Stand: 20.0 lb. (9.1 kg)
Gross With Stand: 31.7 lb. (14.4 kg)
- VIDEO INPUT
Analog/Digital: RGB analog (75 ohms, 0.7/1.0 Vp-p) / DVI (HDCP)
Frequency: Fh: 24-92kHz, Fv: 50-85Hz
Sync: H/V separated (TTL), composite, sync-on-green
- POWER MANAGEMENT
Meets TCO’03 standards
- ERGONOMICS

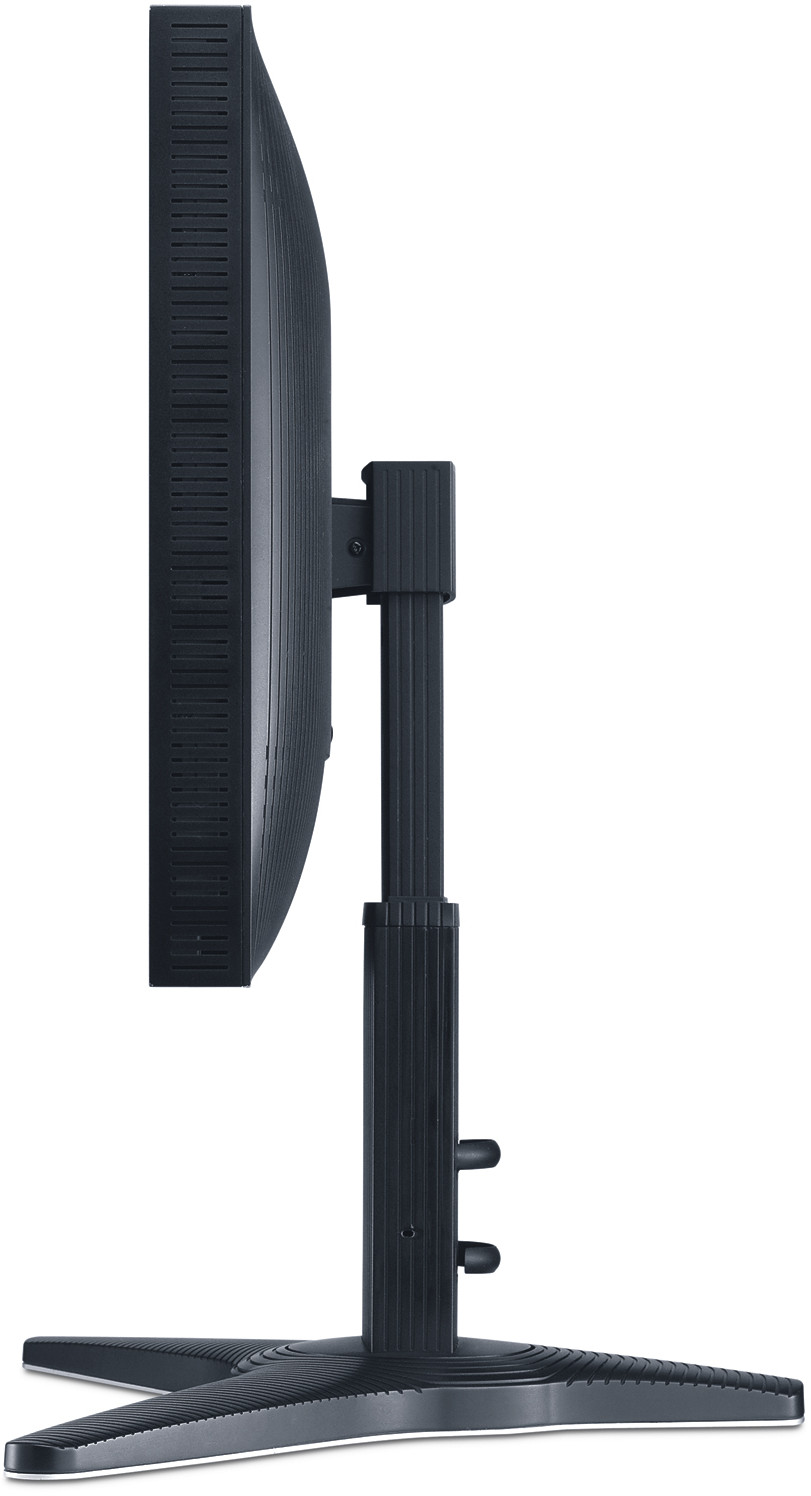

Height adjustment range 11.9cm / 4.7", tilt, swivel range 120º, pivot
