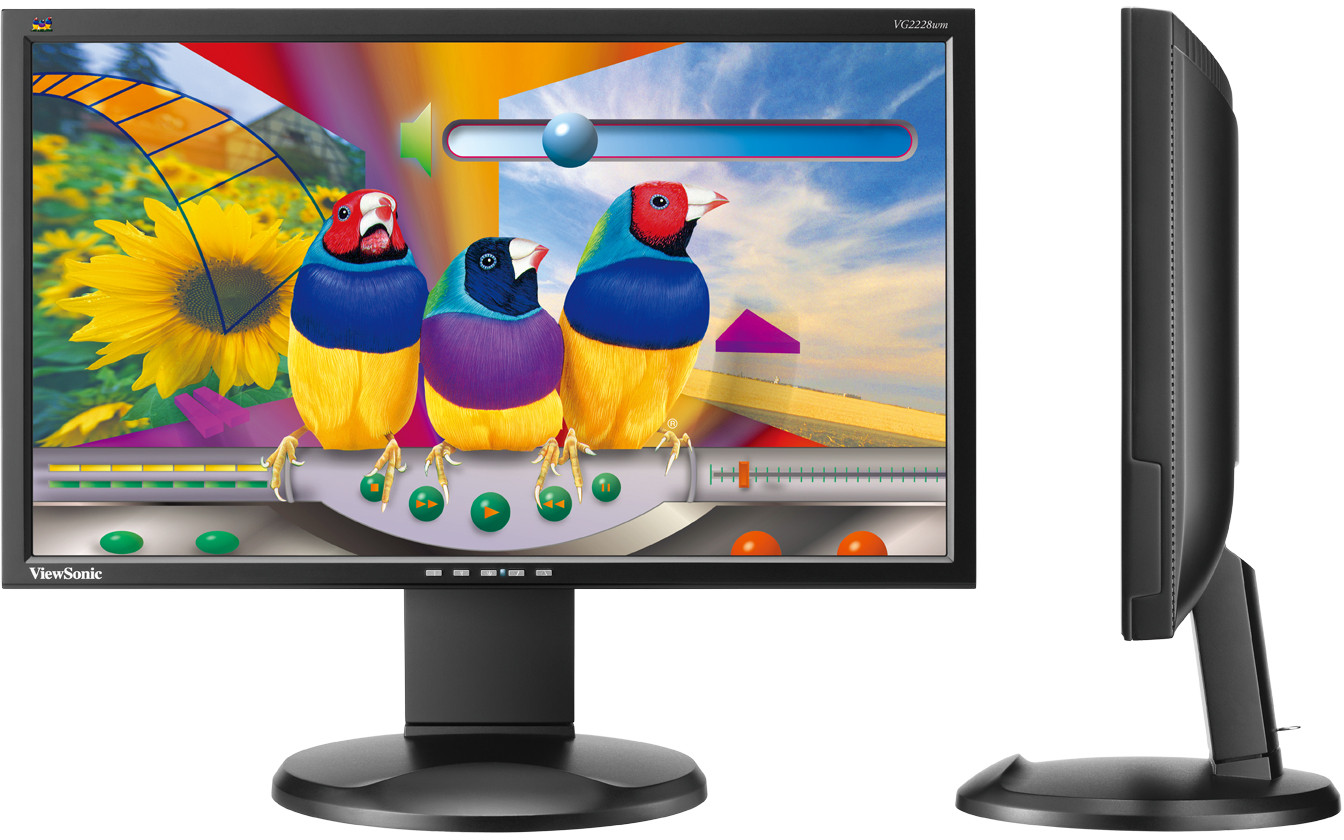

VG2228wm

56cm/22" (55cm/21.5" VIEWABLE) WIDESCREEN LCD WITH DYNAMIC CONTRAST RATIO

Sales Enquiry

GALLERY

Multimedia performance for your business

The 56cm/22” (55cm/21.5” viewable) VG2228wm LCD is the widescreen, multimedia solution for demanding business professionals. Featuring Full HD 1920 x 1080 resolution and dynamic contrast ratio, the high performance display is ideal for graphics professionals, high-definition multimedia visuals and other digital content. The fully adjustable ergonomic base lets you work comfortably and suit to your enironment. The DVI-D connector ensures your content stays high-definition, while the USB ports expand your connectivity for multitasking. The slim bezel design saves space, while the eco-mode function conserves power and extends backlight life. The VG2228wm is a feature-packed, high-performance, widescreen monitor for business and home users who demand the best.

SPECIFICATIONS

COLORS
Black
LCD
Contrast Ratio: 1000:1 typical, 100,000:1 dynamic
Viewing Angles: 160o(H), 160o(V)
Display Area: 476.64mm (H) x 268.11mm (V)
Optimum Resolution: 1920×1080
Response Time: 5ms typical
Light Source: 50,000 hrs typical
Panel Surface: Anti-Glare
Pixel Pitch: 0.248mm(H)×0.248mm(V)
Colour Support: 16.7 M(6-bits + Hi FRC)
Size: 55cm/21.5" wide Color TFT Active Matrix LCD with 16:9 aspect ratio
Brightness: 300 cd/m² typical
COMPATIBILITY
PC: VGA up to 1920×1080 non-interlaced
Mac®: Mac os, up to 1920×1080

DIMENSIONS
Physical With Stand: 511mmx412mmx230mm
Physical Without Stand: 511mmx306mmx62mm
REGULATIONS
CB, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, ENERGY STAR,
EPEAT, NEMKO/ERGO,CE, Ukraine, GOST-R+Hygienic ,
SASO, BSMI, PSB, C-TICK, MIC, VCCI, CCC, TCO 5.0
PACKAGE CONTENTS
DVI-D Cable, Power Cable, Audio cable, USB cable
INPUT
Sync: H/V Separated
Analogue: RGB Analogue (75 ohms, 0.7/1.0 Vp-p)
Digital: DVI-D(TMDS, 100 ohms)
Frequency: Fh: 24-82kHz, Fv: 50-75Hz

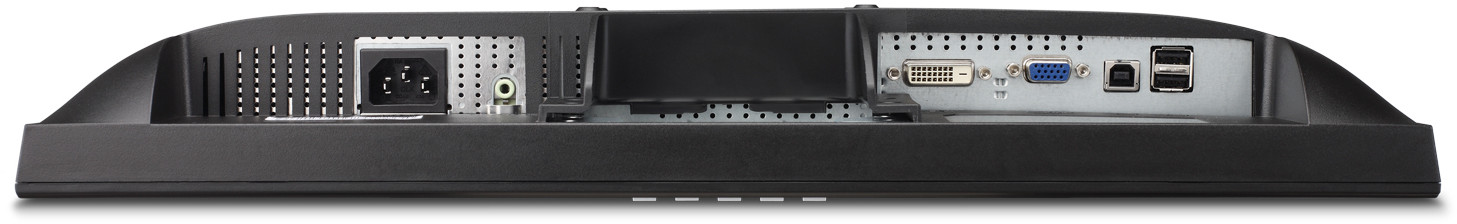

CONNECTOR
Analogue: 15 pin mini D-sub×1
Digital: DVI-D
USB: down stream x 2 / up stream x 1
Audio: 3.5 mm Audio in
Power: Built-in power Adapter, 3-Pin plug
POWER
Voltage: AC 100-240V(Universal); 50/60Hz(Switch)
Consumption: 42W typical
Eco Mode: Optimize 31W (typ.) / conserve 26W (typ.)
Save Mode (W): ≦0.5W
CONTROLS
Basic: Power, Mute,[1], Up[▲], Down[▼], [2]
OnView®: Power, Mute,[1], Up[▲], Down[▼], [2]
Auto image adjust, Contrast/Brightness, Audio adjust: Volume,
mute, Colour adjust: sRGB, 9300K, 7500K, 6500K, 5000K, user
colour [R, G, B] Information, Manual image adjust: H/V position,
Horizontal size, fine tune, sharpness, dynamic contrast, aspect
ratio, Eco mode, Setup menu: Language select, resolution
notice, OSD position, OSD timeout, OSD background, memory
recall
POWER MANAGEMENT
VESA 100mmx100mm
ERGONOMICS
Tilt: 20˚~-5˚
Swivel: 360˚(180 ˚left / 180 ˚right)
Height Adjustment: 0~80mm
AUDIO
Speakers: 2 x 2 watt
WEIGHT
Gross: 7.1 kg
Net: 5.2 kg
OPERATING CONDITIONS
Humidity: 10-90%(Non condensed)
Temperature: 0-40°C(32-104°F)
