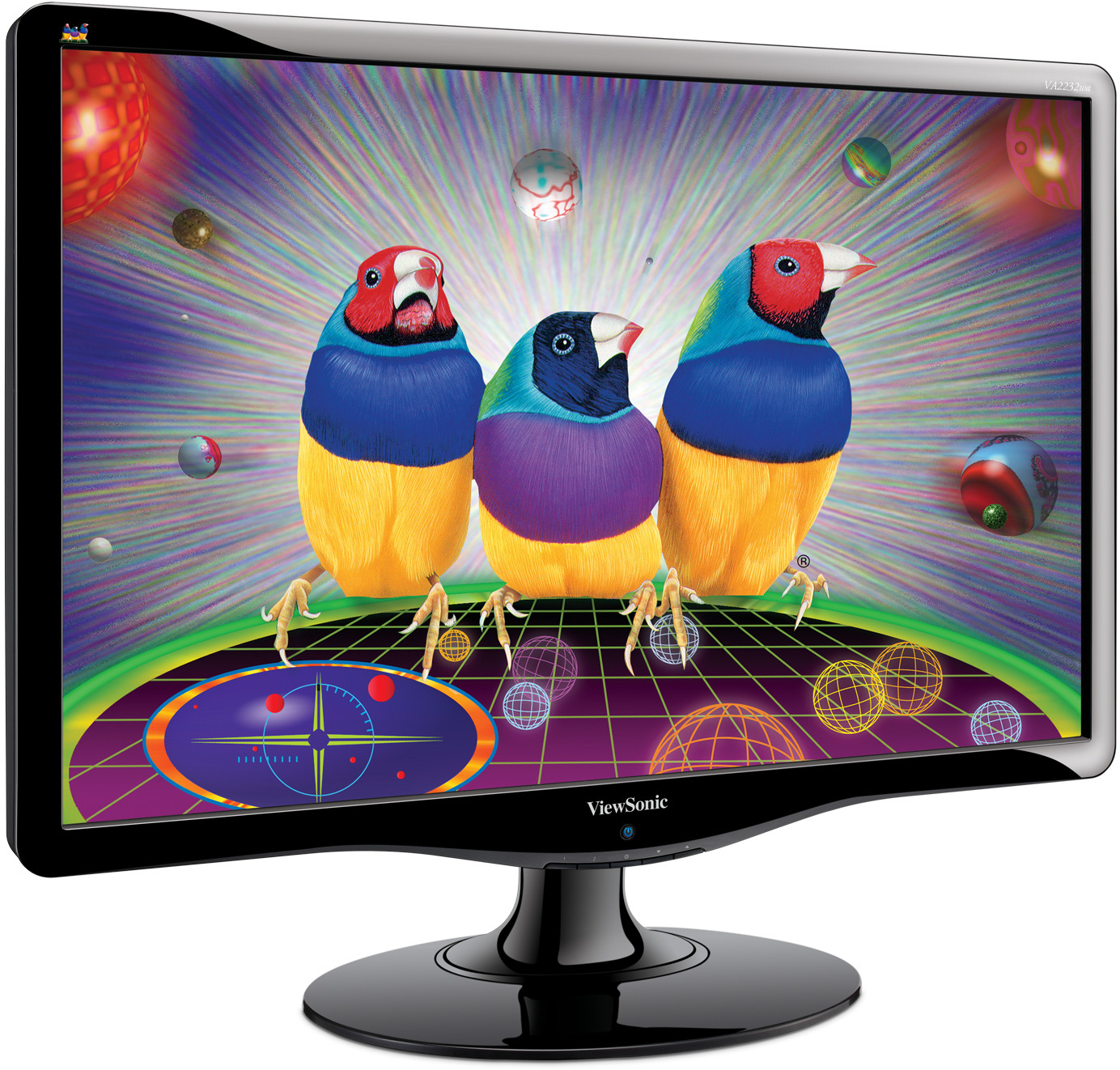

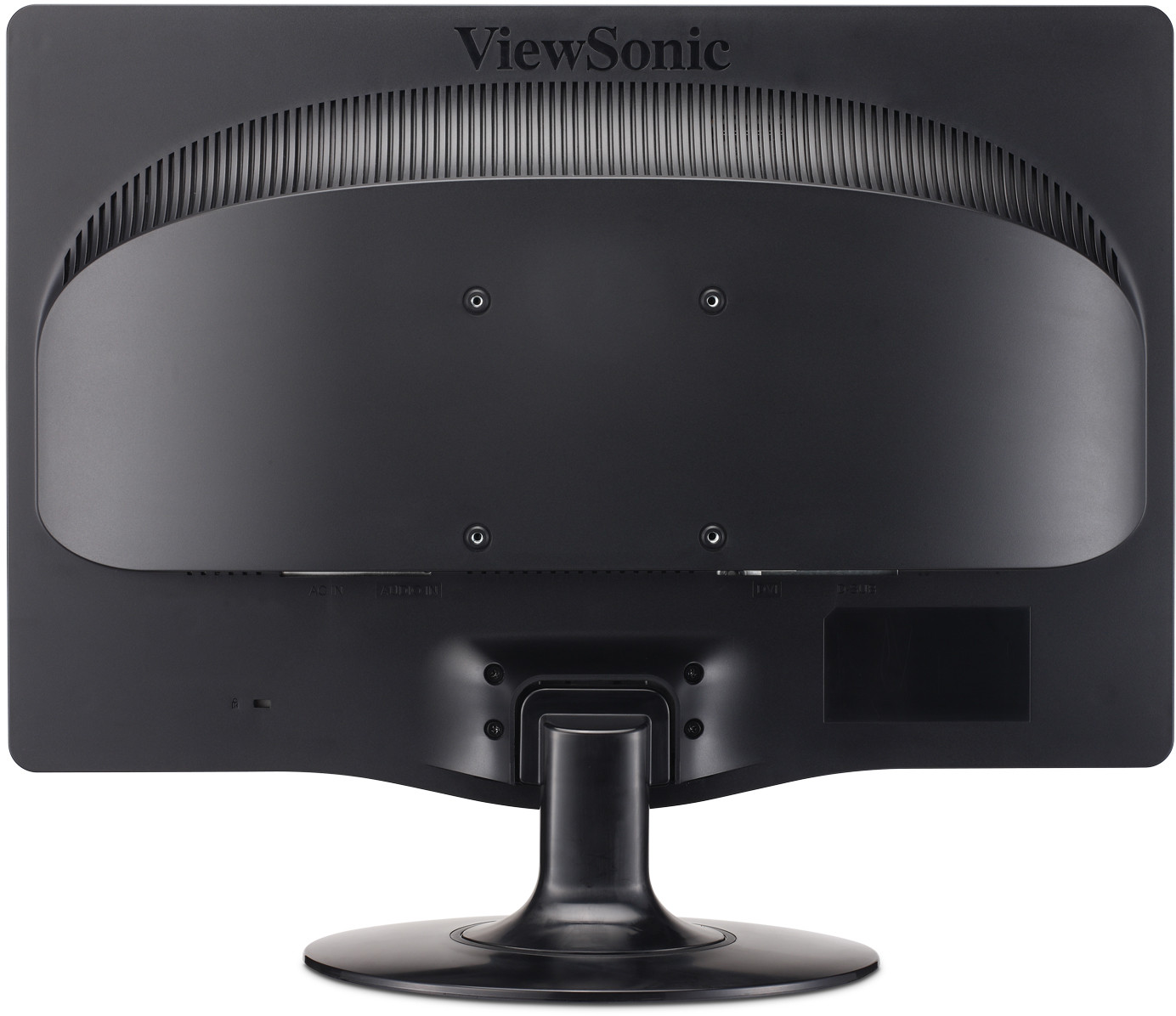

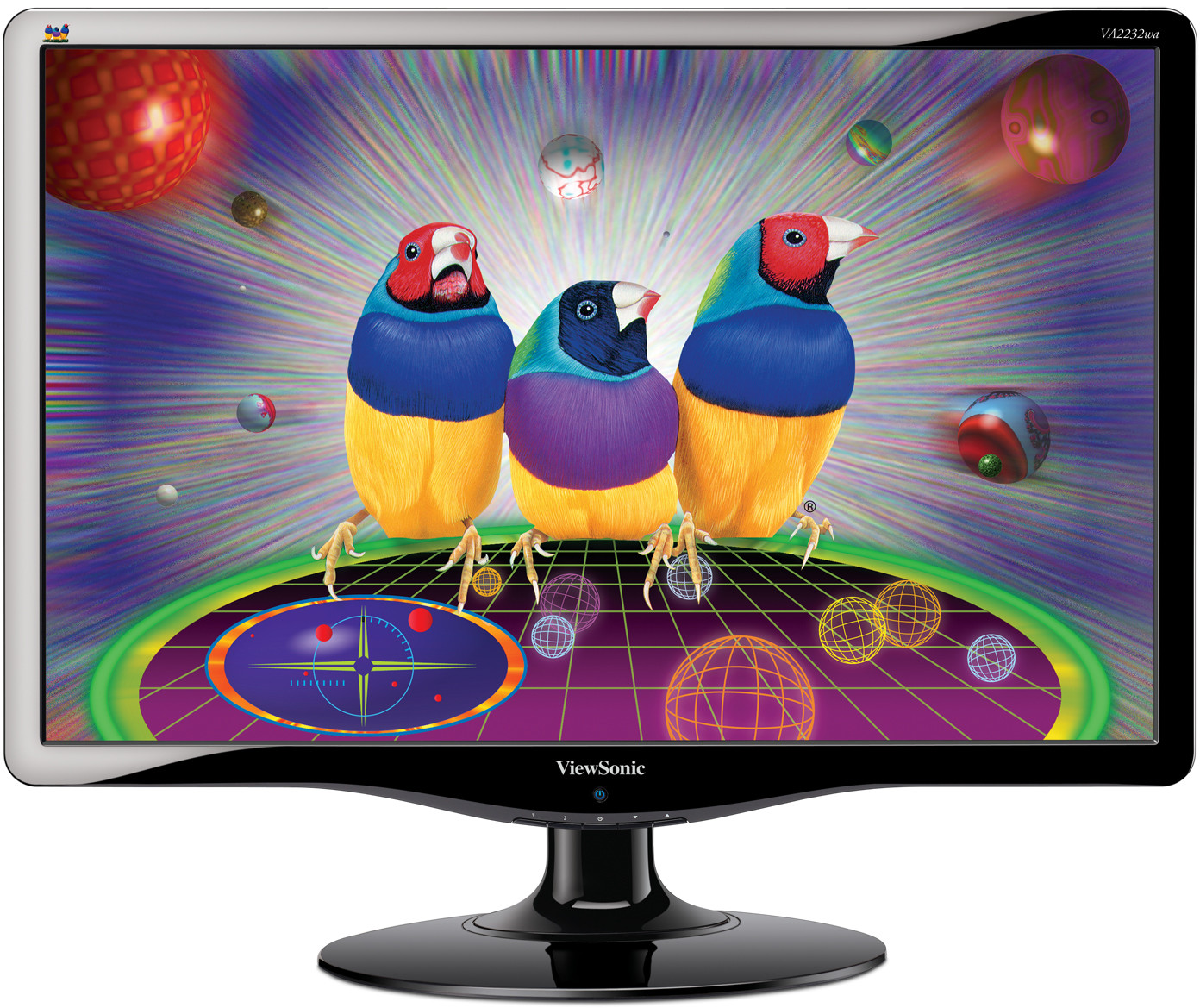

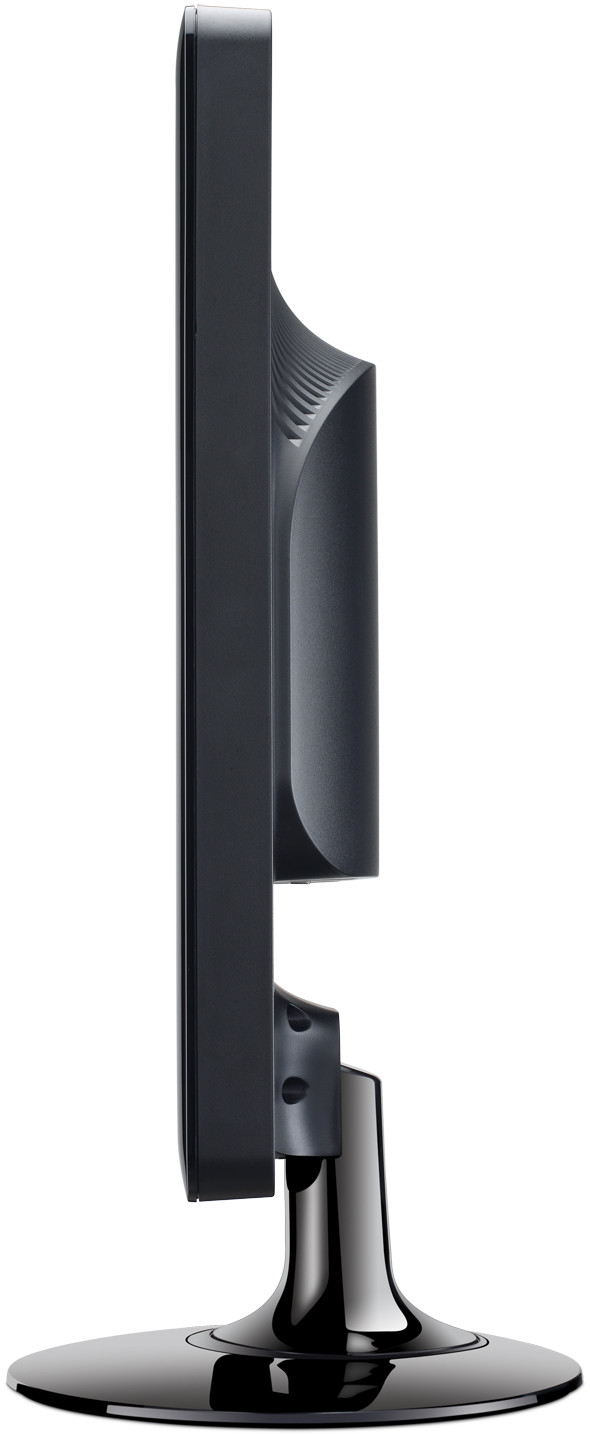

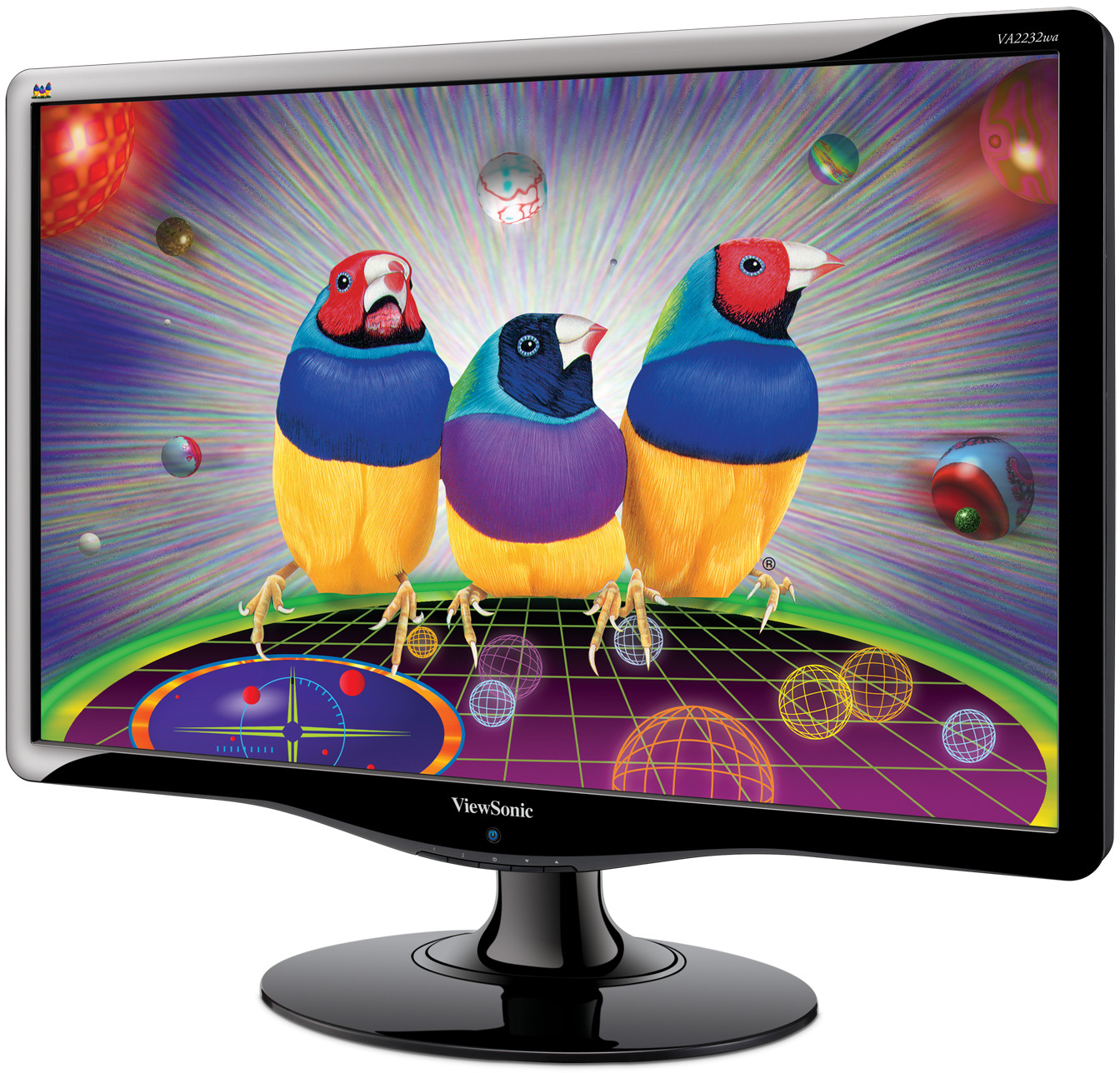

VA2232w

56cm/22" VALUE SERIES WIDESCREEN LCD DISPLAY

Sales Enquiry

GALLERY

Super Contrast Ratio Widescreen

ViewSonic's 22" VA2232w widescreen LCD delivers unparalleled performance with ULTRA-FAST VIDEO RESPONSE as fast as 5ms, 100,000:1 DCR (typical) and 1680X1050 RESOLUTION. Games, videos and graphic-intensive applications have never looked better on your desktop. This Windows 7® certified widescreen display enhances productivity by allowing you to view two documents side by side or to work in two applications without toggling. With the all new innovative ThinEdge design and aesthetic appeal, it leads LCD display with a fashion and environmental friendly at the same time with its ECO MODE. The ViewSonic VA2232w LCD display uses advanced display technology to create an exquisiteness workplace entertainment!

SPECIFICATIONS

COLORS
Black
LCD
Contrast Ratio: 1,000:1 Typical
Viewing Angles: 170° (H), 160° (V)
Optimum Resolution: 1680 × 1050 native resolution
Response Time: 5ms Typical
Light Source: 50,000 hours minimum
Panel Surface: Anti-Glare, Hard coating(3H)
Pixel Pitch: 0.282 × 0.282 (mm)
Colour Support: 16.7 M
Size: 56cm/22" Wide Colour a-Si TFT Active Matrix LCD 16:10 aspect ratio
Brightness: 300 Typical
Dynamic Contrast Ratio: 100,000:1
COMPATIBILITY
PC: VGA up to 1680 × 1050 Non Interlaced
Mac®: Mac OS up to 1680 × 1050

DIMENSIONS
Physical With Stand: 510 × 416.2 × 195.4 (mm) / 20.1 × 16.4 × 7.7 (in)
REGULATIONS
CB, WEEE, RoHS, REACH SVHC List, CE, Nemko ERGO, GOST-R+Hygienic,
UkrSEPRO BSMI, PSB, C-TICK, KC, SASO
INPUT
Sync: Separate
Analogue: 16.7 M
Frequency: Fh = 24 – 82kHz; Fv = 50 –75 Hz, (VGA)
CONNECTOR
Analogue: 1×15 pin mini D-sub
Digital: 1× DVI-D
Power: Built-in power Adapter, 3-Pin plug
POWER
Voltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 38 Typical / 45 Maximum
Save mode: <= 0.5W
CONTROLS
Basic: [1], [2], Power, Down[▼], Up[▲]
OSD: Auto Image Adjust, Contrast/Brightness, Color Adjust, sRGB, 9300K, 7500K,
6500K, 5000K, User Color [R, G, B]
Information, Manual Image Adjust, H/V Position, Horizontal Size, Fine Tune,
Sharpness, Dynamic Contrast, Aspect ratio, Eco mode, Setup Menu,
Language, Resolution Notice, OSD Position, OSD Timeout, OSD Background,
Auto Power Off, Memory Recall
VESA MOUNT COMPLIANT
100mm × 100mm
ERGONOMICS
Tilt: 20~-5 degrees
WEIGHT
Net: 4.7 kg / 10.36 lb
OPERATING CONDITIONS
Humidity: 5 - 90 (%)
Temperature: 0 - 40 (°C) / 32 - 104 (°F)
