- DIMENSIONS
Physical With Stand: 447 × 350 × 199 (mm), 17.6 × 13.8 × 7.8 (in)
Physical Without Stand: 447 × 268 × 63(mm), 17.6 × 10.6 × 2.46 (in)
- REGULATIONS
CB, TCO'03, WEEE, ROHS, UL/cUL, FCC-B, IRAM, NOM, Energy Star,
NEMKO/ERGO, CE, Ukraine, GOST-R+Hygienic, SASO, BSMI, PSB,
C-TICK, MIC, VCCI, CCC
- INPUT
Sync: Separate Sync
Analogue: RGB Analog ( 75 ohms, 0.7 / 1.0 Vp-p)
Frequency: Fh: 24-82kHz, Fv: 50-85Hz
- CONNECTOR
Analogue: 15 pin mini D-sub×1
Power: Built-in power Adapter, 3-Pin plug
- POWER
Voltage: AC 100-240V (Universal); 50/60Hz(Switch)
Consumption: 23W (Max.)
Eco Mode: optimize 18W / conserve 15W
Save Mode (W): <=1W
- CONTROLS
Basic: [1], [2], Power, Down[▼], Up[▲]
OnView®: Auto image adjust, contrast, brightness, ViewMatch® color
adjust (sRGB, 9300K, 6500K – default, 5400K, RGB), information
(resolution, H-freq, V-freq, pixel clock, model number, serial
number, web site), manual image adjust (H. size, H. position,
V. position, fine tune, sharpness), setup menu (language,
resolution notice, OSD position, OSD timeout, OSD background),
memory recall
- OPERATING CONDITIONS
Temperature: 5°C - 35°C (41°F - 95°F)
Humidity: 20 - 80% (Non condensed)
- WEIGHT
Net: 3.4 kg (7.5lbs)

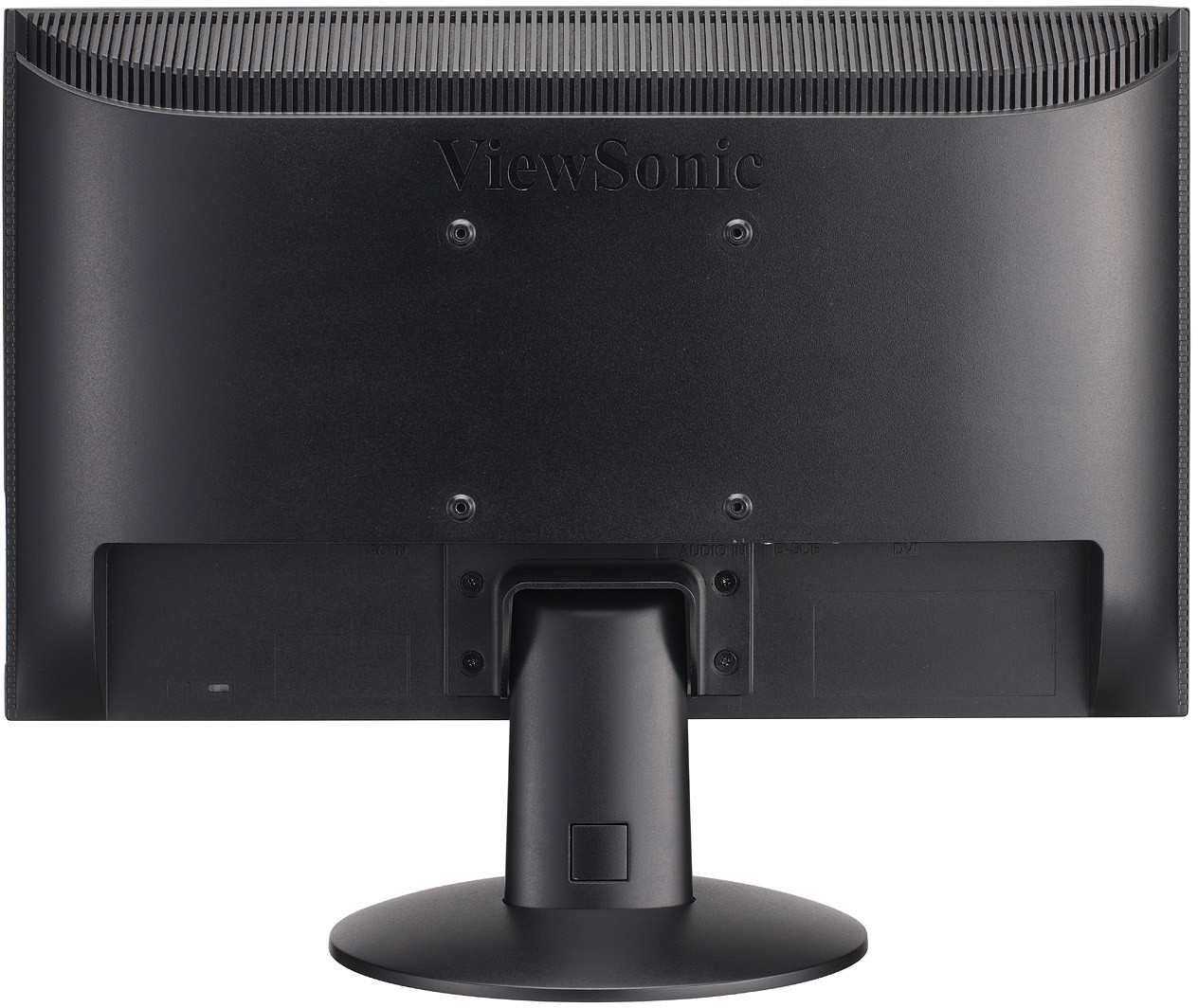

- VESA MOUNT COMPLIANT
VESA 100mm x 100mm
- ERGONOMICS
Tilt: 20° ~ -5°
