OVERVIEW

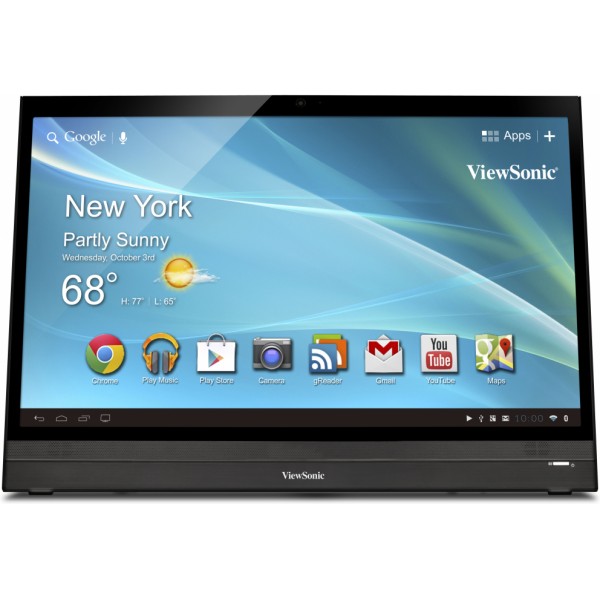

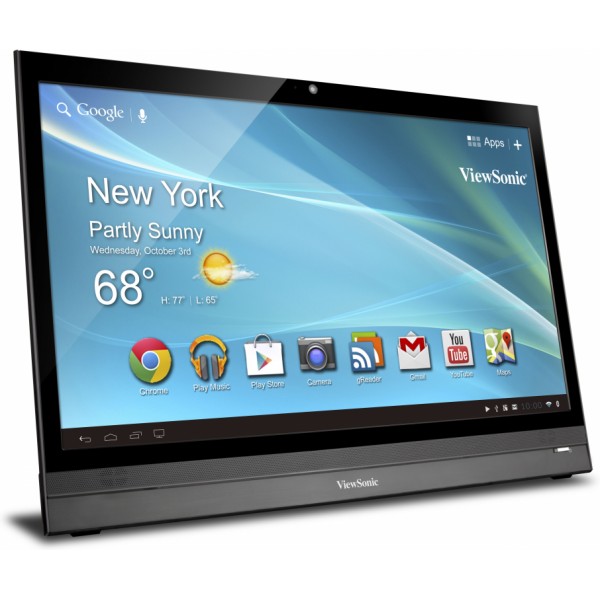

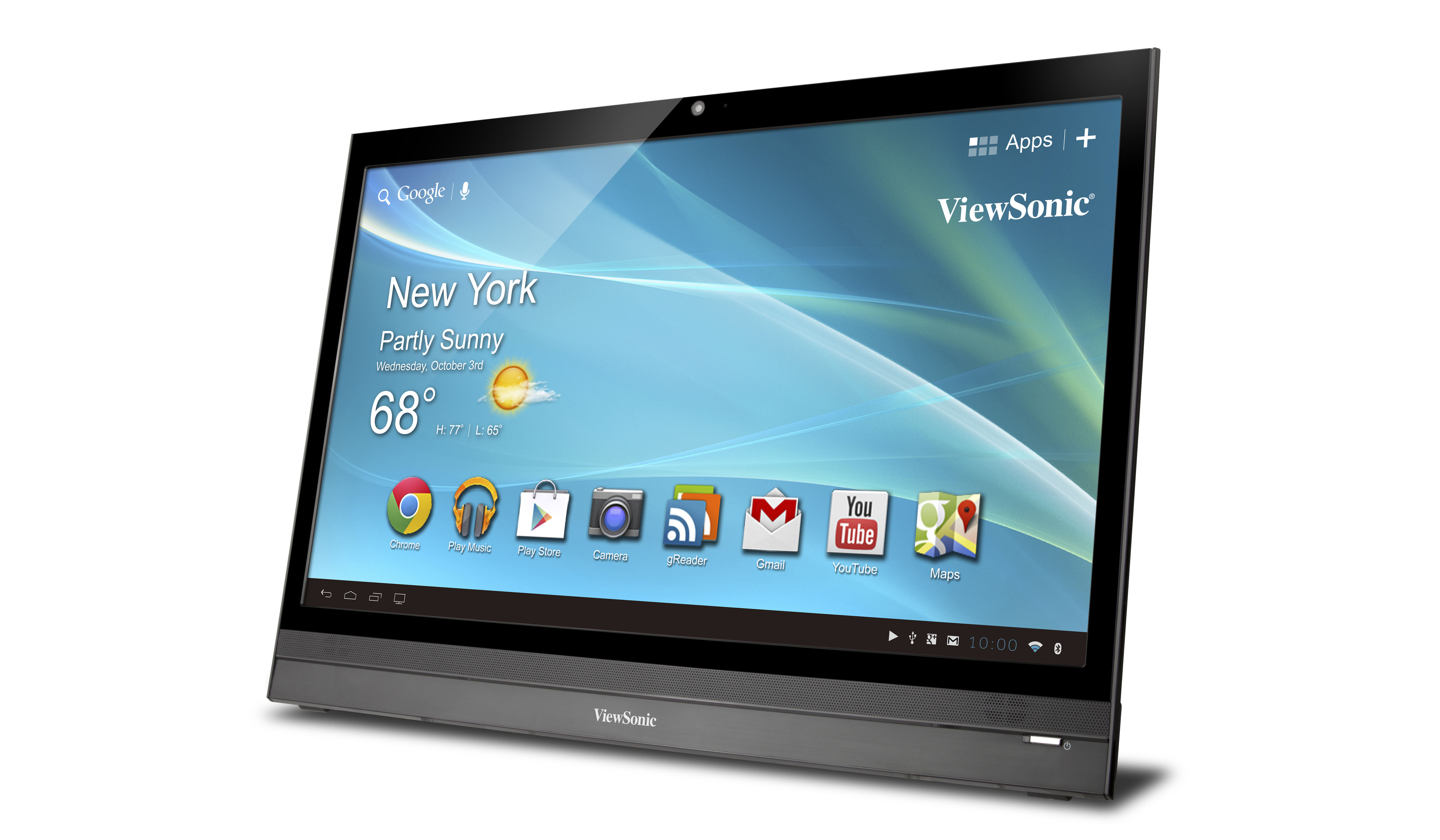

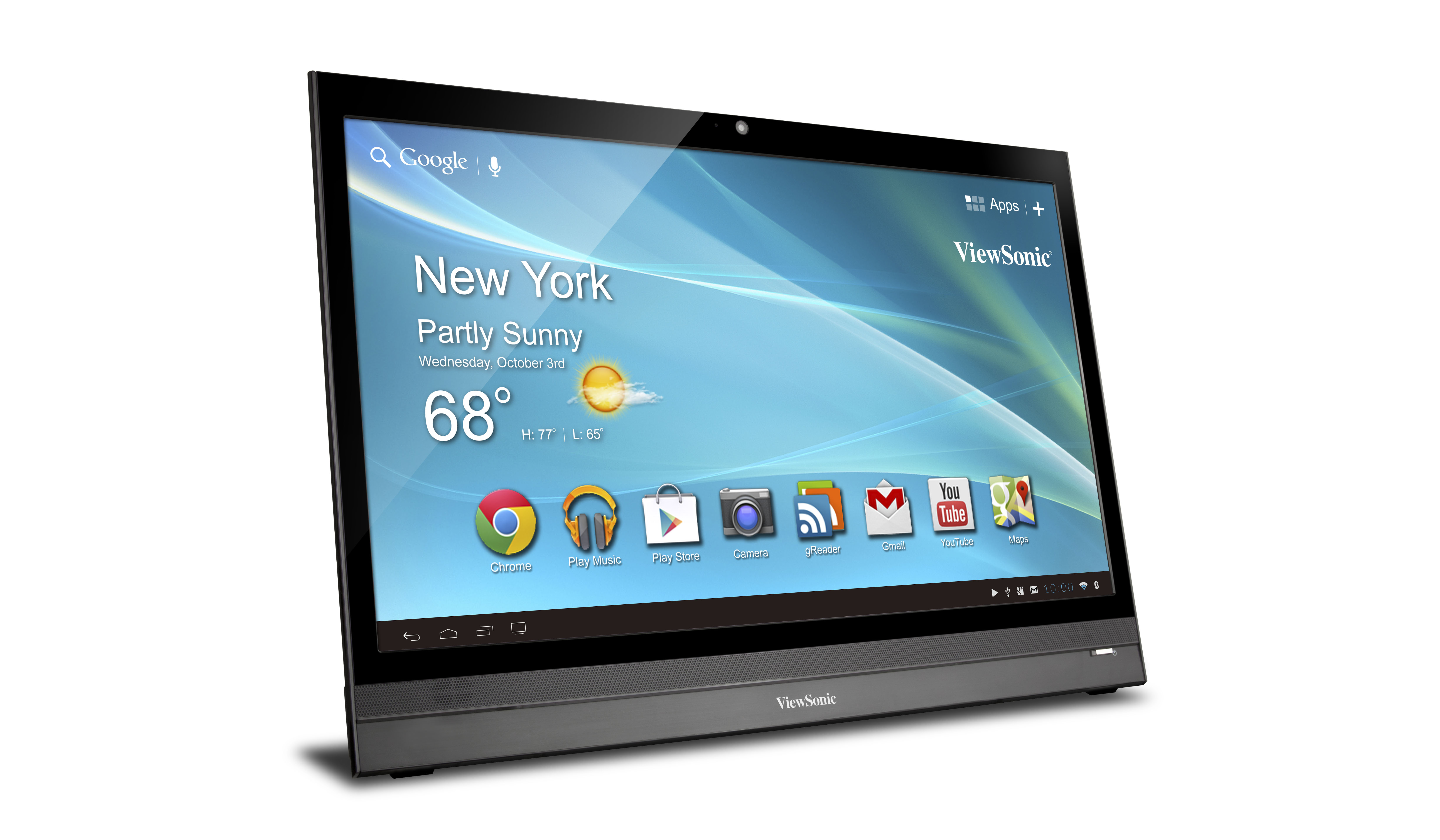

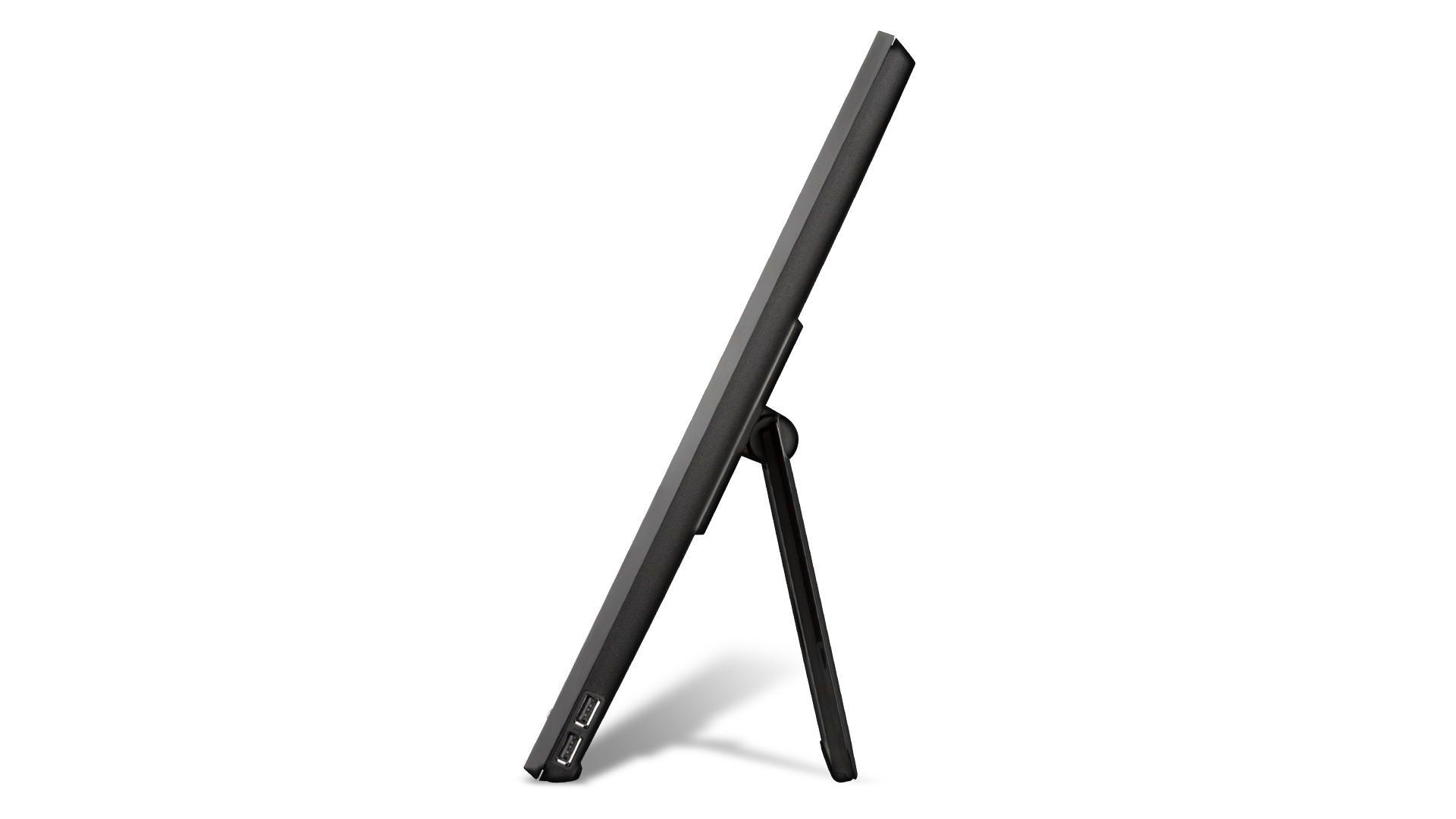

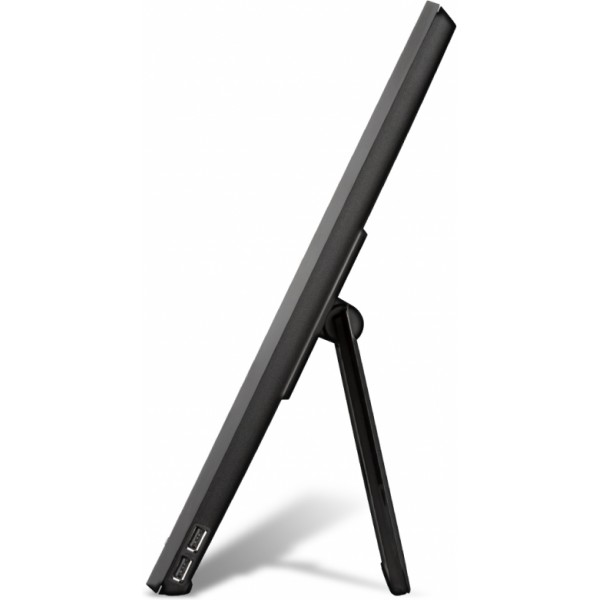

The ViewSonic® SD-A225 is a 22" (21.5" viewable) multi-touch smart display client with 1920 x 1080 Full HD resolution, and a TI Dual Core OMAP processor. With Citrix® XenMobile™ pre-installed, the SD-A225 is a completely locked-down, secured, and fully manageable device for your business. Now you can easily provision and deploy both your mobile and desktop devices. Versatile connectivity options include micro HDMI®, three USB ports (2 Type A and 1 micro USB OTG), micro SD card reader, RJ45, headphone jack, and 1.3MP webcam with integrated microphone for video conferencing. Wireless and Bluetooth® network connections provide instant access to transfer data, documents, and multimedia files. Integrated speakers with SRS® 3D complete the package for multimedia enjoyment. The SD-A225 provides the security and control needed on the desktop to leverage the investments being made in mobile and cloud-based tools.

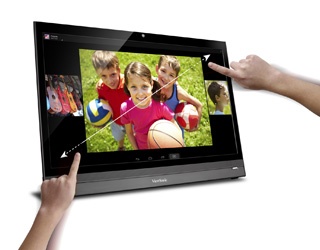

Dual Point Optical Touch for Intuitive Operation

The SD-A225 smart display client is equipped with Dual Point Optical Touch technology that enables users to enjoy a responsive, tablet-like browsing experience. Users can also utilise the smart display client as a 22" (21.5" viewable) Full HD touch display to connect to existing PCs, laptops, or tablets.

SD-A245 Dual-Touch feature

Multimedia Ready

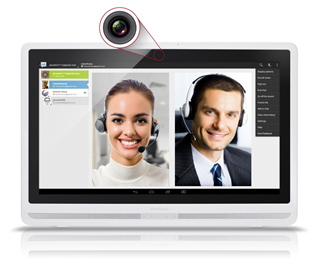

With a built-in 1.3MP webcam, integrated microphone and speakers, and 1920 x 1080 Full HD resolution, the SD-A225 offers a complete multimedia package for everything from video conferencing, to streaming highresolution content.

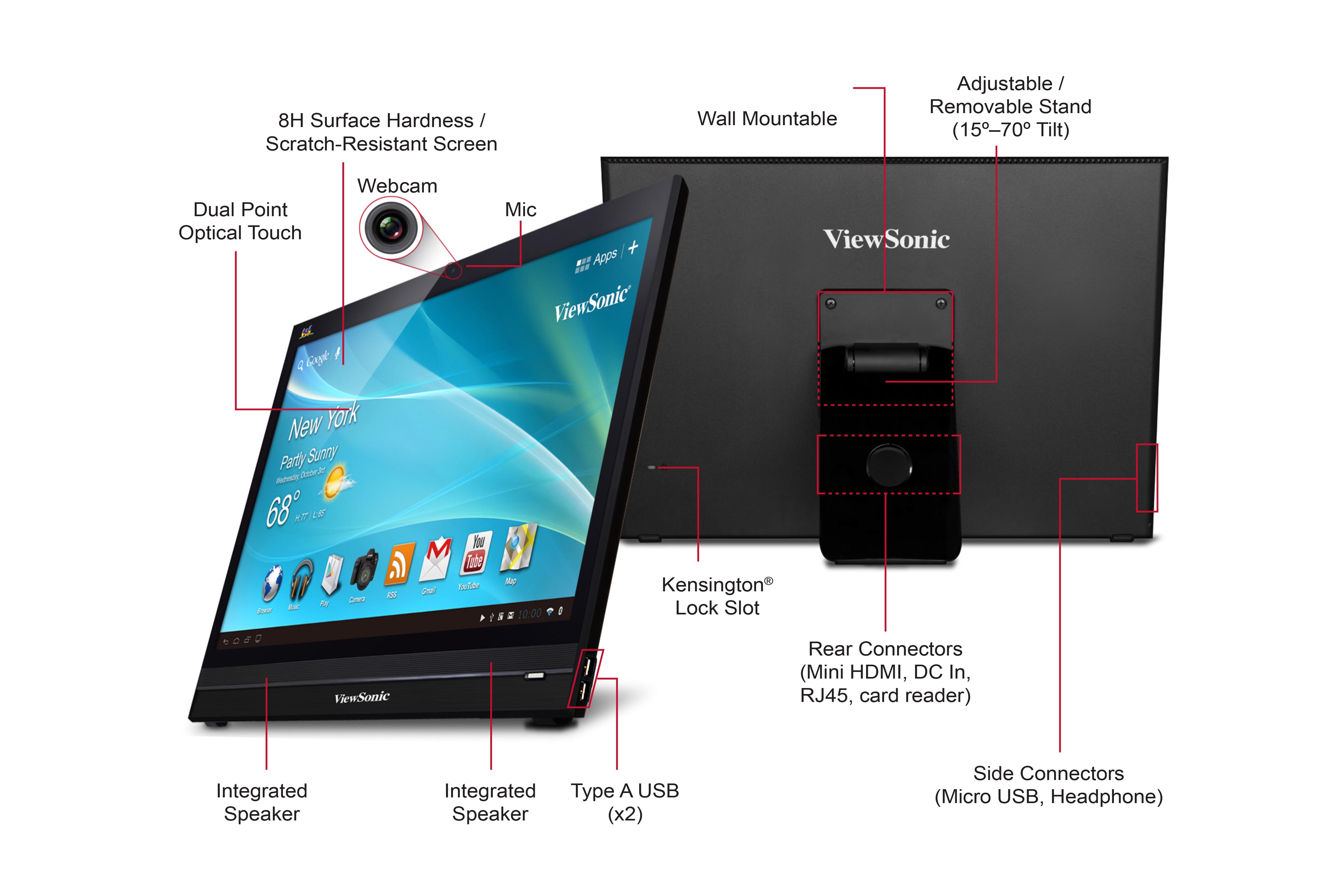

Versatile Connectivity Options

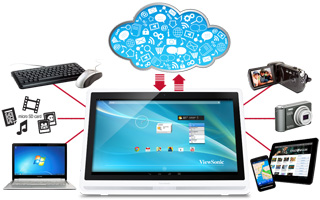

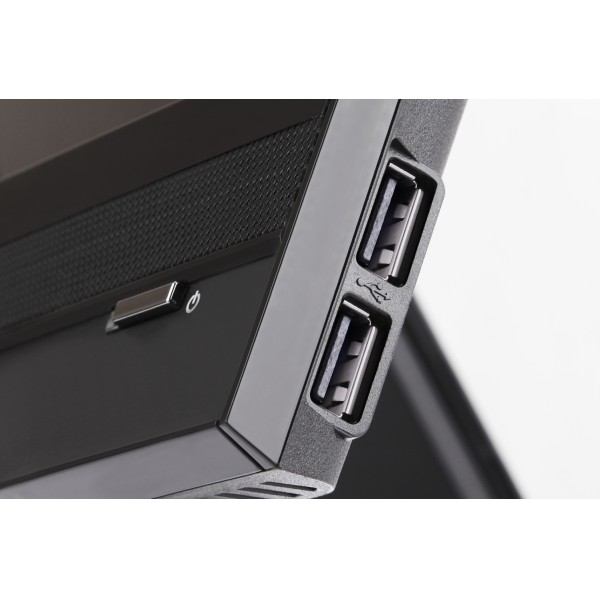

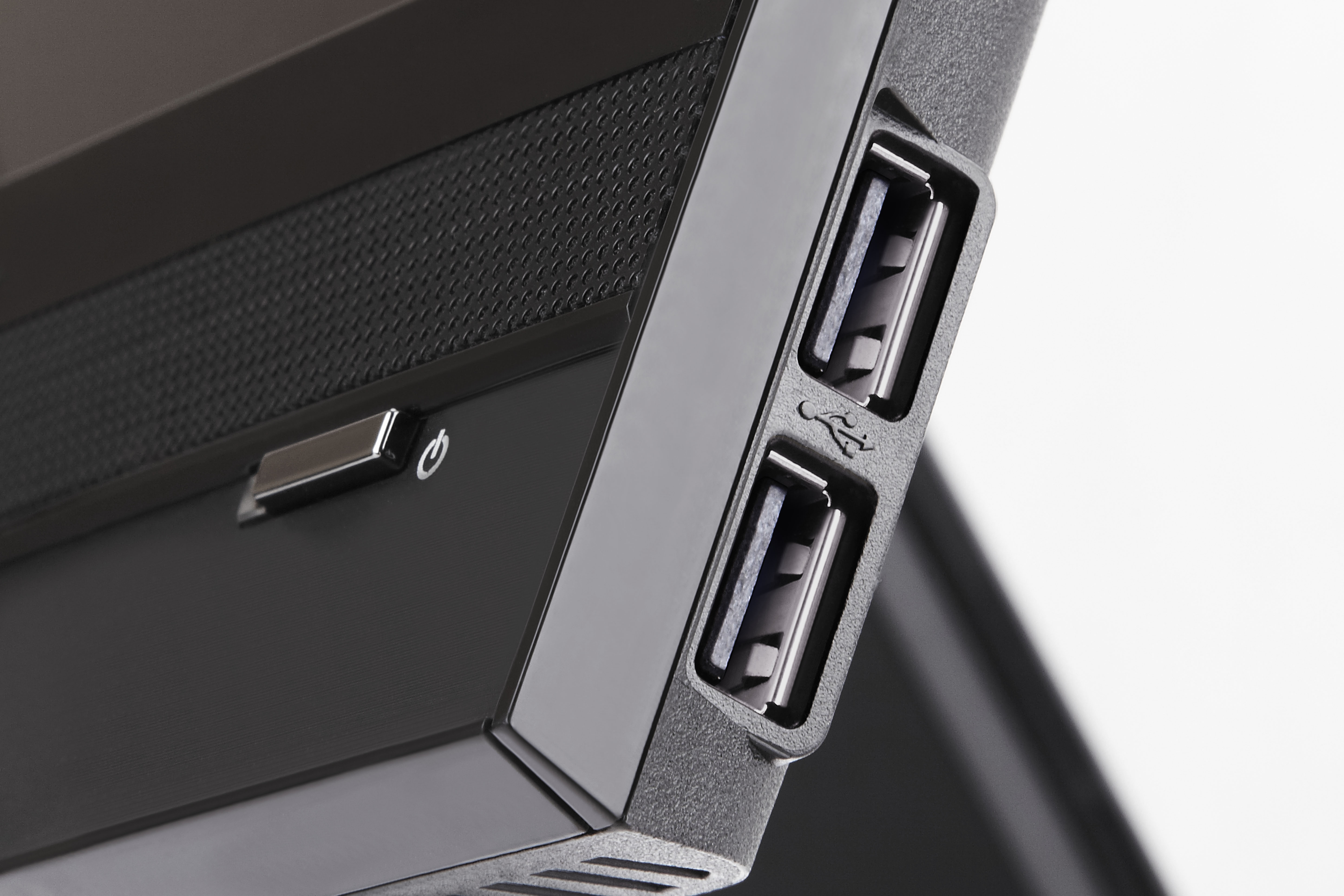

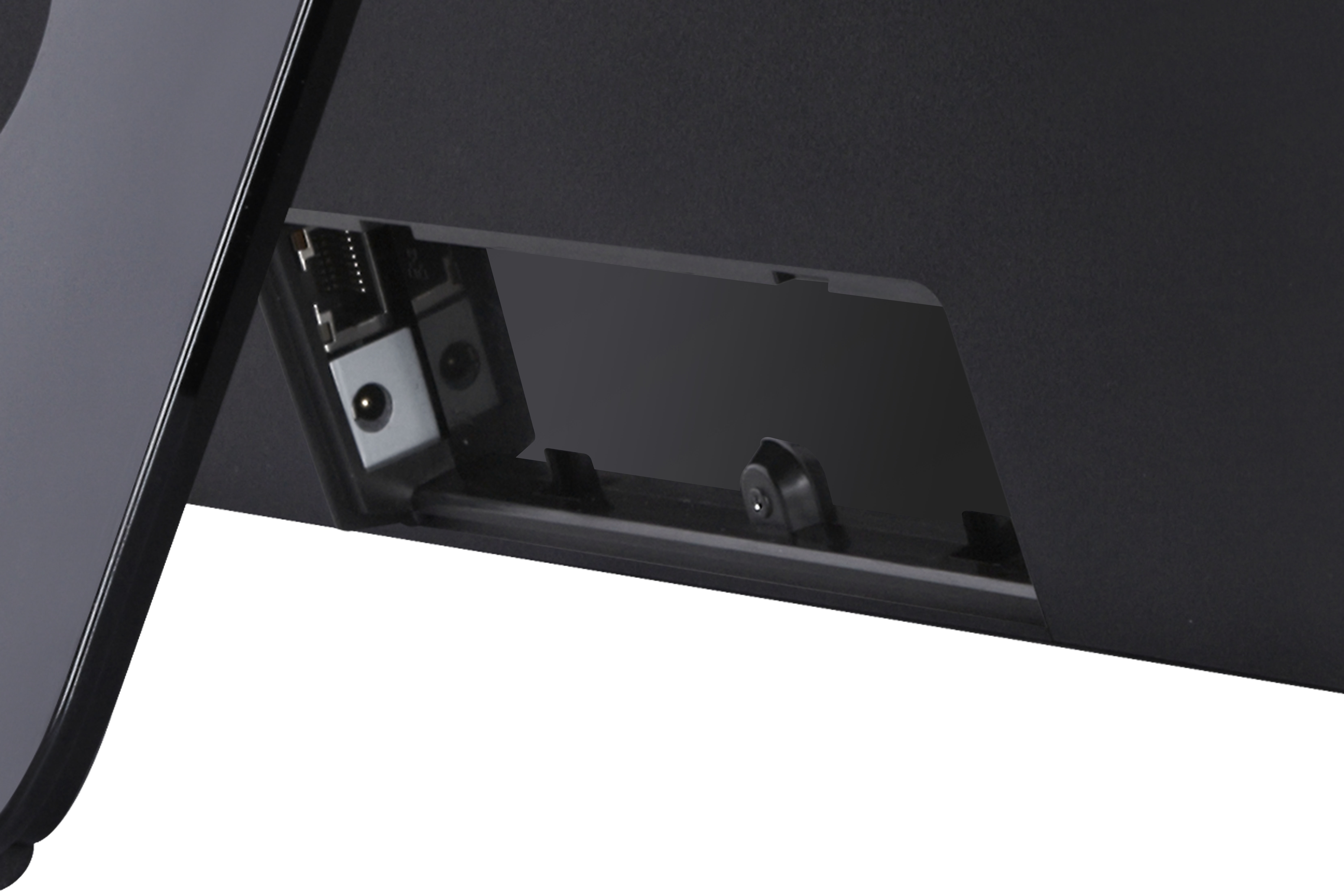

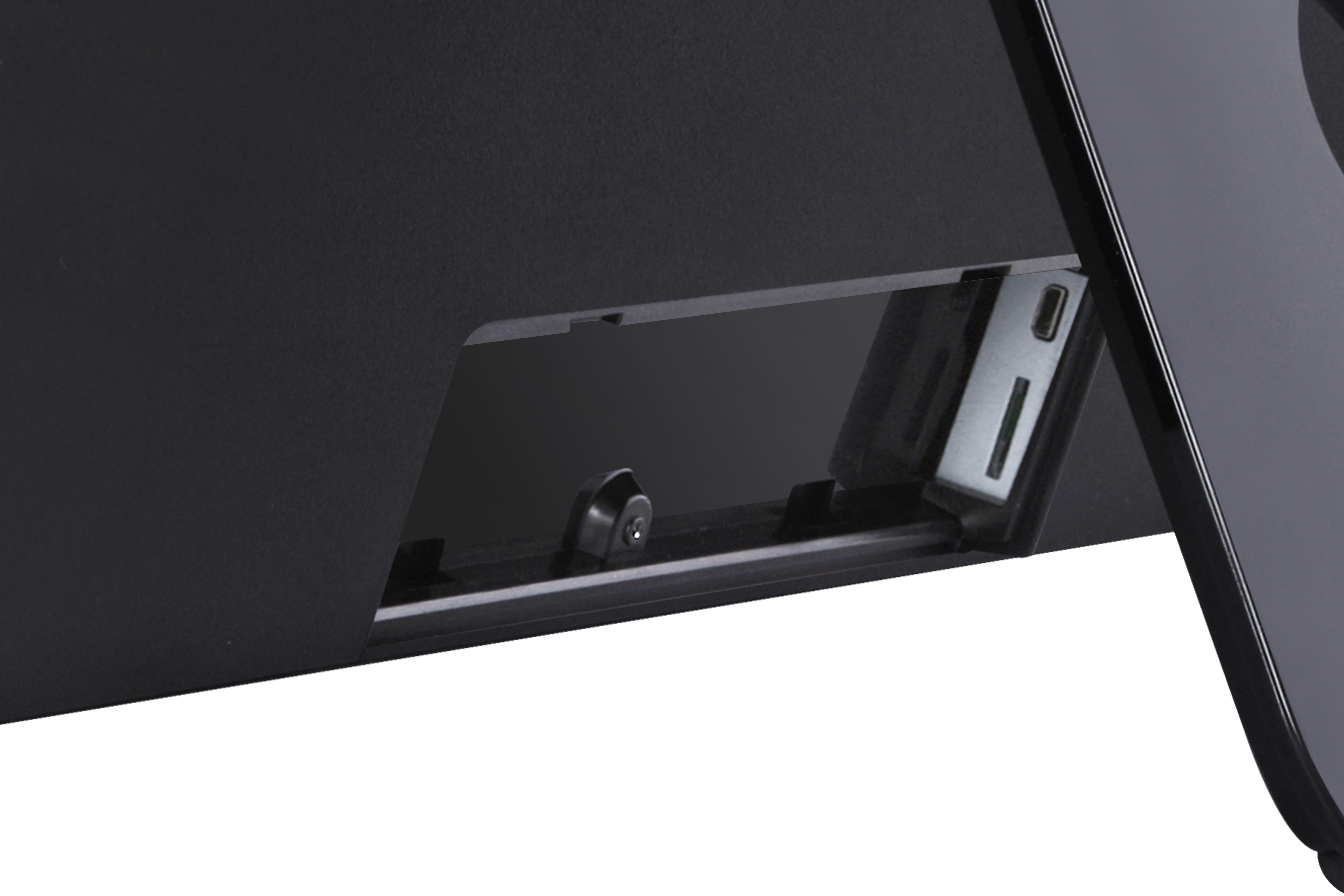

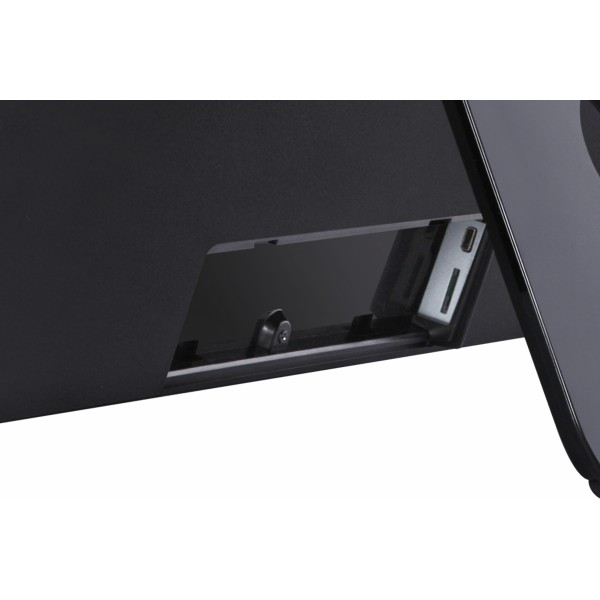

For further functionality and interactivity, the SD-A225 offers a number of connectivity options including micro HDMI, three USB ports (2 Type A and 1 Micro USB OTG), and micro SD card storage. The SD-A225 also has integrated RJ45 Ethernet, Wi-Fi, and Bluetooth for connecting to the internet and cloud.

SD-A245 Connect-Devices feature

Simplify IT needs

The SD-A225 supports use cases where the IT staff deploys SaaS and Web applications, without any backend virtualization infrastructure—this significantly simplifies IT’s infrastructure needs, but still provides a managed and secure environment.

IT Secure Notext

Fast and Fluid Computing

Equipped with a TI Dual Core OMAP processor, the SD-A225 provides smooth, quick computing no matter what applications are running.

Quad Core-Icon V-BL

Continuing Innovation

Leveraging our 25-year display heritage, ViewSonic continues to innovate and lead the industry with our next-generation smart displays. The integration of Citrix XenMobile within the ViewSonic SD-A225 smart display client provides corporate and enterprise customers an innovative, next-generation thin client—all within a 22" (21.5" viewable) LED touch screen.

Citrixreadyblack

Run Local Applications

The SD-A225 can be used off-line to run local applications without any demands on backend PC servers. Locally running content also reduces network bandwidth.

Natively Run Multimedia

Running full HD videos with fast playback is a challenge for many desktop virtualization infrastructures, but the ViewSonic SD-A225 can natively run multimedia files at ultra-fast speeds while also reducing network bandwidth.

SPECIFICATIONS


  • LCD
    Type: 22" (21.5" viewable) Wide Colour TFT Transmissive LED
    Contrast Ratio: 3000:1 (typ.)
    Viewing Angles: 170º horizontal, 160º vertical
    Display Area: 19.0" horizontal x 10.7" vertical; 21.5" diagonal
    Optimum Resolution: 1920 x 1080p
    Response Time: 5ms (typ.)
    Brightness: 250 cd/m2 (typ.)
    Backlight: White-light LED
    Backlight Life: 30,000 hours (min.)
    Touch Controller: Dual touch with pinch and zoom
    Touch Panel: Optical touch type, with glass 8H
  • DIMENSIONS
    Physical (WxHxD): 20.2 x 13.9 x 1.0 in. / 512.8 x 353 x 56.6 mm
    Packaging: 23.6 x 16.9 x 4.9 in. / 598 x 428 x 123 mm
  • REGULATIONS
    CE, CB, C-Tick, UL/CUL, FCC-B (including ICES003), FCC-C, IC RSS-210, China CCC, SRRC, Gost-R, FAC, WEEE, RoHS, REACH, SVHC, ErP, Argentina CNC
