OVERVIEW

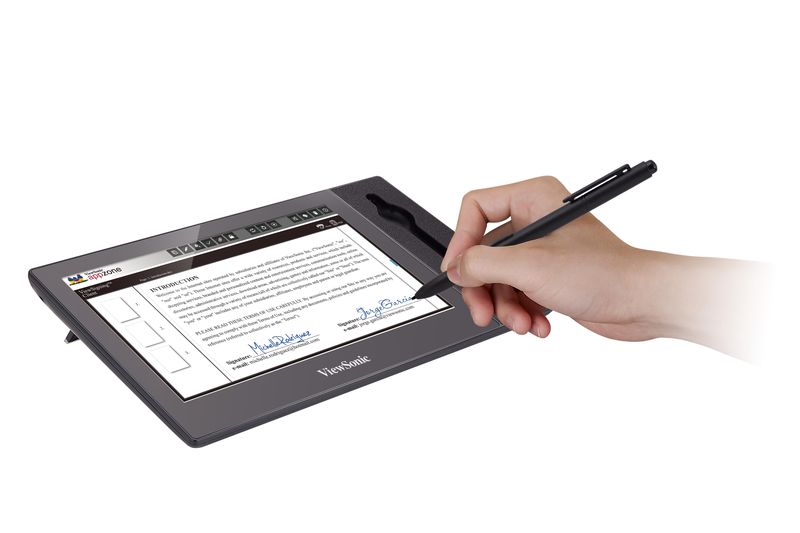

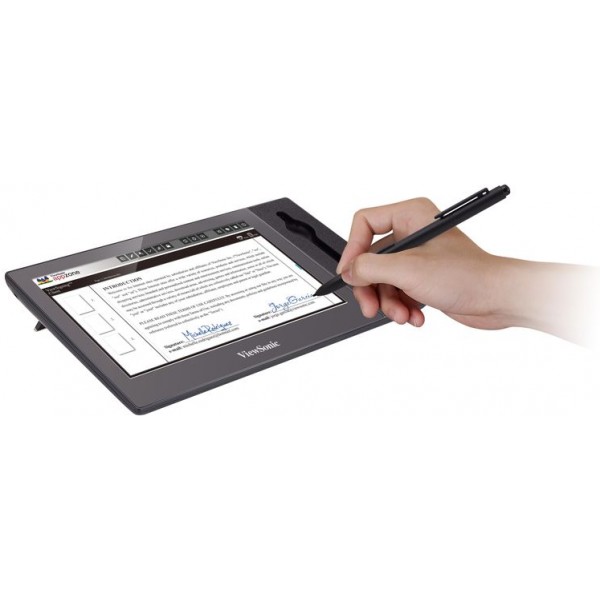

10” High-Performance Pen Display with a superior battery-free V Pen, Electromagnetic resonance pen (EMP) touch technology, 2048 Pressure Levels, 5080 LPI, 200PPS, and 15mm pen hover capability.

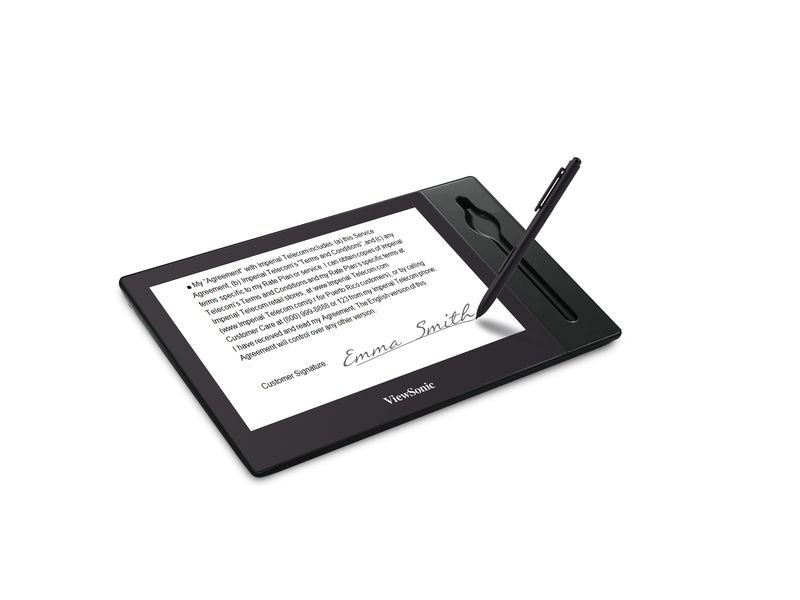

Intuitive handwriting on the display for E-signature and paperless work flow

The pen display has 2048 levels of pen pressure sensitivity, 200 point per second (PPS) tracking speed and 5080 line per inch (LPI) touch resolution, which ensures the authenticity of each signature.

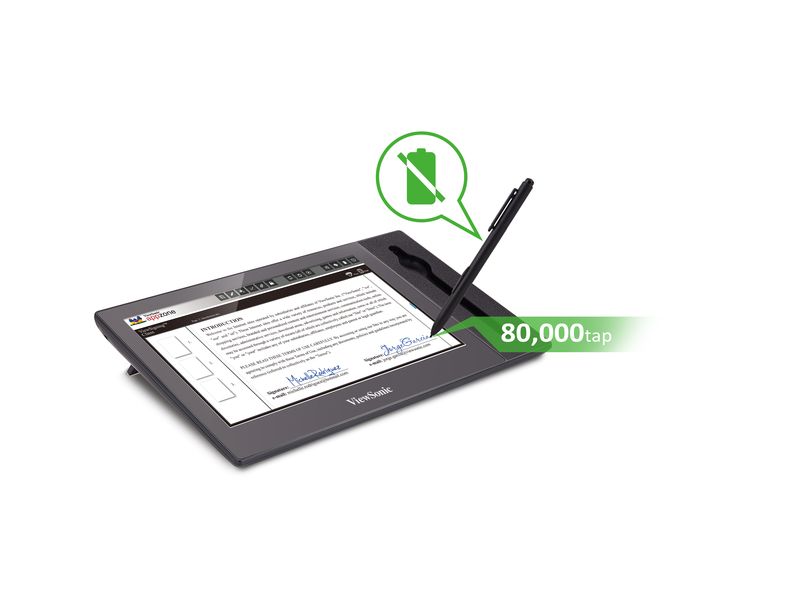

Durable and Reliable Battery-free V Pen

The ViewSonic pen display features battery-free V pen and superior pen-tip material design, giving it a durable 80,000-tap lifespan, no need to worry about running out of battery while writing and battery replacement, making it the best investment of digital e-signature solution.

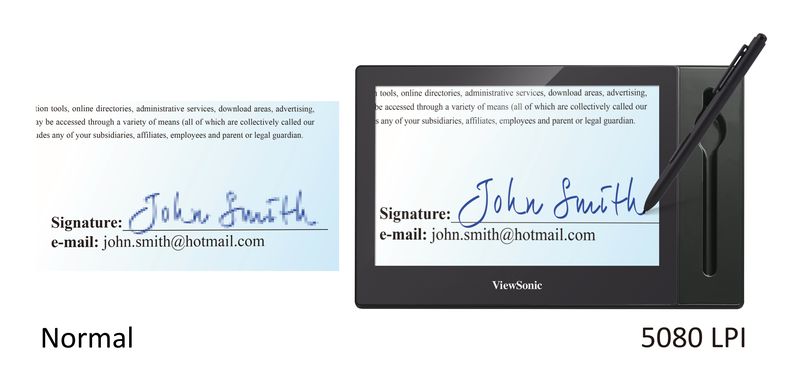

High Performance and e-signature precision

This technology delivers intuitive and accurate handwriting with its 2048-level pen pressure sensitivity to better render digital signatures, designs, or sketches. Its 220pps response rate instantly produces written text and drawings on the screen, without any delays or visual disconnections, and 5080 LPI density produces images with superior texture.

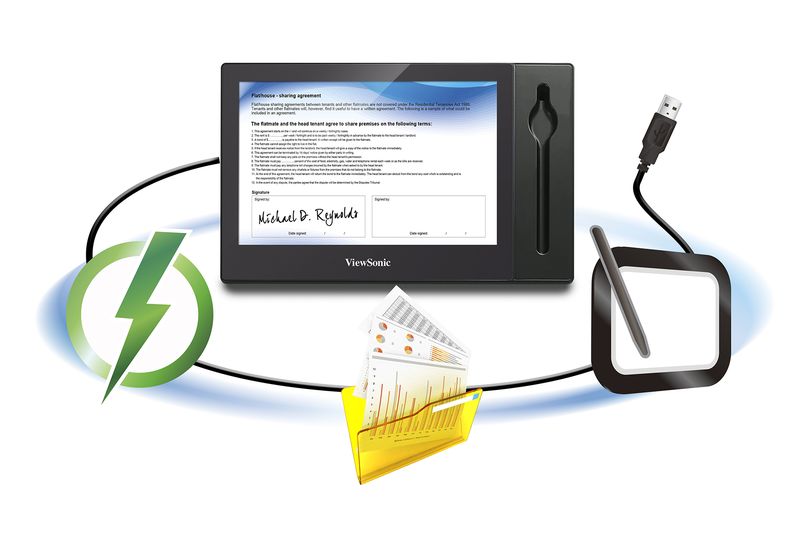

One-cable solution for easy set up

Premium and portable, the PD1011 comes with a simplified one-cable USB design. It uses just one USB connection for both the power and input signals, offering full connectivity to your PC or laptop. This convenient connectivity makes it perfect for portable usage and easy, clutter-free installation in any working environment.

Windows® compatible and supports e-signature software

The ViewSonic pen display is compatible with Windows, as well as various digital signature software, including Adobe Reader signature, banking, retail and other customized application, for paper-free e-signature solution.

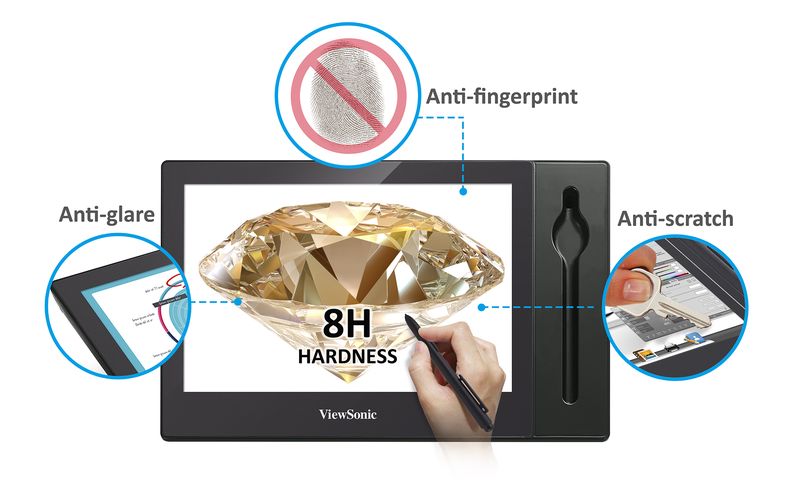

8H glass with anti-scratch, anti-glare, and anti-fingerprint

Constructed with an edge-to-edge 8H protective glass faceplate, the ViewSonic pen display is anti-scratch, anti-glare, and anti-fingerprint coating, delivering a durable and reliable user touch experience for e-signature solution in public usages.

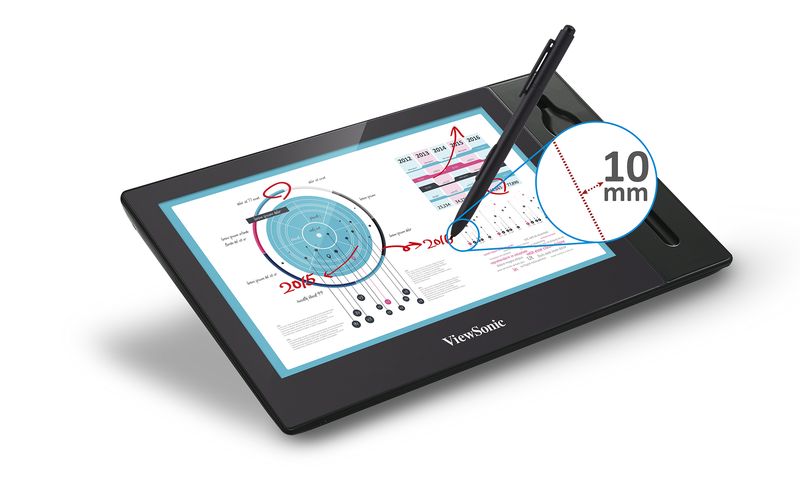

10mm pen hover feature keeps you on point

Leveraging its hovering capability, the V Pen is able to function up to 5-15 mm away from the screen. The ViewSonic pen display can sense the V Pen’s tip before it even touches the screen. Plus, it accurately reflects the exact location where the stylus touches the screen with an accuracy of ± 0.5mm.

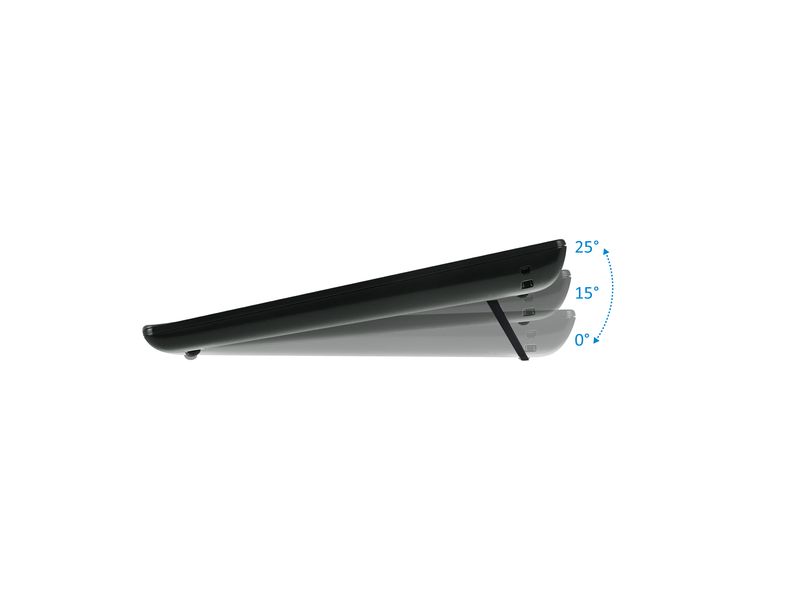

Ergonomic design

The PD1011 comes with ergonomic0°, 5°, 15° tilt adjustments to accommodate placement on low and high counters or other surfaces. 0°

SPECIFICATIONS


  • LCD Panel
    Display Area: 10.1” TFT LCD
    Resolution: 1280 x 800, 16:10
    Brightness: 160 cd / m2
    Contrast Ratio: 800 : 1
    Viewing Angles: 170° (V) / 170° (H)
    Backlight: LED Light-Bar
    Surface Treatment: 8H Tempered Glass
  • Touch
    Touch solution: EMP Technology
    Pen Pressure (levels): 2048 levels
    Report Rate (point/sec): 250
    Digitizer Resolution (LPI): 5080 LPI
    Pen Tilt Angle: +/-45 °
    Sensor Height (mm): 5-10mm above the glass
  • Compatibility
    PC: Windows XP/ Windows 7/ Windows 8
