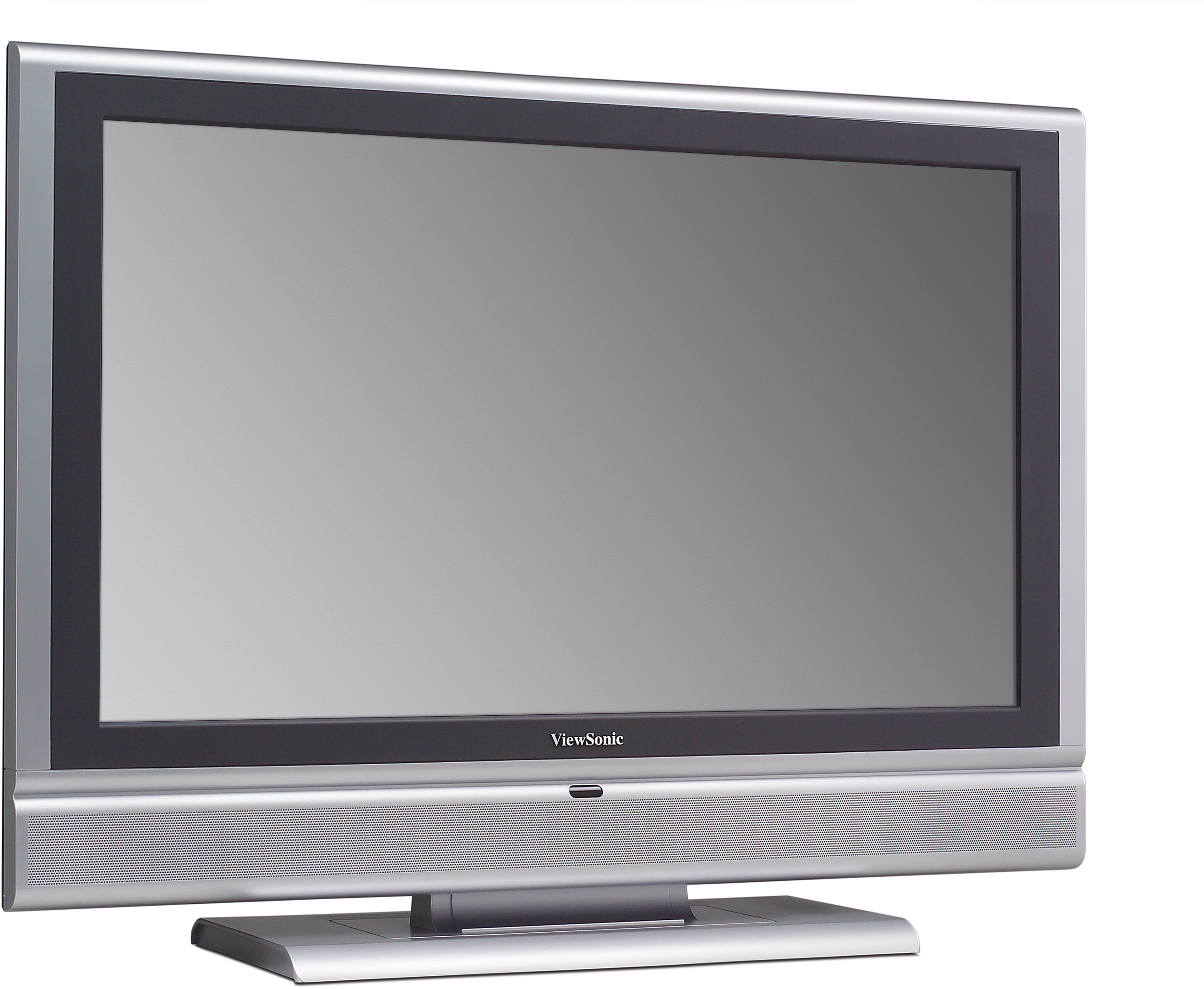

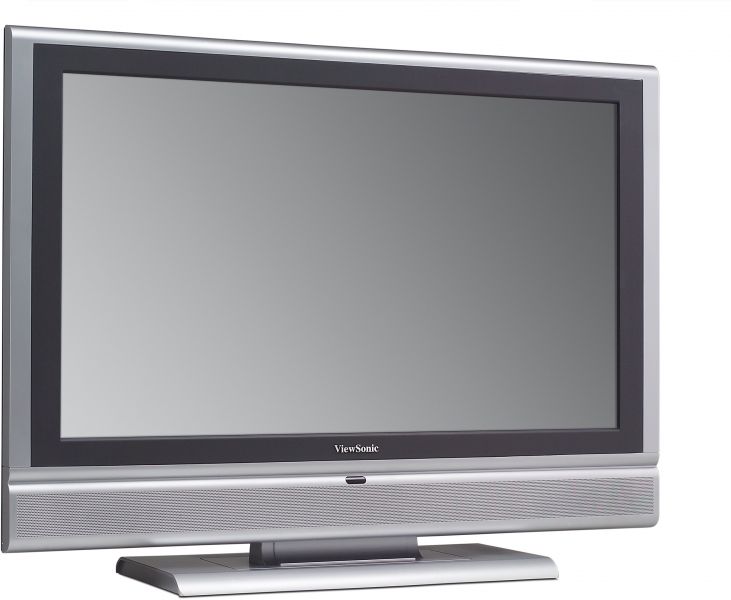

N3766w

37" WIDESCREEN HD-READY LCD TV WITH DIGITAL TUNER (DVB-T)

Sales Enquiry

GALLERY

Razor-sharp, brilliant viewing experience with HDTV

The ViewSonic N3766w LCD TV is a big screen LCD TV for maximum entertainment value. This brilliant performer offers rich connectivity options for analogue and digital video inputs - such as SCART, component, PC-VGA, and HDMI (HDCP enabled). It also features a built-in analogue and digital DVB tuner. Easily connect your DVD player, HD set-top boxes, game consoles, digital camera and more. Its sleek, elegant silver design fits perfectly in every home. The latest panel generation and advanced image optimiser electronics returns pictures that are as close to original as possible - no matter if you are watching your favourite TV show, enjoying thrilling gaming action with your family or watching a movie. Integrated SRS WOW for dynamic surround sound completes your home cinema experience. N3766w - excellent technology and classic design for maximum convenience.

REVIEWS

4/5 - "Un téléviseur HD Ready polyvalent !"

“"Un téléviseur LCD HD Ready qui assure une belle image en toutes circonstances...un modèle pour le plus grand nombre."”

SPECIFICATIONS

LCD
Type: 94cm / 37" S-IPS colour TFT active matrix, wide 1366 x 768
Contrast Ratio: 800:1 (typ.)
Viewing Angles: 178° horizontal, 178° vertical (at 10:1)
Brightness: 500cd/m² (typ.)
Display Area: 82.0cm (horizontal) x 46.1cm (vertical), 94.0cm diagonal
Response Time: 8ms (grey-to-grey)
Aspect Ratio: 16:9 (native), 16:9 zoom, 4:3, 14:9
Panel Surface: Anti-glare 3H
COMPATIBILITY
PC: Compatible from 640 x 480 up to 1360 x 768, 1280 x 1024 @ 60Hz preferred
Mac®: Power Mac™ up to 832 x 624
DIMENSIONS
W x H x D mm: 960 x 730 x 280 (with base)

960 x 675 x 130 (without base)

1145 x 870 x 370 (packaging)

REGULATIONS
CE, PCT, GOST, FCC-B, CSA (c-UL), UL1950, BSET-7
PACKAGE CONTENTS
LCD TV, 1.8m power cables (Europe [Schuko]/UK), 1.8m AV cable, 1.8m SCART
cable, remote control, batteries, quick start guide, user guide (multi-language)
WARRANTY
Please see: www.viewsoniceurope.com/UK/Support/warranty.htm
AUDIO
Speaker: 2 x 10 watts SRS WOW (virtual surround-sound)
CONNECTOR
Power: 3-pin plug (CEE22)
Audio Out: 1 x L/R RCA set
Audio Input: 1 x L/R RCA set (for Composite/S-video)

1 x L/R RCA set (for digital video/DVI)

1 x 3.5mm mini stereo jack (for PC)
S-Video: 1 x 4-pin mini DIN jack
Headphone: 1 x 3.5mm mini stereo jack
SCART: 3 x SCART (CVBS In/Out, RGB In, S-Video In, Audio In/Out)
Composite Video: 1 x RCA (CVBS)
Tuner (Analogue): 1 x Coax RF (PAL/SECAM)
Tuner (Digital): 1 x Coax (DVB-T)
Digital Video: 1 x HDMI (HDCP)
Component Video: 1 x RCA set (YPbPr/YCbCr)
PC-RGB: 1 x 15-pin mini D-sub
POWER
Voltage: AC 100–240V, 50/60Hz (auto switch); internal, fanless power supply
Consumption: 220 watt (typ.)
CONTROLS
Basic: Power, source, menu, channel up/down, volume up/down
OSD: Video Menu (picture mode, contrast, brightness, saturation, tint, sharpness, NR),
Audio Menu (volume, balance, equaliser, treble, bass, sound mode, SRS, HDMI audio In),
Screen Menu (display mode, H. size, H/V position, phase, default, auto sync, colour temperature [cold, warm, standard]),
Setup Menu (tuning, programme table, auto search, DTV),
Tuning Sub Menu (programme number, fine tuning, channel name, frequency, TV system, manual search, skip),
Programme Table Sub Menu (channel name),
Auto Search Sub Menu (country, auto search),
DTV Sub Menu (system setting, channel settings, channel list, parent control, time setting, software version),
Options Menu (language [8 options], sleep timer, menu background, source info, reset, PC display), power lock
OPERATING CONDITIONS
Temperature: 32-104ºF (0-40ºC)
Humidity: 10%–80% (non condensation)
WEIGHT
Net: 31.0kg (with base)
Gross: 38.5kg
VESA MOUNT COMPLIANT
VESA® FDMI 200mm x 100mm, 200mm x 200mm, M6 screws
VIDEO INPUT
PAL (B/G, D/K, I), SECAM (L), NTSC, SDTV/EDTV (480i/p, 576i/p), HDTV (720p, 1080i), DVB-T
TELETEXT/MHEG5
Yes (1000 pages)/–
