OVERVIEW

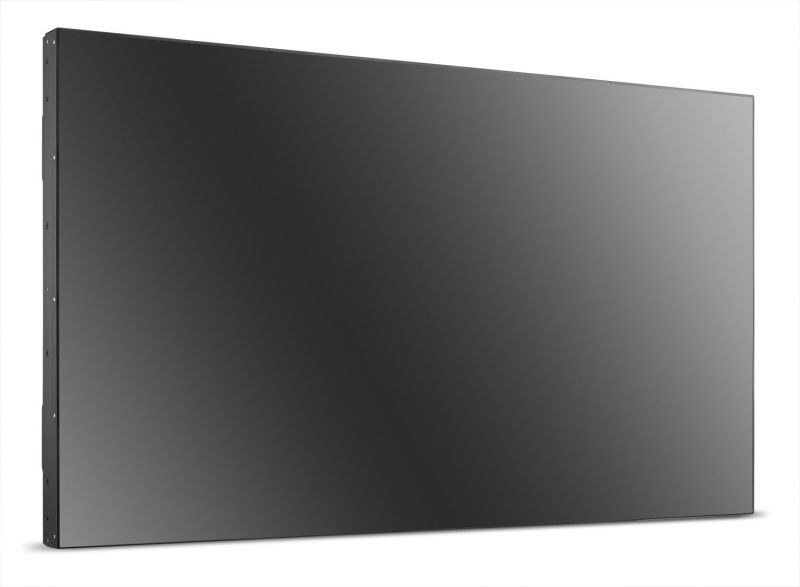

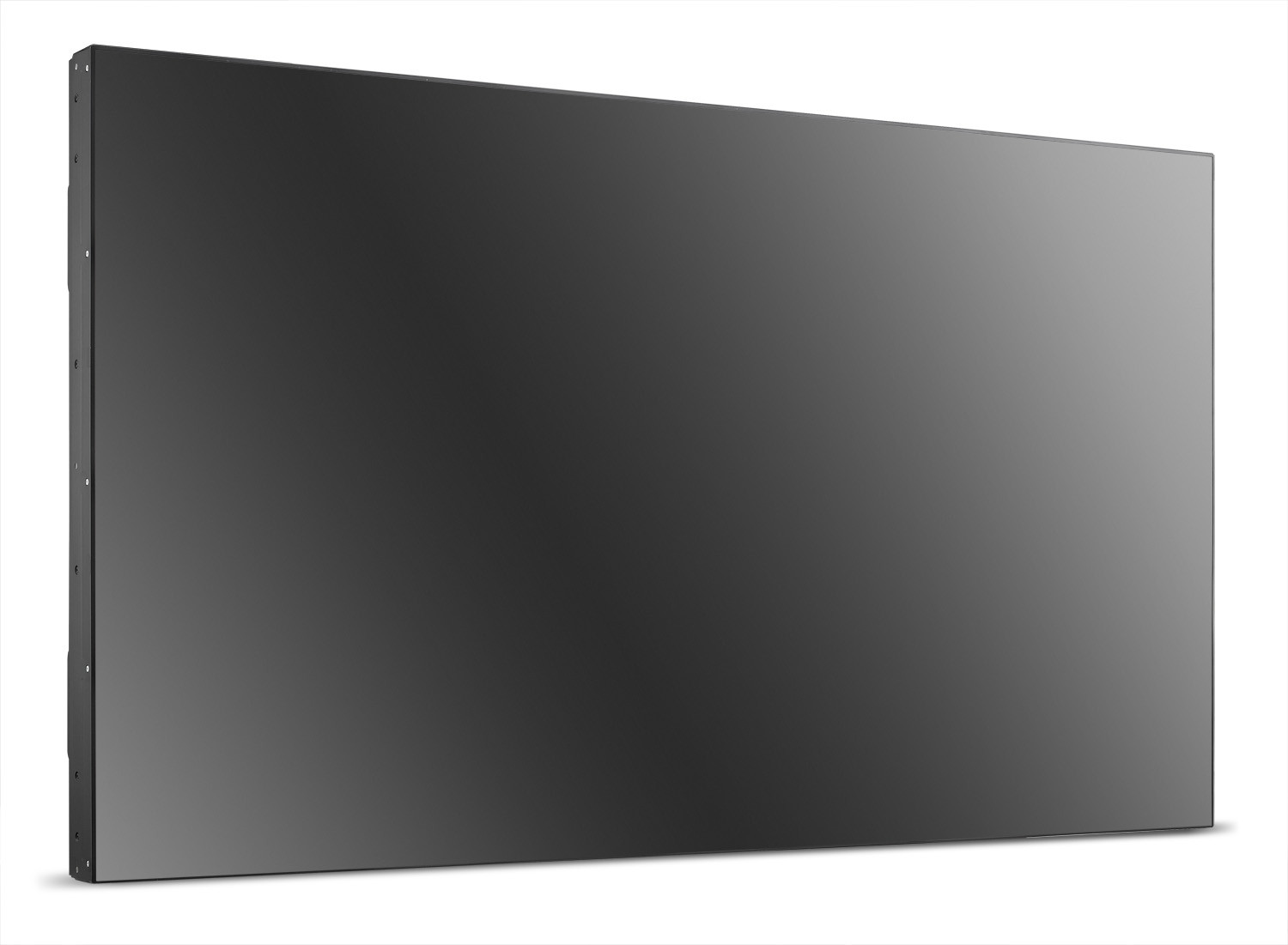

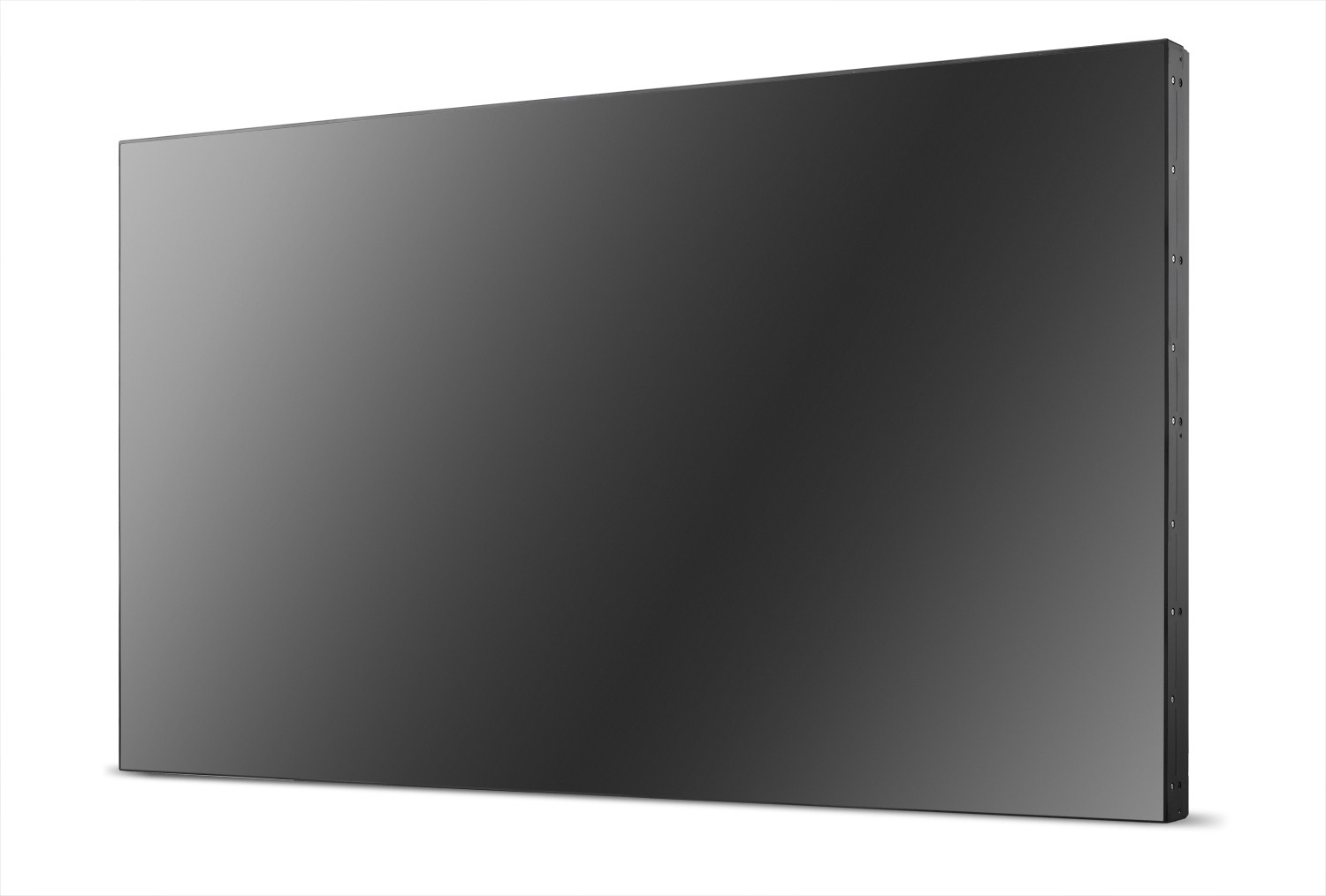

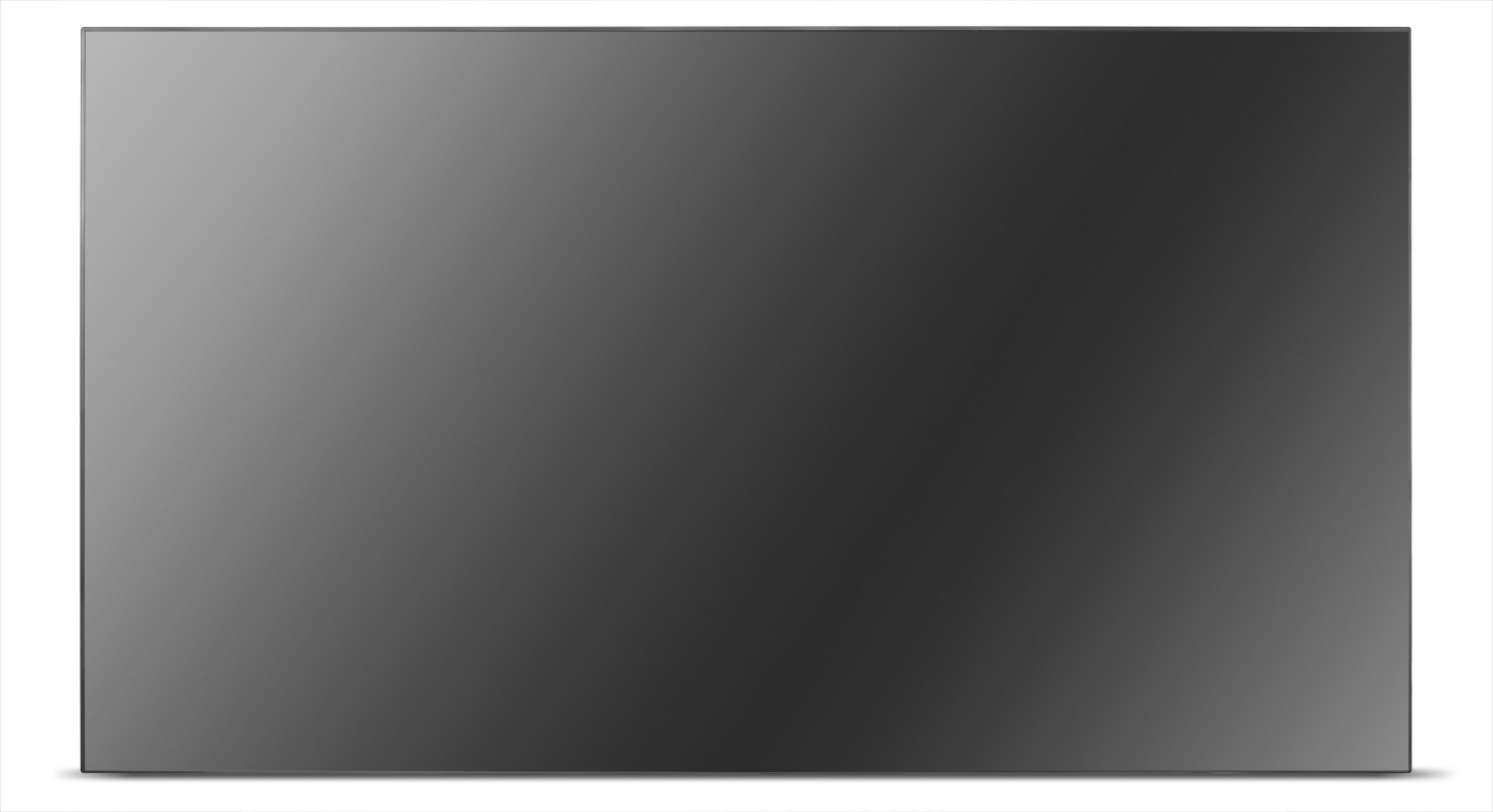

The ViewSonic® ultra narrow CDX5550-L Full HD LED commercial display is engineered for commercial video wall installations. This energy-saving LED backlight display delivers stunning brightness and contrast for a beautiful, crisp picture, with 8ms response time to ensure smooth video playback. One of the few displays this large with support for Intel OPS, the CDX5550-L offers convenient media player integration for scalable, modular solutions,plus multiple digital and analogue connectivity options. A slim bezel, 5x5 tiling and input loop-through make this the perfect display for video wall applications with even a single media player.

55"" HD Display Optimized for Commercial Applications

The ViewSonic CDX5550-L is designed for use in public,retail and commercial signage installations.
• 1080p 8ms LED panel for vibrant images using up to 35% less power* than standard CCFL displays
• Public display areas that need robust commercial displays
• Ultra slim 3.7mm bezel for nearly seamless video wall installations, up to 5x5 tile matrix
• Designed for 24/7 operation
• Ideal for transportation – arrival / departure display applications
• Remote control and panel control lock-out
• 10-watt x2 internal speakers plus 10-watt x2 output amplifier for multimedia applications

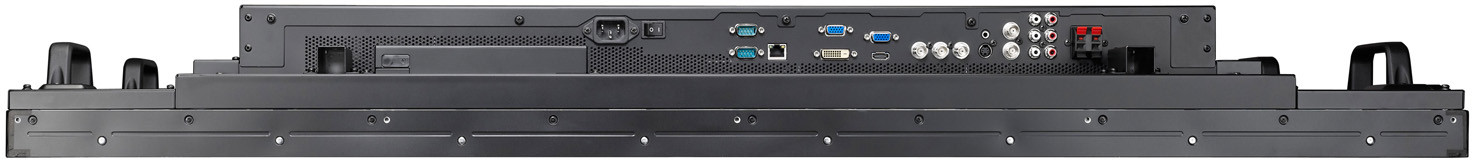

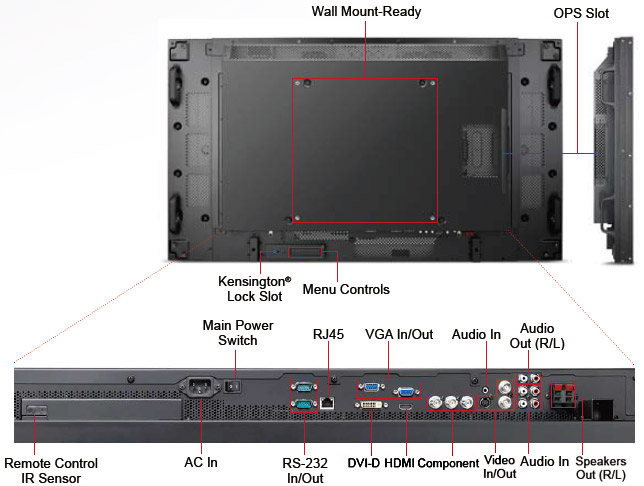

Versatile Connectivity for Any Environment

• Multiple digital and analogue inputs/outputs
• RS-232 daisy chain capable
• Component BNC connections
• RJ45 LAN control
• Internal speakers
• External speaker connections

Resolutions Supported

640 x 480 at 60 Hz to 75 Hz
800 x 600 at 60 Hz, 60 Hz to 75 Hz
1024 x 768 at 60 Hz, 60 Hz to 75 Hz
1280 x 768 at 60 Hz
1366 x 768 at 60 Hz
1280 x 1024 at 60 Hz
1600 x 1200 at 60 Hz
1920 x 1080 at 60 Hz (recommended)
NTSC, PAL, SECAM, 4.43 NTSC, PAL 60
Component: 480i, 480p, 720p, 1080i, 1080p

Optional Accessories

Stand.........................................STND-021
Wall Mount....................................WMK-013
Wall Mount with Locking
Media Player Cradle...........................WMK-028

SPECIFICATIONS


  • COLORS
    Black
  • LCD
    Type: 55" (54.6" viewable) color TFT active matrix, wide LED
    Contrast Ratio: 3500:1 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Brightness: 700 cd/m2 (typ)
    Display Area: 47.6" horizontal x 26.7" vertical; 54.6" diagonal
    Optimum Resolution: 1920x1080, 0.485mm dot pitch
    Response Time: 8ms
    Light Source: Long life, 50,000 hrs. (typ)
    Aspect Ratio: 16:9
    Panel Surface: Anti-glare, hard coating (3H)
  • DIMENSIONS
    Physical With Stand: 47.9 x 29.1 x 15.8 in. / 1259.3 x 737.8 x 400 mm
    Physical Without Stand: 47.9 x 27.0 x 5.0 in. / 1259.3 x 686.1 x 128.1 mm
    Packaging: 57.5 x 35.6 x 12.6 in. / 1461 x 904 x 320 mm
