CDE9800

98" 4K Ultra HD Presenation Display

  • ViewBoard® Cast 4-way split screen content sharing software
  • USB Plug and Play
  • Remote Management with vController™ Software
  • Supports HDMI CEC Pass Through
  • Embedded LAN, Optional Wi-Fi, Internet Browser
Sales Enquiry

OVERVIEW

The ViewSonic® CDE9800 is a 98’’ 4K Ultra HD presenation display for meeting rooms. This display provides immersive and high-impact presentation with stunning 3840x2160 resolution, 500-nit typical high brightness, wide viewing angles, dual 16W speakers, and content sharing software. The built-in ViewBoard® Cast software enables wireless content streaming from mobile devices onto the display. In addition to HDMI and VGA inputs to connect with various high definition devices, this display utilises an integrated multi-core processor, allowing customers to playback multimedia content via USB without the need for a PC. To make life even easier, the vController™ software offers easy maintenance and intuitive interfaces for remote management via a PC server or laptop.

4K Ultra HD Resolution

With four-times the resolution of Full HD, this Ultra HD 3840x2160 display delivers a breathtaking viewing experience with immersive images that are vibrant, clear, and as large as life.

4K Resolution

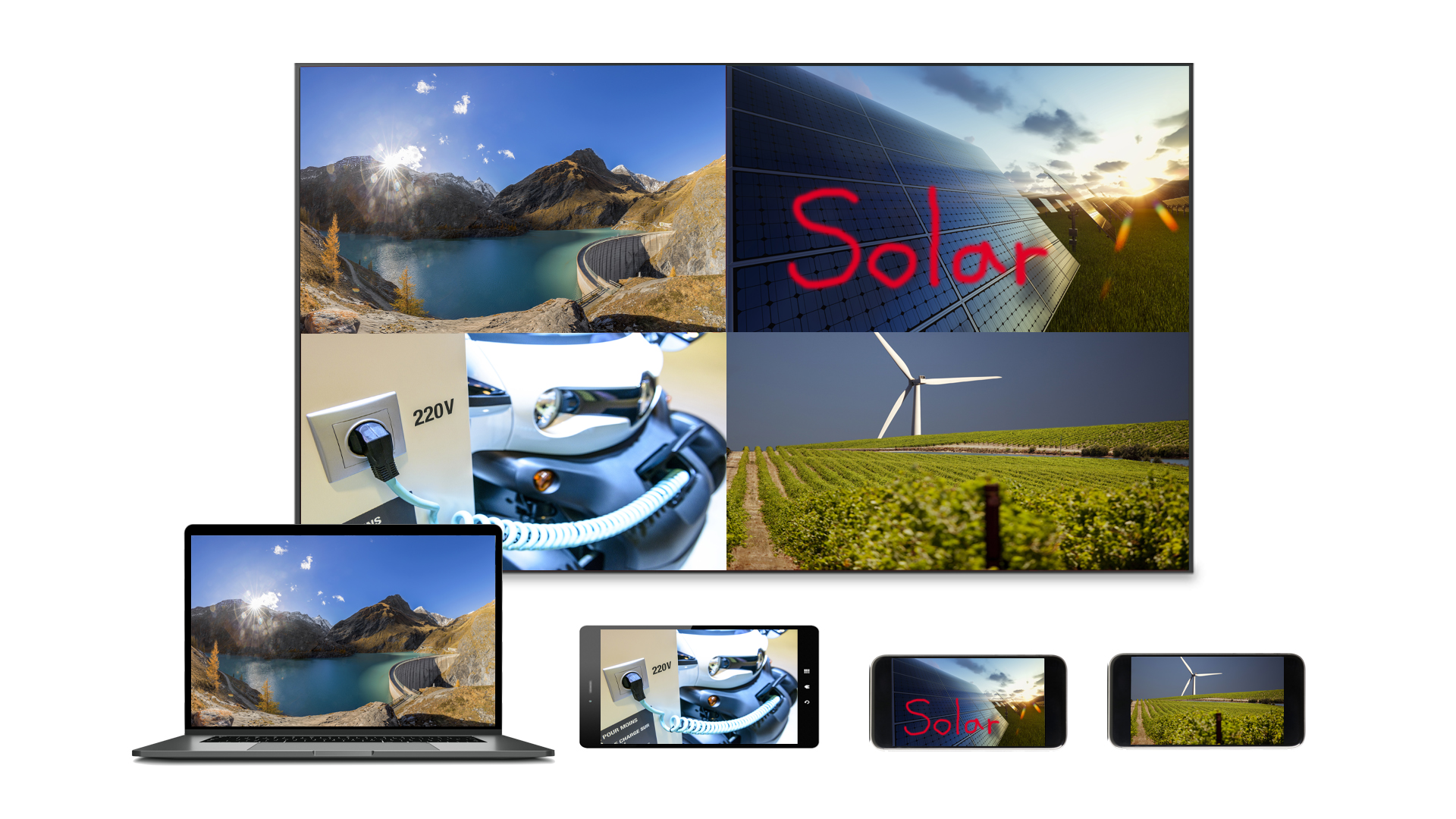

Wireless Presentation Display across Devices

With support for Windows, Mac, Chrome, Android, and iOS, ViewBoard® Cast enables content to be presented from mobile devices onto the display wirelessly. Multiple users can simultaneously annotate content on their devices in real time with 4-split-screen display.

On-site content sharing software ViewBoard® Cast

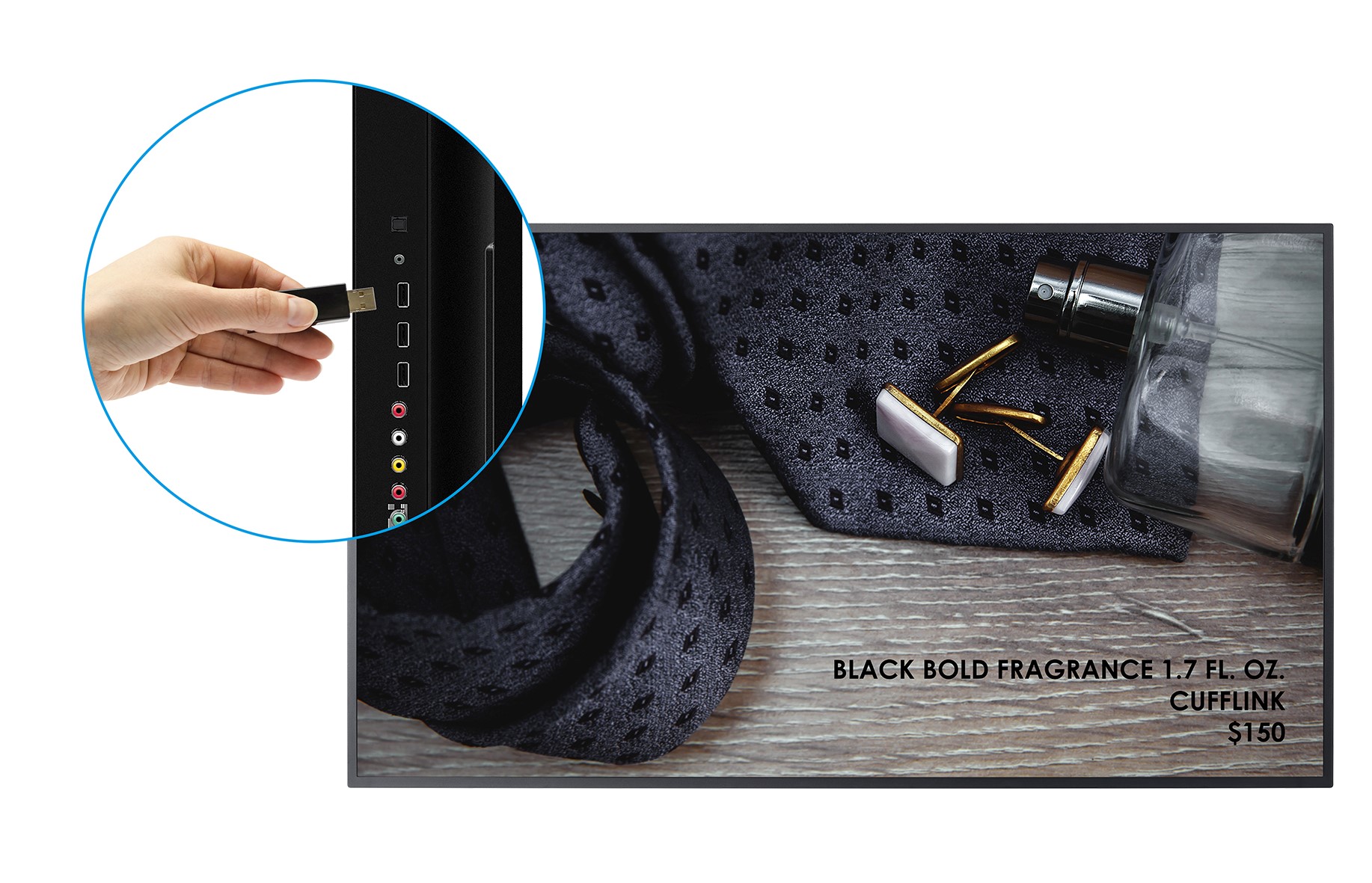

USB Plug and Play

A powerful multi-core media player enables photo, music and video playback in seconds using just a USB connection.

USB playback Photos, music & video

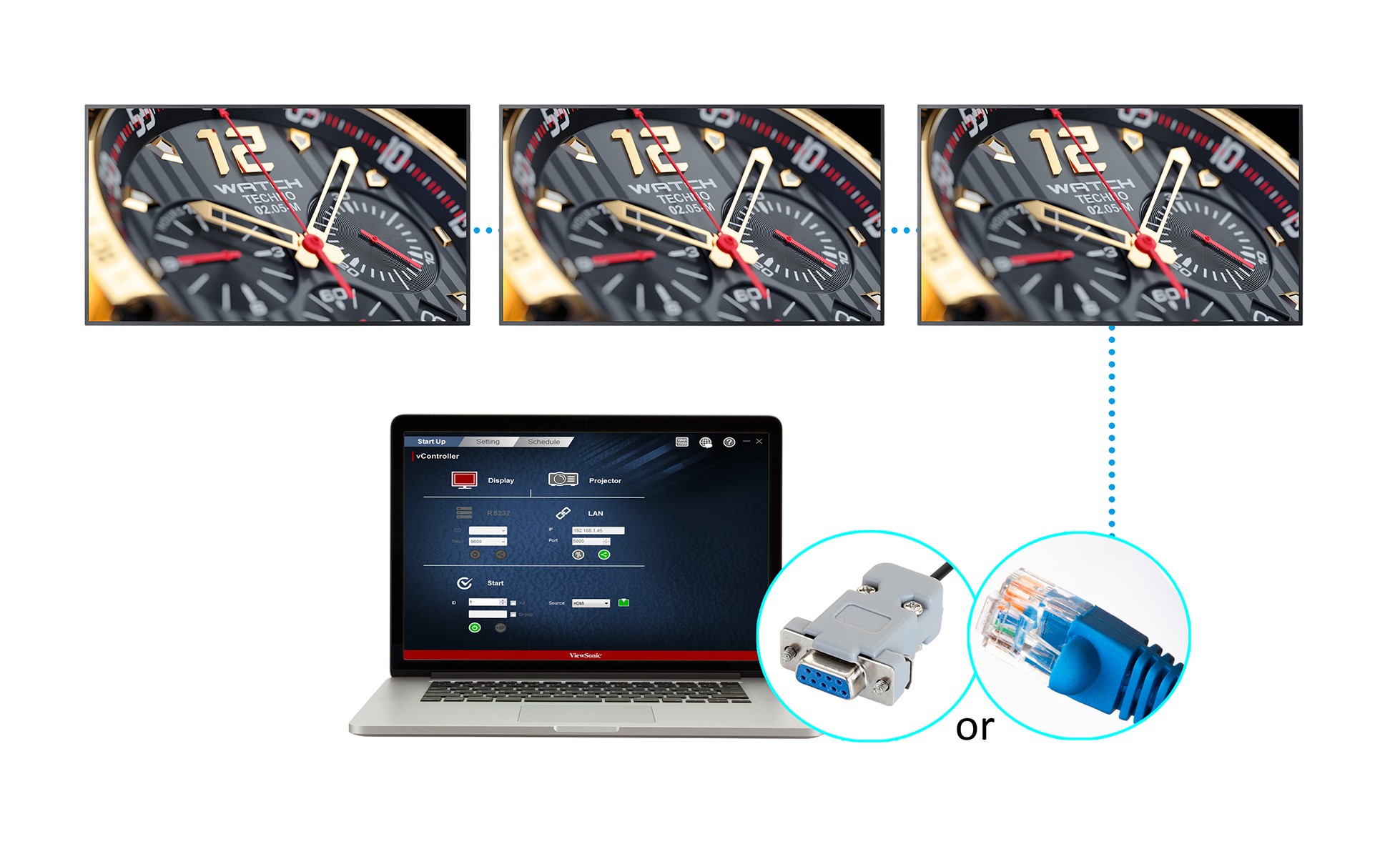

Remote Management

vController™ software provides a simple and intuitive interface for remote management, OSD-related settings, and scheduling on deployed displays through RS232 or LAN.

Display Configuration Software vController™

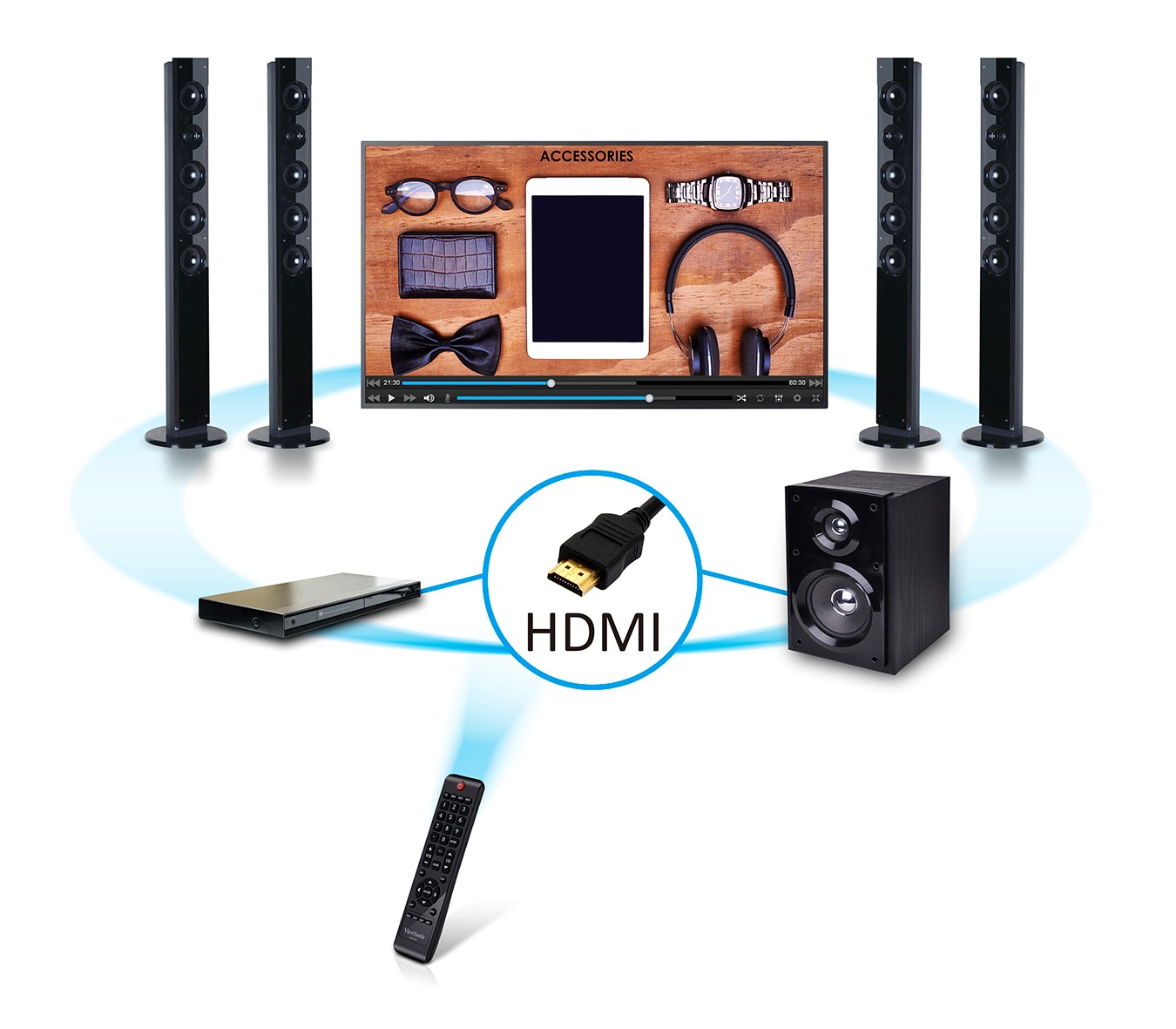

HDMI CEC Pass Through

With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller for a wider range of viewing possibilities.

HDMI CEC local control

Embedded LAN, Optional Wi-Fi, Internet Browser

An integrated RJ45 connection, as well as optional Wi-Fi capabilities, provide easy network connection options for content streaming. An integrated internet browser provides simple content delivery via connection to the web.

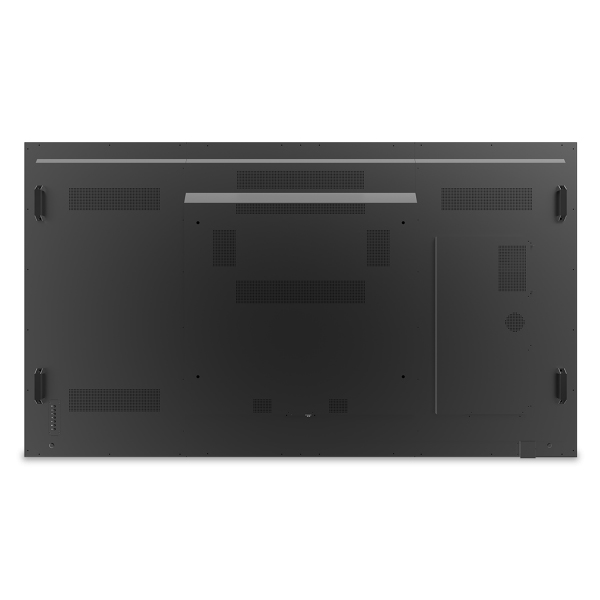

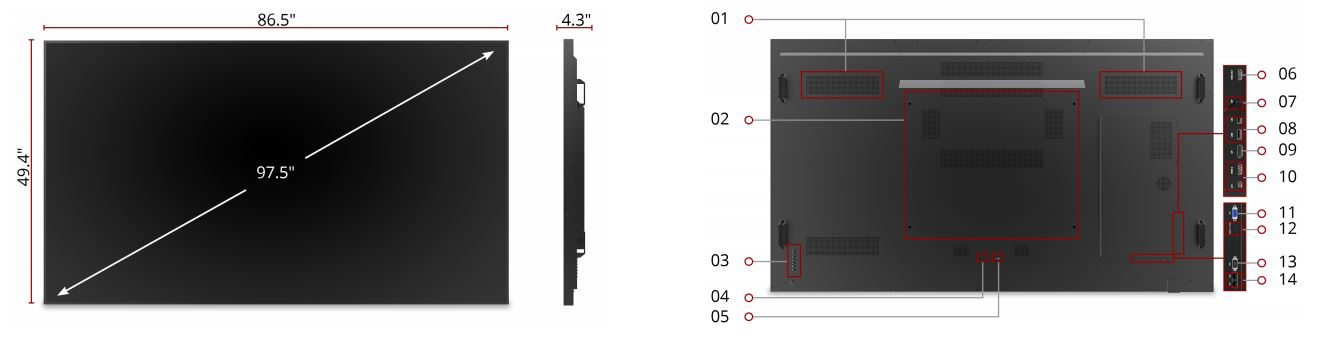

  1. Internal Speakers
  2. VESA® Compatible Wall Mount 800 x 600 mm
  3. Menu Controls
  4. Power Switch
  5. AC In
  6. HDMI Out
  7. SPDIF
  8. USB Type A x2
  9. DisplayPort
  10. HDMI x2
  11. VGA
  12. Audio In
  13. RS232 In
  14. LAN x2

SPECIFICATIONS


  • Display
    Panel Size: 98"
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 2158.848mm*1214.352mm
    Native Resolution: 3840 x 2160
    Aspect Ratio: 16:9
    Colours: 1.07B (10bit)
    Brightness: 500 nits(typ.)
    Contrast Ratio: 1300:1
    Response Time: 5 ms(typ.)
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight Life: 30,000 hrs(min.)
    Surface Treatment: 3H, Haze 1% (typ)
    Bezel: 20.3mm
    Orientation: Landscape
  • INPUT
    HDMI: x2
    1 port to support CEC
    RGB / VGA: 1
    DisplayPort: DP1.2 x1
    Audio: PC audio in (3.5 mm) x1
    RS-232: x1
    OPS: OPS x1
    SDM-L x1
  • OUTPUT
    HDMI: HDMI2.0 x1
    Audio: 3.5mm Earphone Out x1
    SPDIF: x1
