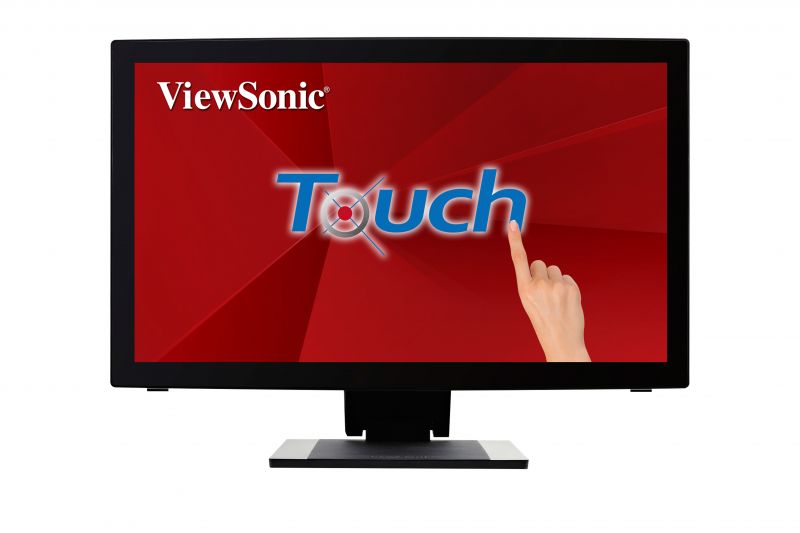

TD2240

22" 10-point IPS Touch Screen Monitor

  • Full HD 1080p resolution
  • SuperClear® technology
  • Advanced ergonomic stand for tilt or flat
  • HDMI(MHL), DisplayPort and VGA inputs
  • 7H hardness screen

OVERVIEW

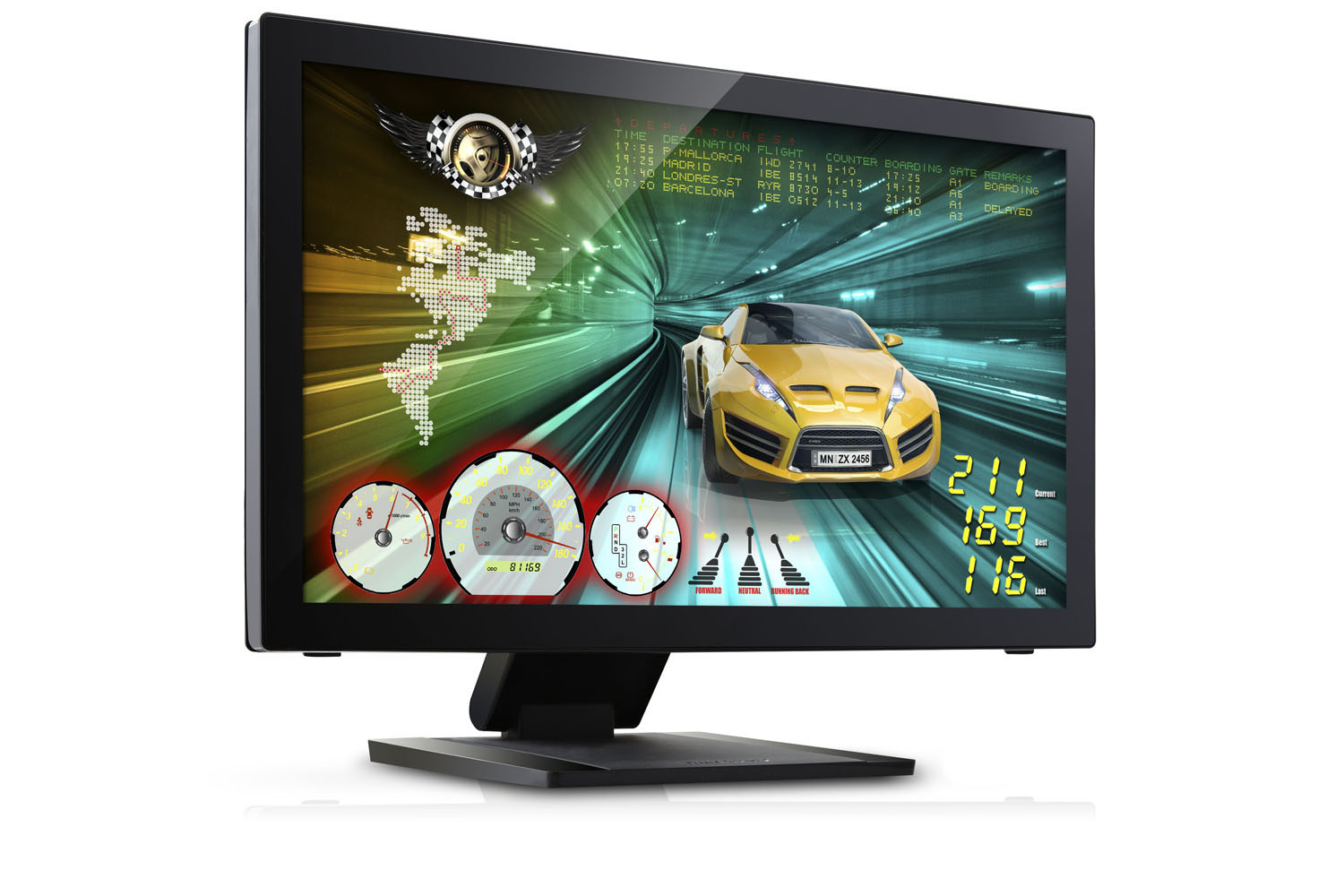

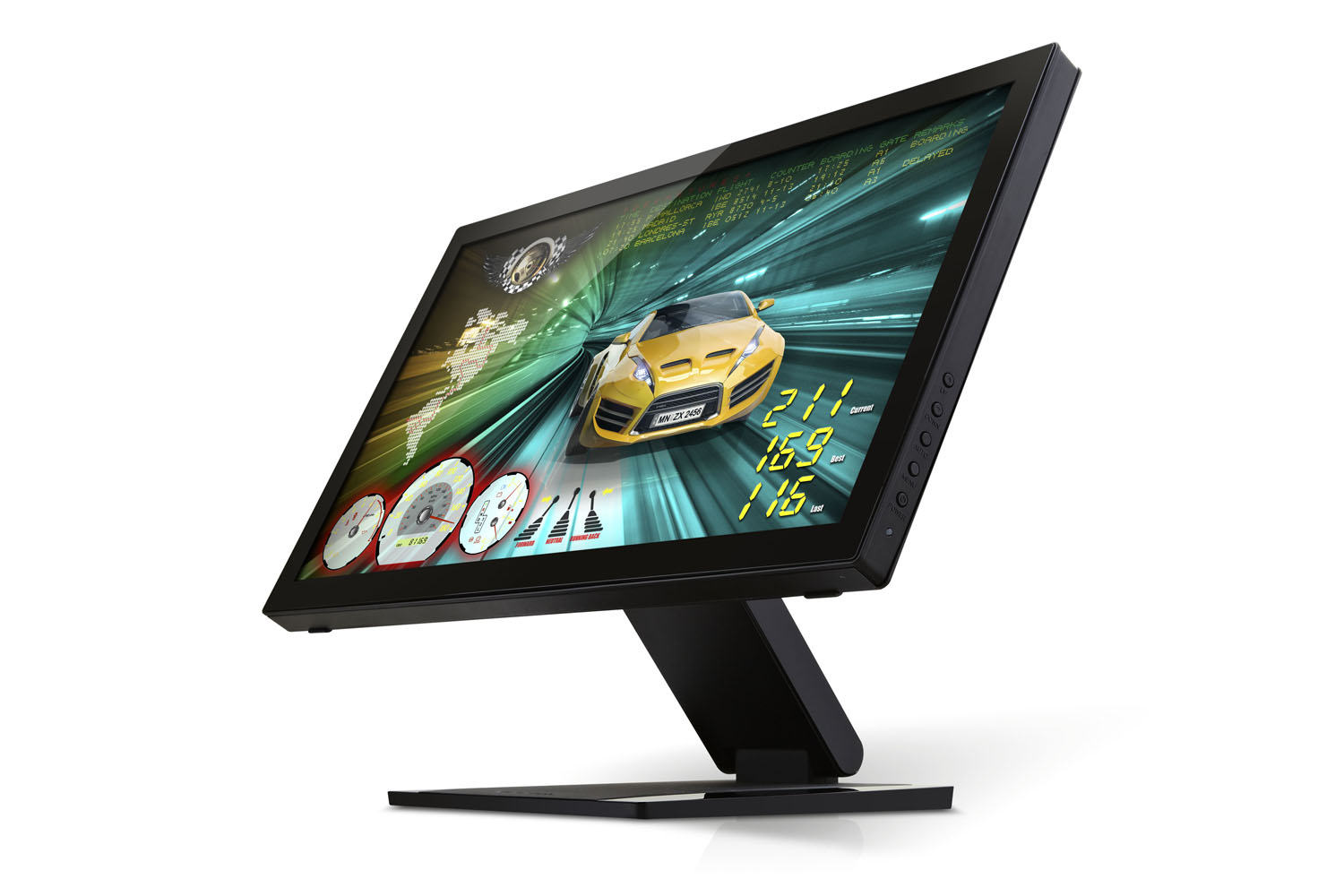

ViewSonic’s TD2240 is a 22" 10-point projective capacitive touch display with 1920 x 1080 Full HD resolution. Windows® 8 compatible, it delivers a smooth, responsive touch experience for a variety of Windows® 8 home entertainment, office work, education, and custom commercial applications. MHL certification allows you to display the multimedia contents of your smartphone or tablet onto the screen of the TD2240 for a PC-free visual experience. The TD2240 is ergonomic as well, with its dual-hinge design, SuperClear® technology and sturdy base. Plus, it has versatile input options that include D-Sub, HDMI, DisplayPort and 4 USB ports that offer flexible connectivity for HD multimedia, peripheral, and storage devices.

Projective capacitive 10-point touch

Projected-capacitive touch technology is already widely used for mobile devices such as smartphones and tablets. Now with 10-point multi-touch capability and a durable, scratch-resistant surface, the TD2240 offers a highly accurate and ultra-responsive touch experience—whether for web browsing, gaming, typing, or applications execution.

Windows® 8 Compatible with access to your favorite apps

ViewSonic’s TD2240 display is compatible with Windows® 8, allowing you to use MS Office Suite applications, surf the internet, and watch multimedia entertainment. Use it to access the Windows® Store, where you can download a variety of fun and useful games, as well as apps for social networking, online chatting, and more.

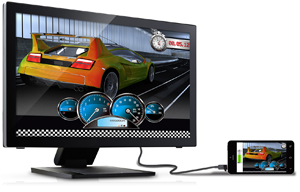

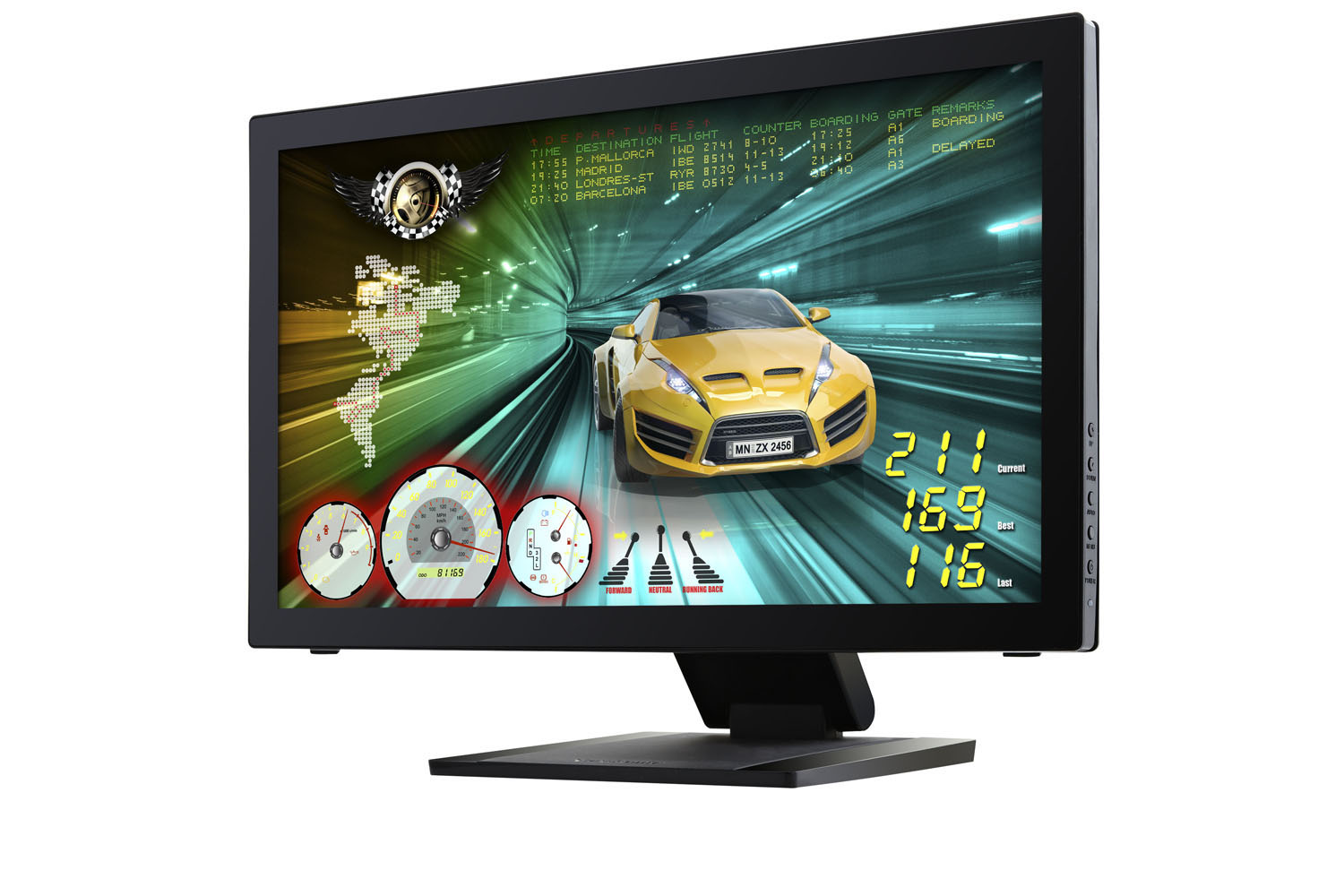

MHL functionality for easy playback of mobile-device content

Integrated with Mobile High-Definition Link (MHL), the TD2240 enables users to connect compatible mobile devices, such as smartphones and tablets, directly to the TD2240 display. This allows digital content from mobile devices to be viewed in stunning Full HD resolution on the 22-inch screen of the TD2240. For additional convenience, the batteries of mobile devices are charged while connected to the TD2240 via MHL.

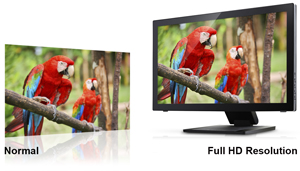

Stunning images displayed in Full HD

ViewSonic’s TD2240 features Full HD 1080p resolution for incredible pixel-by-pixel image performance. You will experience amazing image clarity and detail whether you are working, gaming, or enjoying the latest multimedia entertainment.

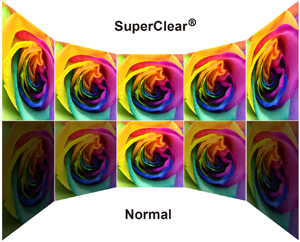

SuperClear® Technology

You can now experience true colors at 178-degree viewing angles with the TD2240's VA panel. Its SuperClear® technology eliminates image distortion and color shifting for more consistent color performance—even at extreme angles.

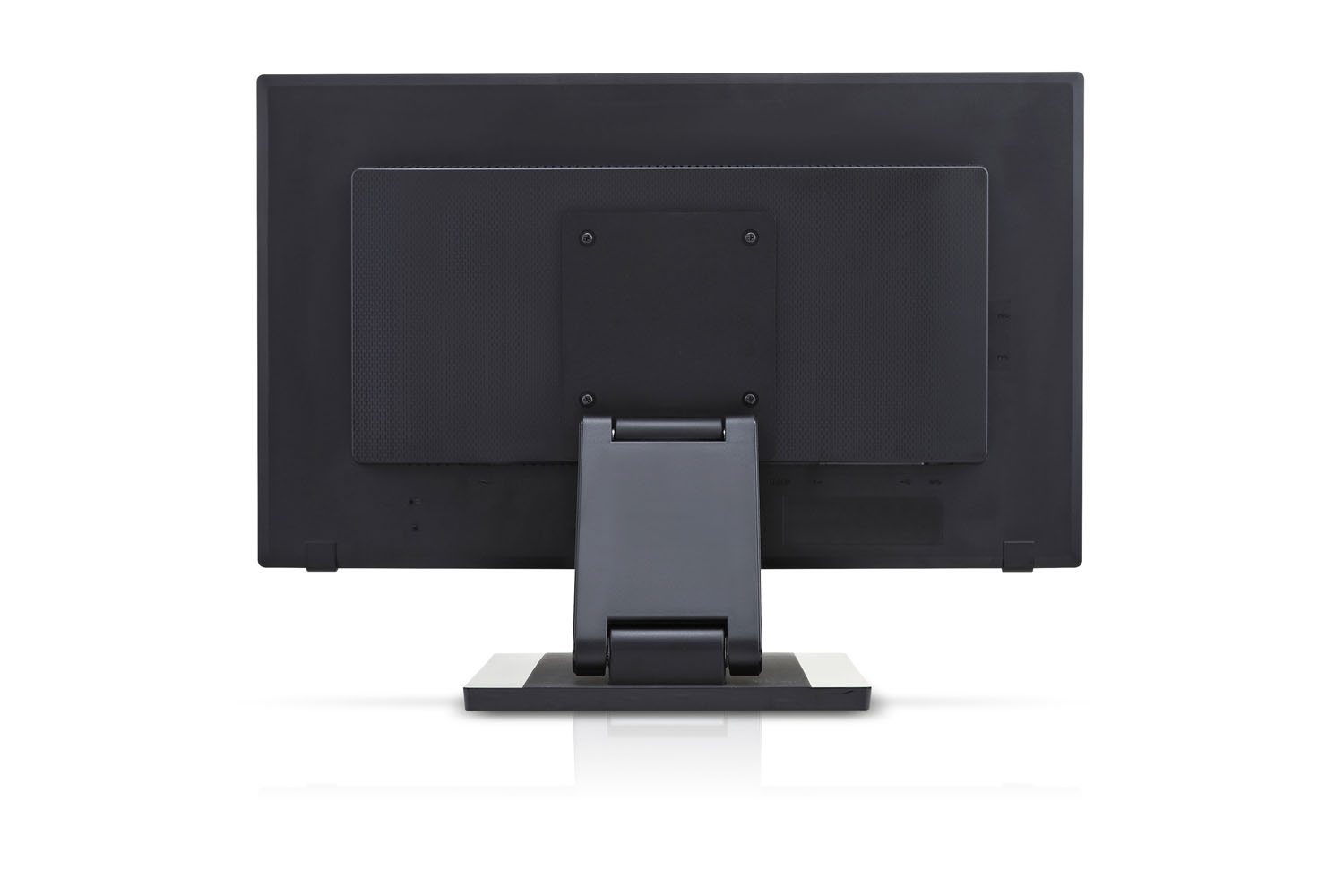

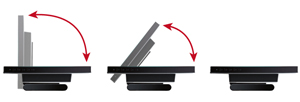

Flexible, sturdy ergonomic dual-hinge design

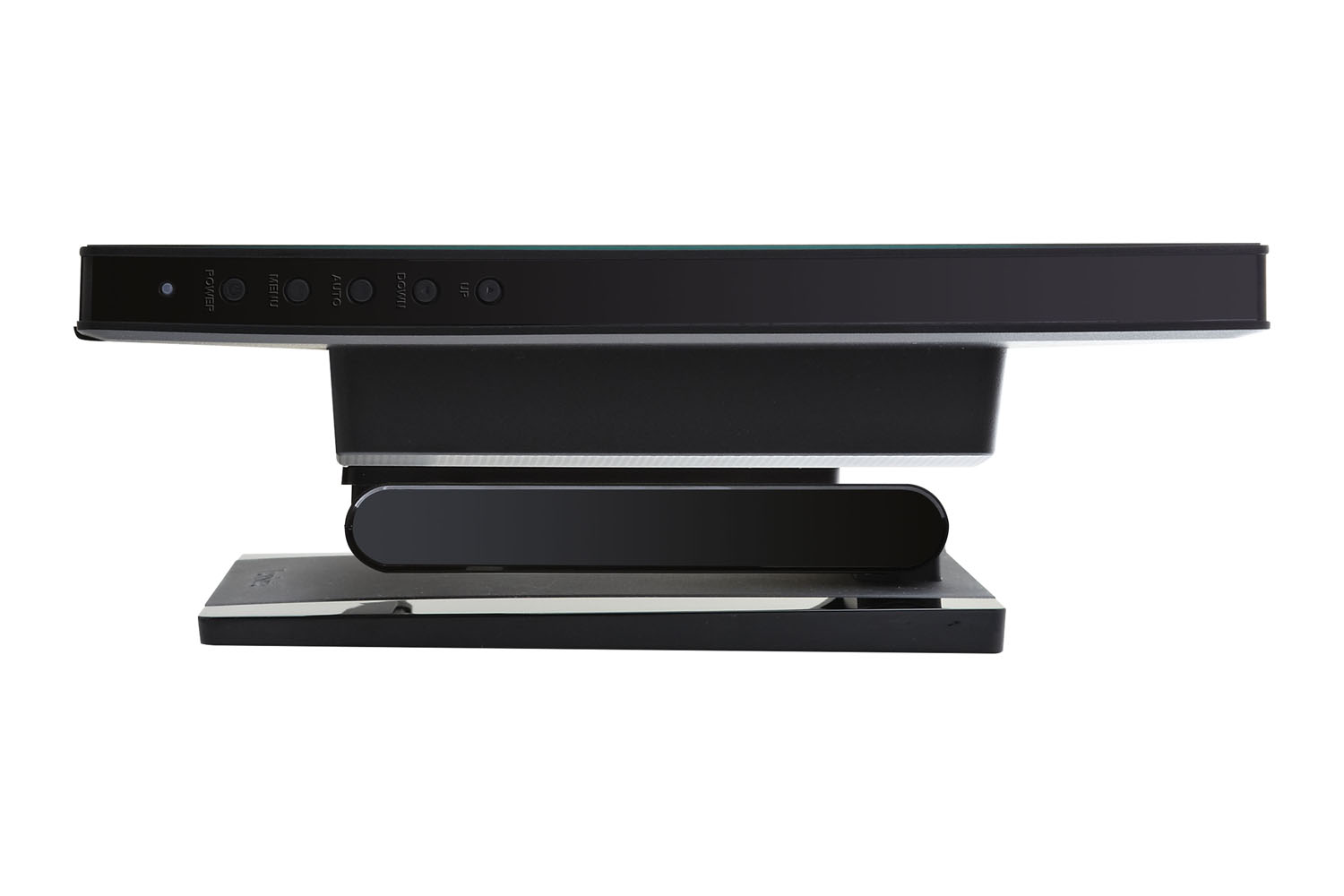

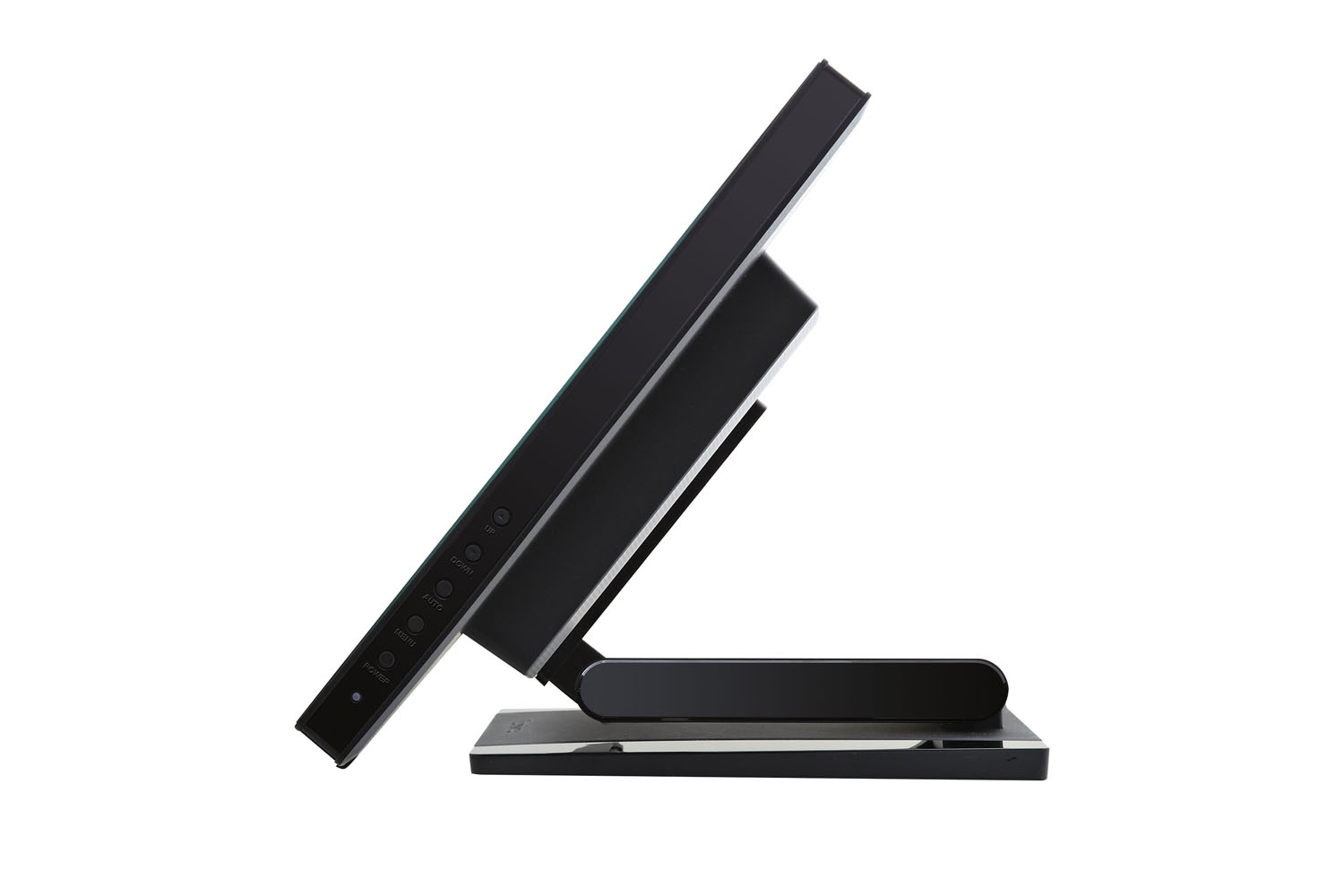

Sporting an ergonomic dual-hinge stand, the TD2240's screen can be tilted and adjusted from -5 to 22 degrees or made to rest flat on a table. This display's base is so stable that the screen won’t shake when you touch it, allowing for more accurate operation. Flexible and sturdy, this display is well suited to a variety of user scenarios in the home, school or office.

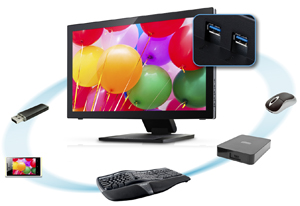

4-port USB 3.0 hub provides more flexible connectivity

ViewSonic’s TD2240 features a 4-port USB 3.0 hub to provide more flexible connectivity for a wide range of storage devices, computer peripherals and high-definition electronics.

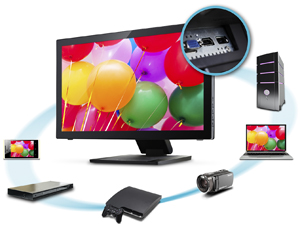

High-performance HDMI & DisplayPort connectivity

ViewSonic’s TD2240 is equipped with an HDMI port to support signals from set-top boxes, Blu-ray players, and Full HD camcorders. Plus, with a DisplayPort digital interface, it's perfect for graphic designers and video producers. DisplayPort transmits QHD, 12-bit color images, and supports all multimedia types for maximum compatibility during graphic design, video production and more.

Scratch-resistant 7H surface hardness

Built to last, the TD2240 touch display is constructed using 7H-hardness protective glass. This provides increased scratch-protection and superior durability for a consistent, high-quality touch experience, making this device perfect for heavy use in high-traffic areas such as kiosks, classrooms and other public environments.

SPECIFICATIONS


  • LCD
    Type: 22” (21.5” viewable)
    Display Area: 21.5 inch
    Optimum Resolution: 1920x1080
    Contrast Ratio: 3000:1, 20,000,000:1 (DCR)
    Brightness: 200 cd/m2 (typ)
    Viewing Angles: 178º horizontal, 178º vertical
    Response Time: 25ms( Tr + Tf)
    Panel Surface: Hard coating (3H Glass treatment) ; Touch Glass Surface Hardness (7H)
    Light Source: 30000 Hrs (Min)
    Colors: 16.7 M (6-bits + Adv FRC)
  • Video Input
    Analog: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
    Digital: HDMI (MHL2.0) / DisplayPort (PCI-E)
    Sync: Separate Sync/ Composite Sync/ Sync on Green
  • Compatibility
    PC: PC Compatibles (VGA up to 1920x1080 Non-Interlaced)
    Mac: Power Mac (up to 1920x1080 ) (Touch function not compatible)
