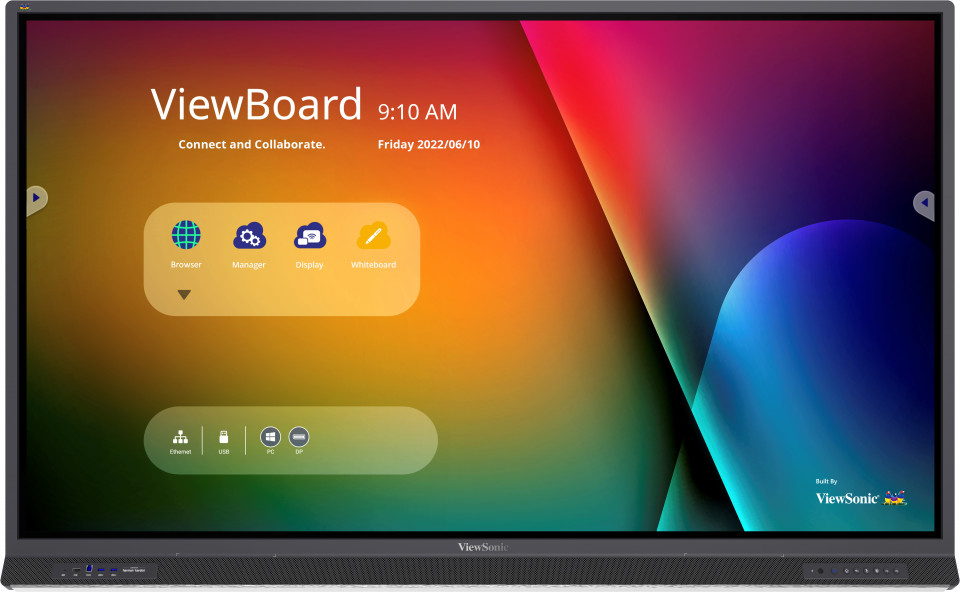

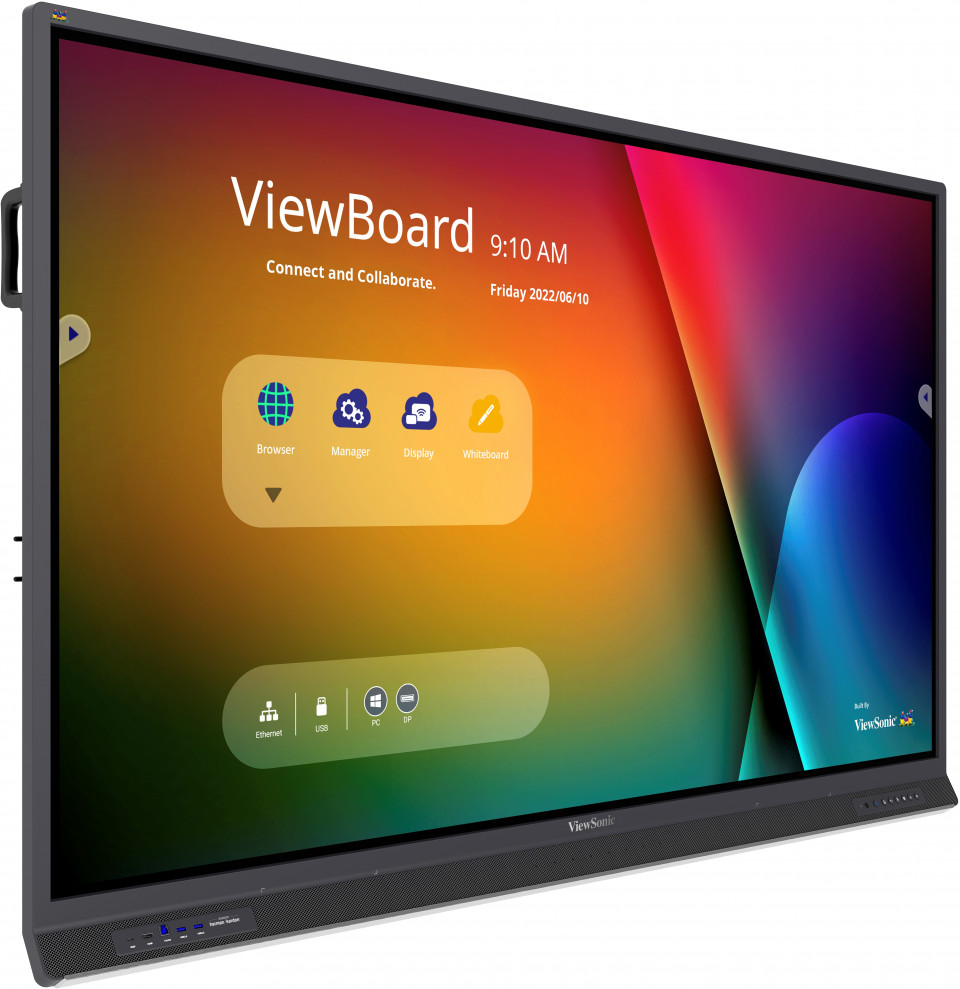

IFP7552-1BH

ViewBoard® 75" 4K Interactive Display

  • Innovative Harman Kardon audio with a redesigned multimedia sound bar ​​
  • USB-C for plug-and-play connectivity via a single cable​​
  • Responsive 8-Mic Array​​
  • Wireless presentation and intuitive screen casting​​
  • Centralized remote management system via myViewBoard Manager​
Sales Enquiry

OVERVIEW

The ViewBoard 52-1BH Series is a 4K UHD interactive display with user-centric design features and collaboration tools for today’s workspace. Equipped with two 20W front-facing Harman Kardon speakers and a 40W subwoofer, it delivers pristine sound quality for impressive and immersive presentations. The ViewBoard 52-1BH has been designed for online meetings and boasts a complete and responsive 8-mic array for crystal clear communication. Team members can seamlessly connect and control the meeting's flow with a single-cable solution for instant connectivity and an adapted design for easy access to shortkeys and I/O ports. The naturally smooth writing experience provided by the dual-pen capability, 33-point touch, Ultra Fine Touch, and Palm Awareness technology opens endless opportunities for group collaboration and discussions. Complete with a browser-based remote management system, the ViewBoard 52-1BH Series delivers a market-leading interactive whiteboard solution for presentations, meetings, and IT management.​

ViewBoard® 52-1BH Series

Hi-Fi Sound for
High Quality Meetings

Hardware Designed for
Productivity

Learn More

Built for
Modern Working Spaces

Learn More

Centralized Management for
IT Managers

Learn More

Hardware Designed for Productivity

​The ViewBoard 52-1BH Series has been purpose-designed for maximum compatibility with external devices along with a quad Core CPU, 8GB RAM and 64GB ROM to enhance your workflow.

Industry-leading, User-centric Design

The unique angular design puts the control buttons and I/O ports clearly in line of sight, giving users easier access than competing products and allowing them to seamlessly and creatively incorporate the display into meetings.
Industry-leading, User-centric Design 1

Industry-leading Sound

Designed to fill the space with robust, attention-grabbing sound, the ViewBoard 52-1BH Series features Harman Kardon 2x20W speakers and a 40W subwoofer embedded within the front-facing soundbar. High-quality audio will further amplify the impact of music and videos and cater for even more engaging presentations. ​​An in-built 8-mic array with acute noise detection and cancellation capability will make sure, on the other hand, you can hear and be heard clearly.
Industry-leading Sound 1

Instant Connection via USB-C

A single-cord solution for data, video and power, simply plug-and-play for immediate presentation, whiteboarding, and collaborative functionality using the familiar software of their own device.
Instant Connection via USB-C 1

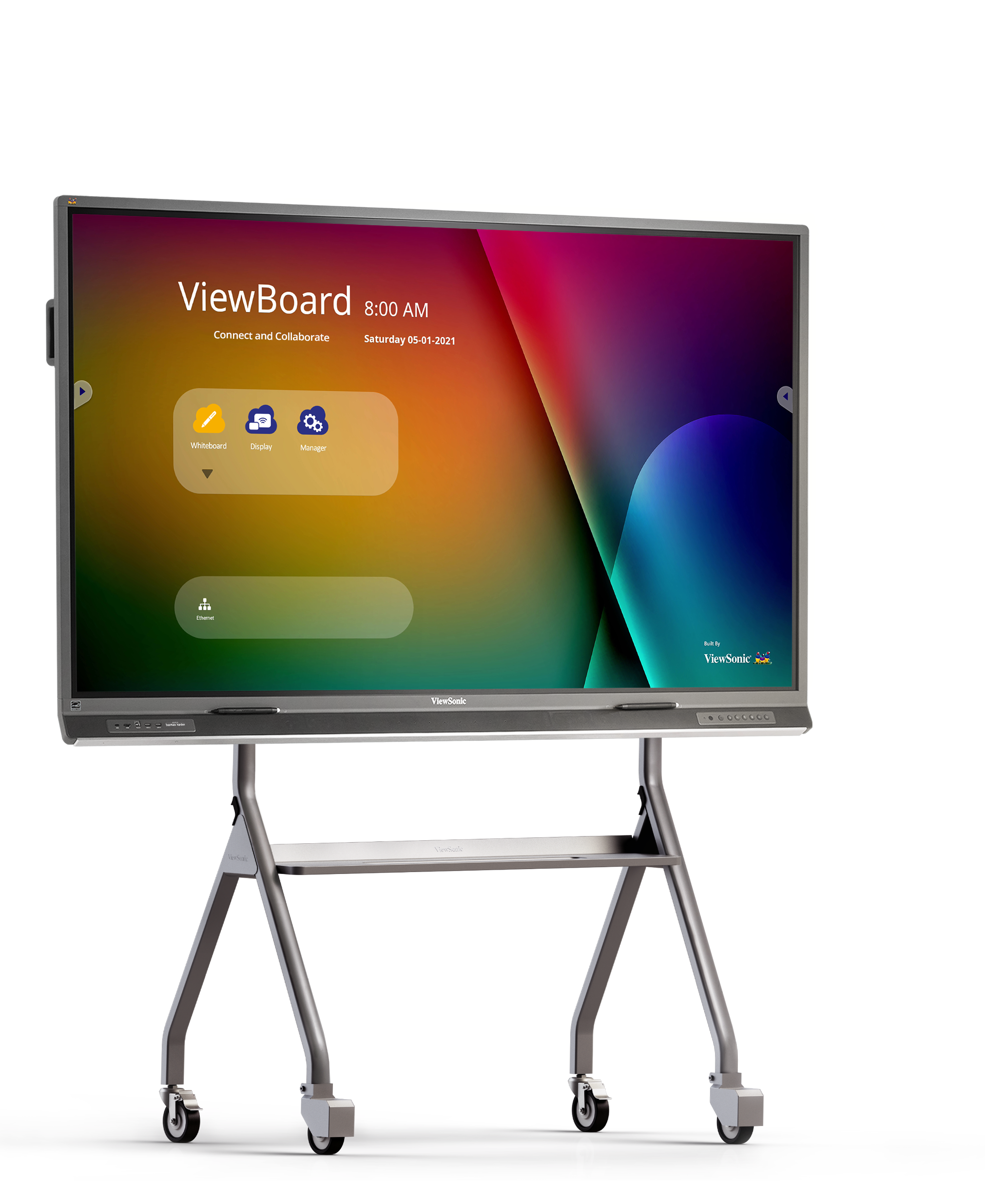

Built for Modern Working Spaces

Intuitive digital collaboration with eye-care technology.

Collaborate on-the-go with myViewBoard Whiteboard application

myViewBoard digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way your team connects and collaborates. Convenient features include secure single sign-on to your favorite cloud drives, easy conversion of common office files, QR code sharing, and much more.
Learn more
Collaborate on-the-go with myViewBoard Whiteboard application 1

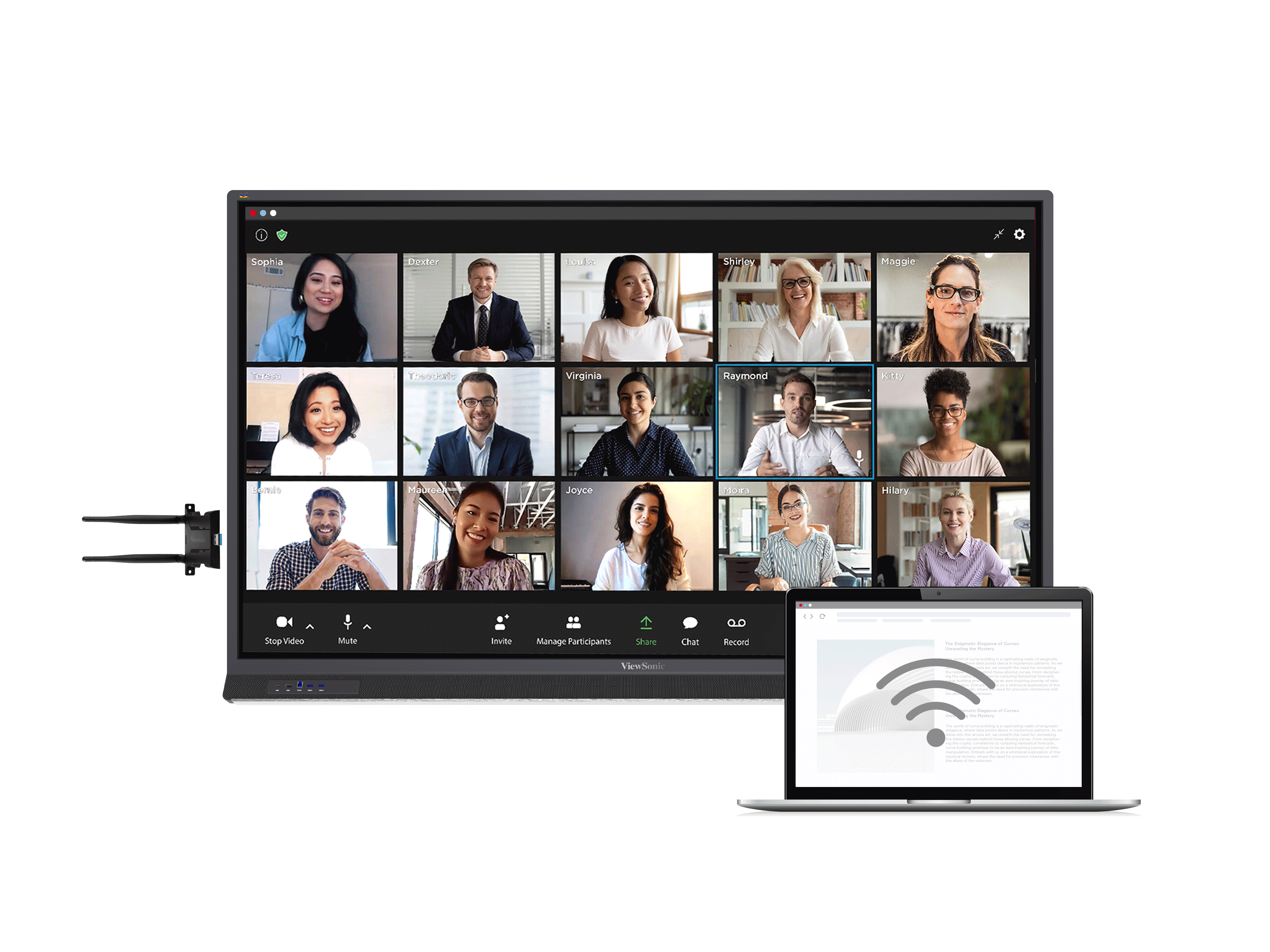

Fast Wireless Connectivity for Workspaces

Upgrade the ViewBoard with an optional Wi-Fi module to video conference and access online documents seamlessly within a clutter-free environment. Additionally, the ViewBoard can double as a hotspot to ensure a stable, wireless internet connection for the workspace.
Wireless Connection via vCastSender — No Cable Required 1

Wireless Connection via vCastSender — No Cable Required

ViewSonic's vCastSender application allows users to connect wirelessly through a one-time password for cable-free meetings with complete functionality of the display's presentation and collaboration tools.
Wireless Connection via vCastSender — No Cable Required 1

Easy Casting via myViewBoard Display

Ideal for quick presentations and guest users, myViewBoard Display allows users to cast directly to the ViewBoard 52-1BH via their internet browser for instant screen-mirroring with no cable or download necessary.
Easy Casting via myViewBoard Display 1

Device Agnostic and OS Compatible

Designed to use the OS you know, the ViewBoard 52-1BH Series operates on Android and is compatible with Windows, Mac, Chrome and Linux with full touch input functionality for all connected devices.
Device Agnostic and OS Compatible 1

Centralized Management for IT Managers

Simple Device Management from Anywhere.

Remote Management System

The browser-based myViewBoard Manager application allows IT managers and verified admin users to update, schedule, broadcast and manage multiple displays simultaneously from any location through a secure, user-friendly remote management system.
Learn more
Remote Management System 1

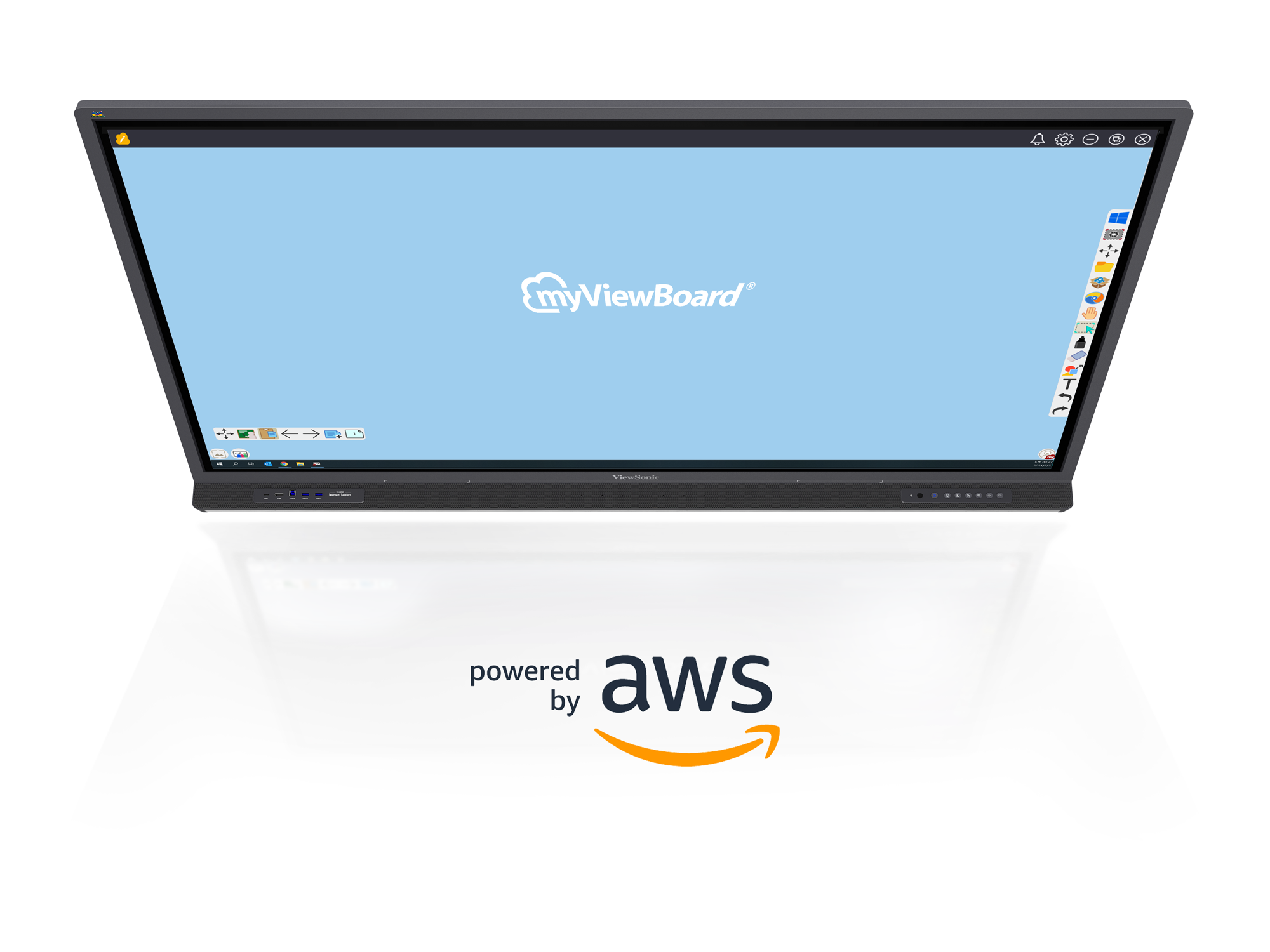

Enterprise-Grade Safety and Security

​The ViewBoard 52-1BH Series comes with AWS-powered whiteboarding software that provides comprehensive and world-class data protection through cloud-powered solutions and encryption to ensure the security and safety of all private files and information.
Enterprise-Grade Safety and Security 1

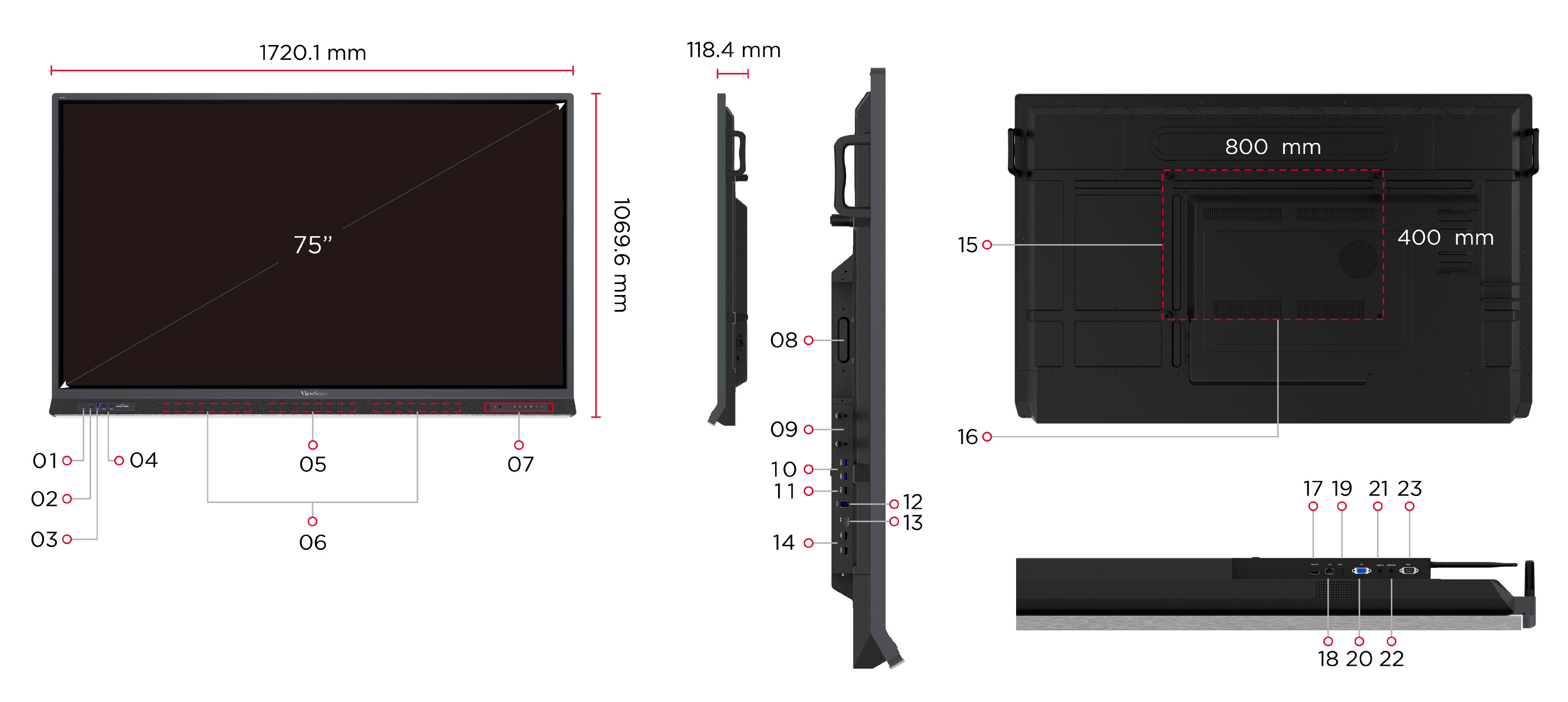

Dimensions & I/O Ports

  1. USB-C
  2. HDMI In
  3. TOUCH
  4. USB 3.0 x2
  5. 8-Microphone Array
  6. Front-Facing Speakers
  7. Menu Controls
  8. OPS Slot
  9. Wi-Fi Module Slot
  10. USB 3.0 X 2
  11. USB 2.0
  12. TOUCH
  13. DP In
  14. HDMI In X 2
  15. VESA® Wall Mount 600x400mm
  16. Subwoofer
  17. HDMI OUT
  18. LAN
  19. SPDIF
  20. VGA
  21. Audio In
  22. Earphone
  23. RS232

SPECIFICATIONS


  • Display
    Panel Size: 75"
    Panel Type: TFT LCD Module with DLED Backlight
    Display Area (mm): 1649.644(H) x 927.936(V)
    Aspect Ratio: 16:9
    Resolution: UHD 3840x2160(Pixels)
    Colors: 1.07B colors (10bit)
    Brightness: 400 nits (typ.)
    Contrast Ratio: 1200:1 Typ. , 5000:1 Max.(DCR enable)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 50,000 Hours (Typ.)
    Surface Treatment: Hardness: 9H with Anti-Fingerprint coating & Anti-Glare coating
  • Platform
    Processor: ARM Cortex A73*4
    RAM: 8GB
    Storage: 64GB
  • Touch
    Type/ Tech: UFT (Ultra Fine Touch) Technology
    Touch Resolution: 32767 x 32767
    Touch Point: Windows: 33 points touch, Android: 20 points touch
