OVERVIEW

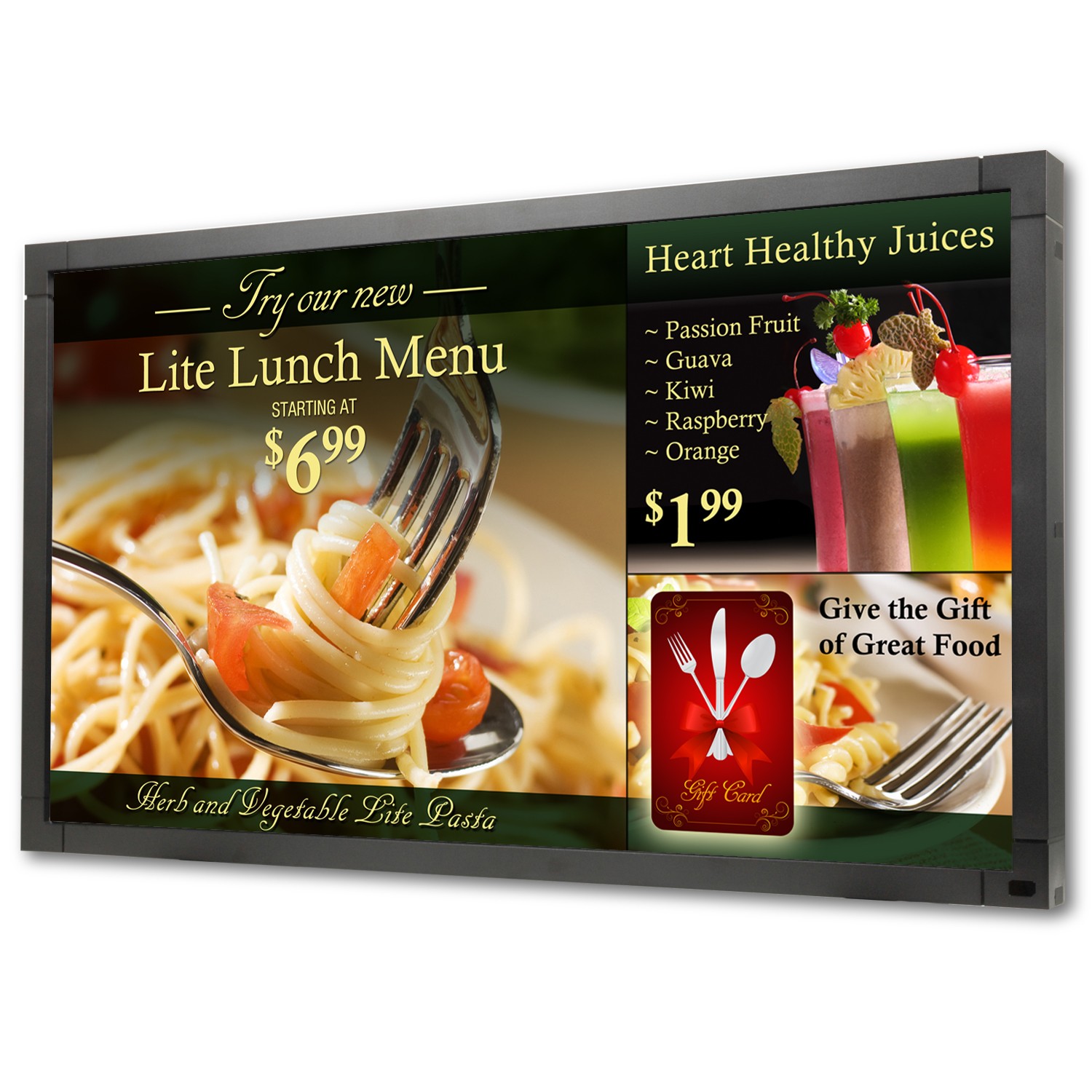

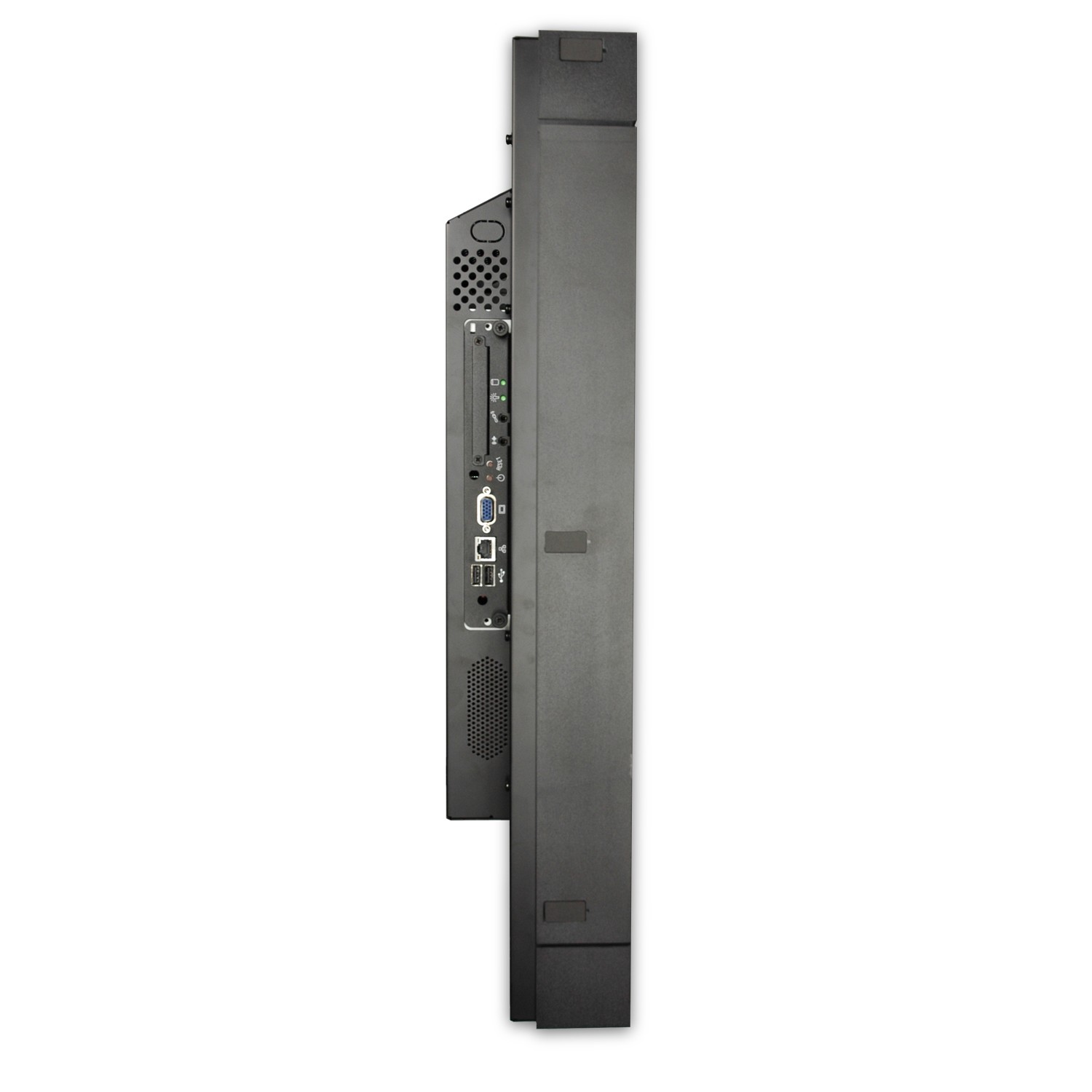

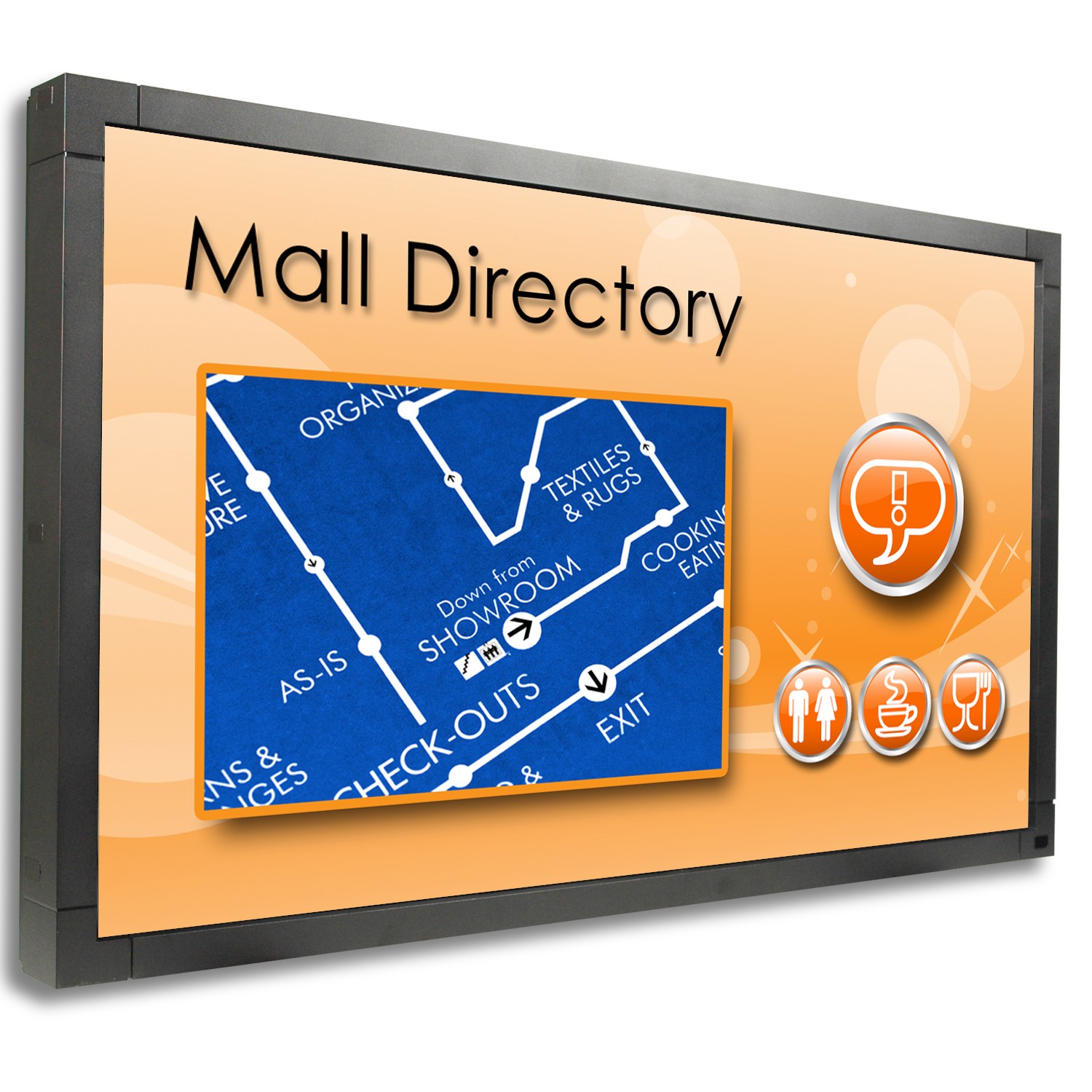

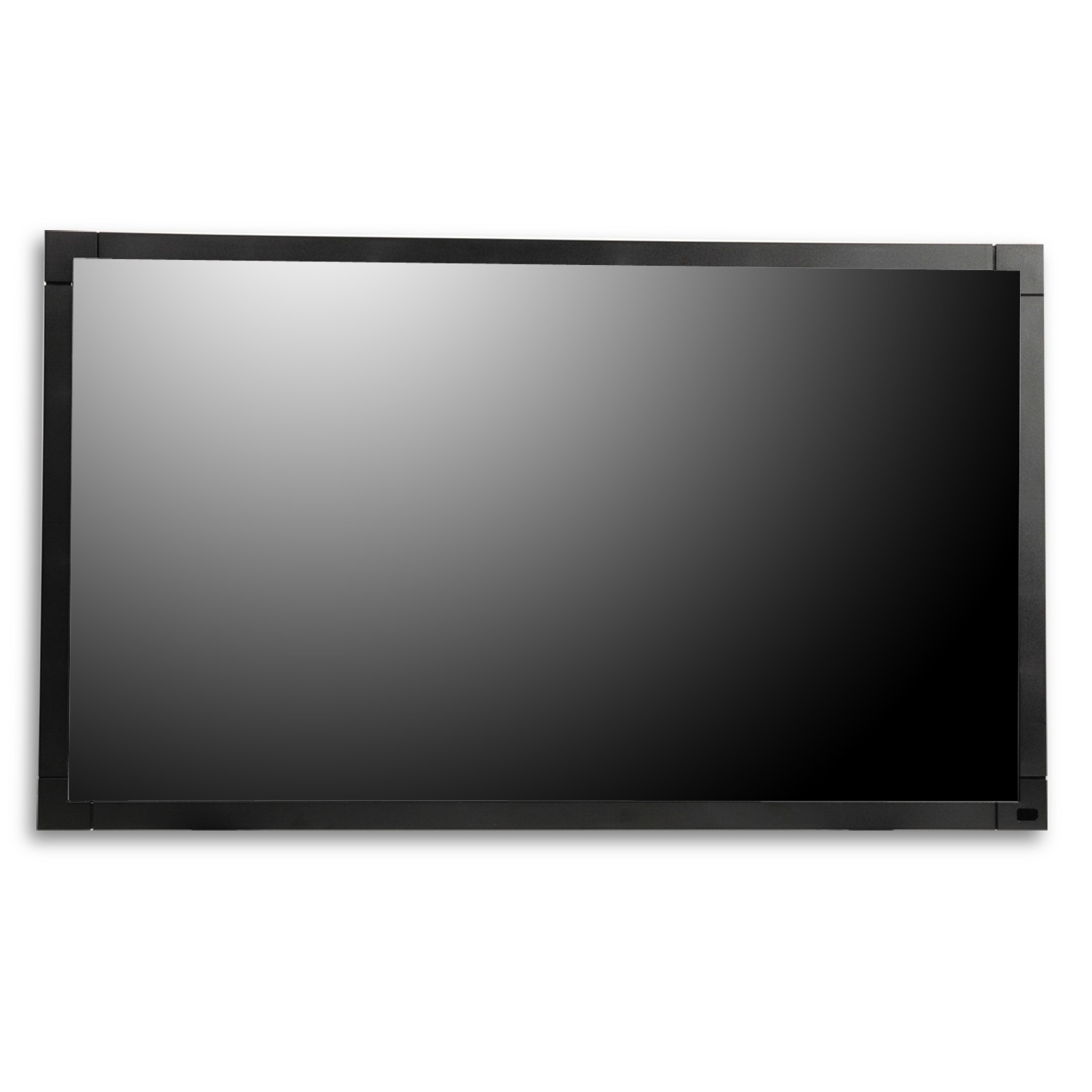

ViewSonic’s new CDP4635 Full HD Commercial display features a FHD 1920x1080panel with 4000:1 contrast and Intel’s Open Pluggable Specification (OPS) for applications requiring an integrated media player. Additional features include versatile inputs – HDMI, DVI, VGA, S video and composite, YPbPr and built in 10W x 2 speakers. The CDP4635 will support up to a 5x5 display video wall with internal clock and scheduler. RS232 daisy chain and RJ45 are provided for automated remote control.Production Description
Key Features
- 1920x1080 resolution
- Intel - OPS slot provides easy media player integration
- Video Wall ready – up to 5x5
- Adjustable bezel for easy touch panel integration
- Internal speakers
SPECIFICATIONS
- LCDType: 46" color TFT active matrix, wide LCD
Display Area: 40" horizontal x 22.5" vertical; 46" diagonal
Optimum Resolution: 1920x1080, 530mm dot pitch
Contrast Ratio: 4000:1 (typ)
Viewing Angles: 178º horizontal, 178º vertical
Response Time: 8ms
Light Source: Long life, 50,000 hrs. (typ)
Brightness: 400 cd/m2 (typ)
Aspect Ratio: 16:9
Panel Surface: Anti-glare, hard coating (3H) - INPUTTV: 480i, 480p, 720p, 1080i, 1080p
Video Input: HDMI, DVI, component, VGA, S-Video, composite
Video Output: VGA, component, DVI
Control Input/Output: RS-232/RJ45 - AUDIOSpeakers: 2 x 10w
- CONNECTORAnalog: 9-pin mini D-sub (VGA)
Digital: HDMI, DVI
Power: 3-pin plug - POWERVoltage: AC 100–240V (universal), 50–60Hz
Consumption: 220W (typ) - CONTROLSInput: VGA, DVI, HDMI, YPbPr
Picture: Picture mode, contrast, brightness, color temperature, temperature adjust, sharpness
Audio: Volume, mute, audio source
OSD: Languages, OSD H. position, OSD V. position, OSD timer
Panel: Power, Exit, +, –, Menu/Enter
VGA Setting: Auto adjustment, clock, phase, sharpness, H. position, V. position
Special: Aspect ratio, over scan, power save, image retention, auto adjustment, monitor ID, reset
Diagnostic: Thermal, back light, ambient, 5V detect, 12 detect - OPERATING CONDITIONSHumidity: 20–80% (non-condensing)
Temperature(landscape): 41–104ºF (5–40ºC)
Temperature(Portrait): 41–95ºF (5–35ºC) - DIMENSIONS (WxHxD)Physical Without Stand: 43" x 25.4" x4.7" (1091.1mm x 645.7mm x 120.1mm)
Physical With Stand: 43" x 26.8" x 13" (1091.1mm x 681.7mm x 328.3mm) - WEIGHTGross: 68.3 lb. (31 kg)
Net Without Stand: 57.3 lb. (22.6 kg)
Net With Stand: 58.1 lb. (26.5 kg) - RegulationsFCC, ICES003, UL, cUL, CE, CB, C-Tick, BSM
- Wall MountVESA 400mm x 400mm
- Recycle/DisposalThe lamp in this product contains mercury. Please dispose of in accordance with local, state or federal laws.
- PACKAGE CONTENTSLCD display, power cable, remote control with batteries, User Guide CD
