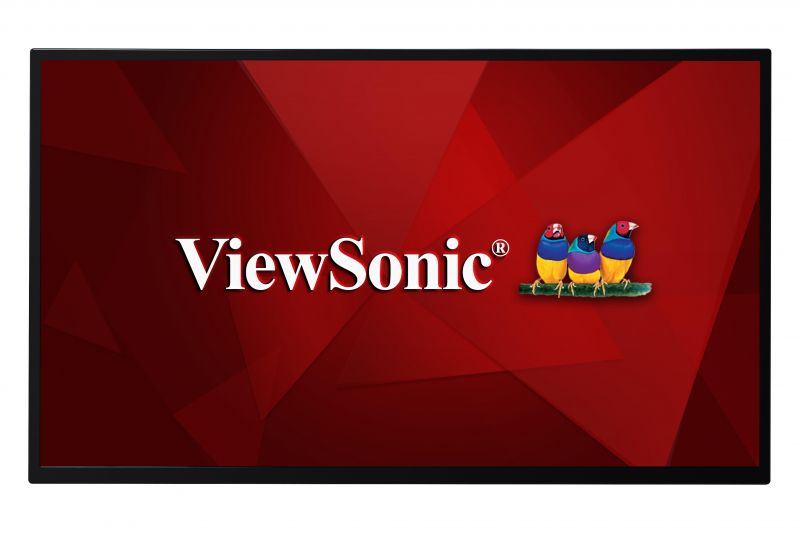

CDE3205-EP

32" Full HD Presenation Display

  • USB multimedia player
  • vController software
  • Supports HDMI CEC pass-through
  • HDMI, VGA, DVI, YPbPr, USB, IR, RJ45 input compatibility
  • Flicker-free and Blue Light Filter eye-care technologies
Sales Enquiry

OVERVIEW

The ViewSonic CDE3205-EP is a great value 32’’ (31.5” viewable) Full HD LED presenation display with high reliability working time 16 hours per day/7 days a week for retail, hospitality, and QSR (Quick Service Restaurant) environments. In addition to versatile connectivity options, including HDMI, VGA, DVI, YPbPr, USB, IR, RJ45, the display comes with a convenient USB multimedia playback functionality. With 1920 x 1080 resolution, 350-nit brightness, IPS 178-degree wide viewing angles and 2 x 10W stereo speakers, the slim-bezel CDE3205-EP delivers vivid images and remarkable sound for superior multimedia performance. The HDMI CEC pass-through support provides one control for multiple HDMI-connected devices while the free-bundled vController software makes remote display management easier via RSS232/RJ45 port. Creating a more comfortable viewing experience, the display is equipped with Blue Light Filter technology.

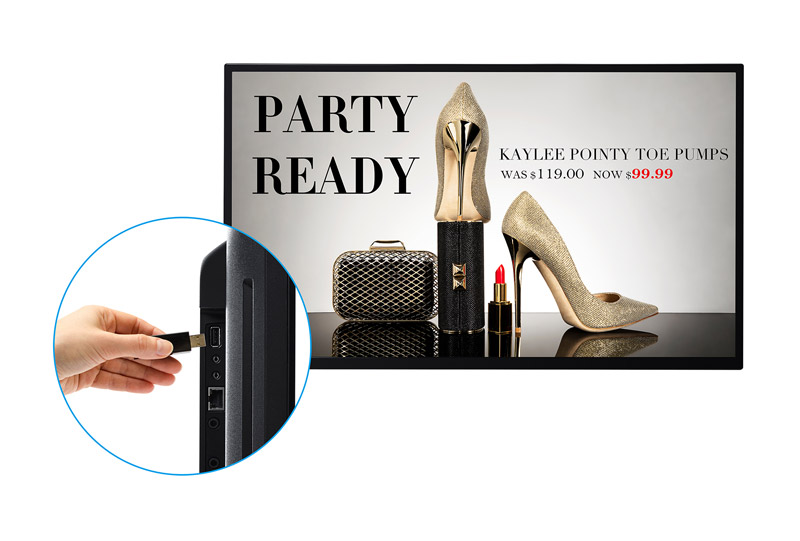

Integrated USB Multimedia PlayerUSB playback photos, music & video

This display features an integrated media player with a convenient USB playback function. Now photos, music, and 1080p video can be quickly displayed on-screen directly from a USB drive – without the need for a PC.

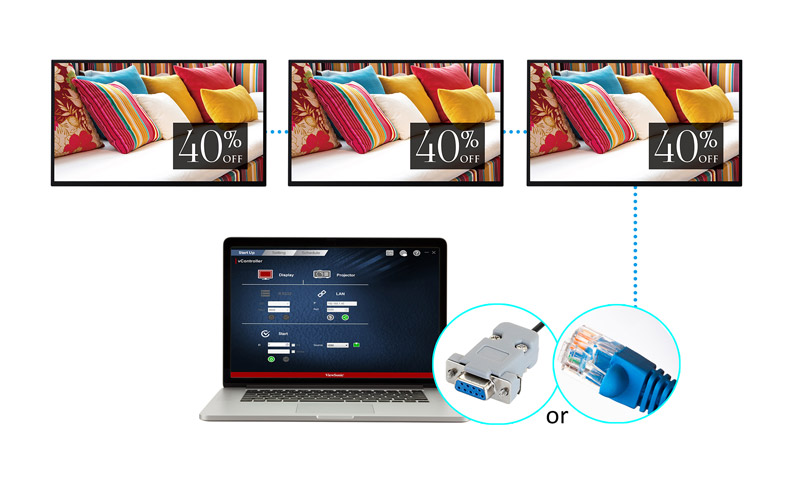

vController™ Software: Remote Display ManagementvController™ software: remote display management

Remote display management without needing to type in commands. By using an RS232 or RJ45 connection between a computer and digital signage, users can manage the signage’s OSD settings such as On/Off, display signal source, audio, and other general items.

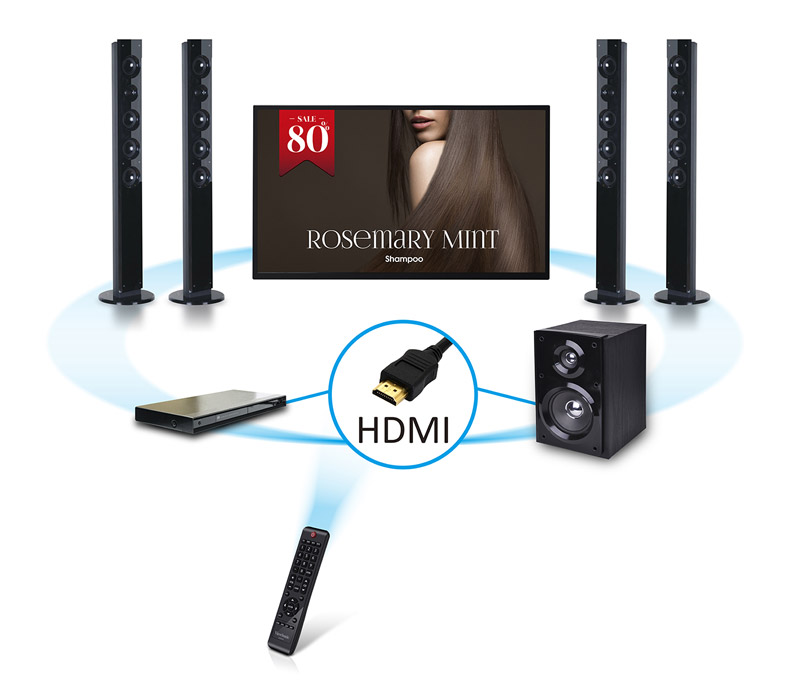

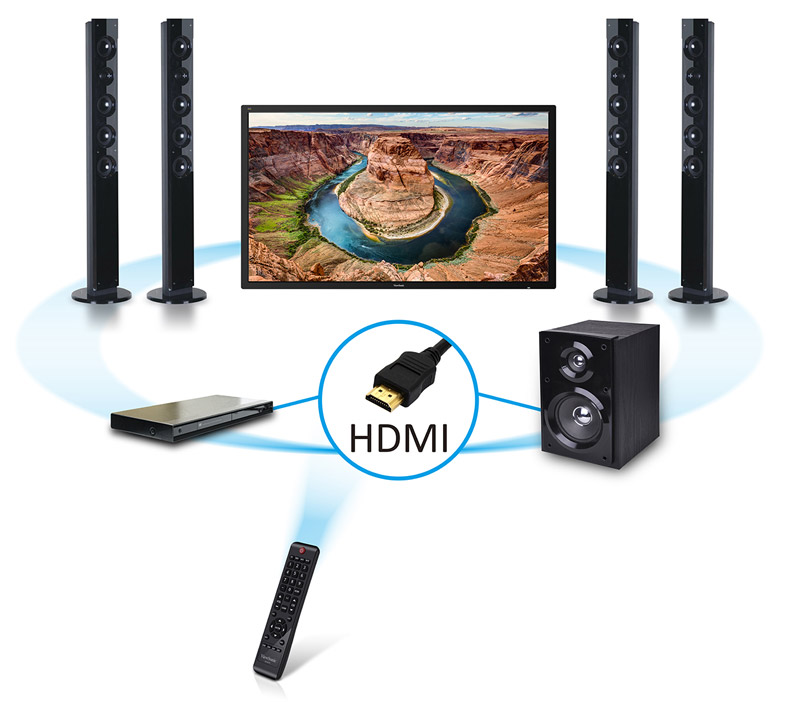

Control Multiple HDMI DevicesHDMI CEC local control

With HDMI CEC functionality, remote controller signals can be transmitted via HDMI cable to connected HDMI devices. This enables out-of-sight DVD players, sound systems, and other devices to be directly controlled with the display’s remote controller.

Broadcast Multimedia without External SpeakersDual speakers 20W

The powerful enough 20W sound pressure level from 2 speakers deliver incredible sound while combining eye-catching multimedia content - creating a lasting audio-visual impression on your audience.

Enhanced Viewing ComfortBlue Light Filter

Blue Light Filter helps to eliminate eye strain from extended viewing periods.

Eye-care technologies for comfort viewing

This display adopts exclusive Flicker-Free and Blue Light Filter eye-care technologies. By nearly eliminating screen flickering at all brightness levels via a constant LED light source and reduced blue light exposure, the display ensures longer viewing time and increased eye comfort for presentation and multimedia experiences – without eye fatigue.

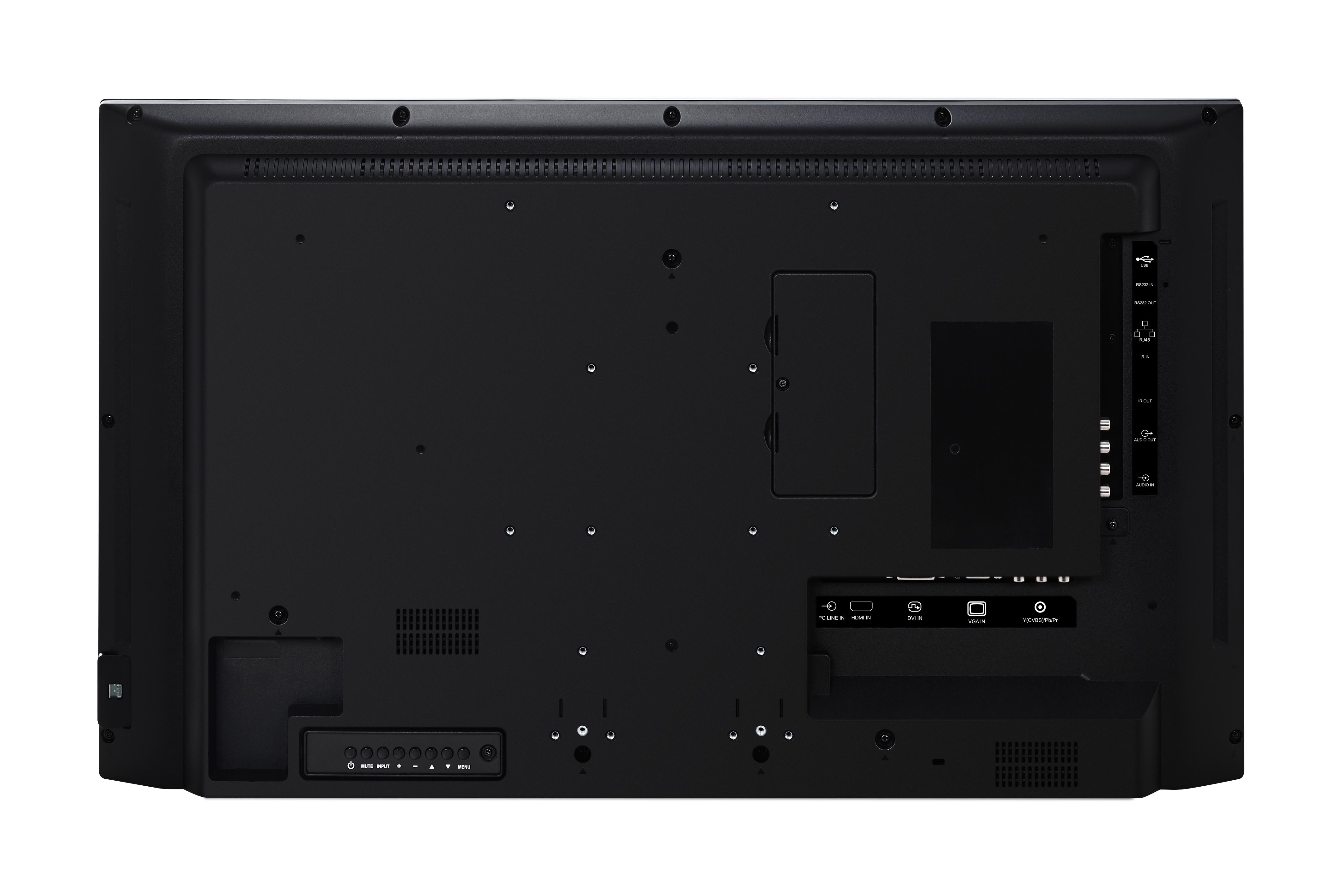

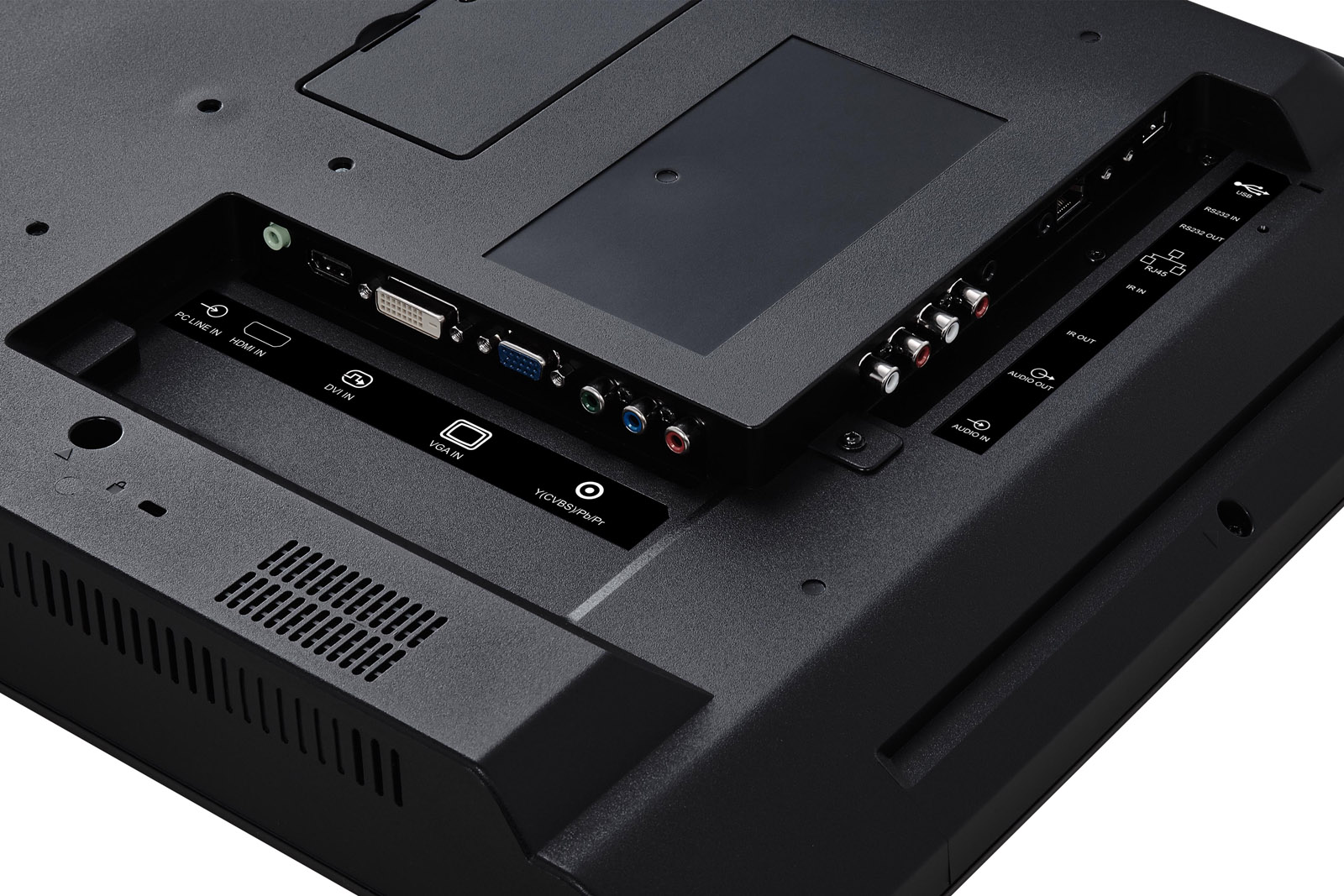

I/O Connectors

  1. AC In & Power Switch
  2. Menu Controls
  3. Speakers
  4. Audio In
  5. HDMI
  6. DVI In
  7. VGA In
  8. YPbPr IN
  9. Kensingtion Lock Slot
  10. RS232 In
  11. LAN
  12. RCA Audio In
  13. USB 2.0 (USB playback)
  14. RS232 out
  15. IR out
  16. RCA Audio Out

SPECIFICATIONS


  • LCD PANEL
    Panel Size: 32"
    Type/ Tech: TFT LCD Module with LED Backlight
    Display Area (mm): 698.4(H) x 392.85(V)
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Colors: 16.7M colors
    Brightness: 350 nits (typ.)
    Contrast Ratio: 1200:1 (typ.)
    Response Time: 8 ms
    Viewing Angles: H = 178, V = 178 (typ.)
    Backlight: WLED
    Backlight Life: 30,000 Hours Min.
    Hardness: 3H
  • INPUT
    HDMI: x 1
    RGB / VGA: x 1
    DVI: x 1
    Audio: x1 PC audio (3.5 mm), x 1 (RCA L/R)
    CVBS (AV): x 1 (Share with Y)
    YPbPr: x 1
    RS232: x 1
    IR: x 1 (over audio port)
  • OUTPUT
    Audio: x 1 (RCA L/R)
    RS232: x 1
    IR: x 1 (over audio port)
