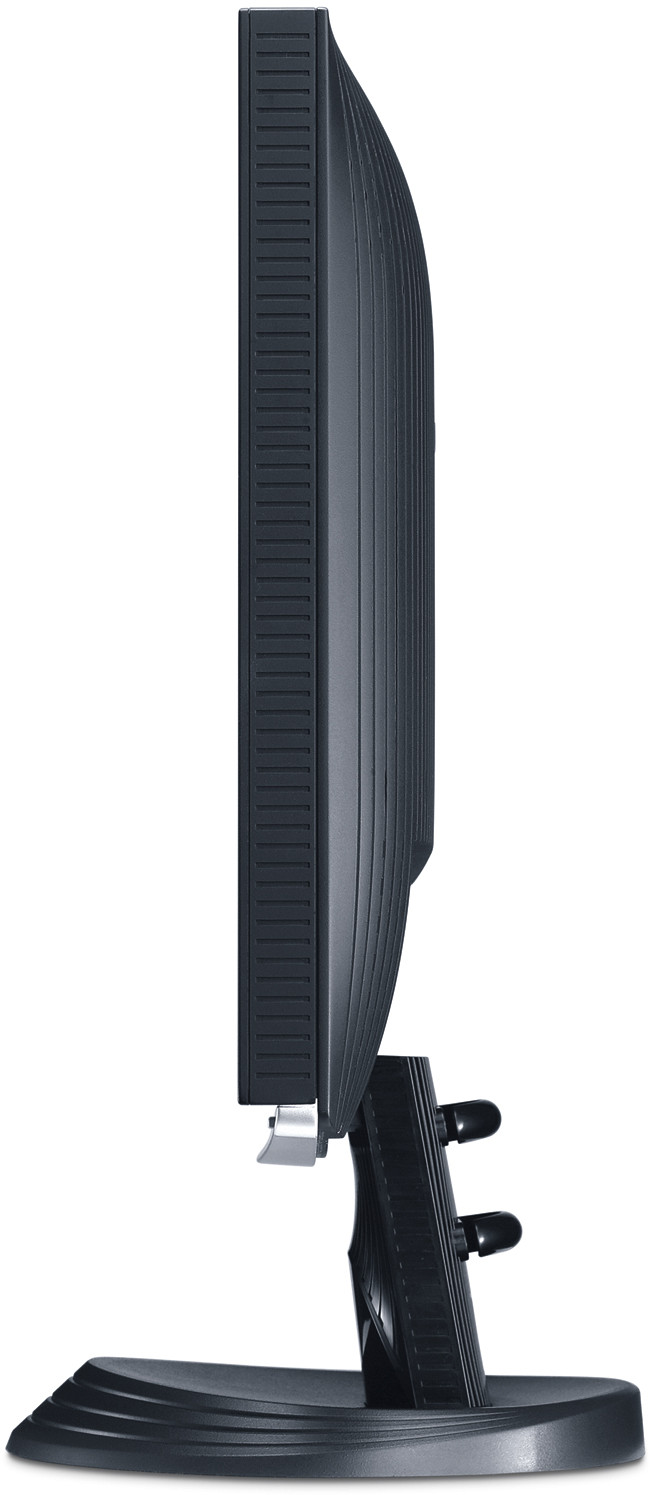

ViewSonic VX1940w-3 49 cm / 19" WIDESCREEN LCD WITH 20000:1 DYNAMIC CONTRAST

Key Features

Product Description

ViewSonic’s 49 cm / 19" VX1940w widescreen LCD delivers unparalleled performance with video response as fast as 2ms, 20000:1 DYNAMIC CONTRAST RATIO and 1680X1050 RESOLUTION. Games, HD movies, videos and graphic-intensive applications have never looked better on your desktop. This Vista™ premium certified WIDESCREEN DISPLAY ENHANCES PRODUCTIVITY by allowing you to view two documents side-by-side or to work in two applications without toggling. The Kensington® security port provides theft deterrence and the OSD and power lock prevent unauthorized changes to your optimal screen settings.

Visit Us

www.viewsonic.com

COLORS

Black

LCD

Contrast Ratio:	700:1 (Typical)
Viewing Angles:	170° (H), 170° (V)
Optimum Resolution:	1680×1050
Response Time:	2ms (grey-to-grey), 5ms (off-on-off) (Typical)
Light Source:	40,000 (Minute.)
Panel Surface:	Anti-Glare, Hard coating (3H)
Colour Support:	16.2 M (6 bits + 2 bits FRC)
Size:	19" wide Color TFT Active Matrix LCD with 16:10 aspect ratio
Brightness:	280 (Typical)
Dynamic Contrast Ratio:	20000:1

COMPATIBILITY

PC: VGA up to 1680 × 1050 non-interlaced

Mac®: Power Mac, up to 1680×1050
DIMENSIONS

Physical (WxHxD): 442mm × 385mm × 195mm (17.4" × 15.2" × 7.7")
REGULATIONS

CB, WEEE, RoHS, UL, cUL, FCC-B, TUV-S, NOM, Energy Star, TUV/
ERGO(covers ISO13406-2&MPR II),TUV/GS,CE GOST-R+Hygienic
,SASO , ENERGY, Ukraine CCC BSMI, PSB, C-TICK, MIC, Green Mark,
TCO-03
CONNECTOR

Analogue: 1 × 15-pin mini D-sub

Power: Built-in power Adapter, 3-Pin plug
POWER

Voltage: AC 100-240V (Universal); 50/60Hz (Switch)

Consumption: 44W (Typical) / <49W (Maximum)

CONTROLS

OSD:

Auto Image Adjust

Contrast/Brightness

Color Adjust: sRGB, 9300K, 7500K, 6500K, 5400K, User Color [R, G, B]
Information

Manual Image Adjust: Horizontal size, H/V position, fine tune,
sharpness, dynamic contrast, aspect ratio, response time

Setup Menu: Language select, resolution notice, OSD position, OSD time out, OSD background

Memory recall

VIDEO INPUT

Frequency: 24-82kHz / 50-85Hz

Sync: H/V separate (TTL), composite, sync on green

Analogue: RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)
WEIGHT

Net: 4.6 kg (10.1 lb)
OPERATING CONDITIONS

Humidity: 10% - 90%

Temperature: 32-104ºF (0-40ºC)

PC:	VGA up to 1680 × 1050 non-interlaced
Mac®:	Power Mac, up to 1680×1050

Analogue:	1 × 15-pin mini D-sub
Power:	Built-in power Adapter, 3-Pin plug

Voltage:	AC 100-240V (Universal); 50/60Hz (Switch)
Consumption:	44W (Typical) / <49W (Maximum)

Frequency:	24-82kHz / 50-85Hz
Sync:	H/V separate (TTL), composite, sync on green
Analogue:	RGB Analog (75 ohms, 0.7 / 1.0 Vp-p)

Humidity:	10% - 90%
Temperature:	32-104ºF (0-40ºC)
