Detachable PC Modules

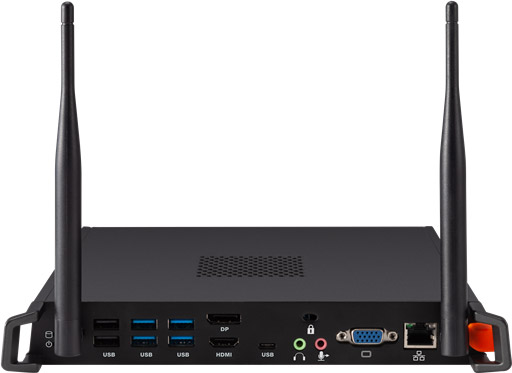

VPC15-WP-5
Key Features
- Gebundeld met myViewboard en vCast-software
- Krachtig systeem met Intel® Core™ i5-8400-processor, 8 GB (tot 32 GB) DDR4-geheugen en 256 GB (tot 512 GB) SSD-opslag
- Bekabelde connectiviteitsopties omvatten 4K HDMI, VGA, USB 3.1 en Gigabit LAN RJ45
Product Description
De ViewSonic® VPC15-WP-5 slot-in PC is de ideale geïntegreerde oplossing voor de ViewBoard® interactieve displays. Deze slot-in pc-module kan eenvoudig worden aangesloten op compatibele beeldschermen. Bekabelde connectiviteitsopties, waaronder 4K HDMI, VGA, USB 3.1 en Gigabit LAN RJ45, zorgen ervoor dat u verbonden blijft met uw randapparatuur. Met dual-band wifi en Bluetooth, een krachtige Intel® 8e generatie Coffee Lake-serie i5-8400-processor, 8 GB (tot 32 GB) DDR4-geheugen en 256 GB (tot 512 GB) SSD-opslag, is de VPC15-WP-5 biedt de rekenkracht die nodig is voor snel veranderende onderwijs- of bedrijfsomgevingen.
Visit Us
- www.viewsonic.com
-
CORE
CPU: Intel 8th Gen. Coffee Lake series i5-8400 Graphics: Intel® UHD Graphics 630, Total Available Graphics Memory: 64GB, Max Resolution up to 4096x2304@60Hz -
MEMORY
Type: 260-pin DDR4 SO-DIMM x 2 Capacity: 8GB (up to 32GB) -
SOFTWARE
Operating System: Windows 10 Pro 64 bit -
STORAGE
Dimension: M.2 2280(22 x 80 mm) Capacity: 256GB SSD (up to 512GB) Interface: PCIE and SATA 3 -
INPUT
MIC(Microphone): 1 -
OUTPUT
RGB / VGA: 1 DisplayPort: 1 (max. resolution 4096x2304@60Hz) HDMI: 1 (max. resolution 3840x2160@24Hz) Audio: 1 Earphone Out -
LAN
RJ45: 1 x RTL8111(Gigabit) -
WIRELESS / BLUETOOTH
Wireless / Bluetooth: Intel 3165, 802.11 a/b/g/n/ac (2.4GHz/5GHz) / BT4.2 ; BLE -
USB
Type A: USB 3.0 x 4, USB 2.0 x 2 -
SUPPORT MEDIA FORMAT
Video format: Container: ASF, WMA, WMV, WM, ASX, WAX, WVX , WMX, WPL, WMD, AVI, MPG, MPEG, M1V, MP2, MP3, MPA, MPE, M3U Image format: Container: JPG, JPEG, JPE, JFIF, BMP, DIB, PNG, GIF, TIF, TIFF Audio codec: Container: MID, MIDI, RMI, AIF, AIFC, AIFF, WAV, CDA -
BUNDLE SOFTWARE
Bundle Software: myViewBoard for windows,vCast for Windows -
POWER
Voltage: AC 110-240V 50 / 60Hz Consumption: 95W -
OPERATING CONDITIONS
Temperature (º C): .-5°C to 45°C Humidity: 10% ~ 90% @ 40°C Non-condensing. -
DIMENSIONS (W X H X D)
Physical (inch / mm): 246.2*265.4*32.2mm Packaging (inch / mm): 350*310*90mm (1pc), 495*370*340mm (5pcs) -
WEIGHT
Net (lb / kg): 4.3lb / 1.95kg Gross (lb / kg): 4.63lb / 2.1kg -
REGULATIONS
Regulations: CE, R&TTE, FCC, FCC-IC-ID, cTUVus, RCM, BSMI, NCC -
PACKAGE CONTENTS
Package Contents: 1. VPC15-WP-5, 2. ViewSonic Wizard CD , 3. QSG
