Commercial Display

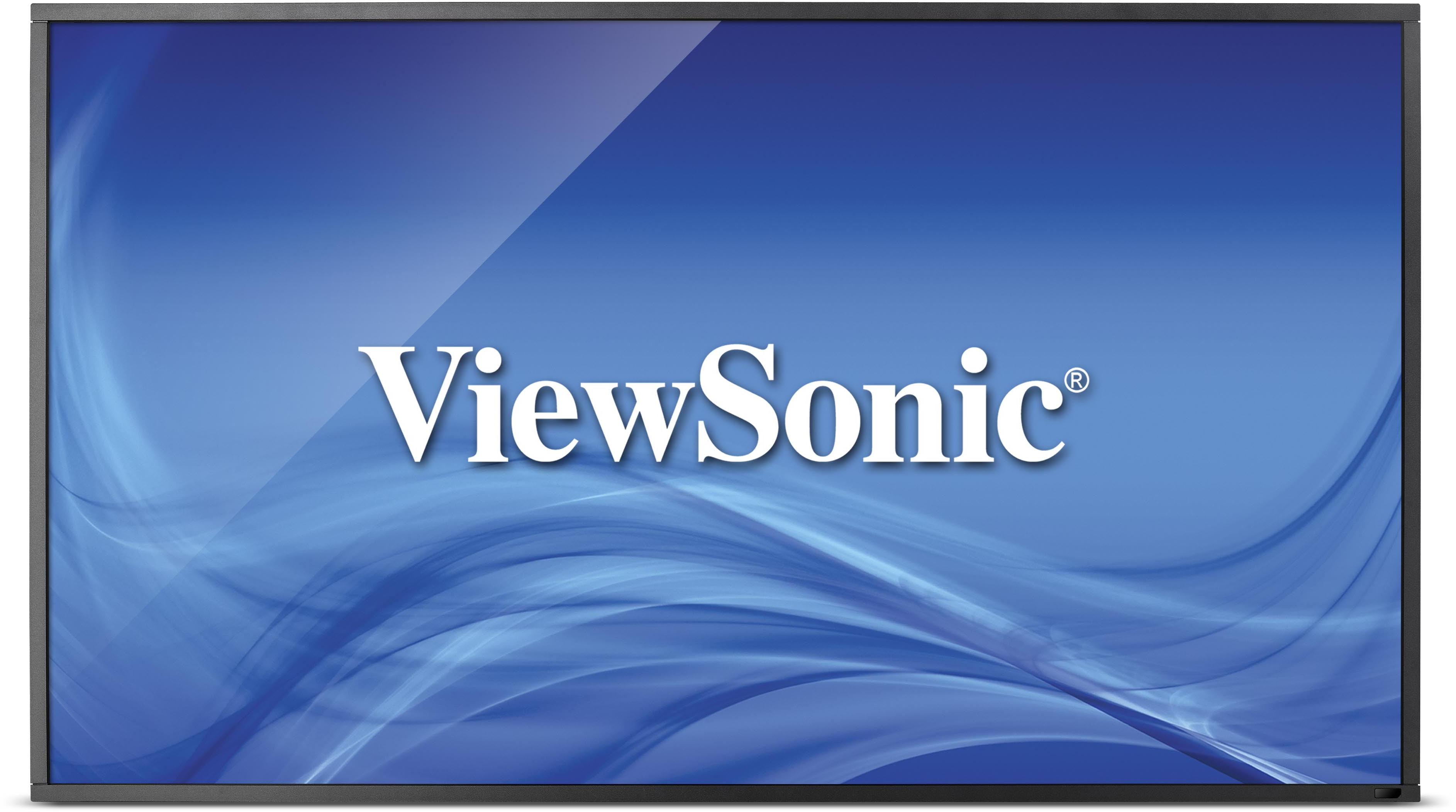

CDP5560-L
Key Features
Product Description
The ViewSonic CDP5560-L is a 55” (55’’ viewable) commercial LED display designed for use 24 hours a day, 7 days a week. The CDP5560-L is ideal for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 15.8mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear® image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP5560-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. The CDP5560-L can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Equipped with DVI-out, the CDP5560-L supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function make the CDP5560-L an easy to-manage solution for 24/7 use.
Visit Us
- www.viewsonic.com
-
LCD
Type: TFT LED Module with LED Backlight Contrast Ratio: 1300:1 Viewing Angles: 178° vertical, 178° horizontal SuperClear® Display Area: 1209.6(H) x 680.4 (V) (55” diagonal) Optimum Resolution: 1920 x 1080 Response Time: 12ms Panel Surface: hard coating (3H) Colour Support: 1.06 billion Size: 55” Brightness: 450 cd/m2 Backlight: LED Backlight Life: 30,000 Hours Typ -
COMPATIBILITY
RGB PC / HDMI PC: Refer to timing table CVBS: 480i HDMI: 480i, 480p,720p,1080i,1080p DVI-D: 480i, 480p,720p,1080i,1080p YPbPr: 480i, 480p,720p,1080i,1080p DP: 480i, 480p,720p,1080i,1080p -
DIMENSIONS
Physical (WxHxD): 49.1 x 28.3 x 2.8 (inches) / 1247 x 717.8 x 70 (mm) Packaging: 57.8 x 38.3 x 10.6 (inches)/ 1469 x 975 x 269 (mm) -
REGULATIONS
CE, CB, WEEE, C-tick, FCC, ICES003, UL/cUL, CE,CB, CU, Energy star 6.0, -
PACKAGE CONTENTS
1. CDP5560-L & CDP5562-L LCD Monitor
2. Remote Control with batteries
3. User manual CD wizard
4. Quick Start Guide
5. Power Cables
6. VGA cable
*Actual content may differ from market to market -
WARRANTY
3-year limited
**Warranty offered may differ from market to market -
CONNECTOR
Audio Out: x 1 HDMI (input): x 1 RS-232: x 1 RGB: x 1 Audio Input: x 1 DVI: x 1 Speaker: x 1 PC Audio Input: x 1 CVBS: x 1 IR Pass Through: x 1 DP: x 1 -
POWER
Voltage: 100-240 VAC +/- 10% Wide Range, 50-60Hz +/-3 Hz -
CONTROLS
Picture: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU Brightness, Contrast, Sharpness,Black Level, Tint, Color, Color Temperature, Gamma Screen: Selection, Noise Reduction, Film Mode, Picture Reset Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset PIP: PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset Configuration 1: Off Timer, Schedule, Data and Time, Configuration 1 Reset Configuration 2: Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset Advanced Options: Input Change, Terminal Setting, Scan Conversion, Colour System, Scan Mode, Serial Control, Lan Setting, APM, Advanced Option Reset, Factory Reset Sound: Balance, Treble, Bass, Audio Reset Configuration 3: Power Save, Heat Status, Screen Saver, Side Border Color, Configuration 3 Reset -
VESA® MOUNT
400 x 400mm -
WEIGHT
Gross: 83.0 (lbs)/ 37.65 (kg) Net: 71.8 (lbs)/ 32.6 (kg) -
OPERATING CONDITIONS
Humidity: 20% ~ 80% @40°C non-condensing Temperature: 0°C to 40°C Altitude: 0 meter to 3,000 meters (9842ft) above sea level -
VIDEO I/O
YPbPr in: x 1 -
AUDIO I/O
Speakers: 10-watt x 2 -
PORT
RJ45: x 1
