OVERVIEW

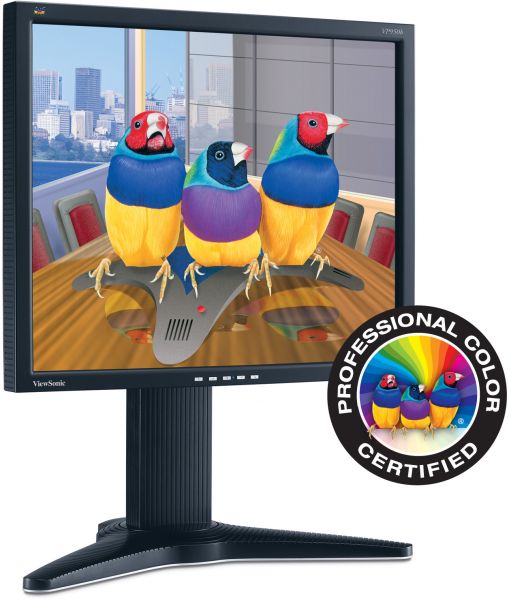

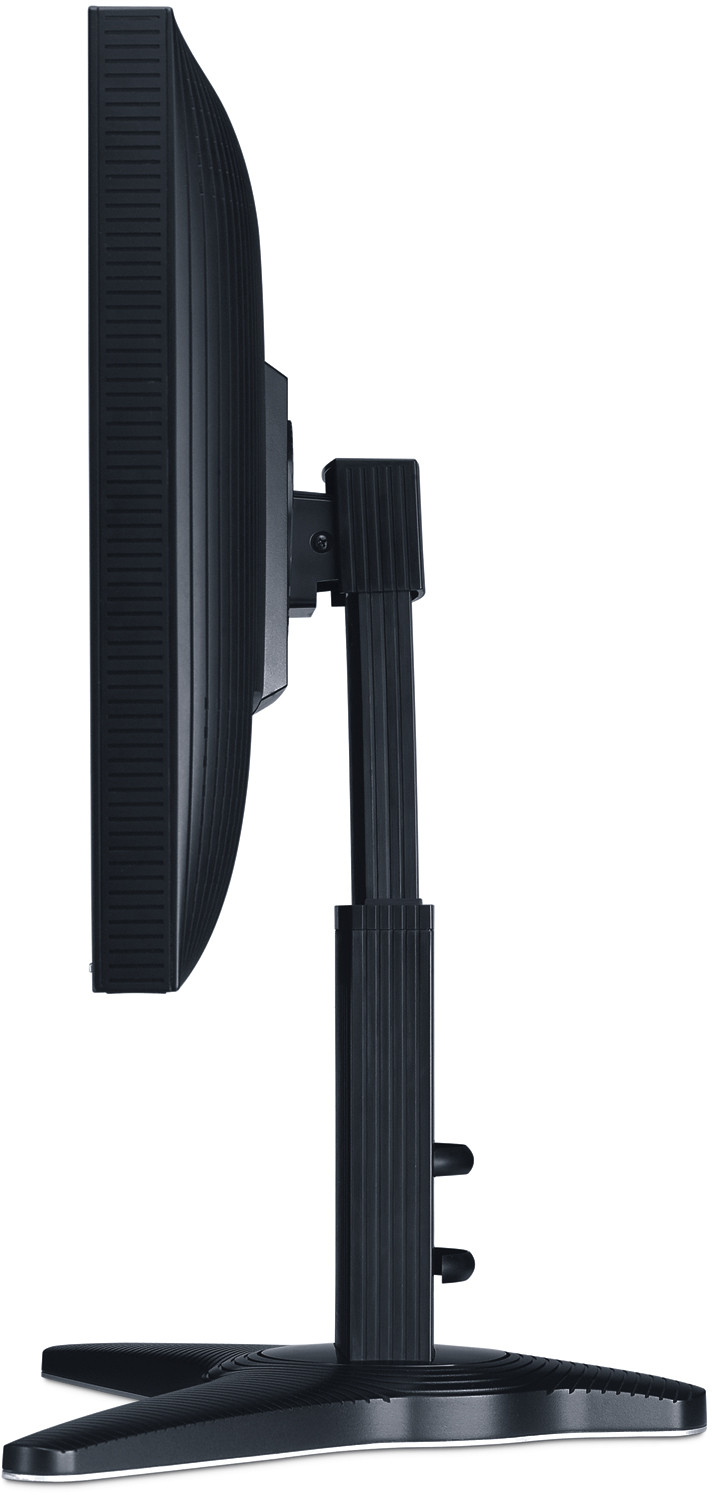

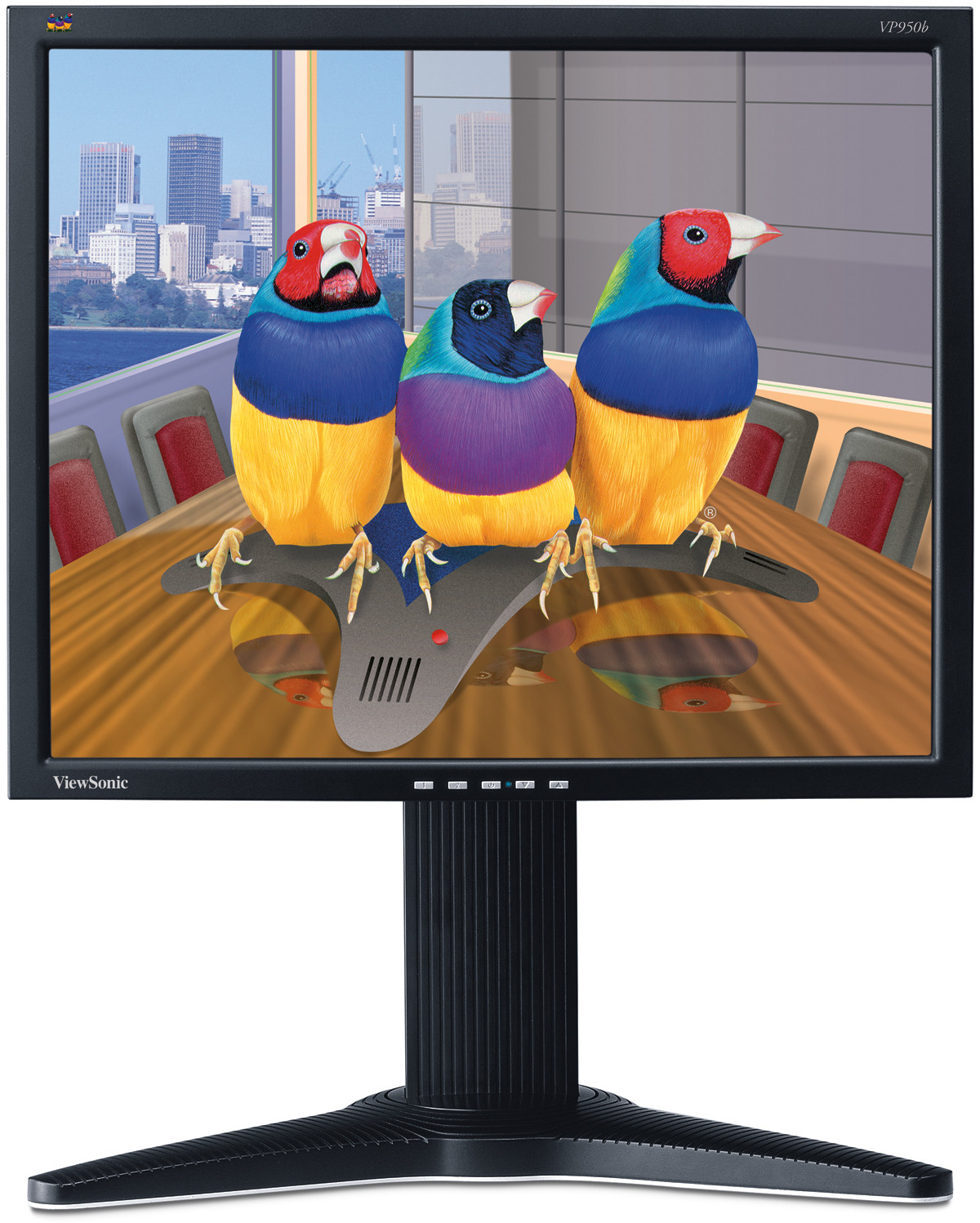

ViewSonic’s 48 cm / 19" VP950b LCD is a professional-grade display with 98% NTSC colour capability for richer, more natural colours across the entire colour spectrum. It is ideal for medical imaging, where precise colour rendition is vital to diagnosis. Graphics production, film and financial professionals will also find this display perfectly suited to their needs. 2000:1 DYNAMIC CONTRAST RATIO (typ.) and ultra-fast ClearMotiv 2ms response time (GtoG) deliver SUPERIOR FRONT-OF-SCREEN PERFORMANCE. The VP950b offers extensive ergonomic adjustments including height adjust, tilt, 120º swivel and pivot, and even a quick release stand. Certified for Windows Vista, this display is also HDCP compatible and features OptiSync digital/ analogue inputs plus 4 USB PORTS TO DELIVER A VERSATILE AND FLEXIBLE professional package. Step into a world of amazing colour and accuracy with the VP950b.Professional-grade colour and performance
It's not just another professional LCD. It's a ViewSonic.
REVIEWS
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“Note 1,5”
“The ViewSonic VP Series is included in this CES roundup, highlighting its 110 percent NTSC color gamut.”
“Note 1,5”
SPECIFICATIONS
- COLORSBlack
- LCDType: 48cm / 19" TN colour TFT active matrix SXGA LCD
Contrast Ratio: 800:1 (typ.), 2000:1 DCR (typ.)
Viewing Angles: 170° horizontal, 160° vertical (at 10:1)
170° horizontal, 170° vertical (at 5:1)
Brightness: 280cd/m2 (typ.)
Display Area: 37.6cm horizontal x 30.1cm vertical, 48.3cm diagonal
Optimum Resolution: 1280 x 1024@60Hz
Response Time: 2ms (grey-to-grey), 5ms (off-on-off, typ.)
Light Source: Long life, 50000 hrs. (typ.)
Panel Surface: Anti-glare (3H)
Pixel Pitch: 0.294mm
Colour Support: 16.7M colours supported (6-bit+2-bit HI FRC)
Pixel Clock: 140MHz
Colour Gamut: Wide colour gamut, 98% of NTSC - COMPATIBILITYPC: VGA up to 1280 x 1024 non-interlaced
Mac®: Power Mac™ up to 1280 x 1024 non-interlaced
- DIMENSIONSPhysical With Stand: 412 x 391-510 x 279
Physical Without Stand: 412 x 331 x 63
W x H x D mm: 470 x 523 x 195 - REGULATIONSTCO’03, CE, CB, GS, ERGO, ISO 13406-2 (pixel failure class II), UL,
cUL, GOST-R, Hygienic, FCC-B (ICES), ICES-003B, NOM, SASO, ENERGY, ENERGY STAR, C-Tick, KTL/MIC, BSMI, PSB, TUV-S/IRAM/UL-AR S Mark, MPR II, CCC, Green Mark, EPEAT, WEEE, RoHS - PACKAGE CONTENTSLCD Monitor, power cable, 15-pin VGA video cable, DVI-D cable, USB cable, Quick Start Guide, ViewSonic Wizard CD-ROM (User Guide/drivers)
(multi-language) - CONNECTORAnalogue: 15-pin mini D-sub (detachable cable)
Digital: 24-pin DVI-D (detachable cable) (HDCP enabled)
Power: 3-pin plug (CEE22)
USB: 1 x upstream (4-pin Typ B)/4 x downstream (4-pin Typ A), USB 2.0 - POWERVoltage: AC 100–240V, 50–60Hz (Auto-Switch), internal power supply
Consumption: 40 watt (typ., without USB peripheral connected), <1 watt in power save mode - CONTROLSBasic: Power, menu [1], up, down, select [2]
OSD: Auto image adjust, contrast, brightness, input select (D-sub, DVI-D),
ViewMatch® colour adjust (sRGB, 9300K, 7500K, 6500K, 5000K, user RGB),
information (resolution, H/V frequency, pixel clock, model number, serial
number), manual image adjust (H/V position, H size, fine tune, sharpness, DCR [on/off], response time [standard, advanced, ultra-fast]), setup menu
(language, resolution notice, OSD position, OSD timeout, OSD background, OSD pivot), auto white balance, OSD/power lock - OPERATING CONDITIONSTemperature: 0° to 40°
Humidity: 10% to 90% (non-condensation) - WEIGHTNet With Stand: 5.6kg
Net Without Stand: 4.4kg
Gross: 7.5 kg - VIDEO INPUTFrequency: Fh: 24-82kHz, fv: 50-85Hz
Sync: H/V separated (TTL), composite, sync on green
Analogue: RGB analogue (0.7/1.0 Vp-p , 75 ohms)
Digital: DVI-D (HDCP enabled, TMDS, 100 ohms, DDC/CI) - POWER MANAGEMENTMeets TCO’03 and ENERGY STAR standards
- SECURITYKensington security port
- VESA MOUNT COMPLIANTVESA FDMI 100mm x 100mm
- ERGONOMICSTilt: Down 5°, up 20°
Swivel: 120° (60° left/right)
Height Adjustment: 0~120mm
Pivot: 0°~90°
