IFP7562

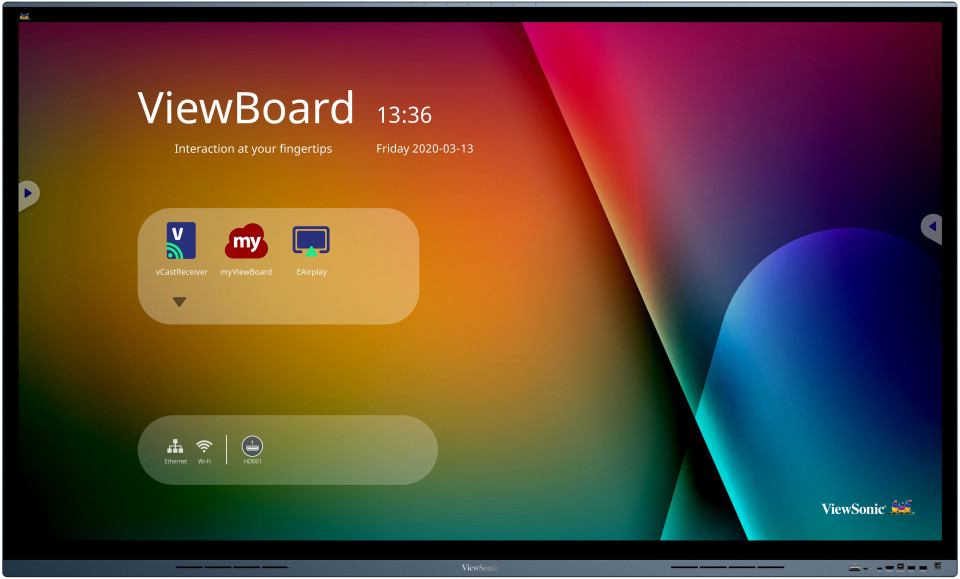

ViewBoard 7562 A 75” Digital Hub for Connecting People and Ideas

USB-C for plug-and-play connectivity and power charging via a single cable
Centralized remote management system via myViewBoard Manager
Seamless collaboration with active and passive pen *Active Pen is an optional accessory.

Sales Enquiry

The ViewBoard® 7562, our flagship interactive display, is tailored for visual collaboration in a digital workplace and classroom.

Display
Panel Size: 75"
Panel Type: TFT LCD Module with DLED Backlight
Display Area (mm): 1650.24(H) x 928.26(V)
Aspect Ratio: 16:9
Resolution: UHD 3840x2160(Pixels)
Colors: 1.07B (10bits )
Brightness: 350 nits (typ.)
Contrast Ratio: 1200:1 Typ. / 5000:1 Max.(DCR enable)
Response Time: 8.5ms
Viewing Angles: H = 178, V = 178 typ.
Surface Treatment: Hardness: 9H pencil
Platform
Processor: ARM Cortex A73 *2+ A53*2
RAM: 3GB DDR4
Storage: 32GB
Touch
Type/ Tech: UFTP/UFT+ (Ultra Fine Touch Plus) Technology
Touch Resolution: 32767 x 32767
Touch Point: 20

INPUT
HDMI: x4
RGB / VGA: x1
RS232: x1
OPS: x1
WiFi: x1
OUTPUT
HDMI: x1
Audio: x1
SPDIF: x1
LAN
RJ45: x2
USB
Type A: x6
Type B: x2
Type C: x1
SPEAKERS
12W x 2 + 15W x 1 Subwoofer
Embedded OS
Android 8
Bundle Software
Basic Annotation Software: myViewBoard WhiteBoard for Android
Pro Annotation Software: myViewBoard WhiteBoard for Windows (Embedded in Windows Slot-in PC)
Wireless Presentation: ViewBoard Cast & myViewBoard Display
Special Features
Simple LAN sharing between IFP and slot-in device: Yes
Power
Voltage: 100-240VAC +/- 10% Wide Range
Consumption: 130W(Energy Star) / 490W(Max.) Off: <0.5W
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C
Humidity: 20% ~ 80% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm): 67.4 x 40.6 x 3.1 in / 1712 x 1031 x 78 mm
Packaging (inch / mm): 72.8 x 44.1 x 10.6 in / 1848 x 1121 x 270 mm
WEIGHT
Net (lb / kg): 110.34 lb / 50.05 kg
Gross (lb / kg): 146.17 lb / 66.3 kg
REGULATIONS
cTUVus, FCC, Energy 8.0, EPEAT, CEC, Mexico, CE, CB, RoHS, ErP, REACH, WEEE, UKCA, LBL
PACKAGE CONTENTS
Power cable
Remote control
AAA battery X2
USB cable Type C
Passive stylus x 2
Quick Start Guide
Compliance statement
RS232 adapter
Plate
Compatible Slot-in PC
VPC12/VPC25-O/VPC27-O Series
