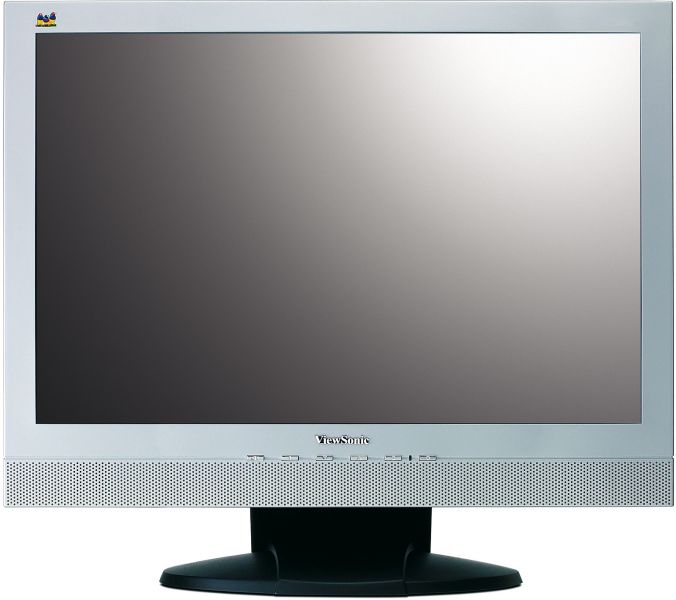

VA1912w
48cm / 19" MULTIMEDIA WIDESCREEN LCD DISPLAY WITH 5MS CLEARMOTIV™ HD BROADCAST-QUALITY VIDEO
OVERVIEW
The ViewSonic® VA1912w 48cm / 19" LCD will impress you with its generous feature set and its budget-friendly price. The 16:10 WIDESCREEN ASPECT RATIO PROVIDES MORE PRODUCTIVE SPACE for multiple windows, video and immersive gaming action. ViewSonic's innovative Dynamic Structure™ technology ACCELERATES VIDEO RESPONSE FOR BROADCAST-QUALITY, seamless video. The ClearMotiv™ fast 5ms video response, 280 cd/m² of brightness (typ.), 700:1 contrast ratio (typ.), and 1440 x 900 optimum resolution deliver crystal-clear images, crisp text and intense graphics. OSD lock and AutoTune® functions ensure your view is always optimal. Furnish your workplace in style with the feature-rich, wall-mountable, value-priced VA1912w. It's not just another widescreen LCD. It's a ViewSonic.High-definition, widescreen LCD.
It's not just another widescreen LCD. It's a ViewSonic.
SPECIFICATIONS
- LCDType: 48cm / 19" TN colour TFT active matrix WXGA LCD
Rapport de contraste: 700:1 (typ.)
Angles de vue: 150° horizontal, 130º vertical (at 10:1)
160° horizontal, 155º vertical (at 5:1)
Luminosité: 280 cd/m² (typ.)
Zone d'affichage: 41.0cm horizontal x 25.6cm vertical; 48.3cm diagonal
Résolution optimale: 1440 x 900
Temps de réponse: 5ms (off-on-off) (typ.)
Source lumière: Long life, 50000 hrs. (typ.)
Rapport largeur/hauteur: 16:10
Surface panneau: Anti-glare
Pas de pixel: 0.285mm
Prise en charge des couleurs: 16.2M colours (6-bit + 2-bit FRC)
Horloge pixel: 140MHz - COMPATIBILITÉOrdinateur: VGA up to 1440 x 900 non-interlaced (max. 60Hz)
Mac®: Power Mac™ G3/G4/G5 up to 1152 x 870 (max. 60Hz) - Dimensions (mm)Physique avec support: 451 x 391 x 197
Physique sans support: 451 x 334 x 52
- NORMESTCO'99, GS, Ergo, ISO 13406-2 (pixel failure class II), TUV-S/IRAM/UL-AR S Mark, Argentina TUV/S, UL, cUL, FCC-B, CB, CE, NOM, ICES-003, GOST-R, SASO, BSMI, CCC, ENERGY STAR®, PSB, C-TICK
- CONTENU DE L'EMBALLAGELCD display, power cable, 15-pin VGA cable, audio cable, Quick Start Guide, ViewSonic Wizard CD (User Guide/drivers)
- AUDIOHaut-parleurs: Integrated stereo speakers
- CONNECTEURSAnalogique: 15-pin mini D-sub (detachable cable)
Alimentation: 3-pin AC plug (CEE22)
Audio: 3.5mm stereo audio line-in - AlimentationTension: AC 100 – 240V, 50/60Hz (auto switch), internal power supply
Consommation: 32 watt (typ.), <1 watt in power save mode - COMMANDESDe base: Power, menu [1], down, up, select [2], mute
OSD: Auto image adjust, contrast, brightness, audio adjust, ViewMatch® colour adjust (sRGB, 9300K, 6500K, 5000K, 5400K, user RGB), Information (resolution, H/V frequency, pixel clock, model number, serial number), Manual image adjust (H. size, H/V position, fine tune, sharpness), setup menu (language, resolution notice, OSD position, OSD timeout, OSD background), OSD/power lock, memory recall - CONDITIONS D'EXPLOITATIONTempérature: 5°C – 35°C
Humidité: 20% – 80% (non-condensing) - PoidsNet avec support: 4.5kg
Net sans support: 4.0kg - Entrée vidéoFréquence: Fh: 30 – 82kHz, Fv: 50 – 85Hz
Synchronisation: H/V separated (TTL)
Analogique: RGB analogue (0.7/1.0 Vp-p, 75 ohms) - GESTION ALIMENTATIONMeets TCO'99 and ENERGY STAR® standards
- ERGONOMIEInclinaison: Down 5°, Up 20°
