ViewBoard Mini IFP2410

ViewBoard® Mini 24'' Interactive Display

  • Interactive front-facing teaching and collaboration
  • Built-in myViewBoard® digital whiteboarding software
  • Built-in ViewBoard® Cast streaming software
Sales Enquiry

OVERVIEW

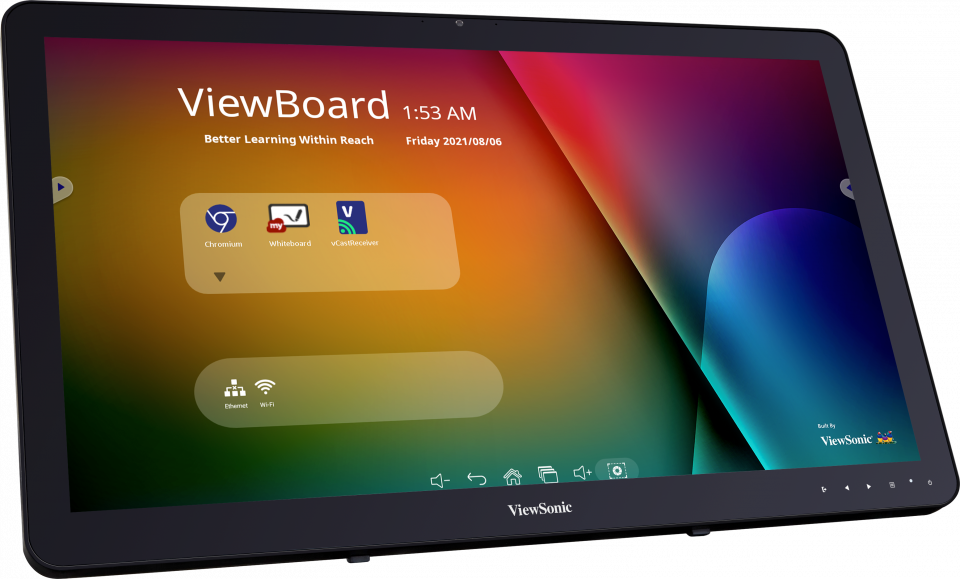

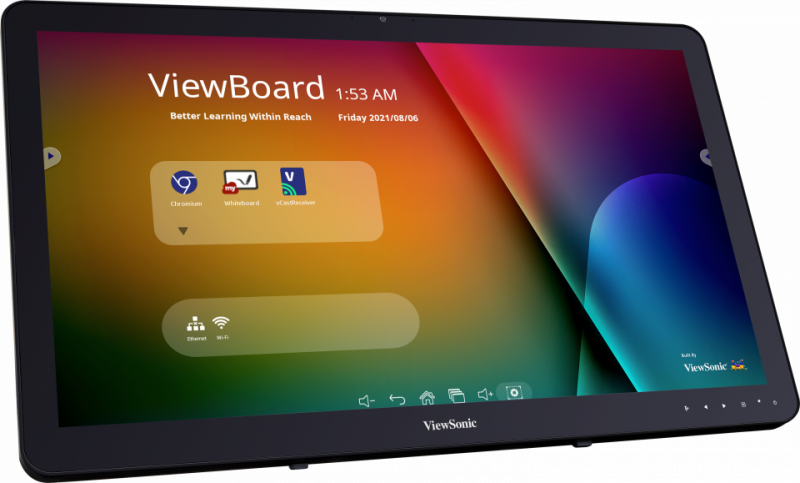

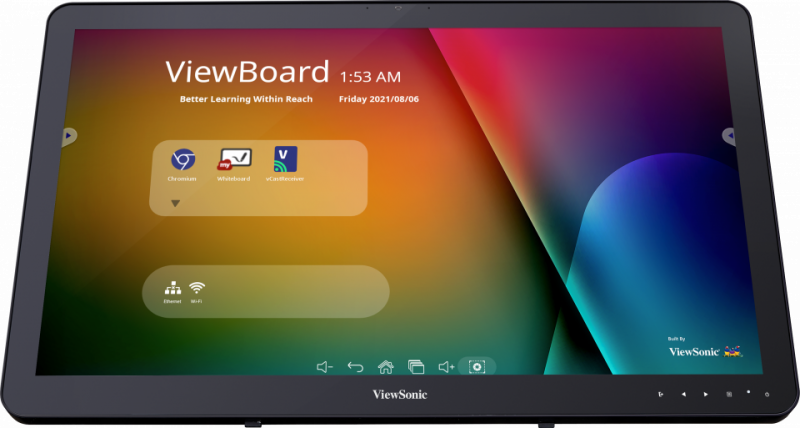

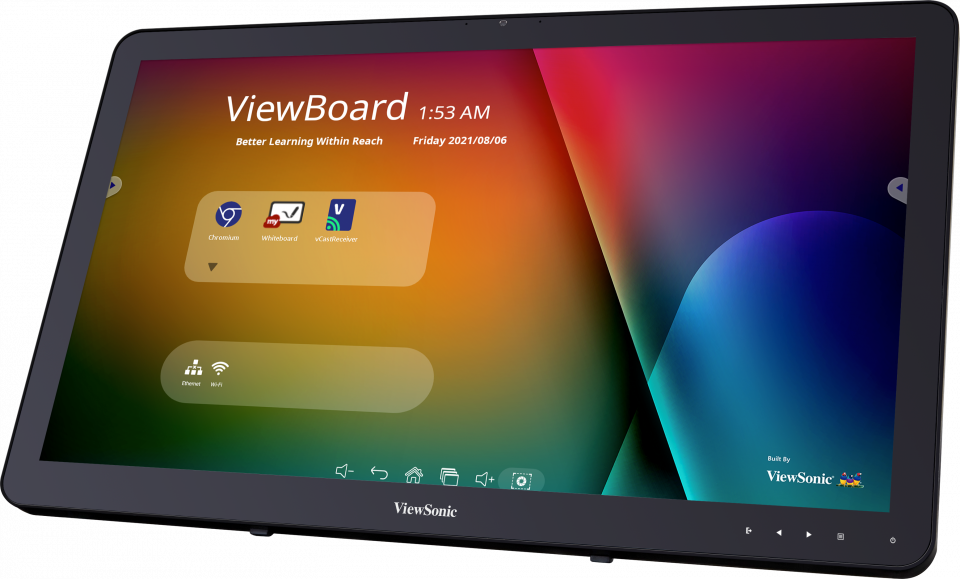

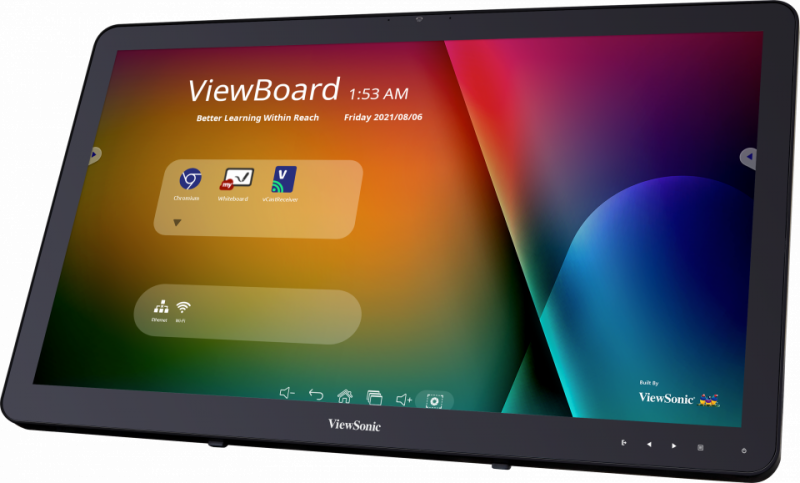

The ViewBoard® Mini IFP2410 is a 24" interactive display that transforms podiums and lecterns into collaboration hubs for front-facing teaching. With integrated myViewBoard® digital whiteboarding software, ViewBoard® Cast streaming software, and a 10-point touchscreen, the ViewBoard® Mini makes content creation and sharing easier than ever before. Educators can manipulate and control content, files, images, and annotations on the ViewBoard® Mini touchscreen, then share that content on a larger front-of-classroom display or projector. For dynamic lessons and interactive collaboration, multiple presenters can simultaneously draw, write, and annotate on the ViewBoard® Mini as well - making it an ideal collaboration hub for classrooms, lecture halls, and auditoriums.

Interactive front-facing teaching and collaboration

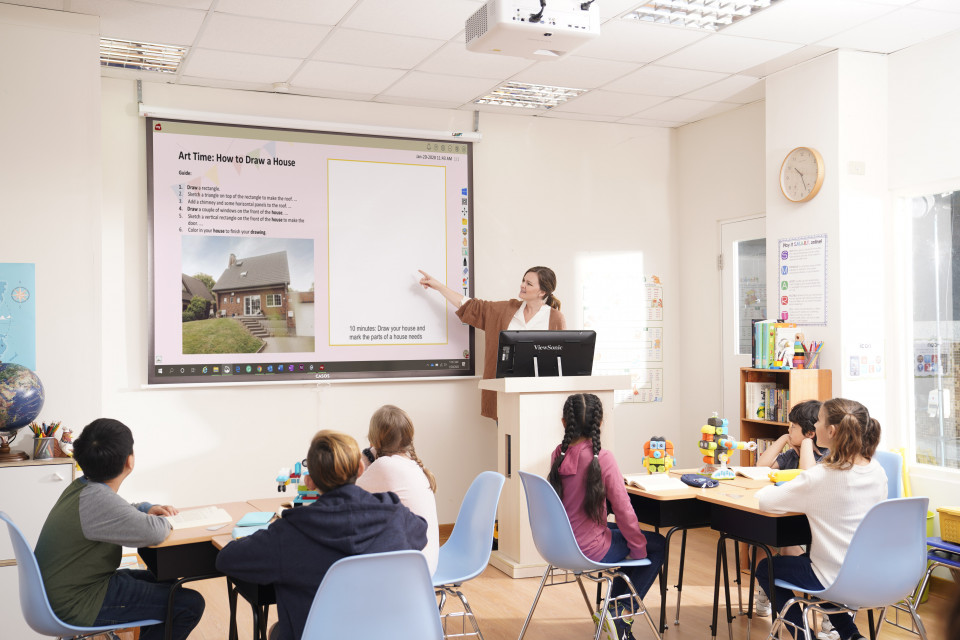

The ViewBoard® Mini touchscreen provides a front-facing interactive display solution, allowing educators to face the audience while annotating on slides – all done without turning your back on the audience. Not only that, but it also allows the presenter to be in full control of the presentation, creates interaction, and eye contact with the audience for total engagement.

Built-in myViewBoard® digital whiteboarding software

myViewBoard® digital whiteboarding software combines enterprise-level security with cloud-based portability and annotation tools to enhance the way you connect and collaborate. Convenient features include multimedia support, screen recording, easy conversion of common office files, QR code sharing, and much more.

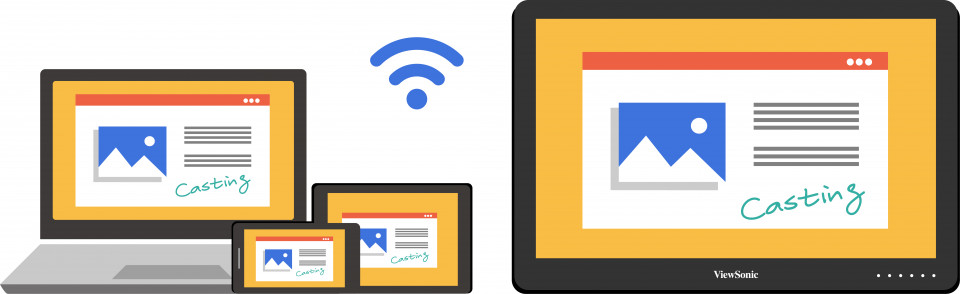

Built-in ViewBoard® Cast streaming software

ViewBoard® Cast allows you to share content on a projection screen, meaning that all content on the ViewBoard® Mini IFP2410 interactive display including annotations can be transferred directly onto a projection screen via ViewBoard® Cast for better visibility and long distance installation.

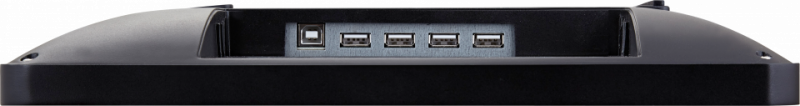

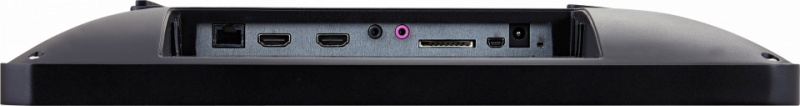

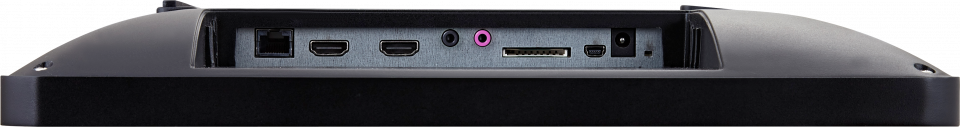

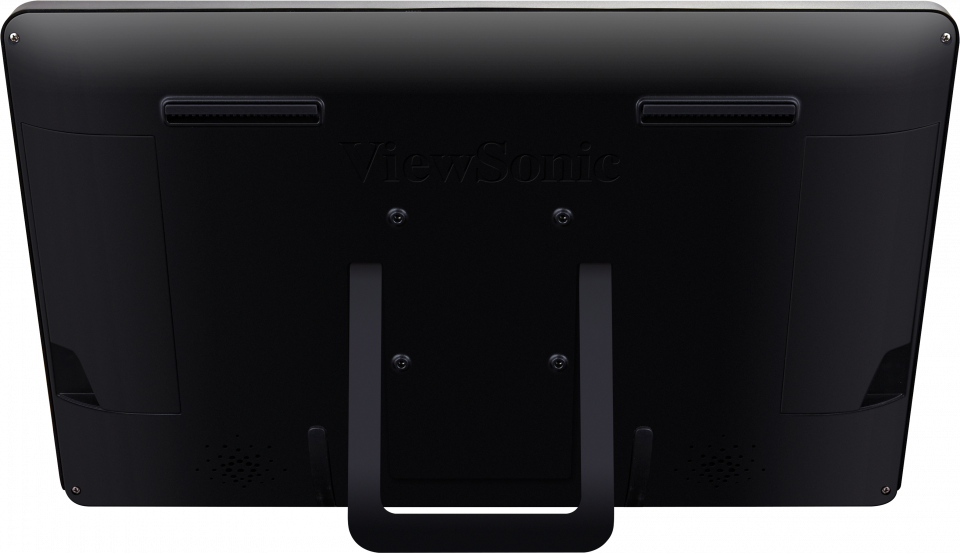

I/O Ports

  1. Menu Controls

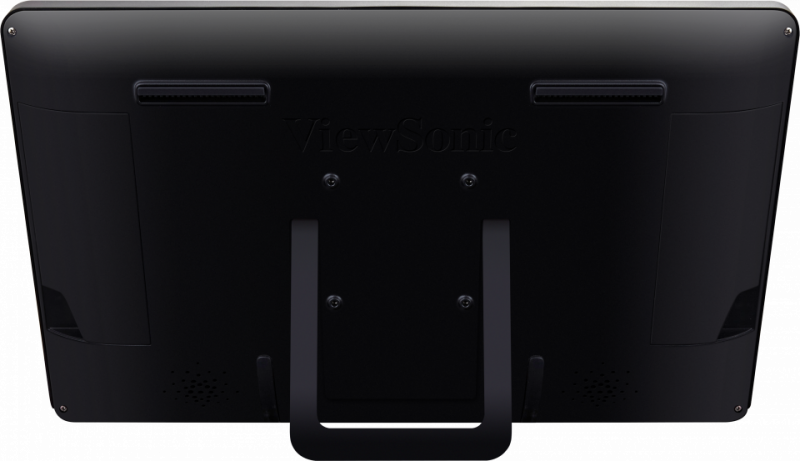

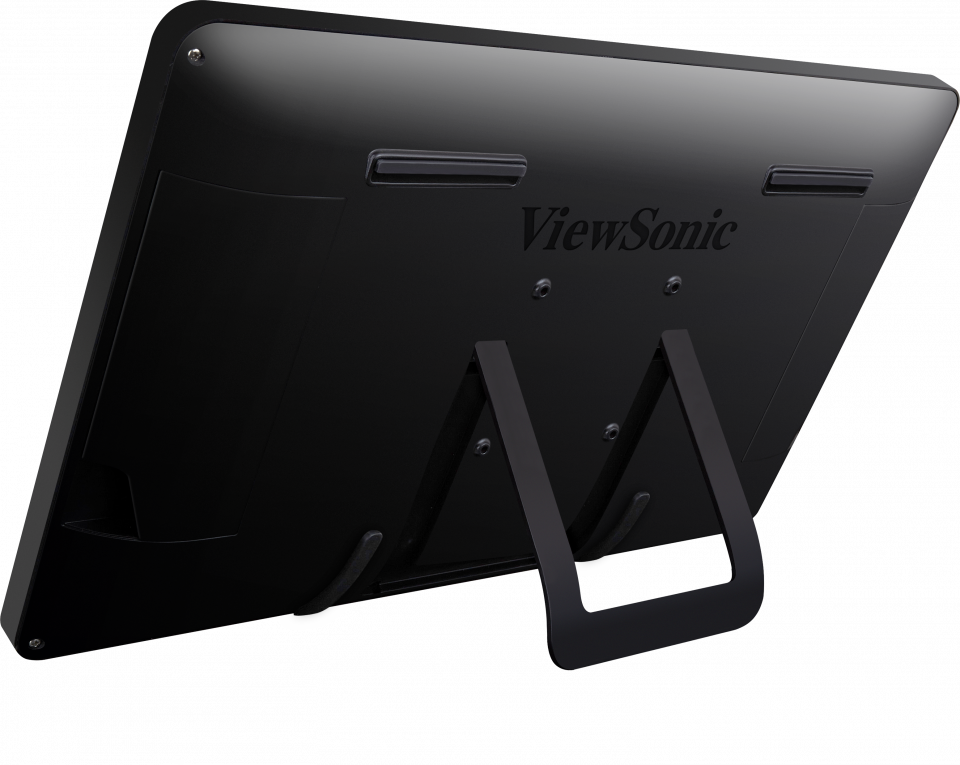

  2. VESA Compatible (Wall Mount 100 x 100 mm)
  3. LAN
  4. HDMI/MHL In/Out
  5. Audio In
  6. Headphone
  7. SD Card Reader
  8. Mini USB
  9. DC Power In

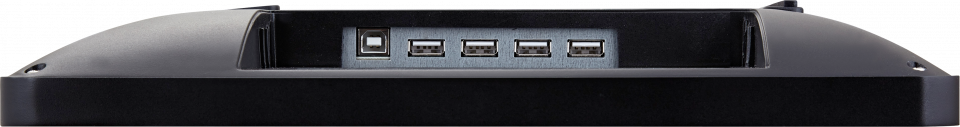

  10. USB 2.0 x 4
  11. USB Type-B
  12. Internal Speakers
  13. Camera

SPECIFICATIONS


  • Display
    Panel Size: 23.6"
    Panel Type: IPS
    Aspect Ratio: 16:9
    Resolution: 1920 x 1080
    Brightness: 250 nits (typ.)
    Contrast Ratio: 3000:1 Typ.
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 40,000 Hours Typ.
    Orientation: Landscape
  • Platform
    Processor: ARM based SoC
    RAM: 2GB DDR3
    Storage: 16GB EMMC iNand
  • Touch
    Type/ Tech: PCAP Touch Technology
    Touch Point: 10 points touch, 10 points writing
