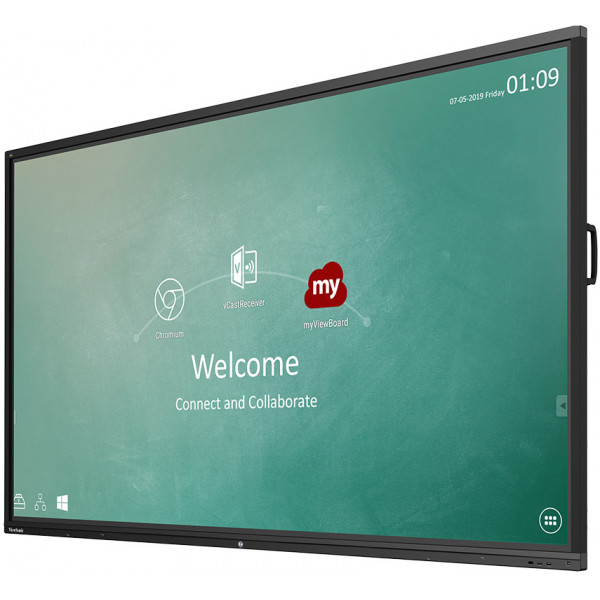

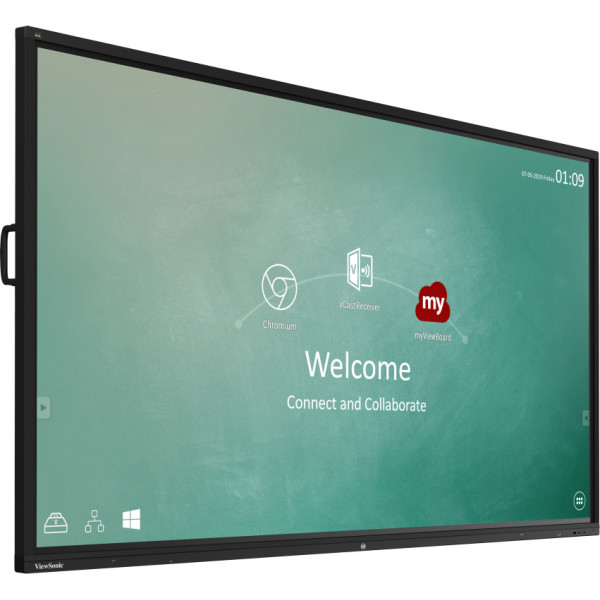

IFP9850-3

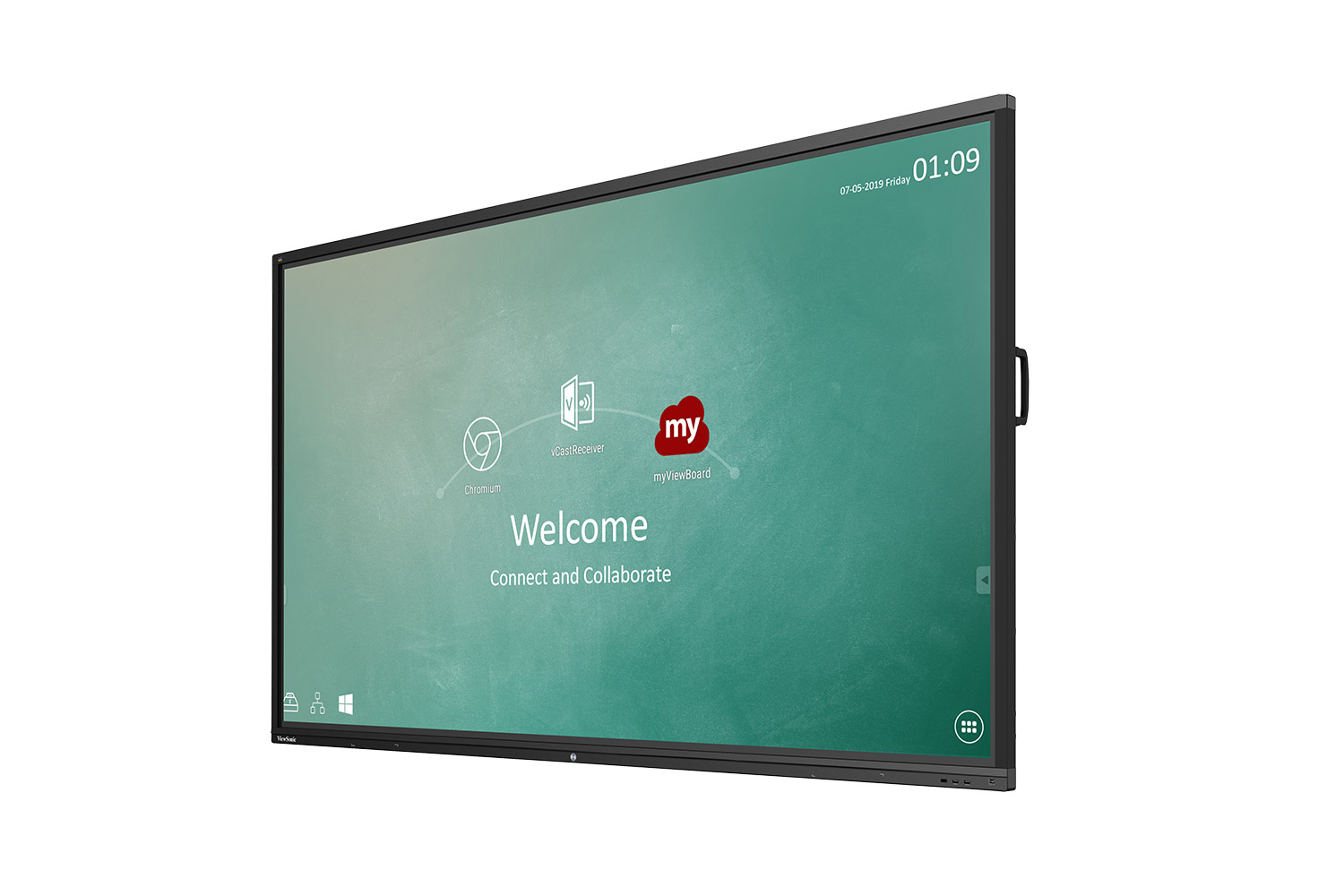

ViewBoard® 98'' 4K Interactive Display

  • UFT (Ultra Fine Touch) Technology
  • myViewBoard™ digital whiteboard software
  • ViewBoard® Cast 4-way split screen content sharing software
  • SmartPort™ shared front USB ports for internal & external PCs
  • 2.0 Stereo sound
Sales Enquiry

OVERVIEW

The ViewBoard® IFP50 series embraces UFT (Ultra Fine Touch) Technology to offer more precise writing and faster processing time than traditional IR panels. Smooth, dual-pen writing with our new, slim 2.5mm pens enables groups of teachers and students to work efficiently on any detailed tasks that require the use of accurate, fine tipped pens. The ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience so that even at the edge you can write clearly and confidently. Integrated myViewBoard™ digital whiteboarding software allows users to collaborate on the go, while ViewBoard® Cast provides 4-way, split screen content sharing.

UFT Technology

UFT Technology enables precision writing with a 2.5mm diameter pen tip.

Dual-Pen

Automatically detect pen diameter (8mm & 2.5mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on embedded OS

Built-in myViewBoard™ digital whiteboarding software to collaborate on the go.

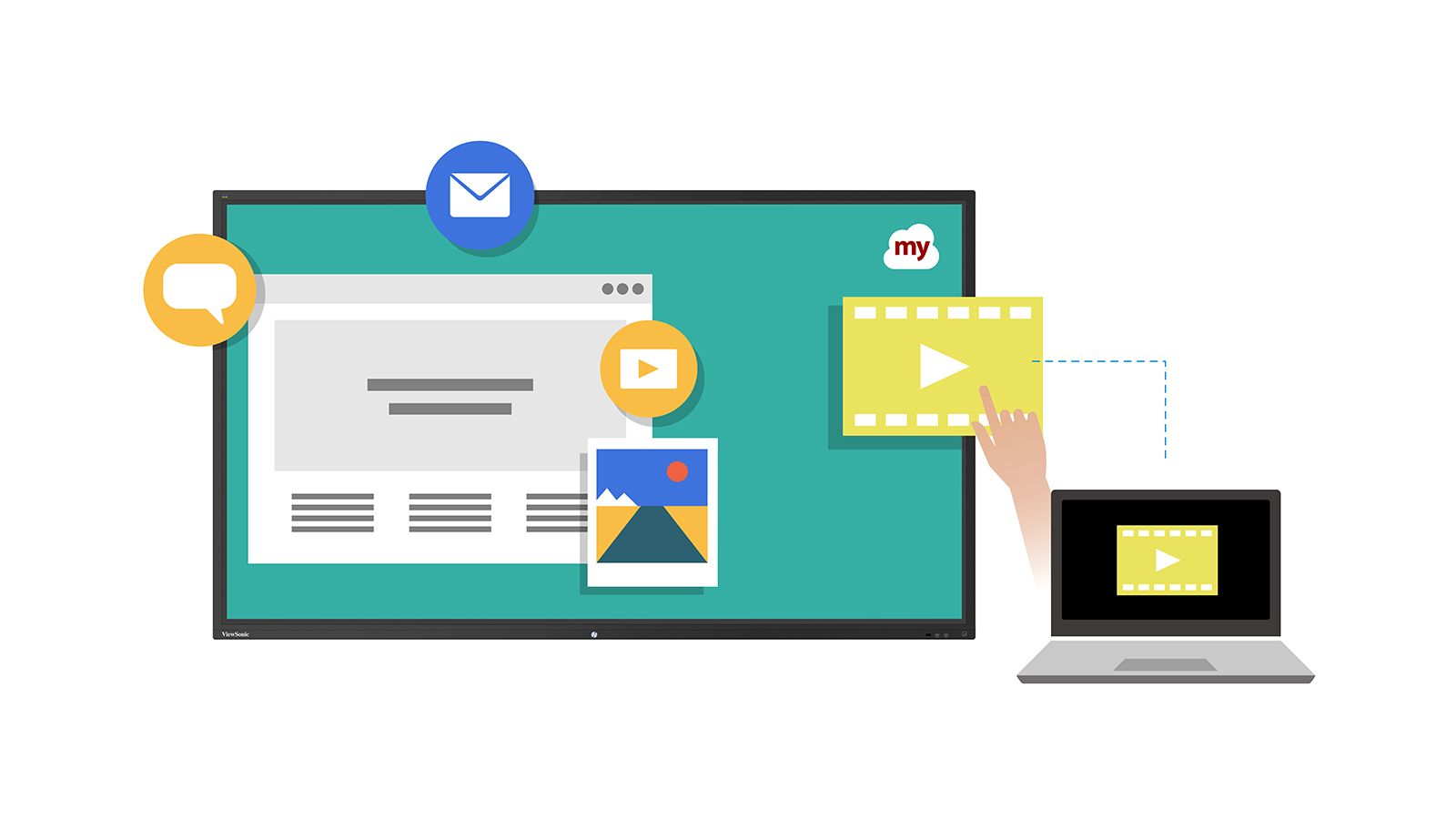

4-way Split Screen

4-way split screen content sharing with built-in ViewBoard® Cast software.

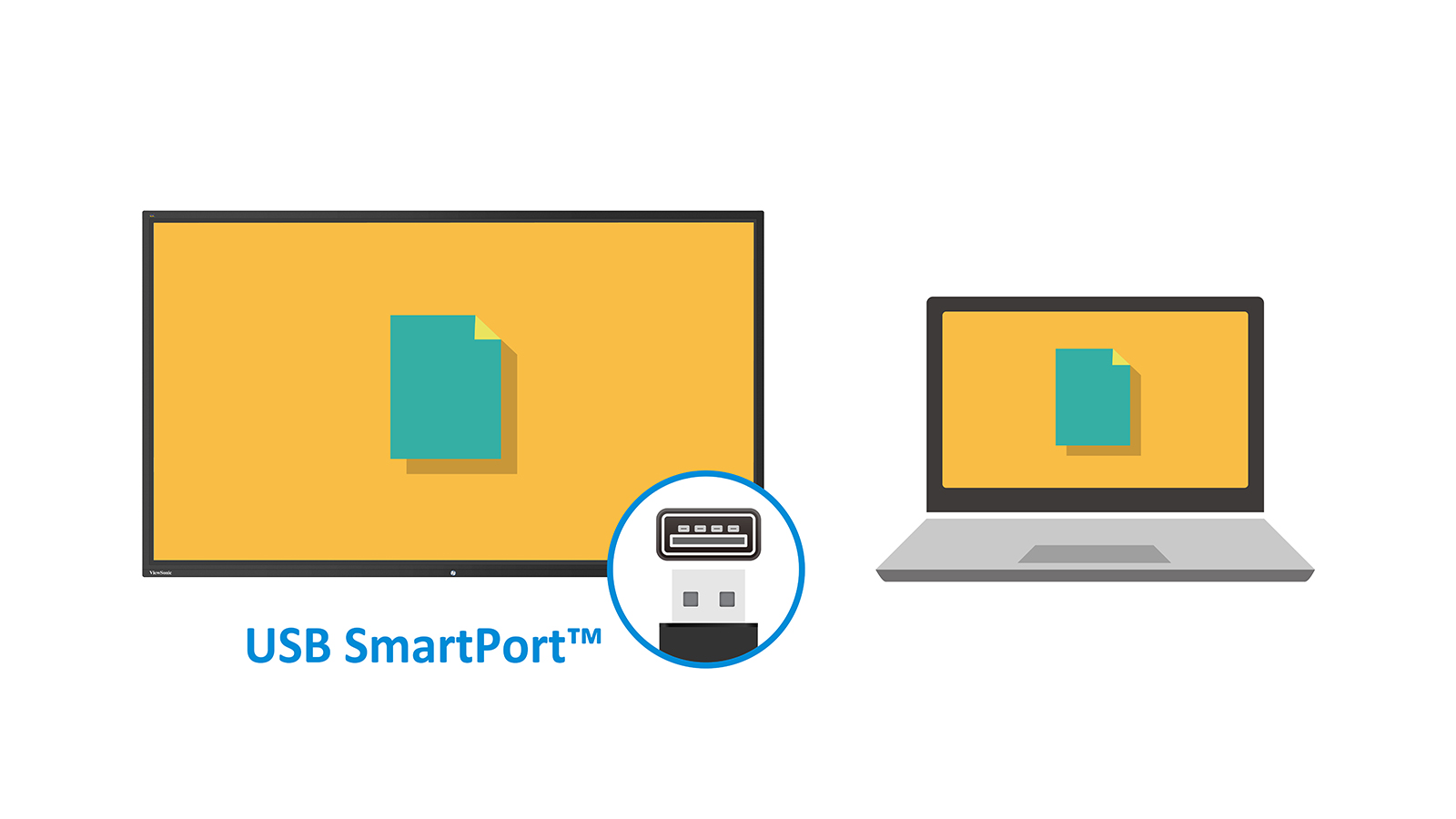

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

Stereo Sound

2.0 Stereo sound

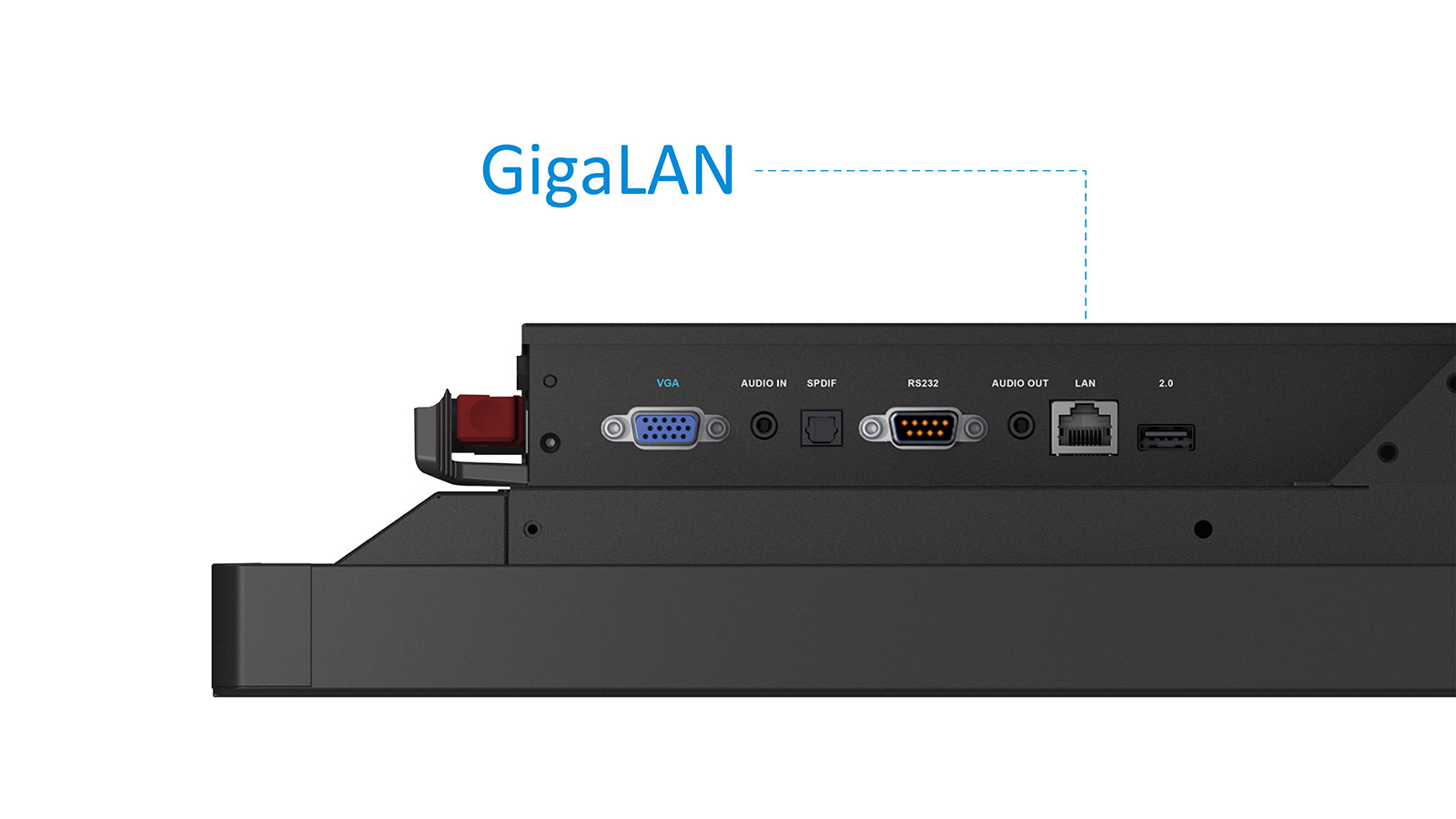

Faster Internet

GigaLAN provides a faster, more powerful internet connection.

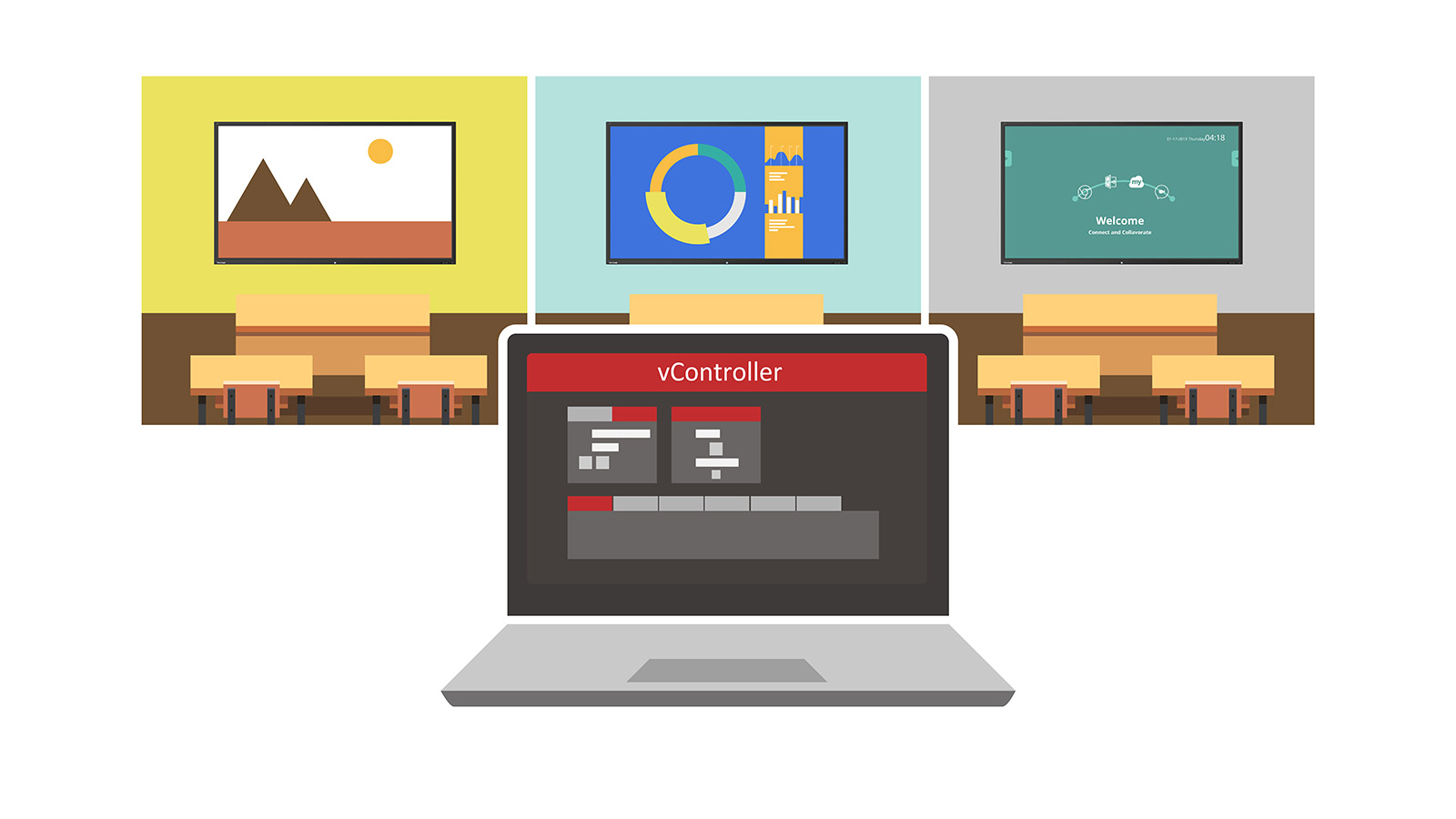

Remote Control

Built-in RS232 port and vController software for remote control.

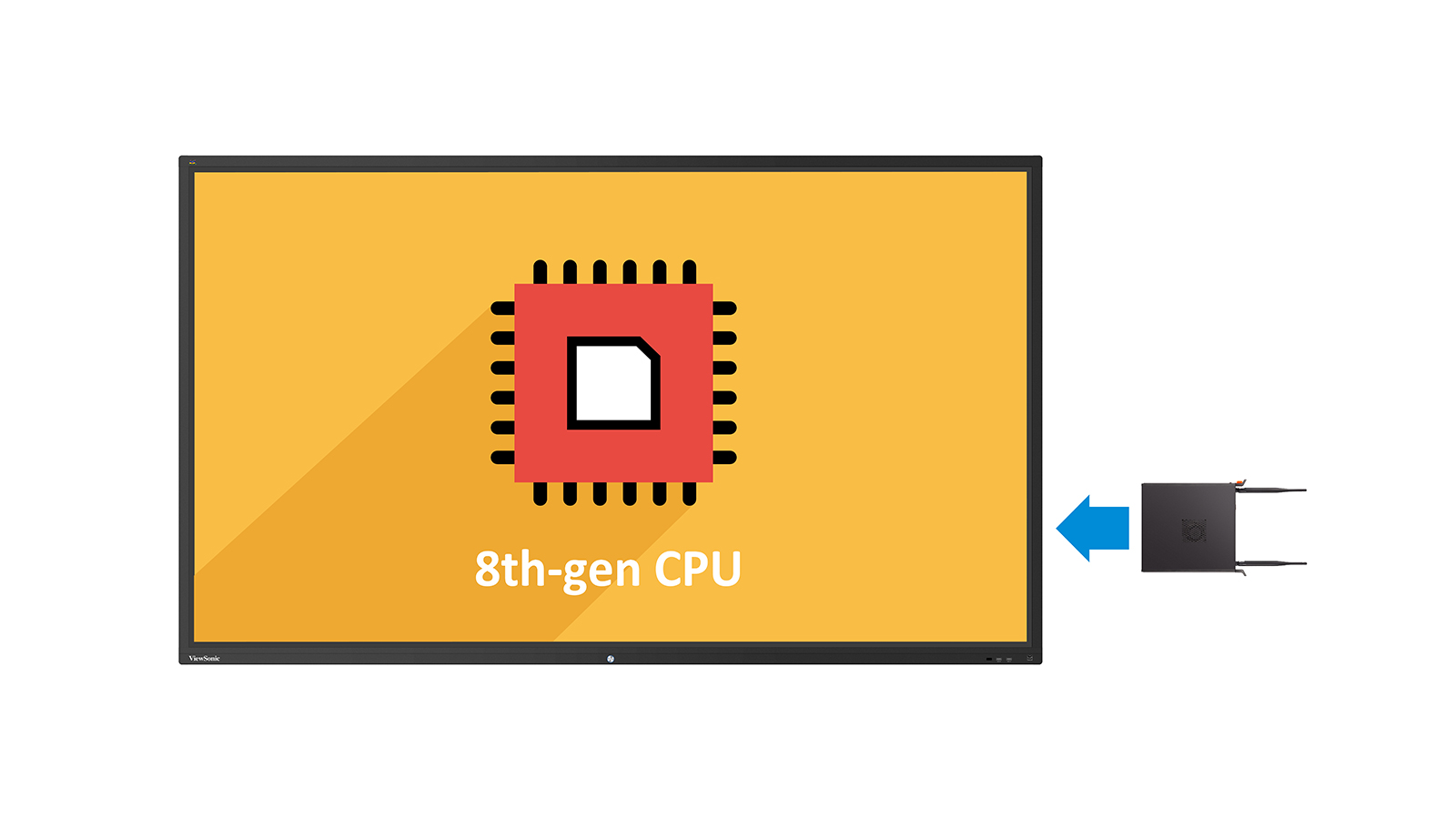

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

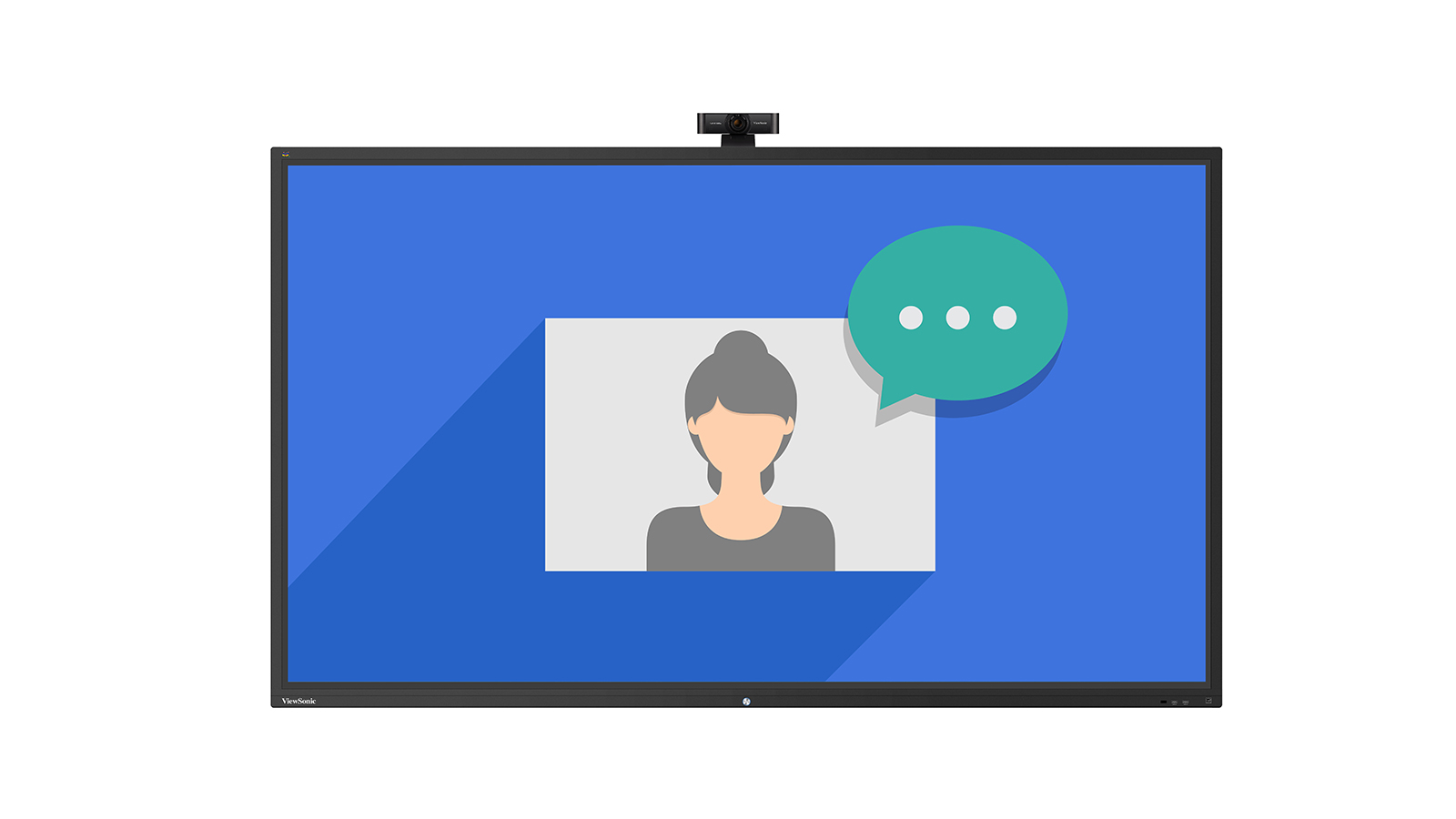

Web Camera

Top-mounted 1080p web camera (Optional).

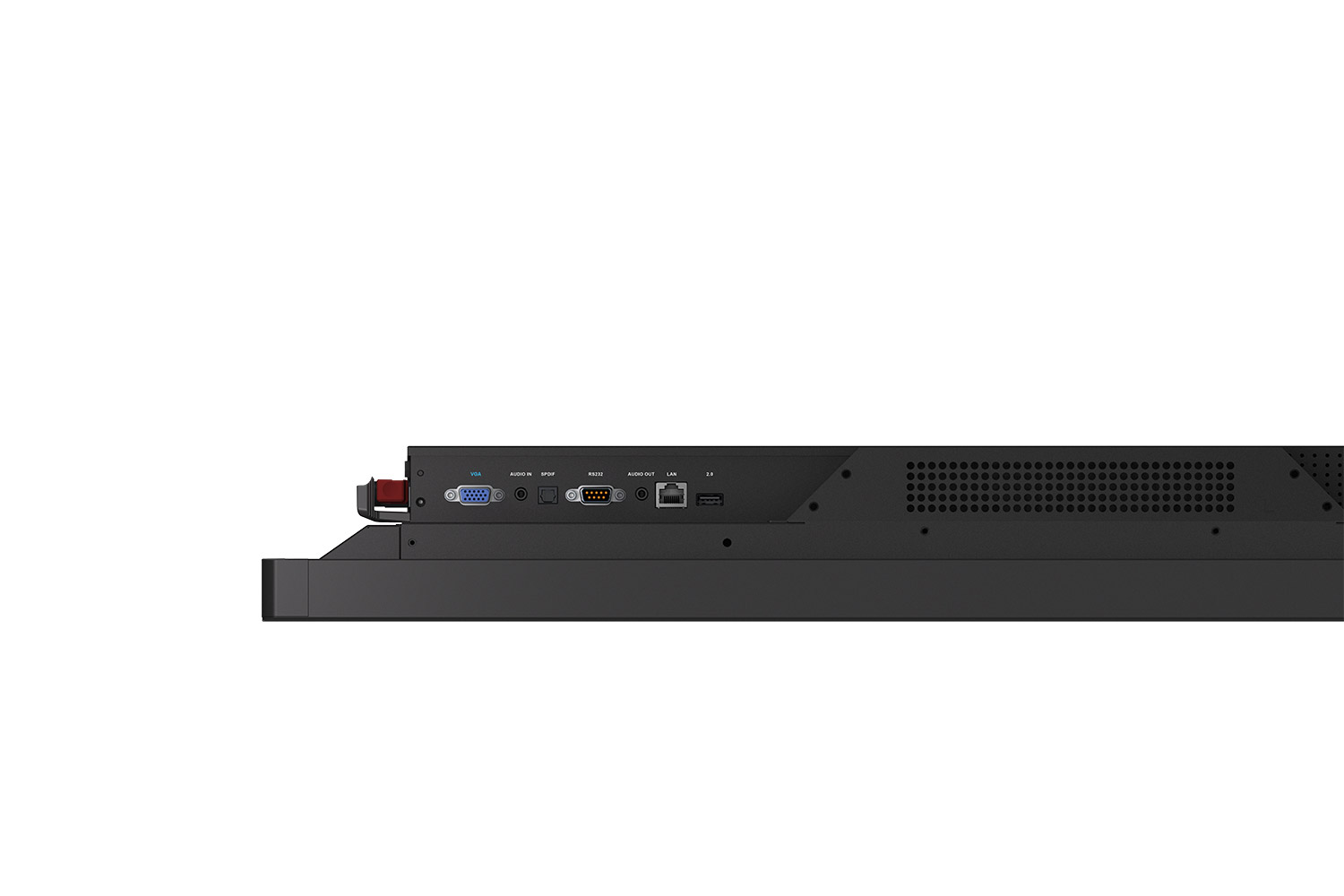

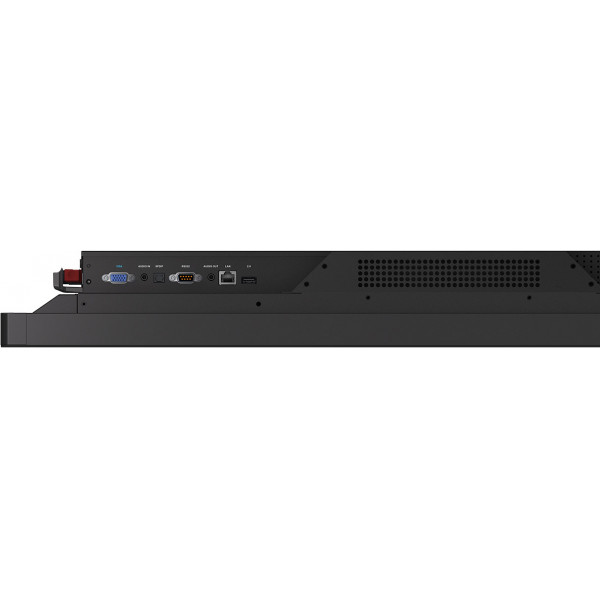

I/O Ports

  1. USB 2.0 X 2
  2. HDMI OUT
  3. USB 3.0 X 3
  4. USB Touch Port
  5. HDMI In X 3
  6. USB Touch Port

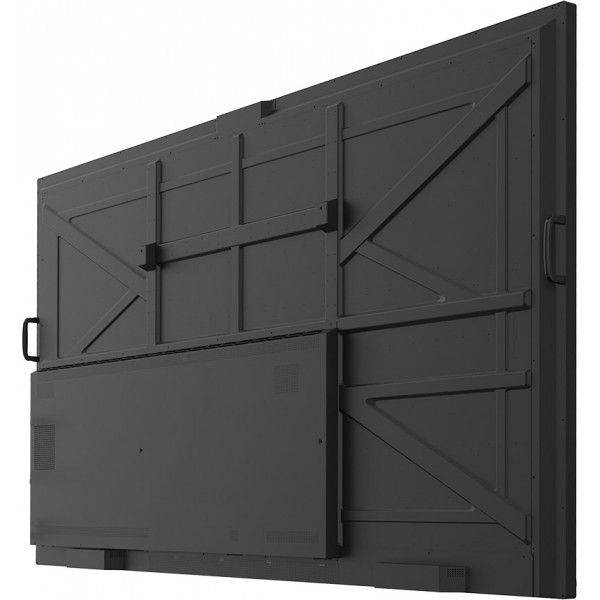

  7. VESA® WALL Mount 800x600 mm
  8. AC IN
  9. VGA
  10. AUDIO IN
  11. SPDIF Out
  12. RS232
  13. AUDIO OUT
  14. LAN
  15. USB 2.0

SPECIFICATIONS


  • Display
    Panel Size: 98"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 2171.85(H) x 1232.35(V) (97.52”diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.)
    Contrast Ratio: 5000:1 (DCR)
    Response Time: 6ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare
    Orientation: Landscape
  • Platform
    Processor: ARM Cortex A73*2(1.5GHz)+A53*2(1.2GHz)
    RAM: 3GB DDR4
    Storage: 16GB
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
