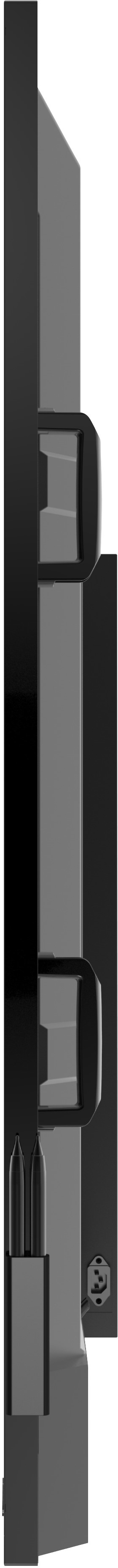

IFP8630

ViewBoard® 86" 4K Interactive Display

  • UFT (Ultra Fine Touch) Technology
  • myViewBoard® digital whiteboard software
  • Dual-pen writing with 3mm/8mm diameter pen tips
  • Ambient Light Sensor
  • Wireless presentation across devices
Sales Enquiry

OVERVIEW

The ViewBoard® IFP30 series embraces ultra fine touch technology to offer fine precision writing. It increases the writing accuracy with 2mm height sensitivity while allowing for dual-pen writing with both 3mm & 8mm diameter pens. It’s also very responsive to distinguish the touch diameters among pens, fingers and palms to avoid false strokes. In addition, the IFP30 series is integrated with myViewBoard® whiteboarding software to provide more accommodative features such as to collaboration on the go; and it’s further complimented by native casting including Miracast, Airplay, and Chromecast; as well as the front I/O ports including HDMI, Touch USB, and USB for easy access. Interactive whiteboards are becoming commonplace. The IFP30 series is the solution for schools and workplaces of all sizes and considerations.

Ultra Fine Touch Technology

It provides fine precision writing with a 3mm diameter pen tip

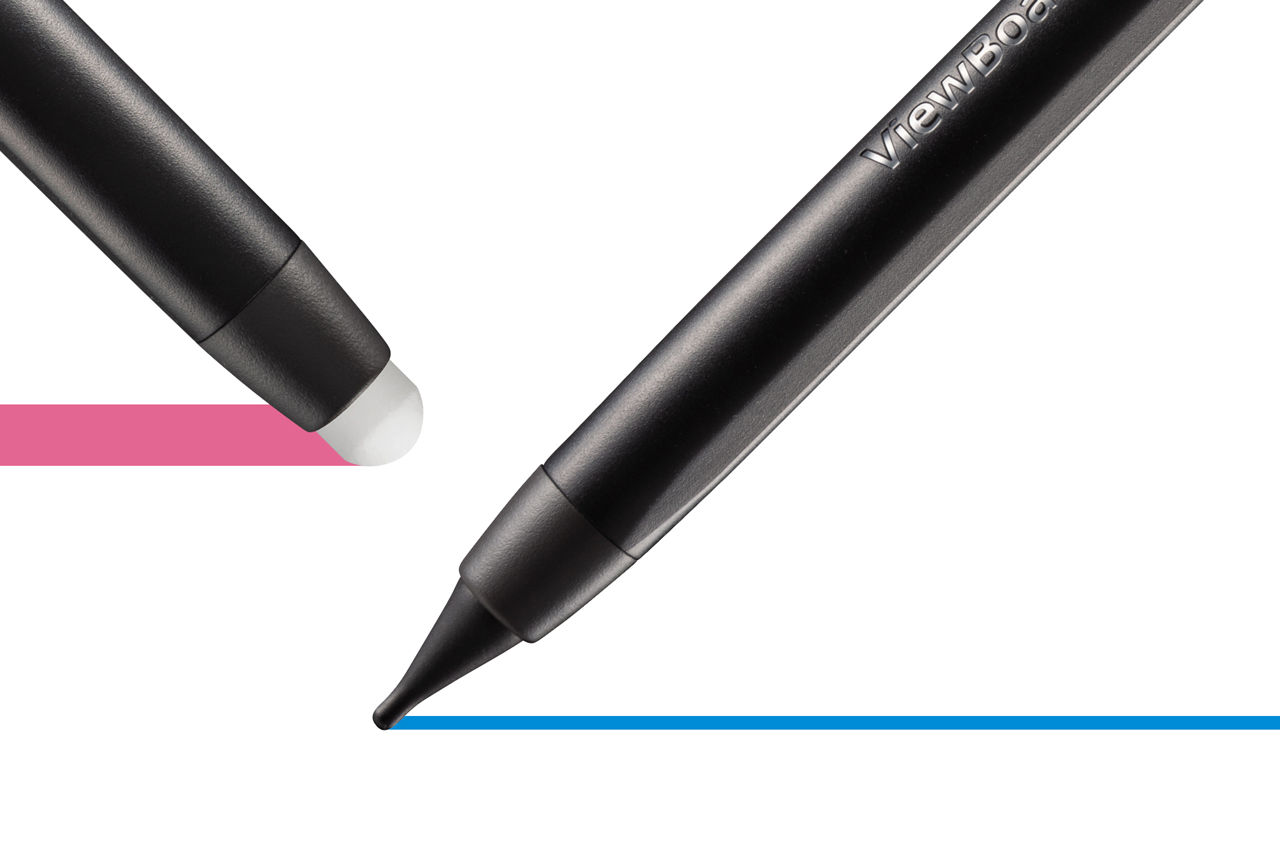

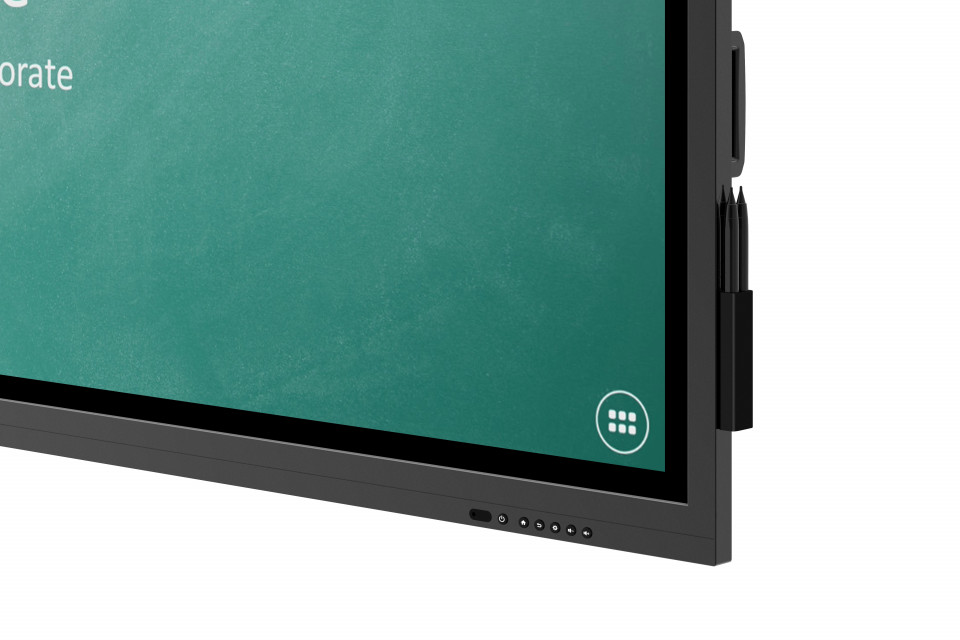

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colors and thicknesses

Full Native Performance on Android

Built-in myViewBoard® whiteboarding software to collaborate on the go

Wireless Content Sharing

Content sharing with built-in ViewBoard® Cast software

Ambient Light Sensor

Automatically adjust the brightness to relieve eye strain

Slot-in PC

Intel OPS PC allows for efficient deployment and easy maintenance (Optional)

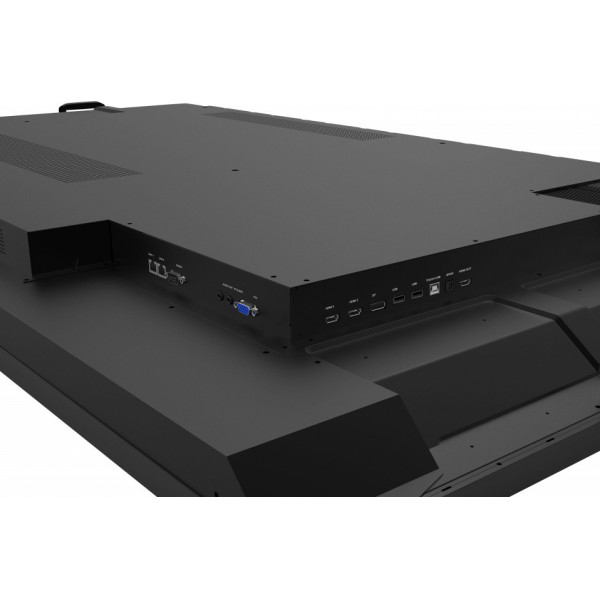

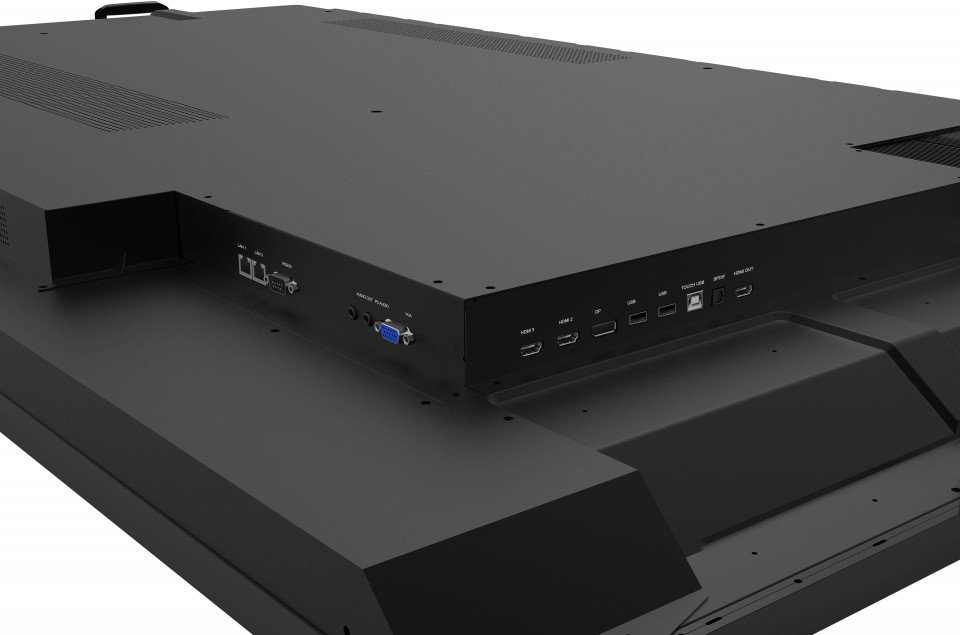

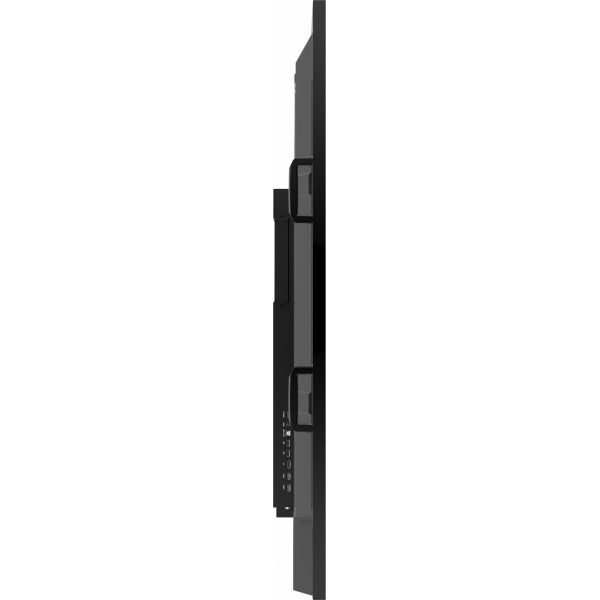

I/O Ports

  1. CONTROL PANEL
  2. USB X 2
  3. TOUCH USB
  4. HDMI IN
  5. HDMI OUT
  6. SPDIF OUT
  7. TOUCH USB
  8. USB X 2
  9. DISPLAY PORT IN
  10. HDMI IN X 2

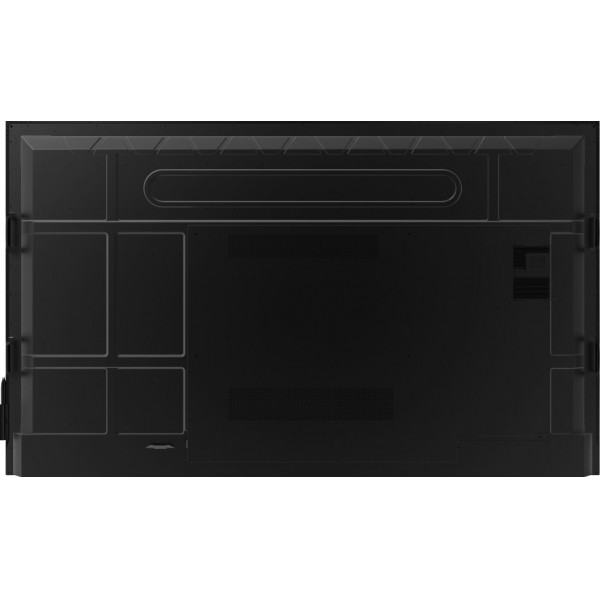

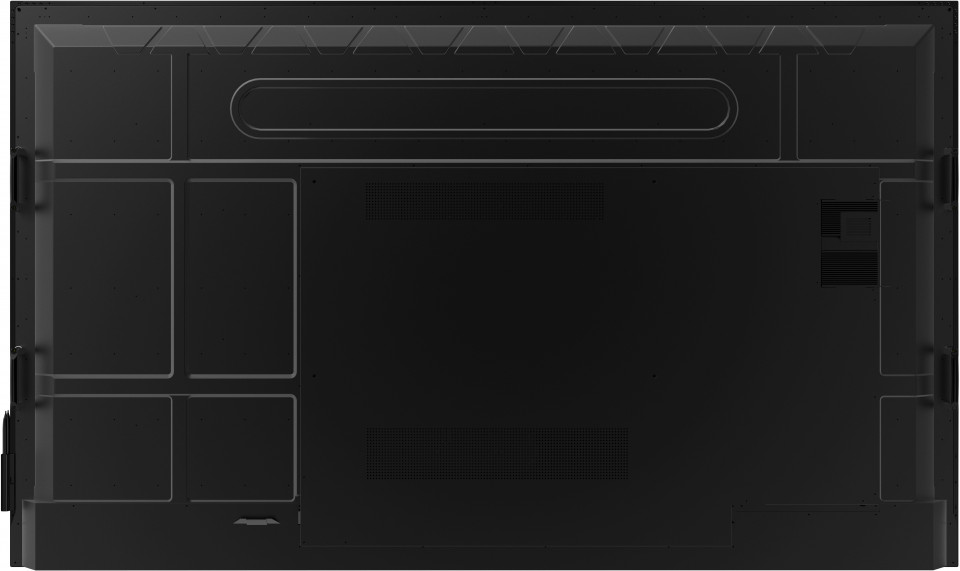

  11. VESA® Wall Mount
    (700 x 400 mm)
  12. RS232 IN
  13. AUDIO OUT
  14. VGA IN
  15. LAN X 2
  16. PC AUDIO IN

SPECIFICATIONS


  • Display
    Panel Size: 86"
    Type/Tech: TFT LCD module with DLED backlight
    Display Area (mm): 1895.04*1065.94mm
    Aspect Ratio: 16:9
    Native Resolution: 4K60hz
    Colors: 10 bits
    Brightness: 400(Typ.)
    Contrast Ratio: 1200:1
    Response Time: 8ms(Tyoe)
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000hr(min)
    Surface Treatment: Hardness: 7H, Costing: AG coating
    Bezel: Slim
    Orientation: Landscape
  • Platform
    Processor: Cortex-A73*2 + Cortex-A53*2 1.5Hz
    RAM: 3GB DDR4
    Storage: 16GB
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767W*32767D
    Touch Point: 20 points , 5 writing
