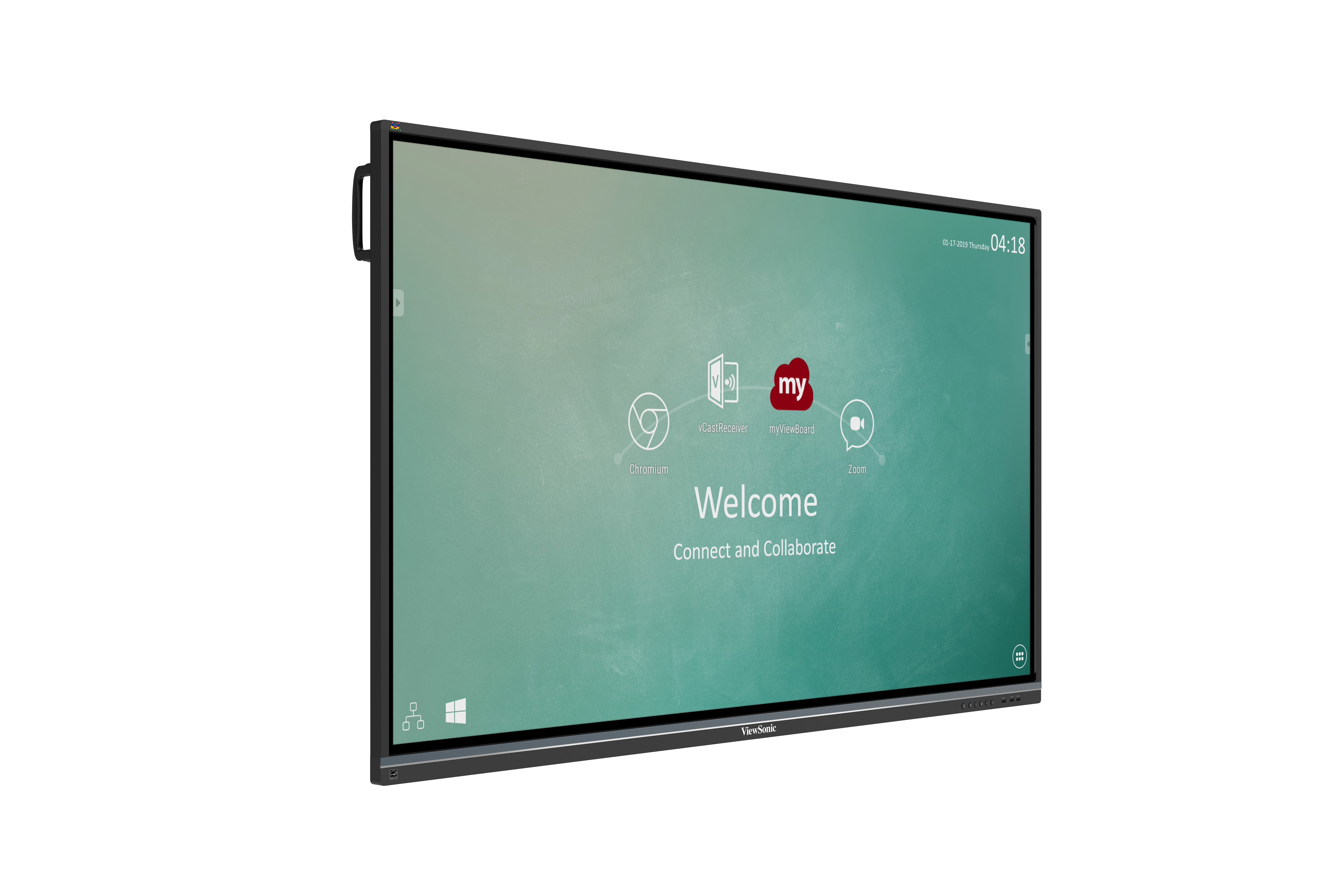

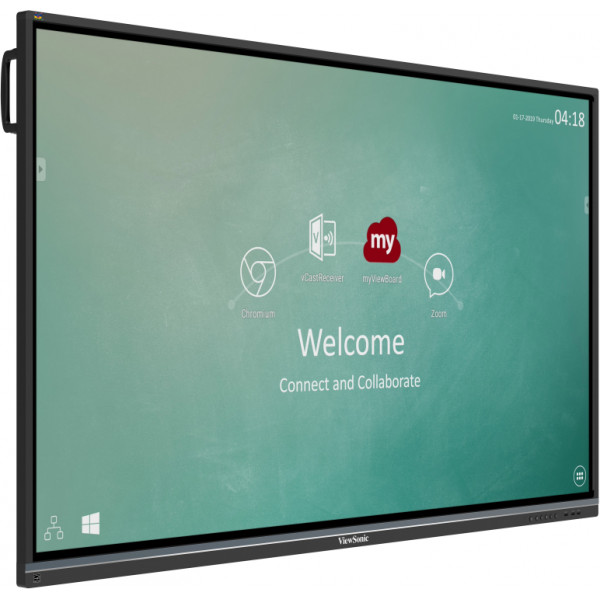

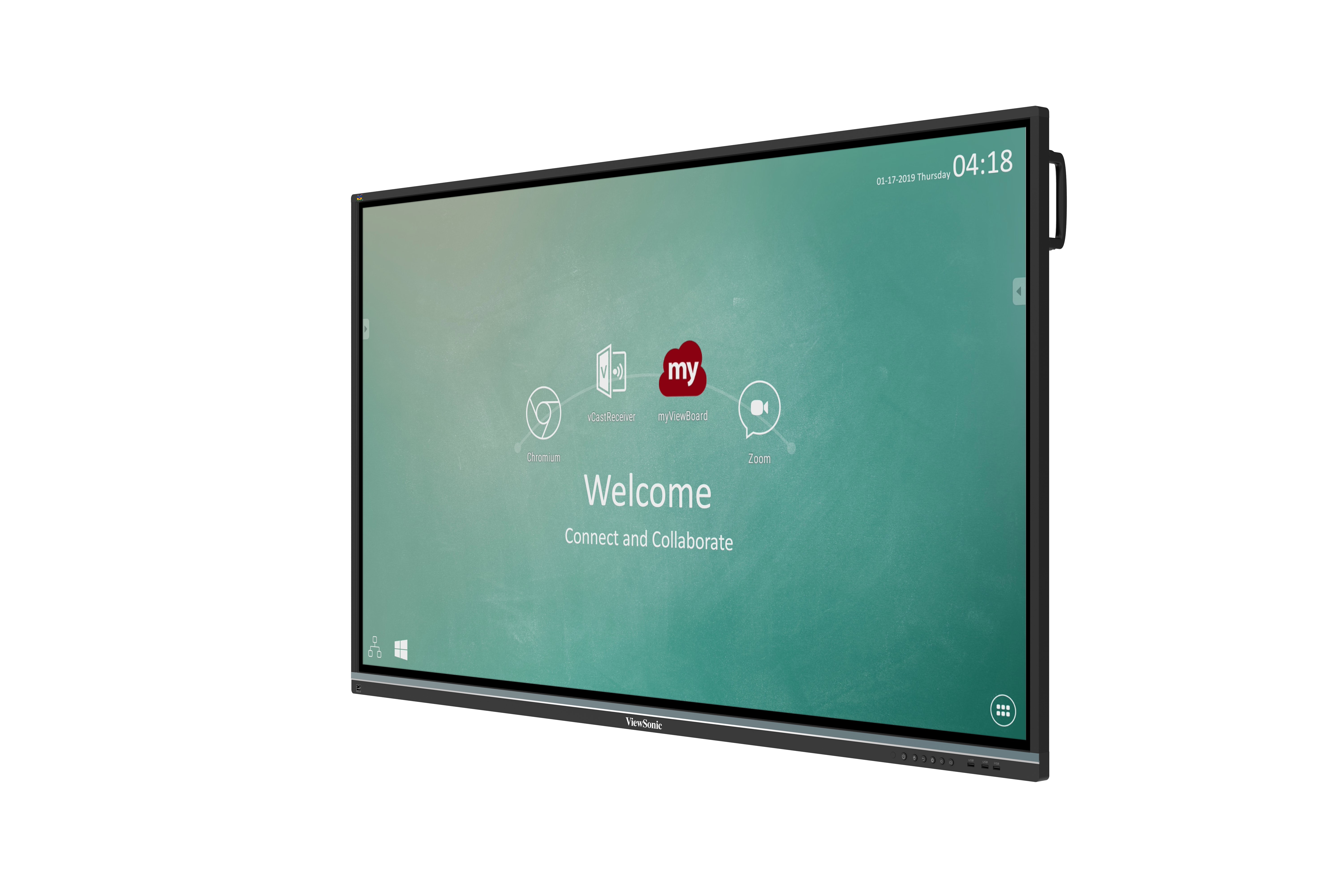

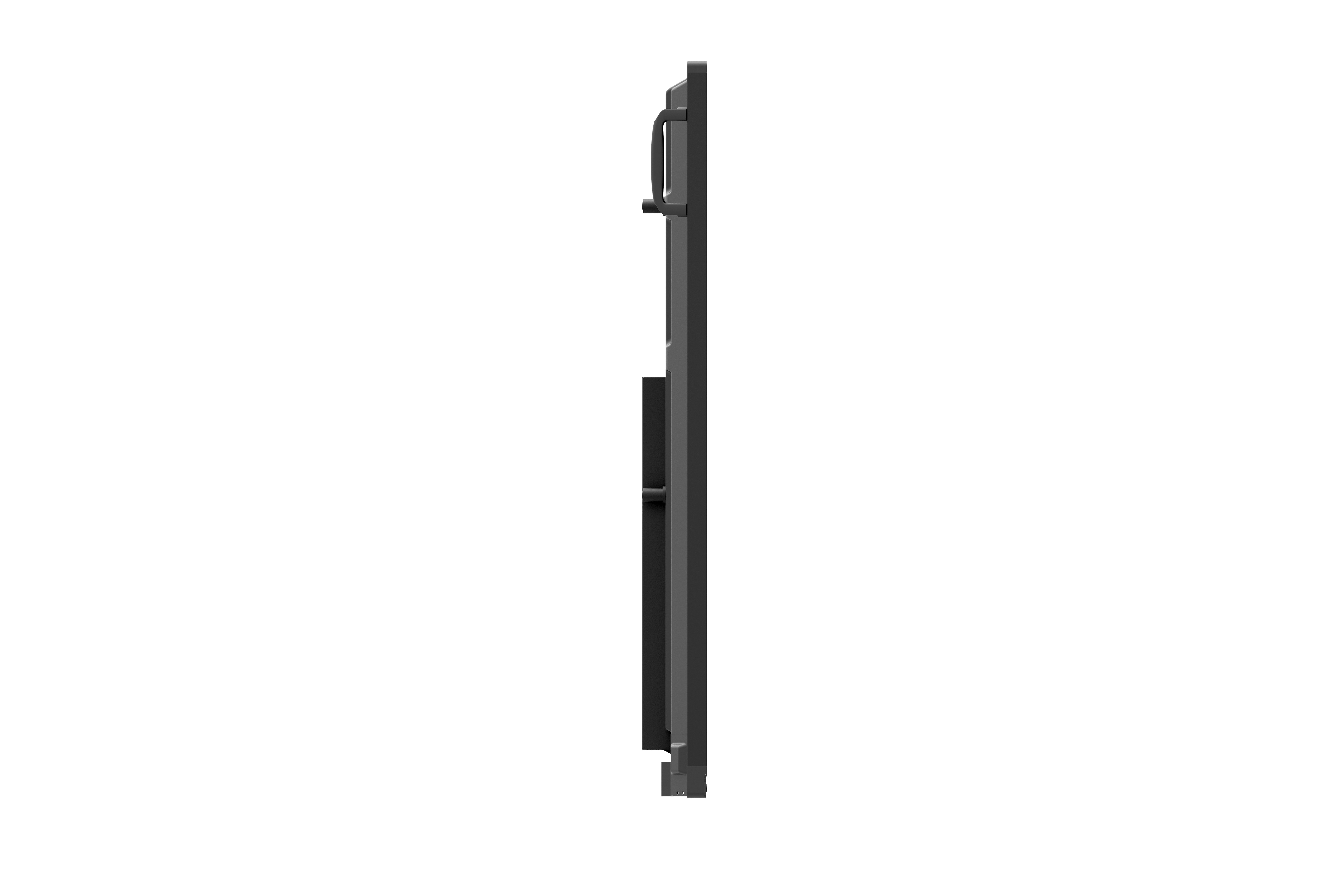

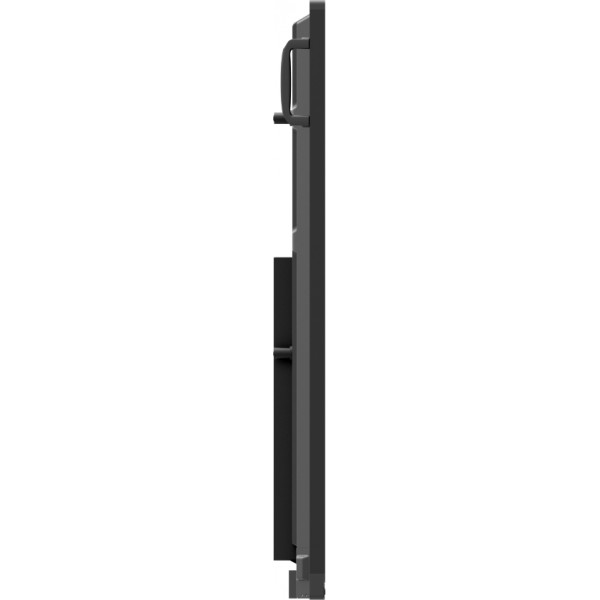

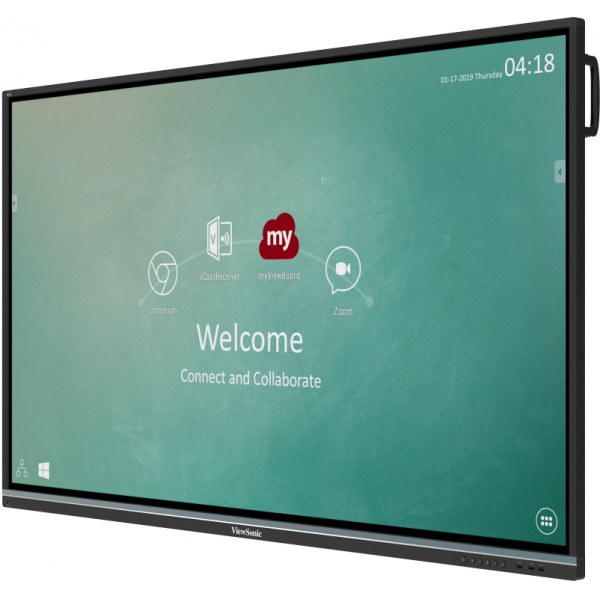

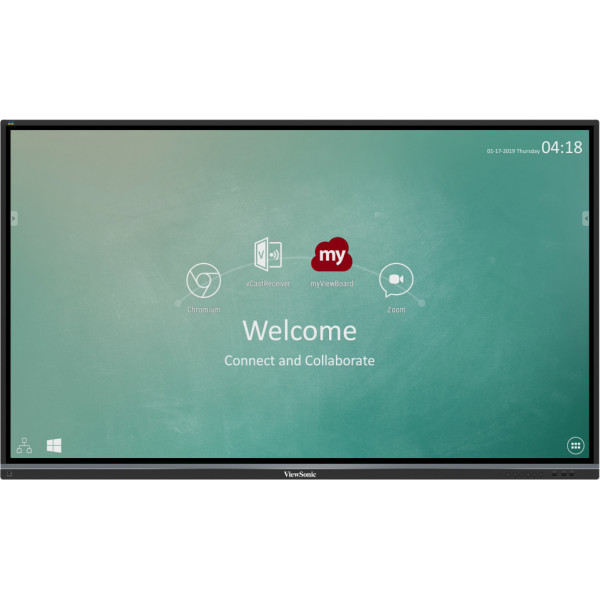

IFP7550-2

ViewBoard® 75" 4K Interactive Display

  • Ultra fine touch technology enables real-time response dual-pen writing with a 3mm diameter pen tip
  • 2.1 Stereo sound with a built-in woofer
  • Built-in myViewBoard™ whiteboarding software to collaborate on the go
  • 4-way split screen content sharing with built-in ViewBoard® Cast software
  • SmartPort™ shared front USB ports for internal & external PCs
Sales Enquiry

OVERVIEW

The ViewBoard® IFP50 series embraces ultra fine touch technology to offer fine precision writing. Along with slim IR touch and its optimized integration, the processing time is faster than traditional IR panels. Meanwhile, smooth dual-pen writing with our new, slim 3mm pens enables teachers and students to work efficiently on any detailed tasks that require the accurate use of fine tipped pens during group discussion. On top of that, the ViewBoard® IFP50 series is designed with a slim bezel to broaden your viewing experience, so that even at the edge you can write clearly and thinly. It is also well integrated with myViewBoard™ whiteboarding software to collaborate on the go, and further complimented by ViewBoard® Cast software for 4 way split screen content sharing.

Ultra Fine Touch Technology

It provides fine precision writing with a 3mm diameter pen tip

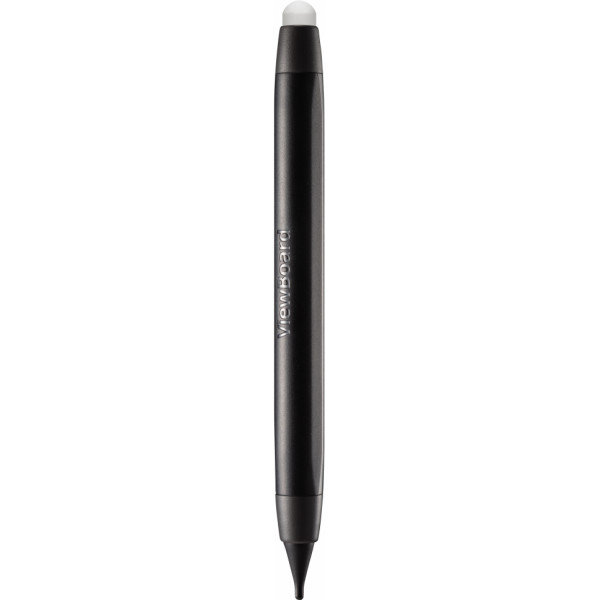

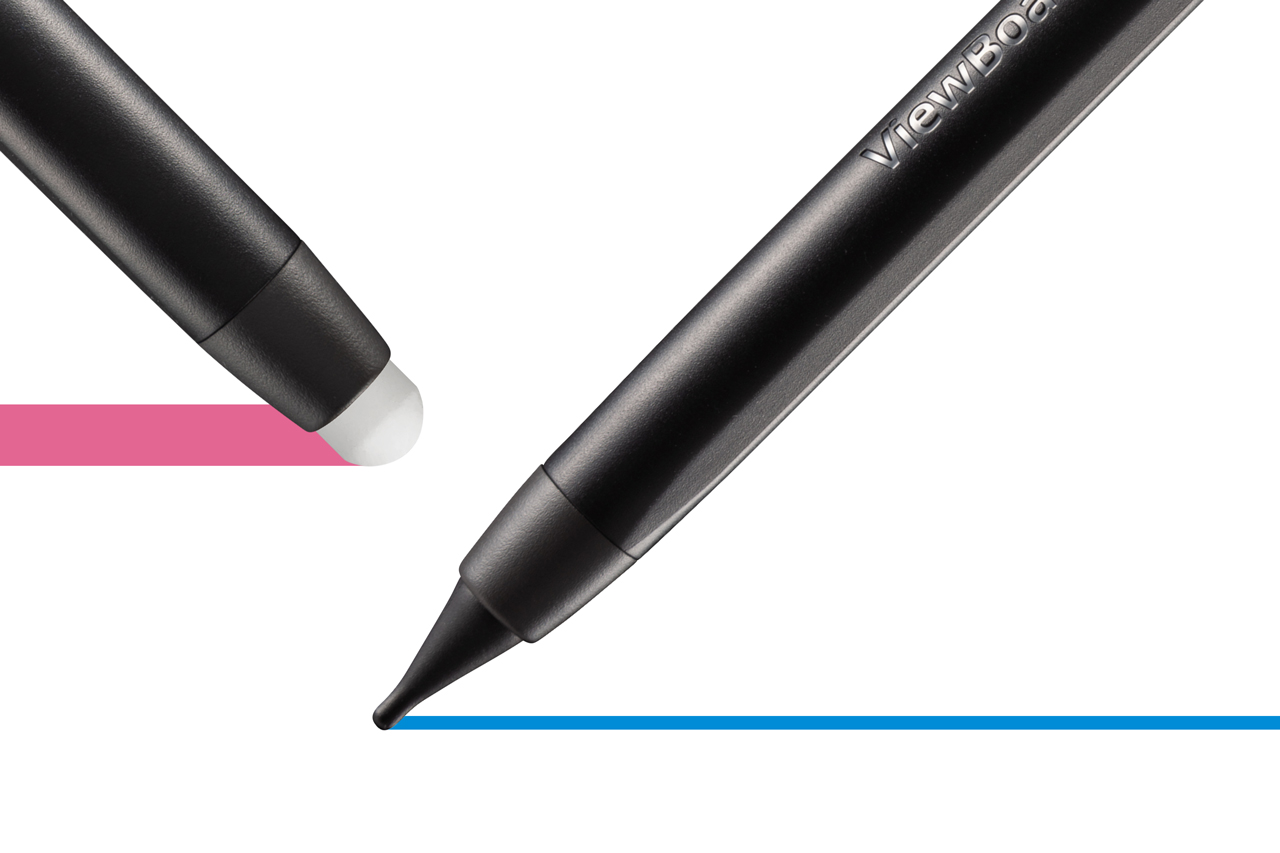

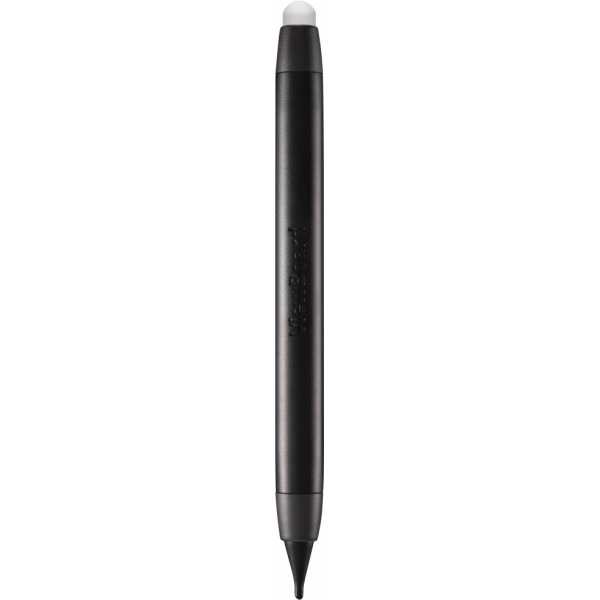

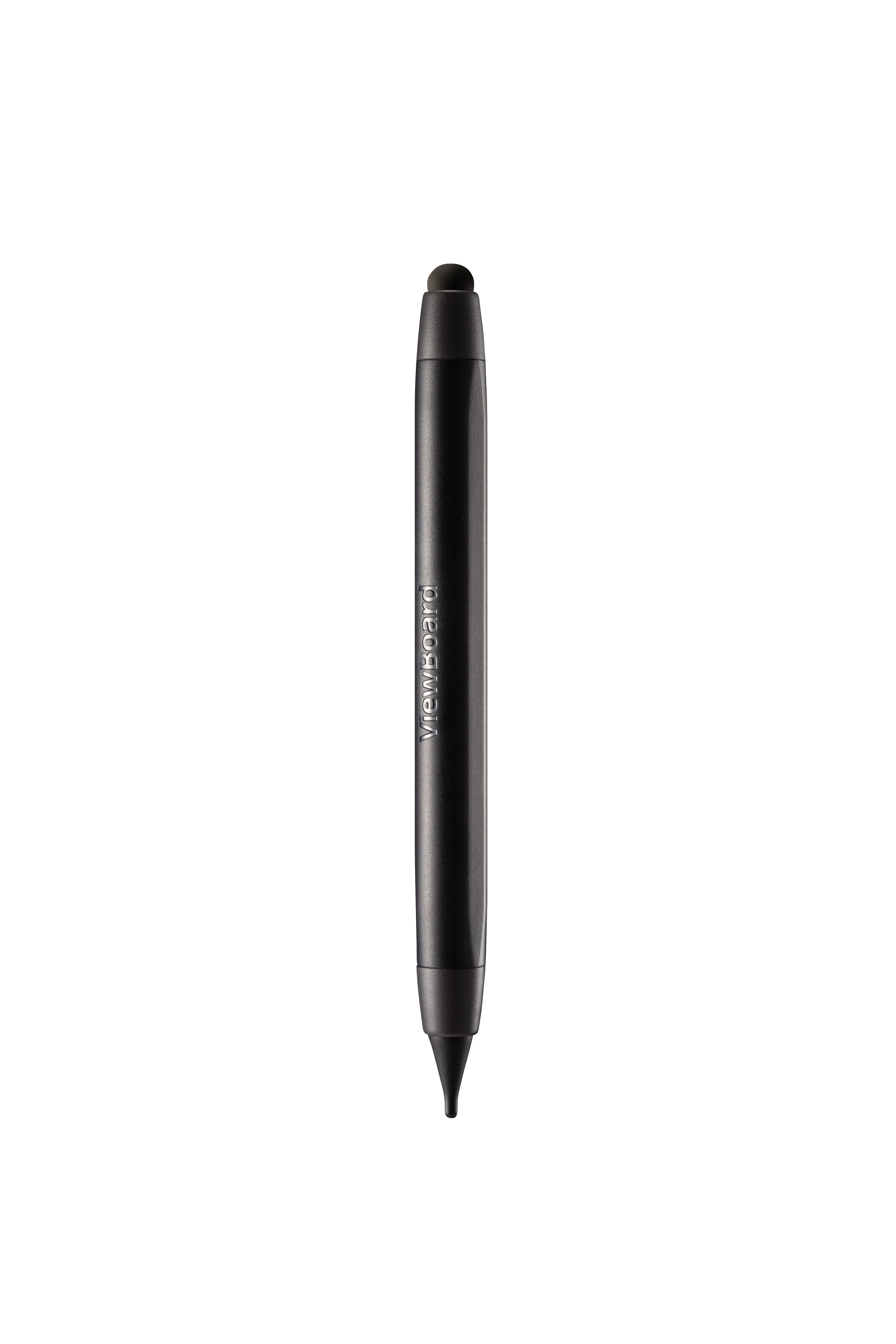

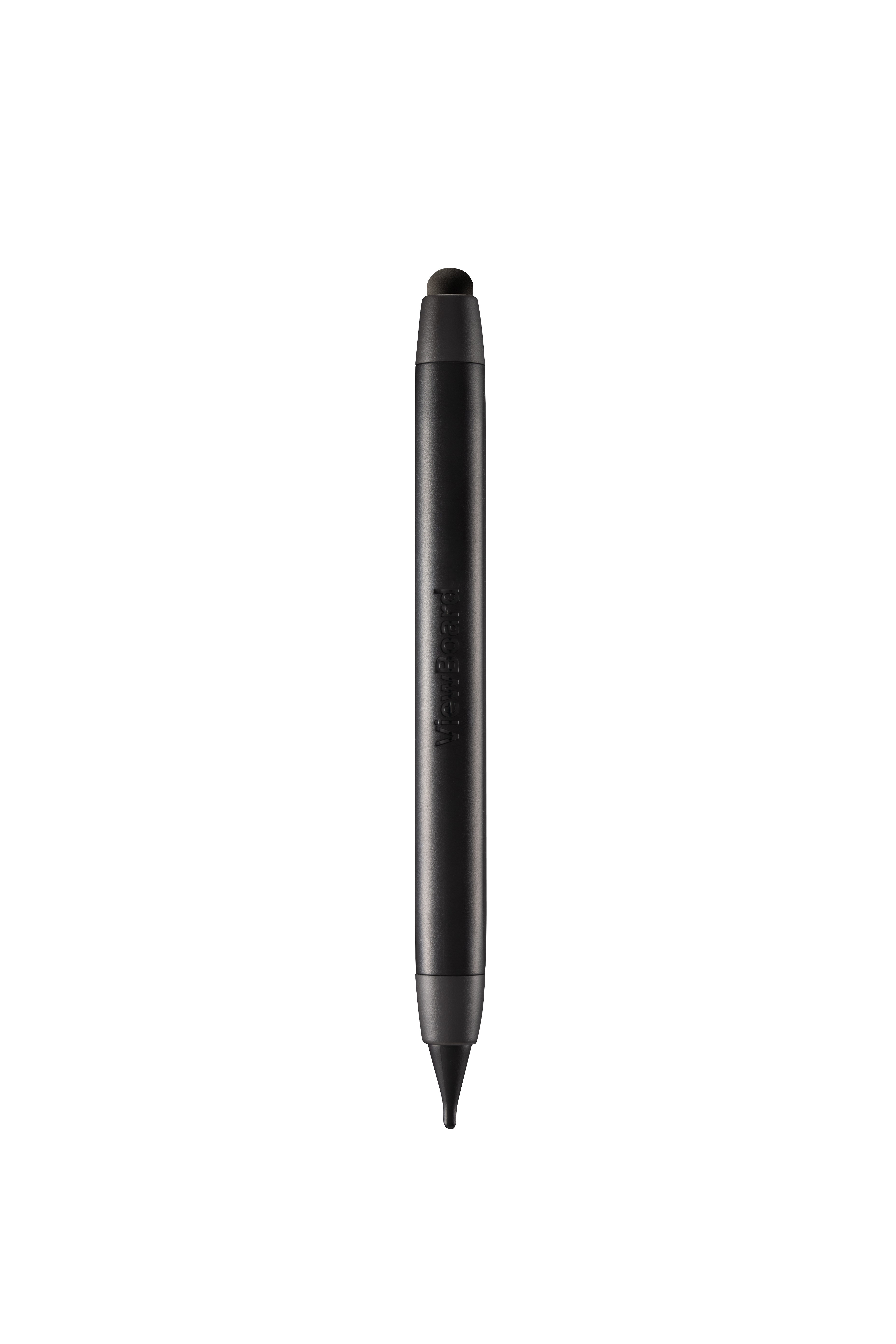

Dual-Pen

Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.

Full Native Performance on Android

Built-in myViewBoard® whiteboarding software to collaborate on the go

4-way Split Screen

4-way split screen content sharing with built-in ViewBoard® Cast software.

Shared USB Ports

SmartPort™ shared front USB ports for internal & external PCs.

Stereo Sound

2.1 Stereo sound with a built-in subwoofer.

Faster Internet

LAN sharing with slot-in PC provides a faster, more powerful internet connection.

Remote Control

Built-in RS232 port and vController software for remote control.

Slot-in PC

Slot-in PC with Intel 8th-gen CPU (Optional).

Web Camera

Top-mounted 1080p web camera (Optional).

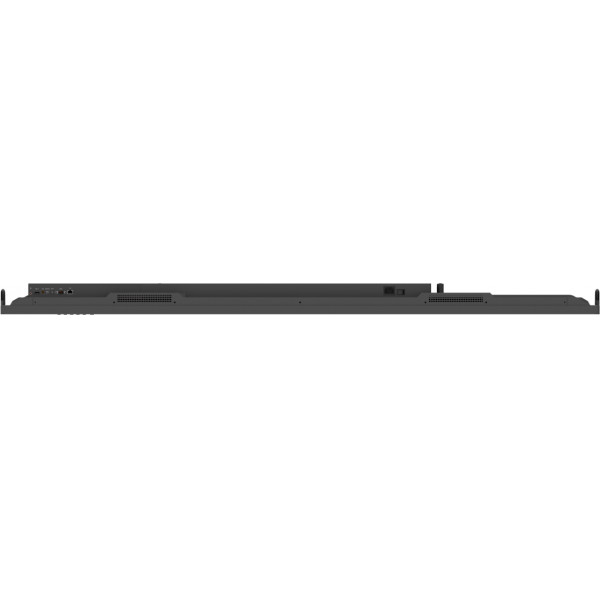

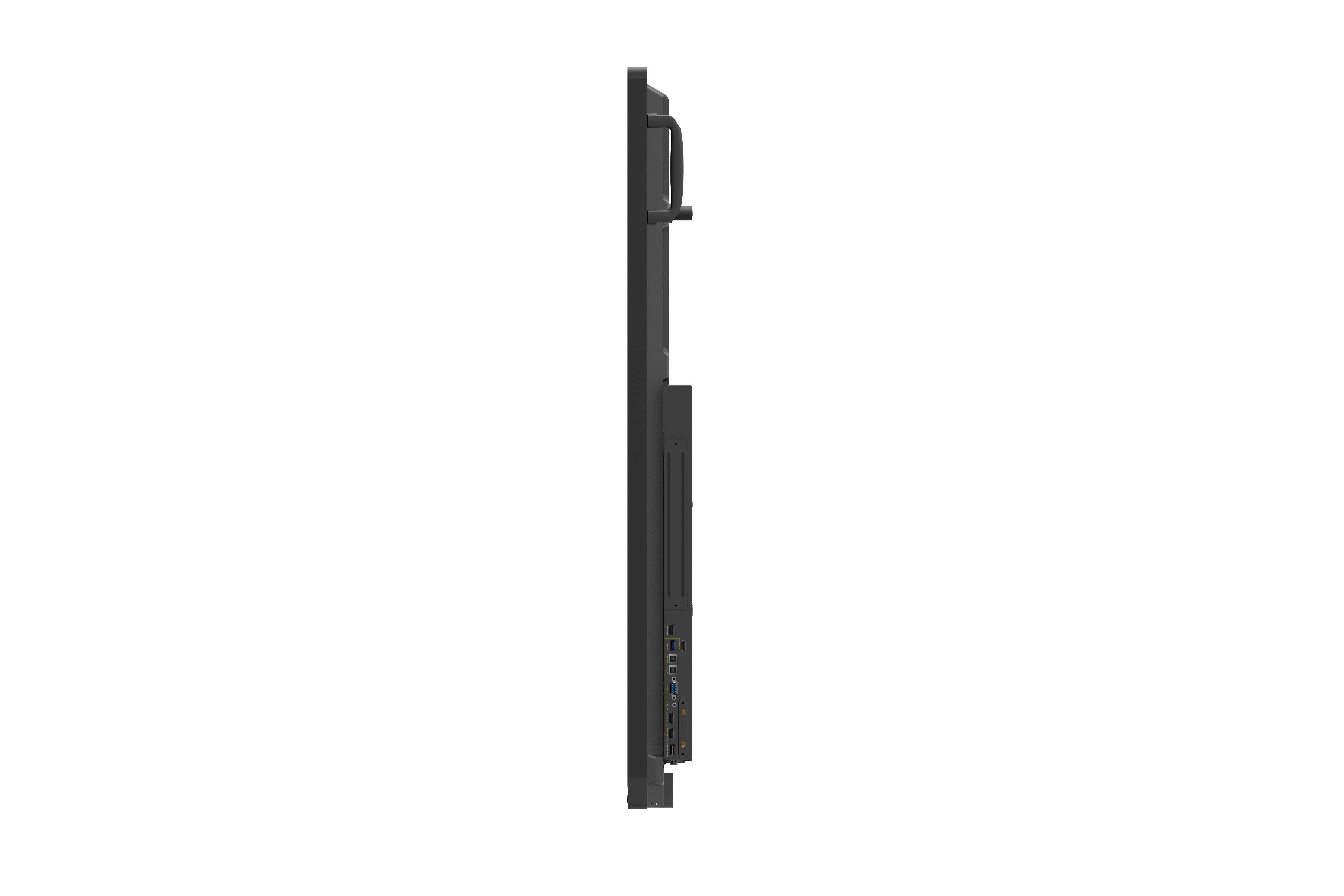

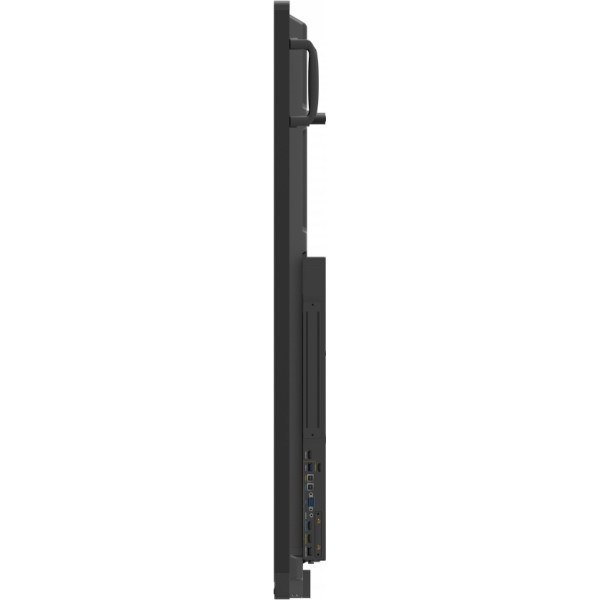

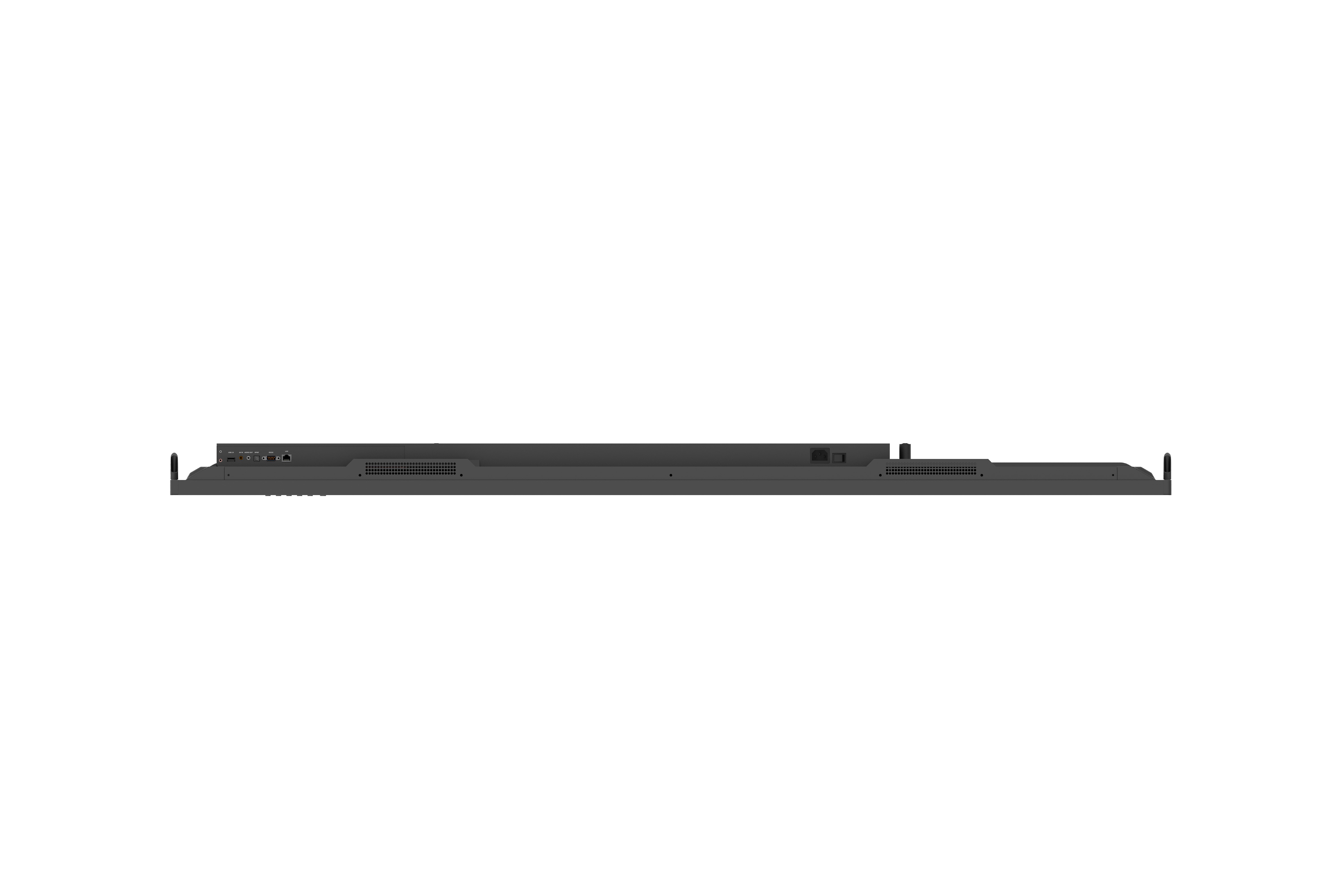

I/O Ports

  1. MENU CONTROLS
  2. USB X 3
  3. Intel Unite® Certified OPS Slot
  4. HDMI OUT
  5. USB 3.0
  6. TOUCH X 2
  7. VGA
  8. HDMI IN X 2
  9. AUDIO IN
  10. CAMERA PORT

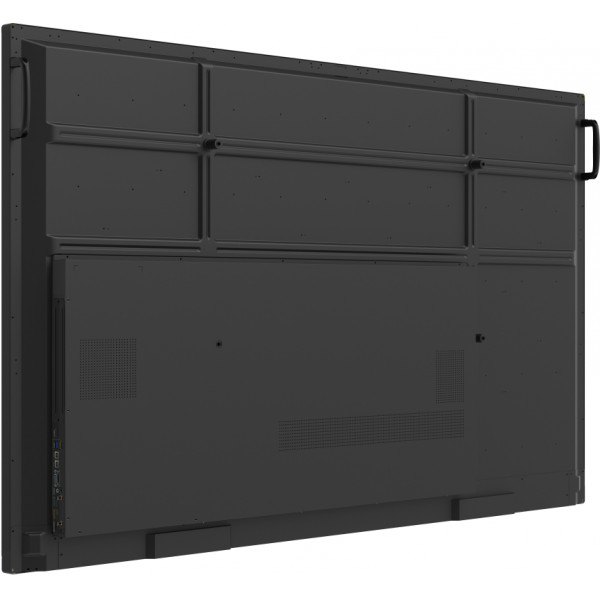

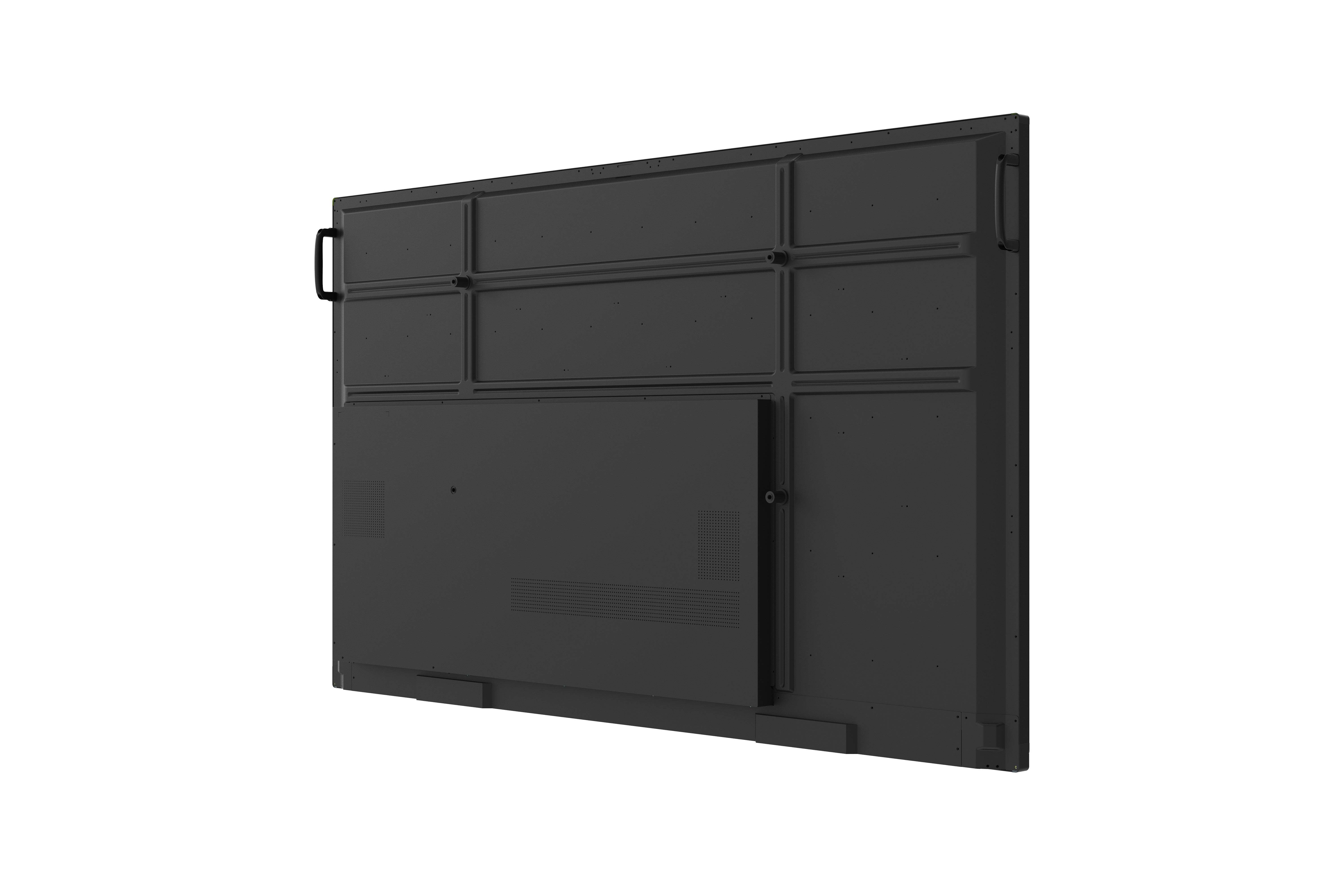

  11. VESA® WALL Mount 800x600 mm
  12. INTERNAL SPEAKERS
  13. USB 2.0
  14. AUDIO OUT
  15. RS232
  16. AV IN
  17. SPDIF
  18. LAN

SPECIFICATIONS


  • Display
    Panel Size: 75"
    Type/Tech: TFT LCD Module with DLED Backlight.
    Display Area (mm): 1665.66 (H) x 944.73 (V) (74.5” diagonal)
    Aspect Ratio: 16:9
    Native Resolution: UHD 3840x2160(Pixels)
    Colours: 1.07B colours (10bit)
    Brightness: 350 nits (typ.) 300 nits (min.)
    Contrast Ratio: 5000:1 (DCR)
    Response Time: 8ms
    Viewing Angles: H = 178, V = 178 typ.
    Backlight Life: 30,000 Hours (Min)
    Surface Treatment: Anti-Glare
    Bezel: Slim
    Orientation: Landscape
  • Platform
    Processor: ARM Cortex A73 dual-core 1.2GHz
    RAM: 2GB DDR4
    Storage: 16GB
  • Touch
    Type/ Tech: IR Recognition
    Touch Resolution: 32767 x 32767
    Touch Point: 20 points touch, 10 points writing
