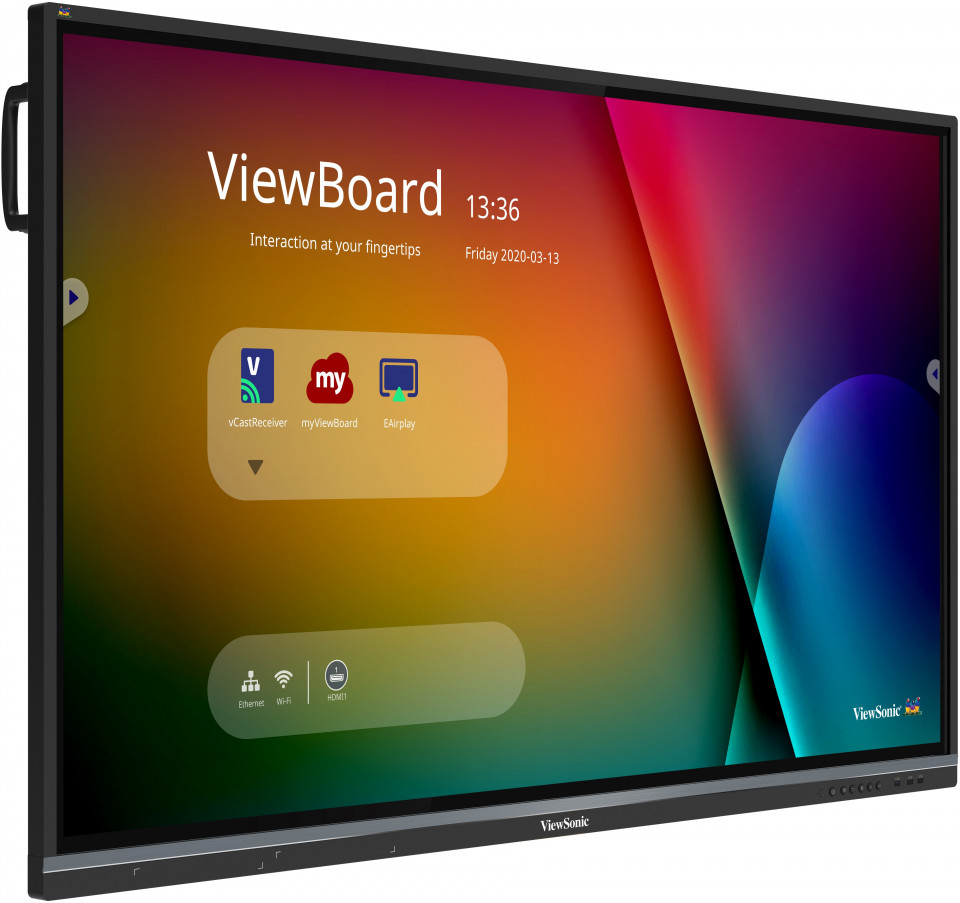

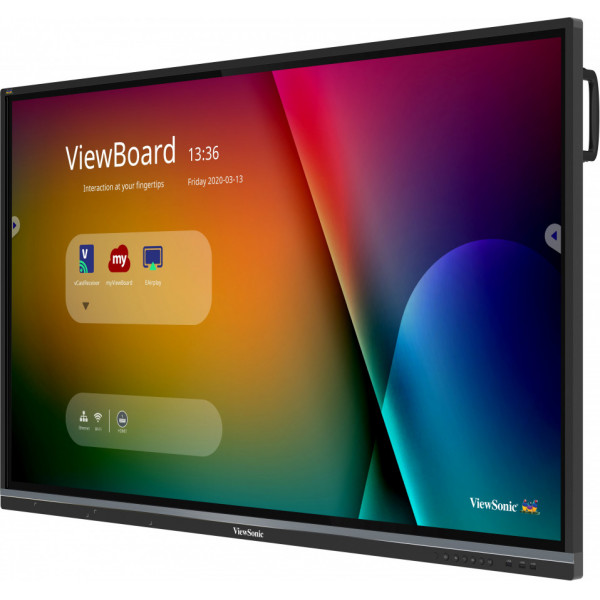

IFP6550-3

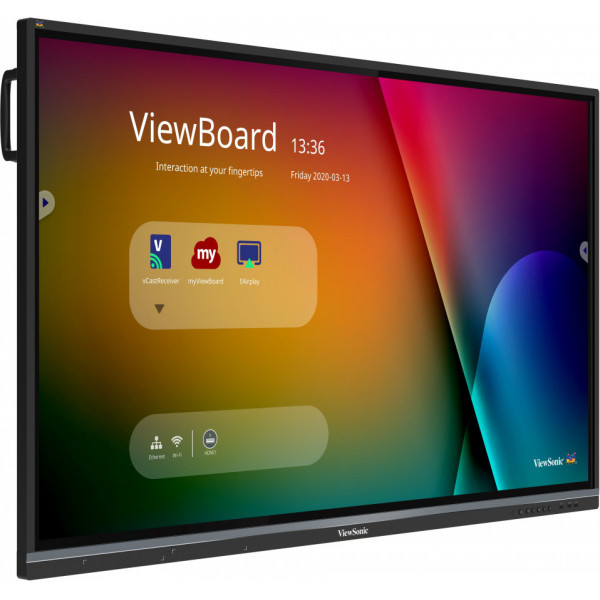

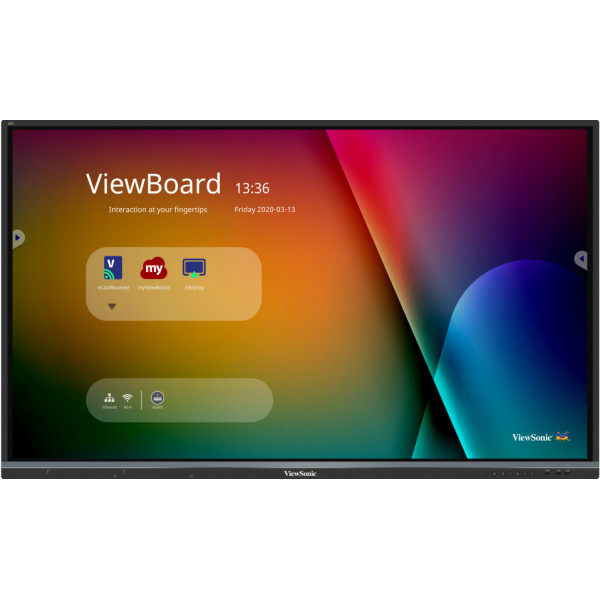

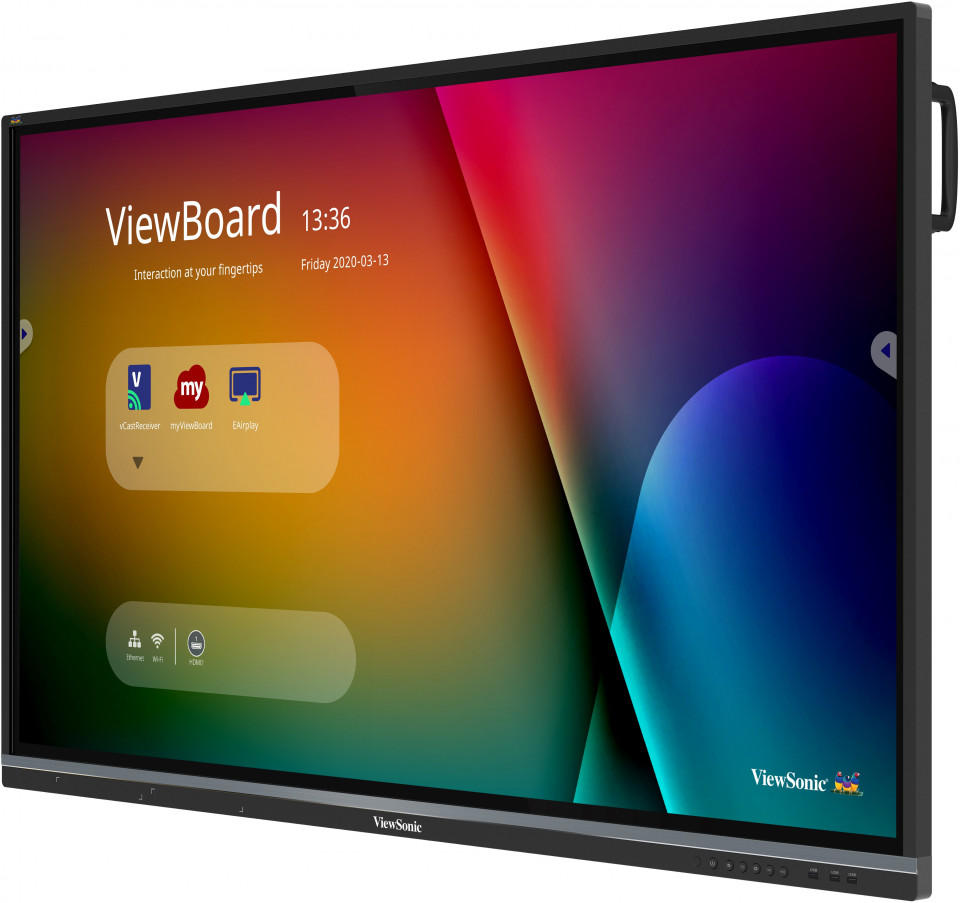

ViewBoard® 65" 4K Interactive Display
Intuitive Interactive Interface and Eye-care Certified Display
Synchronous Writing Performance with Dual Pens
Lag-free, Pen-on-paper Writing Experience with Ultra Fine Touch Technology
Native Whiteboarding Tool with built-in myViewBoard® App
Wireless Content Sharing and 4-way Split Screen with ViewBoard® Cast App
Sales Enquiry
gallery
GALLERY
OVERVIEW
For teachers in the modern classroom, the ViewBoard® IFP50 series has the most intuitive interactive interface. It keeps continuous interaction within the first vision area and keeps everything within comfortable reach. Additionally, it is an eye-care certified display with low blue light and flicker-free at all brightness levels. The ViewBoard® IFP50 series further stands out with synchronous writing performance. You can write smoothly, with the pen that serves as an extension of your fingertips, and simultaneously with the equipped dual pens of different colors and thicknesses. The native built-in whiteboarding tool, myViewBoard®, further helps visualize your ideas with ease. The ViewBoard® IFP50 series is further complimented by wireless content sharing. Students can share their screens to the ViewBoard and vice versa with the built-in ViewBoard® Cast app. It is not limited to one-on-one presentation either. Teachers can advance to do group activities with the 4-way split screen display. Whether you’ve experienced good or lackluster classroom interaction in the digital whiteboarding world, the ViewBoard® IFP50 series will now allow you to work effortlessly in the classroom.
UFT Technology
Ultra Fine Touch Technology produces a lag-free, pen-on-paper writing experience. Writing accuracy is greatly improved and student-teacher interaction flows more naturally thanks to real-time response rates, dual-pen recognition and our new 3mm tipped pens.

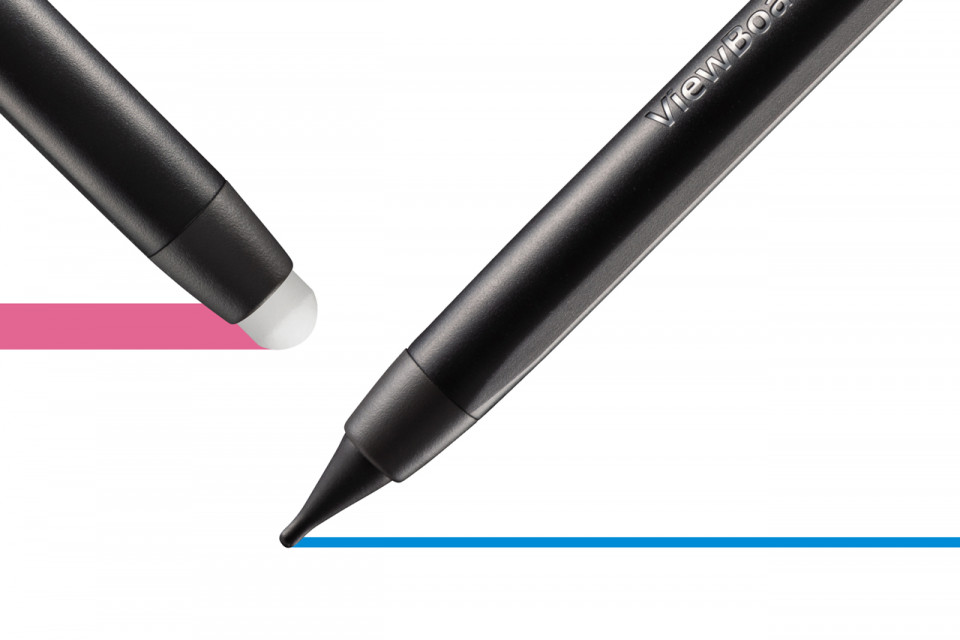

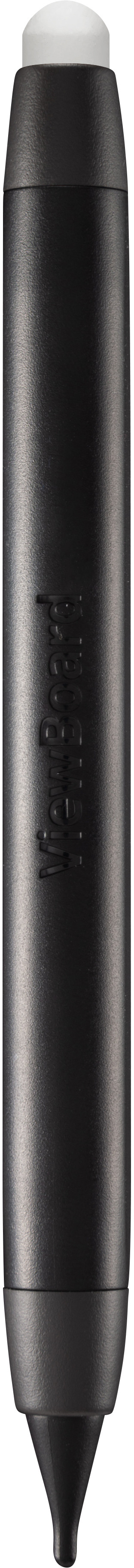

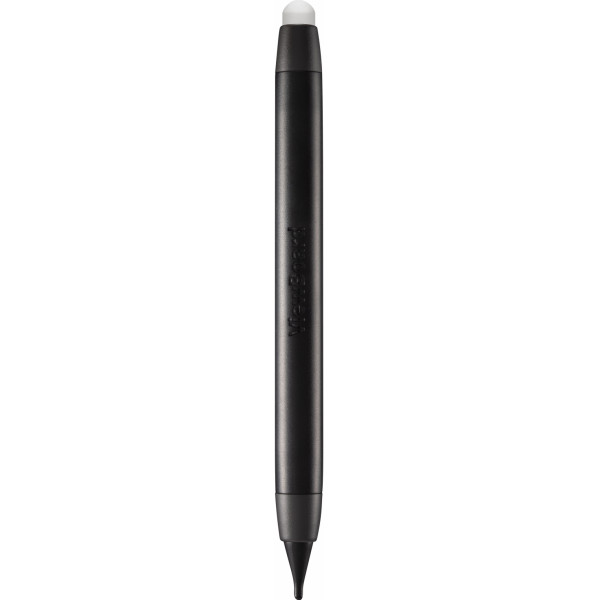

Dual-Pen
Automatically detect pen diameter (8mm & 3mm) and write simultaneously with different colours and thicknesses.
Full Native Performance on ViewBoard OS
Built-in myViewBoard® digital whiteboard software to collaborate on the go.

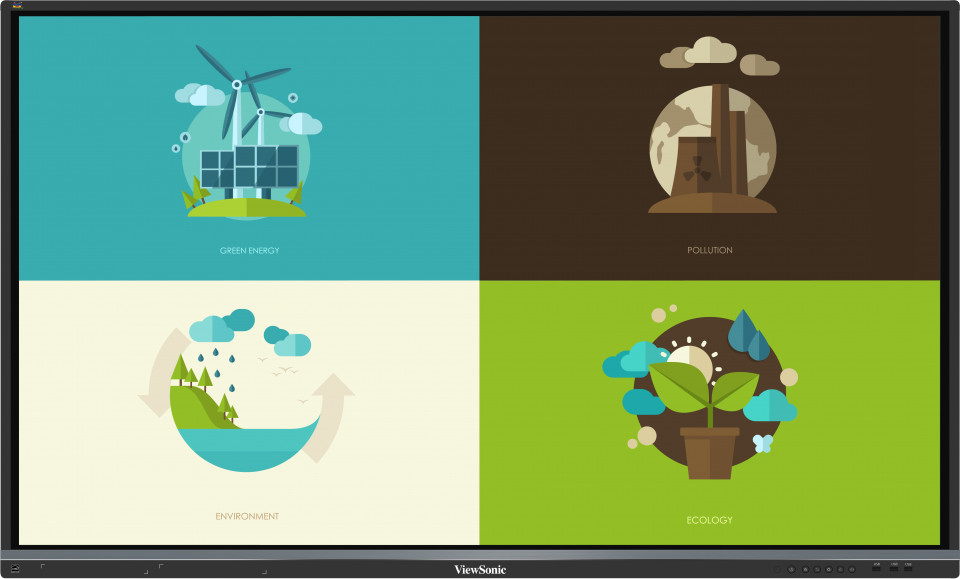

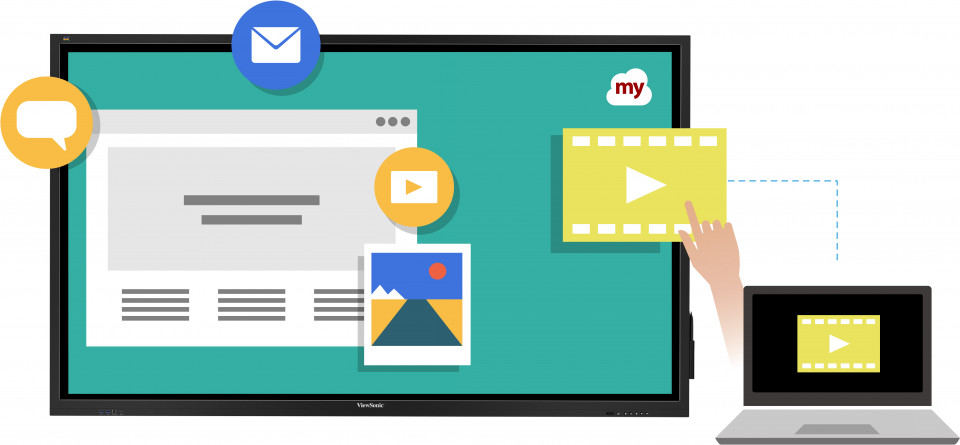

4-way Split Screen
4-way split-screen content sharing with built-in ViewBoard® Cast software.

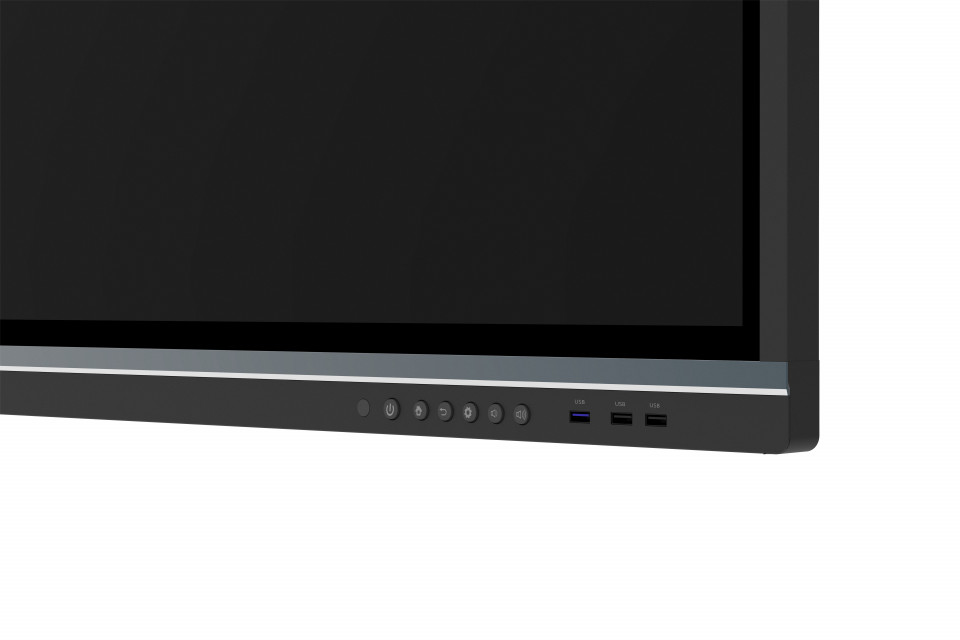

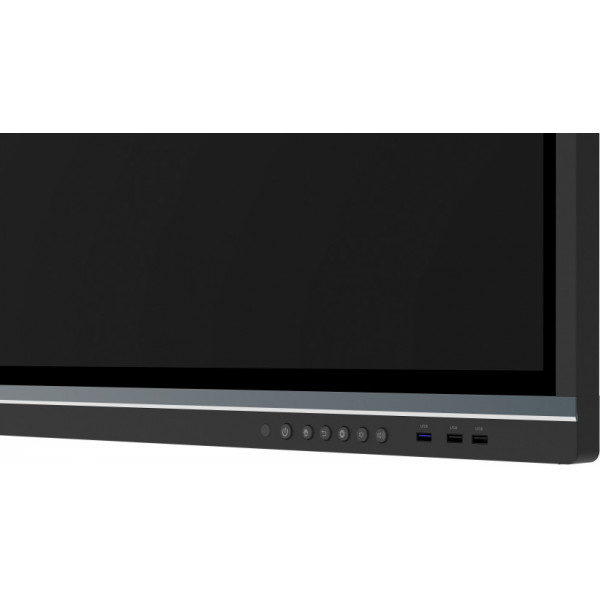

Shared USB Ports
SmartPort™ shared front USB ports for internal & external PCs.
Stereo Sound
2.1 Stereo sound with a built-in subwoofer.

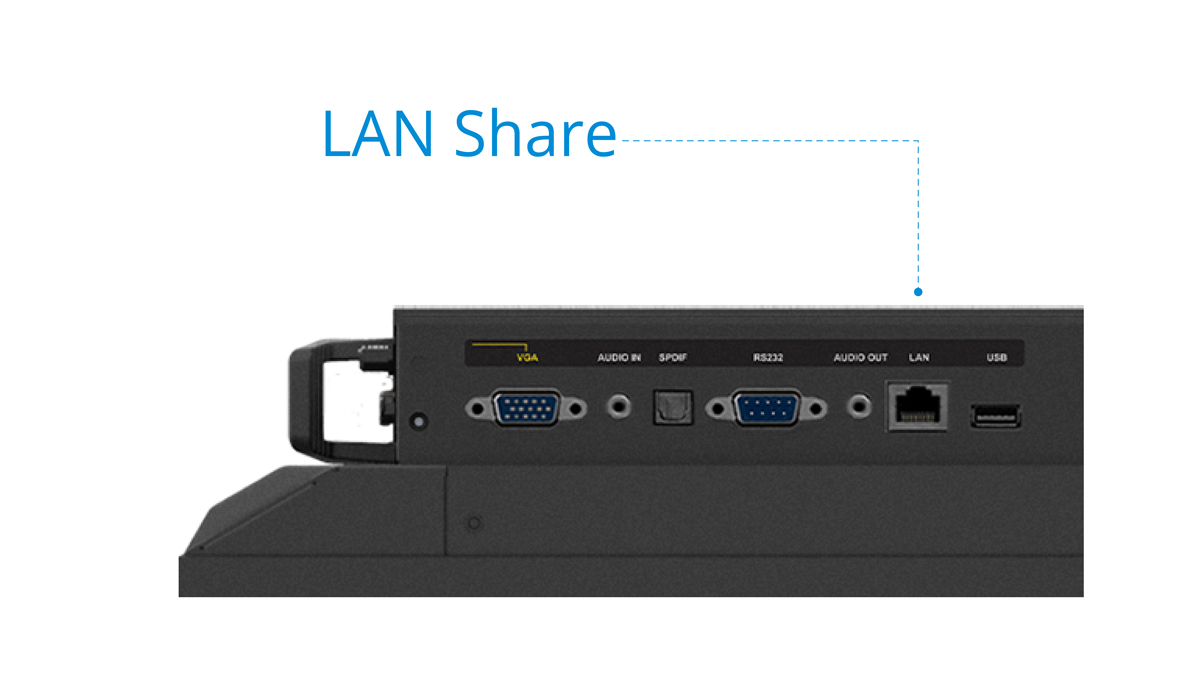

Faster Internet
LAN sharing with slot-in PC provides a faster, more powerful internet connection.

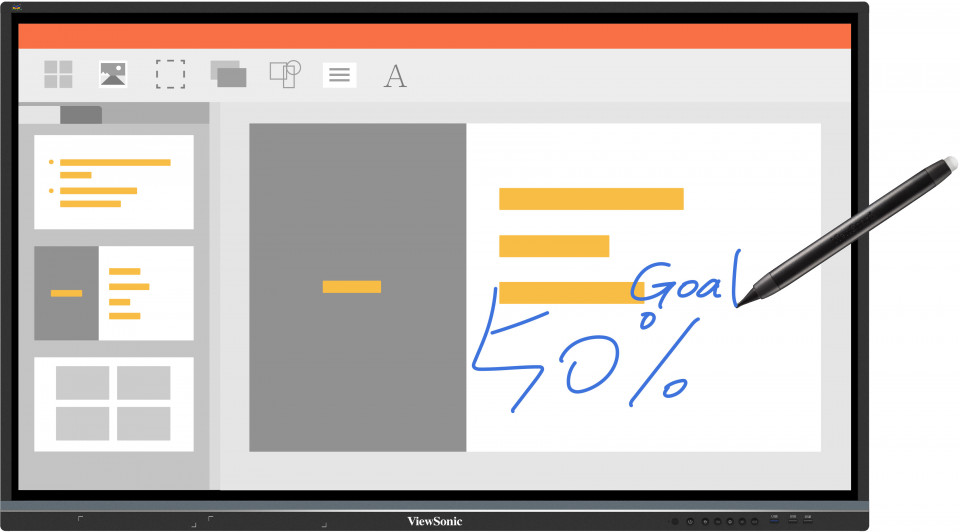

Object Recognition and Windows Ink Compatible
Make annotations, write and draw on the whiteboard, Office365 or Windows Ink. Therefore your meetings will be more collaborative and interactive.

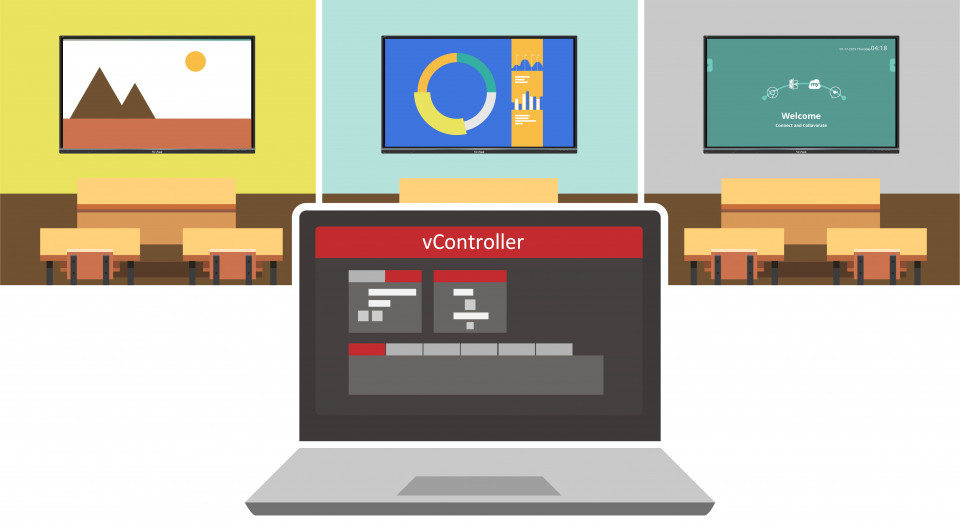

Remote Control
Built-in RS232 port and vController software for remote control.

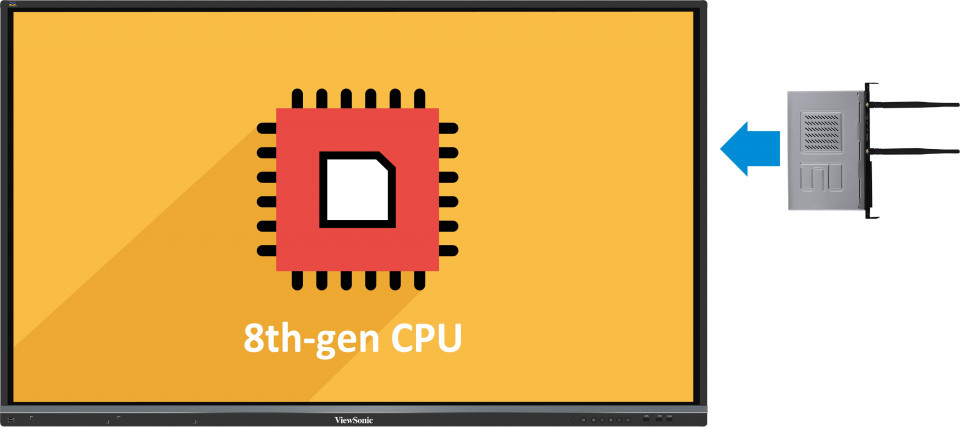

Slot-in PC
Slot-in PC with Intel 8th-gen CPU (Optional).
Web Camera
Top-mounted 1080p web camera (Optional).

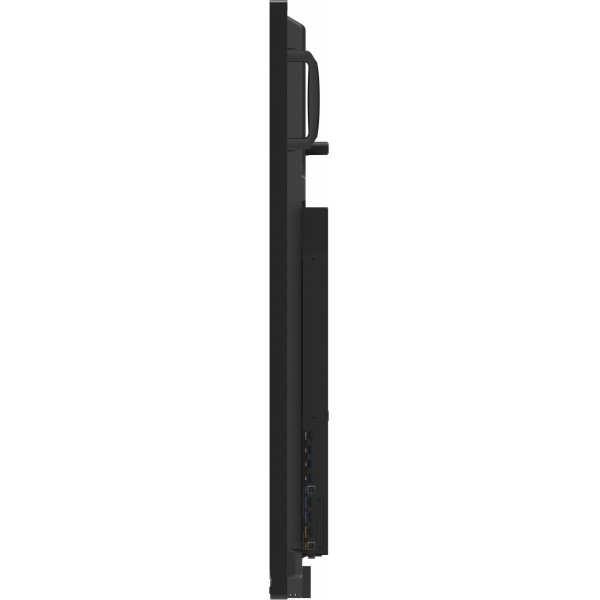

I/O Port
MENU CONTROLS
USB 3.0
USB 2.0
USB 3.0
TOUCH
HDMI IN X 3
Wi-Fi Module Slot

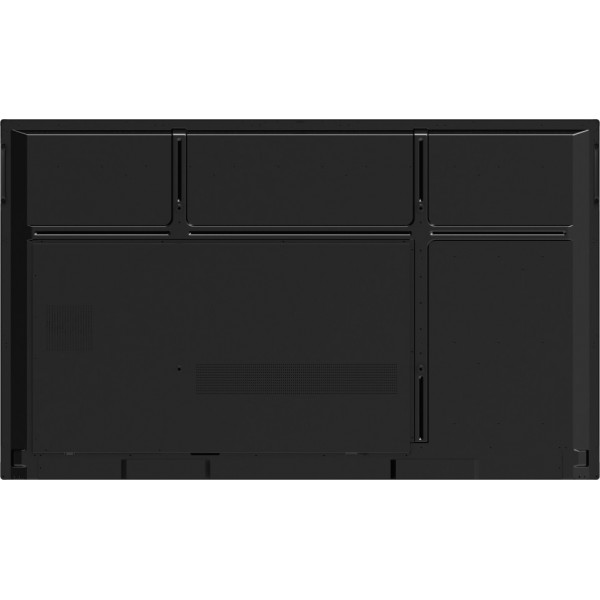

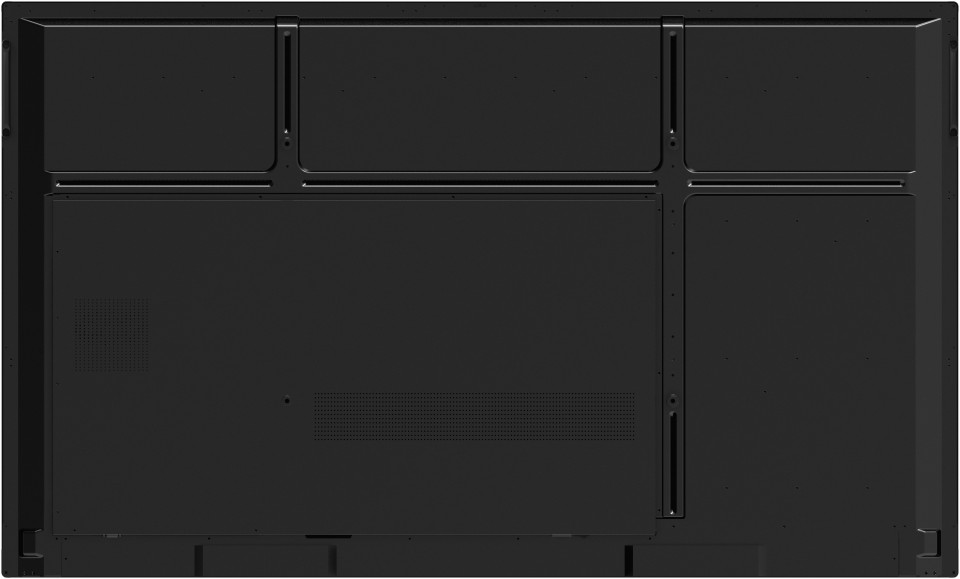

VESA
®
Wall Mount 600x400mm
INTERNAL SPEAKERS
USB 2.0
LAN
Audio Out
RS232
SPDIF
Audio In
VGA
SPECIFICATIONS
Display
Panel Size:
65"
Panel Type:
TFT LCD Module with DLED Backlight.
Display Area (mm):
1431 (H) x 807 (V) (64.5” diagonal)
Aspect Ratio:
16:9
Resolution:
UHD 3840x2160 (Pixels)
Colors:
1.07B colors (10bit)
Brightness:
350 nits (typ.)
Contrast Ratio:
5000:1 (DCR)
Response Time:
8ms
Viewing Angles:
H = 178, V = 178 typ.
Backlight Life:
30,000 Hours (Min)
Surface Treatment:
Hardness: 9H
Anti-glare coating
Bezel:
Slim
Orientation:
Landscape
Platform
Processor:
ARM Cortex-A73*2 + Cortex-A53*2 1.5GHz
RAM:
3GB DDR4
Storage:
32GB
Touch
Type/ Tech:
IR Recognition
Touch Resolution:
32767 x 32767
Touch Point:
20 points touch, 10 points writing
INPUT
HDMI:
2.0 x3 (3840x2160 @60Hz)
RGB / VGA:
x1
Audio:
x1 (PC audio in)
RS232:
x1
OPS:
x1 PC Slot (proprietary)
OUTPUT
Audio:
x1 (Earphone out)
SPDIF:
1 (optical)
LAN
RJ45:
x1
USB
Type A:
USB2.0: Front x2, Rear x1 (SmartPort™ for all)
USB3.0: Front x1, Rear x3 (SmartPort™ for Rear x3)
Type B:
x2, for touch
SPEAKERS
10W x 2 + 15W x 1 subwoofers
Top Camera Plate
Yes
COMPATIBILITY
HDMI:
3840x2160
Embedded OS
Android 8
Bundle Software
Basic Annotation Software:
myViewBoard
Pro Annotation Software:
myViewBoard for Windows (Embedded in Windows Slot-in PC)
Special Features
All-in-one USB port:
Front “SmartPort™ USB” to all channels.
Simple LAN sharing between IFP and slot-in device:
10M/100M/ for Android
10M/100M/1000M for slot-in PC
Power
Voltage:
100-240VAC +/- 10% Wide Range
Consumption:
On: 108W(typ.) / Off: <0.5W
ERGONOMICS
Wall Mount (VESA® ):
600 x 400
OPERATING CONDITIONS
Temperature (º C):
0°C to 40°C
Humidity:
10% ~ 90% RH non-condensing
DIMENSIONS (W x H x D)
Physical (inch / mm):
58.6 x 35.3 x 3.5 in / 1488 x 897 x 90 mm
Packaging (inch / mm):
65.7 x 39.8 x 8.8 in / 1669 x 1010 x 223 mm
WEIGHT
Net (lb / kg):
89.3 lb / 40.5 kg
Gross (lb / kg):
109.6 lb / 49.7 kg
REGULATIONS
cTUVus, FCC, ES8, EPEAT, EMC/CE, CB, RoHS & DOC, REACH, WEEE, ErP, EAC, UKrSEPRO, RCM, BSMI
PACKAGE CONTENTS
1. Power cable (3 meters). VSAx1, VSEx2, VSIx4 2. Remote control 3. USB cable (3 meters) 4. Touching pen x 2 5. Quick Start Guide 6. RS232 adapter 7. Clamp x 5 8. Plate 9. Screw x 8 10. HDMI cable 3M
Compatible Slot-in PC
VPC14-WP series
VPC10-WP series
VPC15-WP series
VPC16-WP series
VPC17-WP series
