Key Features

VX3216-SCMH
Product Description

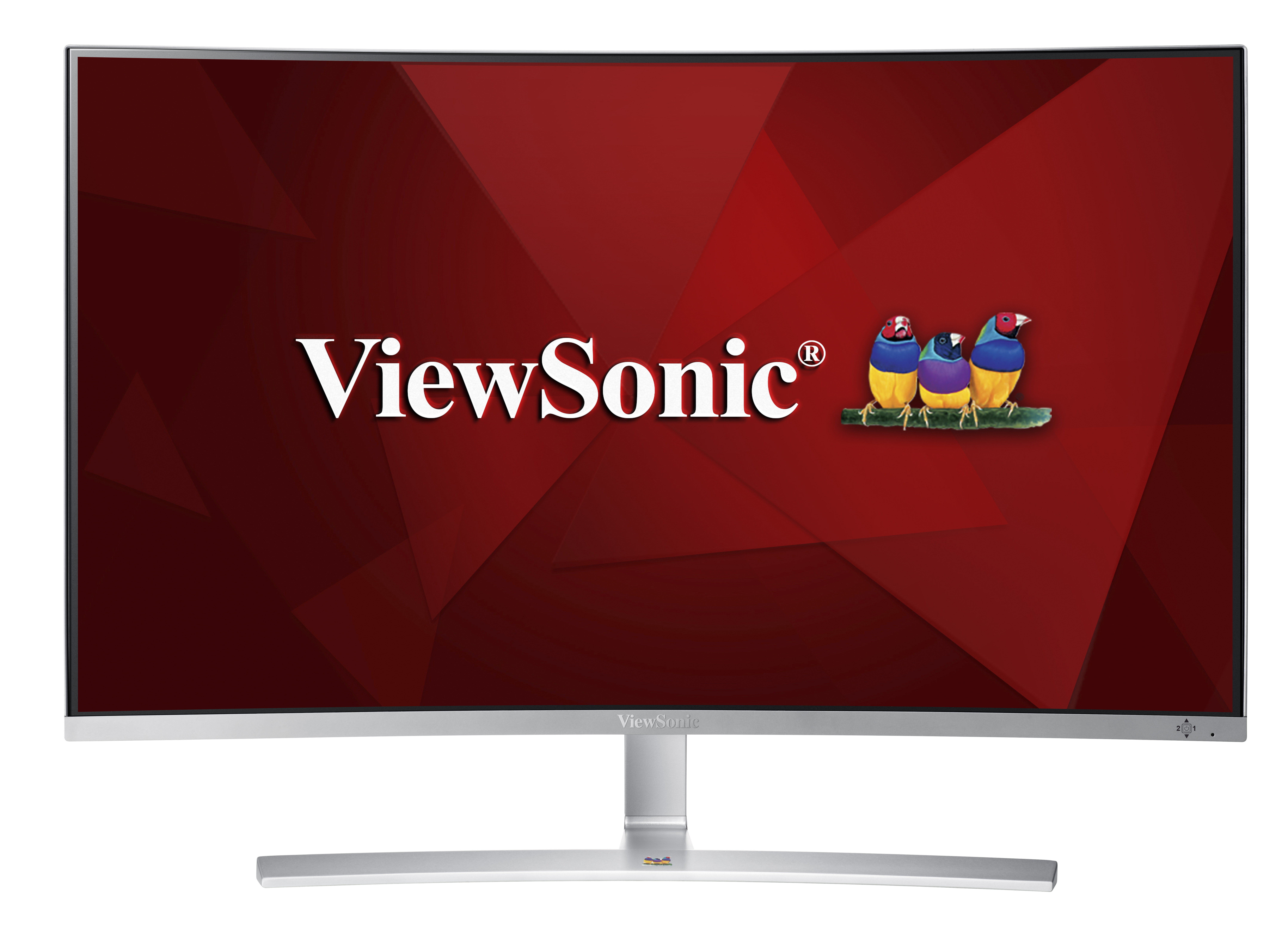

ViewSonic VX3216-SCMH is a 32” curved monitor built to deliver an immersive viewing experience for home entertainment. The monitor screen’s 1800R curve offers the perfect balance of comfort and immersion. 88% NTSC wide gamut color coverage drastically improves on-screen colors. Dual speakers add stereo sound into the immersive experience while the monitor panel itself is designed with a sleek edge-to-edge frameless bezel that integrates seamlessly into multi-monitor setups. Connectivity options on VX3216-SCMH include HDMI, DVI, and VGA for flexible connectivity. ViewSonic’s exclusive ViewMode™ comes built-in for an array of intuitive presets that offer optimized screen performance for home entertainment, work, or surfing the web.

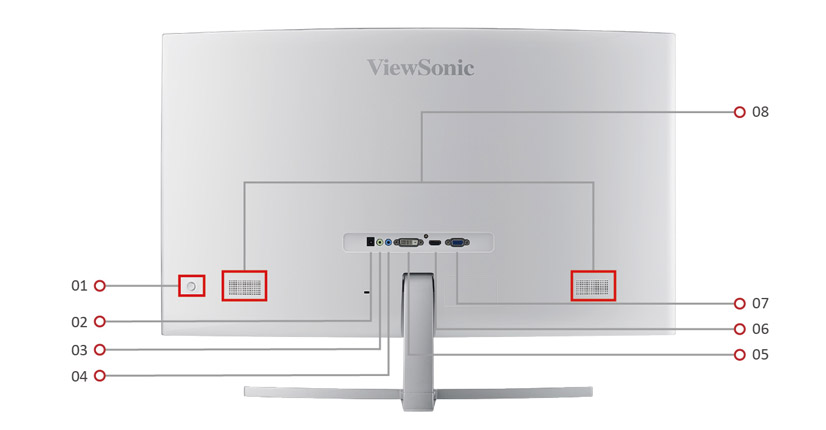

  1. OSD Joystick
  2. AC Power In
  3. Audio In
  4. Earphone Out
  5. DVI
  6. HDMI
  7. VGA
  8. Internal Speakers
Visit Us
  • www.viewsonic.com
  • DISPLAY
    Monitor Size: 32”W (31.5” Viewable)
    Panel Technology: VA Technology (Curved 1800R), a-si TFT Active Matrix LCD
    Resolution: Full HD 1920 x 1080
    Display Area: 698.4mm (H) x 392.85mm (V)
    Aspect Ratio: 16:9
    Brightness: 280 cd/m2 (Typ)
    Contrast Ratio: 3000:1 (Typ)
    Dynamic Contrast Ratio: 80,000,000:1
    Viewing Angles: 178 degrees / 178 degrees (Typ)
    Response Time: GTG(AVG; Scaler OD) 5ms (Typ)
    Backlight: 2 LED light bar
    Backlight Life: 30,000 Hrs (Min)
    Colours: 16.7M colors (8-bit)
    Colour Gamut: 88% of NTSC (Typ)
    Panel Surface: Anti-Glare type, Hard-coating (2H), Haze 25%
  • INPUT SIGNAL
    Frequency: Fh = 24 ~ 82KHz ; Fv = 50 ~ 75Hz
    Sync: Separate Sync, TMDS
  • COMPATIBILITY
    PC: Windows 10 certified
    Mac®: Power Mac tested
  • CONNECTOR
    Input: DB -15 x 1
    DVI-D x 1
    HDMI x 1 (v1.4 compatible)
    Output: Earphone out x 1 (3.5mm plug)
  • AUDIO
    Speaker: 3W x 2
  • POWER
    Power: 3-pin plug (CEE22) x 1
    Voltage: AC 100-240V (Universal); 50/60Hz
    Consumption: 33.8W
    Optimize: 25.3W
    Conserve: 19.5W
  • ERGONOMICS
    Tilt: -5±2 ~ 10±2 degrees
  • SPECIAL FEATURES
    Eye Care: Blue light filter, Flicker Free
  • OPERATING CONDITIONS
    Temperature (º F / º C): 32°F to 104°F (0°C to 40°C)
    Humidity: 20% to 90% (no condensation)

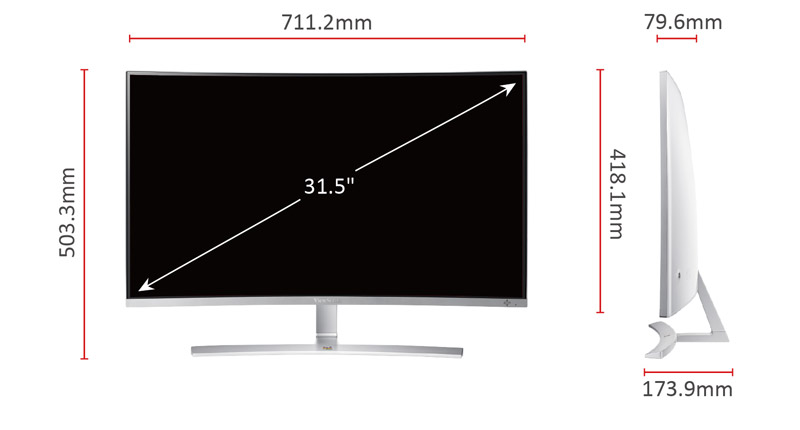

  • DIMENSIONS (W X H X D) (MM)
    Physical with stand (mm): 711.2mm (W) x 503.3mm (H) x 173.9mm (D)
    Physical without stand (mm): 711.2mm (W) x 418.1mm (H) x 79.6mm (D)
    Packaging (mm): 776mm (W) x 569mm (H) x 167mm (D)
  • WEIGHT
    Net with stand: 6.2kg (13.7lbs)
    Net without stand: 5kg (11lbs)
    Gross: 9.2kg (20.3lbs)
  • REGULATIONS
    cTUVus, FCC-B, ICES003, NRCan, Mexico CoC, Mexico Energy, BSMI
  • WARRANTY
    *Warranty offered may differ from market to market
  • PACKAGE CONTENTS
    LCD Display, 60W AC/DC Adapter (1.2m, White), Power Cable (1.5m, White), HDMI Cable (1.5m, White), Quick Start Guide
    LCD Display, 60W AC/DC Adapter (1.2m, White), Power Cable (1.5m, White), HDMI Cable (1.5m, White), Quick Start Guide
