Key Features
  • 에너지 절약해주는 SmartEco+모드
  • 수직 렌즈 시프트
  • vColorTuner 컬러 조정 기능
  • 사용자 친화적 모드
  • 듀얼 HDMI 단자와 USB 파워 지원

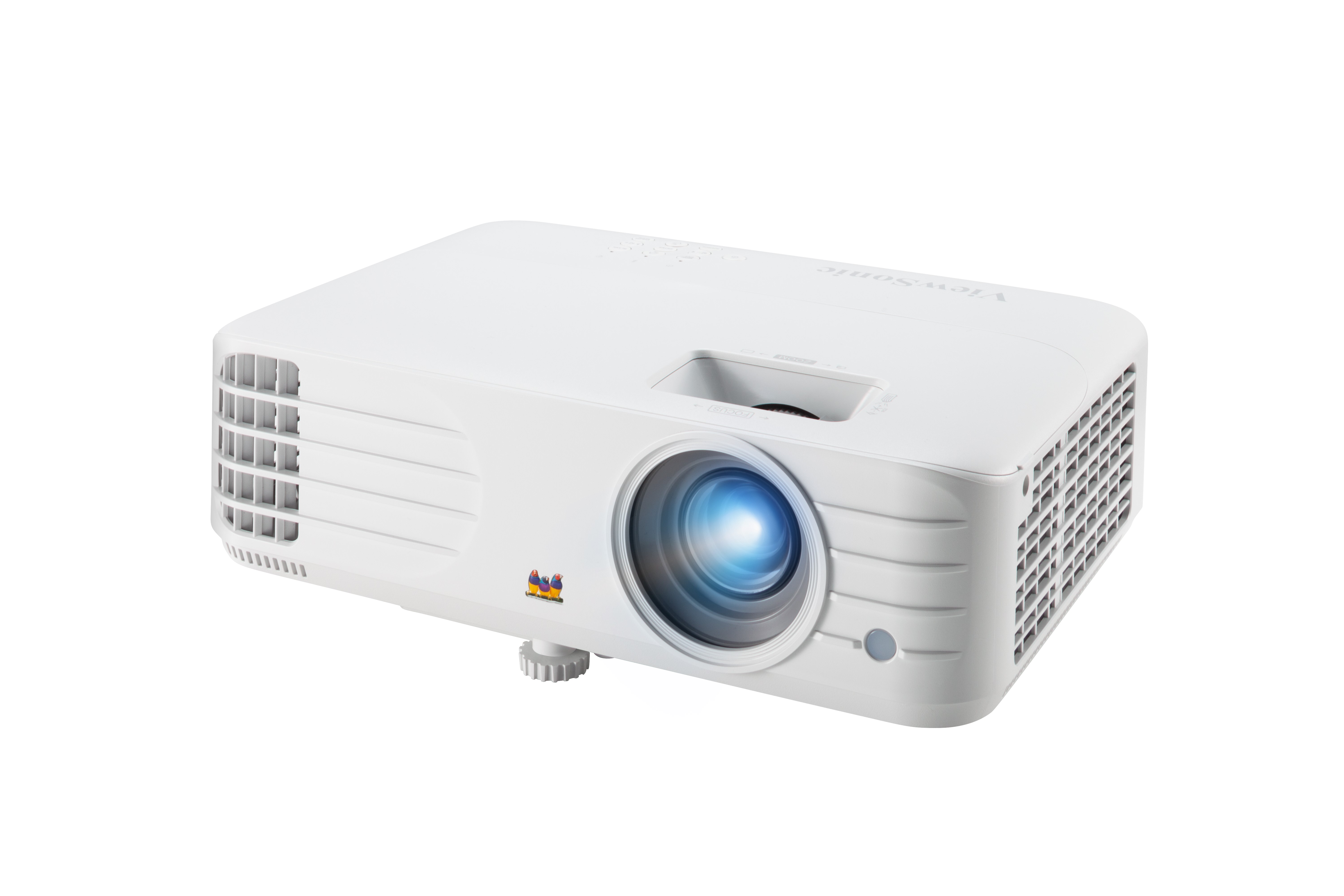

PX701HD
Product Description
뷰소닉 PX701HD는 3500안시루멘의 높은 밝기와 Full HD 1080P 해상도 지원으로 밝은 조명 환경에서도 뚜렷한 큰 화면에 몰입할 수 있도록 해줍니다. 최신 램프 SuperEco+모드는 최대 20000시간에 달하는 램프수명 및 효율적인 유지관리는 최소의 비용으로 최대의 만족을 선사합니다. 디지털 램즈 시프트와 vColorTuner기능을 장착되어 있어 리모콘으로 조절이 가능합니다. 듀얼 HDMI 단자와 USB파워 지원으로 손쉽게 멀티미디어와 연결하여 게이밍, 영화 등을 즐길 수 있습니다.

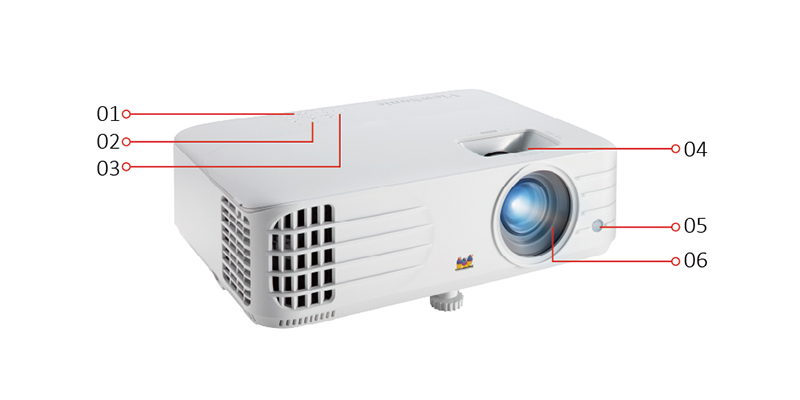

  1. Keypad
  2. LED indicator
  3. Power Key
  4. Zoom/Focus
  5. Front IR
  6. Projection Lens

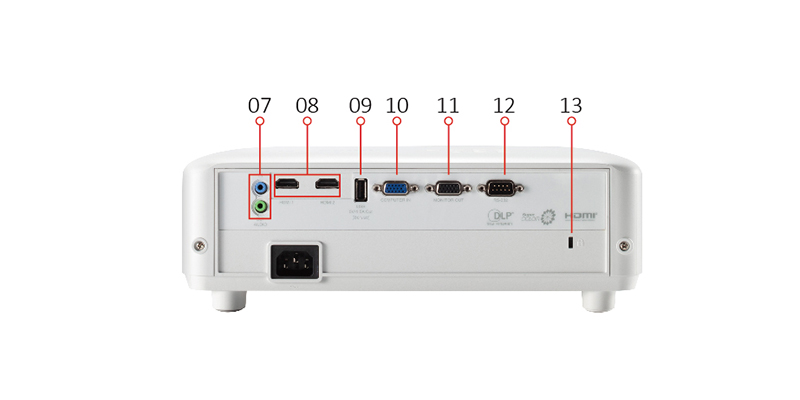

  7. Audio in/out
  8. Dual HDMI
  9. USB Type A
  10. Computer in
  11. Monitor out
  12. RS232
  13. Kensington® Lock Slot
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.47" 1080p
    Native Resolution: 1920x1080
    Brightness: 3500 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 12000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=2.0-2.05, f=15.843-17.445mm
    Projection Offset: 110%+/-6%
    Throw Ratio: 1.5-1.65
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1m-10.96m
    (100"@3.32m)
    Keystone: +/- 40° (V)
    Lens Shift V. Range: +/- 5% (Digital)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200)
    *RB-Reduced Blanking
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type A (Services): 1
    (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz
    (AC in)
    Power Consumption: Normal: 300W
    Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.59kg
    Gross Weight: 3.75kg
    Dimensions (WxDxH) with Adjustment Foot: 312x222x108mm
    Packing Dimensions: 415x168x297mm
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, Total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-119
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
