Key Features
  • 투사비율0.49
  • SuperColor™기술
  • 15000시간에 달하는 램프수명
  • USB 타입A 충전 가능
  • PJ-vTouch-10S 대화식 전자 칠판 기능

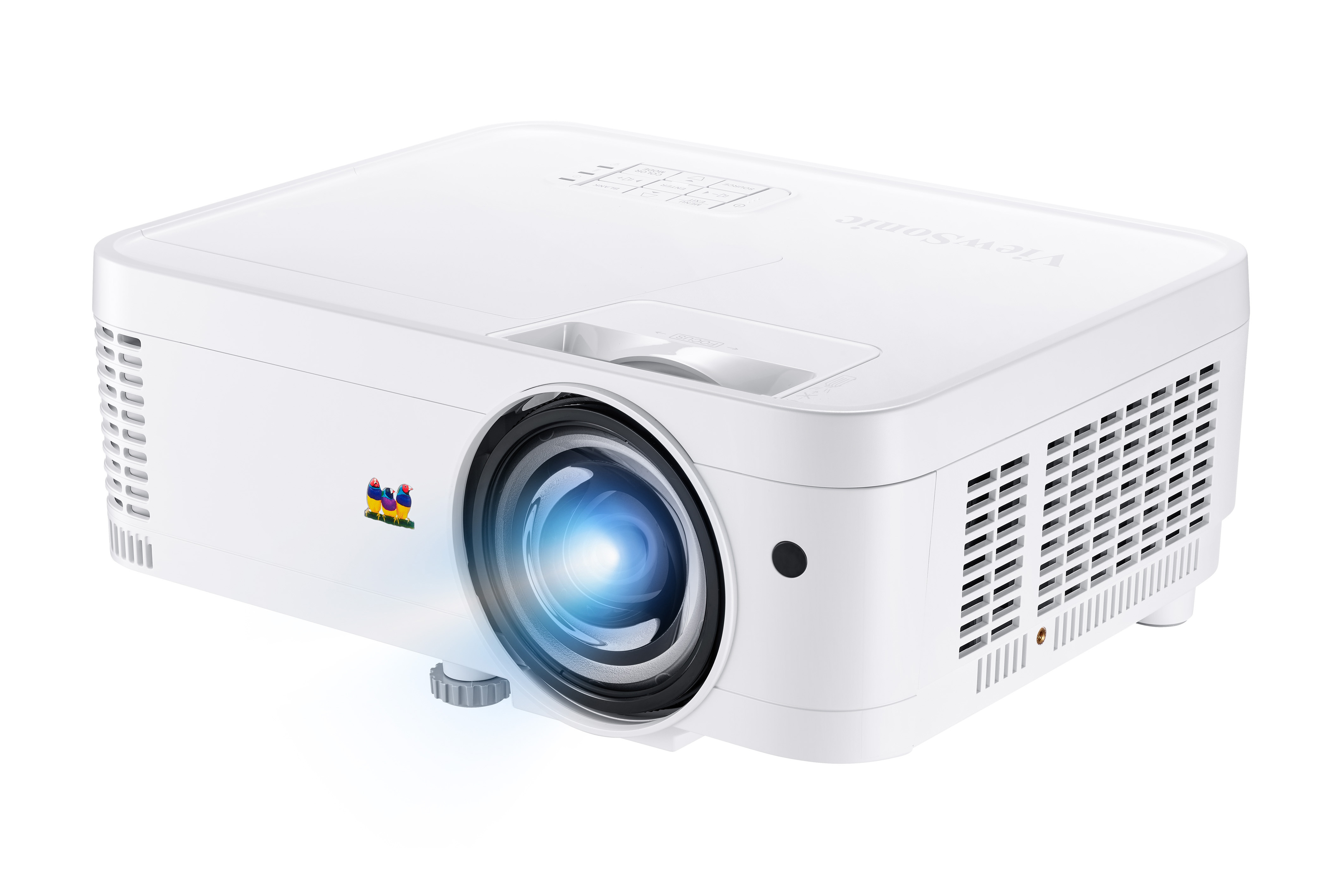

PS501W
Product Description
PS501W는 높은 밝기인 WXGA 단초점 교육용 프로젝터입니다. 106cm의 거리만으로도 100인치의 큰 화면을 구현할 수 있습니다. 강의실 형태에도 제약없이 간단히 설치가 가능하며 3500루멘의 강한 밝은 빛이 교실안에 켜져있어도 또렷하고 선명한 이미지를 재생할 수 있습니다. 뷰소닉 독점 SuperColor™기술을 탑재하여 더욱 정확한 색상을 표현합니다. SuperEco모드의 절전 기능이 있으므로 전기를 절약 할 수 있으며 램프수명은 15000시간을 사용할 수 있는 만큼 반영구적인 사용이 가능합니다. 또한 PJ-vTouch-10S와 호환이 가능하여 스타일러스나 손가락으로 화면에 메모하거나 주석을 달 수 있으며 상호작용 교수법을 활용할 수 있습니다.
  1. Keypad
  2. LED indicator
  3. Power Key
  4. Focus
  5. Front IR
  6. Lens
  7. Audio in/out
  8. HDMI
  9. COMPUTER
  10. Monitor out
  11. Mini USB
  12. USB 5V/1.5A OUT
  13. RS232
  14. Video
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.65" WXGA
    Native Resolution: 1280x800
    Brightness: 3600 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 200W UHP Lamp
    Light Source Life (hours) with Normal Mode: 6000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lens: F=2.6, f=6.9mm
    Projection Offset: 110%+/-5%
    Throw Ratio: 0.49
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 60"-300"
    Throw Distance: 0.63-3.17m (87"@0.92m)
    Keystone: +/- 32° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
    Interactive Camera: Optional (vTouch-10s)
  • INPUT
    Computer in (share with component): 2
    Composite: 1
    HDMI: 1 (HDMI 1.4, HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
    USB Type A (Power): 1 (5V/1.5A)
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
    Power Consumption: Normal: 260W Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.6kg (5.73 lbs)
    Gross Weight: 3.62kg (7.98 lbs)
    Dimensions (WxDxH) with Adjustment Foot: 292x236x115mm (11.5x9.3x4.5 in)
    Packing Dimensions: 365x300x188mm (14.4x11.8x7.4 in)
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish,French,German,Italian,Japanese,Korean,Polish,Portuguese,Russian,Spanish,Swedish,Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Lens Cover: Yes
    Air Filter: Yes (CN Only)
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-109
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-305 PJ-WMK-007
    Carry Bag: PJ-CASE-008
