Key Features
  • Auto Power Off
  • 22,000:1 contrast ratio
  • SuperColor™ Technology
  • 5 colour modes
  • Vertical Keystone

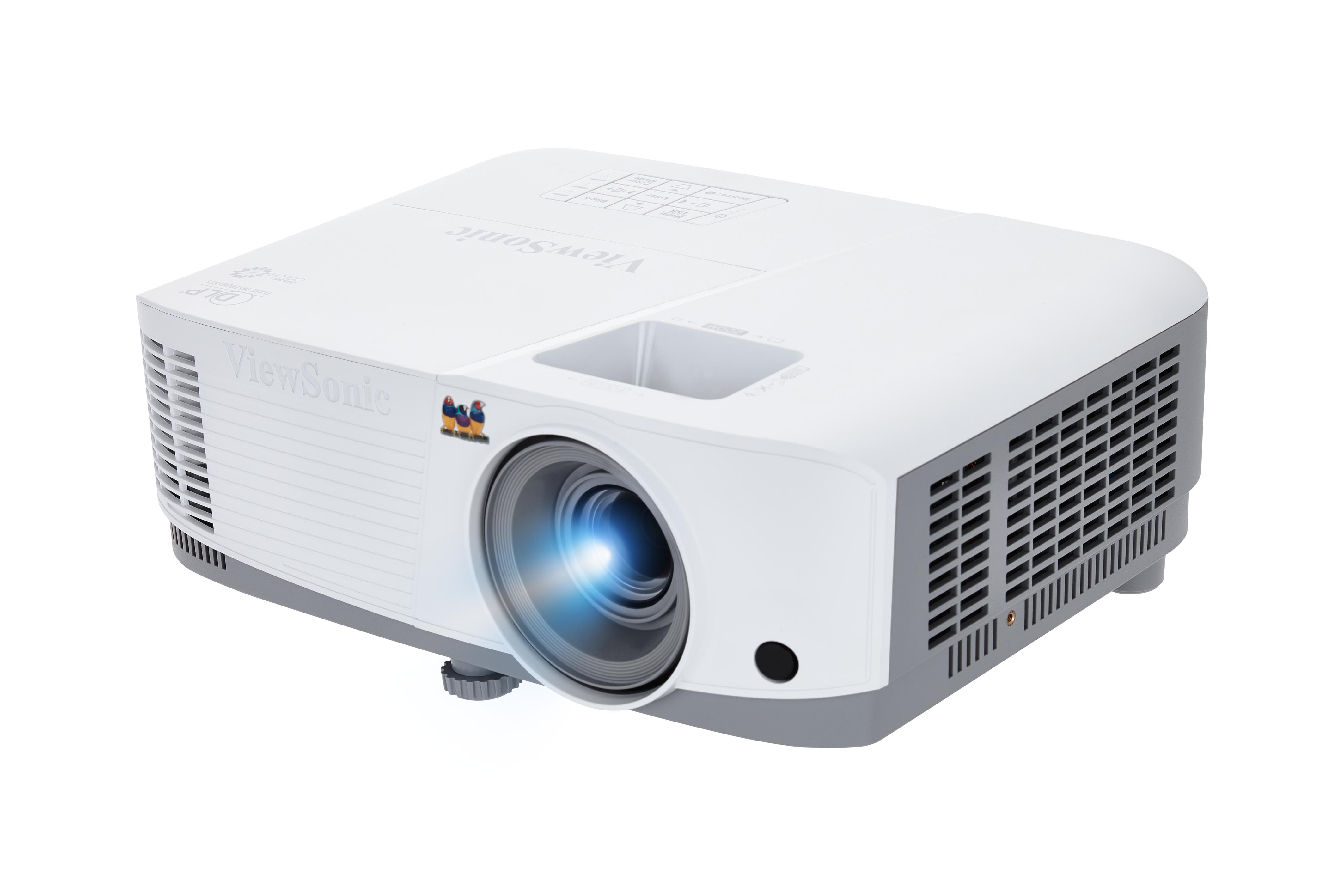

PA503S
Product Description
The ViewSonic PA503S offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3600 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503S reduces power consumption and extends the lamp life by up to 15,000 hours.
  1. Keypad
  2. LED indicator
  3. Lamp cover
  4. Security lock
  5. Zoom/Focus
  6. Front IR
  7. Projection Lens
  8. Audio in/out
  9. HDMI
  10. Dual VGA
  11. VGA out
  12. Mini USB
  13. Video
  14. Kensington® Lock Slot
  15. RS232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.55" SVGA
    Native Resolution: 800x600
    Brightness: 4000 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 190W UHP Lamp
    Light Source Life (hours) with Normal Mode: 5000
    Light Source Life (hours) with SuperEco Mode: 15000
    Lens: F=2.56-2.68, f=22-24.1mm
    Projection Offset: 120%+/-5%
    Throw Ratio: 1.96-2.15
    Optical Zoom: 1.1x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 1.19-13.11m (100"@3.98m)
    Keystone: +/- 40° (V)
    Audible Noise (Normal): 31dB
    Audible Noise (Eco): 27dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 2
    Composite: 1
    HDMI: 1 (HDMI 1.4, HDCP 1.4)
    Audio-in (3.5mm): 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 2W
  • CONTROL
    RS232 (DB 9-pin male): 1
    USB Type Mini B (Services): 1
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
    Power Consumption: Normal: 260W Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 2.2kg (4.85 lbs)
    Gross Weight: 3.24kg (7.14 lbs)
    Dimensions (WxDxH) with Adjustment Foot: 294x218x110mm (11.6x8.6x4.3 in)
    Packing Dimensions: 365x300x188mm (14.4x11.8x7.4 in)
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, Total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Finnish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Total 15 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1
    QSG: Yes
    Air Filter: Yes (CN Only)
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Lamp/Light Source: RLC-108
    Air Filter: RSPL
    Wall/Ceiling Mount: PJ-WMK-007
    Carry Bag: PJ-CASE-008
