Key Features
  • 6000안시루멘의 고광량으로 300인치까지의 대화면
  • 차세대 레이저 인광 기술, 20,000시간에 달하는 수명
  • 넓은 수평/수직 랜즈 시프트 & 1.6x광학줌
  • 360°투사 & 인물모드 지원
  • 듀얼 HDMI 2.0b포트 탑재 4K HDR/HLG컨텐츠
  • 컴팩트한 사이즈와 내장된 HDBaseT 수신기

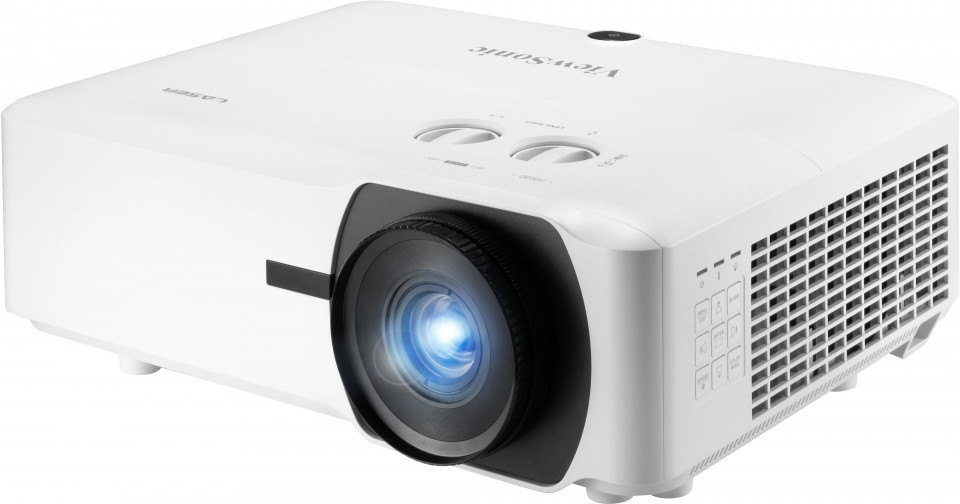

LS920WU
Product Description
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.

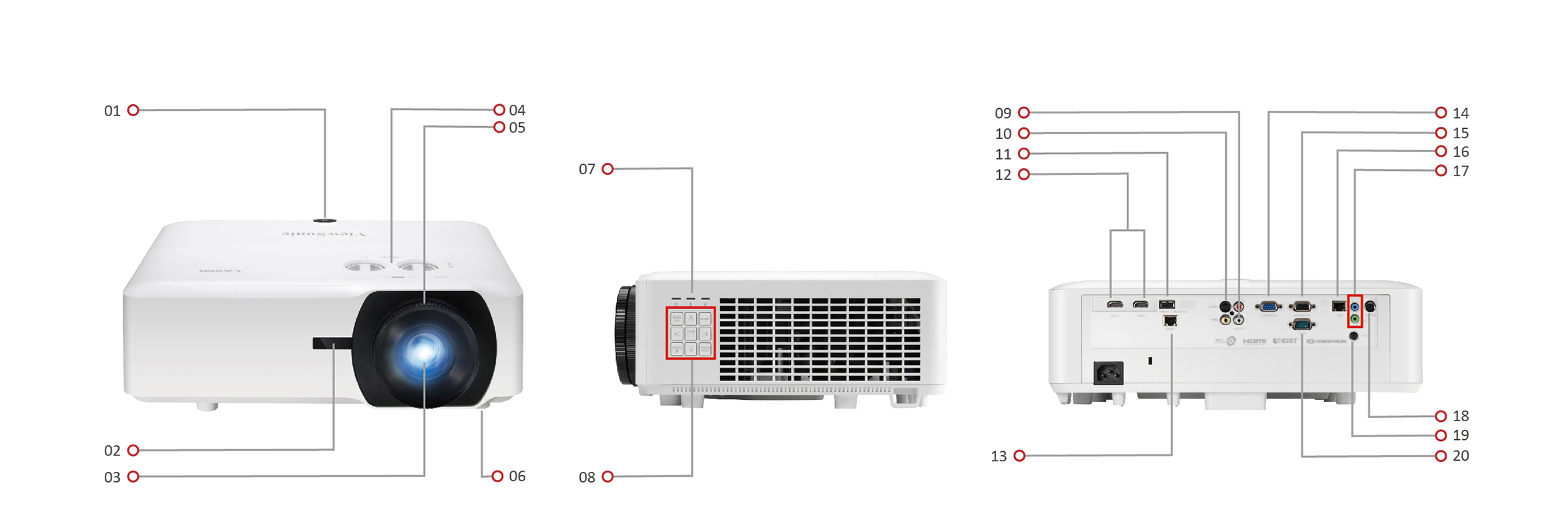

  1. Power Key & IR
  2. Front IR
  3. Lens
  4. Lens Shift Control Knob
  5. Zoom/Focus Ring
  6. Adjustment Foot
  7. LED Indicator
  8. Keypad
  9. Composite
  10. S-Video
  11. USB Type A(5V/1.5A)
  12. HDMI X 2
  13. HDBaseT
  14. Computer In
  15. Monitor Out
  16. LAN
  17. Audio In & Out
  18. 3D VESA
  19. 12V OUT
  20. RS-232
Visit Us
  • www.viewsonic.com
  • SPECIFICATION
    Projection System: 0.48" WUXGA
    Native Resolution: 1920x1200
    Brightness: 6000 (ANSI Lumens)
    Brightness (Center Lumens): 6100
    Contrast Ratio: 3000000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Laser Phosphor
    Light Source Life (hours) with Normal Mode: 20000
    Light Source Life (hours) with SuperEco Mode: 30000 (Eco)
    Lens: F=1.81-2.1, f=14.3-22.9mm
    Projection Offset: 0%
    Throw Ratio: 1.36-2.18
    Optical Zoom: 1.6X
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.88-14.09m (100"@2.93m)
    Keystone: H:+/-40° , V:+/-40°
    Lens Shift V. Range: +50%, -50%
    Lens Shift H. Range: +23%, -23%
    Audible Noise (Normal): 36dB
    Audible Noise (Eco): 29dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to 4K(3840 x 2160)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 2160p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-135KHz
    Vertical Scan Rate: 23-120Hz
  • INPUT
    Computer in (share with component): 1
    Composite: 1
    S-Video: 1
    HDMI: 2 (HDMI 2.0, HDCP 1.4/2.2)
    Audio-in (3.5mm): 1
    Audio-in (RCA R/L): 1
    3D VESA (Sync): 1
    HDBaseT: 1
  • OUTPUT
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 10W x2
    USB Type A (Power): 1 (5V/1.5A)
    12V Trigger (3.5mm): 1
  • CONTROL
    RS232 (DB 9-pin male): 1
    RJ45 (LAN control): 1
    USB Type A (Services): 1 (share with USB A Output)
  • OTHERS
    Power Supply Voltage: 100-240V+/- 10%, 50/60Hz (AC in)
    Power Consumption: Normal: 450W Standby: <0.5W
    Operating Temperature: 0~40℃
    Carton: Brown
    Net Weight: 6.5kg (14.33 lbs)
    Gross Weight: 9kg (19.84 lbs)
    Dimensions (WxDxH) with Adjustment Foot: 405x305x145mm (15.9x12x5.7 in)
    Packing Dimensions: 515x490x276mm (20.3x19.3x10.9 in)
    OSD Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, Hindi, Arabic, Vietnamese, Greek, total 23 languages
    User Guide Language: English, S-Chinese, T-Chinese, Indonesian, Finish, French, German, Italian, Japanese, Korean, Polish, Portuguese, Russian, Spanish, Swedish, Turkish, Arabic, Czech, Thai, Vietnamese, total 20 languages
  • STANDARD ACCESSORY
    Power Cord: 1
    VGA Cable: 1
    Remote Control: 1 (w/ laser pointer)
    QSG: Yes
    Warranty Card: Yes (CN Only)
  • OPTIONAL ACCESSORY
    Wall/Ceiling Mount: PJ-WMK-007
