Commercial Display
CDX4652-L
Key Features
Product Description

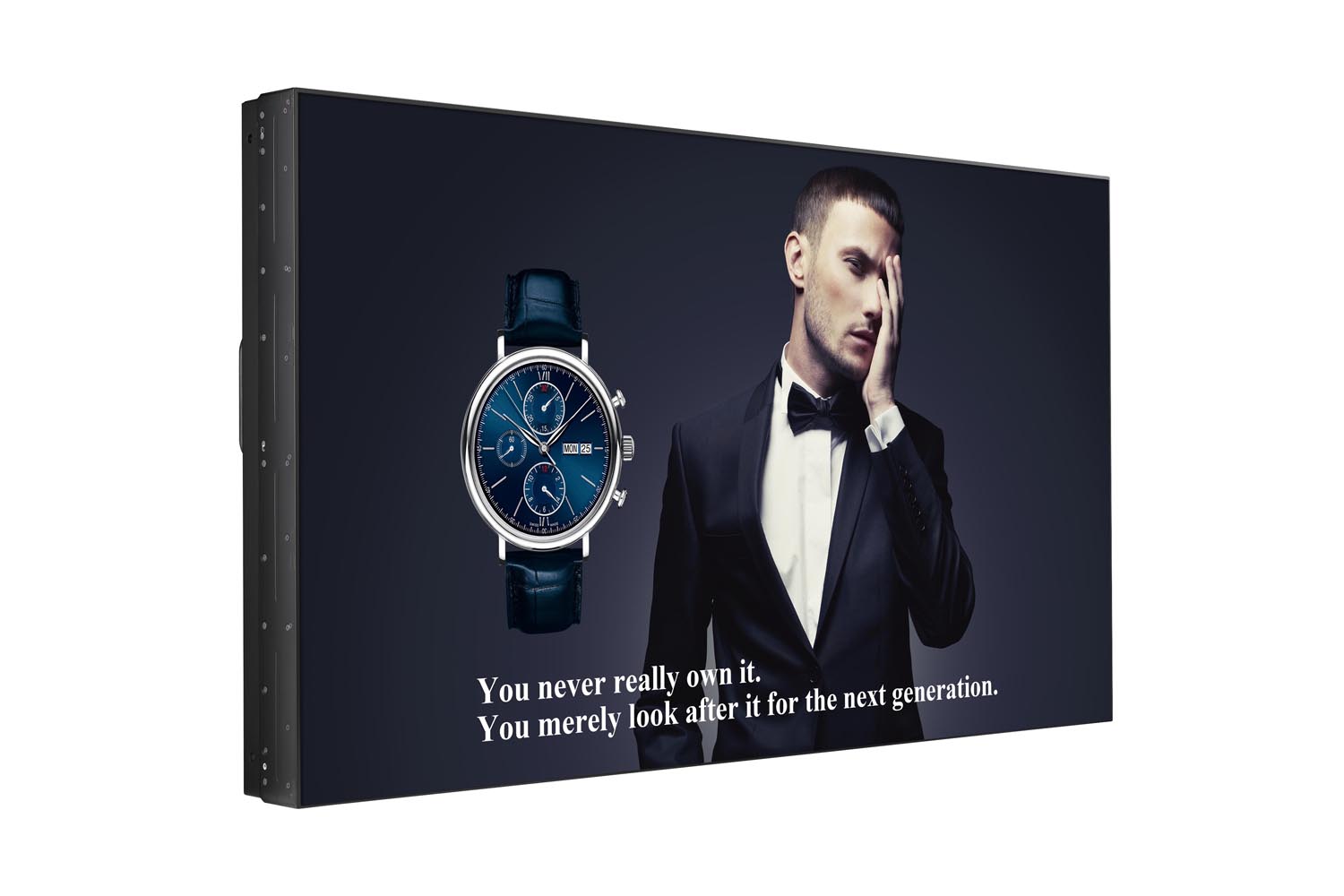

The ViewSonic CDX4652-L is a 46” (46’’ viewable) commercial LED display that features an ultra-narrow bezel less than 3mm wide. With an edge-to-edge width of only 5.6mm between combined displays, the CDX4652-L is perfect for digital signage and video wall applications that deliver seamless, high-impact messaging in commercial, hospitality, and transportation venues. With its Full HD 1080p resolution, 500-nit brightness, 3,500:1 high contrast ratio, SuperClear® image enhance technology and wide viewing angles, the CDX4652-L delivers sharp and vivid images for superior performance. Integrated DVI-out and RS232-out ports, along with a RS232 pass-through function, support the installation, management and scheduling of video wall installations for up to 5x5 daisy-chained displays. In addition, versatile connectivity options including HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs, offer convenient, one-time installation for a variety of high-definition devices. The ViewSonic CDX4652-L is a reliable and easy-to-maintain commercial display solution.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 46" Type/Tech: TFT LCD Module with LED Backlight Display Area (mm): 1018.08(H) x 572.67 (V) (46” diagonal) Aspect Ratio: 16:9 Native Resolution: 1920 x 1080 Colors: 16.7M Brightness: 500 nits (typ.) Contrast Ratio: 3500:1 Typ. Response Time: 8ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 50,000 Hours Typ. Surface Treatment: AG coating (3H) Orientation: Landscape / Portrait -
INPUT
HDMI: x1 RGB / VGA: x1 DisplayPort: x1 DVI: x1 Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R) CVBS: x1 YPbPr: x1 RS232: x1 IR Pass Thru: x1 -
OUTPUT
DVI: x1 Audio: x1 Shared RCA audio (L+R) RS232: x1 IR Pass Thru: x1 -
LAN
RJ45: x1 -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i, YPbPr: 480i, 480p,720p,1080i,1080p HDMI: 480i, 480p,720p,1080i,1080p DisplayPort: 480i, 480p,720p,1080i,1080p DVI: 480i, 480p,720p,1080i,1080p -
CONTROLS
Physical- Top OSD: PICTURE: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
SCREEN: Brightness, Contrast, Sharpness,Black Level, Tint, Color, Color Temperature, Gamma
Selection, Noise Reduction, Film Mode, Picture Reset Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset
SOUND: Balance, Treble, Bass, Audio Reset
PIP: PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset
CONFIGURATION 1: Off Timer, Schedule, Data and Time, Configuration 1 Reset
CONFIGURATION 2: Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor
Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption,
Configuration 2 Reset.
CONFIGURATION 3: Power Save, Heat Status, Screen Saver, Side Border Color, Configuration 3 Reset
ADVANCED OPTION: Input Change, Terminal Setting, Scan Conversion, Color System, Scan Mode, Serial
Control, Lan Setting, APM, Advanced Option Reset, Factory Reset -
POWER
Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range Consumption: 120W (typ), 200W (max)
< 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 400 x 200 / 200x 200 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS
(W X H X D)Bezel width (B2B): 5.6 mm Physical (inch / mm): 40.3x24.8x1.6 / 1023.98 x 629.41 x 400 (w/ Stand)
40.3x22.8x4.9 / 1023.98 x 578.57 x 125.7 (w/o Stand)Packaging (inch / mm): 50.8x34.4x14.3 / 1290 x 875 x 363 -
WEIGHT
Net (lb / kg): 50.6 / 23 (w/o stand)
55.66 / 25.3 (w/ stand)Gross (lb / kg): 70.18 / 31.9 -
REGULATIONS
CE, CB, WEEE, C-tick, FCC, ICES003, UL/cUL, CU, Energy star 6.0 -
PACKAGE CONTENTS
1. CDX4652-L LCD Monitor 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable
*Actual content may differ from market to market
