Commercial Display
CDP5560-L
Key Features
Product Description

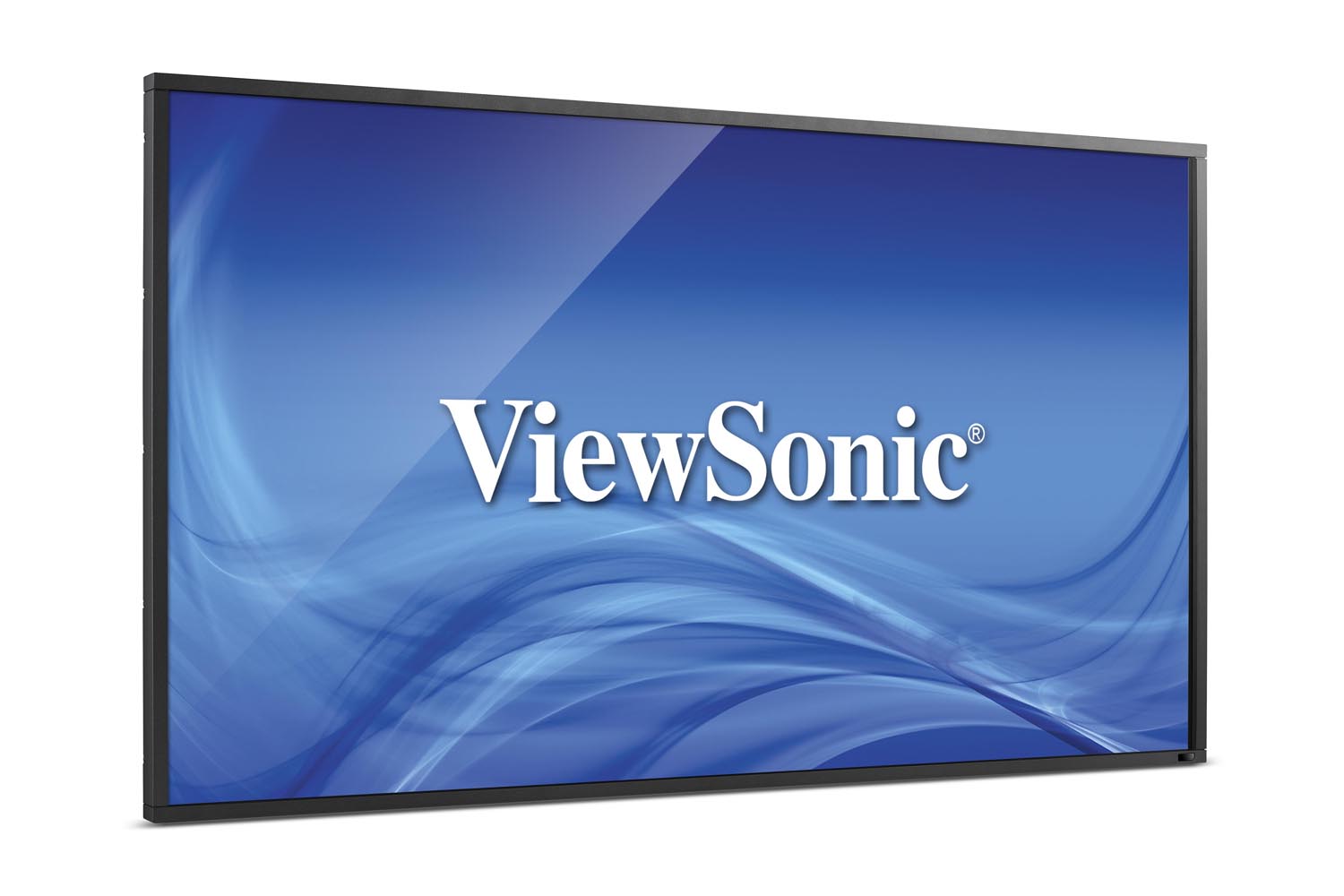

The ViewSonic CDP5560-L is a 55"(55" viewable) commercial LED display designed for use 24 hours a day, 7 days a week. The CDP5560-L is ideal for sharing public information in indoor areas such as high-traffic transportation settings, as well as in education, hospitality, and commercial venues. Featuring a slim 15.8mm narrow bezel design, Full HD 1080p resolution, 450-nit high brightness, SuperClear® image enhance technology with wide viewing angles, as well as dual 10W stereo speakers, the CDP5560-L delivers sharp, vivid images with incredible sound for superior multimedia messaging performance. The CDP5560-L can display multimedia content in either landscape or portrait orientations for flexible installation. Versatile connectivity options include HDMI, DisplayPort, DVI, D-Sub, YPbPr, and CVBS inputs for easy installation and control of a variety of high-definition devices. Equipped with DVI-out, the CDP5560-L supports up to a 5x5 daisy chain installation. In addition, integrated RS232 input and output, with IR pass-through and a content scheduling function make the CDP5560-L an easy to-manage solution for 24/7 use.
Visit Us
- www.viewsonic.com
-
DISPLAY
Panel Size: 55" Type/Tech: TFT LCD Module with LED Backlight Display Area (mm): 1209.6(H) x 680.4 (V) (55” diagonal) Aspect Ratio: 16:9 Native Resolution: 1920 x 1080 Colors: 1.07 Billion Brightness: 450 nits (typ.) Contrast Ratio: 1300:1 Typ. Response Time: 12ms Viewing Angles: H = 178, V = 178 typ. Backlight Life: 30,000 Hours Typ. Surface Treatment: Hard coating (3H) Orientation: Landscape / Portrait -
INPUT
HDMI: x1 RGB / VGA: x1 DisplayPort: x1 DVI: x1 Audio: x1 PC audio(3.5 mm), x1 Shared RCA audio (L+R) CVBS: x1 YPbPr: x1 RS232: x 1 IR Pass Thru: x1 -
OUTPUT
DVI: x1 Audio: x1 Shared RCA audio (L+R) RS232: x1 IR Pass Thru: x1 -
LAN
RJ45: x1 -
SPEAKERS
10Wx2 -
COMPATIBILITY
RGB PC/HDMI PC: Refer to timing table CVBS: 480i, YPbPr: 480i, 480p,720p,1080i,1080p HDMI: 480i, 480p,720p,1080i,1080p DisplayPort: 480i, 480p,720p,1080i,1080p DVI: 480i, 480p,720p,1080i,1080p -
CONTROLS
Physical- Top OSD: POWER, MUTE, INPUT, VOL -/+, UP, DOWN, MENU
Brightness, Contrast, Sharpness,Black Level, Tint, Color, Color Temperature, Gamma Selection, Noise Reduction, Film Mode, Picture Reset
Auto Setup, Auto Adjust, H Position, V Position, Clock, Clock Phase, Zoom Mode, Custom Zoom, Input Resolution, Screen Reset
Balance, Treble, Bass, Audio Reset
PIP Mode, PIP Size, PIP Audio, PIP H Position, PIP V Position, SUB Input, PIP Reset
Off Timer, Schedule, Data and Time, Configuration 1 Reset
Language, OSD Turn Off, OSD H Position, OSD V Position, Information OSD, Monitor Information, Monitor ID, IR Control, Tiling, Power on Delay, Closed Caption, Configuration 2 Reset.
Power Save, Heat Status, Screen Saver, Side Border Color, Configuration 3 Reset
Input Change, Terminal Setting, Scan Conversion, Color System, Scan Mode, Serial Control, Lan Setting, APM, Advanced Option Reset, Factory Reset -
POWER
Voltage: 100-240VAC +/- 10% 50/60Hz Wide Range Consumption: 130W (typ), 190W (max)
< 0.5 W ("Off") -
ERGONOMICS
Wall Mount (VESA® ): 400 x 400 -
OPERATING CONDITIONS
Temperature (º C): 0°C to 40°C Humidity: 20% ~ 80% non-condensing -
DIMENSIONS
(W X H X D)Bezel width (B2B): 31.6 mm Physical (inch / mm): 49.0x29.8x15.7 / 1247 x 758.2 x 400 (w/ Stand) 49.0x28.2x2.7 / 1247 x 717.8 x 70 (w/o Stand) Packaging (inch / mm): 57.8x38.3x10.6 / 1469 x 975x 269 -
WEIGHT
Net (lb / kg): 66.66 / 30.3 (w/o stand)
71.72 / 32.6 (w/ Stand)Gross (lb / kg): 82.83 / 37.65 -
REGULATIONS
CE, CB, WEEE, C-tick, FCC, ICES003, UL/cUL, CE,CB, CU, Energy star 6.0 -
PACKAGE CONTENTS
1. CDP5560-L display 2. Remote Control with batteries 3. User manual CD wizard 4. Quick Start Guide 5. Power Cables 6. VGA cable
*Actual content may differ from market to market
