PS502X

4,000 안시루멘 XGA 단초점 비즈니스 및 교육용 프로젝터

  • 모든 환경에서 선명한 이미지를 제공하는 4,000 ANSI Lumens
  • 0.616 공간 소모를 최소화하는 단초점
  • 인치당 비용을 낮추면서 최대 300인치 초대형 화면
  • 쉽고 유연한 연결: 듀얼 HDMI 포트, USB Type-A 포트
  • USB 연결을 통한 프로젝터의 편리한 소프트웨어 업데이트
Sales Enquiry

OVERVIEW

The PS502X is ViewSonic’s high brightness XGA short throw business/education projector. Boasting 4,000 ANSILumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms,classrooms, or any other bright environment. With 0.616 short throw ratio, the projector can provide 100”large screen size from only 1.3m away without being obstructed by shadows, allowing for a large screen even in smallspaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between contentsources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming moreconvenient. The projector also allows software updates via USB cable connection with simply your laptops,skipping trips to service centers.

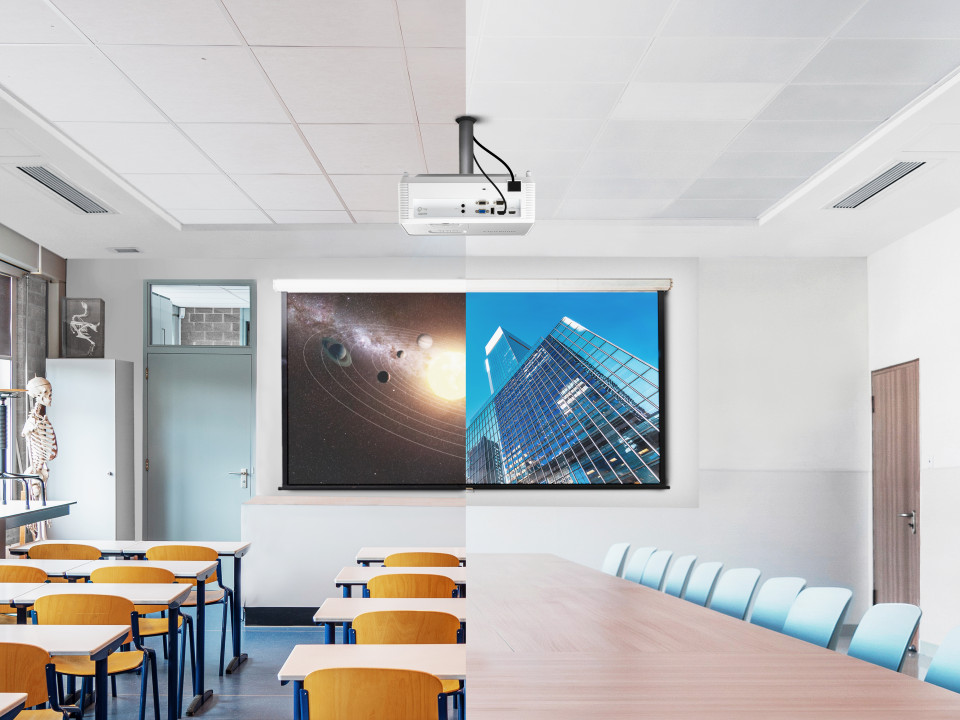

High Brightness for Business & Education Environments​

Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which areperfectly suitable for spaces with a lot of ambient light.
4,000 ANSI Lumens
High Brightness for Business & Education Environments​ 1

Big Screen for Small Spaces

The PS502X’s 0.616 short throw projection gives you 100” from only 1.3m away whenpositioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare andshadows on the projection screen.
0.616 Short Throw
Big Screen for Small Spaces 1

Ultra-Large Screen with Lower Cost-per-inch​​

The projector allows for an up-to-300” image size, which is much larger and easier to install thancommercial displays.
Up to 300"
Ultra-Large Screen with Lower Cost-per-inch​​ 1

Easy and Flexible Connection​

The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices.You no longer have to unplug your existing device to switch to a new one. Simply use the on-screendisplay to select and change the input source.​
Dual HDMI Ports
Easy and Flexible Connection​ 1

Vibrant Colors for Captivating Presentations​

Impress any audience with ViewSonic’s exclusive color technology and elevate your presentationwith a true-to-life color experience.
Vibrant Colors for Captivating Presentations​ 1

A Simpler Way to Update Projector Software​

Skip trips to the service center by keeping software up to date easily and onsite via USB cableconnection with your laptop.​​​
Learn more: https://youtu.be/irlhJLpDHas
​​​*The latest projector softwareupdate can be found in the download section at the bottom of the page when available.​
A Simpler Way to Update Projector Software​ 1

USB Type A Power Supply​

A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminatingthe need for separate power adapters when streaming your multimedia content.
USB Type A Power Supply​ 1

Audio Right Out of the Box

The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentationswithout the need for external speakers.
Built-in 16W Speakers
Audio Right Out of the Box 1

Dimensions & I/O Ports

  1. Adjustment Foot
  2. Lens
  3. Front IR
  4. HDMI 1
  5. HDMI 2
  6. USB-A(5V/15A, Service)
  7. Computer In
  8. Audio In
  9. AC in
  10. R232
  11. Kensingtion Lock
  12. Monitor Out
  13. Audio Out
  14. Focus Ring
  15. LED Indicator
  16. Keypad

SPECIFICATIONS


  • Specification
    Projection System: 0.55" XGA
    Native Resolution: 1024x768
    Brightness: 4000 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 15000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: 240W UHP Lamp
    Light Source Life (hours) with Normal Mode: 4000
    Light Source Life (hours) with SuperEco Mode: 12000
    Lens: F=2.7, f=7.15mm
    Projection Offset: 130%+/-10%
    Throw Ratio: 0.616
    Optical Zoom: Fixed
    Digital Zoom: 0.8x-2.0x
    Image Size: 60"-300"
    Throw Distance: 0.75-3.76m
    (77"@0.96m)
    Keystone: +/- 19° (V)
    Auto Keystone: +/- 19° (V)
    Audible Noise (Normal): 34dB
    Audible Noise (Eco) : 25dB
    Input Lag: 33.2ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • Input
    Computer in (share with component): 1
    HDMI: 2
    (HDMI 1.4, HDCP 1.4)
    Audio-in (3.5mm): 1
  • Output
    Monitor out: 1
    Audio-out (3.5mm): 1
    Speaker: 16W
    USB Type A (Power): 1 (5V/1.5A)
