OVERVIEW

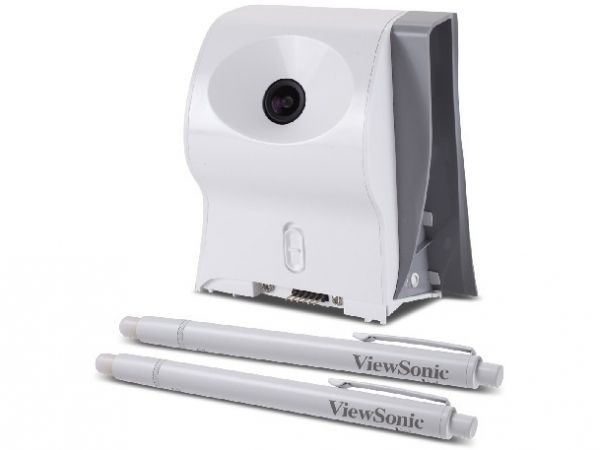

With this interactive package (PJ-PEN-003), the PJD8353s or PJD8653ws becomes an interactive projector that transforms any surface into an interactive whiteboard. Along with the included ViewDraw 2 software, the dual interactive pens allow 2 users to simultaneously annotate, write, or draw on the projected image. This feature encourages collaboration and engages the audience.

SPECIFICATIONS

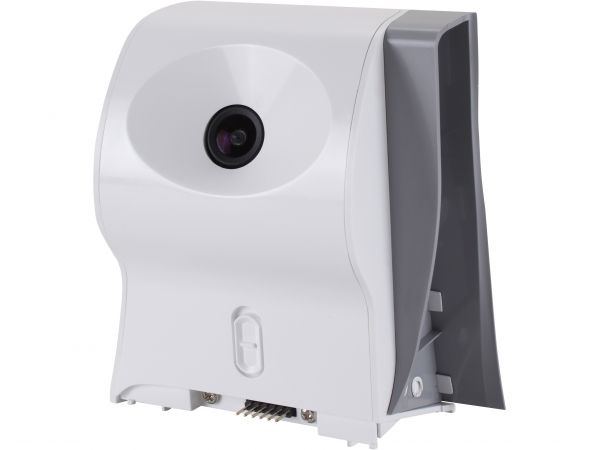

  • IR Camera
    Sensor Size: 1/4" CMOS
    IR Band: 940nm
    Resolution: 2560 x 1920 (Interpolated); 640 x 480 (Native)
    Detect frame rate: 60 fps (16.6ms)
    Calibration: Auto calibration
    Driver install: Auto calibration
    Throw Ratio: 0.35
    Projected image distance and size: 60" to 100"
    Multi touch: 2-touch points
    Power consumption: 150mA
    Memory: 8M

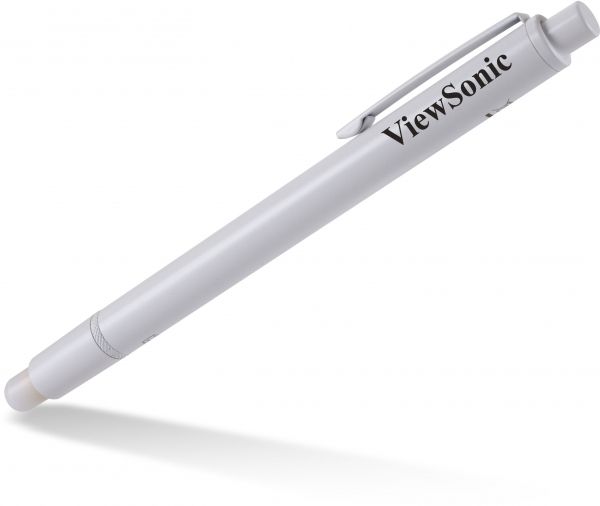

  • IR-Pen
    Light source wavelegth: IR(940nm)
    Driving current: 110mA(Max)
    Power required: AAA Battery (alkaline) x 2
    Dimension: 160mm (L) x 11.5mm (Diameter)
    Weight: 50g (with Batteries)
  • OPERATING CONDITIONS
    Temperature: 10° ~ 40°C/ 64° ~ 104°F
    Humidity: 10 ~ 85%, Non-Condensation
