PG707X

4,000 ANSI Lumens XGA Business/Education Projector

  • 4,000 ANSI Lumens offering bright images in any environment
  • Larger screen size with lower cost-per-inch
  • Throw ratio match & 1.3x zoom for hassle-free equipment upgrade
  • Energy-efficient 20,000 hours lamp life
  • Comprehensive LAN control for efficient management
  • H/V Keystone adjustment enabling side projection
Sales Enquiry

OVERVIEW

ViewSonic PG707X is a practical 4,000 ANSI Lumens XGA business/education projector. With a throw ratio match for mainstream installation conditions and 1.3x optical zoom, it serves as a hassle-free upgrade choice for users to easily get bright and large images with low cost-per-inch in small-to-medium meeting/training rooms. Adding on to that are the energy-efficient 20,000 hours long lamp life and comprehensive LAN control compatibility, making it even more favorable to cost-effective and efficient management.

Bright Images in Business/Education Environments

Packed with 4,000 ANSI Lumens and a 22,000:1 contrast ratio, this projector can deliver bright and detailed images.
4,000 ANSI Lumens

Larger Screen Size with Lower Cost-per-inch

The projector allows for an up-to-300” image size, which is much larger and also easier to install than commercial displays.

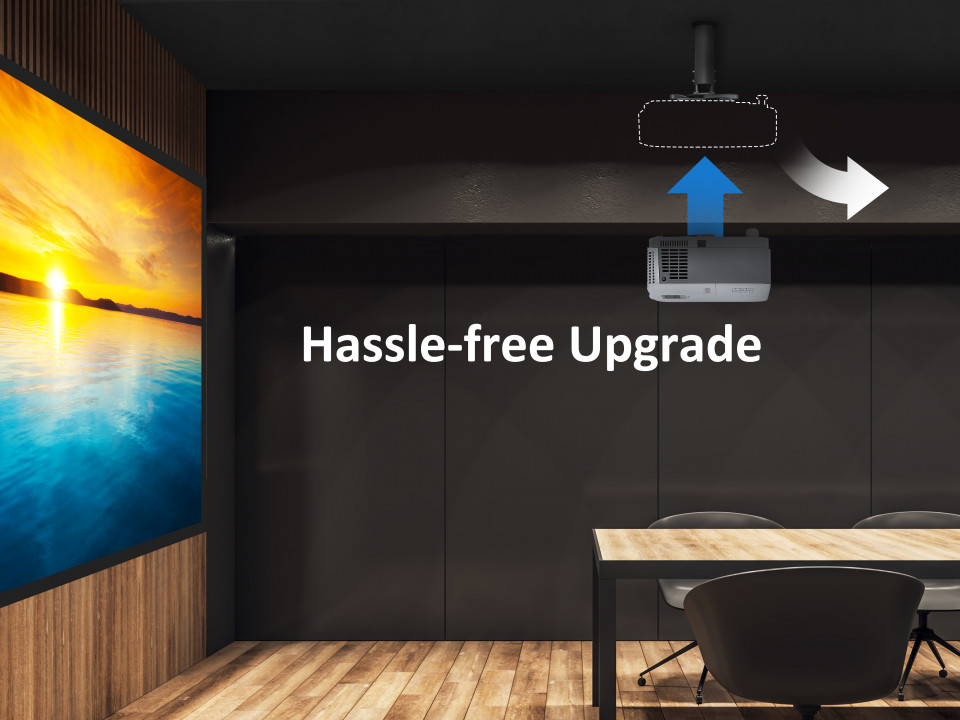

Hassle-free Equipment Upgrade

With a throw ratio matching mainstream installation conditions, the projector can be fitted to an existing ceiling mount and projection screen without changing the setup completely.
1.51-1.97 throw ratio

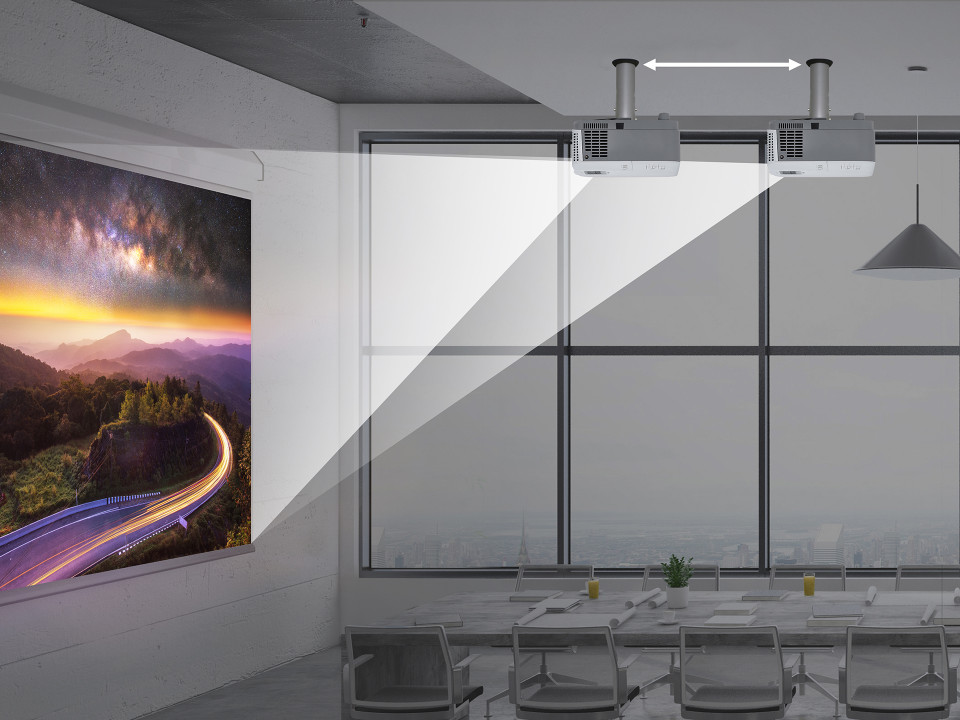

Adaptable to Any Environment

Equipped with a 1.3x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a wider throw distance range that doesn’t interfere with existing interior design while still getting the desired image size.
1.3x Optical Zoom

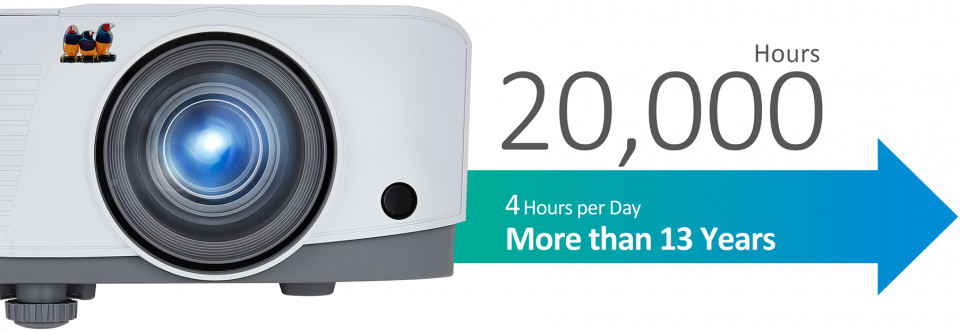

Reliable Long-term Performance

The latest SuperEco+ mode technology greatly extends the lamp life of the projector from 15,000 hours to 20,000 hours – meaning 4 hours a day for more than 13 years – saving you maintenance cost and effort.

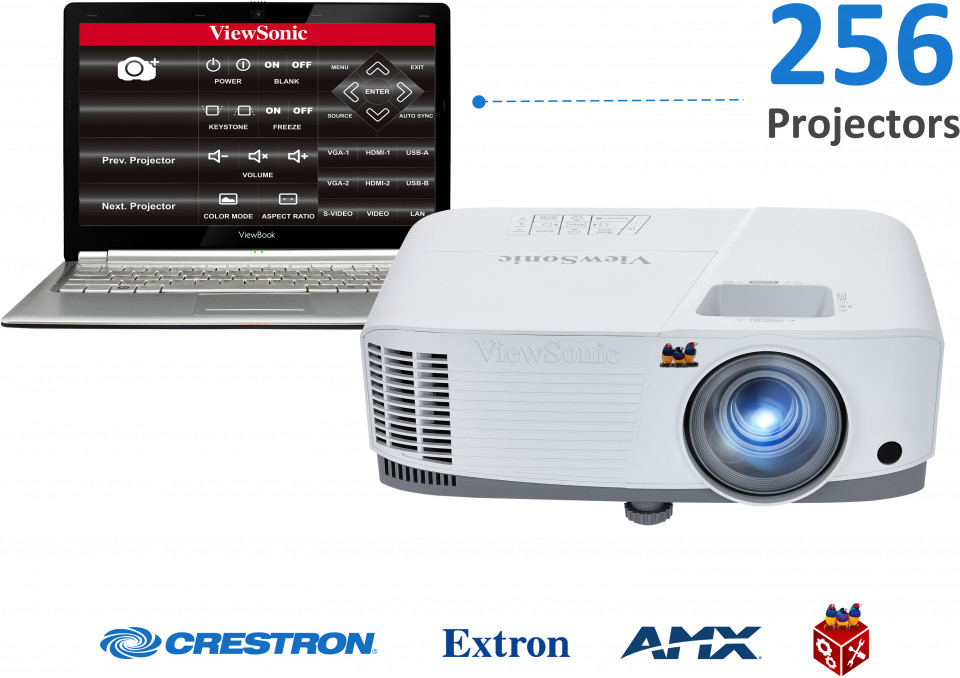

Centralized Control for Management Efficiency

This projector comes equipped with Crestron, AMX, PJ Link, ATEN, Extron and ViewSonic vController, an easy-to-use network management tool.

Easy Image Adjustment

Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.

A Simpler Way to Update Projector Software

ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently; no need to take your projector in to a service center for software updates.

*The latest projector software update can be found in the download section at the bottom of the page when available.

SuperColor™ Accuracy

ViewSonic’s proprietary SuperColor™ Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.

Satisfying Audio Performance

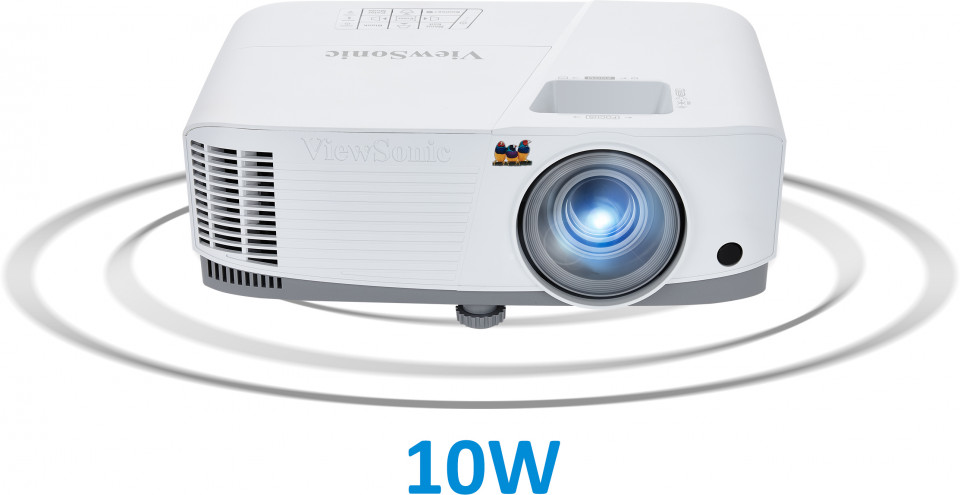

The projector is embedded with a 10W speaker to deliver satisfying audio performance right out of the box.

Sufficient Connectivity

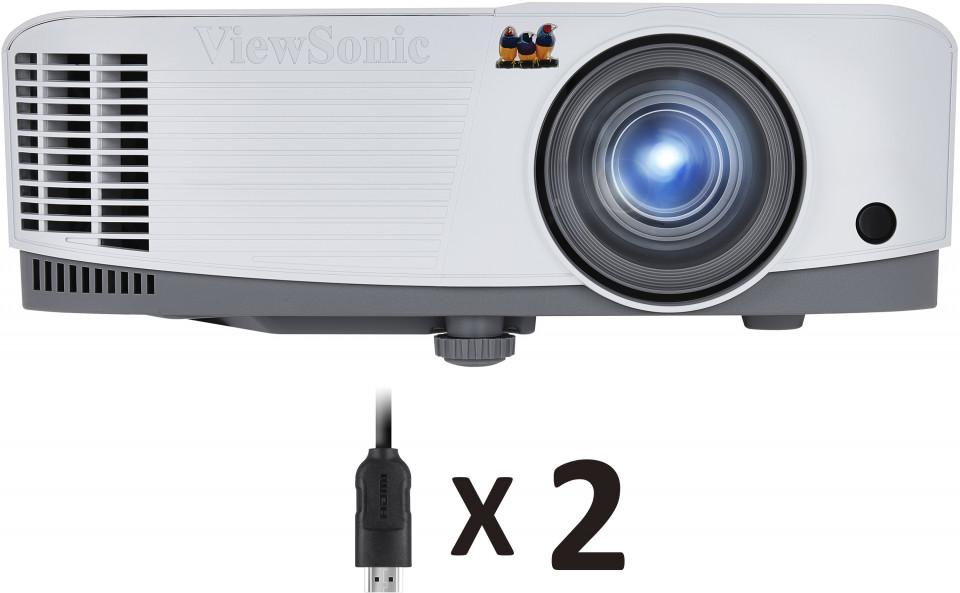

The projector provides dual HDMI ports to connect to your multimedia devices, ready for expanding your audiovisual experience.

USB Type-A Power Supply

A built-in USB power output (5V/1.5A) can be used to supply power to HDMI dongles, eliminating the need for separate power adapters for connected dongles.

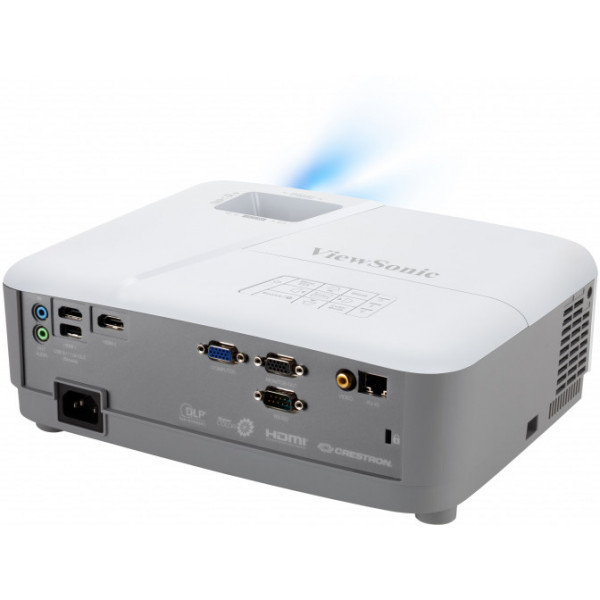

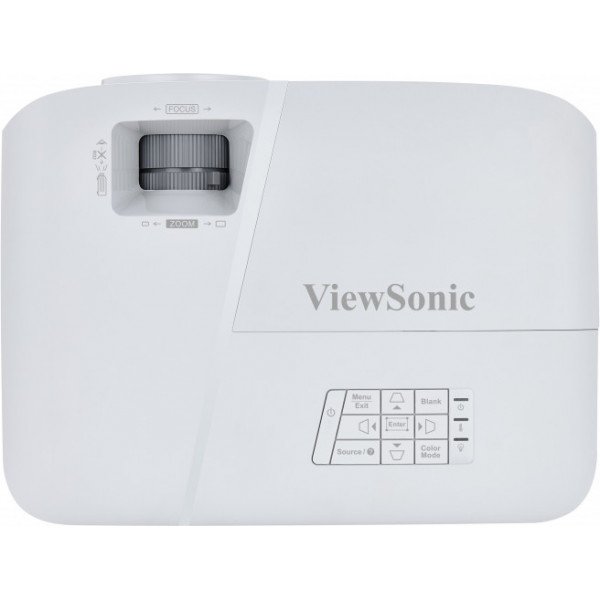

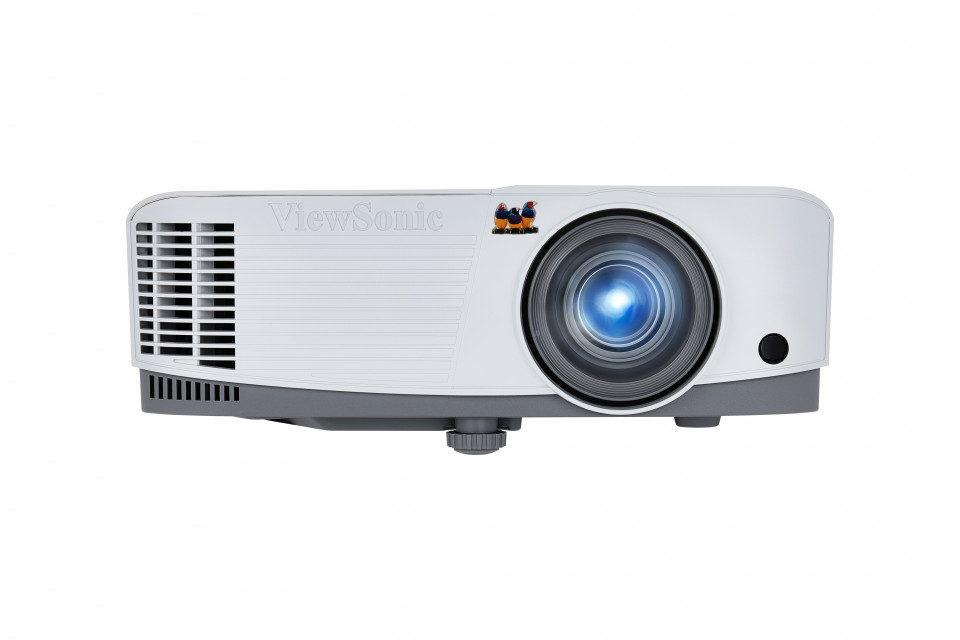

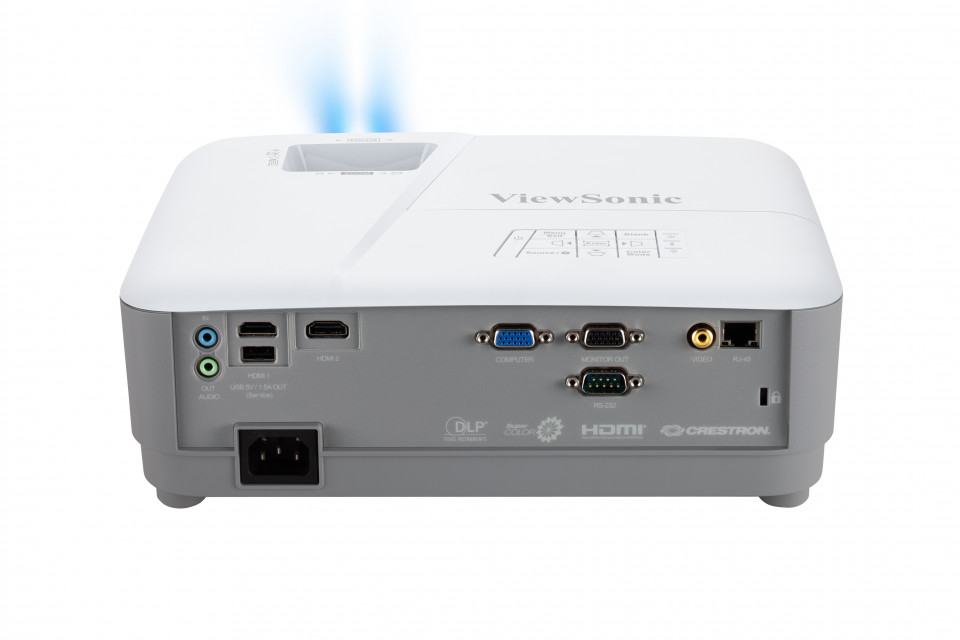

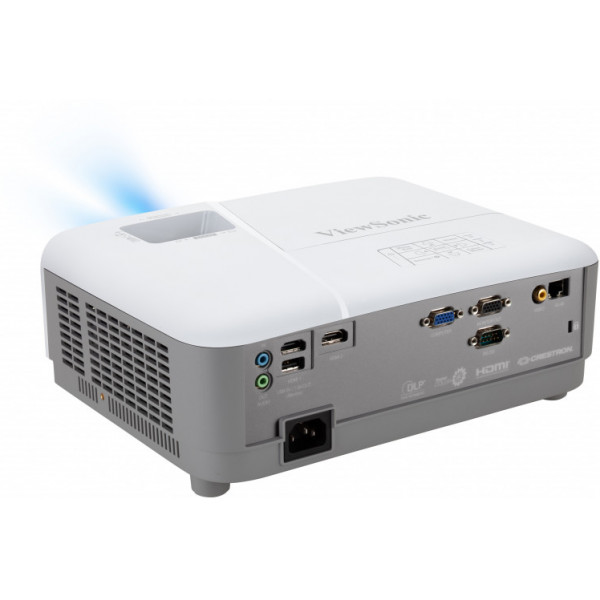

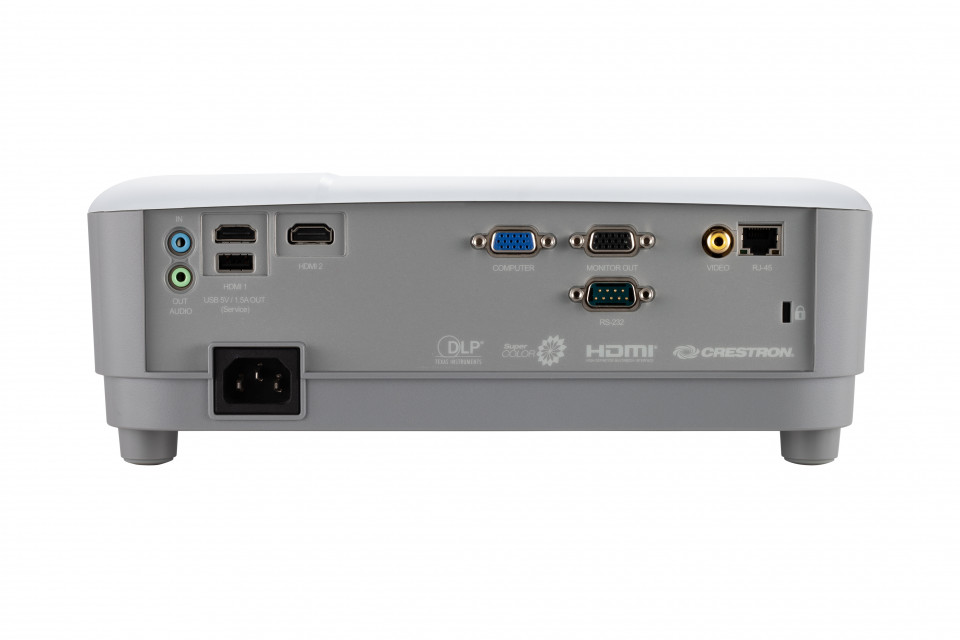

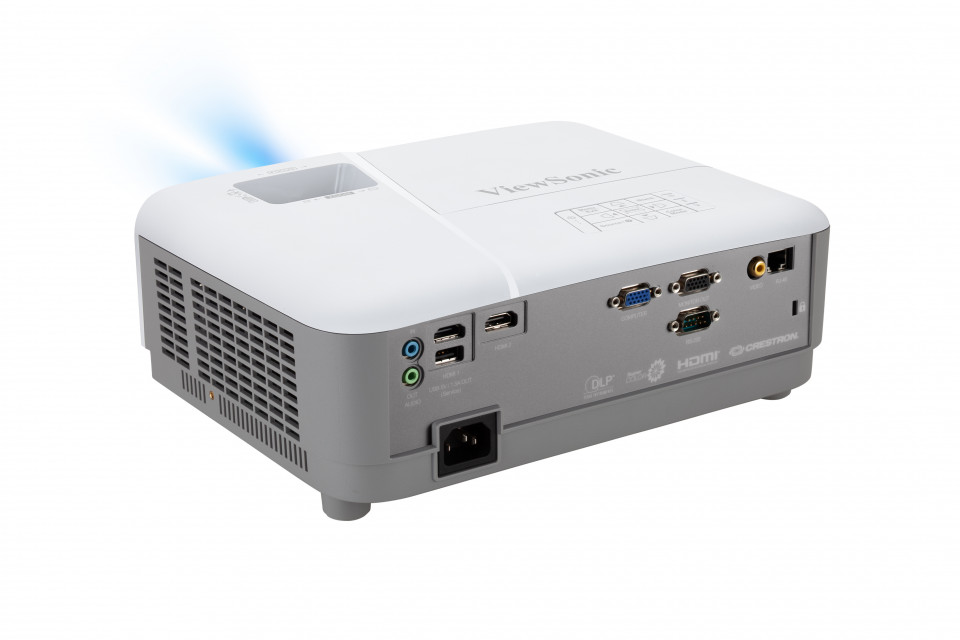

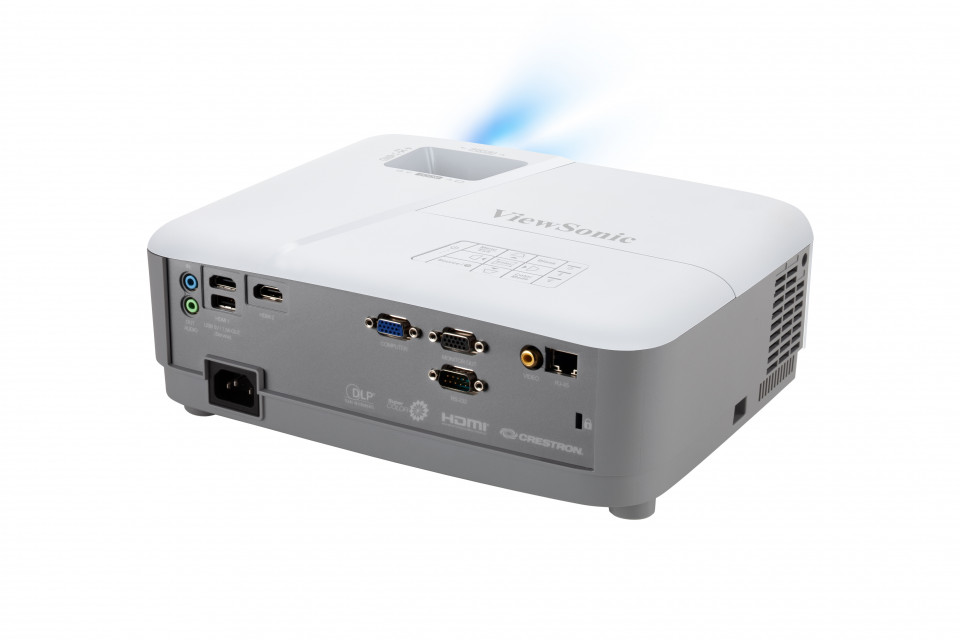

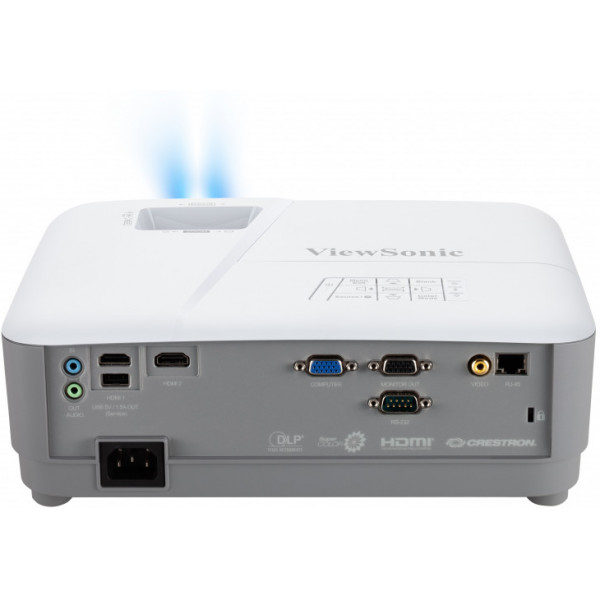

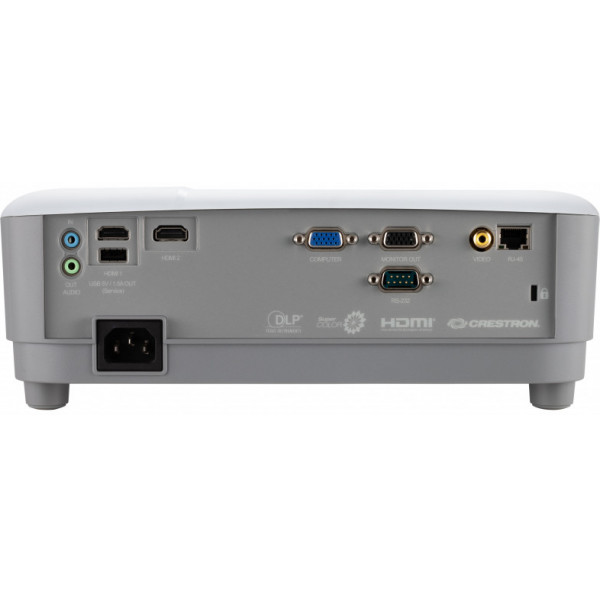

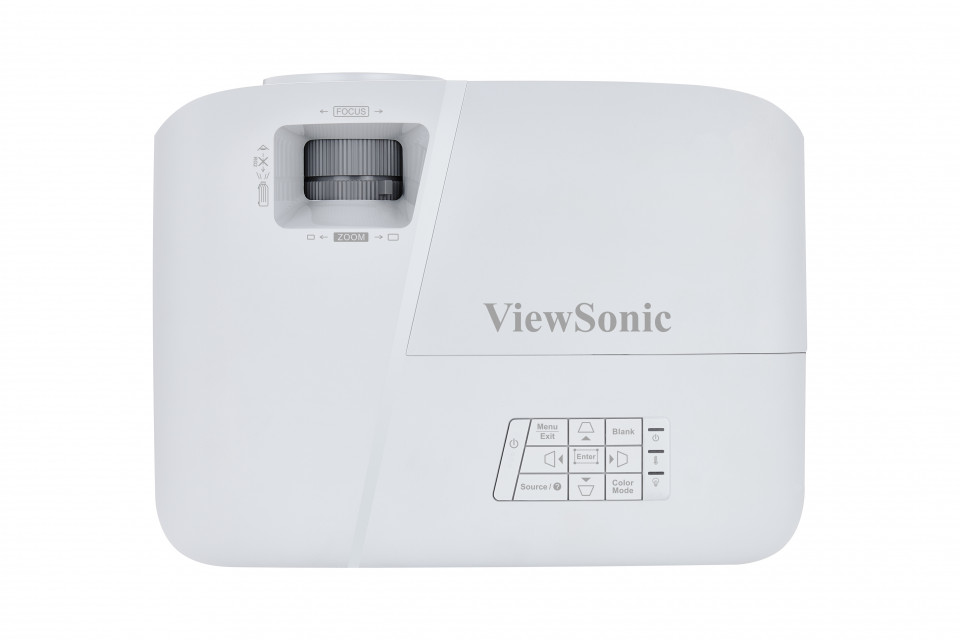

Exterior & Rear I/O Connectors

  1. LED Indicator
  2. Keypad
  3. Power Key
  4. Zoom/Focus Ring
  5. Adjustment Foot
  6. Lens
  7. Front IR
  8. HDMI 2
  9. HDMI 1
  10. Audio In
  11. Audio Out
  12. USB Type A(5V/1.5A)
  13. Computer In
  14. Monitor Out
  15. Video
  16. RJ45
  17. Kensington Lock
  18. RS232

SPECIFICATIONS


  • Specification
    Projection System: 0.55" XGA
    Native Resolution: 1024x768
    Brightness: 4000 (ANSI Lumens)
    Contrast Ratio with SuperEco Mode: 22000:1
    Display Color: 1.07 Billion Colors
    Light Source Type: Lamp
    Light Source Life (hours) with Normal Mode: 6000
    Light Source Life (hours) with SuperEco Mode: 20000
    Lamp Watt: 203W
    Lens: F=2.59-2.87, f=16.88-21.88mm
    Projection Offset: 115%+/-5%
    Throw Ratio: 1.51-1.97
    Optical Zoom: 1.3x
    Digital Zoom: 0.8x-2.0x
    Image Size: 30"-300"
    Throw Distance: 0.9m-12m, (100"@3.1m)
    Keystone: H:+/-40° , V:+/-40°
    Audible Noise (Normal): 32dB
    Audible Noise (Eco) : 28dB
    Input Lag: 16ms
    Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
    HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    Video Compatibility: NTSC, PAL, SECAM
    Horizontal Frequency: 15K-102KHz
    Vertical Scan Rate: 23-120Hz
  • Input
    Computer in (share with component): 1
    Composite: 1
    HDMI: 2 (HDMI 1.4/ HDCP 1.4)
    Audio-in (3.5mm): 1
  • Output
    Monitor out: 1
    Audio out (3.5mm): 1
    Speaker: 10W
    USB Type A (Power): 1 (5V/1.5A)
