VX2776-SH
Features
Specifications
Downloads

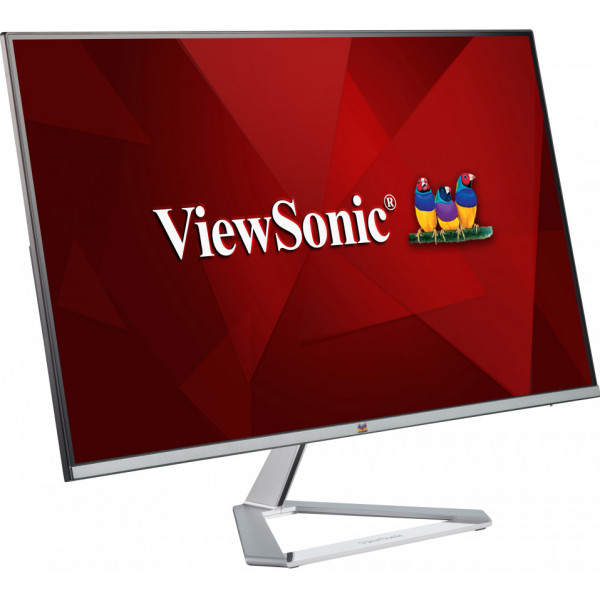

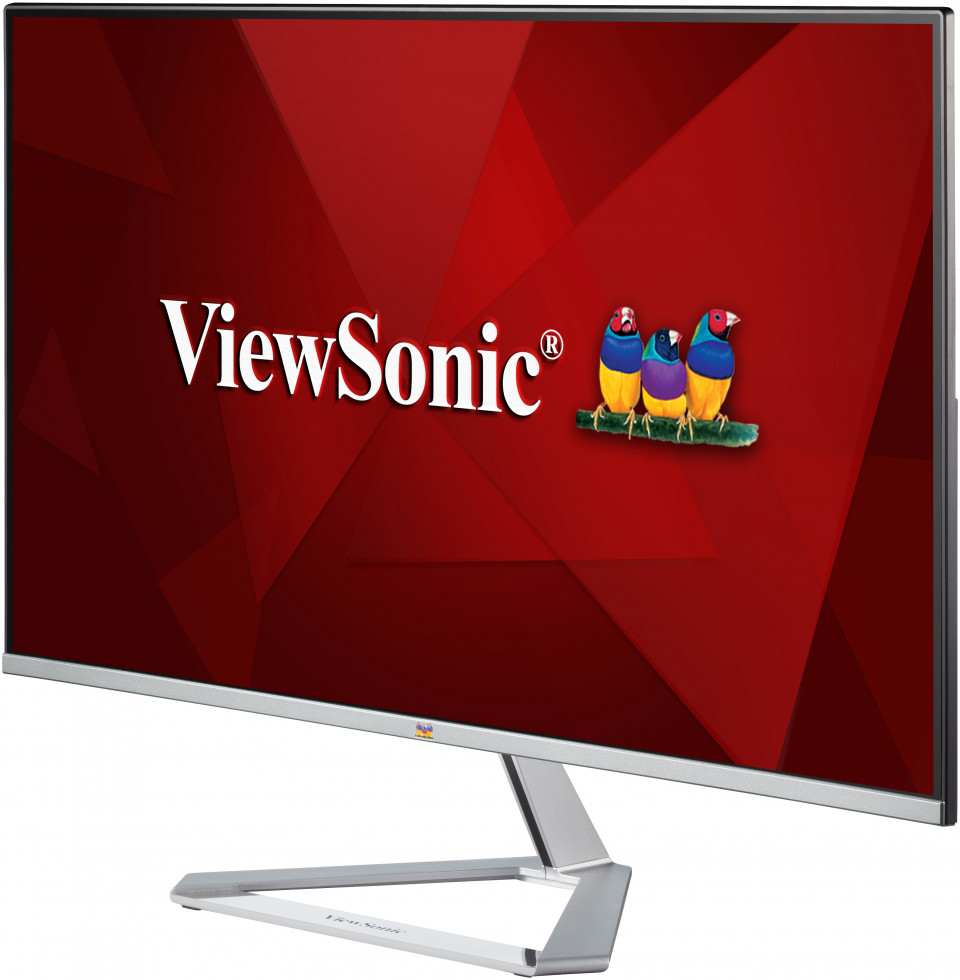

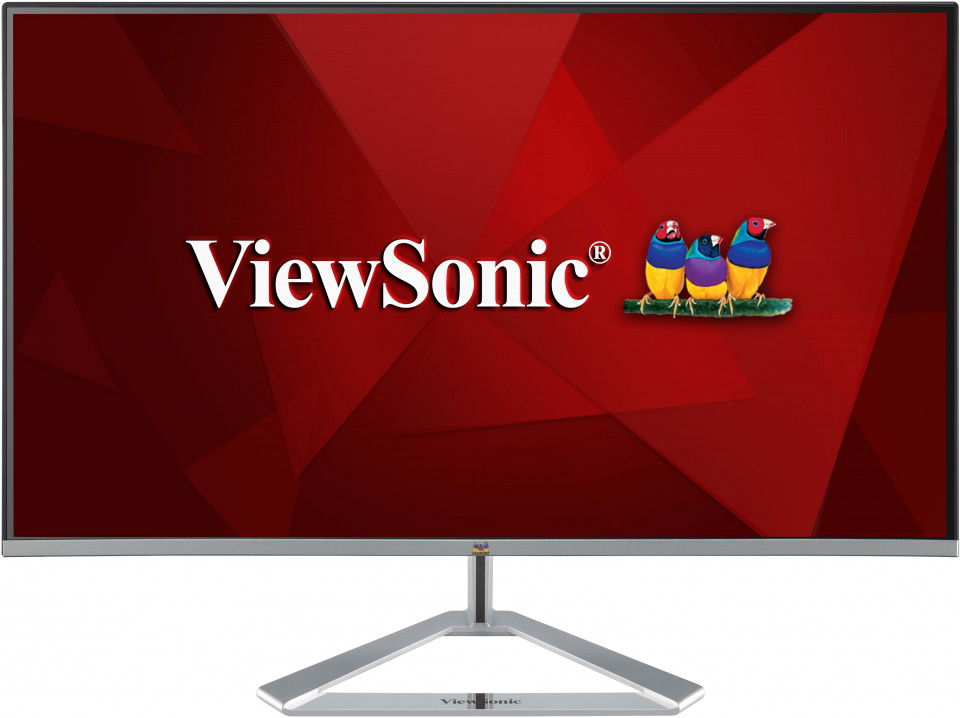

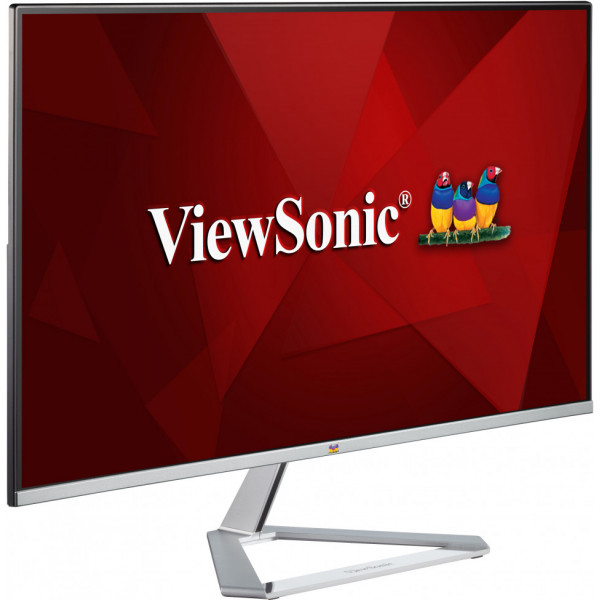

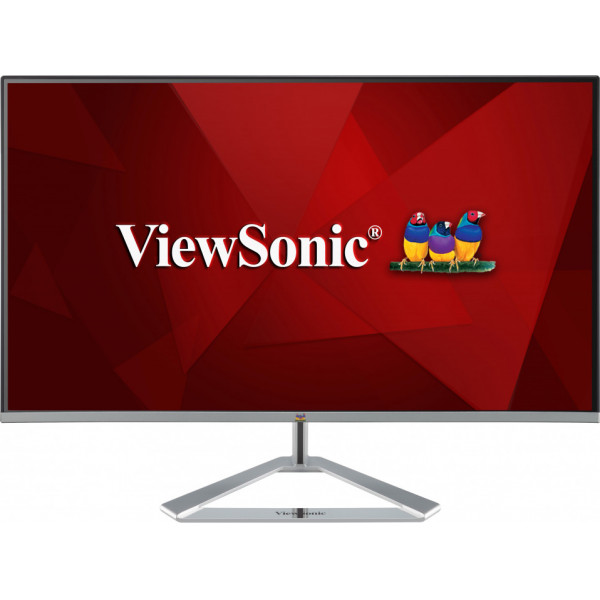

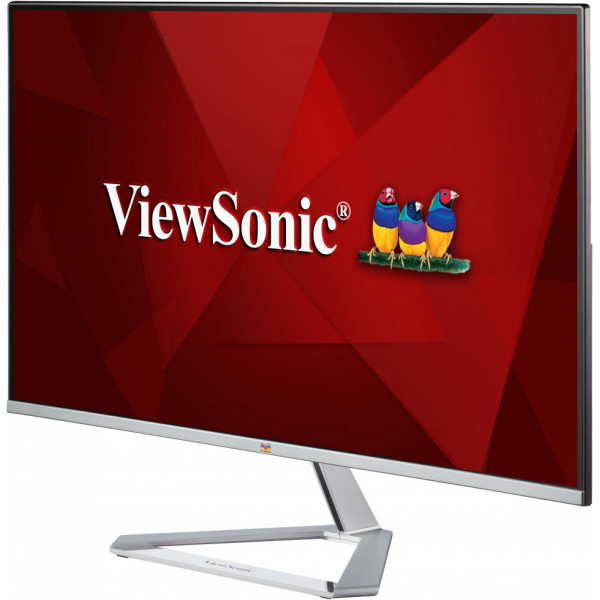

VX2776-SH
27" IPS Monitor with Frameless Bezel
SuperClear® IPS panel for vivid picture quality and wider viewing angles
Frameless bezel and stylish stand
75Hz Refresh Rate delivers fluid visuals

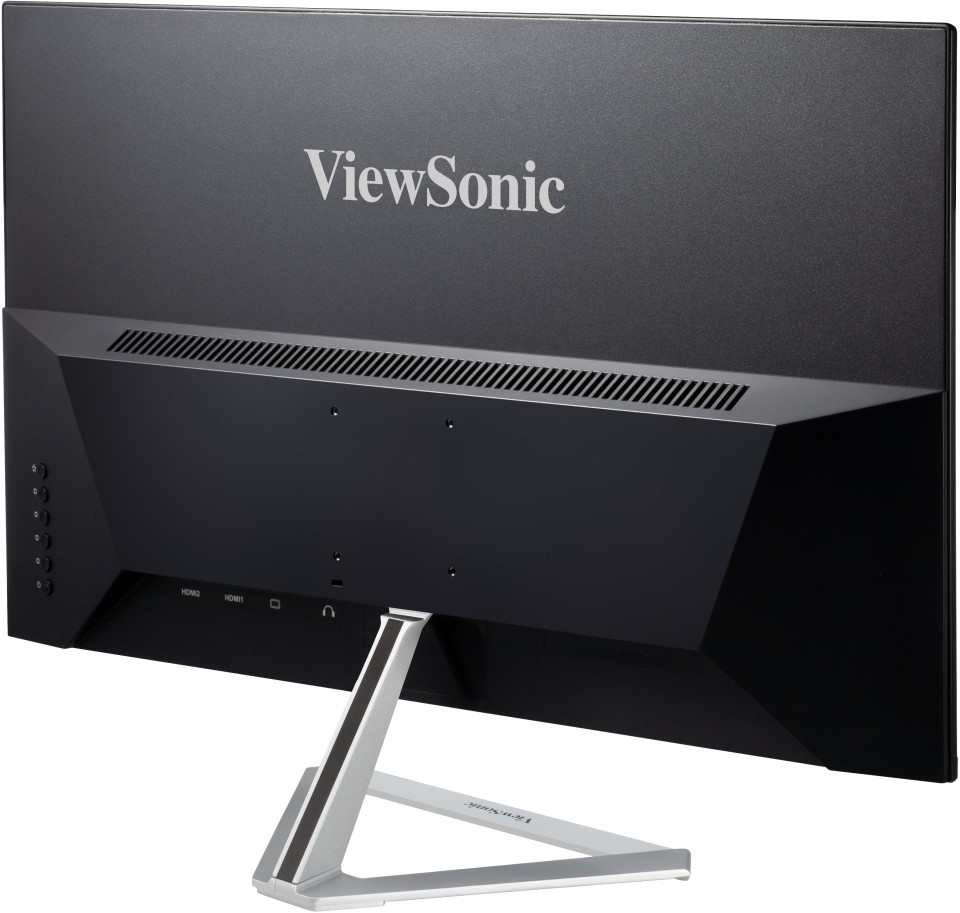

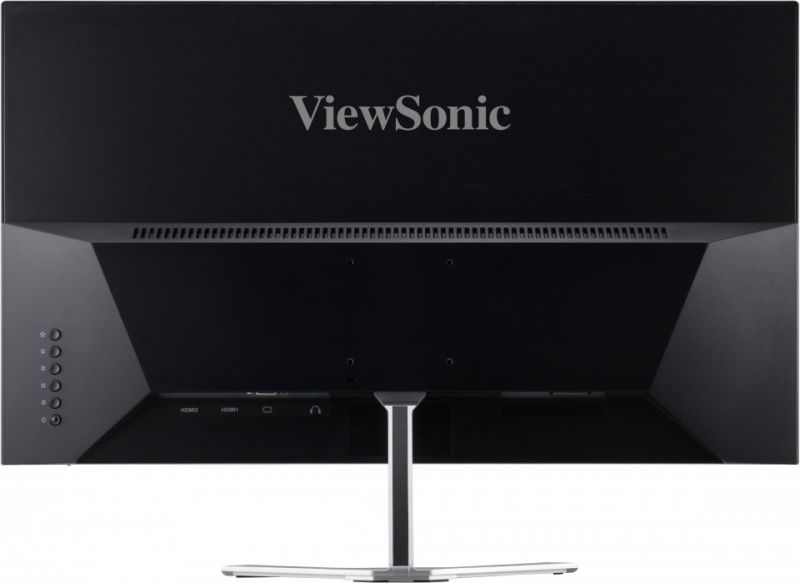

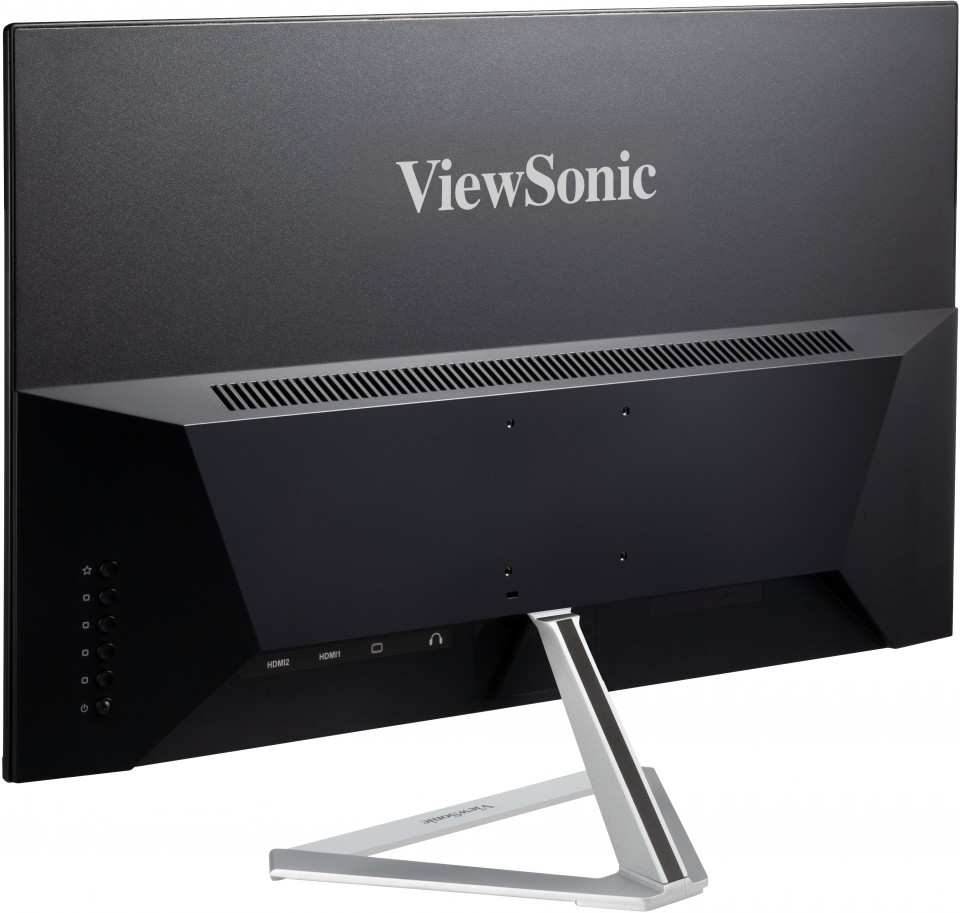

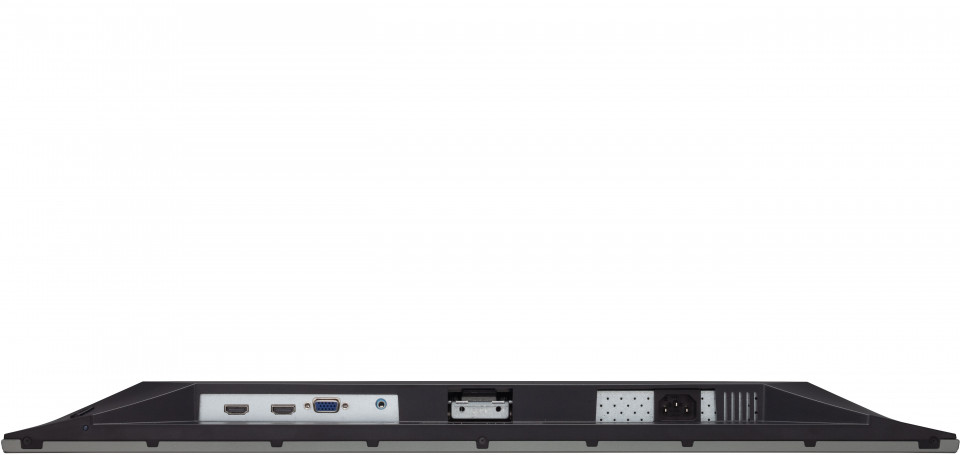

Flexible connectivity with VGA and two HDMI ports
User-customized and pre-calibrated ViewMode for every scenario
Sales Enquiry
gallery
GALLERY
OVERVIEW
Whether for office use or for enjoying entertainment at home, the ViewSonic® VX2776-SH is designed to take your viewing experience to another level. With a SuperClear® IPS panel and a sleek frameless design, this monitor provides a near-seamless viewing experience ideal for multi-monitor setups. The Full HD resolution boosts efficiency and image detail needed for work or play. A mega dynamic contrast ratio of 80M:1 delivers enhanced image depth for a better user experience. The Built-in HDMI and VGA inputs deliver flexible connectivity options for a wide range of devices.
Clarity From Any Angle
Enjoy accurate and vivid colors with consistent levels of brightness no matter your vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
SuperClear IPS, 178°/178°

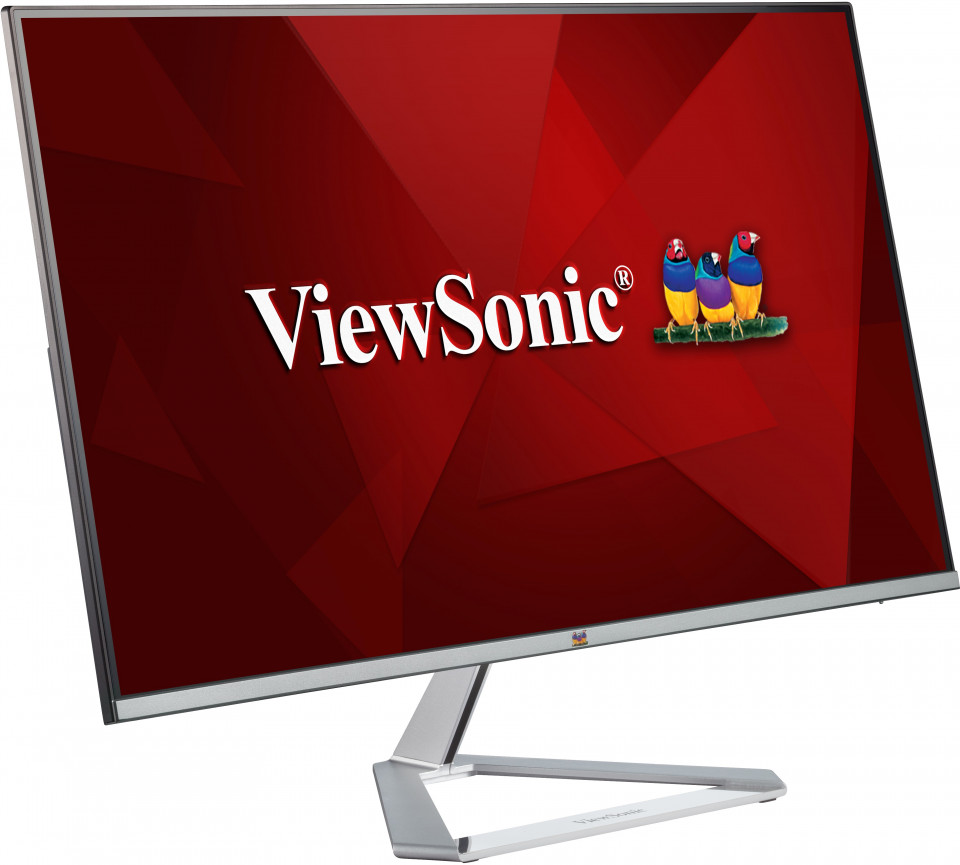

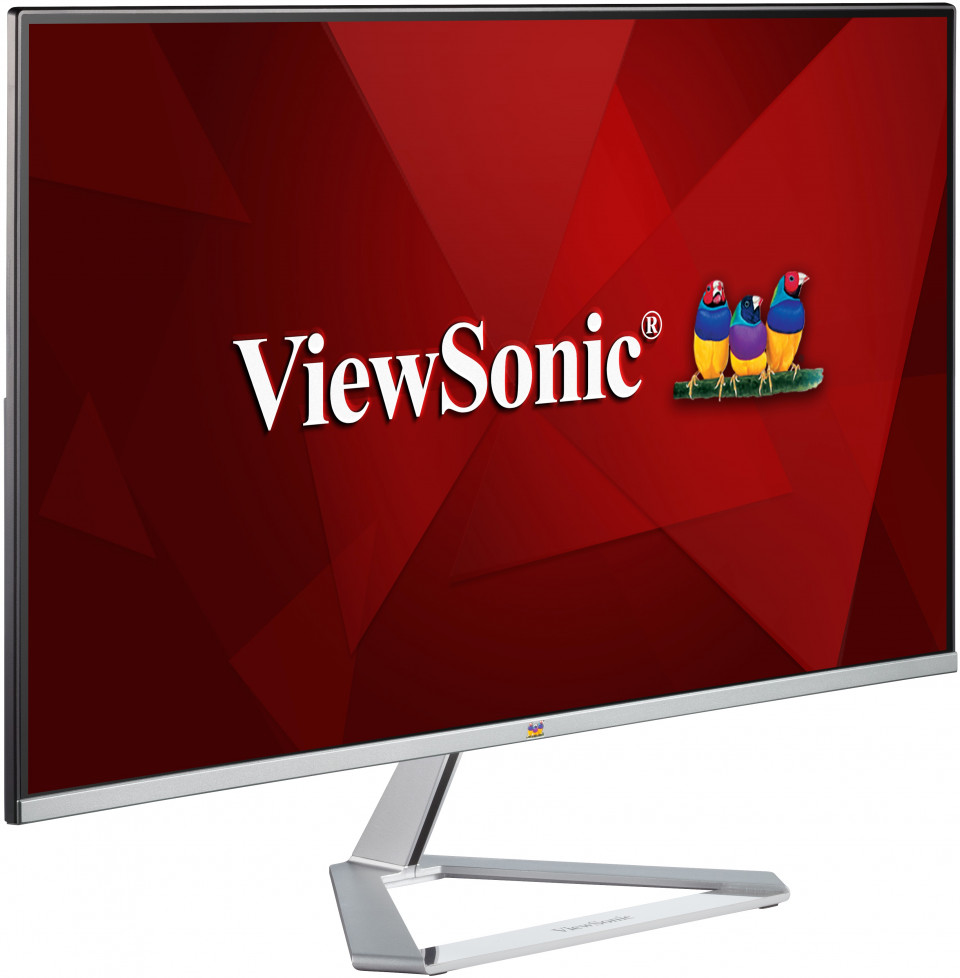

Premium Design

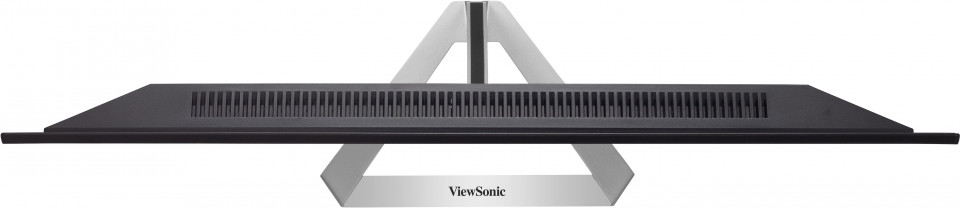

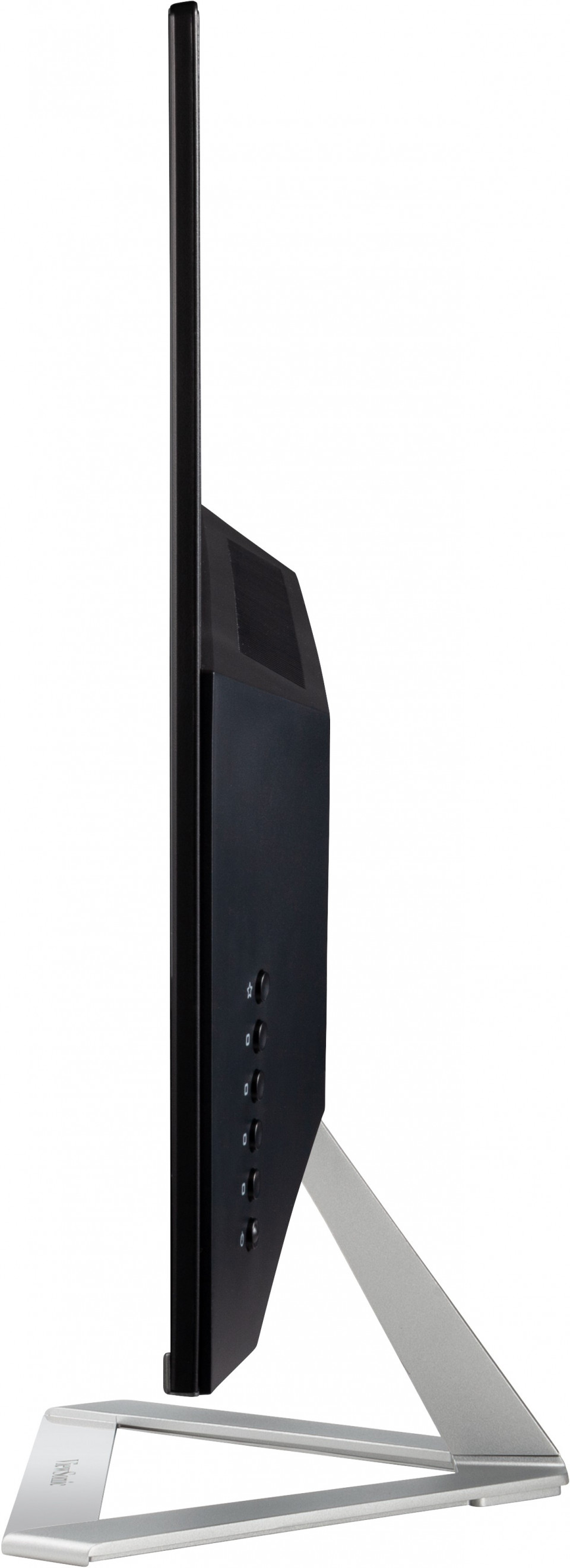

The monitor takes on an architecturally inspired design aesthetic fused with modern form factors such as a thin profile, modern frameless bezel, and a unique triangular stand.
Thin profile, frameless bezel, Chrome like triangular stand
75Hz Refresh Rate
With 75Hz refresh rate, this monitor delivers great visual fluidity and flawless graphics no matter how quickly the in-game action unfolds.
75Hz
ViewMode Optimized Settings
ViewSonic’s ViewMode includes optimized “Game”, “Movie”, “Web”, “Text”, “Mono”, and “Mac” presets. Each preset offers specialized enhancements to gamma curve, color temperature, contrast, and brightness to deliver the optimal viewing experience for different applications.
Game, Movie, Web, Text, Mac, Mono
Eye Care Technology
Flicker-Free Technology and Blue Light Filter minimize eyestrain over extended viewing periods.
Blue Light Filter & Flicker-Free

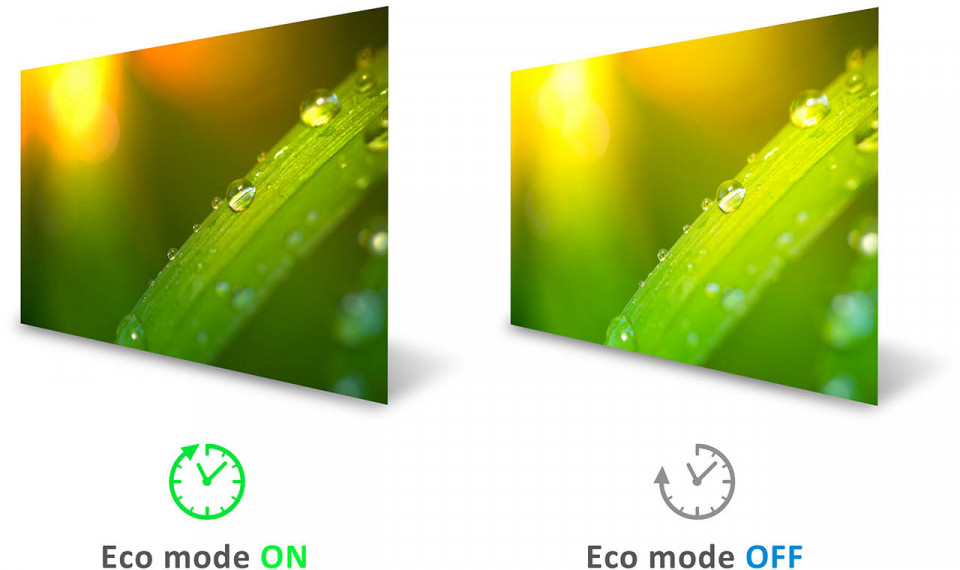

Low Energy Consumption
ViewSonic’s energy efficient Eco-Mode adjusts brightness to the optimal setting to reduce power consumption and eye fatigue while also prolonging the monitor’s lifespan.
ECO-Mode
SPECIFICATIONS
Display
Display Size (in.):
27
Viewable Area (in.):
27
Panel Type:
IPS Technology
Resolution:
1920 x 1080
Resolution Type:
FHD (Full HD)
Static Contrast Ratio:
1,000:1 (typ)
Dynamic Contrast Ratio:
80M:1
Light Source:
LED
Brightness:
250 cd/m² (typ)
Colors:
16.7M
Color Space Support:
8 bit (6 bit + FRC)
Aspect Ratio:
16:9
Response Time (Typical GTG):
4ms
Viewing Angles:
178º horizontal, 178º vertical
Backlight Life (Hours):
30000 Hrs (Min)
Curvature:
Flat
Refresh Rate (Hz):
100
Low Blue Light:
Software solution
Flicker-Free:
Yes
Color Gamut:
NTSC: 72% size (Typ)
sRGB: 100% size (Typ)
Pixel Size:
0.311 mm (H) x 0.311 mm (V)
Surface Treatment:
Anti-Glare, Hard Coating (3H)
Compatibility
PC Resolution (max):
1920x1080
Mac® Resolution (max):
1920x1080
PC Operating System:
Windows 10/11 certified; macOS tested
Mac® Resolution (min):
1920x1080

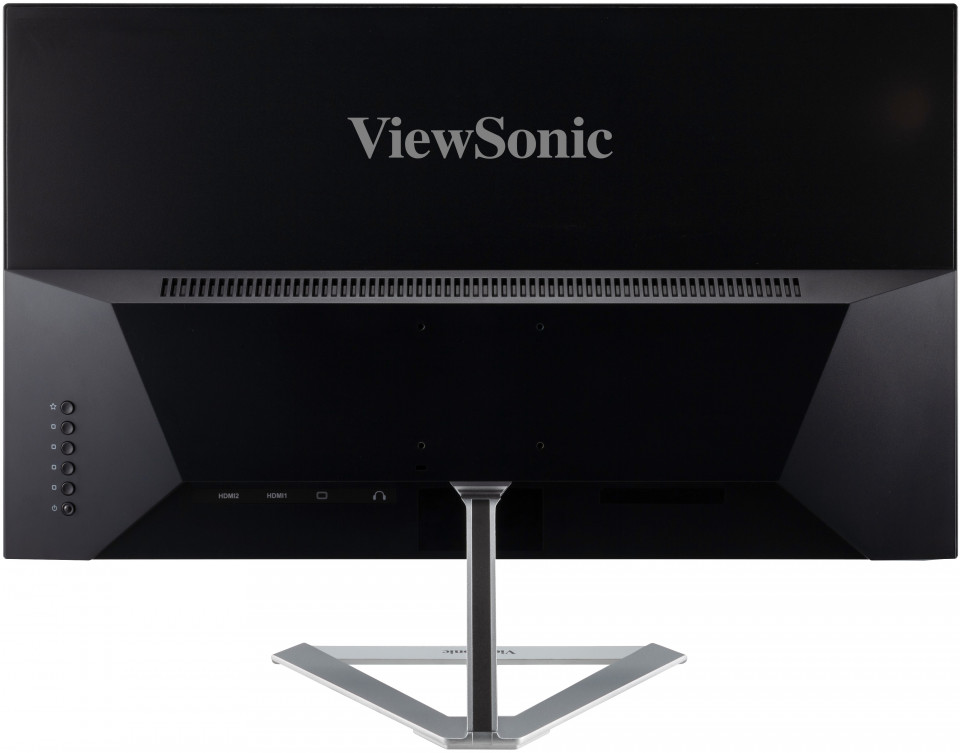

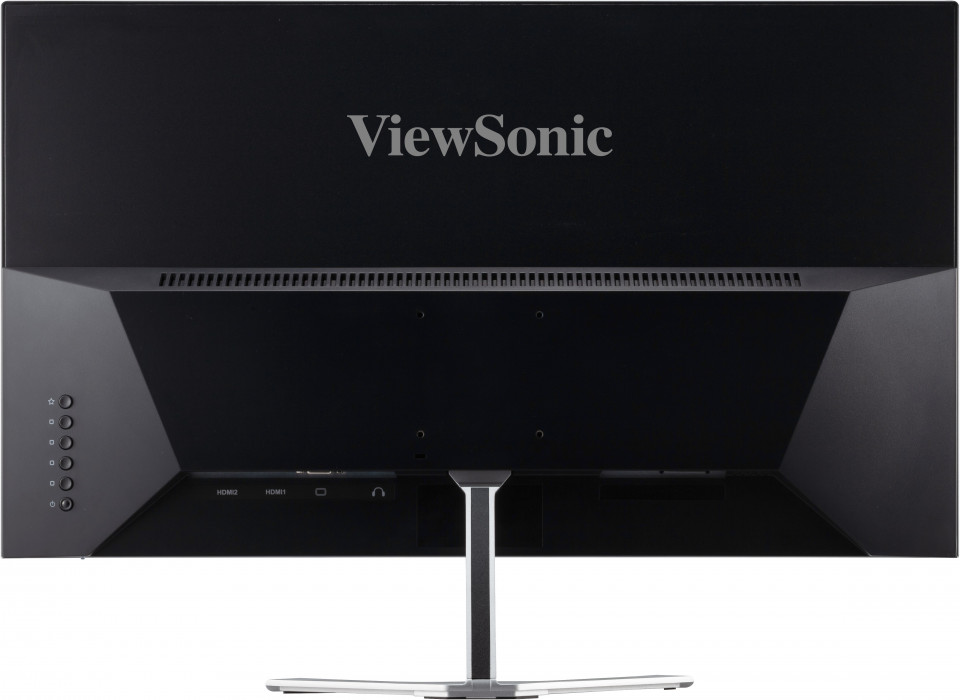

Connector
VGA:
1
3.5mm Audio Out:
1
HDMI 1.4:
2
Power in:
3-pin Socket (IEC C14 / CEE22)
Power
Eco Mode (Conserve):
18W
Eco Mode (optimized):
21W
Consumption (typical):
24W
Consumption (max):
25W
Voltage:
AC 100-240V
Stand-by:
0.5W
Power Supply:
Internal Power Supply
Additional Hardware
Kensington Lock Slot:
1
Controls

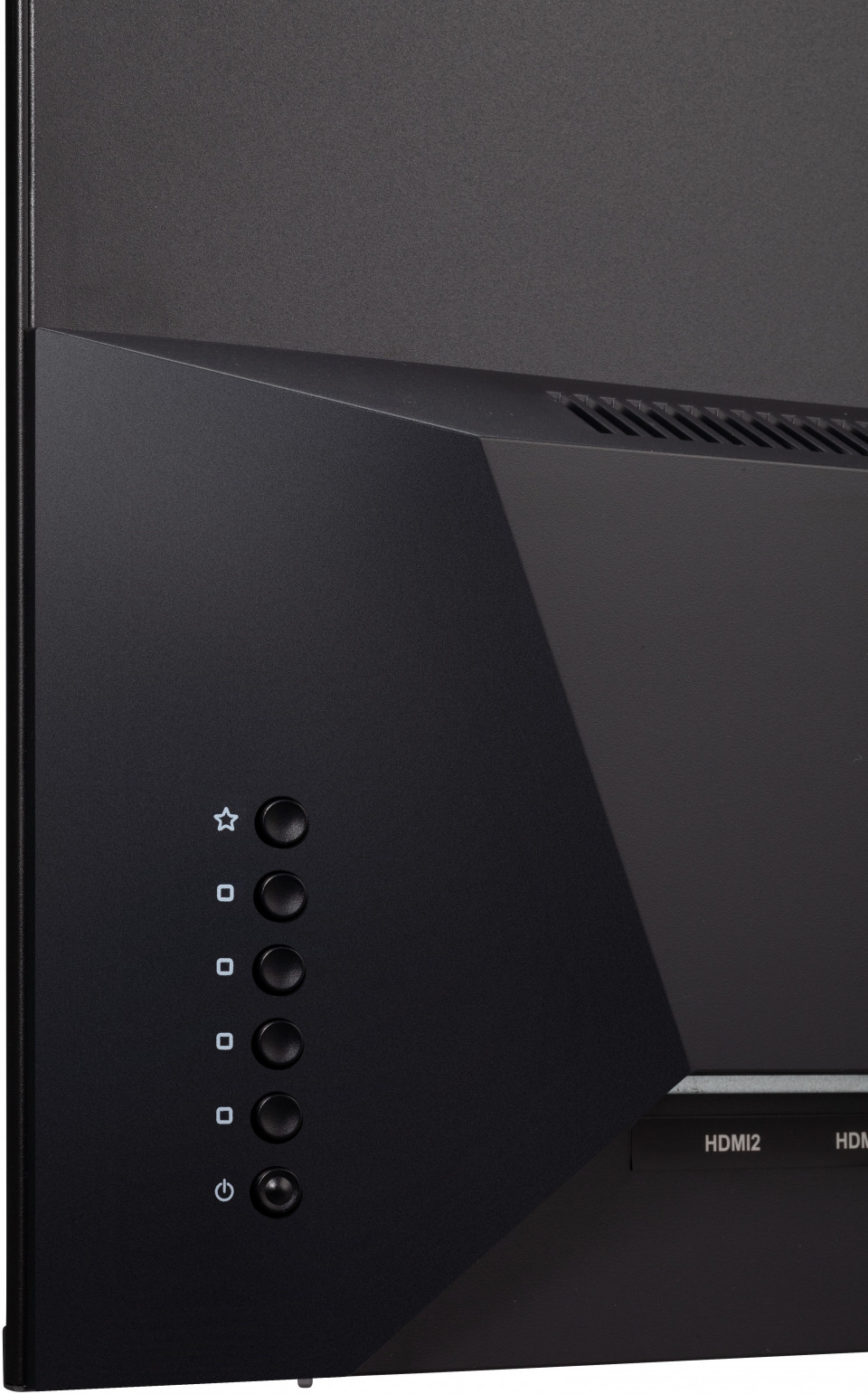

Physical Controls:
Key 1 (favorite), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
On Screen Display:
Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu
Operating Conditions
Temperature:
32°F to 104°F (0°C to 40°C)
Humidity (non-condensing):
20% to 90%
Wall Mount
VESA Compatible:
75 x 75 mm
Input Signal
Frequency Horizontal:
RGB Analog: 15 ~ 83KHz, HDMI (v1.4): 30 ~ 115KHz
Frequency Vertical:
RGB Analog: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 100Hz
Video Input
Digital Sync:
TMDS - HDMI (v1.4)
Analog Sync:
Separate - RGB Analog
Ergonomics

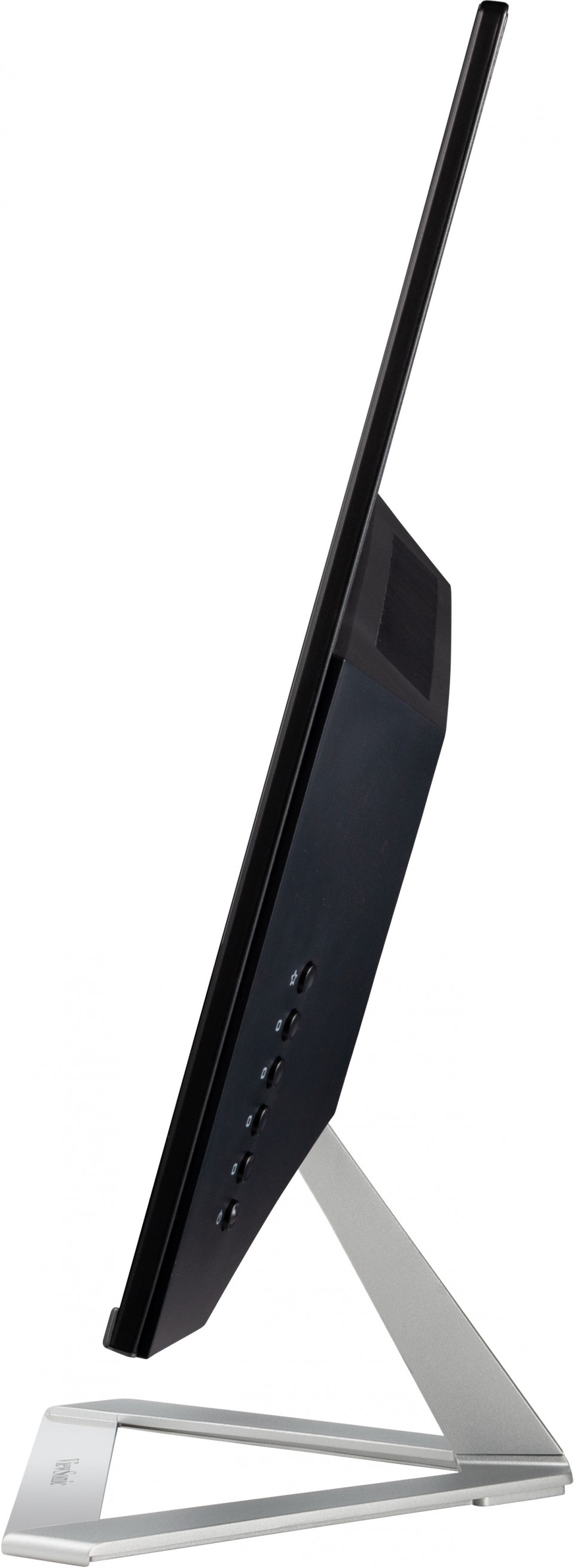

Tilt (Forward/Back):
-3º / 15º
Weight (imperial)
Net (lbs):
8.8
Net Without Stand (lbs):
7.9
Gross (lbs):
12.1
Weight (metric)
Net (kg):
4
Net Without Stand (kg):
3.6
Gross (kg):
5.5
Dimensions (imperial) (wxhxd)
Packaging (in.):
27.6 x 18.2 x 4.4
Physical (in.):
24.2 x 17.5 x 7.2
Physical Without Stand (in.):
24.2 x 14.1 x 1.7
Dimensions (metric) (wxhxd)
Packaging (mm):
702 x 462 x 112
Physical (mm):
614 x 443 x 184
Physical Without Stand (mm):
614 x 357 x 44
General
Regulations:
CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, BIS
PACKAGE CONTENTS:
VX2776-SH x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, Quick Start Guide x1
Recycle/Disposal:
Please dispose of in accordance with local, state or federal laws.
Warranty:
*Warranty offered may differ from market to market
View full specs
SUPPORT & DOWNLOADS
Datasheets
VX2776-SH Datasheet
User Guides
VX2776-SH User Guide (한국어)
See all languages
VX2776-SH User Guide (Bahasa Indonesia)
VX2776-SH User Guide (Dansk)
VX2776-SH User Guide (Deutsch)
VX2776-SH User Guide (English)
VX2776-SH User Guide (Español )
VX2776-SH User Guide (Français)
VX2776-SH User Guide (Hrvatski)
VX2776-SH User Guide (Italiano)
VX2776-SH User Guide (Magyar)
VX2776-SH User Guide (Nederlands)
VX2776-SH User Guide (Norsk)
VX2776-SH User Guide (Polski)
VX2776-SH User Guide (Português)
VX2776-SH User Guide (Română)
VX2776-SH User Guide (Srpski)
VX2776-SH User Guide (Suomi)
VX2776-SH User Guide (Svenska)
VX2776-SH User Guide (Türkçe)
VX2776-SH User Guide (Česky)
VX2776-SH User Guide (Ελληνικά)
VX2776-SH User Guide (Български)
VX2776-SH User Guide (Русский)
VX2776-SH User Guide (Українська)
VX2776-SH User Guide (日本語)
VX2776-SH User Guide (简体中文)
VX2776-SH User Guide (繁體中文)
VX2776-SH User Guide (ﺍﻟﻌﺭﺑﻳﺔ)
Quick Start Guide
VX2776-SH Quick Start Guide
Driver & Software
Standard Monitor Driver Signed Windows 10 x64
Standard Monitor Driver Signed Windows 10 x86
Standard Monitor Driver Signed Windows 11 x64
Standard Monitor Driver Signed Windows 7
Standard Monitor Driver Signed Windows 7 x64
Standard Monitor Driver Signed Windows 8 x64
Standard Monitor Driver Signed Windows 8 x86
Standard Monitor Driver Unsigned Windows
Standard Monitor Driver Unsigned Windows x64
Safety Compliance
VX2776-SH BSMI RoHS
×
