VG2456

24” Docking Monitor featuring USB Type-C and Ethernet

  • Docking monitor featuring USB Type-C and Ethernet
  • Daisy chain enabled
  • Flexible connectivity with HDMI, DP, DP out, USB Type-C, Ethernet, and USB 3.2
  • Ergonomic design including 40° tilt, 130mm height adjustment, swivel and pivot
  • Three-sided frameless bezel
Sales Enquiry

OVERVIEW

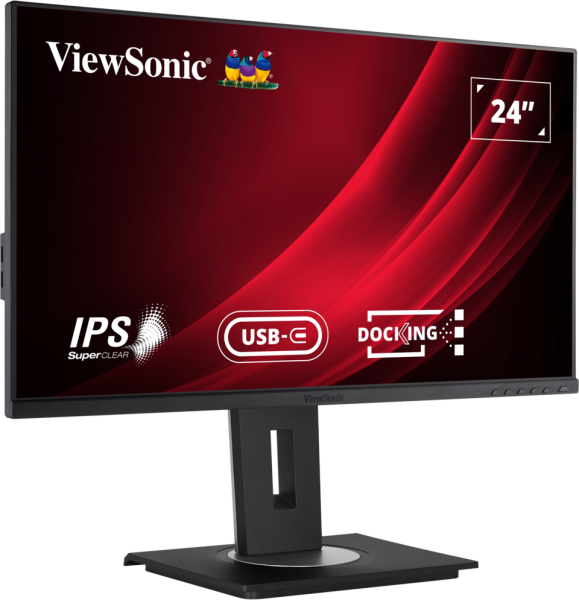

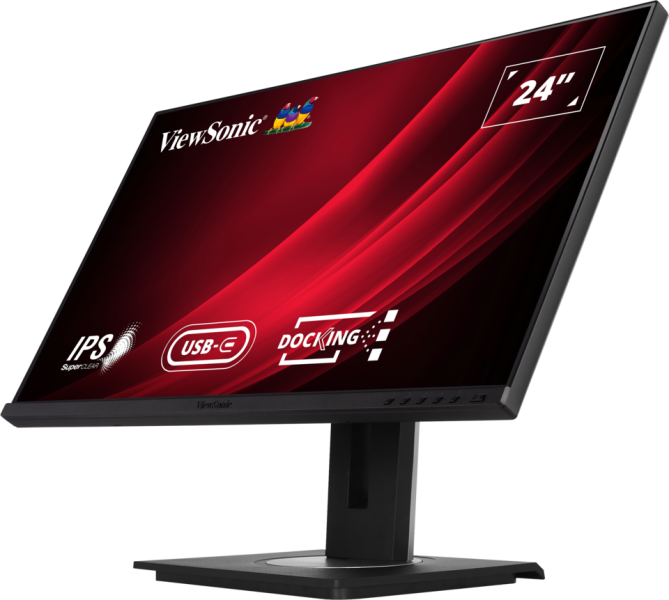

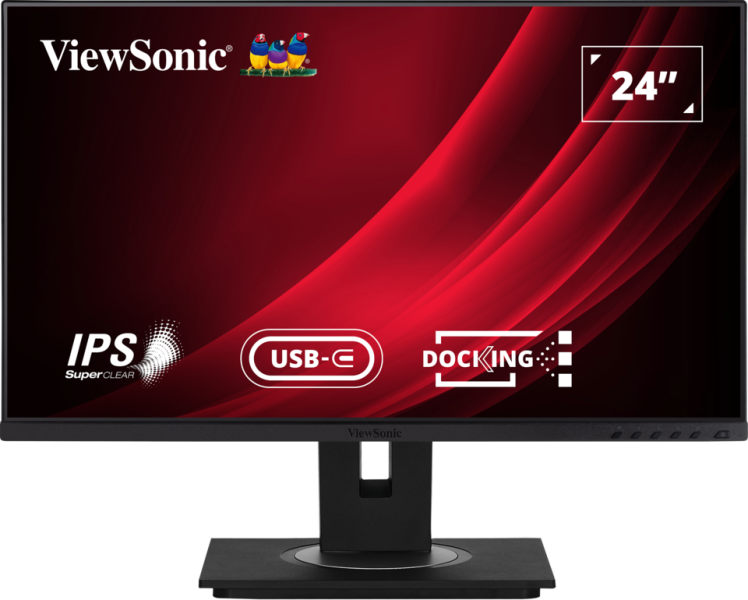

The ViewSonic VG2456 monitor is a 24” (23.8” viewable) 1080p IPS Docking monitor featuring USB Type-C and Ethernet. With the built-in USB Type-C port, you can charge and display content through a single cable from your device, enabling connection with your laptop via a single USB cable to keep the workstation tidy while using it as a docking monitor. Additionally, the Ethernet port can provide fast and stable network connection. The monitor is also equipped with DisplayPort, HDMI, and three USB Type-A ports to expand your efficiency. You can also daisy chain monitors from the Type-C or DP port. The three-sided frameless bezel design lets you enjoy an uninterrupted view of content across multiple monitors. An advanced ergonomic design offers the widest range of adjustments available for maximum comfort; including pivot, swivel, height adjustment, and an impressive 40° tilt, allowing you to use the monitor while standing or having strategic group discussions around the screen. Packaging is environmentally friendly and offers quick and easy out-of-the-box setup, making the VG2456 monitor perfect for business environments.

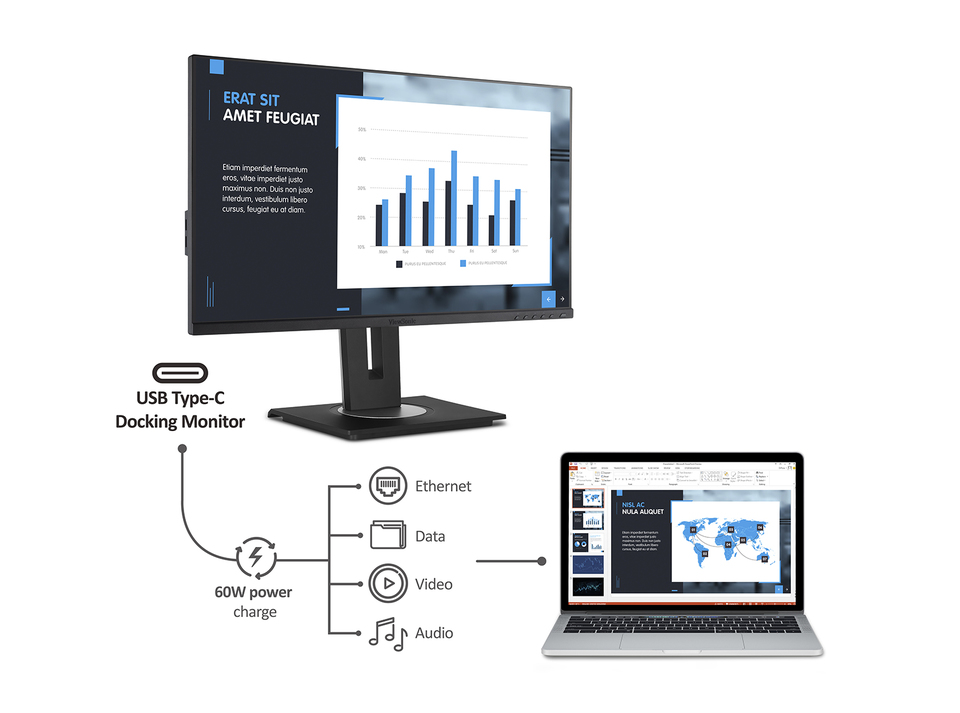

Big convenience with docking monitor

Expand your laptop functionality and plug all your devices directly into your docking monitor – the VG2456. Get a charge (that transmits power up to 60W), data, video, and audio with a single cable connected to the USB Type-C port. The built-in Ethernet port provides an extra fast and stable network option.
USB Type-C
Ethernet
Big convenience with docking monitor 1

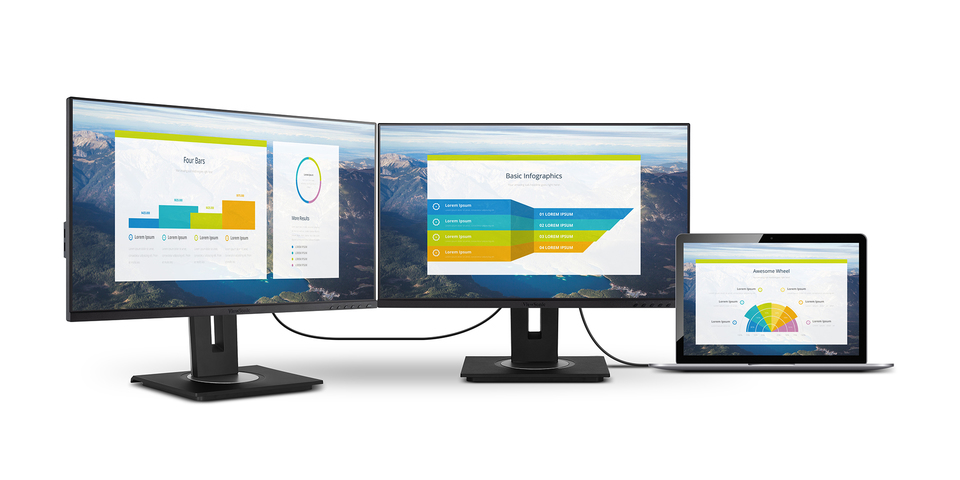

Daisy chain enabled

Daisy chain connections allow for better cable management and productivity. For more flexible connectivity, users can daisy chain the VG2456 and other monitors from the Type-C (Type-C in, DP out) and DP port (DP in, DP out).
Daisy Chain
Daisy chain enabled 1

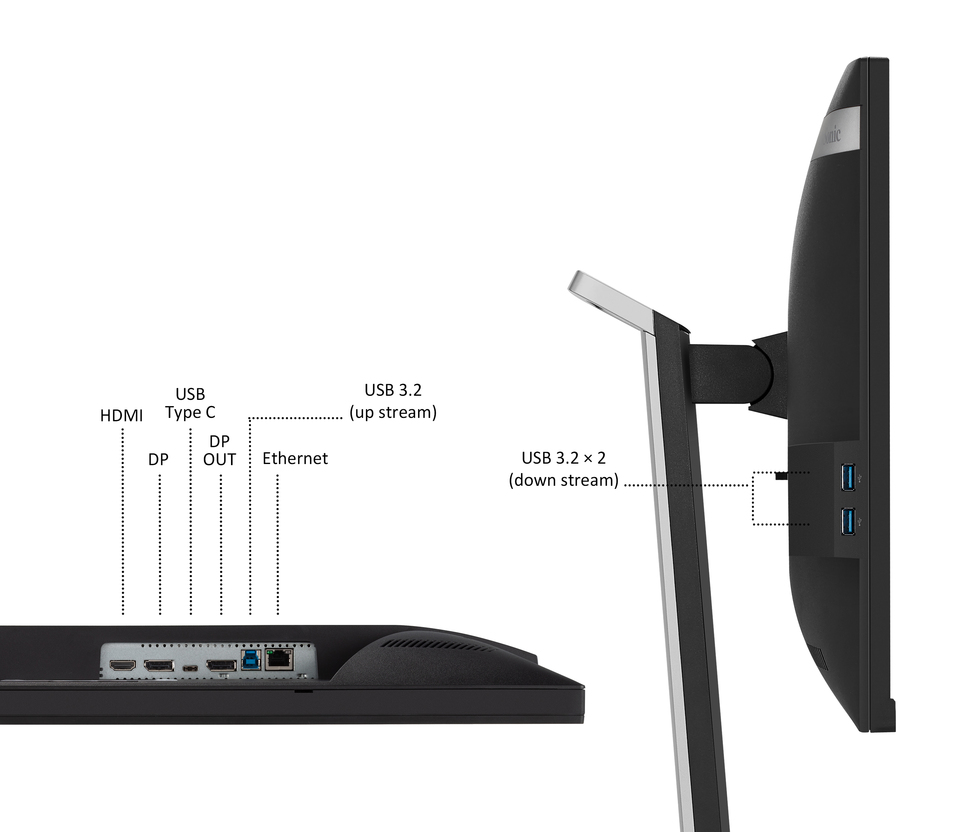

Connection Flexibility

HDMI, DP, DP out, Ethernet, USB Type-C and USB 3.2 inputs enable you to connect to an array of devices to the VG2456.
HDMI
DP
DP out
USB Type-C

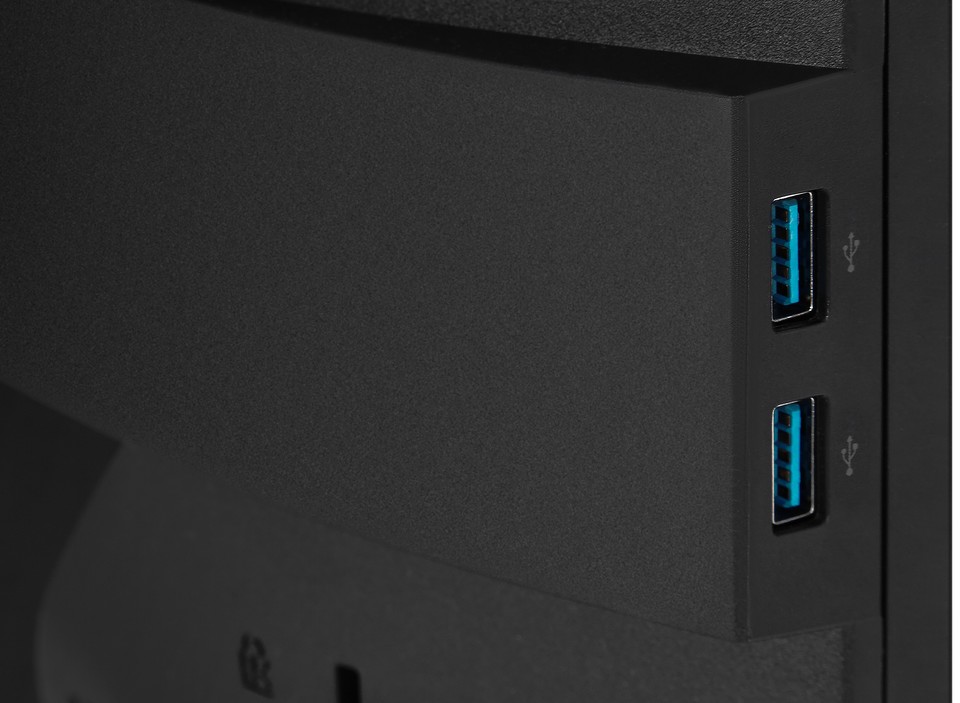

USB 3.2 x 3 (1 upstream, 2 downstreams)
Connection Flexibility 1

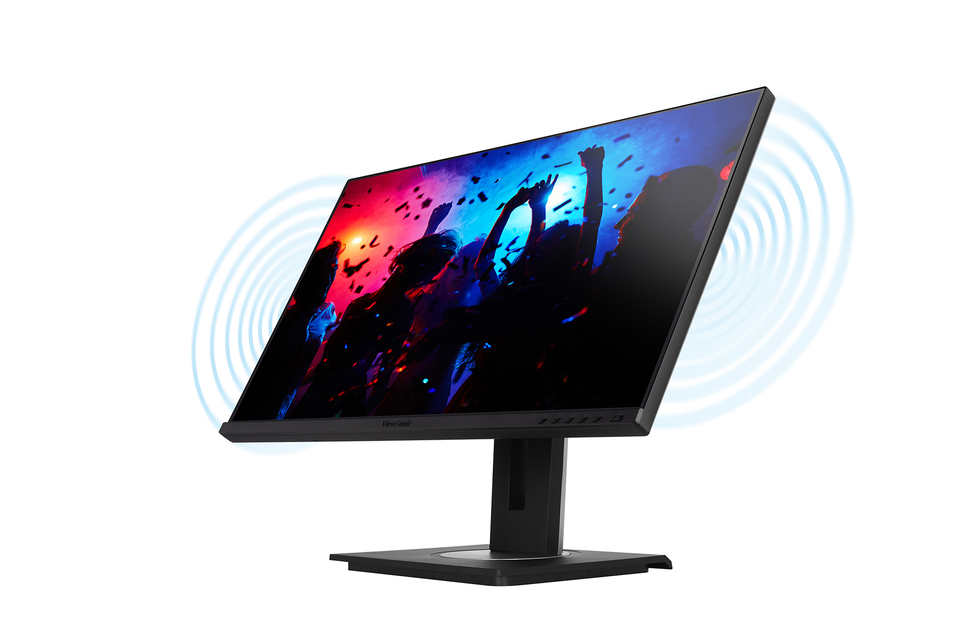

Immersive Audio

Designed with dual integrated speakers, the VG2456 accents its incredible screen performance with immersive stereo sound for a complete multimedia experience.
Dual Speakers
Immersive Audio 1

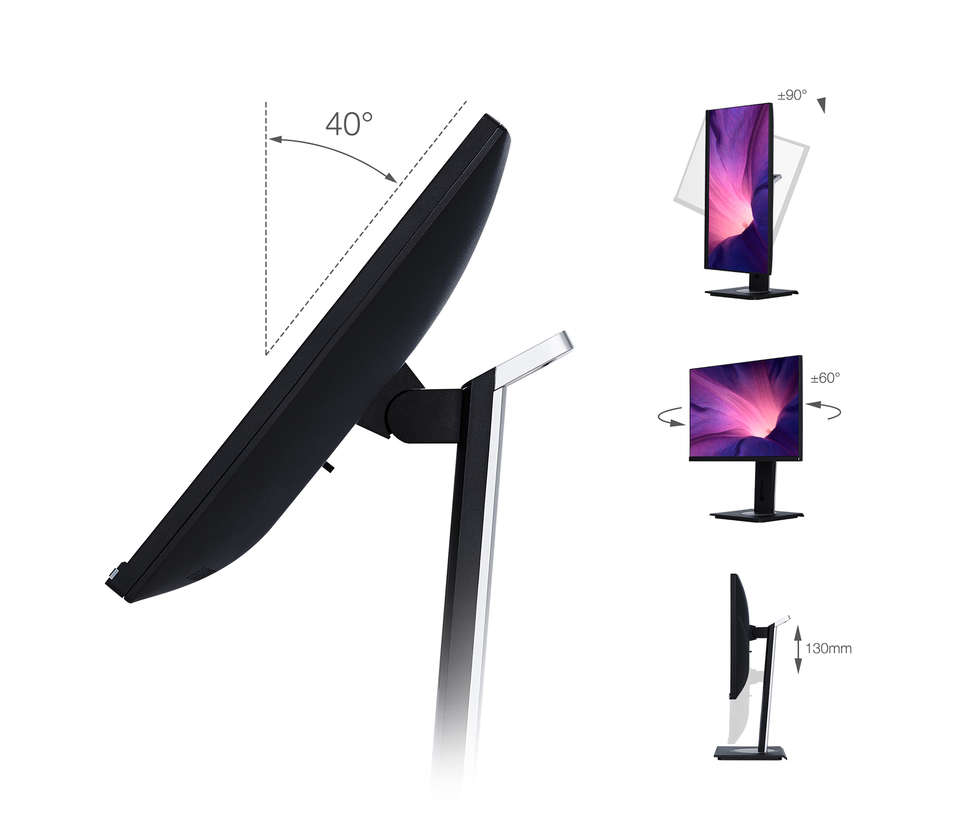

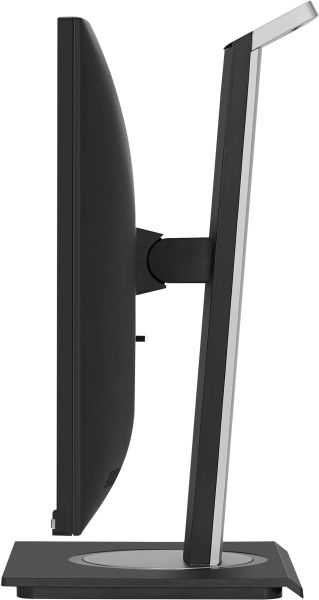

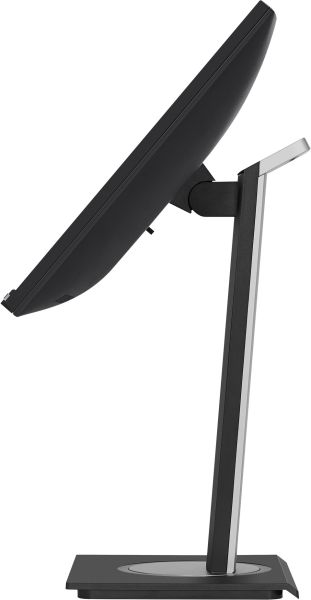

A New Angle on Workplace Ergonomics

Enjoy every detail with advanced ergonomics including pivot, swivel, and height adjustment to provide a greater range of customizable adjustment for maximum comfort. The VG2455 features a 40° ergonomic tilt angle, enabling you to use the monitor while standing or having strategic group discussions around the screen.

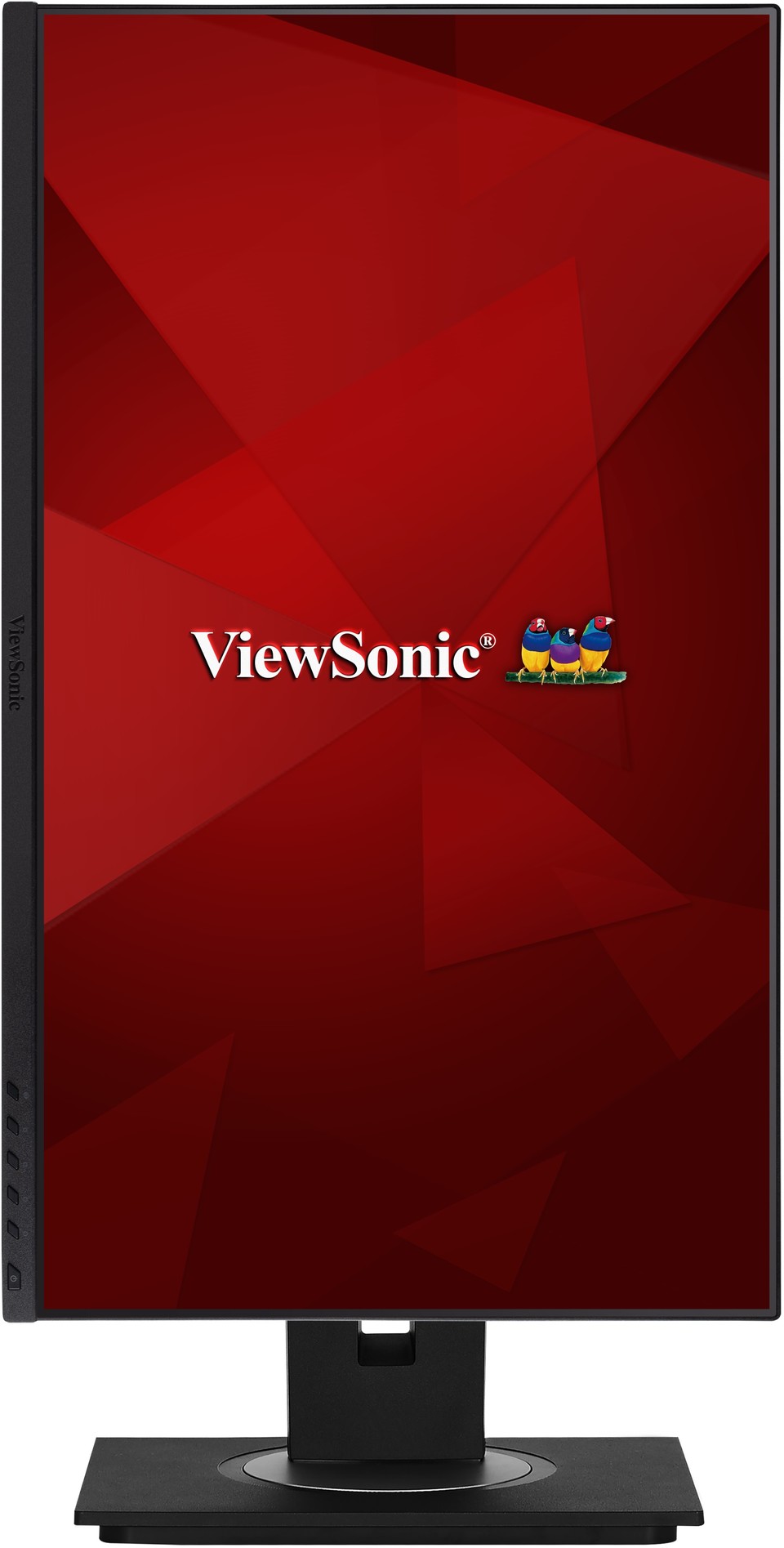

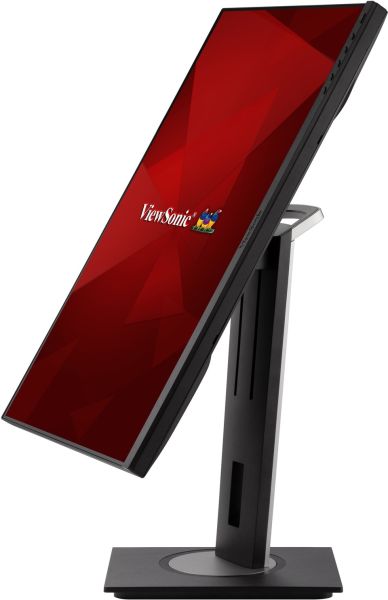

Pivot +/-90°
Swivel +/-60°
Tilt 40°~-5°
Height adjustment 0~130mm
A New Angle on Workplace Ergonomics 1

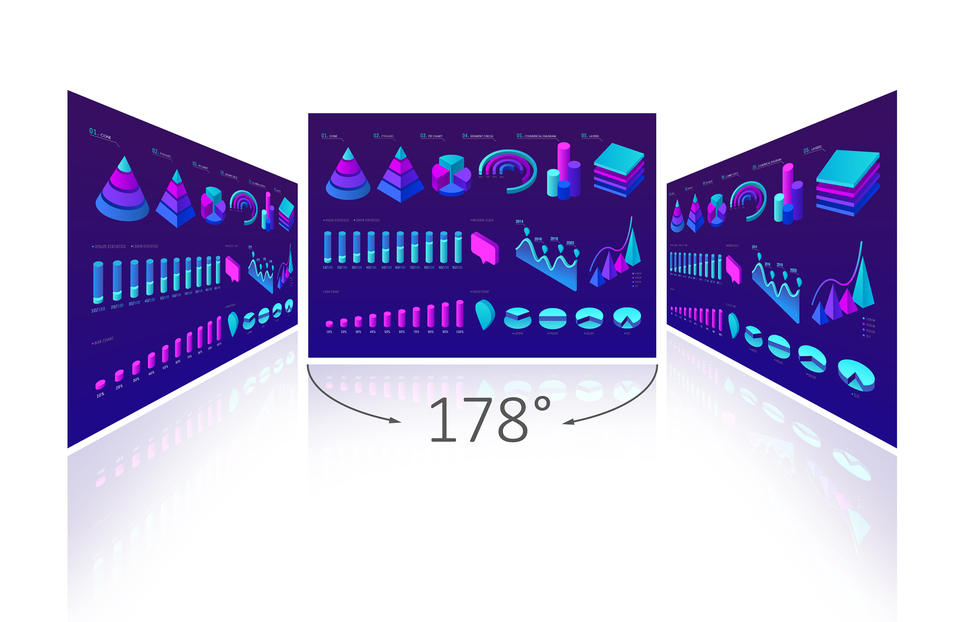

Clarity from Any Angle

Indulge in accurate and vivid colors with consistent levels of brightness from any vantage point. With SuperClear® IPS panel technology, the monitor delivers the same image quality whether you are looking at the screen from above, below, the front, or the side.
SuperClear IPS
178°/178°
Clarity from Any Angle 1

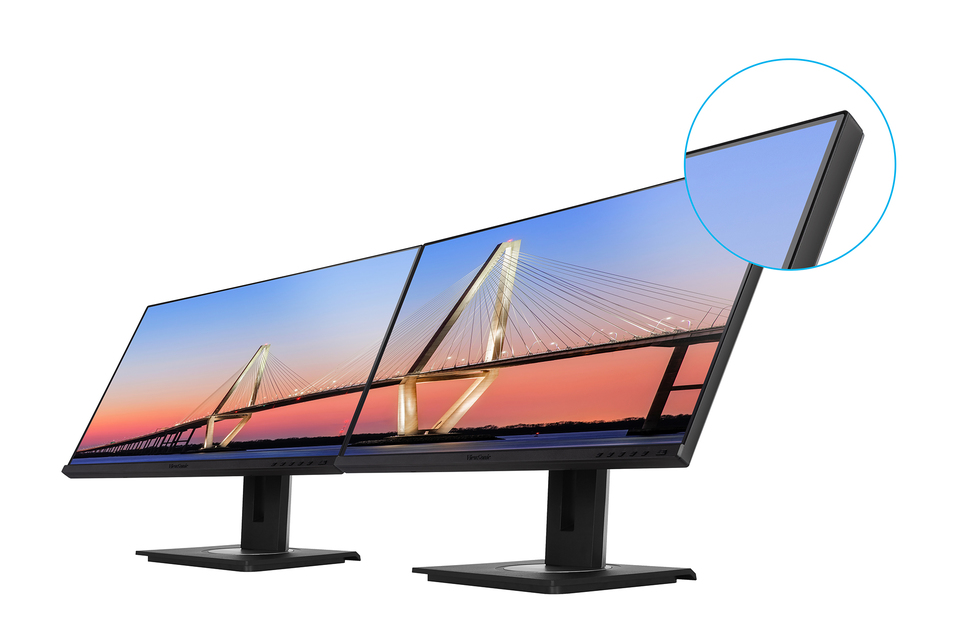

Uninterrupted Viewing

The VG2456 is designed with a frameless bezel on three sides, giving the monitor a clean look and an uninterrupted view when used in a multi-monitor setup.
Three-sided frameless bezel
Uninterrupted Viewing 1

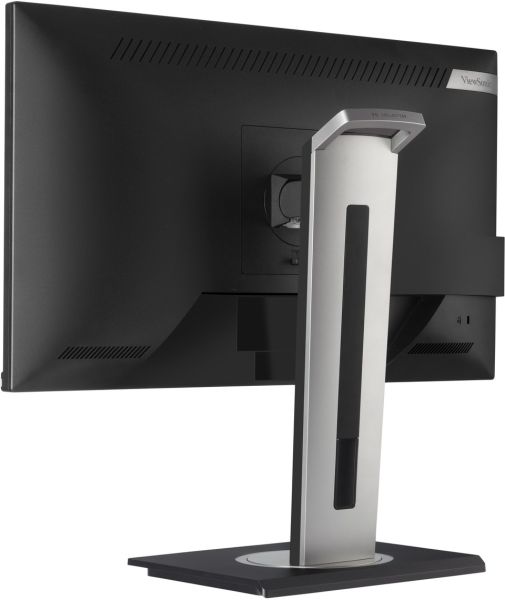

Versatile Stand Design

The VG2465’s versatile stand is client mount compatible, along with cable management design to keep your workspace neat and free of cable clutter. A carrying handle sits at the top of the stand for stability when relocating the monitor. *Client Mount Kit must be used to attach a mini PC. Client mount kit is sold separately.
Client mount compatible
Cable management

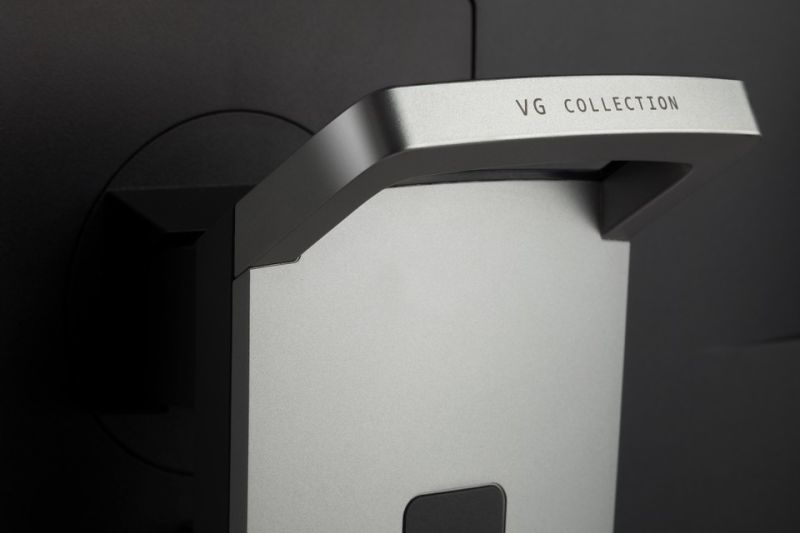

Carrying handle
Versatile Stand Design 1

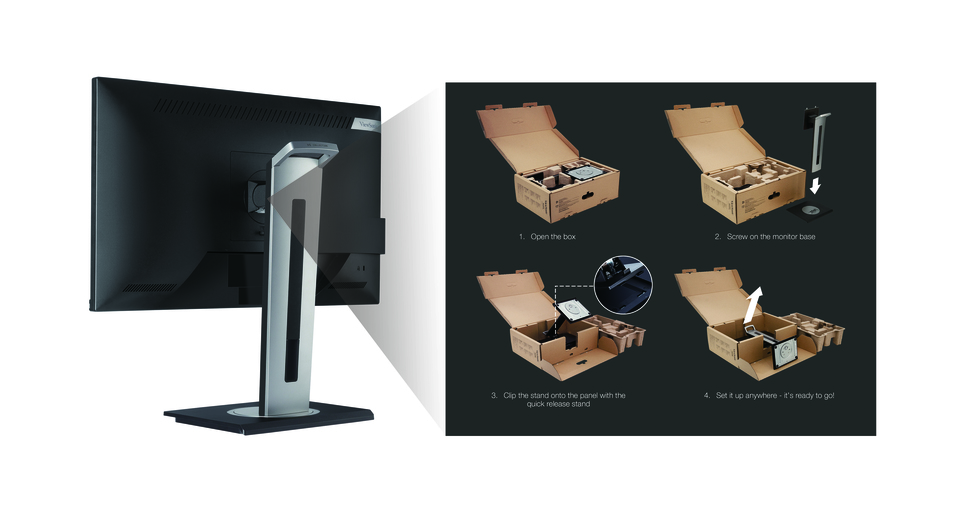

4-step Assembly

The VG2456 utilizes a Quick Release stand design which lets you attach/detach the panel with the push of a button. The monitor can be assembled entirely by hand in four simple steps:1.Open the box2.Screw on the monitor base3.Clip the stand onto the panel with the Quick Release stand4.Set it up anywhere - it’s ready to go!
Clever Package Design for Fast Assembly
Quick Release Stand
4-step Assembly 1

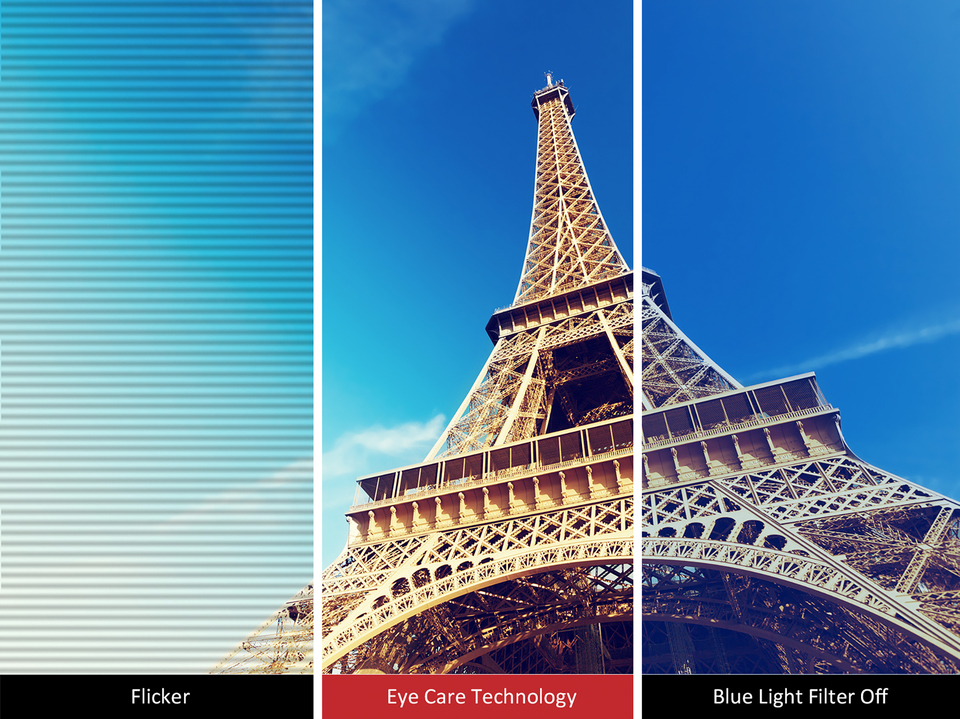

Advanced Eye Care Technology

Flicker-Free technology and a Blue Light Filter help to eliminate eyestrain caused by harmful light rays and periods of extended viewing.
Flicker Free
Blue Light Filter
Advanced Eye Care Technology 1

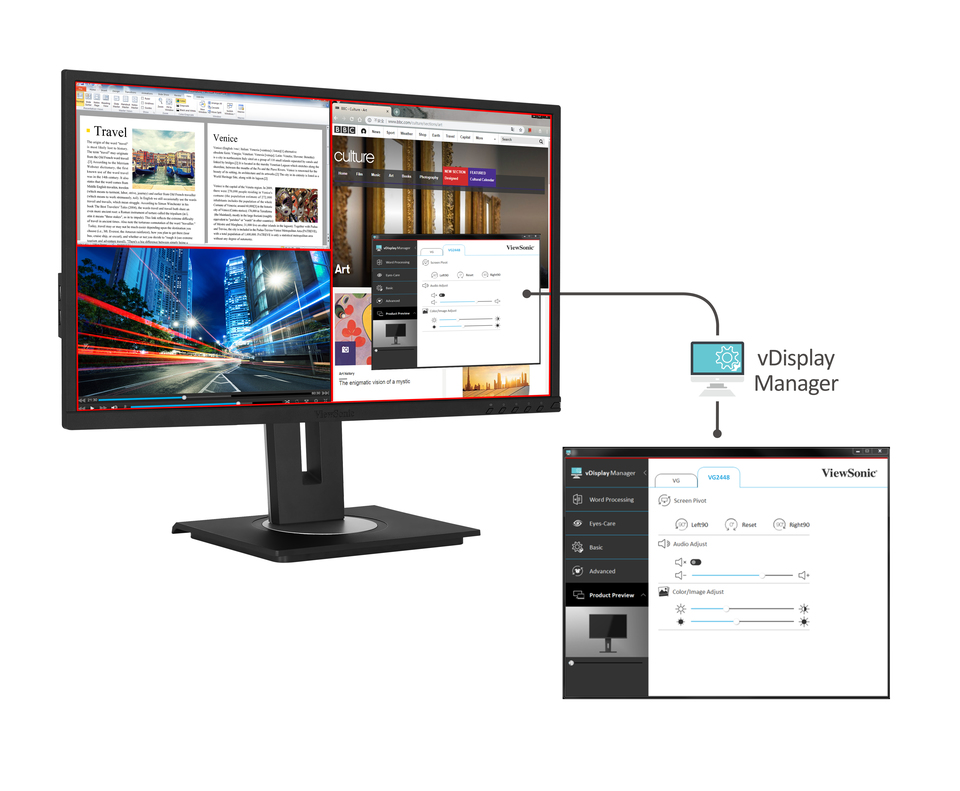

vDisplay Manager

ViewSonic’s proprietary vDisplay Manager software is available for free and allows users to organize and divide their screen into multiple segments. The software also enables users to adjust their monitor settings via the software directly for a more efficient workflow.
Spilt screen
Monitor settings
vDisplay Manager 1

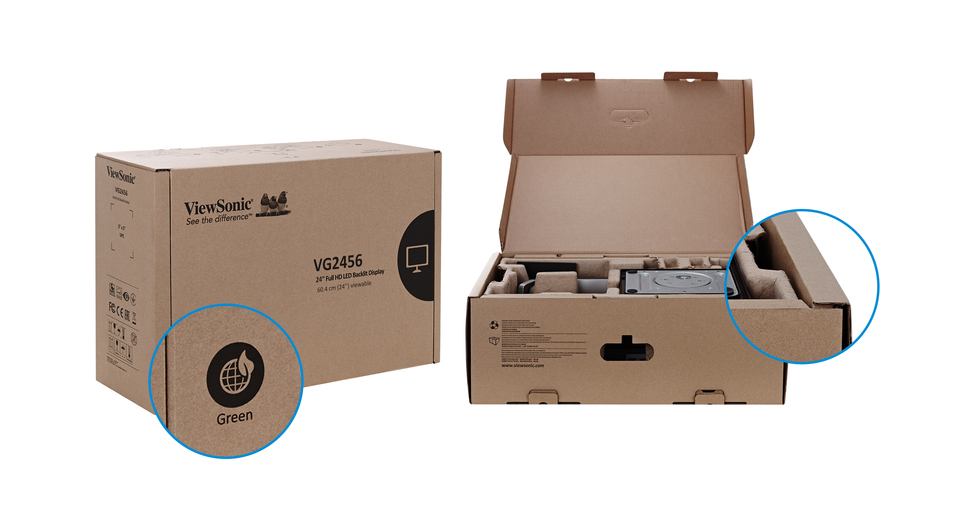

Environmentally Friendly Packaging

Designed with the environment in mind, the packaging for the VG2456 is made with up to 80% recyclable and paper based materials instead of hazardous EPS (polystyrene). Additional plastic materials, such as handles, have been replaced with hand holes and the exterior of the package uses mono color printing.
Made with 80% Recyclable Materials Paper-based packaging
Environmentally Friendly Packaging 1

Certified Environmental Sustainability

The VG2456 is an ENERGY STAR and EPEAT-certified product that can save on energy costs while reducing greenhouse gases.
*Energy savings may vary based on actual usage and other factors.
*Certifications and safety regulations are dependent on the purchase area.
Energy Star & EPEAT
Certified Environmental Sustainability 1

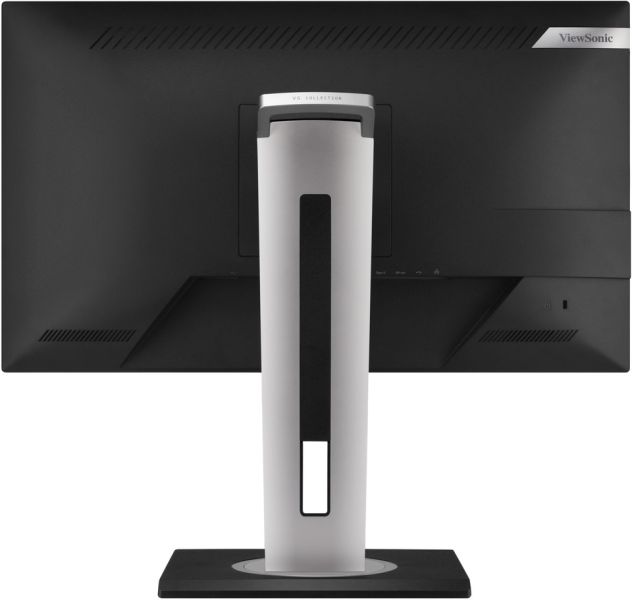

VESA Compatible

Mount the monitor exactly to your liking by utilizing the monitor’s 100 x 100 mm VESA compatible design.
100 x 100mm

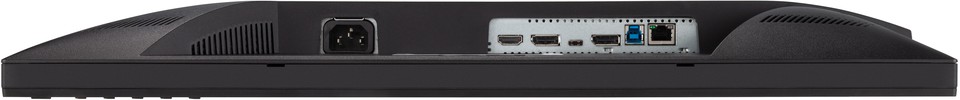

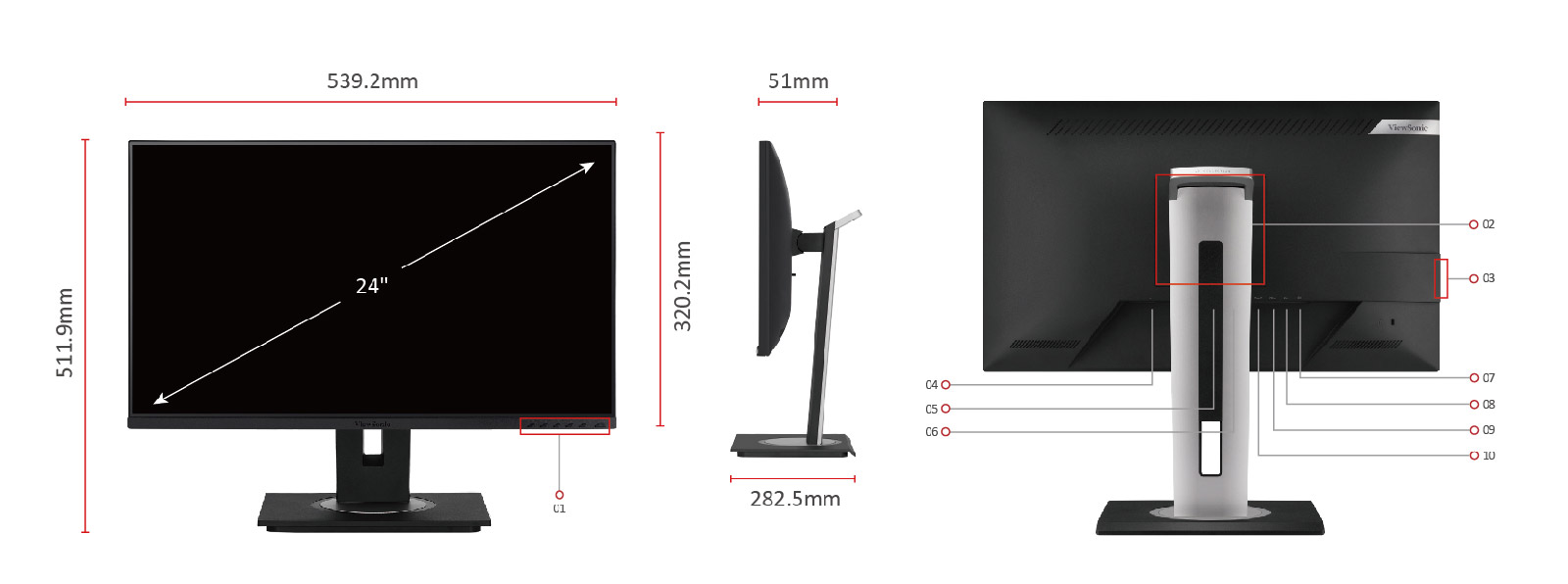

  1. Menu control Panel
  2. VESA Compatible
    (Wall Mount 100x100mm)
  3. USB Down Stream X 2
  4. AC In
  5. HDMI
  6. DP IN
  7. LAN
  8. USB Up Stream
  9. DP OUT
  10. USB Type-C

SPECIFICATIONS


  • Display
    Display Size (in.): 24
    Viewable Area (in.): 23.8
    Panel Type: IPS Technology
    Resolution: 1920 x 1080
    Resolution Type: FHD (Full HD)
    Static Contrast Ratio: 1,000:1 (typ)
    Dynamic Contrast Ratio: 50M:1
    Light Source: LED
    Brightness: 250 cd/m² (typ)
    Colors: 16.7M
    Color Space Support: 8 bit (6 bit + A-FRC)
    Aspect Ratio: 16:9
    Response Time (Typical GTG): 5ms
    Response Time (GTG w/OD): 5ms
    Viewing Angles: 178º horizontal, 178º vertical
    Backlight Life (Hours): 30000 Hrs (Min)
    Curvature: Flat
    Refresh Rate (Hz): 60
    Low Blue Light: Software solution
    Flicker-Free: Yes
    Color Gamut: NTSC: 72% size (Typ)
    sRGB: 102% size (Typ)
    Pixel Size: 0.275 mm (H) x 0.275 mm (V)
    Surface Treatment: Anti-Glare, Hard Coating (3H)
  • Compatibility
    PC Resolution (max): 1920x1080
    Mac® Resolution (max): 1920x1080
    PC Operating System: Windows 11 certified; macOS tested
    Mac® Resolution (min): 1920x1080
  • Connector
    USB 3.2 Type A Down Stream: 2
    USB 3.2 Type B Up Stream: 1
    USB 3.2 Type C Up Stream; DisplayPort Alt mode : 1 (60W power charger)
    HDMI 1.4: 1
    DisplayPort: 1
    DisplayPort Out: 1
    Power in: 3-pin Socket (IEC C14 / CEE22)
    Ethernet LAN (RJ45): 1
